SolarEdge SE2200 User manual

Installation Guide
SolarEdge System
Installation Guide
For Europe and APAC
Version 4.1

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.

Disclaimers 1
Three Phase System Installation Guide MAN-01-00057-4.1

Emission Compliance
This equipment has been tested and found to comply with the limits applied by the
local regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, you are encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
-Three Phase System Installation Guide MAN-01-00057-4.1
2 Emission Compliance

Support and Contact Information
If you have technical problems concerning SolarEdge products, please contact us:
Country Phone E-Mail
Australia ([phone] [e-mail]
APAC (Asia Pacific)([phone] [e-mail]
Belgium ([phone] [e-mail]
China ([phone] support_
[e-mail]
DACH & Rest of Europe ([phone] [e-mail]
France ([phone] [e-mail]
Italy ([phone] [e-mail]
Japan ([phone] [e-mail]
Netherlands ([phone] [e-mail]
New Zealand ([phone] [e-mail]
Republic of Ireland ([phone] [e-mail]
United Kingdom ([phone]
US & Canada ([phone] [e-mail]
Greece ([phone]
[e-mail]
Israel ([phone]
Middle East &Africa ([phone]
South Africa ([phone]
Turkey ([phone]
Worldwide ([phone]
Before contact, make sure to have the following information at hand:
Model and serial number of the product in question.
The error indicated on the InverterLCD screen or on the monitoring platform or
by the LEDs, if there is such an indication.
System configuration information, including the type and number of modules
connected and the number and length of strings.
The communication method to the SolarEdge server, if the site is connected.
The inverter software version as appears in the ID status screen.
Support and Contact Information 3
Three Phase System Installation Guide MAN-01-00057-4.1

Revision History
Version 4.1 (February 2019)
Added appendix 'Determining the Circuit Breaker Size' and paragraph
referencing to it, in the 'Grid Connection Guidelines' section.
In Specifications removed 'Recommended OCPD size per grid' table.
Version 4.0 (July 2018)
This guide describes three phase inverters only
Update of product names
Removal of grounding cable connected to the DINrail in the DC Safety Unit.
Hardware change - new enclosure, interfaces and communication board
Addition of possibility to use compatible connectors from third-party
manufacturers
Update regarding use of extension cables in power optimizer installation
guidelines
Recommendation to mount the power optimizer in a location protected from
direct sunlight
Power optimizer clearance - no clearance is required on the mounting bracket
side
Addition of caution - installation in saline environment
Clearance for three phase inverters installed side-by-side, single row of inverters
outdoors: 5 cm / 2”
PVRSSis enabled by default. Enabling/ disabling PVRSS feature can be done
from the inverter LCD menus.
Addition of reference to troubleshooting undetected devices application note
Torque for connecting DC strings to the fuse holders in the DC Safety Unit: 3.4
N*M / 30 lb*in
Addition of link to the Designer web page
Updated warning about sealing unused power optimizer input connectors
DC safety voltage is 1V (±0.1V)
-Three Phase System Installation Guide MAN-01-00057-4.1
4 Revision History

Addition of link to Three Phase Inverters for Delta Grids application note
Addition of RS485-2 support
Version 3.3 (Aug.2017)
Updated the Safety section: New warning -The Safety Switch meets all
requirements for a code-compliant installation of this system. The DC
Disconnect Switch disconnects both the positive and negative conductors.
In Supported AC Grids, added:Ground connection is required for all grids
In Power Optimizer Installation chapter:
Updated string extension cable length
Added information for connecting multiple modules in parallel to an
optimizer
Removed reference to racking models and their grounding methods
Removed mentioning of tracker
In inverter Installation chapter:
Added note about copper conductors
Removed previous interface panel description and images, and type 1
bracket
In Inverter Interfaces - updated ON/OFFswitch description
Added a caution about not altering the DC Safety Unit
enclosure:SolarEdge does not permit opening or puncturing the Safety
Switch in any location other than the pre-defined drill guide locations,
or otherwise altering the construction of the enclosure, as this may
compromise safety and will void the warranty.
Reference to horizontal mounting application note
Updated clearance specifications
Connection to/from the Connection Unit:
AC grounding to bus bar instead of terminal block - updated
instructions and Connection Unit model images
String fusing requirement note updated:Fuses needed for 4 strings or
more (instead of 3).
Added conduit sealing requirement
Revision History 5
Three Phase System Installation Guide MAN-01-00057-4.1

In Commissioning chapter:
Updated the activation sequence
Updated menu information descriptions
Removed RS232 reference
In Configuration Menu Options:
Communication section:
Removed RS232 Conf
Added GSMConf
Power Control section:
Removed Phase Balance link and info
Add link to P(Q) diagram application note
Maintenance section:
Added links to application notes (Upgrading the inverter using
SD card; Isolation fault troubleshooting; Arc fault detection)
Removed Optimizer Conf
Status Screens updates:
Meter status screen - added Power and Energy lines
Telemetry status screen - updated
GSMstatus screen - new
Communication options - updated
Inverter cover removal sequence - updated
RS485-E option - new
Added link to Arc Detection application note
Troubleshooting:
Error codes moved to a separate document. A link was added to the
manual.
Slave Detect and Slave List - updated
Mechanical specifications - removed type 1 bracket
External fan replacement - updated
Updated the technical specification document
-Three Phase System Installation Guide MAN-01-00057-4.1
6 Revision History

Explained whichoptimizerinstallation steps to skip when using smart modules.
Added RS485 slave detect feature
Removed USB
Revision History 7
Three Phase System Installation Guide MAN-01-00057-4.1

Contents
Disclaimers 1
Important Notice 1
Emission Compliance 2
Support and Contact Information 3
Revision History 4
HANDLING AND SAFETY INSTRUCTIONS 10
Safety Symbols Information 10
IMPORTANTSAFETYINSTRUCTIONS 11
Chapter 1: Introducing the SolarEdge Power Harvesting System 13
Power Optimizer 13
Inverter 14
Monitoring Platform 14
Installation Procedure 14
Installation Equipment List 14
Inverter Transport and Storage 15
Chapter 2: Installing the Power Optimizers 16
Safety 16
Installation Guidelines 17
Step 1: Mounting the Power Optimizers 20
Step 2: Connecting a PV Module to a Power Optimizer 20
Step 3: Connecting Power Optimizers in Strings 21
Step 4: Verifying Proper Power Optimizer Connection 22
Chapter 3: Installing the Inverter 23
Inverter Package Contents 23
Identifying the Inverter 23
Inverter Interfaces 23
Mounting the Inverter 26
Chapter 4: Connecting the AC and the Strings to the Inverter 31
Grid Connection Guidelines 31
Connecting the ACGrid to the Inverter 32
Connecting the Strings to the Inverter 34
Selecting a Residual Current Device (RCD) 34
Chapter 5: Commissioning the Installation 36
Step 1: Activating the System 36
Step 2: Pairing Power Optimizers to the Inverter 38
Step 3: Verifying Proper Activation 40
Step 4: Reporting and Monitoring Installation Data 40
Chapter 6: User Interface 44
-Three Phase System Installation Guide MAN-01-00057-4.1
8 Revision History

LCD User Buttons 44
Inverter Configuration – Setup Mode 46
Configuration Menu Options 50
Status Screens - Operational Mode 57
Chapter 7: Setting Up Communication 66
Communication Options 66
Communication Connectors 69
Removing the Inverter Cover 70
Creating an Ethernet (LAN) Connection 70
Creating an RS485 Bus Connection 74
Verifying the Connection 78
Appendix A: Errors and Troubleshooting 80
Troubleshooting Communication 80
Power Optimizer Troubleshooting 82
Appendix B: Mechanical Specifications 84
Appendix C: Connecting the AC and DCStrings to the DC Safety Unit 85
Connecting the ACGrid to the Inverter 86
Connecting the Strings to the DC Safety Unit 87
Appendix D: SafeDC™ 90
Appendix E: External Fan Maintenance and Replacement 91
Fan Maintenance 91
External Fan Replacement 91
Appendix F: Replacing and Adding System Components 93
Replacing an Inverter 93
Replacing the DC Safety Unit 94
Adding, Removing, or Replacing Power Optimizers 97
Appendix G: Determining the Circuit Breaker Size 98
Revision History 98
Introduction 98
Using Transformers in Commercial Three Phase Inverter Installations 98
Determining the Size of an Inverter Circuit Breaker 100
Technical Specifications - Single Phase Inverters (Europe &APAC) 102
Technical Specifications - Three Phase Inverters (Europe &APAC) 105
Revision History 9
Three Phase System Installation Guide MAN-01-00057-4.1

HANDLING AND SAFETY INSTRUCTIONS
During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and
damage to the equipment.
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:
NOTE
Discard this product according to local regulations or send it back to SolarEdge.
-Three Phase System Installation Guide MAN-01-00057-4.1
10 HANDLING AND SAFETY INSTRUCTIONS

IMPORTANTSAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS

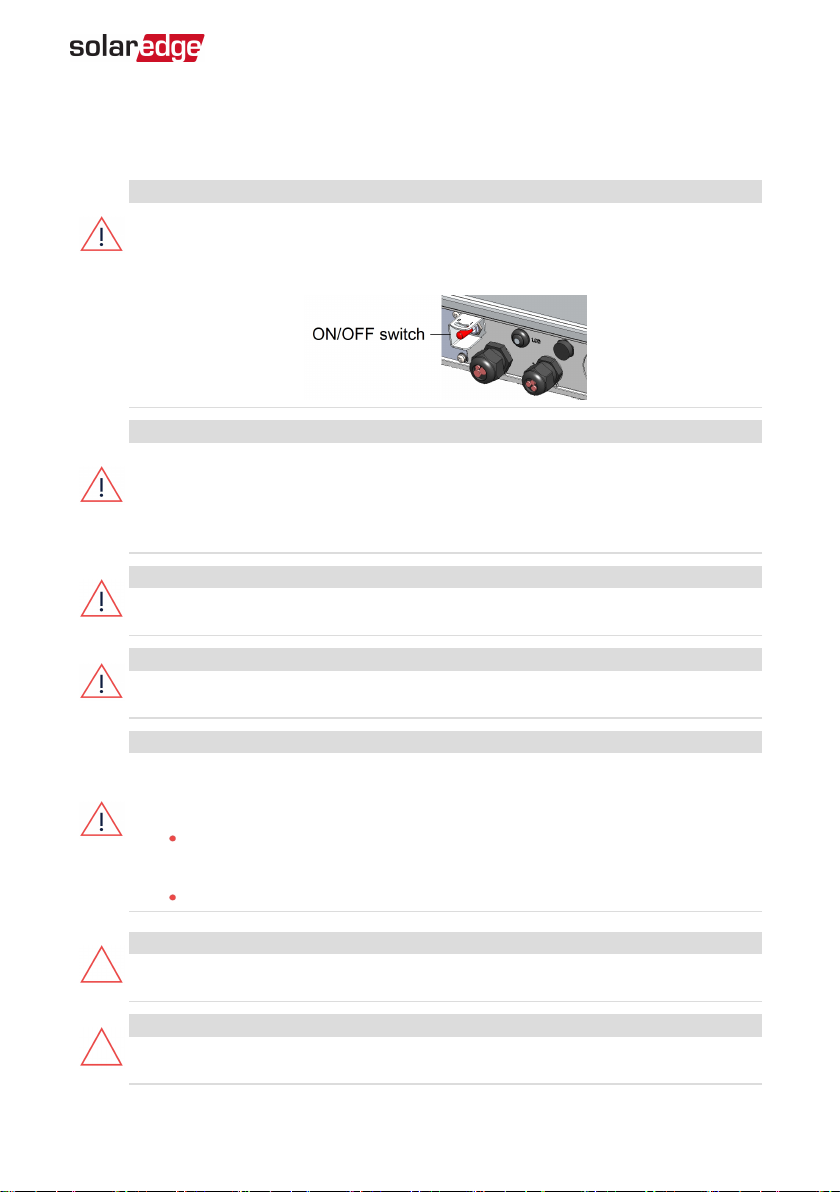

WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.

WARNING!
Before operating the inverter, ensure that the inverter AC power cable and wall
outlet are grounded properly. This product must be connected to a grounded,
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the product.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
WARNING!
Do not touch the PV panels or any rail system connected when the inverter
switch is ON, unless grounded.
WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case
SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:
Voc,max = Maximum Voc (at lowest temperature) of the PV module in
the string (for a string with multiple module models, use the max value)
String Length = number of power optimizers in the string
CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
IMPORTANTSAFETYINSTRUCTIONS 11
Three Phase System Installation Guide MAN-01-00057-4.1

NOTE
The inverter is IP65 rated . Unused conduit openings and glands should be
sealed with appropriate seals.
NOTE
Use PV modules rated according to IEC 61730 class A.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
NOTE
A SolarEdge inverter may be installed in a site with a generator, however must
not operate at the same time as the generator.
Operating an inverter and a generator simultaneously will void the warranty.
SolarEdge requires installing a physical or electronic interlock, which will
prevent the generator and inverter from operating simultaneously. Interlock
procurement, installation, maintenance and support are the responsibility of
the installer. Damage to the inverter due to incorrect interlock installation or
use of an interlock that is incompatible with the SolarEdge system will render
the SolarEdge warranty invalid.
NOTE
The following warning symbols appear on the inverter warning label:
Risk of electric shock
Risk of electric shock from energy stored in the capacitor. Do not
remove cover
until 5 minutes after disconnecting all sources of supply.
Hot surface – To reduce the risk of burns, do not touch.
-Three Phase System Installation Guide MAN-01-00057-4.1
12 IMPORTANTSAFETYINSTRUCTIONS

Chapter 1: Introducing the SolarEdge Power
Harvesting System
The SolarEdge power harvesting solution maximizes the power output from any type of
solar Photovoltaic (PV) installation while reducing the average cost per watt. The
following sections describe each of the system’s components.
Figure 1: The SolarEdge power harvesting system components
Power Optimizer
The power optimizers are DC-DC converters connected to PV modules in order to
maximize power harvesting by performing independent Maximum Power Point
Tracking (MPPT) at the module level.
The power optimizers regulate the string voltage at a constant level, regardless of string
length and environmental conditions.
The power optimizers include a safety voltage function that automatically reduces the
output of each power optimizer to 1 Vdc in the following cases:
During fault conditions
The power optimizers are disconnected from the inverter
The inverter ON/OFF switch is turned OFF
The safety switch on the DC Safety Unit is turned OFF
The inverter AC breaker is turned OFF
Each power optimizer also transmits module performance data over the DC power line
to the inverter.
Chapter 1: Introducing the SolarEdge Power Harvesting System 13
Three Phase System Installation Guide MAN-01-00057-4.1

Two types of power optimizers are available:
Module Add-on power optimizer – connected to one or more modules
Smart modules - the power optimizer is embedded into a module
Inverter
The inverter efficiently converts DC power from the modules into AC power that can be
fed into the main ACservice of the site and from there to the grid. The inverter also
receives the monitoring data from each power optimizer and transmits it to a central
server (the monitoring platform; requires Internet connection).
Some inverters are available with an optional DC Safety Unit. The DC Safety Unit has a
manually operated switch for disconnecting the DC power of a SolarEdge system.
The DC Safety Unit is located below the inverter and is connected to the inverter with
AC and DC wires.
Monitoring Platform
The monitoring platform enables monitoring the technical and financial performance of
one or more SolarEdge sites. It provides past and present information on the system
performance both at the system and module levels.
Installation Procedure
The following is the procedure for installing and setting up a new SolarEdge site. Many
of these also apply to modification of an existing site.
1. Connecting Power Optimizers in Strings, page 21.
2. Recording power optimizer serial numbers (optional), page 41.
3. Mounting the inverter, Page 26.
4. Connecting the AC and the Strings to the Inverter, page 32, or Connecting the AC and the
String to the DCSafety Unit, page 85.
5. Commissioning and activating the installation, page 36.
6. Connecting the inverter to the monitoring platform, page 42.
7. Configuring the inverter, page 44.
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
-Three Phase System Installation Guide MAN-01-00057-4.1
14  Inverter

Allen screwdriver for 5mm screw type for the inverter cover, DC Safety Unit
cover (if applicable), and inverter side screws
Allen screwdriver for M5/M6/M8 screw types
Standard flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the
surface on which the inverter and optimizers will be installed. Use of an impact
driver is not allowed.
Appropriate mounting hardware (for example: stainless bolts, nuts, and
washers) for attaching:
the mounting brackets to the mounting surface
the power optimizer to the racking (not required for smart modules)
MC4 crimper
Wire cutters
Wire strippers
Voltmeter
For installing the communication options, you may also need the following:
For Ethernet:
CAT5/6 twisted pair Ethernet cable with RJ45 connector.
If using a CAT5/6 cable spool: RJ45 plug and RJ45 crimper
For RS485:
Four- or six-wire shielded twisted pair cable.
Watchmaker precision screwdriver set
Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -25°C to +65°C /
-13°F to 149°F.
Chapter 1: Introducing the SolarEdge Power Harvesting System 15
Three Phase System Installation Guide MAN-01-00057-4.1

Chapter 2: Installing the Power Optimizers
Safety
The following notes and warnings apply when installing the power optimizers. Some of
the following may not be applicable to smart modules:
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF switch,
the Connection Unit and the AC circuit breaker on the main AC distribution
panel.
CAUTION!
Power optimizers are IP68/NEMA6P rated. Choose a mounting location where
optimizers will not be submerged in water.
CAUTION!
This unit must be operated according to the operating specifications provided
with the unit.
CAUTION!
Cutting the power optimizer input or output cable connector is prohibited and
will void the warranty.
CAUTION!
All PV modules must be connected to a power optimizer.
CAUTION!
If you intend to mount the optimizers directly to the module or module frame,
first consult the module manufacturer for guidance regarding the mounting
location and the impact, if any, on module warranty. Drilling holes in the
module frame should be done according to the module manufacturer
instructions.
-Three Phase System Installation Guide MAN-01-00057-4.1
16 Chapter 2: Installing the Power Optimizers

CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the optimizer connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical compatibility of the power optimizers’ connectors with the PV
modules’ connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same
type on both the power optimizers and on the modules; or
Verify that the connectors are compatible in the following way:
The module connector manufacturer should explicitly verify
compatibility with the SolarEdge optimizer connector; and
A third-party test report by one of the listed external labs (TUV,
VDE, Bureau Veritas UL, CSA, InterTek) should be
obtained,verifying the compatibility of the
connectors.
For more information, refer to
https://www.solaredge.com/sites/default/files/optimizer-input-
connector-compatibility.pdf

IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimizers are safe. They carry only a low safety
voltage before the inverter is turned ON. As long as the power optimizers are
not connected to the inverter or the inverter is turned OFF, each power
optimizer will output a safe voltage of 1V.
Installation Guidelines
The minimum and maximum string length guidelines are stated in the power
optimizer datasheets. Refer to the Designer for string length verification. The
Designer is available on the SolarEdge website at
https://www.solaredge.com/products/installer-tools/designer#/.
Frame-mounted power optimizers are mounted directly on the
module frame , regardless of racking system (rail-less or with rails).
For installation of frame-mounted power optimizers, refer to
http://www.solaredge.com/sites/default/files/installing_frame_mounted_
power_optimizers.pdf.
Chapter 2: Installing the Power Optimizers 17
Three Phase System Installation Guide MAN-01-00057-4.1

The steps in this chapter refer to module add-on power optimizers. For smart
modules, start from Step 3: Connecting Power Optimizers in Strings on page
21 Step 3: Connecting Power Optimizers in Strings on page 21 Also refer to the
documentation supplied with the smart modules.
The power optimizer can be placed in any orientation.
If connecting more modules than optimizer inputs in parallel, use a branch
cable. Some commercial power optimizer models have a dual input.
Position the power optimizer close enough to its module so that their cables
can be connected.
Make sure to use power optimizers that have the required output conductor
length:
Do not use extension cables between a module and a power optimizer,
between two modules connected to the same optimizer, or between two
optimizers other than in the cases specified below.
You can use extension cables between power optimizers only from row
to row, around obstacles within a row, and from the end of the string to
the inverter, as long as the maximum distance is not exceeded.
NOTE
The total conductor length of the string (excluding
power optimizers’ conductors; including home runs and
necessary extensions between optimizers) should not
exceed the following:
Inverter model Total conductor length ( from DC+
to DC- of the inverter)
Three phase up to
SE25K 1000 ft. /300 m
Three phase SE25K
and above 2300 ft./ 700 m
Use at least 11 AWG/ 4 mm² DC cables.
Completely shaded modules may cause their power optimizers to temporarily
shut down. This will not affect the performance of the other power optimizers in
the string, as long as the minimum number of unshaded power optimizers
connected in a string of modules is met. If under typical conditions fewer than
-Three Phase System Installation Guide MAN-01-00057-4.1
18 Installation Guidelines

the minimum optimizers are connected to unshaded modules, add more
optimizers to the string.
To allow for heat dissipation, maintain a 2.5 cm / 1" clearance distance between
the power optimizer and other surfaces, on all sides except the mounting
bracket side.
Figure 2: Power optimizer clearance
When installing modules in a confined space, for example, if installing Building-
integrated photovoltaic (BIPV) modules, ventilation measures may be needed to
ensure the power optimizers are not be exposed to temperatures outside their
specifications.
NOTE
The images contained herein are for illustrative purposes only and may vary
depending on product models.
Chapter 2: Installing the Power Optimizers 19
Three Phase System Installation Guide MAN-01-00057-4.1
