SolarEdge SE Series User manual

Installation Guide
Three Phase Inverter with
SetApp Configuration
PN: SEXXK-XXXXIXXXX
For Europe and APAC
Version 1.0

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Disclaimers 1
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Emission Compliance
This equipment has been tested and found to comply with the limits applied by the
local regulations.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
2 Emission Compliance

Revision History
Version 1.0 (Dec. 2020)
Initial release
Revision History 3
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Contents
Disclaimers 1
Important Notice 1
Emission Compliance 2
Revision History 3
Contents 4
HANDLING AND SAFETY INSTRUCTIONS 6
Safety Symbols Information 6
IMPORTANTSAFETYINSTRUCTIONS 7
Chapter 1: Introducing the SolarEdge Power Harvesting System 9
Power Optimizer 9
Inverter 9
Designer 10
Monitoring Platform 10
SetApp 10
Installation Procedures 10
Installation Equipment List 10
Inverter Transport and Storage 11
Chapter 2: Installing the Power Optimizers 12
Safety 12
Installation Guidelines 14
Step 1: Mounting the Power Optimizers 17
Step 2: Connecting a PV module to a Power Optimizer 17
Step 3: Connecting Power Optimizers in Strings 18
Step 4: Verifying Proper Power Optimizer Connection 19
Step 5: Connecting the Strings to a Combiner Box 20
Chapter 3: Installing the Inverter 21
Inverter Package Contents 21
Identifying the Inverter 21
Inverter and DC Safety Unit Interfaces 21
Mounting the Inverter 27
Chapter 4: Connecting AC and PVStrings to the Inverter 32
Grid Connection Guidelines 32
Connecting the ACGrid to the Inverter or to the DC Safety Switch 33
Connecting the PV Strings to the Inverter 36
Selecting a Residual Current Device (RCD) 39
Chapter 5: Activating, Commissioning and Configuring the System 40
Step 1: Activating the Installation 40
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
4 Contents

Step 2: Commissioning and Configuring the Installation 41
Step 3: Verifying Proper Activation and Commissioning 42
Reporting and Monitoring Installation Data 43
Chapter 6: Setting Up Communication with the Monitoring Platform 46
Communication Options 46
Communication Connectors 48
Removing the Inverter Cover 49
Removing the DC Safety Unit Cover (if applicable) 49
Creating an Ethernet (LAN) Connection 50
Creating an RS485 Bus Connection 54
RS485 Bus Configuration 57
Verifying the Connection 57
Signaling Options 58
Appendix A: Errors and Troubleshooting 60
Identifying Errors 60
Troubleshooting Communication 61
Power Optimizer Troubleshooting 62
Appendix B: Adding Optional Components 64
RS485 Surge Protection Device (SPD) Plug-in 64
AC Surge Protection Device (SPD) 64
Appendix C: SafeDC™ 65
Appendix D: Mechanical Specifications 66
Dimensions of Three Phase Inverter 66
Dimensions of Three Phase Inverter with DC Safety Unit 67
Dimensions of Inverter Mounting Bracket 68
Technical Specifications - Three Phase Inverters for Europe &APAC for
220/380V, and 230/400V Grids 69
SE25K, SE27.6K, SE30K, SE33.3K 69
Three Phase Inverter for the 277/480V Grid - SE33.3K, SE40K 73
Support Contact Information 77
Contents 5
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

HANDLING AND SAFETY INSTRUCTIONS
During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and
damage to the equipment.
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:
NOTE
Discard this product according to local regulations or send it back to SolarEdge.
HANDLING AND SAFETY INSTRUCTIONS 6
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

IMPORTANTSAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS
WARNING!
The inverter cover must be opened only after switching the inverter ON/OFF/P
switch located at the bottom of the inverter to OFF. This disables the DC voltage
inside the inverter. Wait five minutes before opening the cover. Otherwise, there
is a risk of electric shock from energy stored in the capacitors.
WARNING!
Before operating the inverter, ensure that the inverter AC power cable and wall
outlet are grounded properly. This product must be connected to a grounded,
metal, permanent wiring system, or an equipment-grounding conductor must
be run with the circuit conductors and connected to the equipment grounding
terminal or lead on the product.
WARNING!
Opening the inverter and repairing or testing under power must be performed
only by qualified service personnel familiar with this inverter.
WARNING!
The inverter input and output circuits are isolated from the enclosure. This
system does not include an isolation transformer and should be installed with
an ungrounded PV array in accordance with the requirements of NEC Articles
690.35 and 690.43 National Electric Code, ANSI/NFPA 70, 2011 (and Canadian
Electrical Code, Part I, for installations in Canada).
Equipment grounding is the responsibility of the installer and must be
performed in accordance with all applicable Local and National Codes.
WARNING!
Do not touch the PV panels or any rail system connected when the inverter
switch is ON, unless grounded.
WARNING!
SafeDC complies with IEC60947-3 when installing the system with a worst case
SafeDC voltage (under fault conditions) < 120V.
The worst case voltage is defined as: Voc,max+ (String Length-1)*1V, where:
Voc,max = Maximum Voc (at lowest temperature) of the PV modules in the
string (for a string with multiple modules, use the max value)
String Length = number of power optimizers in the string
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
7 IMPORTANTSAFETYINSTRUCTIONS

CAUTION!
This unit must be operated according to the technical specification datasheet
provided with the unit.
CAUTION!
HEAVY OBJECT. To avoid muscle strain or back injury, use proper lifting
techniques, and if required - a lifting aid.
NOTE
Use PV modules rated according to IEC 61730 class A.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol is also used in this manual.
NOTE
A SolarEdge inverters can be installed in sites with an alternative power source
such as a generator. SolarEdge requires installing a physical or electronic
interlock, which will signal to the inverter when the grid has been
disconnected. Interlock procurement, installation, maintenance and support
are the responsibility of the installer. Damage to the inverter due to incorrect
interlock installation or use of an interlock that is incompatible with the
SolarEdge system will render the SolarEdge warranty invalid.
For more information on connecting an alternative power source
to SolarEdge inverter, refer to
https://www.solaredge.com/sites/default/files/se-inverter-
support-of-voltage-sources.pdf.
NOTE
The following warning symbols appear on the inverter warning label:
Risk of electric shock
Risk of electric shock from energy stored in the capacitor. Do not
remove cover until 5 minutes after disconnecting all sources of
supply.
Hot surface – To reduce the risk of burns, do not touch.
IMPORTANTSAFETYINSTRUCTIONS 8
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Chapter 1: Introducing the SolarEdge Power
Harvesting System
The SolarEdge power harvesting solution maximizes the power output from any type of
solar photovoltaic (PV) installation while reducing the average cost per watt. The
following sections describe each of the system’s components.
Figure 1: The SolarEdge power – harvesting system components
Power Optimizer

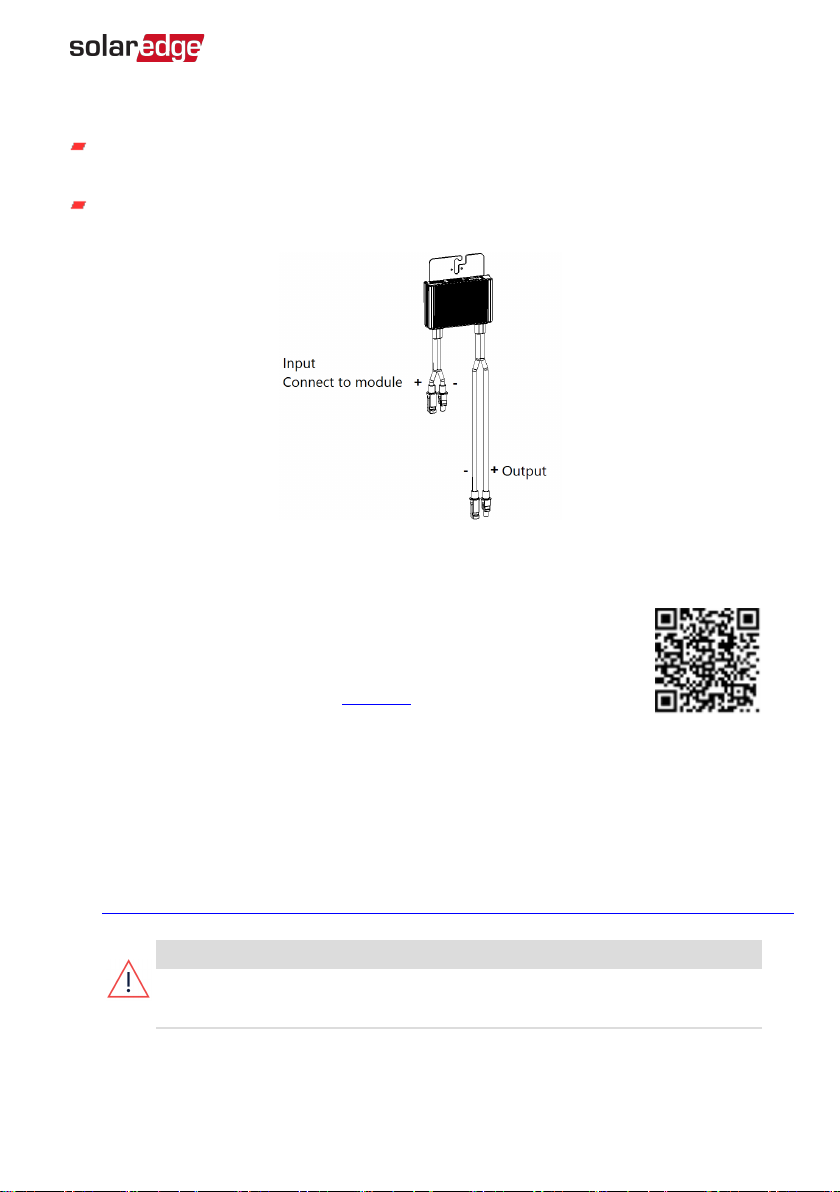

The power optimizers are DC-DC converters connected to PV modules in order to
maximize power harvesting by performing independent Maximum Power Point
Tracking (MPPT) at the module level.
Each power optimizer also transmits module performance data over the DC power line
to the inverter.
Inverter
The inverter efficiently converts DC power from the modules into AC power that can be
fed into the main ACservice of the site and from there to the grid. The inverter also
receives the monitoring data from each power optimizer and transmits it to a central
server (the monitoring platform; requires Internet connection).
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
9 Chapter 1: Introducing the SolarEdge Power Harvesting System

The DC Safety Unit has a manually operated switch for disconnecting the DC power of a
SolarEdge system. The DC Safety Unit is located below the inverter and is connected to
the inverter with AC and DC wires.
Designer
Designer recommends inverter and power optimizer selection per site size and enables
report generation. You can create a project in Designer and export the site design with
the string layout to the monitoring platform.
Monitoring Platform
The monitoring platform enables monitoring the technical and financial performance of
one or more SolarEdge sites. It provides past and present information on the system
performance both at the system and module levels.
SetApp
SetApp, a mobile application, that enables activating and configuring the inverter
through a smartphone.
Installation Procedures
The following procedures are used for installing and setting up a new SolarEdge site.
Some procedures, may also apply to modify an existing site.
1. Connecting Power Optimizers in Strings, page 18
2. Recording power optimizer serial numbers (optional), page 44
3. Mounting the inverter, page 27
4. Connecting the AC and the Strings to the Inverter, page 33, or Connecting the AC
and the String to the DCSafety Unit,
5. Activating, commissioning and configuring the system, page 40
6. Connecting the inverter to the monitoring platform, page 45
Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
Allen torque screwdriver for 5mm screw type for the inverter enclosure screws
Allen torque screwdriver for M5/M6/M8 screw types
Standard torque flat-head screwdrivers set
Chapter 1: Introducing the SolarEdge Power Harvesting System 10
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed. Use of an impact driver is not
allowed.
Mounting hardware (stainless bolts, nuts, and washers) for attaching:
the mounting brackets to the mounting surface
the power optimizer to the racking (not required for smart modules)
Tools:
MC4 crimper
Wire cutters
Wire strippers
Voltmeter
Mobile phone with latest SetApp version
For installing the communication options, you may also need the following:
For Ethernet:
CAT6 twisted pair Ethernet cable with RJ45 connector
If using a CAT6 cable spool: RJ45 plug and RJ45 crimper
For RS485:
Four- or six-wire shielded twisted pair cable
Watchmaker precision screwdriver set
Inverter Transport and Storage
Transport the inverter in its original packaging, facing up and without exposing it to
unnecessary shocks. If the original package is no longer available, use a similar box that
can withstand the weight of the inverter (refer to the inverter weight in the specification
datasheet provided with the unit), has a handle system and can be closed fully.
Store the inverter in a dry place where ambient temperatures are -13°F to 140°F /
-25°C to +60°C.
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
11 Inverter Transport and Storage

Chapter 2: Installing the Power Optimizers
Safety
WARNING!
When modifying an existing installation, turn OFF the inverter ON/OFF/P
switch, the DC Safety Unit (if applicable) and the AC circuit breaker on the main
AC distribution panel.
CAUTION!
Power optimizers are IP68/NEMA6P rated. Choose a mounting location where
optimizers will not be submerged in water.
CAUTION!
The power optimizer must be operated according to the technical specifications
provided with the power optimizer.
CAUTION!
Cutting the power optimizer input or output cable connector is prohibited and
will void the warranty.
CAUTION!
All PV modules must be connected to a power optimizer.
CAUTION!
If you intend to mount the optimizers directly to the module or module frame,
first consult the module manufacturer for guidance regarding the mounting
location and the impact, if any, on module warranty. Drilling holes in the
module frame should be done according to the module manufacturer
instructions.
Chapter 2: Installing the Power Optimizers 12
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

CAUTION!
Installing a SolarEdge system without ensuring compatibility of the module
connectors with the optimizer connectors may be unsafe and could cause
functionality problems such as ground faults, resulting in inverter shut down. To
ensure mechanical and electrical compatibility of the power optimizer
connectors with the PV module connectors to which they are connected:
Use identical connectors from the same manufacturer and of the same type
on the poweroptimizers, modules and the inverter DCinput; or
Verify that the connectors are compatible in the following way:
The module connector manufacturer should explicitly verify compatibility
with the SolarEdge optimizerconnectors and the Inverter DC input
connectors.
A third-party test report by one of the listed external labs (TUV, VDE,
Bureau Veritas UL, CSA, InterTek) should be obtained, verifying the
compatibility of the connectors.
For more information, refer to
https://www.solaredge.com/sites/default/files/optimizer-input-
connector-compatibility.pdf
IMPORTANTSAFETYFEATURE
Modules with SolarEdge power optimizers are safe. They carry only a low safety
voltage before the inverter is turned ON. As long as the power optimizers are
not connected to the inverter or the inverter is turned OFF, each power
optimizer will output a safe voltage of 1V.
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
13 Safety

Installation Guidelines
For the minimum and maximum number of power optimizers in a string (string
length), see the power optimizer datasheets. Refer to the Designer for string length
verification. The Designer is available on the SolarEdge website at:
https://www.solaredge.com/products/installer-tools/designer#/.
Do not use extension cables between a module and a power optimizer, between two
modules connected to the same power optimizer, or between two power optimizers
other than in the following cases:
Between a power optimizer and a module:
Power optimizers with the 4-type suffix in their part number (Pxxx-4xxxxxx) -
extension cables of up to 16 m can be installed per power optimizer (8 m for DC+
and 8 m for DC-).
Power optimizers manufactured starting from working week 42, 2019, as
indicated in the serial number (Example:S/N SJ5019A-xxxxxxxx - working week
50, 2019) - extension cables of up to 16 m can be installed per power optimizer (8
m for DC+ and 8 m for DC-).
Between two power optimizers or between a power optimizer and the inverter:
Extension cables can be installed between power optimizers only from row to
row, around obstacles or pathways within a row and from the end of the string
to the inverter. The total length of the extension cables must not exceed the
following values:
Single Phase Inverters Three Phase Inverters
All - 300 m / 1000 ft SE17K and below - 300 m /1000 ft
SE20K and above - 700 m / 2300 ft
For connecting homerun DCcables from power optimizers to the inverter, use
cables with the following cross-sections:
For MC4 connectors - 8-14 AWG / 2.5-10 mm²
For DCterminal blocks inside the inverter or Connection Unit - 6-14 AWG / 2.5-
16 mm²
Chapter 2: Installing the Power Optimizers 14
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Frame-mounted power optimizers are mounted directly on the module
frame, regardless of racking system (rail-less or with rails). For
installation of frame-mounted power optimizers, refer to
http://www.solaredge.com/sites/default/files/installing_frame_
mounted_power_optimizers.pdf.
The power optimizer can be placed in any orientation.
If connecting more modules than power optimizer inputs in parallel, use a branch
cable. Some commercial power optimizer models have a dual input.
Position the power optimizer close enough to its module so that their cables can be
connected.
Make sure to use power optimizers that have the required output and input
conductor length.
Completely shaded modules may cause their power optimizers to temporarily shut
down. This will not affect the performance of the other power optimizers in the
string, as long as the minimum number of unshaded power optimizers connected in
a string of modules is met. If under typical conditions fewer than the minimum
power optimizers are connected to unshaded modules, add more power optimizers
to the string.
To allow for heat dissipation, maintain clearance as specified below.
All power optimizers, except for the P860 and M1600 power optimizers
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
15 Installation Guidelines

P860 and M1600 power optimizers
Figure 2: Power optimizer clearance
When installing PV modules in a confined space such as Building-integrated
photovoltaic (BIPV) modules, ventilation measures may be required to ensure that
the power optimizers are not exceeding the maximum temperatures stated in their
specifications.
Chapter 2: Installing the Power Optimizers 16
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX

Step 1: Mounting the Power Optimizers
For each of the power optimizers(1):
1. Determine the power optimizer mounting location and use the power
optimizer mounting brackets to attach the power optimizer to the
support structure . It is recommended to mount the power optimizer
in a location protected from direct sunlight. For frame-mounted
power optimizers follow the instructions supplied with the optimizers,
or refer to https://www.solaredge.com/sites/default/files/installing_frame_
mounted_power_optimizers.pdf.
2. If required, mark the mounting hole locations and drill the hole.
CAUTION!
Drilling vibrations may damage the power optimizer and will void the
warranty. Use a torque wrench or an electric drill with adjustable clutch that
meets the mounting torque requirements. Do not use impact drivers for
mounting the power optimizer.
Do not drill through the power optimizer or through the mounting holes.
3. Attach each power optimizer to the rack using M6 (1/4'') stainless steel bolts, nuts
and washers or other mounting hardware. Apply torque of 9-10 N*m / 6.5-7 lb*ft.
4. Verify that each power optimizer is securely attached to the module support
structure.
5. Record power optimizer serial numbers and locations, as described in Reporting and
Monitoring Installation Data on page 43.
Step 2: Connecting a PV module to a Power Optimizer
NOTE
Improper wiring may cause electrical faults in a PV system. To avoid electrical
faults, verify proper locking of connectors and avoid cable tension and
friction. Proper planning, materials and installation reduce the risk of electric
arcs, short-circuits and ground faults in the PV system.
NOTE
Images are for illustration purposes only. Refer to the label on the product to
identify the plus and minus input and output connectors.
(1)Not applicable to smart modules.
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
17 Step 1: Mounting the Power Optimizers

For each of the power optimizers:
Connect the Plus (+) output connector of the module to the Plus (+) input
connector of the power optimizer.
Connect the Minus (-) output connector of the module to the Minus (-) input
connector of the power optimizer.
Figure 3: Power optimizer connectors
Step 3: Connecting Power Optimizers in Strings
You can construct parallel strings of unequal length, that is, the number
of power optimizers in each string does not have to be the same. The
minimum and maximum string lengths are specified in the power
optimizer datasheets. Refer to the Designer for string length verification.
1. Connect the Minus (-) output connector of the string’s first power optimizer to the
Plus (+) output connector of the string’s second power optimizer.
2. To minimize electromagnetic interference (EMI), make sure to minimize the distance
WARNING!
In case of dual-input power optimizers, seal any unused input connectors
with the supplied pair of seals.
Chapter 2: Installing the Power Optimizers 18
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
between the positive and negative DC cables.
For detailed instructions, see:
https://www.solaredge.com/sites/default/files/se-emi-performanceapplication-note.pdf

3. If you intend to monitor the installation, using the monitoring platform, record the
physical location of each power optimizer, as described in
Creating Logical and
Physical Layout using Installation Information on page 44.
Step 4: Verifying Proper Power Optimizer Connection
When a module is connected to a power optimizer, the power optimizer outputs a safe
voltage of 1V (±0.1V). Therefore, the total string voltage should equal 1V times the
number of power optimizers connected in series in the string. For example, if 10 power
optimizers are connected in a string, then 10V should be produced.
Make sure the PV modules are exposed to sunlight during this process. The power
optimizer will only turn ON if the PVmodule provides at least 2W.
In SolarEdge systems, due to the introduction of power optimizers between the PV
modules and the inverter, the short circuit current ISC and the open circuit voltage VOC
hold different meanings from those in traditional systems.
For more information about the SolarEdge system’s string voltage and
current, refer to the VOC and ISC in SolarEdge Systems Technical Note ,
available on the SolarEdge website at:
https://www.solaredge.com/sites/default/files/isc_and_voc_in_solaredge_
sytems_technical_note.pdf
Three Phase Inverter with SetApp Configuration PN: SEXXK-XXXXIXXXX
19 Step 4: Verifying Proper Power Optimizer Connection
