SolaX Power A1-HYB-G2 Series User manual

A1-HYB-G2 / A1-AC-G2 / A1-SMT-G2 SERIES INVERTER
3.8 kW - 7.6 kW
320101037803
UL
SolaX Power Network Technology (Zhejiang) Co., Ltd.
Add: No.288,Shizhu Road, Tonglu Economic Development Zone, Tonglu City,
Zhejiang Province, 310000 P. R. CHINA
Tel: [phone]
E-mail: [e-mail]
Copyright Declaration
The copyright of this manual belongs to SolaX Power Network Technology (Zhejiang) Co., Ltd.
Any corporation or individual should not plagiarize, partially or fully copy (including software,
etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved.
SolaX Power Network Technology (Zhejiang) Co., Ltd. reserves the right of final interpretation.
INSTALLATION AND
OPERATION MANUAL

TABLE OF CONTENTS
1 NOTE ON THIS MANUAL..............................................................................................
1.1 SCOPE OF VALIDITY...........................................................................................
1.2 TARGET GROUP...................................................................................................
1.3 SYMBOLS USED...................................................................................................
2 SAFETY................................................................................................................................
2.1 IMPORTANT SAFETY INSTRUCTIONS.........................................................
2.2 EXPLANATION OF SYMBOLS.........................................................................
3 INTRODUCTION..............................................................................................................
3.1 SYSTEM...................................................................................................................
3.2 WORK MODES.....................................................................................................
3.3 DIMENSIONS........................................................................................................
3.4 OVERVIEW OF THE INVERTER......................................................................
3.6 INTERNAL TERMINALS IN WIRING BOX....................................................
3.7 IDENTIFICATION OF A1-HYBRID SERIES...................................................
6.1 OVERVIEW OF ALL ELECTRICAL WIRING METHODS.........................
6.2 POWER CONNECTION...................................................................................
6.3 GROUND CONNECTION...............................................................................
4 TECHNICAL DATA.........................................................................................................
4.1 DC INPUT...............................................................................................................
4.2 AC LOAD................................................................................................................
4.3 GENERAL DATA..................................................................................................
4.4 BATTERY/ INPUT / OUTPUT .........................................................................
4.5 EFFICIENCY, SAFETY AND PROTECTION.................................................
4.6 ENVIRONMENT LIMIT.......................................................................................
5.2 SELECTION FOR INSTALLATION POSITION.............................................
5.3 TOOLS PREPARATION.....................................................................................
1
1
1
1
3
3
8
20
20
20
22
25
9
9
12
15
15
37
42
50
19
19
19
19
5 MECHANICAL INSTALLATION.................................................................................. 21
5.1 INSTALLATION PRECAUTION....................................................................... 21
6 ELECTRICAL CONNECTION..................................................................................... 36
6.4 COMMUNICATION CONNECTION............................................................ 52
5.4 CHECK FOR TRANSPORT DAMAGES....................................................... 26
5.6 INSTALLATION STEPS......................................................................................28
5.5 PACKING LISTS...................................................................................................26
17
18
3.5 EXTERNAL TERMINALS OF INVERTER........................................................
16

Notes on this Manual
1
This manual is an integral part of the A1-HYB-G2 series / A1-AC-G2 series /
A1-SMT-G2 series inverter. It describes the assembly, installation,
commissioning, maintenance and failure of the product. Please read it
carefully before operating.
1 Note on this Manual
7 INVERTER OPERATION METHOD...................................................................
7.1 CHECK BEFORE TURN ON THE SYSTEM..........................................
7.2 TURN ON THE SYSTEM............................................................................
7.3 SHUT DOWN THE SYSTEM....................................................................
8 FIRMWARE UPGRADING....................................................................................
8.1 PREPARATION..............................................................................................
8.2 UPGRADING STEPS...................................................................................
9 TROUBLESHOOTING..........................................................................................
11 DECOMMISSIONING...........................................................................................
61
61
61
62
64
64
64
66
72
11.1 TROUBLE SHOOTING...............................................................................
11.2 ROUTINE MAINTENANCE........................................................................
72
72
72
12 DISCLAIMER............................................................................................................73
10 MAINTENANCE......................................................................................................71
* APPENDIX A: EPO CONNECTION STEPS
DANGER!
“Danger” indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
* APPENDIX B: METER Y CONNECTION STEPS
WARNING!
Save these instructions-This manual contains important instructions
that shall be followed during installation and maintenance of the unit.
A1-HYB-3.8K-G2 A1-HYB-5.0K-G2 A1-HYB-6.0K-G2 A1-HYB-7.6K-G2
Note: “A1-HYB”series means PV grid-supported storage inverter.
“A1-AC” series means energy storage inverter. There may be no solar
module connected to inverter, and the PV power option will be deactivated.
“A1-SMT” series means PV grid-supported inverter. No battery is connected
to the inverters and the battery option will be deactivated.
“3.8K” means 3.8 kW.
“G2 means the second generation.”
A1-AC-3.8K-G2 A1-AC-5.0K-G2 A1-AC-6.0K-G2 A1-AC-7.6K-G2
A1-SMT-3.8K-G2 A1-SMT-5.0K-G2 A1-SMT-6.0K-G2 A1-SMT-7.6K-G2
A1-HYB-G2
A1-AC-G2
A1-SMT-G2
1.1 Scope of Validity
This manual is for qualified electricians. The tasks described in this manual
should only be performed by qualified electricians.
The following types of safety instructions and general information appearing
in this document are described below:
1.2 Target Group
1.3 Symbols Used
The assembly, installation, commissioning and maintenance in this manual
will take A1-HYB-G2 series inverter as an example.
Store this manual where it will be accessible at all times.
7.4 DEFINITION OF INDICATOR LIGHT AND BUTTON........................62
* APPENDIX C: SYSTEM WIRING DIAGRAM
* WARRANTY REGISTRATION FORM
11.3 STORAGE AND TRANSPORTATION.....................................................
11.4 DISPOSAL OF INVERTER..........................................................................72

SafetyNotes on this Manual
3
2
2 Safety
NOTE!
“Note” provides tips for the optimal operation of our product.
WARNING!
These servicing instructions are for the use by qualified personnel
only. To reduce the risk of electric shock, do not perform any
servicing other than that specified in the operating instructions
unless you are qualified to do so.
DANGER!
“Danger” indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
“Warning” indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
WARNING!
“Caution” indicates a hazardous situation which, if not avoided,
could result in minor to moderate injury.
CAUTION!
This manual contains important instructions for A1-HYB-G2 series inverter
that should be followed during installation and maintenance for the inverter.
2.1 General Safety Instructions
A1-HYB-G2 series inverter is designed and tested to meet all applicable North
American and International safety standards. However, like all electrical and
electronic equipment, safety precautions must be observed and followed during
installation and operation of the A1-HYB-G2 series inverter to reduce the risk of
personal injury and to ensure a safe installation.
Installation, commissioning, service, and maintenance of A1-HYB-G2 series
inverter must only be performed by authorized personnel that are licensed and/or
satisfy state and local jurisdiction regulations.
Before starting installation or commissioning, read the entire manual carefully to
ensure correct and safe installation or commissioning.
All US electrical installations must comply and be in accordance with all the state,
local, utility regulations, and National Electrical Code ANSI/NFPA 70.
WARNING!
This document does not replace and is not intended to replace any
local, state, provincial, including without limitation applicable in the
jurisdiction of installation. SolaX assumes no responsibility for the
compliance or non-compliance with such laws or codes in
connection with the installation of the product.
DANGER!
Danger to life due to high voltages in the inverter!
Before connecting the product to the electrical utility grid, contact
the local utility company.
Children should be supervised to ensure that they do not play with
the appliance.
Do not operate the inverter when the device is running.
WARNING!
Risk of electric shock!
WARNING!

When handling battery, adhere to all manufacturer safety instructions!
WARNING!
Only accessories shipped with the inverter are recommended for use.
Using other accessories may result in a fire or injury to the user.
WARNING!
Do not disassemble any parts of the inverter which are not mentioned
in the installation guide. It contains no user-serviceable parts. See
warranty for instructions on obtaining service. Attempting to service
the inverter yourself may result in a risk of electric shock or fire and will
void your warranty.
WARNING!
The inverter input and output circuits are isolated from the enclosure.
This system does not include an isolation transformer and should be
installed with an ungrounded PV array in accordance with the
requirements of ANSI/NFPA 70, NEC 690.41.
Equipment grounding is the responsibility of the installer and must be
performed in accordance with all applicable Local and National
Codes.
WARNING!
Before operating the inverter, ensure that the inverter is grounded
properly. This product must be connected to a grounded, metal,
permanent wiring system, or an equipment-grounding conductor
must be run with the circuit conductors and connected to the
equipment grounding terminal or lead on the product.
WARNING!
When a ground fault is indicated, normally grounded conductors may
be ungrounded and energized or normally ungrounded conductors
may be grounded.
WARNING!
SafetySafety
Keep away from flammable and explosive materials to avoid fire.
Do not install or store the system in a corrosive environment where it
may be exposed to ammonia, corrosive gases, acids, or salts (e.g.:
chemical plant, fertilizer storage areas, tanneries, near volcanic ash
eruption).
WARNING!
A1-HYB series inverter only supports a certain type of lithium-ion battery!
(Manufacturer certified battery)
CAUTION!
Risk of electric shock from energy stored in the capacitor.
Never operate on the inverter couplers, the Mains cables, battery
cables and PV cables when power is applied. After switching off the
PV, battery and Mains, always wait for 5 minutes to fully discharge the
intermediate circuit capacitors before unplugging DC, battery and
Mains couplers.
CAUTION!
The unit contains capacitors that remain charged to a potentially
lethal voltage after the , battery and supply have been MAINS PV
disconnected. Hazardous voltage will be present for up to 5 minutes
after disconnection from the power supply.
CAUTION!
CAUTION!
Possible damage to health as a result of the effects of radiation!
Do not stay closer than 7.87 in/20 cm to inverter for a long time.
CAUTION!
Danger of burn injuries due to hot enclosure parts!
During operation, the enclosure may become hot.
Neither touch the positive nor the negative pole of the connecting PV
device. Never touch both poles at the same time.
WARNING!
5
4

Safety
7
Safety
A1-HYB-G2 series inverter is designed and certified to meet stringent UL1741 / IEEE
1547 and ANSI / IEEE 62.41 / 62.42 lighting and surge requirements.
However, every PV installation is unique. Additional external UL / NEC AC and DC
surge protection and solid grounding practices are recommended.
►Lightning and surge protection
Battery safety instructions
►
6
When accessing the internal circuit of the inverter, it is very important
to wait 5 minutes before operating the power circuit or demounting
the electrolyte capacitors inside the device. Do not open the device
beforehand since the capacitors require time to sufficiently
discharge!
CAUTION!
Use insulated tools when installing the device. Individual protective
tools must be worn during installation, electrical connection and
maintenance.
CAUTION!
NOTE!
The inverter is heavy. Use of lift equipment is recommended.
NOTE!
Make sure that existing wiring is in good condition and that wire is
not undersized.
NOTE!
Measure the voltage between terminals UDC+ and UDC- with a
multi-meter (impedance at least 1Mohm) to ensure that the device is
discharged before working (35VDC) inside the device.
A1-HYB-G2 Series inverter should be coupled with a high voltage battery. The battery
must comply with UL 1973 and must be intrinsically safe.
As accumulator batteries may contain potential electric shock and short-circuit current
dangers, the following warnings should be observed during battery replacement to
avoid accidents that might be thus resulted:
ŸDo not wear watches, rings or similar metallic items.
ŸUse insulated tools.
ŸPut on rubber shoes and gloves.
ŸDo not place metallic tools and similar metallic parts on the batteries.
ŸSwitch off loads connected to the batteries before dismantling battery
connection terminals.
ŸOnly personnel with proper expertise carry out the maintenance of should
accumulator batteries.

Introduction
Safety
9
Symbols on the Label
►
3 Introduction
3.1 System
8
Indicator lights on the Inverter
►
2. Explanation of Symbols 2
This section gives an explanation of all the symbols shown on the inverter and on
the label.
Symbol Explanation
Operation indicator light
Fault indicator light 2
Battery indicator light
Fault indicator light 1
A1-HYB-G2 series inverter is transformerless type without galvanic isolation. It is
designed and certified to fulfill the directives of ANSI/NFPA 70, NEC 690.41, UL 1741,
UL 1741 SA, IEEE 1547 and IEEE 1547.1. The inverter converts the DC power
generated by PV strings into AC power and stores the energy into the battery bank or
feeds the power into the power grid.
With the device, you have acquired the system that can be used to power critical loads
during a grid outage by using a battery and realize automatic transfer from grid
connection mode to off grid mode or from off grid mode to grid connection model by
using backup interface (BI). In addition, the inverter also has the ability to use power
generated from PV arrays along with other string inverter.
A1-HYB-G2 series
The A1-HYB-G2 series inverter manages battery and system energy.
PV Array
The PV array works in MPPT mode. For 3.8 kW, 5.0 kW and 6.0 kW inverter, the
number of PV string is two. For 7.6 kW inverter, the number of PV string is three.
RSD
The RSD provides an automatic disconnect of residential or small commercial PV
systems, fully compliant with the rapid shutdown requirements of National Electric Code
(NEC), ANSI/NFPA 70 Sections 690.12.
Battery (Optional)
The A1-HYB-G2 series inverter should be coupled a high voltage battery. The battery
communicate with inverter via BMS and must comply with the specification of UL 1973.
Backup Interface (Optional)
The backup interface supports multi-inverter parallel connection, controls disconnection
of house loads from the grid in case of a power outage and integrates the energy
meter, microgrid interconnection device and generator to enable grid-tied solar backup.
SolaX Cloud
SolaX Cloud is an intelligent, multifunctional monitoring platform that can be accessed
either remotely or through a hard wired connection. With the SolaX Cloud, the
operators and installers can always view key and up to date data.
Symbol Explanation
Beware of hot surface.
The inverter will become hot during operation. Avoid any contact
during operation.
Danger of high voltages.
Danger to life due to high voltages in the inverter!
Read the enclosed documents.
CSA certified.
Danger to life due to high voltage.
There is residual voltage existing in the inverter after powering off, which
needs 5 minutes to discharge. Wait 5 minutes before opening the
upper lid or the DC lid.
272687
intergrated
PV AFCI
TYPE 1
Type 1 Arc-Fault Circuit-interrupter on PV side
Symbol on the Inverter
►
Symbol Explanation
Equipment grounding conductor (PE)

IntroductionIntroduction
11

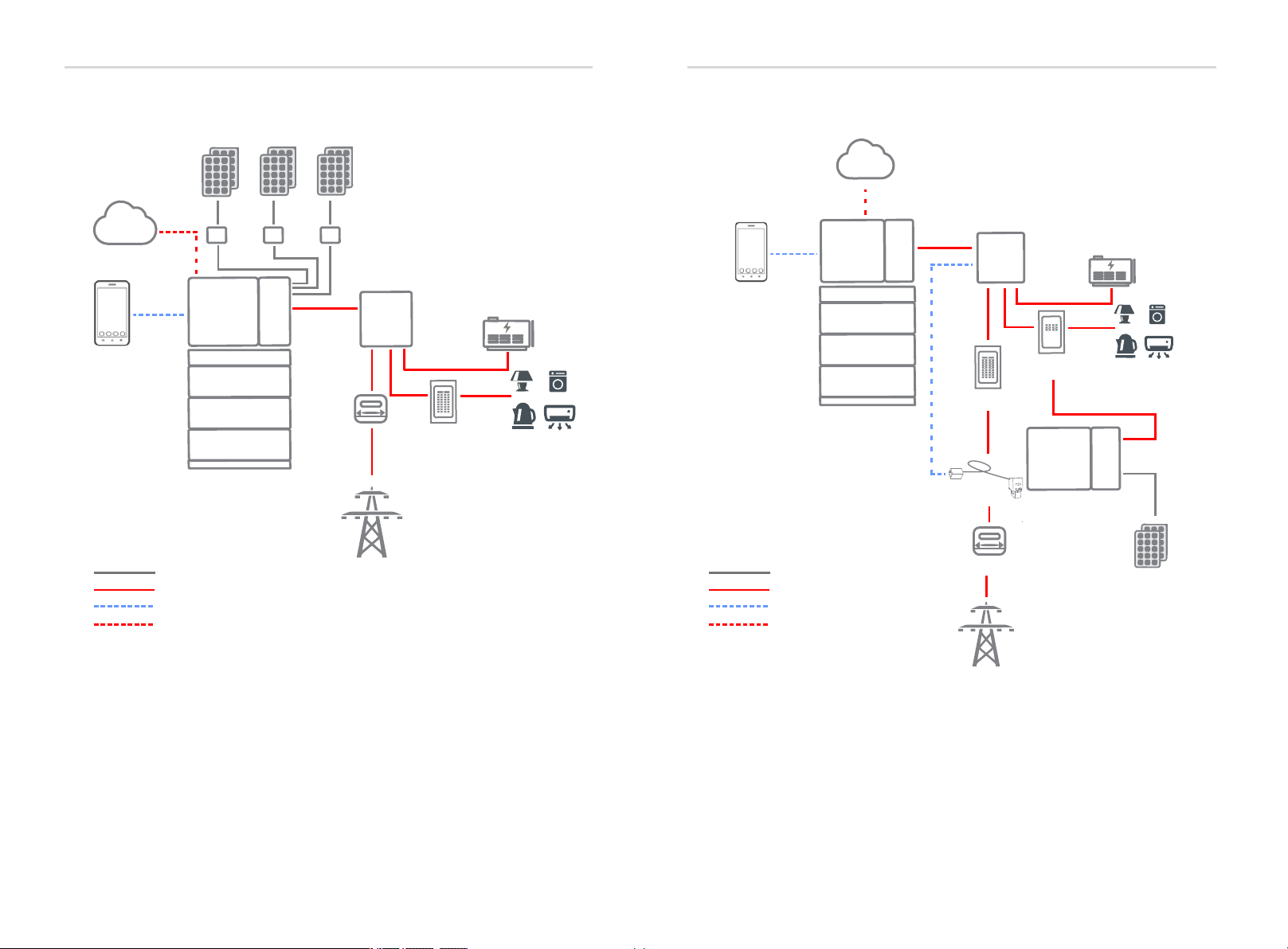

A1-HYB-G2 Inverter
and battery
Utility Grid
BI
App
PV1 PV2 PV3
Generator
Load
Main panel
Meter
SolaX Cloud
DC Power
AC Power
Communication
Cloud
Utility Grid
BI
App
Generator
Load
Sub panel
Meter
SolaX Cloud
Main panel
Existing Solar System
PV
A1-AC-G2 Inverter
and battery
CT
RSD RSD RSD
System overview of A1-AC-G2
10
System overview of A1-HYB-G2
DC Power
AC Power
Communication
Cloud

IntroductionIntroduction
13
3.2 Work Modes
A1-HYB-G2 series inverter provides multiple work modes based on different
requirements. Some basic work modes of A1-HYB-G2 are shown below.
Contact us for additional or more complex application requirements.

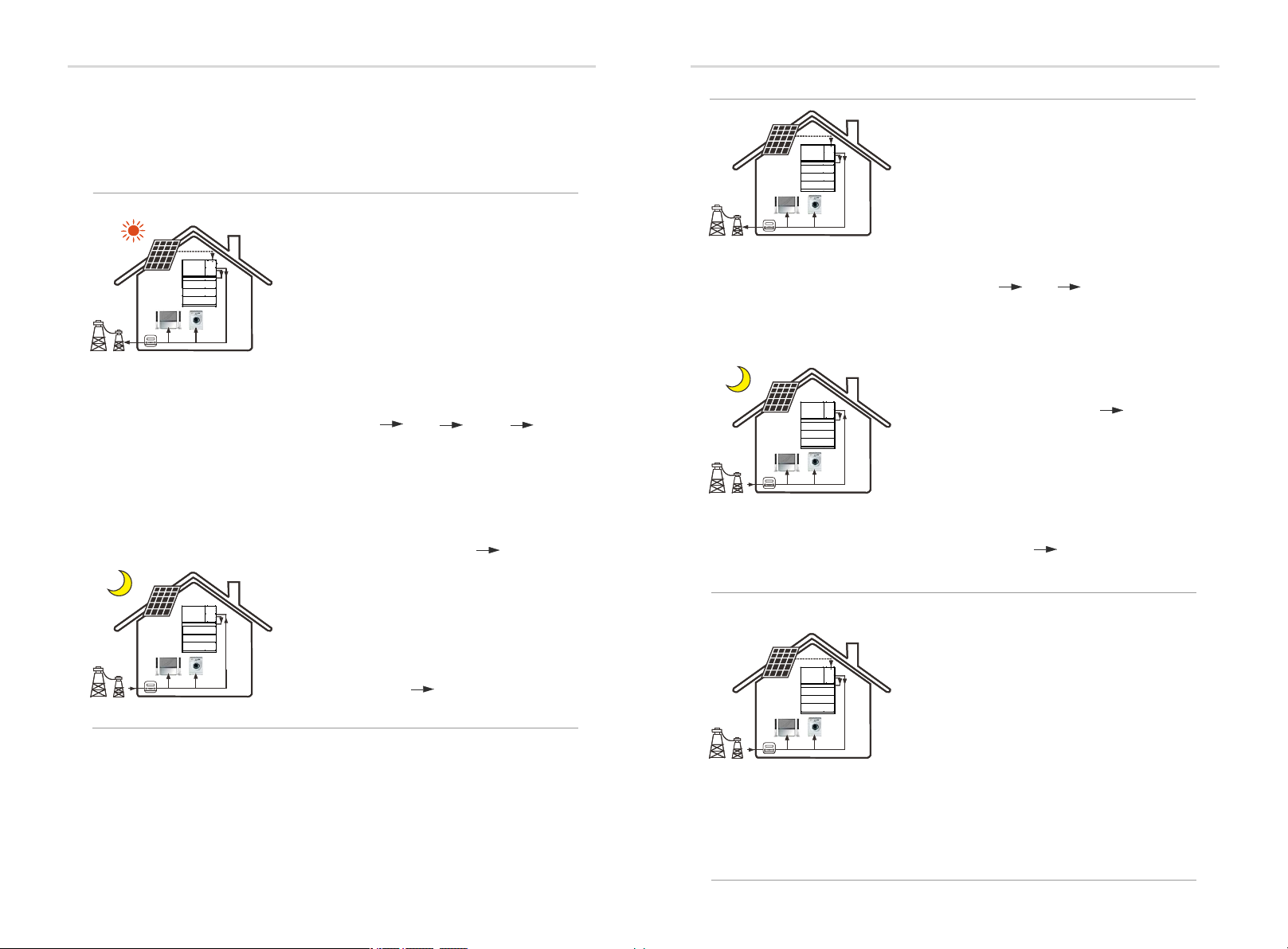

Work mode: Self Use
The self-use mode is suitable for areas with low
feed-in tariffs and high electricity prices.
① When the power of PV is sufficient
The power generated from PV will be used to
supply the local loads first, then proceed to
charge the battery bank.
If the battery is fully charged, the excess power
will be exported to the public grid.(The inverter
will limit the output if Feed-in limit or zero feed-in
is needed)
(PV＞Load, PV Load Battery Grid)
② When the power of PV is insufficient
The power from PV and battery will be used to
supply the local loads. If the power is still not
enough, the remaining power will be taken from
the grid.
(PV＜Load, PV + Battery + Grid Load)
③ Without PV power
The power from battery will be used to supply
the local loads firstly. If the battery power is not
enough, the remaining power will be taken from
the grid. The inverter will enter into the standby
state.
(PV=0, Battery+Grid Load )
Work mode: Feed-in priority
The Feed-in priority mode is suitable for areas
with high feed-in tariffs, but has feed-in power
limitation.
① When the power of PV is sufficient
The power generated from PV will be used to
supply the local loads firstly, and the excess
power will feed-in to the grid.
PV＞Load, PV Load Grid)
When the power of PV is insufficient②
The power from PV and battery will be used to
supply the local loads.
If the power is still not enough, the remaining
power will be taken from the grid.
(PV Load, PV + Battery + Grid Load)＜
③ Without PV power
The power from battery will be used to supply
the local loads firstly. If the battery power is not
enough, the remaining power will be taken from
the grid. The inverter will enter into the standby
state.
(PV=0, Battery+Grid Load )
12
Work mode: Backup mode
Priority: battery > load > grid
This mode applies to regions with frequent
power outages. This work mode will ensure the
battery a minimum capacity for grid to reserve
outage.
In this work mode, the battery will be charged
at the set time and will never discharge when
the grid is on ou can also choose whether to . Y
charge from the grid or not.

IntroductionIntroduction
15
Work mode: Demand Mode
The demand mode is suitable for the areas with
high Critical Peak Pricing or areas with limited
capacity of distribution transformers.
In this mode, battery discharges during two
discharge windows to limit demand charge (if
enabled) (Similar to Time of Use mode but on
Demand Mode the system will allow grid
consumption up to a threshold limit defined by
the user.)
3.3 Dimensions
14
Work mode: Time of Use mode
The Time of Use mode applies to areas that have
different electricity prices depending on the day,
time and season.
Priority: load > battery > grid (when discharging)
Priority: battery > load > grid (when charging)
The power generated from PV will be used to
supply the local loads first, then proceed to
charge the battery bank. The excess power will
be exported to the public grid.
Charges the battery during two available
charging windows from PV or grid (if enabled),
then functions as in Self-use mode
32.95 in
837 mm
15.74 in
400 mm
5.74 in
146 mm
3.4 Overview of the Inverter
A-Inverter power box: It is the essential part of the inverter. This part is debugged and
sealed before ex-factory and there is no user-servable part inside this part. Opening the
part is prohibited.
B-Wiring box: It is the compartment where all the wiring are connected. Open the
wiring box cover to complete all the wiring connection.
C-DC power: It is the power switch that allows for the DC power to be off or on for
the inverter.
D-Conduit plugs: There are four 1 inch openings for wiring connection. Each conduit
opening is fitted with a conduit plug which needs to be removed before installation and
wiring connection.
A
B
C
D

Introduction Introduction
17
3.5 External Terminals of an Inverter
Item
A
B
C
D
E
I
J
H
F
G
K
L
BAT+
AC connection
Inverter communication connection
PV connection
DC switch
Inverter indicator
Communication port or USB port for upgrading
Battery communication connection
BAT-
Waterproof valve
Inverter power box
Description
M
N
Wiring box
PV connection
OPower button
Ground terminal with battery
16
The inverter power box (section L) is sealed at the factory and there
are no user-serviceable parts inside.
NOTE!
NO
CEA
BDF
H I
J
K KL M
Right side view Front view
3.6 Internal Terminals in Wiring Box
NOTE!
Not all communication wirings connected with the terminals on the
communication board are shown in the picture.
Refer to the Section 6 for the details on communication connection.
Item
A
B
C
D
E
H
F
G
Description
AC terminals
Grounding bar
PV terminals
COMM in terminal
MLPE terminal
COMM out terminal
AUX terminal
Battery terminals
A
B
E F
C
B
H
G
D
G

3.7 Identification of SeriesA1-HYB-G2
A1-7.0-USA1-6.0-US
076
AH2 E 7 0 0 1
Model Power Year Month Work Order Number Serial Number
0 0 1
1. Every A1-G2 series product corresponds to a unique serial number. The serial
number is divided into five parts: type (3 bits)+ power (3 bits)+ year/month (2 bits)+
work order number (3 bits)+ stream number (3 bits), a total of 14bits.
AH2: A1-HYB-G2; AA2:A1-AC-G2; AS2:A1-SMT-G2
076: Power ----7.6 KW;
E: Year ------ I:2022 (A:2014; B: 2015......)
7: Month ------ July (October :A, November ;B, December......)
001: Work order number---- 001:001~999 (Monthly zero clearing)
001: Serial number---- 001:001~ZZZ (will be cleared for next work order).
Introduction
19
18
Model Parameter Serial Number Identification
Model: A1-HYB-3.8K-G2
No. of MPPT/Strings per MPPT
Operating Voltage range
Max.DC Current per MPPT
Max.DC Power
Nominal AC Voltage
Max. Continuous AC Power
Max. Continuous Current
Nominal AC Frequency
2/1
16 A
5700 W
60 Hz
0.8 Leading- 0.8 Lagging
90-500 Vd.c.
AC Output Power Factor
GRID OUTPUT/ INPUT
15.9 A
3816 VA
PV INPUT
GRID SUPPORT UTILITY-INTERACTIVE
TRANSFORMERLESS INVERTER
120/240 Vac split phase
59.3 Hz-60.5 Hz
Operating Frequency Range
BATTERY
Battery Type
DC Operating Voltage Range
Max. Charge / Discharge Current
Li-ion
75-450Vd c. .
54 A / 54 A
Nominal DC Voltage 150 Vd c. .
Max.DC Voltage 550 Vd.c.
615.00053.00
MA DE I N CH IN A
272687
DC Operating Voltage Range
Max. Charge / Discharge Current
75-450Vd c. .
54 A / 54 A
OTHER
Enclosure Type Type 4X
Inverter
SN:
SolaX Power Network Technology (Zhejiang) CO., LTD.
ADD:No.288 Shizhu Road,Tonglu Economic Development Zone,
TEL: [phone] E-mail: [e-mail]
Dongxing District,Tonglu City, Zhejiang Province, China.
Nominal DC Voltage 150 Vd c. .
Operating Temperature
LISTED
UL. 1741 / UL 62109-1 / CSA107.1
-13˚F~+140˚F
no derating below 113˚F
HBattery terminals
HBattery terminals
2. The standard series number rules is as follows:
4 Technical Data
4.1 PV Input
4.2 AC Input/Output
Start input voltage [V]
Model
Max.recommended PV power [W]
15200
A-HYB-3.8K-G2
7600 10000
Max.MPPT power [W]
Max.DC voltage [V]
Norminal DC operating voltage [V]
Max. input current [A]
Max. short circuit current [A]
MPPT voltage range [V]
MPPT voltage range [V](full load)
5700 7500 11400
550
360
A:16/B:16 A:16/B:16/C:16
A:20/B:20 A:20/B:20/C:20
176-500
90-500
232-500
120
235-500
A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
10000
9000
278-500
AFCI
No. of MPP trackers
Strings per MPP tracker
DC disconnection switch
23
A:1/B:1
Yes
Yes
A:1/B:1/C:1
Maximum output fault peak current
Model
Norminal AC power [VA]
7608
A-HYB-3.8K-G2
3816 5016
Max. apparent AC power [VA]
Rated grid voltage [V]
Rated grid Frequency [Hz]
Norminal AC current [A]
Max. AC current [A]
Maximum output fault current and
3816 5016 7608
240
60
20.9 31.7
20.9
48/90
515/5
A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
6000
6000
Displacement power factor
Total harmonic distortion
Parallel operation
0.8 leading to 0.8 lagging
<3%
Yes
duration [A/ ms]
and duration [A/ ms]
15.9 25
15.9 25 31.7
(THD, rated power)
4.3 General Data
General
A-HYB-3.8K-G2 A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
Topology
Dimensions with Safety Switch
Weight with Safety Switch [lb(KG)]
Cooling concept
33.1*15.7*5.7（840*400*146）
75 (34)
Natural convection with internal fan
Transformerless
Communication
Revenue Grade Data, ANSIC12.20
Warranty [Years]
Rs485, CAN, WiFi (optional) / 4G (optional)
Optional
10
(WxHxD) [in(mm)]
Technical Data

Technical Data
4.4 Battery Input/Output
4.5 Efficiency, Power Consumption and Standard
4.6 Environment Limit
21
20
Reverse-Polarity Protection
Model
A-HYB-3.8K-G2
Battery type
Input/output voltage range [V]
Rated input/output voltage [V]
Maximum input power [W]
Maximum output power [W]
Maximum Input/output current [A]
Li-ion
75-450
150
5336 8094
5016
54
Yes
A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
Cycle efficiency charging to
4060 6383
3816 6000 7600
discharging (PCS Only)
90.5%
88.5% 91.5% 92.5%
Internal consumption(night) [W] <3W
UL1741,UL1741 SA,UL1699B, CSA C22.2 No. 107.1-16, CSA C22.2 No.292-18
Power consumption
Safety
EMC
Certification
RoHS
Inverter+BMU
97.0%
CEC Weighted Efficiency 97.5% 97.5%
97.5%
Model
A-HYB-3.8K-G2 A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
98.0%
Maximum Inverter Efficiency 98.0% 98.0%
98.0%
(PV to GRID)
Standard
FCC part15 class B
IEEE1547, Rule 21,Rule14 (HI)
Yes
Environment limit
A-HYB-3.8K-G2 A-HYB-5.0K-G2 A-HYB-7.6K-G2
A-HYB-6.0K-G2
Storage temperature Range [°F (°C)]
Protection class
Operating Temperature Range [°F (°C)]
De-rating start temperature [°F (°C)]
NEMA 4X
–13 to +140 (–25 to +60)
113 (45 ) or above
–13 to +167(–25 to +75 )
Over voltage category
Humidity [%]
Altitude [ft (m)]
Noise emission(typical) [dBA]
0%–95% RH
9843 (3000) MAX
<30
IV (electric supply side), II (PV side)
Mechanical Installation
5. Mechanical Installation
5.1 Installation Precaution
CAUTION!
Personal injury and machine damage may be caused by improper
movement of the inverter.
Please be strictly comply with the instructions of this manual when
moving the install the inverter.
WARNING!
Read all of these instructions, cautions, and warnings for the A1-
HYB-G2 series inverter.
WARNING!
Installation and commissioning must be performed by a licensed
electrician in accordance with local, state and National Electrical
Code ANSI/NFPA 70 requirements.
WARNING!
The installation and wiring connection methods of this inverter in
the U.S. must comply with all US National Electric Code and local
requirements.

5.2 Selection for the Installation Position
The installation location selected for the inverter is quite critical in the aspect of the
guarantee of machine safety, service life and performance.
ŸA1-HYB-G2 series has the NEMA 4X ingress protection, which allows it to be
installed outside the door.
ŸThe installation position shall be convenient for wiring connection, operation
and maintenance.
5.2.1 Installation Environment Required
The installation position shall be well ventilated.
Make sure the installation site meets the following conditions:
ŸNot be exposed to glare.
ŸNot in areas where highly flammable materials are stored.
ŸNot in potential explosive areas.
ŸNot near the television antenna or antenna cable.
ŸNot higher than altitude of about 9843 ft (3000 m) above sea level.
ŸNot in environment of precipitation.
ŸBe sure the ventilation is good enough.
ŸThe ambient temperature in the range of –13°F (-25°C) to +140°F (+60°C).
ŸThe slope of the wall should be within ±5°.
ŸAvoid direct sunlight, rain exposure, snow laying up during installing and
operating.
Mechanical Installation
Mechanical Installation
23
22
No direct sunlight No rain exposure No snow lay up
Direct sunlight Rain exposure Snow lay up Near antenna
Near combustibles
-25°C
+60°C +140°F
-13°F %RH
0
50
100
0-95%RH
The wall or stand hanging the inverter should meet conditions below:
ŸWooden wall with studs spaced at 12, 16, 20, 24, 28 and 32 inch.
ŸSolid brick / concrete, or strength equivalent mounting surface.
ŸSteel material of sufficient thickness.
Inverter must be supported or strengthened if the strength of wall/stand isn’t
enough. (such as the wall covered by thick layer of decoration)
5.2.2 Installation Carrier Required
Install the inverter at a maximum back tilt of 5 degrees and avoid forward tilted,
excessive backward tilted, side tilted or upside down.
5.2.3 Installation Angle Required

To ensure good heat dissipation and convenient disassembly, the minimum
clearance around the inverter shall not be less than the following values, as shown
in the following figure. The height above the ground marked below is
recommended assuming that three BATs are mounted. If less or more BAT is
mounted, please lower or increase the height accordingly. (the height of one BAT is
about 300 mm)
5.2.4 Installation Space Required
For multi-inverter installation, please reserve the space of 19.68 in. (500 mm) at
least between each left and right inverter and at least 19.68 in. (500 mm) space
from the ceiling and 51.18 in. (1300 mm) above the ground. If multiple inverters are
mounted in areas with high ambient temperatures, increase the clearances
between the inverters and ensure an adequate fresh-air supply if possible.
≥19.68 in. (500 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
≥51.18 in.
(1300 mm)
Mechanical Installation
Mechanical Installation
25
24
≥51.18 in.
(1300 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
5.3 Tools Preparation
Type
Machine Installation Tools
Tool equipment
Name Image
Drill
Allen key
Crosshead
screwdriver
Name Image
Utility knife
Crimping tool
for RJ45
MC4
crimping tool
Multimeter
Marker
tape
Measuring
Mallet
Wire stripper
Crimping tool
Spirit level
Diagonal
pliers
Electrical
hex wrench
Hot-air
blower
Flat-head
screwdriver

Mechanical Installation
Mechanical Installation
5.4 Check for Transport Damages
5.5 Packing Lists
A1-HYB-G2 series inverter is 100% tested and packaged and visually inspected
before leaving our manufacturing facility. Please make sure the inverter is intact
during transportation. If there are some visible damages, such as cracks, please
contact your dealer immediately.
Open the package, fetch out the product and check the accessories. The packing
list shows as below.
27
26
Type
Tool equipment
Name Image Name Image
Safety
gloves
Safety
shoes
Individual
Protection
Tool
Safety
goggles
Anti-dust
mask
In the inverter accessory box
In the inverter box
Item
1
2
3
4
5
9
10
8
6
7
11
12
Inverter X1
Name
13
14
15
16
Description
Product
Mental cover X1
Bracket X1
B E G I J K
C L M N O P Q R
D F H
A
Item
A
B
C
D
E
I
J
H
F
G
K
L
Inverter X1
Name
M
N
O
P
Description
Product
Mental cover X1
Bracket X1
Self-tapping screwX12
WasherX12
Expansion boltX12
Communication dongleX1
(Optional)
PE cableX1
Cable protective guardX1
M5X10 screwX10
DocumentsX3
Circuit breakerX1
Fixing plate of coverX2
8 AWG ferrules X3
10 AWG ferrules X6
8-pin female terminal block
with terminating resistorX1
M4X10 screwX2
Fix the bracket
Fix the bracket
Fix the bracket
Mount it on the BI
Protect the cable between inverter and BMS
For communication
Grounding cable between inverter and BMS
Fix the cover, cable protective guard and cover fixing plate
Guide the installation and maintenance of the inverter
Connect the cover and the bracket
For AC cable
For PV cable
Fix the fixing plate between inverter bracket and BMS
Grounding terminalX5 For grounding
Additional 8-pin female terminal block
with terminating resistor
Q
R
Support the inverter
Protect the inverter

Required torques for mounting
Ø
Part Required torque
Mounting expansion and selftapping screws
(Inverter and BI)
Straight screws for communication board terminal
and electricity meter
Install M5 screws
Install M4 screws
Install a waterproof plug
92 lbf.in/10.4 N·m
2.6 lbf.in/0.29 N·m
13.8 lbf.in/1.5 N·m
10.4 lbf.in/1.2 N·m
13.8 lbf.in/1.5 N·m
The mounting reference paper where holes reference location of
inverter and battery is drawn is in the Battery BMS’s accessory box,
NOT in the inverter’s accessory box.
Mechanical Installation
Mechanical Installation
29
28
NOTE!
The mounting steps in the followings will take mounting on the
wooden wall spaced at 32 inch as an example.
NOTE!
The scheme of hole punch differs from different wall with different characteristics.
5.6 Installation Steps
ØIntroduction of wall bracket
5.6.1 Overview of Bracket and Schemes
20 in/508.00 mm
24 in/609.60 mm
28 in/711.20 mm
32 in/812.80 mm
8 in/207.20 mm 8 in/207.20 mm
WB-32 WB-28 WB-24 WB-20 WB-20WB-24 WB-28 WB-32
WB-32-E
WB-32-E
WB-C
WB-16 WB-16
Scheme B:
Studs at regular intervals (spaced at 16 and 32 inch):
Punch the holes (WB-32)X4+(WB-C)X2+(WB-32-E)X2
The scheme of hole punch differs from different wall with different characteristics.
ØIntroduction of schemes
Scheme A:
Studs at regular intervals (spaced at 12 and 24inch):
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Steel material of sufficient thickness:
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Solid concrete or masonry:
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Scheme C:
Scheme D:
Studs at regular intervals (spaced at 28 inch):
Punch the corresponding holes (WB-28)X4+(WB-C)X2+(WB-32-E)X2
Studs at regular intervals (spaced at 20 inch):
Punch the corresponding holes (WB-20)X4+(WB-C)X2+(WB-32-E)X2

The mounting reference paper where holes reference location of
inverter and battery is drawn is in the Battery BMS’s accessory box,
NOT in the inverter’s accessory box.
Mechanical Installation
Mechanical Installation
31
30
NOTE!
5.6.2 Mounting Steps
The mounting steps in the followings will take mounting on the
wooden wall spaced at 32 inch as an example.
NOTE!

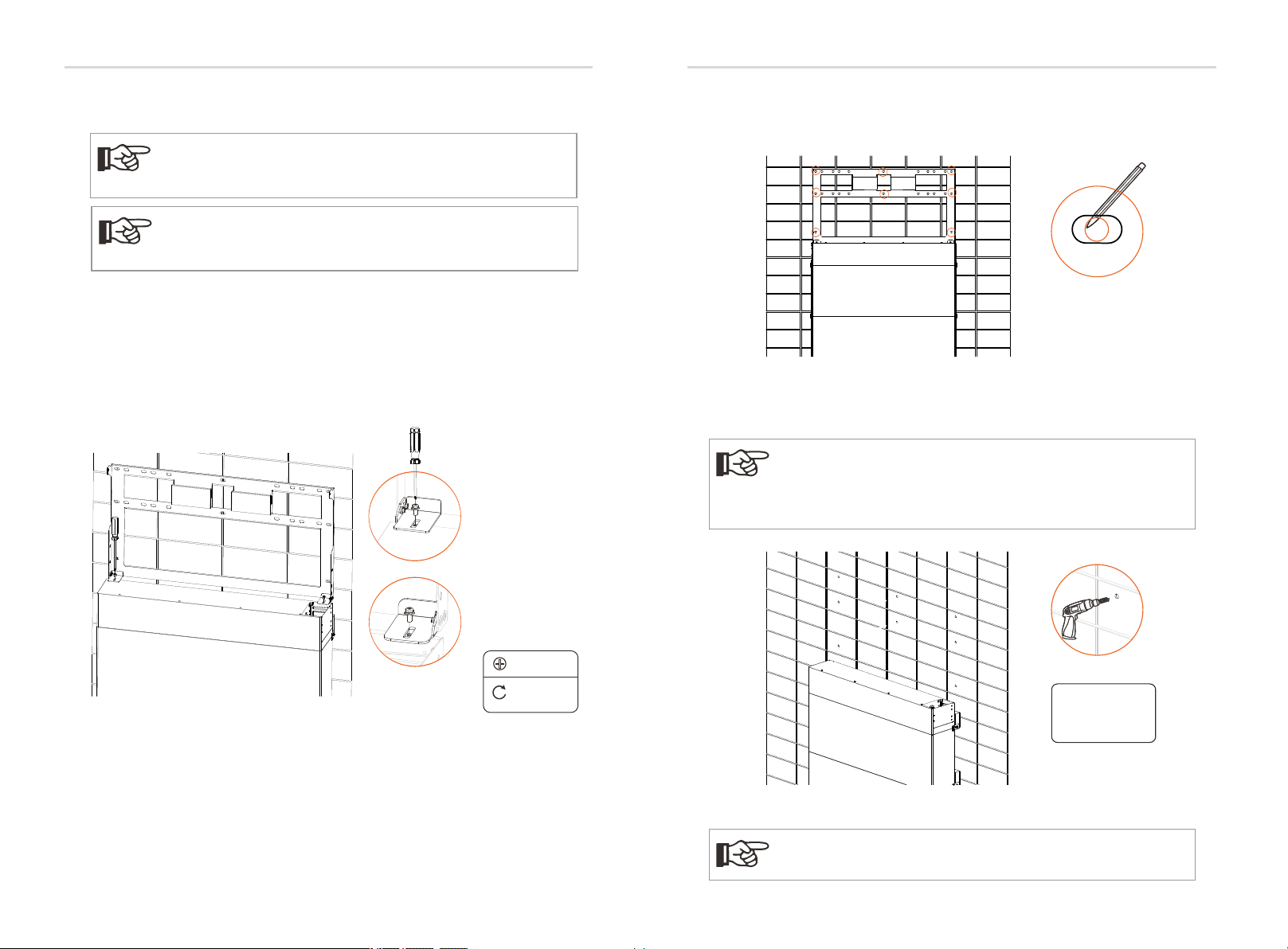

Step 1: Fix the bracket
a) Two M4 holes are reserved on the BMS for fixing the bracket of the
inverter.
ŸScrew in M4 screws to pre-fix the bracket on the BMS but be sure not to
tighten.
ŸHold the bracket firmly to the wall surface.
ŸTighten the M4 screws to fix the bracket on the BMS.
Before mounting the inverter, the mechanical installation of the whole
battery must be completed.
NOTE!
M4
4.4 lbf.in /
0.5 N·m
b) Use the bracket as the template to mark the screw hole location on the
wall.
c) Unscrew the two M4 screws to disassemble the bracket. Drill holes with
power drill, and make sure the holes are deep enough (2.1 in. / 55.0 mm) to
support the inverter.
The figure below is only used for showing the depth and location of
holes. Make sure the holes are in the center of each stud and keep at
least 1.5 in. / 38 mm away from the edge of concrete bricks or studs
before marking holes.
NOTE!
Round holes
Depth:
2.1 in. / 55.0 mm
Φ4 drill
For solid concrete wall, please use Φ10 drill.
NOTE!

Mechanical Installation
Mechanical Installation
33
32
c) Insert the expansion tube into the hole and use rubber hammer to knock
the expansion tube into the wall. (This step is not required in case of wooden wall.)
e) Align the bracket over the holes and re-fix the bracket on the BMS with
screws. Set the tapping screw through the washer and secure the bracket with
tapping screws. Please hold the bracket firmly to the wall surface before fixing it.
26.5 lbf.in /
3.0 N·m
10
mm
Step 2: Hang and fix the inverter on the bracket
b) Place the cable protective guard on the correct position of battery’s
BMS prior to the wiring connection between inverter and battery and secure it on
the inverter’s bracket with M5 screws;
a) Place the inverter to be seated on the corresponding position of the
bracket. As A1-HYB-G2 series inverters are heavy, weigh 75 lbs / 34 Kg, it should
be lifted up by two persons and placed carefully onto the bracket. Then adjust the
inverter to be centered on the whole system;
Back view Front view
M5
8.8 lbf.in /
1.0 N·m

Mechanical Installation
Mechanical Installation
35
34
WB-32WB-32WB-32WB-32WB-32WB-32WB-32
13.8 lbf.in/1.5 N·m
Cross screwdriver

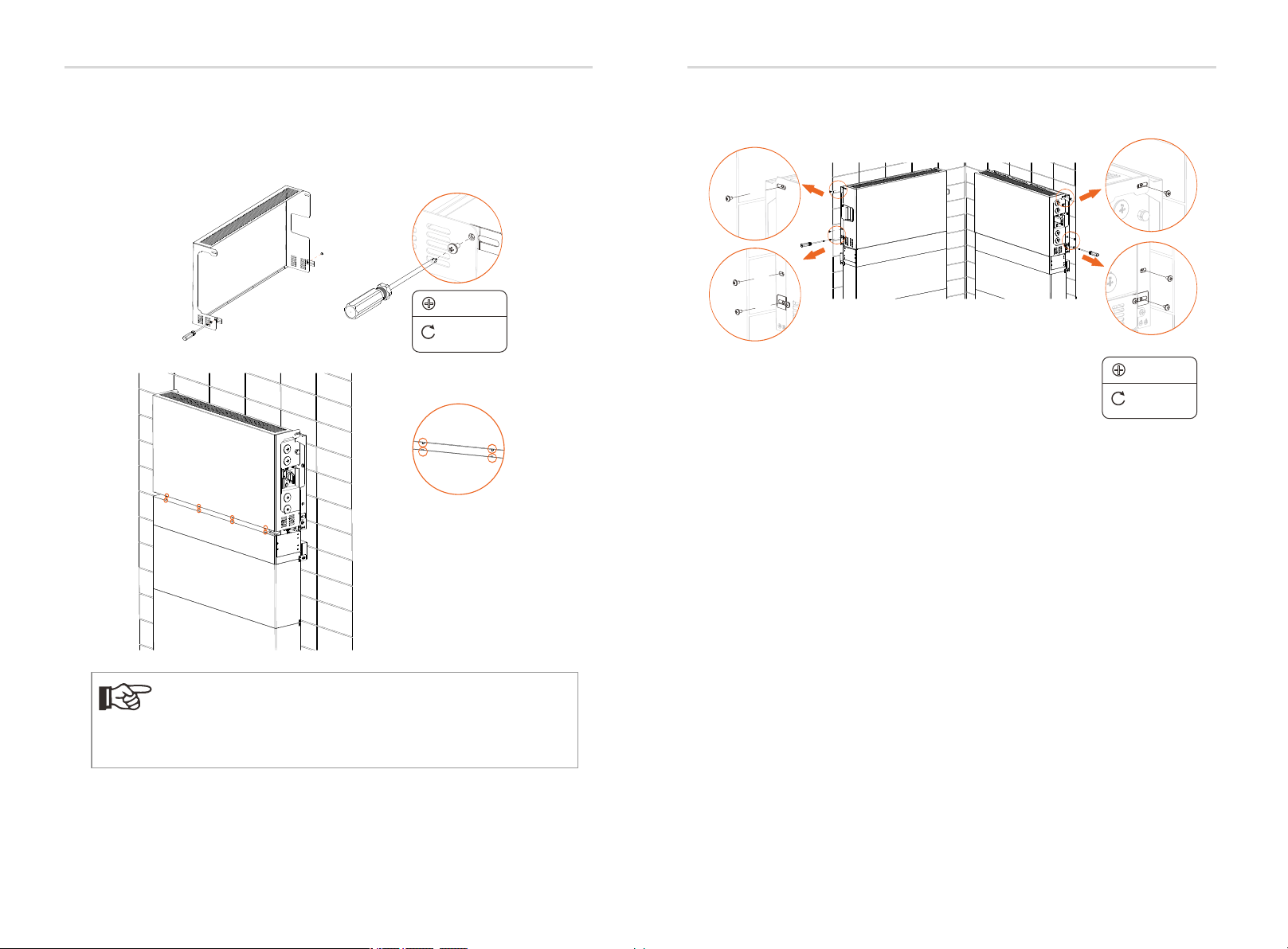

c) Pre-mount the fixing plate on the two sides of metal cover and mount
the metal cover on the inverter. Please make sure the four dowel pins are inserted
into the holes of BMS and adjust the whole system (inverter and battery) to be
leveled;
NOTE!
Before mounting the metal cover, the wiring connection between
battery and inverter must be completed. For detailed information
about how to connect the battery to the inverter, please refer to
Chapter 6 “Electrical Connection”.
M5
8.8 lbf.in /
1.0 N·m
Inverter
BMS
Dowel pins
Pins holes
d) Fix the metal cover with six M5 screws.
Left side view Right side view
M5
8.8 lbf.in /
1.0 N·m
