Product Registration 1

Important Safety Instructions 2

Important Electrical Information 3

Important Operation Instructions 4

Assembly instructions 9

Transport Instructions 13

Operation of Your ew Treadmill 14

General Maintenance 36

Service Checklist - Diagnosis Guide 39

Manufacturer’s Limited Warranty 40

Before returning your Sole product to any retailer, or if you re uire

assistance with assembly or technical support please call us first

assistance at 866-697-6531. Thank you for your Sole pu

chas

TT9 -2018 Ver. A

TREADMILL

CONGRATULATIONS ON YOUR NEW TREADMILL AND WELCOME TO THE SOLE FAMILY!

Thank you for your purchase of this quality treadmill from

SOLE

. Your new treadmill has been manufactured by

one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive

warranties available.

SOLE

will do all we can to make your ownership experience as pleasant as possible for

many years to come.

If you have any questions about your new product contact

SOLE

Fitness at

866-780-SOLE (7653)

. If you have a

technical problem with your new treadmill contact

SOLE

technical service at

866-MYSOLE1

(1-866-697-6531).

Please take a moment at this time to record below the name of the dealer, their telephone number, and the

date of purchase for easy contact in the future. We appreciate your confidence in

SOLE

and we will always

remember that you are the reason that we are in business. Please complete and mail your registration card

today and enjoy your new treadmill.

Yours in Health,

SOLE Fitness

ame of Dealer

Telephone umber of Dealer

Purchase Date

PRODUCT

REGISTRATION

RECORD YOUR SERIAL NUMBER Please record the

Serial umber of this fitness

product in the space

provided below.

Serial Number

The self-addressed product registration card must be completed in full and returned to SOLE.

You can also go to www.soletreadm lls.com under the support tab to register online.

TT9_ 201802

TT9

TREADMILL

IMPORTA T

SAFETY

INSTRUCTIONS

WARNING - Read all instructions before using this appliance.

DANGER - To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical

outlet prior to cleaning and/or service work.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the

treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet with only the

treadmill plugged into the circuit.

DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER, WITH ONLY ONE

OUTLET ON THE END: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING

IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET.

A serious shock or fire hazard may result along with computer malfunctions. See Grounding Instructions, page 3.

Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both

carpet and treadmill may result.

Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance

between the rear of the treadmill and any fixed object.

Keep children under the age of 13 away from this machine. There are obvious pinch

points and other caution areas that can cause harm.

Keep hands away from all moving parts.

ever operate the treadmill if it has a damaged cord or plug. If the treadmill is not

working properly, call your dealer.

Keep the cord away from heated surfaces.

Do not operate where aerosol spray products are being used or where oxygen is being

administered. Sparks from the motor may ignite a highly gaseous environment.

ever drop or insert any object into any openings.

Do not use outdoors.

To disconnect, turn all controls to the off position, remove tether cord, then remove the

plug from the outlet.

Do not attempt to use your treadmill for any purpose other than for the purpose it is

intended.

The pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are

intended only as exercise aids in determining heart rate trends in general.

Use handrails provided; they are for your safety.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use

on your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

This appliance is not intended for use by persons with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for

their safety.

Remove tether cord after use to prevent unauthorized treadmill operation.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

TREADMILL

IMPORTA T

ELECTRICAL

INSTRUCTIONS

WARNING!

NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any

appliance with a large motor, the GFCI will trip often. Route the power cord away from any

moving part of the treadmill including the elevation mechanism and transport wheels.

NEVER remove any cover without first disconnecting AC power.

If voltage varies by ten percent (10%) or more, the performance of your treadmill may be

affected. Such conditions are not covered under your warranty. If you suspect the voltage is

low, contact your local power company or a licensed electrician for proper testing.

NEVER expose this treadmill to rain or moisture. This product is OT designed for use outdoors,

near a pool or spa, or in any other high humidity environment. The maximum operating

temperature specification is 40 degrees c, and humidity is 95% non-condensing (no water drops

forming on surfaces).

Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents ,

(ARC fault breakers are one example) that can occur when a treadmill is first turned on or even

during use. If your treadmill is tripping the house circuit breaker (even though it is the proper

current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace

the home breaker with a high inrush type. This is not a warranty defect. This is a condition we as a

manufacture have no ability to control. This part is available through most electrical supply stores.

Examples:

Grainger part # 1D237, or available online at www.squared.com part # QO120HM.

GROU DI G

INSTRUCTIONS

This product must be grounded. If the treadmill should malfunction or breakdown, grounding

provides a path of least resistance for electric current, reducing the risk of electric shock. This

product is equipped with a cord having an equipment-grounding plug. The plug must be

plugged into an appropriate outlet that is properly installed and grounded in accordance with all

local codes and ordinances.

DANGER - Improper connection of the e uipment-grounding conductor can result in a risk

of electric shock. Check with a ualified electrician or serviceman if you are in doubt as to

whether the product is properly grounded. Do not modify the plug provided with the

product if it will not fit the outlet; have a proper outlet installed by a ualified electrician.

This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like

the plug illustrated below. A temporary adapter that looks like the adapter illustrated below

may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded

outlet is not available. The temporary adapter should be used only until a properly grounded

outlet, (shown below) can be installed by a qualified electrician. The green colored rigid ear-

lug, or the like, extending

from the adapter, must be

connected to a permanent

ground such as a properly

grounded outlet box cover.

Whenever the adapter is

used, it must be held in

place by a metal screw.

TT9

TREADMILL

IMPORTA T

OPERATION

INSTRUCTIONS

NEVER operate this treadmill without reading and completely understanding the results of

any operational change you request from the computer.

Understand that changes in speed and grade do not occur immediately. Set your desired

speed on the computer console and release the adjustment key. The computer will obey the

command gradually.

NEVER use your treadmill during an electrical storm. Surges may occur in your household

power supply that could damage treadmill components. Unplug the treadmill during an

electrical storm as a precaution.

Use caution while participating in other activities while walking on your treadmill; such as

watching television, reading, etc. These distractions may cause you to lose balance or stray

from walking in the center of the belt; which may result in serious injury.

NEVER mount or dismount the treadmill while the belt is moving. SOLE treadmills start at a

very low speed and it is unnecessary to straddle the belt during start up. Simply standing on

the belt during slow acceleration is proper after you have learned to operate the unit.

Always hold on to a handrail or hand bar while making control changes (grade, speed, etc.).

Do not use excessive pressure on console control keys. They are precision set to function

properly with little finger pressure. Pushing harder is not going to make the unit go faster or

slower. If you feel the buttons are not functioning properly with normal pressure contact

your SOLE dealer.

IMPORTA T

SAFETY

INSTRUCTIONS

A safety tether cord is provided with this unit and should be used at all times. It is for your safety

should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop

tread-belt movement.

To Use:

1. Place the safety key into position on the console control head. Your treadmill will not start

and operate without this. Removing the safety key also secures the treadmill from unau-

thorized use.

2. Fasten the plastic clip onto your clothing securely to assure good holding power.

Note: The clip should be attached securely to make certain it does not come off. Be familiar

with its function and limitations. The treadmill will stop, depending on speed, with a one to two

step coast anytime the safety key is pulled off the console. Use the red Stop switch in normal

operation.

TREADMILL

IMPORTA T

SAFETY

INSTRUCTIONS

READ BEFORE UNPACKING YOUR FOLDING TREADMILL

Serious injury could occur if this folding treadmill is not unpacked properly.

There is a Velcro strap installed around the treadmill base that prevents the treadmill from

unfolding accidentally during shipping. If this strap is not removed properly the treadmill could

spring open unexpectedly and cause injury if someone is standing near the treadmill when the

strap is removed.

To ensure your personal safety during removal of the shipping strap please make sure the

treadmill is positioned flat on the ground, in the orientation it would be in if you were using the

treadmill. Do not turn the treadmill up on its side while removing the shipping strap. This could

cause the treadmill’s folding mechanism to spring open. If the end of the Velcro strap (that you

need to grab to remove it) happens to be under the treadmill deck, reach under the deck to

grab it, but do not tilt the treadmill up to gain access to the strap end.

PREVE TATIVE

MAINTENANCE CHART

Vacuum Under

Motor Cover &

Check Wiring

(Every Other

Month)

Clean & Inspect eck

for Lubrication

(Every Other Month)

Lubricate eck

(Every 90 hours

or sooner if dry)

Inspect Belt Tracking

(Monthly) Adjust if

necessary

ate

TT9

TREADMILL

TT9

ASSEMBLY PACK CHECKLIST

HARDWARE

STEP 1

HARDWARE

STEP 2

#117. Ø10 × 2.0T_

Split Washer (10 pcs)

#133. M5 × 20L_

Phillips Head Screw (4 pcs)

#116. Ø3/8" × 35 × 2T_

Flat Washer (10 pcs)

#134. M5 × 12L_Phillips

Head Screw (4 pcs)

#193. 3.5 × 12m/m_

Sheet Metal Screw (4 pcs)

#144. 3/8" × 16 × 3"_Button

Head Socket Bolt (10 pcs)

TREADMILL

HARDWARE

STEP 3

HARDWARE

STEP 4

#125.

Ø3/8" × 25 × 2T_

Flat Washer (6 pcs)

#117. Ø10 × 2.0T_

Split Washer (6 pcs)

#145. 3/8" × 16 × 3/4"_

Button Head Socket Bolt (6 pcs)

#146. M8 × 1.25 × 12L_

Socket Head Cap Bolt (6 pcs)

#162. 3/8" × 16 × 1-3/4"_

Button Head Socket Bolt (2 pcs)

#117. Ø10 × 2.0T_

Split Washer (2 pcs)

#163.

Ø10 × 23 × 1.5T_

Curved Washer (2 pcs)

#134.

M5 × 12L_

Phillips Head Screw (8 pcs)

TT9

TREADMILL

ASSEMBLY

TOOLS

#148. 8m/m_L Allen Wrench

#147. Phillips Head Screw Driver

#149. 3/8" L Allen Wrench

TREADMILL

TT9

ASSEMBLY

I STRUCTIO S

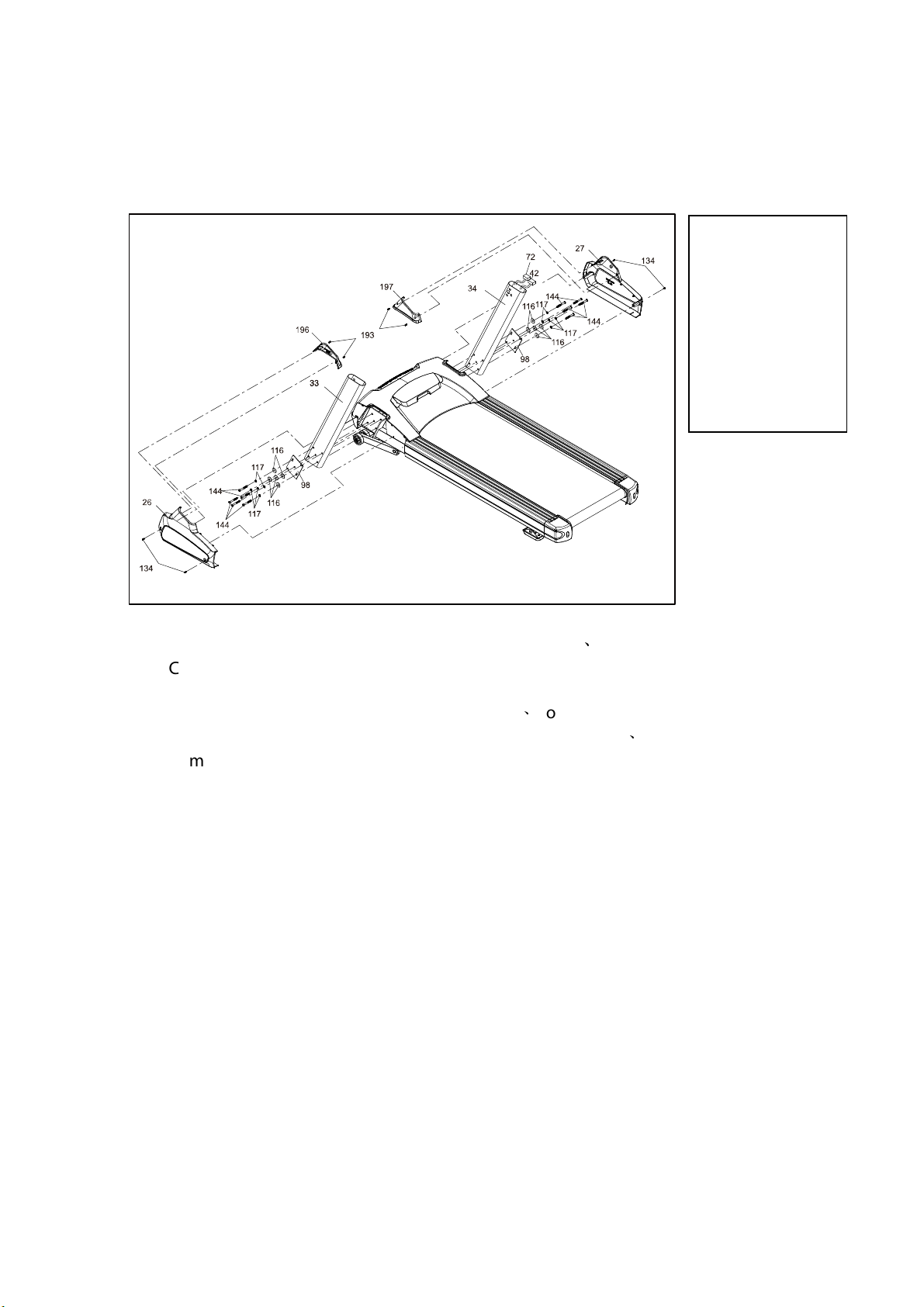

ASSEMBLY

STEP 1

Right Upright(34) which Computer Cable (Lower) (42)

、

Computer Cable (Lower) (72) already inserted, Move Right

Upright to Main Frame , When align Right Upright and Main

Frame insert the Computer Cable (Lower) (42)

、

Computer Cable

(Lower) (72) carefully to avoid Computer Cable (Lower) (42)

、

Computer Cable (Lower) (72) clamp to Right Upright (34) and

Main Frame, Align Foam Pad (98) with Right Upright (34) and

Main Frame , Align one 3/8" × 16 × 3"_Button Head Socket Bolt

(144) with Ø10 × 2.0T_Split Washer (117) and Ø3/8" × 35 ×

2T_Flat Washer (116) then screw up Right Upright (34) and Main

Frame from middle hole on Foam Pad (98). Then screw up other

four 3/8" × 16 × 3"_Button Head Socket Bolt (144), Ø10 ×

2.0T_Split Washer (117) and Ø3/8" × 35 × 2T_Flat Washer (116) .

Assemble Left Upright (33) like Right Upright (34)

Screw up Motor Base Cap (R) (27) and Motor Base Cap (L) (26)

with four M5 × 12L_Phillips Head Screw (134)

Screw up Motor Base Cap (R) (197) and Motor Base Cap (L) (196)

with four 3.5 × 12m/m_Sheet Metal Screw (193)

#116. Ø3/8" × 35 × 2T_

Flat Washer (10 pcs)

#117. Ø10 × 2.0T_

Split Washer (10 pcs)

#134. M5 ×12L_Phillips

Head Screw (4 pcs)

#144. 3/8" × 16 ×

3"_Button Head Socket

Bolt (10 pcs)

#193. 3.5 × 12m/m_

Sheet Metal Screw

(4 pcs)

HARDWARE

STEP

TT9

TREADMILL

ASSEMBLY

STEP 2

HARDWARE STEP 2

Connect Ground Wire(35) and Handpulse Wire (Upper/Lower)(39)

and Computer Cable (Upper)(41) and Pad/Backlit Cable(43) and

Connecting Cable(61) and Computer Cable (Upper)(71) all connect

to the board on back of the console (28).

Use four M5 × 20L_Phillips Head Screws (133) to secure console

assembly onto the console support (5).

#133. M5 × 20L_

Phillips Head Screw

(4 pcs)

TREADMILL

ASSEMBLY

STEP 3

HARDWARE STEP 3

Use six M8 × 1.25 × 12L_Socket Head Cap Bolts (146) to secure the

console on interface mounting bracket on uprights (3, 4).

Connect upper computer cable (41) and lower computer cable (42).

Connect upper computer cable (71) and lower computer cable (72)

Use six 3/8"x16 × 3/4"_Button Head Socket Bolts (145), together

with six Ø10×2.0T_Split Washers (117) and six 3/8" × 25 × 2T_Flat

Washers (125) on top of uprights. Be careful not to pinch the

computer cable.

#117. Ø10 × 2.0T_

Split Washer (6 pcs)

#125. Ø3/8" × 25 × 2T_

Flat Washer (6 pcs)

#145. 3/8" × 16 × 3/4"_

Button Head Socket

Bolt (6 pcs)

#146. M8 × 1.25 × 12L_

Socket Head Cap Bolt

(6 pcs)

TT9

TREADMILL

IMPORTANT ASSEMBLY INSTRUCTION

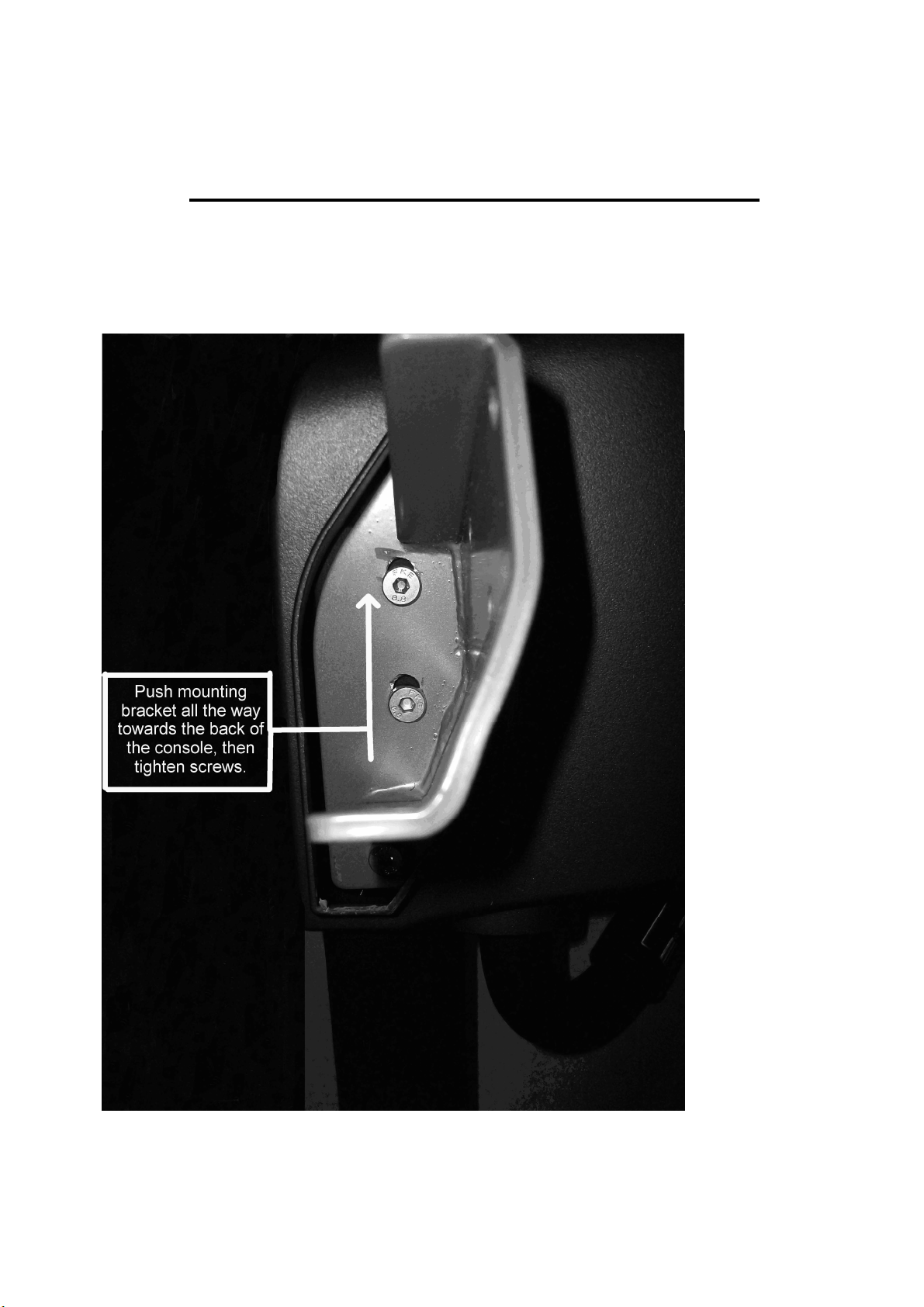

When assembling the console mounting interface brackets (Items 3&4) please

be sure to slide the brackets all the way towards the back of the console before

tightening the bolts.

TREADMILL

ASSEMBLY

STEP 4

Screw up Console Mast Cover(R) (194), Console Mast Cover(L)

(195) and Right Upright (34) with four M5 × 12L_Phillips Head

Screw (134).

Same way screw up Console Mast Cover(R) (194), Console Mast

Cover(L) (195) and Left Upright (33) with 4 M5 × 12L_Phillips

Head Screw (134) Assemble Left Upright (33)

Screw up Console Mast Cover(R) (194), Console Mast Cover(L)

(195) and Right Upright(34), Left Upright (33) with 2 3/8" × 16 ×

1-3/4"_Button Head Socket Bolt (162), Ø10 × 2.0T_Split Washer

(117) and Ø10 × 23 × 1.5T_Curved Washer (163).

#117. Ø10 × 2.0T_

Split Washer (2 pcs)

#134. M5 × 12L_

Phillips Head Screw

(8 pcs)

#162. 3/8" × 16 × 1-

3/4"_ Button Head

Socket Bolt (2 pcs)

#163. Ø10 × 23 × 1.5T_

Curved Washer

(

pcs)

HARDWARE

STEP

TT9

TREADMILL

TRA SPORTATIO

INSTRUCTIONS

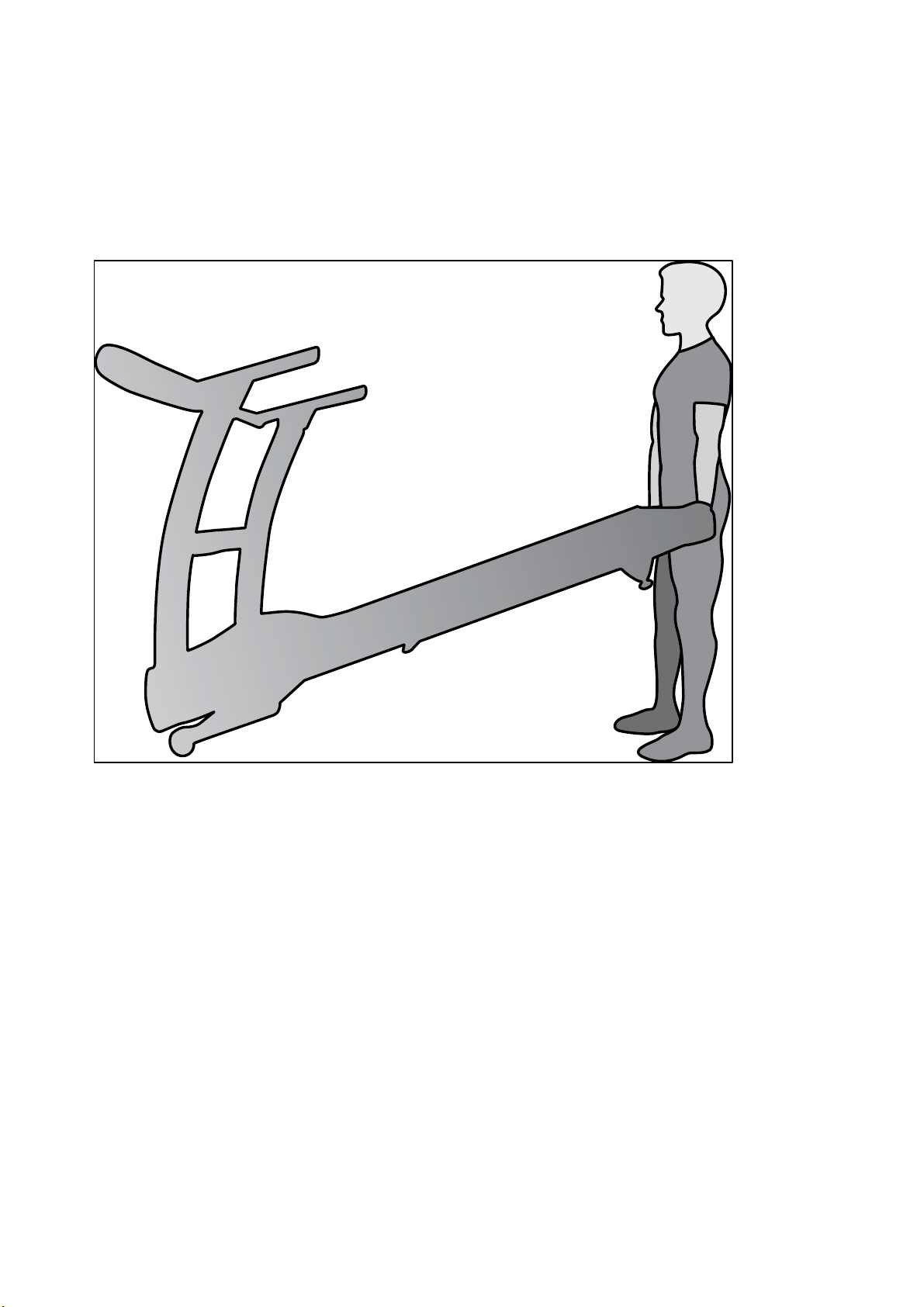

The treadmill is equipped with transport wheels that are engaged when the treadmill is folded.

After folding simply roll the treadmill away.

TREADMILL

OPERATIO OF

YOUR TREADMILL

GETTING FAMILIAR WITH THE CONTROL PANEL

TT9

CO SOLE

Starting the operation:

• Plug in the power cord and switch on the main power switch located at the front, under the motor

hood of the treadmill and make sure that the safety key is put on as the treadmill is unable to

operate without the safety key.

• When the power is turned on, the screen will show the initial image and then enter the ready mode

which is the beginning of the treadmill operation.

TT9

TREADMILL

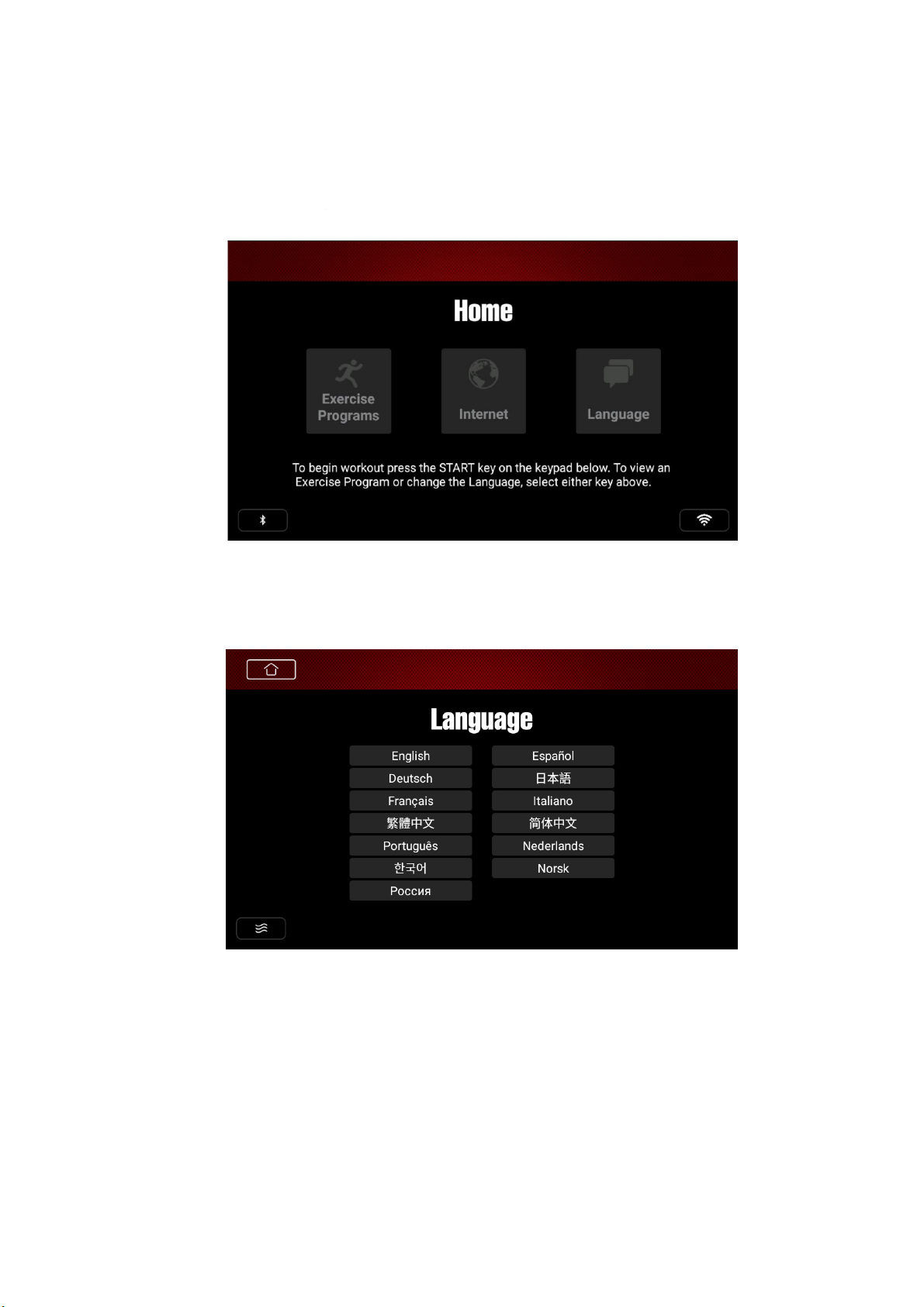

First page image for you to operate by touching the icons.

Quick operating functional buttons are installed.

Quick start operation:

• Press “START” button and the belt runs with 0.8 km/h (0.5 MPH).

• Press FAST/SLOW buttons further to adjust the speed.

• Press and hold “SLOW” button to slow down to the desired speed.

• Press first page button or “STOP” button to stop the belt.

Featuring functions of this treadmill:

Touch-

control screen is installed for operating the treadmill. You can directly touch any functional

button on the screen or through quick buttons on the bottom to control. On the bottom, there are

“FAST”/”SLOW” butto

ns to control the speed, “START” button to begin the workout, “STOP” button

to pause/stop running and “UP”, “DOW ” buttons to control the incline of the treadmill.
