SOMFY DecoFlex WireFree 1870908 User manual

Product Overview
Important Notes
Dimensions
Control Operation What’s In the Box
The DecoFlex WireFree™ 3-Button keypad provides a simple and elegant way to control Somfy-powered RTS interior shades. This
keypad is compatible with all Somfy RTS motors and brings an intuitive single channel control experience to the DecoFlex WireFree
product line.
• DecoFlex WireFree™ 3-Button keypad
• Instructions
• CR2450 battery
• Mounting bracket
• Decora Switch Plate
• Mounting screws (x2)
Codes: Install in accordance with all local and National Electrical Codes.
Environment: Ambient operating temperature is 41° F to 104° F (5° C to 40° C).
Mounting: Mounting bracket (included) allows for direct mounting to drywall. No junction box required.
Battery: DO NOT use rechargeable batteries. Using improper batteries could damage the DecoFlex keypad.
STOP
CLOSE
OPEN
OPEN
Press to open drapery/
raise shades.
LED Indicator
Programming Button
STOP
When the drapery/shades are moving,
press to stop them at the desired level.
When the drapery/shades are stationary,
press to send to pre-programmed
intermediate “my” position.
Decora Switch Plate
(Switch Plate included)
CLOSE
Press to close drapery/
lower shades.
DecoFlex WireFree™ 3-Button Instructions
Item #:1870908 (White)
2.77"
[70mm]
4.51"
[115mm]
4.51"
[115mm]
3.28"
[83mm]
3.80"
[97mm] 2.78"
[71mm]
.59"
[15mm]
STOP
CLOSE
OPEN
STOP
CLOSE
OPEN

Installation
Initial Programming
The keypad can be wall-mounted with the following steps:
1. Cut an opening into drywall using the mounting bracket as a guide.
2. Install the bracket securely in place.
3. Secure the keypad to the bracket using the screws provided (do not over-tighten).
4. Attach the Decora Switch Plate on to the keypad
For detailed steps on programming, please refer to the pocket programming guide at www.somfypro.com/pocket-programming-guide

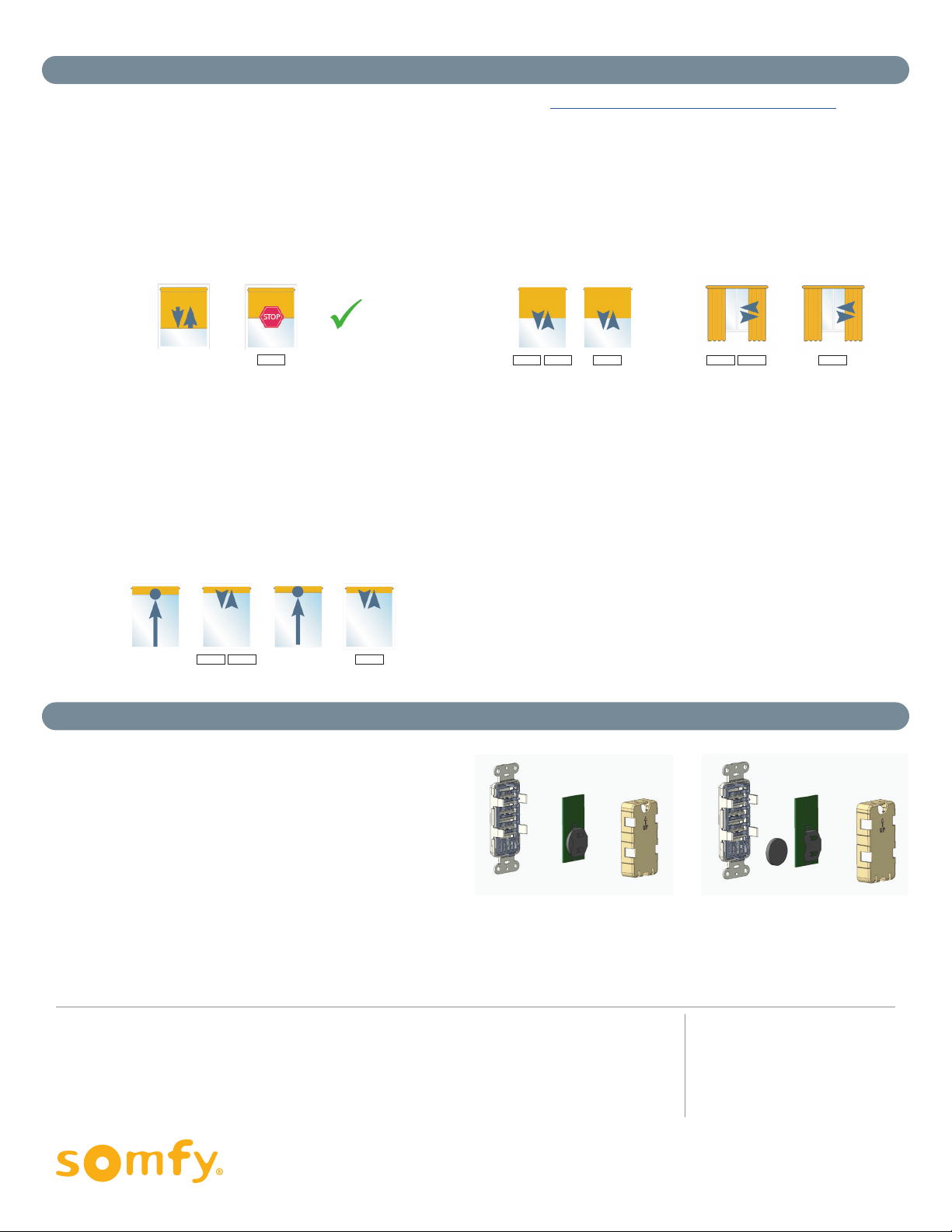

STEP 1: INITIATE PROGRAMMING
On the keypad, PRESS & HOLD both the OPEN and CLOSE buttons simultaneously until the
window covering jogs. This may take up to 10 seconds.
STEP 2: CHECK THE DIRECTION OF OPERATION
On the keypad, PRESS & HOLD the CLOSE button and check if the window covering is
closing. If the window covering does not correspond with the expected direction, PRESS &
HOLD the STOP button until the window covering jogs to reverse the direction. Confirm
before proceeding.
STEP 4: COMPLETE PROGRAMMING
BRIEFLY PRESS the PROGRAMMING button on the front of the keypad. The window
covering will jog indicating programming is complete and the keypad is now ready to be used.
STEP 3: SETTING MOTOR LIMITS (The end limits can be set in any order)
OPEN
HOLD
CLOSE OPEN
HOLD
CLOSE
HOLD
CLOSE
HOLD
CLOSE
HOLD
STOP
OPEN
OPEN STOPSTOP
HOLD
CLOSE STOP
HOLD
OPEN
Bring the window covering to the desired upper limit position, then PRESS & HOLD both the
STOP and CLOSE buttons simultaneously until the window covering starts to move.
PRESS the STOP button to stop the motor when the desired lower limit position is reached.
PRESS the OPEN or CLOSE button to adjust to the exact position.
PRESS & HOLD both the STOP and OPEN buttons simultaneously until the window covering
starts to move. The window covering will stop at the previously set upper position.
PRESS & HOLD the STOP button until the window covering jogs to confirm the limit settings.
For drapery, BRIEFLY PRESS the OPEN or CLOSE buttons. The drapery will automatically run to record
both hard stop positions.
STOP
CLOSE
OPEN
Programming
Button

© Somfy Systems, Inc. • FEB 2023
All brands, products, and trademarks are the property of their respective owners.
25019945
6411 Edwards Blvd
Mississauga, ON L5T 2P7
CN: (800) 66-SOMFY
F: [phone]
New Jersey
121 Herrod Blvd.
Dayton, NJ 08810
T: (800) 22-SOMFY
F: [phone]
Somfy Systems, Inc.
T: (800) 22-SOMFY
www.somfypro.com
Somfy ULC
T: (800) 66-SOMFY
www.somfypro.ca
Florida
1200 SW 35th Ave.
Boynton Beach, FL 33426
T: (877) 22-SOMFY
F: [phone]
California
15301 Barranca Parkway
Irvine, CA 92618-2201
T: (877) 72-SOMFY
F: [phone]
Modifying Keypad Programming
For detailed steps on programming, please refer to the pocket programming guide at www.somfypro.com/pocket-programming-guide
MODIFYING UPPER/LOWER LIMITS
Move the window covering to its current upper or lower limit,
then PRESS & HOLD both the OPEN and CLOSE buttons
simultaneously until the window covering jogs. This could take
up to 10 seconds.
Adjust the shade to the new desired limit position with the
OPEN and CLOSE buttons, then PRESS & HOLD the STOP
button until the window covering jogs to confirm the new limit.
ADJUSTING THE SPEED (Supported motors only)
Move the window covering away from its upper or lower
limit, then PRESS & HOLD both the OPEN, STOP, and CLOSE
buttons simultaneously until the window covering jogs and
the window covering starts moving. This could take up to 10
seconds.
To increase the speed, PRESS & HOLD the OPEN button until
the shade jogs. Repeat as needed. To decrease the speed, PRESS
& HOLD the CLOSE button until the window covering jogs.
Repeat as needed.
PRESS & HOLD the STOP button until the window covering jogs
to confirm the new speed.
FCC/IC Information
This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation.
HOLD
STOPSet Desired Position OPEN
HOLD
CLOSE OPEN
HOLD
CLOSE
HOLD
STOP
HOLD
STOP
SETTING INTERMEDIATE PREFERRED “MY” POSITION
Stop the window covering at the desired intermediate position,
then PRESS & HOLD the STOP button until the window
covering jogs.
The intermediate position is now confirmed. PRESS the STOP
button to move the window covering to this position.
MODIFYING THE OPERATION DIRECTION
Move the window covering away from its current upper or
lower limit, then PRESS & HOLD both the OPEN and CLOSE
buttons simultaneously until the window covering jogs. This
could take up to 10 seconds.
Hold the STOP button until the window covering jogs to
confirm the change of the operation direction.
OPEN
HOLD
CLOSE
HOLD
STOPAdjust to new limit
position
Move shade to currently
programmed limit
Battery Replacement
WARNING: Burn hazard. To avoid the risk of fire,
explosion, or burns, DO NOT recharge, disassemble,
crush, puncture, or incinerate the battery. Please
recycle battery appropriately.
1. Remove the keypad from the wall and disassemble.
2. Slide a new CR2450 battery into the holder and
reassemble the keypad.
