SOMFY RTS LT-30RT User manual

STEP 3- Check Polarity (Shade Direction)
MUST BE DETERMINED BEFORE SETTING SHADE LIMITS
1) Press and hold the UP or DOWN button. The Shade movement (direction) should correspond to the
directional button on the Transmitter. (i.e, Up Button on the Transmitter = Up movement for Shade)
· If shade direction is correct, continue to Step 4.
· If shade direction is not correct (in reverse), press and hold the CENTER (Stop) button on the transmitter
for 5 seconds. Shade will jog (DOWN then UP) Shade direction is now corrected. Shade movement
should now correspond to the direction button on the transmitter.
1) Press and hold the UP button on the transmitter. Shade will PULSE initially then begin to move in the UP
direction. Note: During Limit setting, shade operates in 4 Foot increments only.
If shade stops prior to reaching desired limit (final shade position) release then press and HOLD transmitter
UP button again until shade continues to move.
2) Once desired shade position is reached, release transmitter directional button, then press the
CENTER (Stop) and UP buttons together until the shade "jogs" confirming the set position.
1) Press and hold the DOWN button on the transmitter. Shade will PULSE initially then begin to move in
the DOWN direction. Note: During Limit setting, shade operates in 4 Foot increments only.
If shade stops prior to reaching desired limit (final shade position) release then press and hold
transmitter DOWN button again until shade continues to move.
2) Once desired shade position is reached, release transmitter directional button, then press the
CENTER (Stop) and DOWN buttons together until the shade "jogs" confirming the set position.
1) Press and hold the PROGRAM button on the back of the transmitter until the shade "jogs.”
TRANSMITTER IS NOW ADDRESSED AND PROGRAMMING IS COMPLETE.
Note: If power is disconnected from shade before STEP 6 is completed, TRANSMITTER WILL NOT
BE ADDRESSED to the programmed shade. This feature is useful if shade MUST BE addressed to
an existing Transmitter. (see Assigning Transmitter to Shade STEP 2)
STEP 4- Setting the Upper Limit (UP Stop Location)
STEP 5- Setting the Lower Limit (DOWN Stop Location)
STEP 6- Completing & Exiting Programming Mode
STEP 1- Connect Power to Motor
1) Connect power source to motor
· Motor should already be installed in shade
STEP 2- Assign a Transmitter - (for use with Telis 1 & 4,Decora 1 & 4 or Chronis Timer)
For Single Channel Transmitters (Telis 1, Decora 1, or Chronis)
1) On the transmitter, press and hold the UP and DOWN buttons simultaneously until the shade “jogs”.
For Multi-Channel Transmitters (Telis 4 or Decora 4)
1) Using the channel selector, select the desired channel.
2) On the transmitter, press and hold the UP and DOWN buttons simultaneously until the motor “jogs”.
Note: This step cannot be performed if transmitter has already been programmed (addressed)
to shade.

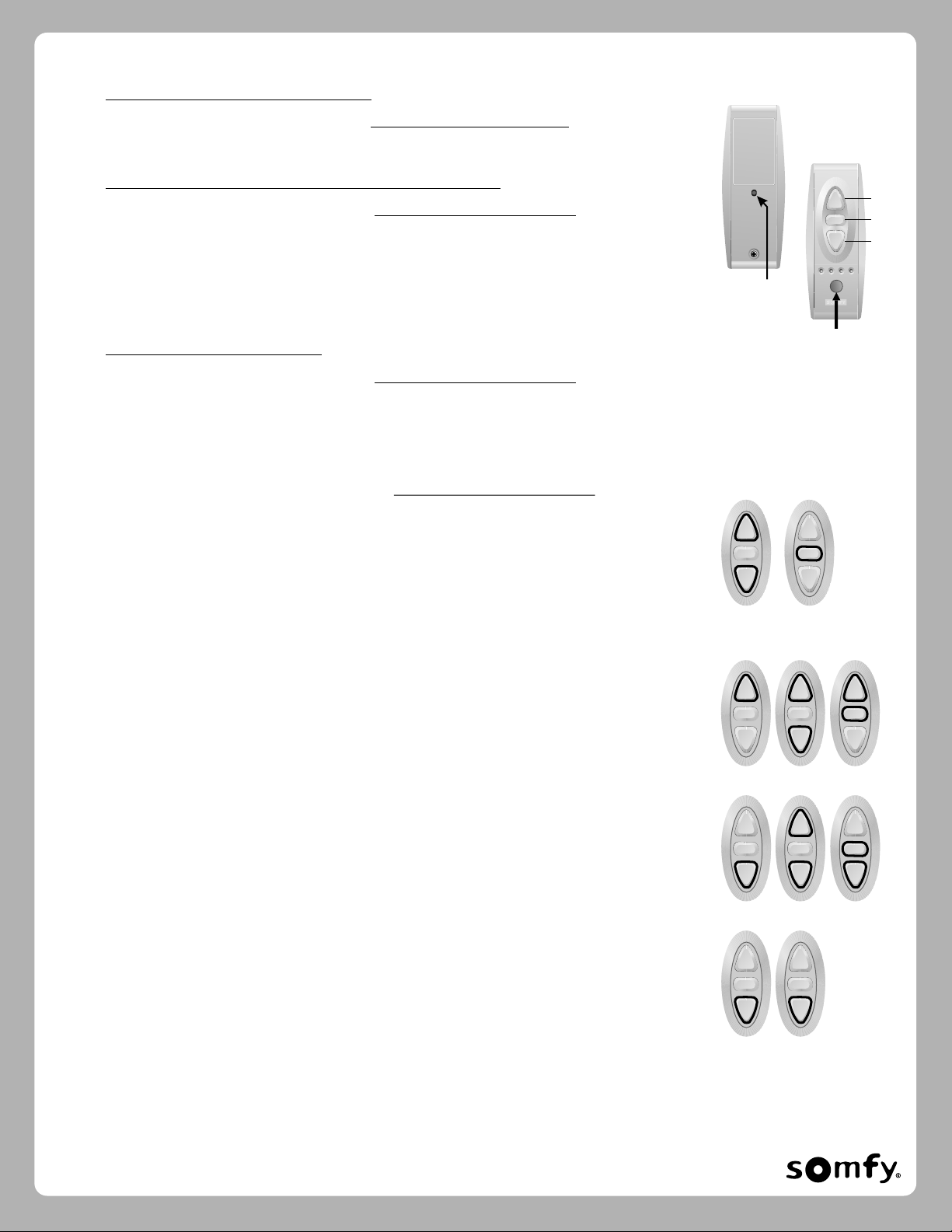

Channel Selector
Telis 4 Transmitter
Programming
Button
Programming and Operation Instructions
Embedded RTS LT-30RT - 12V
Before you begin
- Motors are shipped without limit switch settings and transmitter ID’s.
- Steps (1-7) must be completed to ensure proper shade programming and functionality.
- Power should ONLY be connected to current shade being programmed. All other shades should be disconnected from their respective
power while programming is in progress.
- While programming steps (4 & 5), shade should not be inactive for longer than 2 ½ minutes or motor will exit programming mode.
UP
STOP
DOWN

STEP 7- Addressing Transmitters or Specific Transmitter Channels
1) Press and hold the PROGRAM button on the previously addressed transmitter until the shade "jogs.”
2) Press and hold the PROGRAM button on the Additional (new) transmitter until shade "jogs."
Additional (new) transmitter is now added to shade memory and can be used to operate shade.
Assigning Specific Channels to Shade (Multi-channel transmitters only)
1) Press and hold the PROGRAM button on the previously addressed transmitter until the shade "jogs.”
2) Select the desired channel (1-4 or all) by momentarily pressing the Channel Selector Button on the
multi-channel transmitter.
3) Press and hold the PROGRAM button on the multi-channel transmitter until shade "jogs."
Additional (new) channel is now added to shade memory and can be used to operate shade.
Note: To Prevent unwanted Channel/Transmitter assignments, ALL PREVIOUSLY
PROGRAMMED SHADES should be UNPLUGGED until Programming is complete.
Deleting Specific Channels/Transmitters
1) Press and hold the PROGRAM button on the previously addressed transmitter until the shade "jogs.”
2) Select the desired channel (1-4 or all) or transmitter (single channel) to be deleted.
3) Press and hold the PROGRAM button on transmitter until shade "jogs."
Channel or transmitter is now deleted from shade memory and will not operate shade.
OPTION 1- Setting an Intermediate Shade Position (IP)
1) Press the UP or DOWN directional button on the previously addressed transmitter until the shade
reaches a desired intermediate position, then press the CENTER (Stop) button to stop. (adjust shade
position accordingly)
2) Press and hold the CENTER (Stop) button on the transmitter until shade "jogs." Intermediate
position is now added to memory.
3) Activate the shade intermediate position by pressing the CENTER (Stop) button from ANY shade
position. Note: Shade should be inactive prior to activating intermediate position function. If shade is
actively moving (in-motion) CENTER (Stop) button should be pressed twice.
To Delete: Activate shade to (IP) position, then press and hold the CENTER (Stop) button for 5 seconds.
OPTION 2- Re-adjusting Upper Limit (UP Stop Position)
1) Press the UP directional button on the transmitter. Shade will travel to the pre-set UP limit.
2) Press and hold the UP and DOWN buttons simultaneously on the transmitter until shade "jogs."
3) Press and hold either the UP or DOWN button on the transmitter to adjust shade to new position.
4) Press and hold the CENTER (Stop) and UP Button together until shade "jogs." New Upper Limit
(Up Stop position) is now added to memory.
OPTION 4- Activating Step (Tilting) Feature for Sheer shade applications
1) Press the DOWN directional button on the transmitter. Shade will travel to the pre-set DOWN limit.
2) Press and hold the DOWN button on the transmitter until shade begins to "step" or (Tilt)
3) Release the DOWN button on the transmitter once new position is reached.
Operating Shade with Manual Button:
Operation - (Shade Limits MUST be set) Press manual button (located on motor housing)
momentarily, shade will begin to travel. Press manual button again to Stop.
Assigning a Transmitter - Press and hold the manual button for (2 seconds) then immediately
press the programming button on the BACK of the Transmitter until shade "jogs.”
Clearing All Previous Programs/Limits - Press and hold the manual button (located on motor
housing) for 12 seconds. LED will begin to blink then turn off. Motor is now cleared. Proceed to
"Step 2" and begin programming.
Adding Additional Transmitters (Single channel)
OPTION 3- Re-adjusting Lower Limit (DOWN Stop Position)
1) Press the DOWN directional button on the transmitter. Shade will travel to the pre-set DOWN limit.
2) Press and hold the UP and DOWN buttons simultaneously on the transmitter until shade "jogs."
3) Press and hold either the UP or DOWN button on the transmitter to adjust shade to new position.
4) Press and hold the CENTER (Stop) and DOWN Button together until shade "jogs." New Lower Limit
(Down Stop position) is now added to memory.
Programming
Button
Somfy Systems, Inc. 7-05 Rev. 1
