Video playback on external monitor

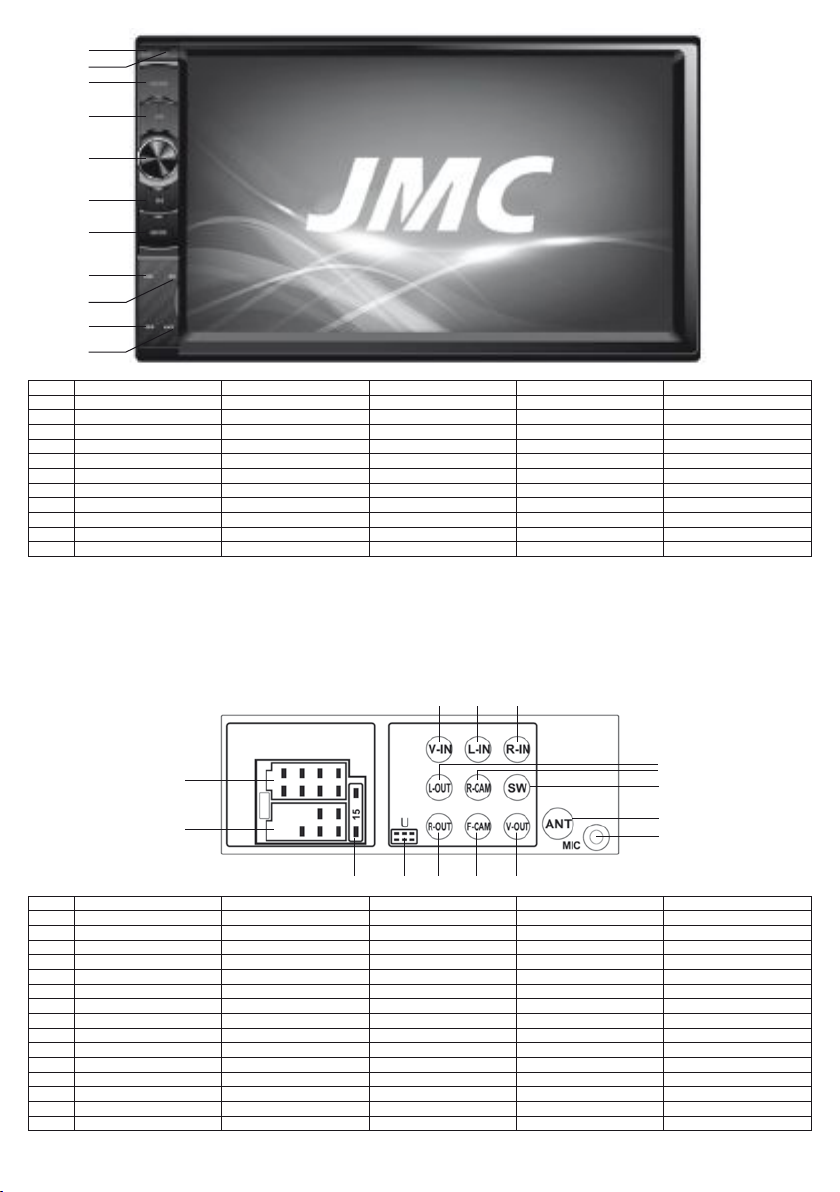

An external video display can be connected to the device with the V-OUT yellow RCA socket on the backside.The monitor
for rear passengers can be used. Narrator voice is audible through the speaker of the car or through an amplier (option).
• If a black-white image is displayed on the external monitor, check its settings and the material’s quality being played.
• In case of noisy, poor picture quality, make sure the connection cable is correct!
File manager – overview of available multimedia les
You can easily check and select the available les to be played from the currently active storage device. During playback
of audio or video le, tap the rst icon (list) in the bottom list to review the playlist. Playback starts by double-tapping
the selected le.
USING WIRELESS BT FUNCTIONS
The device can be paired with other equipment which is communicating by BT protocol, within maximum 10 meters
operation range. After that, music which is played by mobile phone, tablet, notebook and other similar device is audible
amplied. In case of incoming call, it is possible to answer call, make the call hands-free and cancel call, without touching
the phone.The car radio can be connected with built-in microphone and 3 meter long wire (backside MIC socket), it also
has external microphone for telephone conversations. Lead the cable of the wired microphone hidden behind the plastic
slats xing the dashboard and the carpet, and place the microphone nearby your mouth, close to the awning or column
“A”. With this, your talking partner can hear you in even better sound quality. Make sure the windows are closed during
call, as the trip noise signicantly impedes the clarity of the speech.
Following extra functions are available: receive phone call, display the caller with number, starting a call with the touch
screen’s number buttons, call list (incoming, outgoing and missed calls), phonebook management, controlling your
mobile phone’s music player or listening to music on your mobile on-line.

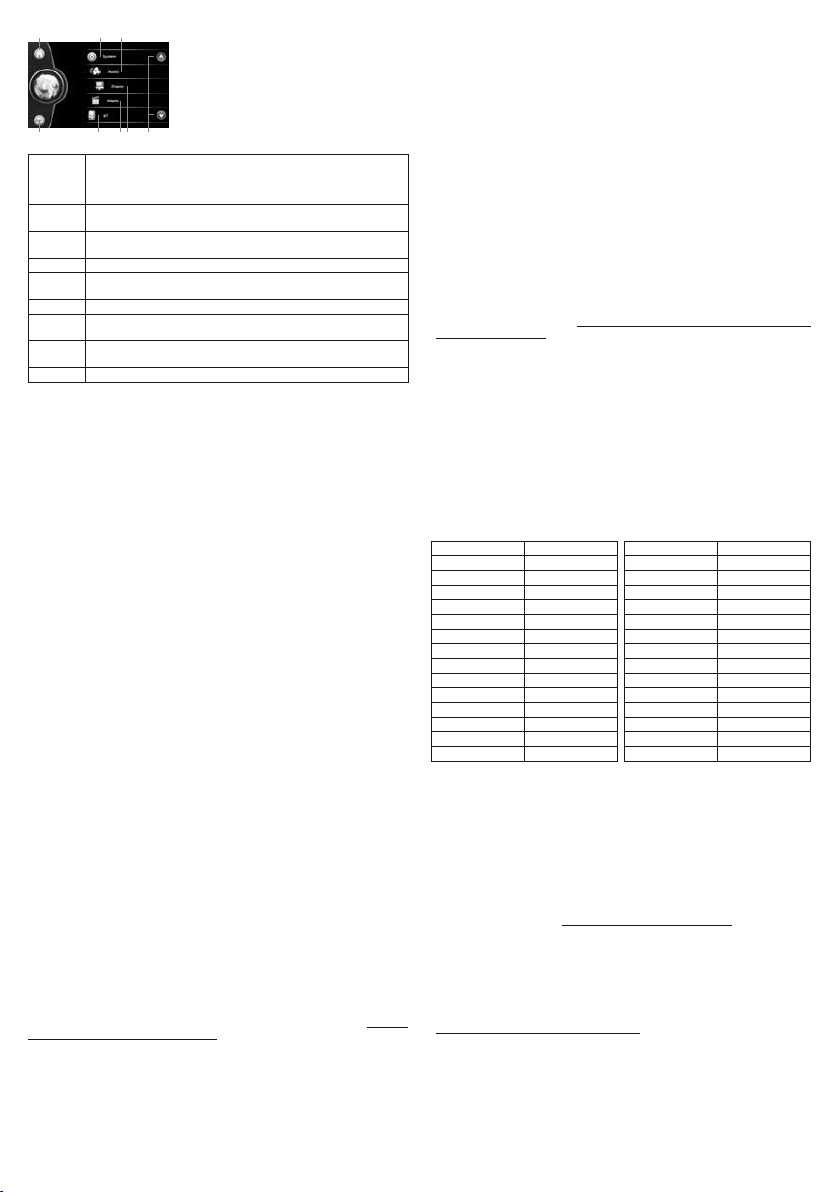

The BT function can be accessed from the main menu, where you can get to with the M/N button or by touching
the HOME (house icon). Look for the BT devices in the vicinity, including this car radio, as described in the operating
instructions of the paired device. Connect the two devices together. If it requires password, enter: 0000 (can be changed
in the “settings” menu). You can then hear a phone conversation or music from your phone’s speakers. In case of the
connection is successful, the type of the phone connected is immediately displayed on the screen. Buttons at the bottom
of the screen:
- Dialer, start a call to any number: in the case of a dual SIM card phone, depending on the setting, you may be required to
conrm the call on the phone.This can be avoided by adjusting the phone (depending on the type).
- Call list: the list of incoming, outgoing and unsuccessful calls can be updated with the fourth button in the rst column;
your phone may ask for permission from you (you can enable auto-update for re-connections on this device's "settings"
menu).
- Phone book, contact list: if you have synchronized the phone as described above, the contact list is displayed.
-Wireless music playback: the music player application on your phone can be remotely controlled from the radio's touch
screen.
-To view and remove the connected phone: touch the phone type and after that the appearing "X" to disconnect the
phone.
Start playing with the music player of mobile phone or other similar device and music is audible through the car speakers.
In case of incoming calls, you answer or cancel call with the help of the touch screen, while music playback is paused.
• One radio can be paired with one BT device at the same time. Actual operation range depends on the other device and
environmental conditions (e.g. 5 m).
• Volume and sound quality of BT connection is aected by the audio settings of connected mobile phone.
• Occasionally, you may nd that certain characters appear incorrectly or not at all. This is mainly aected on the special or
accented characters and not the fault of the device.
Display of rear view and front camera picture
In case of proper connection of the device, picture of connected rear view camera (optional: SA 143) will automatically
appear on the screen, if the vehicle starts to reverse Specied rear-view camera RCA socket (R-CAM) has to be used and
REAR CAMERA wire (+12 V) has to be connected to the reversing lamp. After the reversing has nished, the device will
switch back to the previous position. As long as the REAR CAMERA wires are connected to +12 Volts, this video input
will be active and only the image of external source connected to this socket will be visible on the screen. Other functions
of the device cannot be operated during this time.
•You can also connect a front camera to the F-CAM RCA socket, which can be accessed from the main menu using the
F-CAM icon. In the absence of video signal, the screen displays NOSIGNAL.You can return to the main menu by tapping
the top left corner of the touch screen or by pressing the M/N button. If you use two cameras at the same time, you
will automatically see the rst camera’s image on the monitor for 10 seconds when switching from reverse to forward.
Without the rst camera, disable its input in SETTINGS/SYSTEM menu.
VIDEO-IN – Displaying the picture of the external source
Beside the two cameras, a third source can be connected as well to the device, e.g. TV tuner, DVD or multimedia player.
Use the V-IN RCA socket located on the backside and the R IN, L IN RCA sockets for stereo sound input. To activate the
function, select the AUX / AV IN option from the main menu.
AUX IN – Stereo sound input
With the help of a stereo plug with 3,5 mm diameter, you can connect such external device to the AUX input, located on
the front panel, which has earphone/audio output. You can listen to this portable device through the speakers of the car
in high sound quality, if you select the AUX / AV IN input. Connectable devices with wire: e.g.: mobile phone, multimedia
player, CD/DVD player, navigation…
• It is important to have proper settings of playback device to achieve high sound quality.
• Purchasing of external adapter may be needed to connect such devices which have audio output dierent from 3,5 mm
diameter.
• For further information, check the instruction manual of device to be connected.

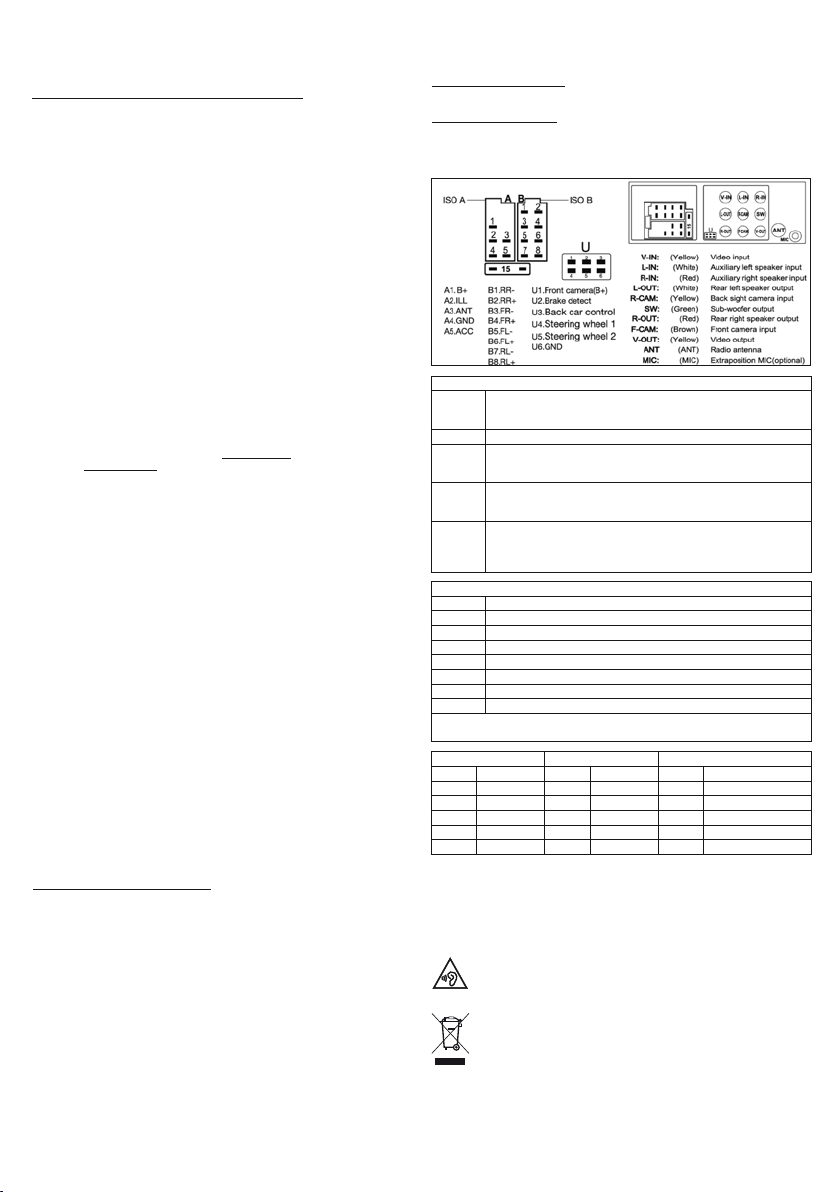

Connecting external amplier and active subwoofer
TherearLOUTandR OUT (white and red RCA socket) allow youtoconnect an external amplier or active subwoofer with
a low level input (LINE IN).The SW OUT RCA jack is also available for connecting an active subwoofer. This output can be
enabled from the "settings" menu.This gives you the opportunity to improve volume and sound quality.
USB telephone charger mode
You can connect your mobile phone to the USB socket for charging purposes.The chargeable current is 5V / 1.0 A.
• Please observe the parameters of the devices to be charged and check the manufacturer's instructions in their instruction
manuals. Do not use it for any other device that’s manufacturer requires otherwise.
DISPLAY MIRRORING – iOS MIRROR LINK
(for iPhone 6-7-8 series Mirror Link capable telephones)
The special feature of the device is that the imageof mobile phones with iOS operating system connected to the USBcable
can be displayed as a secondary display on the large touch screen. All applications on the mobile phone – depending on
the position of the phone – are displayed in portrait or landscape format. For example music, movies and other content
on the phone’s memory or fromonline sources, as wellas internet radios, maps,navigation applications, POI databases…
You do not need to install an additional application on your phone, just enable data sharing as a secure connection after
the rst – USB cable – connection.
In case of connection failure:
- Try another USB connection cable
- Restart your phone and check the data sharing permission
- Check, if your iOS phone is suitable for such use (6-7-8 series, with Mirror Link compatibility)
• If the image is not rotated by rotating the phone, than check that image rotation is enabled. You can also do this from the
local control menu that appears after touching the white, untitled button on the left side of the car radio screen.
• The image and the sound are transferred to the car radio via the USB cable. Meanwhile, the phone’s battery is charging.
• The USB cable should also has data transfer function in addition to the charging function. Usually the cable supplied with
the mobile phone is appropriate.
• If the mirroringof a high resolution video recordedwith amobile phonestutters, choose a lowerresolution or install another
video player application.
• Due tothe dierencesbetween mobilephonesand their operating systems, there maybemalfunctions andincompatibilities
that are not caused by this device. Connections may be aected by third-party solutions, so its operation, development and
changes are independent from the manufacturer of this product.
• The operation of screen mirroring and other functions as described herein may not be guaranteed in all cases, in case of
reasons independent from the manufacturer.
DISPLAY MIRRORING - ANDROID MIRROR LINK
(for iPhone 6-7-8 series Mirror Link capable telephones)
The special feature of the device is to display the image of a mobile phone which is connected with USB cable and which
hasAndroidoperationalsystem on the large touchscreenasasecondary display.All applications on yourmobilephoneare
displayed in portrait or landscape format, depending on the position of the phone, and can be controlled from the radio's
touch screenwithout touching the phone. For example, music,movies, and other content, as wellas internet radio,maps,
navigation applications, POI databases, or music from the phone's memory or online.
First, make sure that you have a "QR Code" reader application on your phone. If you have not, install a free version from
the Google Play app store.

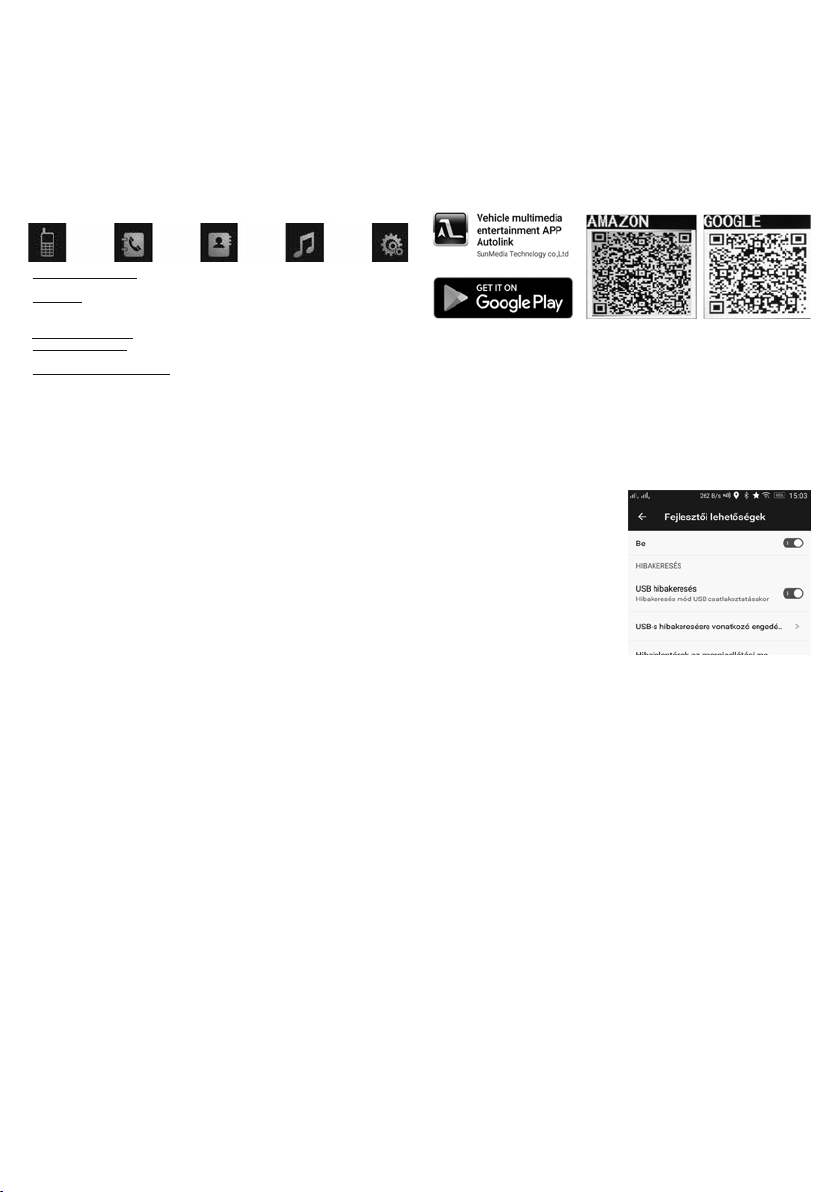

Then select PHONE LINK from the main menu.Two QR codes and some instructions will appear on the screen.
Download the AUTOLINK application to install on your phone:
„AMAZON”QR code link; free download directly from the website to the phone:
https://s3-ap-southeast 1.amazonaws.com/productscenter/release/venus/bootes/common/Autolink.apk
http://www.autolink.site:8080/jeesite//static/apk/Autolink_basic.apk
„GOOGLE”QR code link; free download from Google Play store
https://play.google.com/store/apps/details?id=com.link.autolink
As the third option, you can locate and install the AUTOLINK application with the logo above manually from the Google
Play store.
• Download a le directly from the website to your phone and install the application independently of the store, such as the
"AMAZON" link.
After installing the application, connect the phone with a USB data cable. Instructions on the screen:
CONNECT PHONE:
1. OPEN USB DEBUGGING
2. CONNECT USB LINE
Set the phone correctly:
- SETTINGS menu / DEVELOPER OPPORTUNITIES /
USB TROUBLESHOOTING/ USB CONNECTION: ON (enable!)
- Below the previous menu item: USBTROUBLESHOOTING
RELEVANT PERMITS: ON (enable!)
• This question usually automatically appears on the phone’s
opening screen or on its scrollable informational window after
connecting the USB cable. Allow it to be permanently, so that
it does not need to be repeated after each connection!
• It is recommended to have the screen lock switched o for
easier operation or to set an unlocking mode on the phone,
which is easier even from the car radio.
Android screen mirroring is only available if the AUTOLINK application is installed and the USB troubleshooting mode,
as well as sharing data security setting is permitted on the phone. Unlock the screen lock on the phone and connect the
phone’s cable to the radio’s USB socket. If the connection process does not happen automatically, touch the CONNECT
PHONE (connect phone) button on the car radio screen.When a successful connection is made, the image of the mobile
phone immediately appears on the screen.
In case of connection failure:
- Verify that AUTOLINK is installed on your phone
- Try another USB connection cable
- Restart your phone and check developer, USB connection settings, and data sharing permissions
- Verify that your Android phone is suitable for such use (Android 5.0 and newer, with Mirror Link compatibility)
• If the image does not rotate when the phone is rotated, then check if the image-rotation is permitted in the scrollable menu.
You can do this with local controller menu, which appears after tapping the white, unlabeled button on the car radio’s left side.
• The picture is transmitted via the USB cable to the car radio while the sound is over the wireless BT connection. Meanwhile, the
phone battery is charging.
• The USB cable must have a data transfer function in addition to the charging function. In general, the cable supplied with your
phone is good.
• Due to the signicant dierences between mobile phones and their operating systems, there may be malfunctions and
incompatibilities that are not caused by this device. The application which insures connection is a product of a third therefore its
operation, development, and changes are independent of the manufacturer of this product.
• The screen mirroring and other functions described in this manual cannot be guaranteed in any case in existence of reasons
independent of the manufacturer.

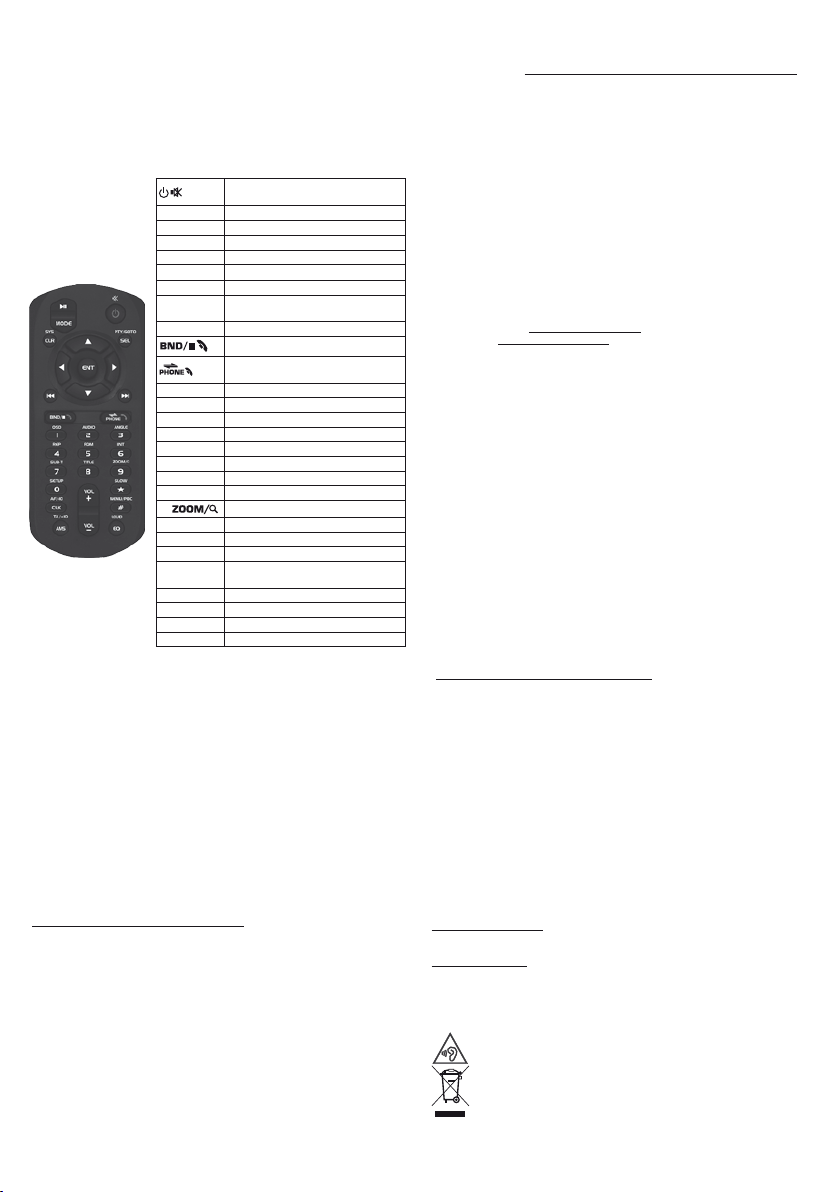

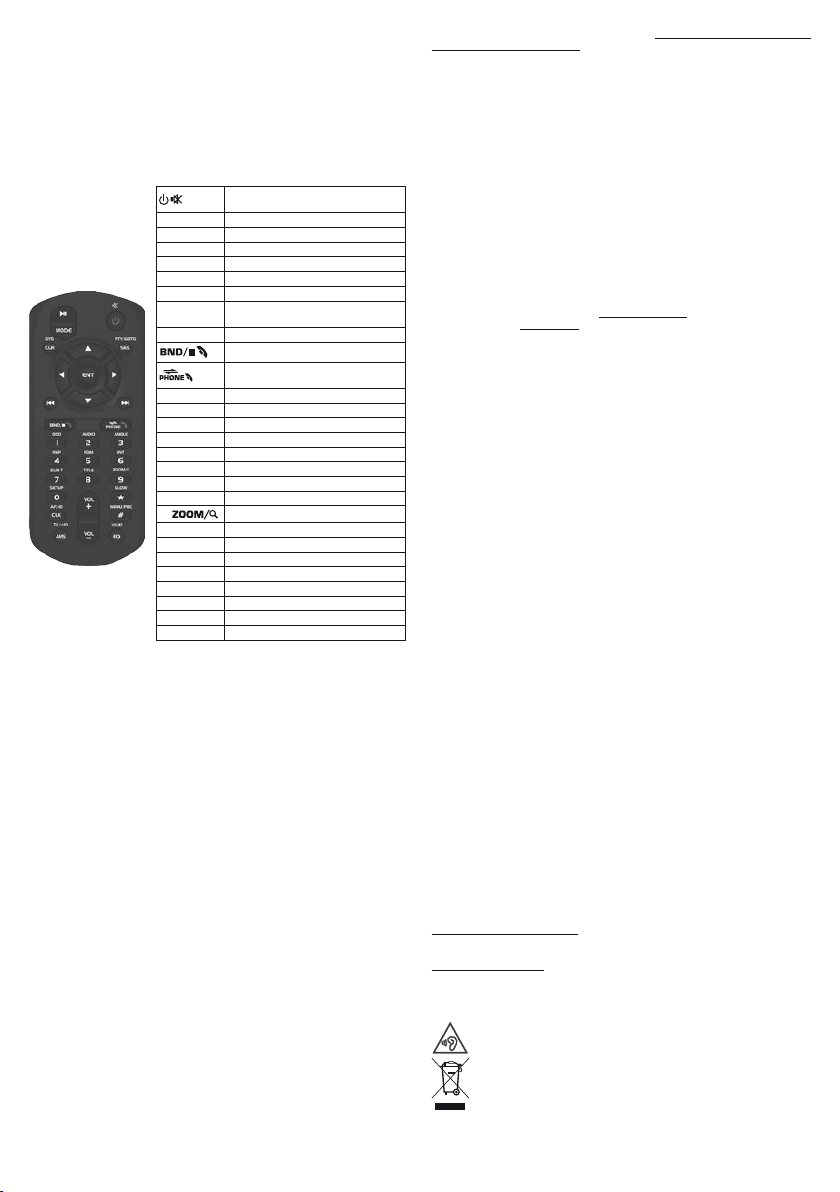

Remote control functions
In order to use the remote control, please remove the insulating lm extending from the battery compartment, if the product
is equipped with one. If operation becomes unstable or the range decreases, please replace the battery with a new one: CR
2025; 3 V button cell.
