Sonoma Breeze F100 Series User manual

Read and Save these Instructions
User manual
Sonoma Breeze®
F100 Series

CONTENTS
Welcome
Safety Precautions
Placement and Specications
Design and Function
Parts and Assembly
Operating Instructions
Time for a Service
Troubleshooting
Warranty
Contact Us
03
04
05
06
07
08
10
12
13
16

Welcome
Thank you for purchasing the Sonoma Breeze®. Our uniquely
designed air cleansing process will vastly improve the quality of
the air you breathe and will transform the way you think about air
purication. Our technology has been tested by Lawrence Berke-
ley National Laboratory, National Aeronautics and Space Admin-
istration (NASA), Center for Disease Control (CDC), Federal Emer-
gency Management Administration (FEMA) and The California
Air Resources Board. The technology housed within the Sonoma
Breeze® has been designed to target formaldehyde, a volatile or-
ganic compound used in many industries. Additionally, it will safely
remove other air contaminants such as dust, mold spores, pet
dander, viruses, bacteria, and harmful volatile organic compounds
(VOCs). Unlike other air ltration systems our technology removes
air pollutants without emitting hazardous material such as ozone.
Every space is different, and the speed that your Sonoma Breeze®
cleanses the air is related to the size of the room and the rate that
VOCs are emitted into the environment. Our distributors are able
to calculate the Sonoma Breeze®product best suited for your en-
vironment using our research data. We have included this data as
well as important health and safety information in this manual.
3

Safety Precautions
WARNING: When using any electrical appliance there are basic
safety precautions that should be observed to reduce the risk of
re, electric shock or injury.
• Use only the grounded power cable provided with your So-
noma Breeze®.
• Plug the Sonoma Breeze®directly into a grounded outlet.
• Do not alter the cord or plug in any way.
• Do not use this equipment with any solid-state speed control
device.
• Refer to the voltage label located on the unit and plug the
unit into the appropriate electrical outlet.
• Use only certied Sonoma Breeze® lters, PCO-Purier Cores,
TCO- Purier Cores and light bulbs.
• This unit puries air, do not use as a substitute for ventilation.
• Do not operate with wet hands or near standing water.
• Do not open the Sonoma Breeze®without turning off power
to the unit.
• Handle Ultra Violet (UV) light bulbs with caution as they con-
tain mercury.
• Always use hand and eye protection when handling PCO-
Purier Cores, TCO-Purier Cores and UV light bulbs.
• Do not operate the unit if it has a damaged cord or plug.
• Do not place foreign objects inside the air purier.
• Do not wipe or cleanse with benzene, paint thinners, or aero-
sol spray.
• Do not use in areas of high humidity or wet areas such as
shower rooms or saunas.
• Do not stand on or balance heavy items on the unit.
• Do not allow children to play near or with the Sonoma
Breeze® unit.
• Do not operate this unit outdoors.
• Operate within 0˚ C to 65˚ C climate range.
• Follow all placement instructions listed below in this manual.
4

Placement
Adequate ventilation is extremely important for you and your So-
noma Breeze®. To ensure that the Sonoma Breeze® has sufcient
intake air, place your unit a minimum of 8 inches (20.3 cm) away
from any walls, or furniture. Do not place the Sonoma Breeze®
near doors or windows. The SonomBreeze® needs to be placed
on a stable surface such as the oor or a table and should not
be placed in or near soft furnishings such as bedding or cur-
tains. The Sonoma Breeze® should not be placed near sources of
heat such as radiators, replaces, saunas or ovens. The Sonoma
Breeze®should not be placed in areas of high humidity or wet-
ness such as shower rooms or steam rooms.
Specications
Power Source
Air Flow Rate
Power Consumption
Standby Power
Dimensions
Cord Length
Weight of unit
Operating Temperature
Range
115-240 VAC 50/60 HZ
.95 AMPS at 120 VAC
.48 AMPS at 240 VAC
100 CFM
125 watts
95 watts
7 in x 24 in x 22 in
72 inches (182 cm)
38 lb. (17.3 kg)
0˚ C to 65˚ C
5

Design and Function
What’s included
• 1 air purier
• 1 power cord
• 1 screw driver
• 2 Ultraviolet lights
• 3 PCO cores or TCO cores
• 4 Pre-lters
The Sonoma Breeze®SB-100 is comprised of one front load-
ing Macro-Particulate Filter, two germicidal UV lamps, three
PCO- Purier Cores or TCO-Purier Cores, three Flow-Netic
fans and an proprietary formaldehyde and VOC sensor
system. Our Macro-Particulate Filter coated with activated
carbon absorbs dust, pollen, smoke and particles 3 µm or
larger. The PCO-Purier Cores and TCO-Purier Cores are
responsible for removing harmful VOCs such as formalde-
hyde. The dual- functioning germicidal UV-lamps destroy
viruses and bacteria and simultaneously activate our PCO-
Purier Cores. The ultra- quiet, long-lifespan Flow-Netic fans
pull the polluted air through our cleansing system deliver-
ing uncontaminated air on the other side. Our system is
equipped with four VOCallic sensors that detect humidity,
temperature, a broad spectrum of volatile organic com-
pounds and formaldehyde.
6

7
1. Unpack the box 2. Open side access door
3. Slide in UV lights 4. Slide in PCO core or TCO core
5. Close side access door
Parts and Assembly
6. Connect power cord
2. Tighten screws by turn-
ing clockwise
2. Pull door out and
up to remove from
frame
1. Loosen screws
1. Reposition door in frame

Operating Instructions
1. Follow all safety precautions listed in this manual
2. Plug the power cord into wall outlet (115-240 V AC)
3. Turn power switch on
4. Press power switch to ‘1’ position to turn unit on
Follow the Light
Our engineers have designed a multi-functional dis-
play coded to tell you how effectively and efciently
your unit is operating. Status light displays are located
at the back and front of the unit. Follow the table be-
low to understand the meaning of each light.
Green ready
Yellow
Red alarm
Blue service
Blinking blue
Status Light
Red and Blue
Indications What to Do
Everything is func-
tioning optimally
A service door is
open
The Macro-Particu-
late Filter needs to
be replaced
The PCO/TCO cores
need to be replaced
There is an internal
problem
A lightbulb is not
functioning or is
loose in its socket
Let unit run
Turn off the
unit
Follow re-
placement
instructions
Follow replace-
ment instruc-
tions
Turn off unit
and contact
your distributor
Turn off unit
and replace
or reposition
light bulbs 8

1 2 3

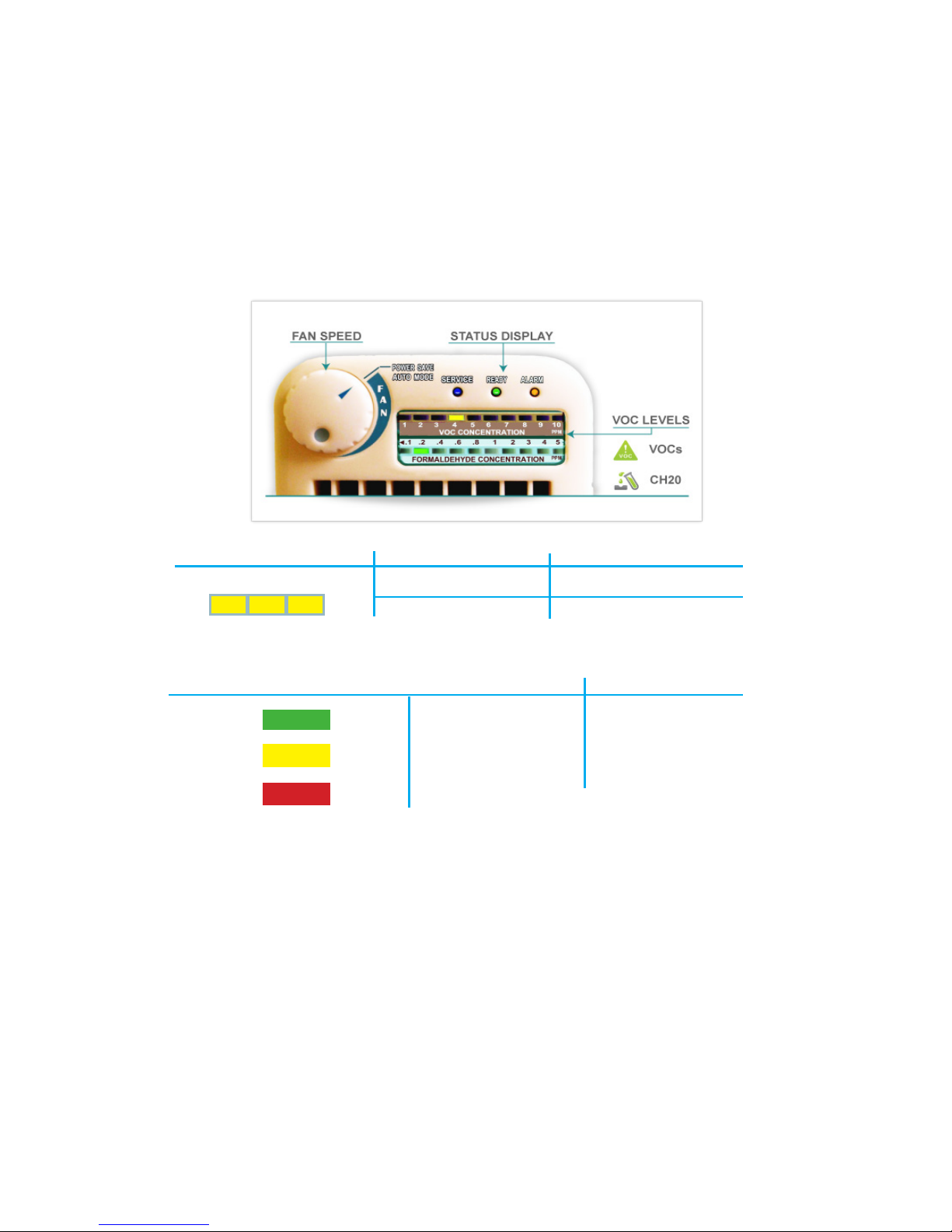

Keeping track
There is a VOC LED display located next to the fan knob and
below the status lights. This monitor indicates both VOC levels and
formaldehyde levels present in the environment. Formaldehyde
and other volatile organic compounds are measured in parts per
billion (ppb), a measure of 1000 ppb is equivalent to 1 part per mil-
lion (ppm). Refer to the illustrations below.
Upper VOC Light PPM level Indications
Below 1 PPM
Above 1 PPM
Safe
May cause irritation
PPM level Indications
Lower Formaldehyde Light
Below .6
0.6 < 1.0
Above 1.0
Within OSHA limits
May cause irritation
Dangerous
Control your Speed
In the automatic mode the fan speed is determined by the
VOCallic sensors, and will adjust according to the level of formal-
dehyde in the environment. If you would like to manually adjust
the fan speed, the fan speed knob is located at the back of the
unit next to the VOC LED display. Turn the knob clockwise to de-
crease the speed of the fans. Turn the knob counter- clockwise to
increase the fan speed and set the fans in automatic mode. *(you
should hear a click when the knob reaches the automatic position)
9

Time for a service
In order to keep your Sonoma Breeze® functioning optimally it is
essential to replace the lters and UV lights when they begin to
deteriorate. How quickly each part deteriorates is dependent
on the air pollution as well as the usage. We suggest that you
replace the Macro-Particulate lter every 3-4 months, the Ger-
micidal UV lights and the PCO-Purier Cores/TCO-Purier Cores
once every year.
CAUTION: Always disconnect power before service
Replacing the Macro-Particulate Filter
1. Turn off power. Grip
handle at top of the front
plastic panel and pull off
magnetically retained door
2.Remove used lter core
3. Slide in new lter core 4. Replace magnetically
retained door
10

11

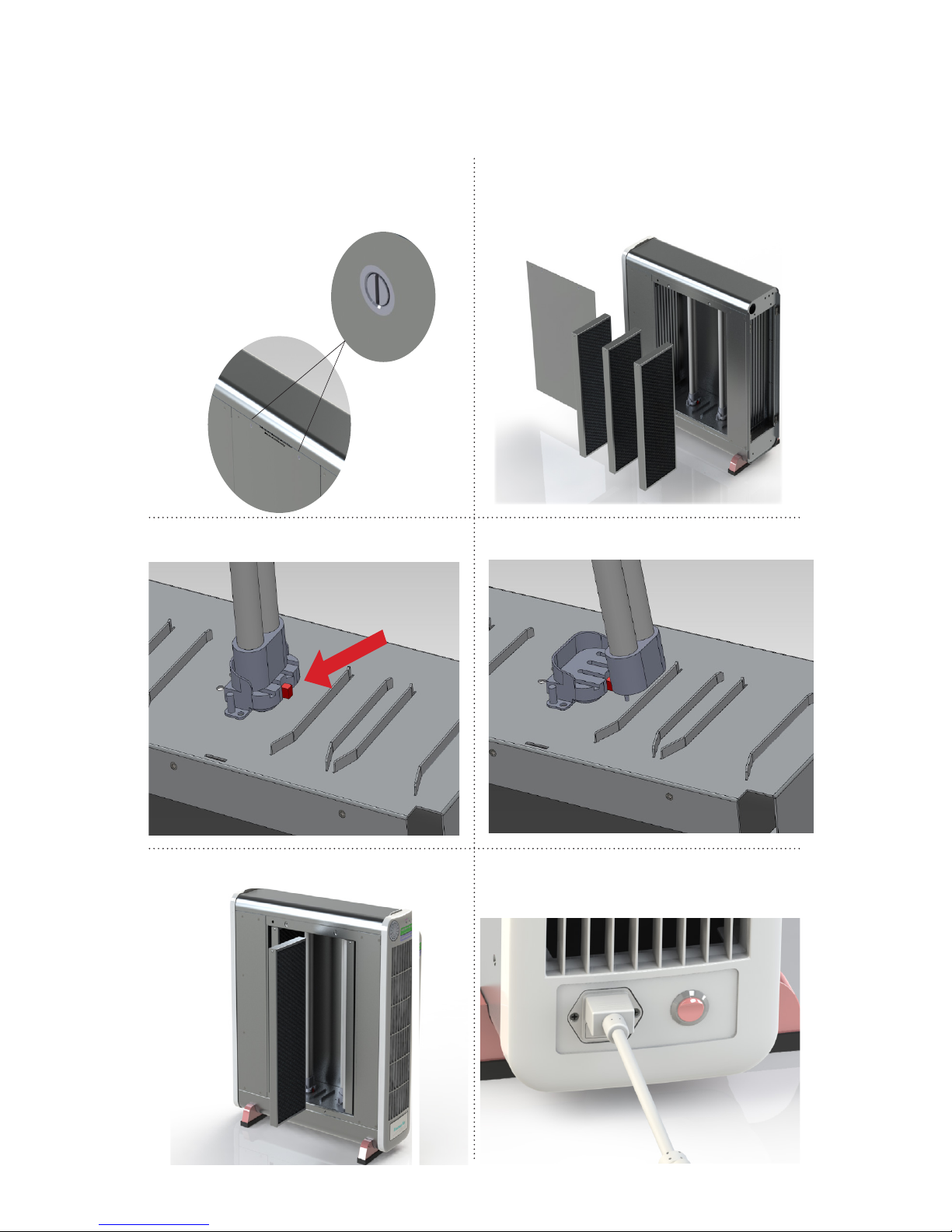

Replacing PCO/TCO Cores and UV Lights
1.Disconnect power.
Open side-access-panel
door
1. Using the screw-
driver provided,
turn screws coun-
terclockwise to
loosen
2. Pull door
out and up
to remove
2. Remove used PCO or TCO Cores
3. Remove used UV bulbs
5. Slide in new PCO or TCO cores
4. Install new UV light bulb
6. Close side access panel
door. Connect to power.
Press red button to
release light bulb

Troubleshooting
Q. I opened the unit while it was operating...
A. For your safety we installed a safety mechanism that
disables the fans if opened while in use. Turn off the power,
close all access panels, and turn the unit on.
Q. A yellow status light is illuminated...
A. You did not shut an access panel door completely.
Turn off the unit and close all access panel doors. Restart the
unit.
Q. Why is the red status light lluminated?
A. There is an internal problem. Contact your distributor.
Q. Why have the formaldehyde levels not diminished?
A. The unit you purchased is not capable of keeping up with
the off- gassing in the given space. Increase the ventilation in
the room and contact your distributor.
Q. I plugged in and switched on the unit but it will not oper-
ate...
A. The power outlet is not functioning. Turn off the unit and
plug the unit into another outlet or press the GFI reset switch-
located on the wall outlet. Check fuses.
Q. There appears to be an odor generated by the unit...
A. The formaldelyte lter absorbs a variety of VOCs from the
environment and re-releases these chemicals as harmless
byproducts when in the presence of UV.
Q. Should I turn my unit off at night?
A. No, once you turn on your air purier you should keep it run-
ning 24/7. If you would like to quiet the fans, simply turn the fan
knob clockwise. It will purify the air more effectively when oper-
ated in this manner.
12

Warranty
Innovative Labs, LLC SB-40, SB-100, SB-200
Limited Warranty
Innovative Labs, LLC warrants that all models of the Sonoma Breeze® including
the SB-40, SB-100 and SB-200 will be free of defects in material and workmanship
during normal operational use for one year from the date of purchase provided
that the lights and lters are replaced as described in this manual. Innovative
Labs, LLC offers a limited one year warranty on all parts, excluding those that
require normal maintenance such as the Macro-Particulate Filters, PCO/TCO
Purier Cores, and Germicidal UV Lamps, which are covered under separate and
different warranties.
Damage caused by accident, misuse or abuse is not covered by this warranty
including but not limited to incorrect voltage, obstruction of ventilation, re,
ood, damage caused by power surges resulting from power outages, or “acts of
nature.” Improper care and unauthorized repair such as: not replacing Macro-
Particulate Filter, PCO/TCO purier cores and germicidal UV lamps at appropriate
intervals or replacing any of the above improperly will void the warranty.
Under no circumstances shall the liability of Innovative Labs, LLC
exceed the purchase price of the respective unit.
If a defect is found during normal operational use, Innovative Labs, LLC will, at
its election, repair, replace, or make appropriate adjustment to the respective
unit. Innovative Labs, LLC will not send a replacement unit while the unit is being
repaired. Proof of purchase of the unit (original sales receipt) must be submitted
at the time of repair, unless the unit was previously registered online or with a war-
ranty card. Innovative Labs, LLC is not responsible for incidental or consequential
costs other than those listed above. Slight changes in color, scratches and stains
to the exterior of the unit over time, due to use, cleaning practices, water or at-
mospheric conditions, are not manufacturing defects but are indicative of normal
wear and tear.
If you believe that your unit requires repair, contact your distributor for service.
If the distributor is unable to repair the unit, contact our repair facility by writing
Attn: Customer Care Center, One Willowbrook Court Suite 150 Petaluma, CA
94954 or call 1-888-706-0080 from within the USA or Canada. If you have any ques-
tions regarding this warranty or our product, we provide a troubleshooting page
on our website at www.ino-labs.com.
Some states and provinces do not allow limitations of how long an implied war-
ranty lasts or the exclusion or limitation of such damages. If the unit was pur-
chased in one of these locations these limitations and exclusions may not apply.
This warranty gives the consumer specic legal rights. This warranty applies to the
original consumer purchaser only, and excludes product damage due to product
accident, abuse or misuse, whether performed by a contractor, service-company
or the consumer.
13

Innovative Labs, LLC PCO/TCO Purier Core
Limited Warranty
Innovative Labs, LLC warrants that all models of the PCO/TCO purier cores
will be free of defects in material and workmanship during normal com-
mercial or residential use for one- year from the date of purchase. Damage
caused by accident, misuse or abuse is not covered by this warranty includ-
ing, but not limited to, incorrect placement, obstruction of ventilation, re,
ood, or “acts of nature.” Improper care and unauthorized repair will
void this warranty
If a defect is found in the PCO-Purier Core or TCO-Purier Core during
normal operational use, Innovative Labs, LLC will replace or repair the PCO/
TCO Purier Core. Innovative Labs, LLC will not send a replacement while
the PCO-Core/TCO-Core is being repaired. Proof of purchase (original sales
receipt) may be requested at the time of repair.
Innovative Labs, LLC is not responsible for incidental or consequential costs
other than those listed above. Slight changes in color to the exterior of the
PCO Purier Core/TCO Purier Core overtime due to use, water or atmo-
spheric conditions, are not manufacturing defects but are indicative of
normal wear and tear.
Under no circumstances shall the liability of Innovative Labs, LLC
exceed the purchase price of the respective unit.
If you believe that you have a repair issue, contact your local distributor for
service. If the distributor is unable to repair the PCO-Purier Core/TCO- Purier
Core contact our repair facility by writing Attn: Customer Care Center, One
Willowbrook Court Suite 150
Petaluma, CA 94954 or call 1-888-706-0080 from within the USA or
Canada. If you have any questions regarding this warranty or
our PCO Purier Core, we provide a troubleshooting page on our website at
www.ino-labs.com.
Some states and provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages. If the unit was
purchased in one of these locations, these limitations and exclusions may
not apply. This warranty gives the consumer specic legal rights. This war-
ranty applies to the original consumer purchaser only, and excludes product
damage due to product accident, abuse or misuse, whether performed by
a contractor, service-company or the consumer.
14

Innovative Labs, LLC Germicidal UV Lamps
Limited Warranty
Innovative Labs, LLC warrants that all models of the Germicidal UV lamps will be
free of defects in material and workmanship during normal commercial use for
one- year from the date of installation. Damage caused by accident, misuse
or abuse is not covered by this warranty including, but not limited to, incorrect
placement, incorrect voltage, re, ood, damage caused by power surges from
power outages or “acts of nature.” Improper care and unauthorized repair will
void this warranty
If a defect is found during normal operational use, Innovative Labs, LLC will, at
its election, repair, replace, or make appropriate adjustment to the respective
unit. Innovative Labs, LLC will not send a replacement unit while the unit is being
repaired or replaced. Proof of purchase (original sales receipt) must be submit-
ted at the time of repair. Innovative Labs, LLC is not responsibl for incidental or
consequential costs other than those listed above.
Under no circumstances shall the liability of Innovative Labs, LLC
exceed the purchase price of the respective unit.
If you believe that you have a repair issue, contact your local distributor for
service. If your distributor is unable to repair the lamp, contact our repair facility
by writing Attn: Customer Care Center, One Willowbrook Court Suite 150 Peta-
luma, CA 94954 or call 1-888-706-0080 from within the USA or Canada. If located
outside of the USA or Canada call 001-888-706-0080. If you have any questions
regarding this warranty or our product, we provide a troubleshooting page on
our website at www.ino-labs.com.
Some states and provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages. If the unit was
purchased in one of these locations, these limitations and exclusions may not
apply. This warranty gives the consumer specic legal rights. This warranty ap-
plies to the original consumer purchaser only, and excludes product damage
due to product accident, abuse or misuse, whether performed by a contractor,
service-company or the consumer.
15

Contact Us
If you have any questions or concerns after reading this man-
ual or contacting your distributor, please do not hesitate to
contact our customer service department by calling toll free
1 [phone]. If you lose or damage your copy of this user
manual, you can locate an electronic copy online at our web-
site www.ino-labs.com. If you would prefer to contact us via
the web please send your inquiries or comments to one of the
following team members who would be happy to assist you
during our normal business hours.
Monday-Friday 9 am- 6 pm Standard Pacic Time
Sales
[email protected]
Customer Service
[email protected]
Technical Support
[email protected]
16

Innovative Labs, LLC 2012
The information contained herein is subject to change without
notice. The only warranties for Innovative Labs, LLC products
and services are set forth in the express warranty statements.
Innovative Labs, LLC shall not be liable for technical or editorial
errors or omissions contained herein.
La información incluida en este manual está sujeta a cambios
sin previo aviso. Las únicas garantías ofrecidas para los pro-
ductos y servicios de Innovative Labs, LLC son las indicadas en
los párrafos de garantía expresa. Innovative Labs, LLC no se
hace responsable por errores u omisiones técnicas o de edición
incluidos en este manual.
Les renseignements contenus dans ce document sont sujets à
modications sans préavis. Les seules garanties couvrant
les produits et services de Innovative Labs, LLC sont énoncées
dans les garanties expresses. Innovative Labs, LLC ne sera pas
tenu responsable des erreurs ou des omissions techniques ou
rédactionnelles qui ont pu s’immiscer dans ce document.
