1
MICROFILM
AEP Model
SPECIFICATIONS
SERVICE MANUAL
INTEGRATED STEREO AMPLIFIER
TA-FB930R
Photo: BLACK model

2
SAFETY-RELATED COMPONENT WARNING !!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED LINE
WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
TABLE OF CONTENTS
1. GENERAL .......................................................................... 3
2. ELECTRICAL ADJUSTMENT ..................................... 4
3. DIAGRAMS
3-1. Circuit Boards Location ........................................................ 5
3-2. Schematic Diagram – Input Section – .................................. 6
3-3. Printed Wiring Board – Input Section – ................................ 7
3-4. Schematic Diagram – Main Section – .................................. 8
3-5. Printed Wiring Board – Main Section – ................................ 9
3-6. Schematic Diagram – Panel Section – ................................ 10
3-7. Printed Wiring Board – Panel Section – ............................. 11
3-8. Schematic Diagram – Power Section –............................... 12
3-9. Printed Wiring Board – Power Section – ............................ 13
3-10. IC Block Diagrams............................................................ 14
3-11. IC Pin Function ................................................................. 14
4. EXPLODEDVIEW
4-1. Case Section........................................................................ 15

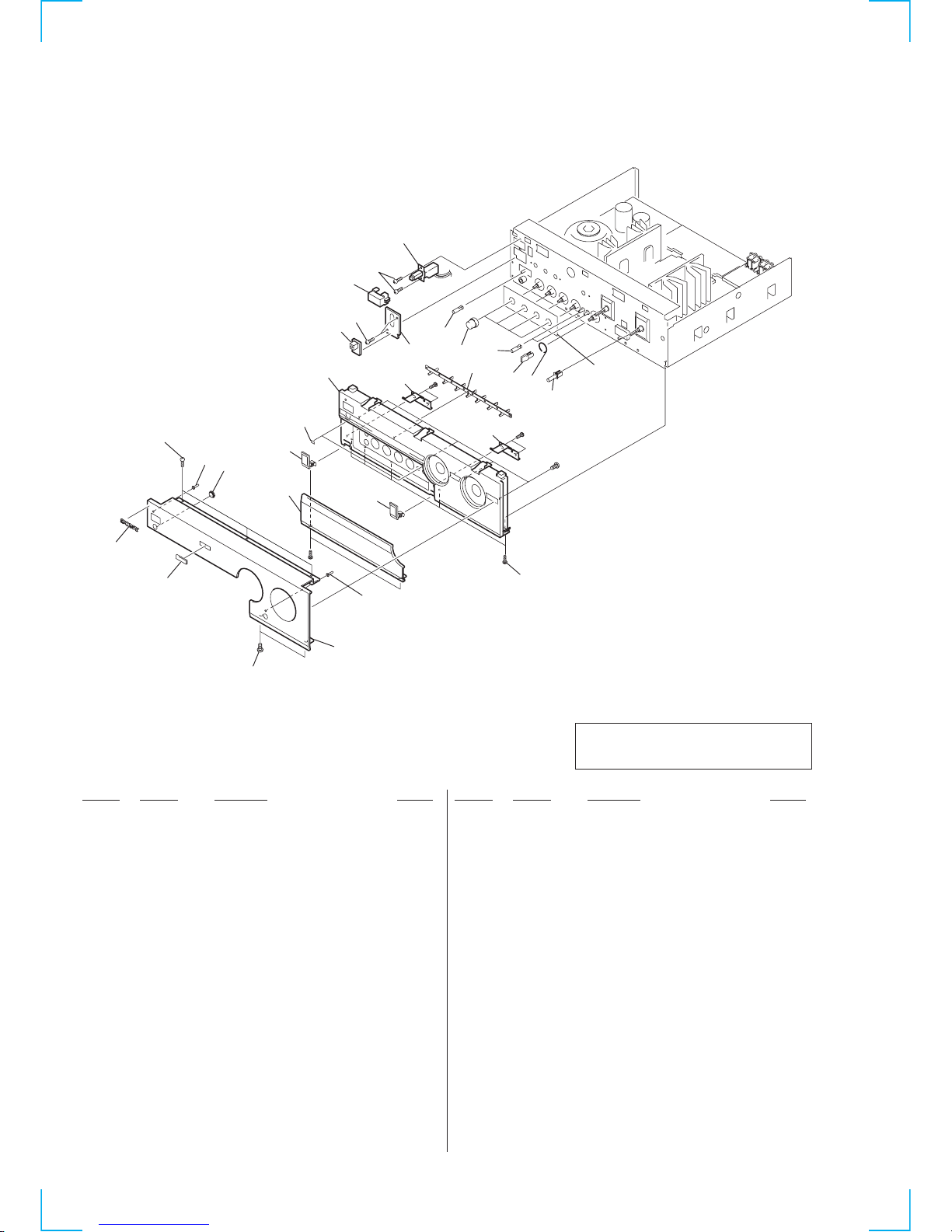

4-2. Front Panel Section ............................................................. 16

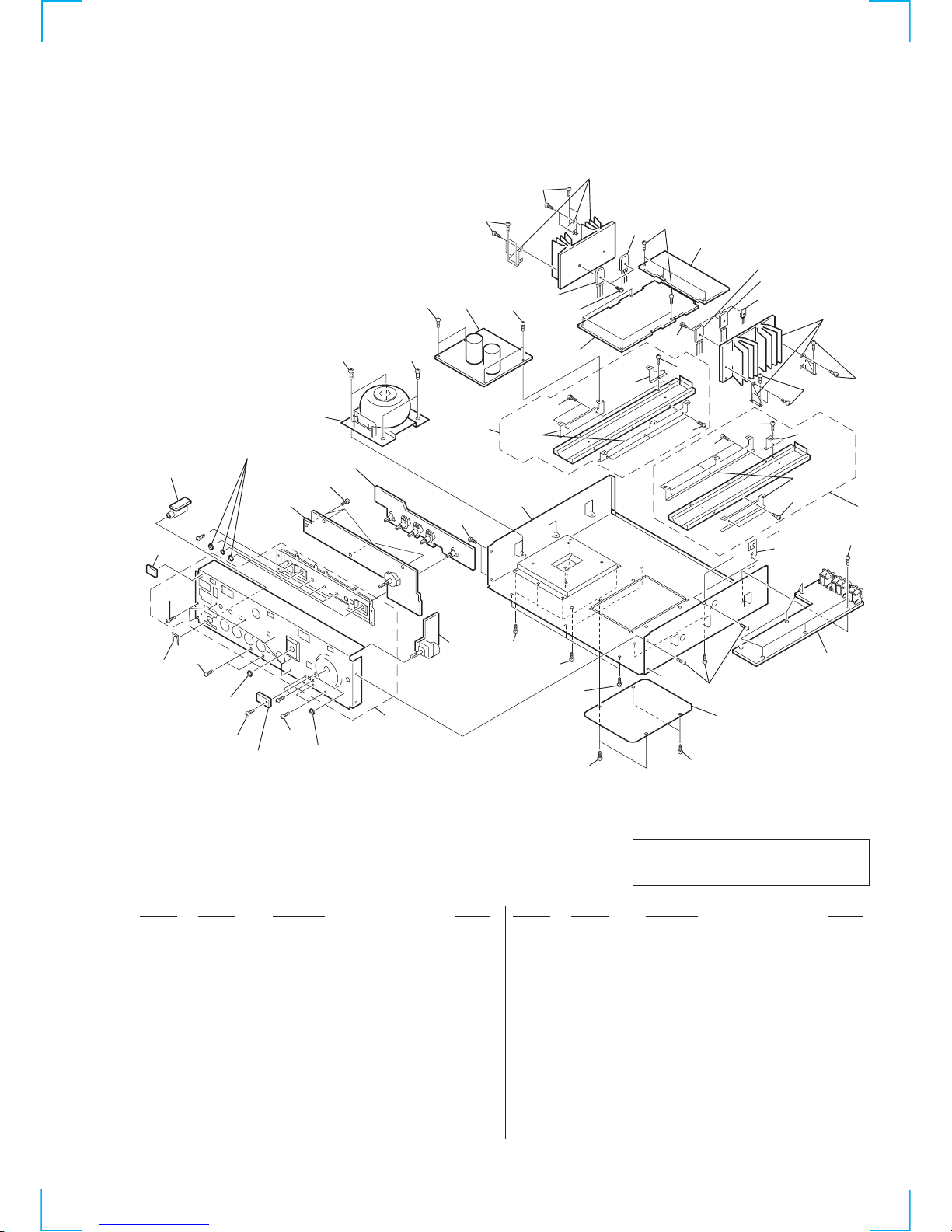

4-3. Chassis Section ................................................................... 17
5. ELECTRICAL PARTS LIST ........................................ 18

3

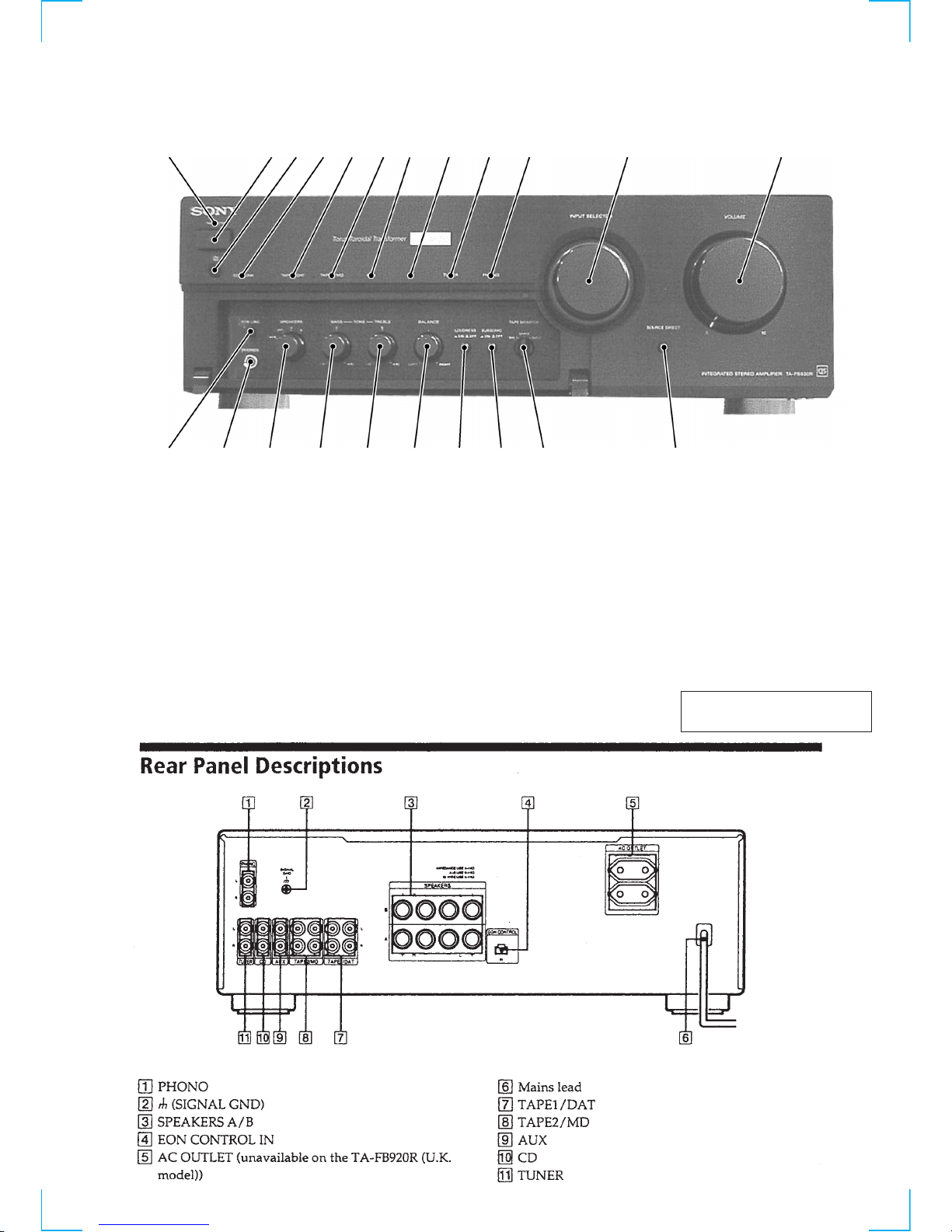

Front Panel Descriptions
SECTION 1
GENERAL
1PROTECTION indicator
2U(Power) button
3Remote sensor
4EON LINK indicator
5TAPE 1/DAT indicator
6TAPE 2/MD indicator
7AUX indicator
8CD indicator
9TUNER indicator
10 PHONO indicator
11 INPUT SELECTOR knob
12 VOLUME knob
13 SOURCE DIRECT button and indicator
14 TAPE MONITOR knob
15 SUBSONIC button
16 LOUDNESS button
17 BALANCE knob
18 TREBLE knob
19 BASS knob
20 SPEAKERS knob
21 PHONE jack
22 EON LINK button
9
78
23465110 11
13
12
14
15
16
17
1819
20
21
This section is extracted from
instruction manual.
22

4
SECTION 2
ELECTRICAL ADJUSTMENT
Bias Adjustment
NOTE:
1. Perform the adjustment after the unit has warmed up sufficiently.
2. Perform the bias adjustment if the power transistor has been
replaced.
Procedure:
1. Rotate fully the bias adjusting semi-fixed resistors (RV500,
RV600) to the MIN position (counterclockwise).
2. Connect a digital voltmeter to the CN500 and CN600.
1 pin 3 pin
–
–
+
+
CN500 (L-CH)
CN600(R-CH)
3. Set the slide regulator to 0V, and press the Ubutton (ON) on
the set.
4. Raise graduallythe slideregulatorvoltage upto the ratedvoltage.
5. At this time, confirm that the SP relay is turned on (it will click).
6. Adjust the RV500 and RV600 so that a reading of digital
voltmeter is 10 ± 1 mV.
7. Return the slidack to 0V, and press the Ubutton (OFF) on the
set.
Adjustment Location :
[MAIN BOARD] – COMPONENT SIDE –
+
CN600 (R-CH)
1
3
CN500 (L-CH)
1
3
RV600
Bias (R-CH)
RV500
Bias (L-CH)
DIGITAL
VOLTMETER DIGITAL VOLTMETER
+

55
SECTION 3
DIAGRAMS
3-1. CIRCUIT BOARDS LOCATION THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this,the necessary note is printed
in each block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•2: nonflammable resistor.
•5: fusible resistor.
•C: panel designation.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•b: Pattern from the side which enables seeing.
•U: B+ Line.
•V: B– Line.
•H: adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : POWER ON
• Voltages aretakenwithaVOM(Inputimpedance10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F:TUNER
• Abbreviation
G : German model.
EE : East European model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
WAVEFORM
1
IC902 1XOUT
Note: The components identified by mark !or dotted line
with mark !are critical for safety.
Replace only with part number specified.
• Indication of transistor
CThese are omitted EB
4MHz
3.8Vp-p
PANEL board
TONE board INPUT board
MAIN board
SP-TM board
PHONO board
PS board OUTLET board
VOL board
SIRCS board
SIRCS SUB board
HP board
S-D LED board

66
TA-FB930R
3-2. SCHEMATIC DIAGRAM – INPUT SECTION –
(Page 8)
(Page 10)
(Page 10)

77
TA-FB930R

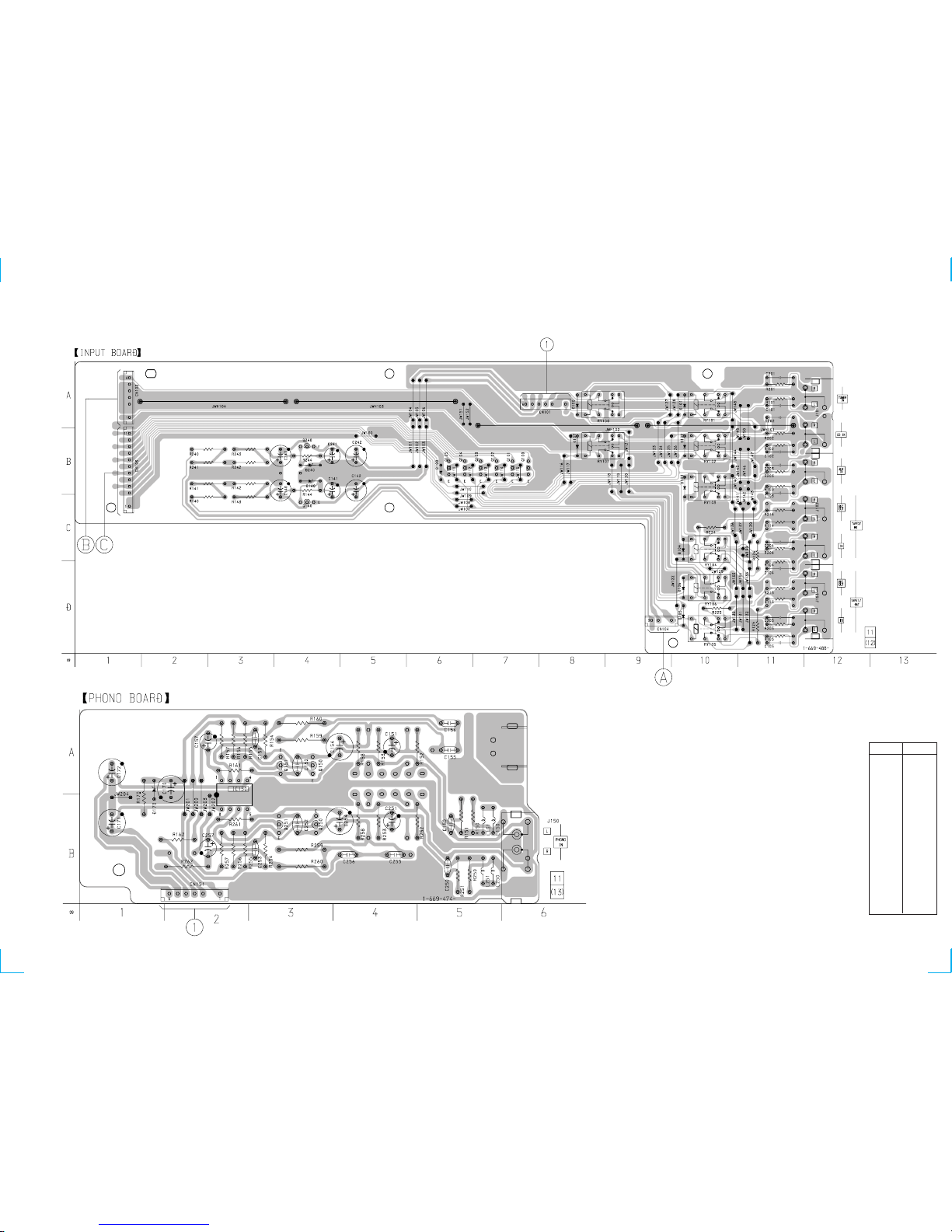

3-3. PRINTEDWIRING BOARD – INPUT SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D100 A-8
D101 A-10
D102 B-10
D103 B-10
D104 C-10
D105 D-10
D106 D-10
D107 B-8
D108 B-6
D140 B-4
D240 B-4
Q100 B-7
Q101 B-7
Q102 B-7
Q103 B-7
Q104 B-6
Q105 B-6
Q140 C-4
Q240 B-4
(Page 11)
(Page 11)
(Page 9)

88
TA-FB930R
3-4. SCHEMATIC DIAGRAM – MAIN SECTION –
• See page 14 for IC Block Diagrams.
(Page 10)
(Page 10)
(Page
12)
(Page
10)
(Page 6)
(Page 12)

99
TA-FB930R
3-5. PRINTEDWIRING BOARD – MAIN SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D500 C-10
D501 C-10
D502 C-10
D503 D-11
D504 E-10
D505 E-10
D506 D-9
D507 D-4
D508 C-5
D600 F-10
D601 F-10
D602 F-10
D603 E-11
D604 E-10
D605 E-10
D606 F-9
D607 E-4
D608 C-4
D703 F-4
Q500 C-11
Q501 C-10
Q502 C-10
Q503 D-11
Q504 D-10
Q505 D-10
Q506 D-11
Q507 E-10
Q508 D-9
Q509 D-8
Q510 D-8
Q511 C-5
Q512 C-8
Q513 C-6
Q514 D-5
Q600 F-11
Q601 F-10
Q602 F-10
Q603 F-11
Q604 F-10
Q605 F-10
Q606 E-11
Q607 E-10
Q608 F-9
Q609 F-8
Q610 F-8
Q611 G-8
Q612 G-5
Q613 F-6
Q614 E-4
Q702 G-4
(Page 13)
(Page 13)
(Page
11)
(Page
11)
(Page
11)
(Page 9)
Ref. No. Location
• Semiconductor
Location
D511 E-2
D512 E-2
D513 F-3
D700 A-1
D701 A-1
D702 A-1
IC700 B-2
Q700 A-3
Q701 B-1

10 10
TA-FB930R
3-6. SCHEMATIC DIAGRAM – PANEL SECTION –
• See page 5 forWaveform.
• See page 14 for IC Block Diagrams.
• See page 14 for IC Pin Function.
(Page 8)
(Page 6)
(Page 6)
(Page 8)
(Page 10)

11 11
TA-FB930R
3-7. PRINTEDWIRING BOARD – PANEL SECTION –
• See page 5 for Circuit Boards Location.
(Page 7)
(Page 7)
(Page 9)
(Page 9)
Ref. No. Location
• Semiconductor
Location
D901 B-13
D902 B-6
D903 B-7
D904 B-8
D905 B-9
D906 B-10
D907 B-11
D910 B-11
D911 B-11
D912 A-6
D913 A-11
D914 A-12
D915 A-12
D916 A-6
D917 B-9
D918 A-9
D919 A-8
D920 B-11
D921 A-8
D922 A-8
D923 A-10
D924 A-10
IC901 A-5
IC902 A-7
Q900 A-12
Q901 A-12
Q902 A-12
Q903 B-12
Q904 B-12
Q905 B-12
Q906 B-12
Q907 A-9
Q908 B-8
Q909 B-11
Q910 A-6
Q911 A-9
Q920 B-6
Q921 B-7
Q922 B-9
Q923 B-9
Q924 B-10
Q925 B-11
(Page 9)

12 12
TA-FB930R
3-8. SCHEMATIC DIAGRAM – POWER SECTION –
(Page 8)
(Page 8)

13 13
TA-FB930R

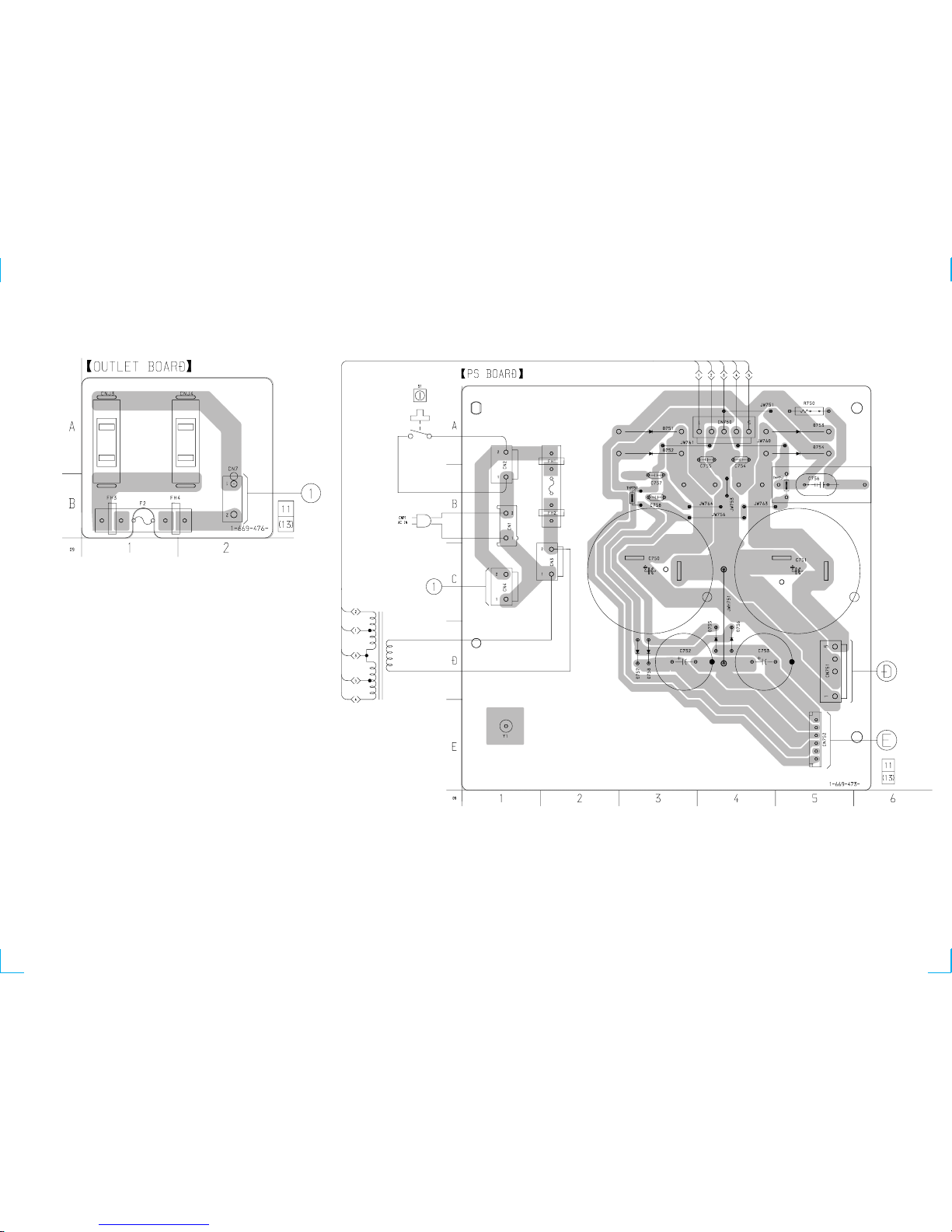

3-9. PRINTEDWIRING BOARD – POWER SECTION –
• See page 5 for Circuit Boards Location.
(Page 9)
(Page 9)

14 14
3-11. IC PIN FUNCTION
• IC902 Input Control & LED Drive (TMP47C103N-JP47) (Panel Board)
O
I
I
I
O
O
I
I
I
I
O
O
O
—
O
O
O
O
O
I
I
I
O
O
O
O
I
—
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
X OUT
X IN
RESET
PMD
VOL +
VOL –
SW 0
SW 1
SW 2
EON
PHONO
TUNER
CD
GND
AUX
MD/DAT
TAPE
MON
PRY
PKY
MOI
SIRCS
MUTE
SCE
SDT
SCK
STOP
+3V
System clock (4MHz)
Reset input
Mode select input (Connected to ground)
Motor drive output (+)
Motor drive output (–)
Rotary switch input (CD)
Rotary switch input (TUNER)
Rotary switch input (PHONO)
EON signal input
PHONO LED drive output
TUNER LED drive output
CD LED drive output
Ground
AUX LED drive output
TAPE “2” LED drive output
TAPE “1” LED drive output
MONITOR output (Connected to ground)
Power relay output
Power key input (Connected to ground)
MONITOR input (Connected to ground)
SIRCS input
Muting output (Connected to ground)
Chip enable output (Connected to ground)
Serial data output (Connected to ground)
Serial clock output (Connected to ground)
STOP input
+3V Power supply
I/O Function
Pin No. Pin Name
3-10. IC BLOCK DIAGRAMS
• Main Board
IC700 uPC1237HA
1 2 3 4 5 6 7 8
OVER LOAD DET
F/F
OFFSET DET
LATCH/
AUTORESET
V
CC ON
MUTE
AC OFF
DET
V
CC
• Panel Board
IC901 BA6208
1 2 3 4 5 6 7 89
NC
OUTPUT 2
Vcc
GND
NC
INPUT 2
INPUT 1
NC
MOTOR
DRIVE
MOTOR
DRIVE
REG
SWITCH
SWITCH
OUTPUT1

15
SECTION 4
EXPLODED VIEWS
4-1. CASE SECTION
NOTE:
• -XX,-X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)
Â
Parts color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
*9 1-669-476-11 OUTLET BOARD
*10 3-703-244-00 BUSHING (2104), CORD
!11 1-777-185-11 CORD, POWER
12 3-655-653-21 BAND (TAITON), BINDING
13 4-210-291-01 SCREW (CASE 3 TP2)(BLACK)
13 4-210-291-11 SCREW (CASE 3 TP2)(SILVER)
14 4-947-010-01 SCREW, FEEDER FIXED
15 3-704-515-51 SCREW (BV/RING)
16 4-974-510-01 SCREW (+BV 3X8 CU)
!CNJ3 1-526-794-11 OUTLET, AC
!CNJ4 1-526-794-11 OUTLET, AC
1 X-4949-780-1 KNOB(SELECTOR) ASSY (BLACK)
1 X-4950-264-1 KNOB(SELECTOR) ASSY (SILVER)
2 X-4949-781-1 KNOB(VOLUME) ASSY (BLACK)
2 X-4950-265-1 KNOB(VOLUME) ASSY (SILVER)
3 3-703-466-00 SPRING (6600)
*4 4-999-439-03 CASE(413235)(BLACK)
*4 4-999-439-43 CASE(413235)(SILVER)
5 X-4949-760-1 FOOT ASSY
6 4-970-124-01 CUSHION (F50180S)
7 A-4419-860-A PHONO BOARD, COMPLETE
8 4-218-231-21 PANEL, BACK
13
13
16
33
11
12
8
9
10 14
15
15
16
16
16
16
4
13
not supplied
not supplied
not
supplied not
supplied
7
16
5
6
#3
#3
5
6
12
CNJ3
CNJ4

16
4-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
63 X-4950-263-1 BASE ASSY, PANEL (SILVER)
64 4-221-595-01 SPRING (DOOR), LEAF
65 4-999-436-01 BUTTON (DIA. 6X28.8)(BLACK)
65 4-999-436-12 BUTTON (DIA. 6X28.8)(SILVER)
*66 4-999-404-02 PLATE (DOOR), INDICATION (BLACK)
*66 4-999-404-13 PLATE (DOOR), INDICATION (SILVER)
67 3-024-055-01 BUTTON (POWER)(BLACK)
67 3-024-055-22 BUTTON (POWER)(SILVER)
68 4-999-406-01 KNOB(D18)(BLACK)
68 4-999-406-11 KNOB(D18)(SILVER)
69 4-980-773-01 BUTTON (DIA. 6)(BLACK)
69 4-980-773-12 BUTTON (DIA. 6)(SILVER)
70 4-950-189-01 KNOB(A)(VOL)(BLACK)
70 4-950-189-61 KNOB(A)(VOL)(SILVER)
*72 1-670-219-11 SIRCS SUB BOARD
*73 1-669-490-11 SIRCS BOARD
74 4-948-469-01 SPRING, RING
!S1 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)
51 4-999-407-21 DOOR(BLACK)
51 4-999-407-31 DOOR(SILVER)
52 4-900-031-02 KNOB(DOOR)
54 4-221-598-01 ARM(DOOR/R)(BLACK)
54 4-221-598-11 ARM(DOOR/R)(SILVER)
55 4-221-460-01 ARM(DOOR/L)(BLACK)
55 4-221-460-11 ARM(DOOR/L)(SILVER)
*56 4-999-492-01 CUSHION (DOOR)(BLACK)
*56 4-999-492-11 CUSHION (DOOR)(SILVER)
57 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
57 4-942-568-61 EMBLEM (NO.5), SONY (SILVER)
58 4-218-232-02 EMBLEM (MOS)
59 4-999-413-01 INDICATOR (PROTECTION)
60 4-980-776-01 WINDOW, REMOTE CONTROL
61 4-974-510-01 SCREW (+BV 3X8 CU)
62 4-999-402-21 PANEL, FRONT (BLACK)
62 4-999-402-31 PANEL, FRONT (SILVER)
63 X-4949-779-1 BASE ASSY, PANEL (BLACK)
57
58
61
62
59
59 55
51
61
56
54
64
66
65
70 74
69
68
69
73
61
67 61
72
63 64
#2
S1
#2
#1
#2
61
60
not supplied
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.

17
4-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
113 X-4950-316-6 PANEL ASSY, SUB
114 4-211-985-01 SCREW (3X8), PC BOARD FITTING
115 X-4950-314-2 BRACKET (RAIL)(L) ASSY
116 X-4950-315-2 BRACKET (RAIL)(R) ASSY
117 4-985-642-01 CUSHION
118 4-967-961-01 SCREW (3X8)
Q511 8-729-232-45 TRANSISTOR 2SK1529-Y
Q512 8-729-232-46 TRANSISTOR 2SJ200-Y
Q611 8-729-232-45 TRANSISTOR 2SK1529-Y
Q612 8-729-232-46 TRANSISTOR 2SJ200-Y
Q702 8-729-209-15 TRANSISTOR 2SD2012
!T1 1-433-952-11 TRANSFORMER, POWER
101 4-974-510-01 SCREW (+BV 3X8 CU)
102 3-905-609-21 SCREW (TRANSISTOR)
103 4-967-960-01 SCREW (4X8)
104 A-4419-849-A PANEL BOARD, COMPLETE
105 A-4419-850-A TONE BOARD, COMPLETE
*106 1-669-492-11 S-D LED BOARD
*107 1-669-491-11 HP BOARD
*108 1-669-489-11 VOL BOARD
109 A-4419-859-A PS BOARD, COMPLETE
110 A-4419-858-A SP-TM BOARD, COMPLETE
111 A-4419-857-A MAIN BOARD, COMPLETE
112 A-4419-851-A INPUT BOARD, COMPLETE
not supplied
not supplied
Supplied with RV301,
RV302,RV303,S801,S903
Supplied
with RV300
Supplied
with J801
Supplied
with S902
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
Q511
Q611
Q612
Q702
Q512
T1 not
supplied
not
supplied
101
101
101
101
118
101
101 112
116
115
101
101
101 101
101
101101
101
101 101
101
101
107
117
101
108
101 101
101
113
106
104
114
114
103
103
105
109 102
111 102
110
101
#4
#4
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.

18
• SEMICONDUCTORS
In each case, u: µ , for example:
uA...: µ A..., uPA...: µ PA..., uPB...: µ PB...,
uPC...: µ PC..., uPD...: µ PD...
• CAPACITORS
uF : µ F
• COILS
uH : µ H
• Abbreviation
• Due to standardization, replacements in the parts list
may be different from the parts specified in the
diagrams or the components used on the set.
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
SECTION 5
ELECTRICAL PARTS LIST
Note:
When indicating parts by reference
number, please include the board
name.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark !or dotted line with mark
!are critical for safety.
Replace only with part number
specified.
*1-669-491-11 HP BOARD
*******
< JACK >
J801 1-770-307-11 JACK (LARGE TYPE)(PHONES)
**************************************************************
A-4419-851-A INPUT BOARD, COMPLETE
********************
< CAPACITOR >
C101 1-162-282-31 CERAMIC 100PF 10% 50V
C102 1-162-282-31 CERAMIC 100PF 10% 50V
C103 1-162-282-31 CERAMIC 100PF 10% 50V
C104 1-162-282-31 CERAMIC 100PF 10% 50V
C105 1-162-282-31 CERAMIC 100PF 10% 50V
C140 1-126-052-11 ELECT 100uF 20% 50V
C141 1-126-023-11 ELECT 100uF 20% 25V
C142 1-126-024-11 ELECT 220uF 20% 25V
C201 1-162-282-31 CERAMIC 100PF 10% 50V
C202 1-162-282-31 CERAMIC 100PF 10% 50V
C203 1-162-282-31 CERAMIC 100PF 10% 50V
C204 1-162-282-31 CERAMIC 100PF 10% 50V
C205 1-162-282-31 CERAMIC 100PF 10% 50V
C240 1-126-052-11 ELECT 100uF 20% 50V
C241 1-126-023-11 ELECT 100uF 20% 25V
C242 1-126-024-11 ELECT 220uF 20% 25V
< CONNECTOR >
CN102 1-691-768-11 PLUG (MICRO CONNECTOR) 6P
CN103 1-691-773-11 PLUG (MICRO CONNECTOR) 11P
CN104 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
< DIODE >
D100 8-719-911-19 DIODE 1SS119-25
D101 8-719-911-19 DIODE 1SS119-25
D102 8-719-911-19 DIODE 1SS119-25
D103 8-719-911-19 DIODE 1SS119-25
D104 8-719-911-19 DIODE 1SS119-25
D105 8-719-911-19 DIODE 1SS119-25
D106 8-719-911-19 DIODE 1SS119-25
D107 8-719-911-19 DIODE 1SS119-25
D108 8-719-986-29 DIODE HZS12B3LTA
D140 8-719-986-38 DIODE HZS16-1LTA
D240 8-719-986-38 DIODE HZS16-1LTA
< JACK >
J101 1-784-934-11 JACK, PIN 4P (TUNER/CD IN)
J102 1-770-015-11 JACK, PIN 6P (AUX IN, TAPE2/MD, REC OUT/IN)
J103 1-573-028-31 JACK, PIN 4P (TAPE1/DAT, REC OUT/IN)
< TRANSISTOR >
Q100 8-729-900-80 TRANSISTOR DTC114ES
Q101 8-729-900-80 TRANSISTOR DTC114ES
Q102 8-729-900-80 TRANSISTOR DTC114ES
Q103 8-729-900-80 TRANSISTOR DTC114ES
Q104 8-729-900-80 TRANSISTOR DTC114ES
Q105 8-729-900-80 TRANSISTOR DTC114ES
Q140 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q240 8-729-201-53 TRANSISTOR 2SA1015-GR
< RESISTOR >
R101 1-259-239-11 CARBON 1M 5% 1/4W
R102 1-259-239-11 CARBON 1M 5% 1/4W
R103 1-259-239-11 CARBON 1M 5% 1/4W
R104 1-259-239-11 CARBON 1M 5% 1/4W
R105 1-259-239-11 CARBON 1M 5% 1/4W
R114 1-259-239-11 CARBON 1M 5% 1/4W
R115 1-259-239-11 CARBON 1M 5% 1/4W
R124 1-259-167-21 CARBON 1K 5% 1/4W
R125 1-259-167-21 CARBON 1K 5% 1/4W
R140 1-249-198-11 CARBON 330 5% 1/3W
R141 1-249-198-11 CARBON 330 5% 1/3W
R142 1-249-198-11 CARBON 330 5% 1/3W
R143 1-249-198-11 CARBON 330 5% 1/3W
R144 1-259-187-11 CARBON 6.8K 5% 1/4W
R201 1-259-239-11 CARBON 1M 5% 1/4W
R202 1-259-239-11 CARBON 1M 5% 1/4W
R203 1-259-239-11 CARBON 1M 5% 1/4W
R204 1-259-239-11 CARBON 1M 5% 1/4W
R205 1-259-239-11 CARBON 1M 5% 1/4W
R214 1-259-239-11 CARBON 1M 5% 1/4W
R215 1-259-239-11 CARBON 1M 5% 1/4W
R224 1-259-167-21 CARBON 1K 5% 1/4W
R225 1-259-167-21 CARBON 1K 5% 1/4W
R240 1-249-198-11 CARBON 330 5% 1/3W
R241 1-249-198-11 CARBON 330 5% 1/3W
R242 1-249-198-11 CARBON 330 5% 1/3W
R243 1-249-198-11 CARBON 330 5% 1/3W
R244 1-259-187-11 CARBON 6.8K 5% 1/4W
INPUTHP

19
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< RELAY >
RY100 1-515-614-11 RELAY
RY101 1-515-614-11 RELAY
RY102 1-515-614-11 RELAY
RY103 1-515-614-11 RELAY
RY104 1-515-614-11 RELAY
RY105 1-515-614-11 RELAY
RY106 1-515-614-11 RELAY
RY107 1-515-614-11 RELAY
**************************************************************
A-4419-857-A MAIN BOARD, COMPLETE
*******************
< CAPACITOR >
C500 1-102-973-00 CERAMIC 100PF 5% 50V
C501 1-119-824-31 ELECT 10uF 20% 50V
C502 1-136-808-11 FILM 100PF 5% 100V
C503 1-125-852-11 FILM 330PF 5% 50V
C504 1-126-023-11 ELECT 100uF 20% 16V
C505 1-107-587-11 CERAMIC 7PF 0.5PF 500V
C506 1-126-023-11 ELECT 100uF 20% 16V
C507 1-126-023-11 ELECT 100uF 20% 16V
C508 1-119-779-11 ELECT 220uF 20% 10V
C509 1-125-842-11 FILM 4PF 10% 50V
C510 1-119-836-21 ELECT 47uF 20% 63V
C511 1-102-978-00 CERAMIC 220PF 5% 50V
C512 1-136-163-00 FILM 0.068uF 5% 50V
C513 1-136-163-00 FILM 0.068uF 5% 50V
C517 1-126-023-11 ELECT 100uF 20% 16V
C600 1-102-973-00 CERAMIC 100PF 5% 50V
C601 1-119-824-31 ELECT 10uF 20% 50V
C602 1-136-808-11 FILM 100PF 5% 100V
C603 1-125-852-11 FILM 330PF 5% 50V
C604 1-126-023-11 ELECT 100uF 20% 16V
C605 1-107-587-11 CERAMIC 7PF 0.5PF 500V
C606 1-126-023-11 ELECT 100uF 20% 16V
C607 1-126-023-11 ELECT 100uF 20% 16V
C608 1-119-779-11 ELECT 220uF 20% 10V
C609 1-125-842-11 FILM 4PF 10% 50V
C610 1-119-836-21 ELECT 47uF 20% 63V
C611 1-102-978-00 CERAMIC 220PF 5% 50V
C612 1-136-163-00 FILM 0.068uF 5% 50V
C613 1-136-163-00 FILM 0.068uF 5% 50V
C617 1-126-023-11 ELECT 100uF 20% 16V
C712 1-128-552-51 ELECT 47uF 20% 63V
C713 1-126-933-11 ELECT 100uF 20% 16V
C714 1-126-964-11 ELECT 10uF 20% 50V
C720 1-113-618-11 ELECT 2200uF 20% 56V
C721 1-113-618-11 ELECT 2200uF 20% 56V
< CONNECTOR >
*CN500 1-564-506-11 PLUG, CONNECTOR 3P
CN503 1-691-770-11 PLUG (MICRO CONNECTOR) 8P
*CN600 1-564-506-11 PLUG, CONNECTOR 3P
CN700 1-691-768-11 PLUG (MICRO CONNECTOR) 6P
< DIODE >
D500 8-719-911-19 DIODE 1SS119-25
D501 8-719-911-19 DIODE 1SS119-25
D502 8-719-911-19 DIODE 1SS119-25
D503 8-719-933-39 DIODE HZS6C1LTA
D504 8-719-911-19 DIODE 1SS119-25
D505 8-719-911-19 DIODE 1SS119-25
D506 8-719-310-61 DIODE SEL1510C-CD-TP3
D507 8-719-911-19 DIODE 1SS119-25
D508 8-719-911-19 DIODE 1SS119-25
D600 8-719-911-19 DIODE 1SS119-25
D601 8-719-911-19 DIODE 1SS119-25
D602 8-719-911-19 DIODE 1SS119-25
D603 8-719-933-39 DIODE HZS6C1LTA
D604 8-719-911-19 DIODE 1SS119-25
D605 8-719-911-19 DIODE 1SS119-25
D606 8-719-310-61 DIODE SEL1510C-CD-TP3
D607 8-719-911-19 DIODE 1SS119-25
D608 8-719-911-19 DIODE 1SS119-25
D703 8-719-933-39 DIODE HZS6C1LTA
< BRIDGE >
JWH711 4-999-918-01 BRIDGE (PC-BOARD)
JWH712 4-999-918-01 BRIDGE (PC-BOARD)
JWH713 4-999-918-01 BRIDGE (PC-BOARD)
JWH714 4-999-918-01 BRIDGE (PC-BOARD)
JWH715 4-999-918-01 BRIDGE (PC-BOARD)
< TRANSISTOR >
Q500 8-729-045-15 TRANSISTOR 2SC5169-FG
Q501 8-729-201-53 TRANSISTOR 2SA1015-GR
Q502 8-729-201-53 TRANSISTOR 2SA1015-GR
Q503 8-729-201-53 TRANSISTOR 2SA1015-GR
Q504 8-729-021-74 TRANSISTOR 2SA949-OY
Q505 8-729-202-67 TRANSISTOR 2SK246GR-3
Q506 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q507 8-729-021-73 TRANSISTOR 2SC2229-OY
Q508 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q509 8-729-104-18 TRANSISTOR 2SC3514
Q510 8-729-104-91 TRANSISTOR 2SA1383
Q511 8-729-232-45 TRANSISTOR 2SK1529-Y
Q512 8-729-232-46 TRANSISTOR 2SJ200-Y
Q513 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q514 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q600 8-729-045-15 TRANSISTOR 2SC5169-FG
Q601 8-729-201-53 TRANSISTOR 2SA1015-GR
Q602 8-729-201-53 TRANSISTOR 2SA1015-GR
Q603 8-729-201-53 TRANSISTOR 2SA1015-GR
Q604 8-729-021-74 TRANSISTOR 2SA949-OY
Q605 8-729-202-67 TRANSISTOR 2SK246GR-3
Q606 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q607 8-729-021-73 TRANSISTOR 2SC2229-OY
Q608 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q609 8-729-104-18 TRANSISTOR 2SC3514
Q610 8-729-104-91 TRANSISTOR 2SA1383
Q611 8-729-232-45 TRANSISTOR 2SK1529-Y
Q612 8-729-232-46 TRANSISTOR 2SJ200-Y
MAIN
INPUT

20
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
OUTLET
Q613 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q614 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA
Q702 8-729-209-15 TRANSISTOR 2SD2012
< RESISTOR >
R500 1-259-167-21 CARBON 1K 5% 1/4W
R501 1-259-215-21 CARBON 100K 5% 1/4W
R502 1-259-151-21 CARBON 220 5% 1/4W
R503 1-259-151-21 CARBON 220 5% 1/4W
R504 1-259-151-21 CARBON 220 5% 1/4W
R505 1-259-179-21 CARBON 3.3K 5% 1/4W
R506 1-259-151-21 CARBON 220 5% 1/4W
R507 1-259-151-21 CARBON 220 5% 1/4W
R508 1-249-490-11 CARBON 27K 5% 1/3W
R509 1-259-175-11 CARBON 2.2K 5% 1/4W
R510 1-259-183-11 CARBON 4.7K 5% 1/4W
!R511 1-249-405-11 CARBON 100 5% 1/4W F
R512 1-259-171-21 CARBON 1.5K 5% 1/4W
R513 1-259-167-21 CARBON 1K 5% 1/4W
R514 1-249-721-11 CARBON 100K 5% 1/2W
R515 1-259-143-21 CARBON 100 5% 1/4W
R516 1-247-749-11 CARBON 560 5% 1/2W F
!R517 1-247-688-11 CARBON 10 5% 1/4W F
!R518 1-247-688-11 CARBON 10 5% 1/4W F
!R519 1-247-745-11 CARBON 330 5% 1/2W F
!R520 1-249-405-11 CARBON 100 5% 1/4W F
!R521 1-249-405-11 CARBON 100 5% 1/4W F
!R522 1-208-603-11 REGISTER 0.1 10% 5W F
!R523 1-208-603-11 REGISTER 0.1 10% 5W F
R524 1-259-424-11 CARBON 680 5% 1/6W
!R526 1-217-997-11 FUSIBLE 10 5% 1/2W F
R527 1-259-484-11 CARBON 220K 5% 1/6W
R532 1-259-420-11 CARBON 470 5% 1/6W
R533 1-249-431-11 CARBON 15K 5% 1/4W
R600 1-259-167-21 CARBON 1K 5% 1/4W
R601 1-259-215-21 CARBON 100K 5% 1/4W
R602 1-259-151-21 CARBON 220 5% 1/4W
R603 1-259-151-21 CARBON 220 5% 1/4W
R604 1-259-151-21 CARBON 220 5% 1/4W
R605 1-259-179-21 CARBON 3.3K 5% 1/4W
R606 1-259-151-21 CARBON 220 5% 1/4W
R607 1-259-151-21 CARBON 220 5% 1/4W
R608 1-249-490-11 CARBON 27K 5% 1/3W
R609 1-259-175-11 CARBON 2.2K 5% 1/4W
R610 1-259-183-11 CARBON 4.7K 5% 1/4W
!R611 1-249-405-11 CARBON 100 5% 1/4W F
R612 1-259-171-21 CARBON 1.5K 5% 1/4W
R613 1-259-167-21 CARBON 1K 5% 1/4W
R614 1-249-721-11 CARBON 100K 5% 1/2W
R615 1-259-143-21 CARBON 100 5% 1/4W
R616 1-247-749-11 CARBON 560 5% 1/2W F
!R617 1-247-688-11 CARBON 10 5% 1/4W F
!R618 1-247-688-11 CARBON 10 5% 1/4W F
!R619 1-247-745-11 CARBON 330 5% 1/2W F
!R620 1-249-405-11 CARBON 100 5% 1/4W F
!R621 1-249-405-11 CARBON 100 5% 1/4W F
!R622 1-208-603-11 REGISTER 0.1 10% 5W F
!R623 1-208-603-11 REGISTER 0.1 10% 5W F
R624 1-259-424-11 CARBON 680 5% 1/6W
!R626 1-217-997-11 FUSIBLE 10 5% 1/2W F
R627 1-259-484-11 CARBON 220K 5% 1/6W
R632 1-259-420-11 CARBON 470 5% 1/6W
R633 1-249-431-11 CARBON 15K 5% 1/4W
R709 1-249-425-11 CARBON 4.7K 5% 1/4W F
< VARIABLE RESISTOR >
RV500 1-241-762-11 RES, ADJ, CARBON 2.2K (BIAS L)
RV600 1-241-762-11 RES, ADJ, CARBON 2.2K (BIAS R)
**************************************************************
*1-669-476-11 OUTLET BOARD
***********
< JACK >
!CNJ3 1-526-794-11 OUTLET AC (AC OUTLET)
!CNJ4 1-526-794-11 OUTLET AC (AC OUTLET)
< FUSE >
!F2 1-532-464-51 FUSE (T2.5AL/250V)
< FUSE HOLDER >
FH3 1-533-233-11 HOLDER, FUSE
FH4 1-533-233-11 HOLDER, FUSE
**************************************************************
A-4419-849-A PANEL BOARD, COMPLETE
********************
< CAPACITOR >
C900 1-126-786-11 ELECT 47uF 20% 16V
C901 1-126-916-11 ELECT 1000uF 20% 6.3V
C902 1-162-294-31 CERAMIC 0.001uF 10% 50V
C903 1-162-294-31 CERAMIC 0.001uF 10% 50V
C904 1-164-159-11 CERAMIC 0.1uF 50V
C905 1-162-294-31 CERAMIC 0.001uF 10% 50V
C906 1-126-795-11 ELECT 10uF 20% 50V
C907 1-162-294-31 CERAMIC 0.001uF 10% 50V
C908 1-126-786-11 ELECT 47uF 20% 16V
C909 1-126-795-11 ELECT 10uF 20% 50V
C912 1-126-786-11 ELECT 47uF 20% 16V
< CONNECTOR >
*CN300 1-564-522-11 PLUG, CONNECTOR 7P
*CN301 1-564-526-11 PLUG, CONNECTOR 11P
CN304 1-785-438-11 CONNECTOR, BOARD TO BOARD 10P
CN903 1-766-928-11 CONNECTOR, BOARD TO BOARD 8P
*CN904 1-564-527-11 PLUG, CONNECTOR 12P
*CN905 1-564-522-11 PLUG, CONNECTOR 7P
*CN907 1-774-252-11 CONNECTOR, BOARD TO BOARD 8P
PANELMAIN
The components identified by mark !or dotted
line with mark !are critical for safety.
Replace only with part number specified.
