SERVICE MANUAL
US Model
Canadian Model
XM-1600GSD
MONAURAL POWER AMPLIFIER
Other Specifications
Circuit system OTL (output transformerless) circuit
Pulse power supply
Inputs RCA pin jacks
High level input connector
Outputs Speaker terminals
Through out pin jacks
Speaker impedance 1 – 8 Ω
Maximum outputs 600 W (at 4 Ω)
1200 W (at 2 Ω)
Rated outputs (supply voltage at 14.4 V)
300 W (20 Hz – 300 Hz, 0.2% THD, at 4 Ω)
600 W (20 Hz – 300 Hz, 0.6% THD, at 2 Ω)
1000 W (20 Hz – 300 Hz, 1.2% THD, at 1 Ω)
Frequency response 5 Hz – 300 Hz ( dB)
Harmonic distortion 0.06% or less (at 100 Hz, 4 Ω)
Input level adjustment range
0.2 – 6.0 V (RCApin jacks)
0.4 – 12.0 V (High level input)
Low-pass filter 50 – 300 Hz, –18 dB/oct
Low boost 0 – 10 dB (40 Hz)
Power supply voltage 10.5 – 16 V
Current drain at rated output : 40 A (4 Ω)
Remote input : 2 mA
Dimensions Approx. 358 ×50 ×264 mm (w/h/d)
(14 1/8 ×2 ×10 1/2 in.) not incl.
projecting parts and controls
Mass Approx. 3.5 kg (7 lb. 11 oz.) not incl. accessories
Supplied accessories Mounting screws (4)
Design and specifications are subject to change without
notice.
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUTAND TOTAL HARMONIC DISTORTION
300 watts minimum continuous average power into 4 ohms, 20 Hz to
300 Hz with no more than 0.2% total harmonic distortion per Car
Audio Ad Hoc Committee standards.
+0.5
–3
Ver 1.0 2002. 01
9-873-465-01
2002A0400-1
© 2002. 1
Sony Corporation
e Vehicle Company
Published by Sony Engineering Corporation
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.

2
TABLE OF CONTENTS
1. GENERAL
Features ................................................................................... 3
Location and Function of Controls.......................................... 3
Instllation ................................................................................. 3
Connections ............................................................................. 4
2. DISASSEMBLY
2-1. Bottom Plate ........................................................................ 6
2-2. Main Board Section ............................................................ 6
2-3. Main Board ......................................................................... 7
2-4. LED Board .......................................................................... 7
3. DIAGRAMS
3-1. Block Diagram .................................................................... 9
3-2. Printed Wiring Board –Main Section– ..............................10

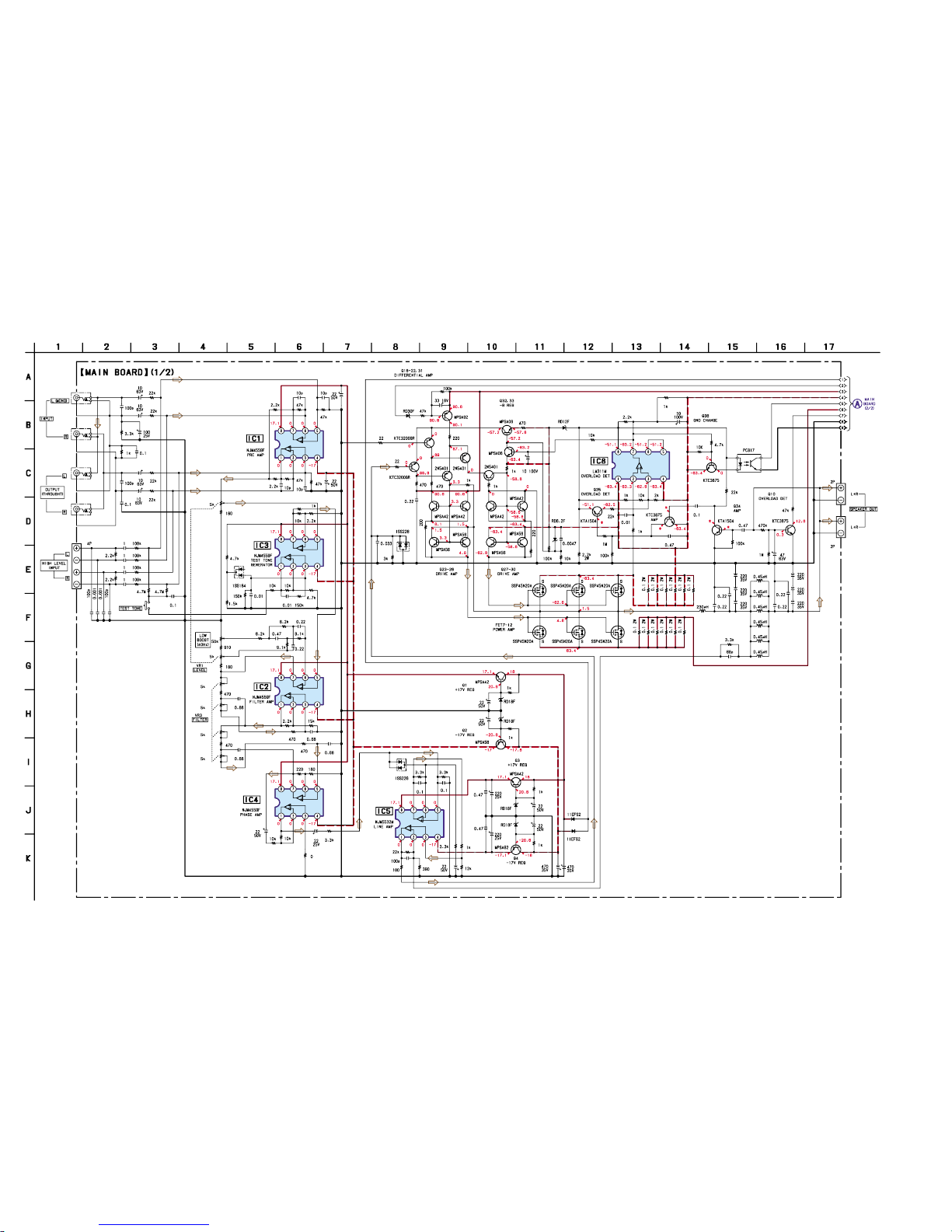

3-3. Schematic Diagram –Main Section (1/2)– ........................ 11
3-4. Schematic Diagram –Main Section (2/2)– ........................ 12
4. EXPLODED VIEWS
4-1. Heat Sink (Main) Section.................................................. 15
4-2. Main Board Section .......................................................... 16
5. ELECTRICAL PARTS LIST ........................................ 17
XM-1600GSD

3
XM-1600GSD
SECTION 1
GENERAL This section is extracted
from instruction manual.

4
XM-1600GSD

5
XM-1600GSD

6
XM-1600GSD SECTION 2
DISASSEMBLY
1 BTP 3x6
5 bottom plat
e
7 insulating sheet
2 BTP 3x6
3 BTP 3x6
4 P 2.6x2.8
6
Note : Follow the disassembly procedure in the numerical order given.

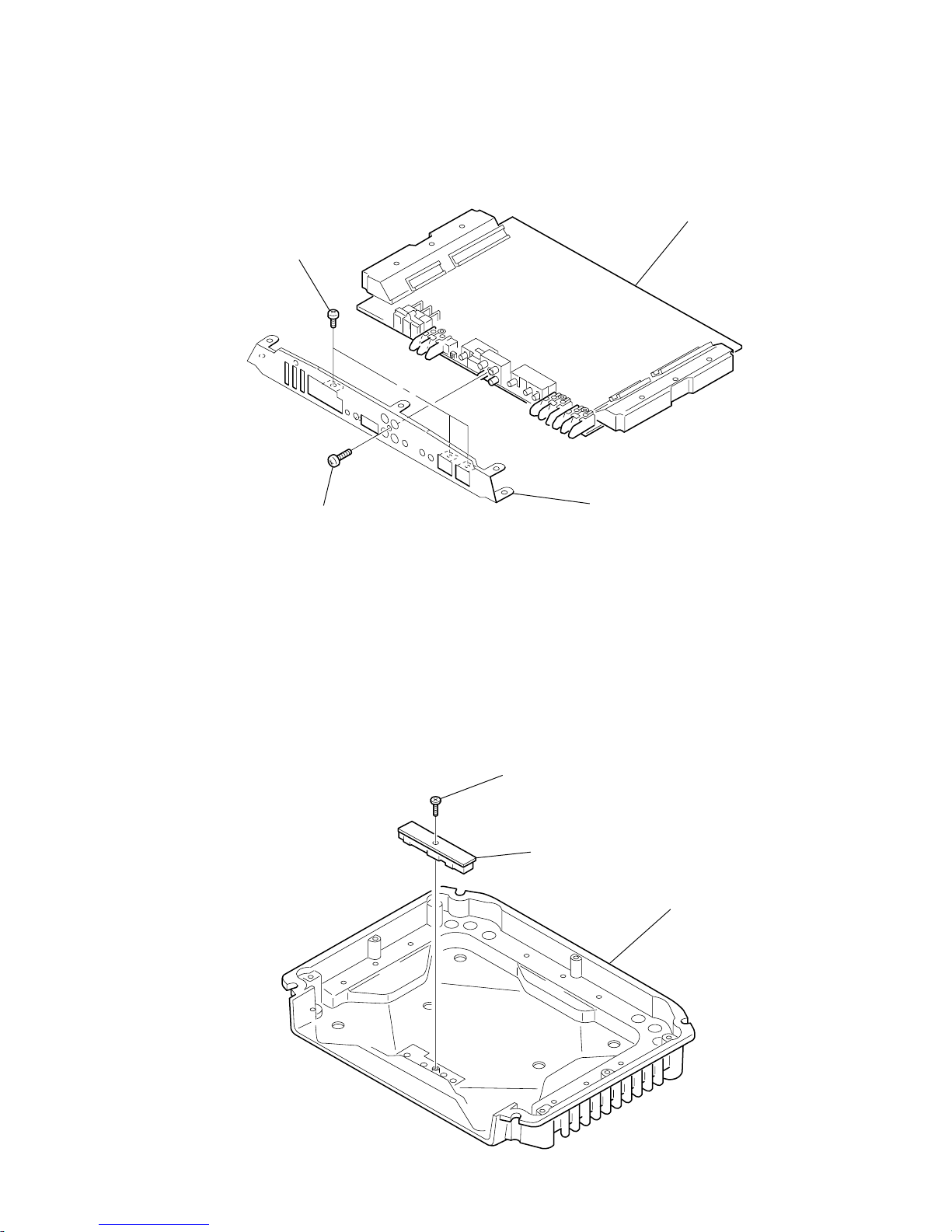

2-1. BOTTOM PLATE
2-2. MAIN BOARD SECTION
4 CN1
3
1
B.TT. 3x14
2 B.TT. 3x14
5 MAIN board

7
XM-1600GSD
1 BTP 3x6
2 LED board
heat sink (main)
1 P 3x8
2 P 3x8
4 MAIN board
3 front (1ch) panel
2-3. MAIN BOARD
2-4. LED BOARD

8
XM-1600GSD SECTION 3
DIAGRAMS
( ): SIDE B
D1 G-6
(D2) F-8
D3 F-7
D5 E-6
(D8) F-8
D9 E-7
D11 D-7
(D12) D-9
(D13) D-9
(D14) D-10
(D15) E-5
(D16) E-5
(D19) C-2
(D20) C-12
(FET1) G-2
(FET2) G-2
(FET3) F-2
(FET4) E-2
(FET5) D-2
(FET6) D-2
(FET7) G-12
(FET8) G-12
(FET9) F-12
(FET10) E-12
(FET11) D-12
(FET12) D-12
IC1 G-7
IC2 G-8
IC3 G-6
IC4 G-9
IC5 D-7
(IC6) D-3
IC7 F-6
IC8 D-8
(LED1) D-14
(LED2) E-14
(LED3) F-14
(LED4) G-14
(PTC1) E-8
(PTC2) F-8
(Q1) F-8
(Q2) F-7
(Q3) D-8
(Q4) E-8
Q5 F-7
Q6 F-7
Q7 E-6
Q8 E-6
Q9 E-6
Q10 G-10
Q11 G-6
(Q12) C-3
Q13 C-3
Q14 F-6
Q15 F-6
Q16 E-6
Q17 E-9
(Q18) E-8
(Q19) E-9
(Q20) F-9
(Q21) E-9
(Q22) E-9
(Q23) E-9
(Q24) E-10
(Q25) E-9
(Q26) E-10
(Q27) F-9
(Q28) F-10
(Q29) F-9
(Q30) F-10
(Q31) F-9
(Q32) G-9
(Q33) G-8
Q34 G-10
Q35 D-9
Q36 E-8
Q39 F-6
Q42 F-7
Q43 F-7
Q44 E-6
(ZD1) G-8
(ZD2) G-7
(ZD3) D-7
(ZD4) D-7
(ZD5) F-8
Ref. No. Location
• Semiconductor Location
Ref. No. Location
16 15 14 13 12 11 10 9
1 2 3 4 5 6 7 8
OSC
REF. REG.
ERROR
ERROR
0.1V
NON INV
+IN
NON INV
-IN
NON INV
-IN
NON INV
+IN
PWMCOMP
IN
DEADTIME
CONTROL
CT
RT
GND
C1 E1
E2
C2
VCC
OUTPUT
CONTROL
VREF
IC6 TL494CN
• IC Block Diagram
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
• % : indicates tolerance.
•f: internal component.
•C: panel designation.
•A: B+ Line.
•B: B– Line.
• Powervoltage isdc 14.4Vand fed withregulated dcpower
supply from +12 V and REMOTE terminals.
• Voltagesaretaken with a VOM(Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: AUDIO
for printed wiring boards:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•z: Through hole.
•: Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
Caution:
Pattern face side: Partsonthepattern faceside seenfrom the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
• Waveform
1
IC6 5(CT)
3.2Vp-p
12µsec

99
XM-1600GSD

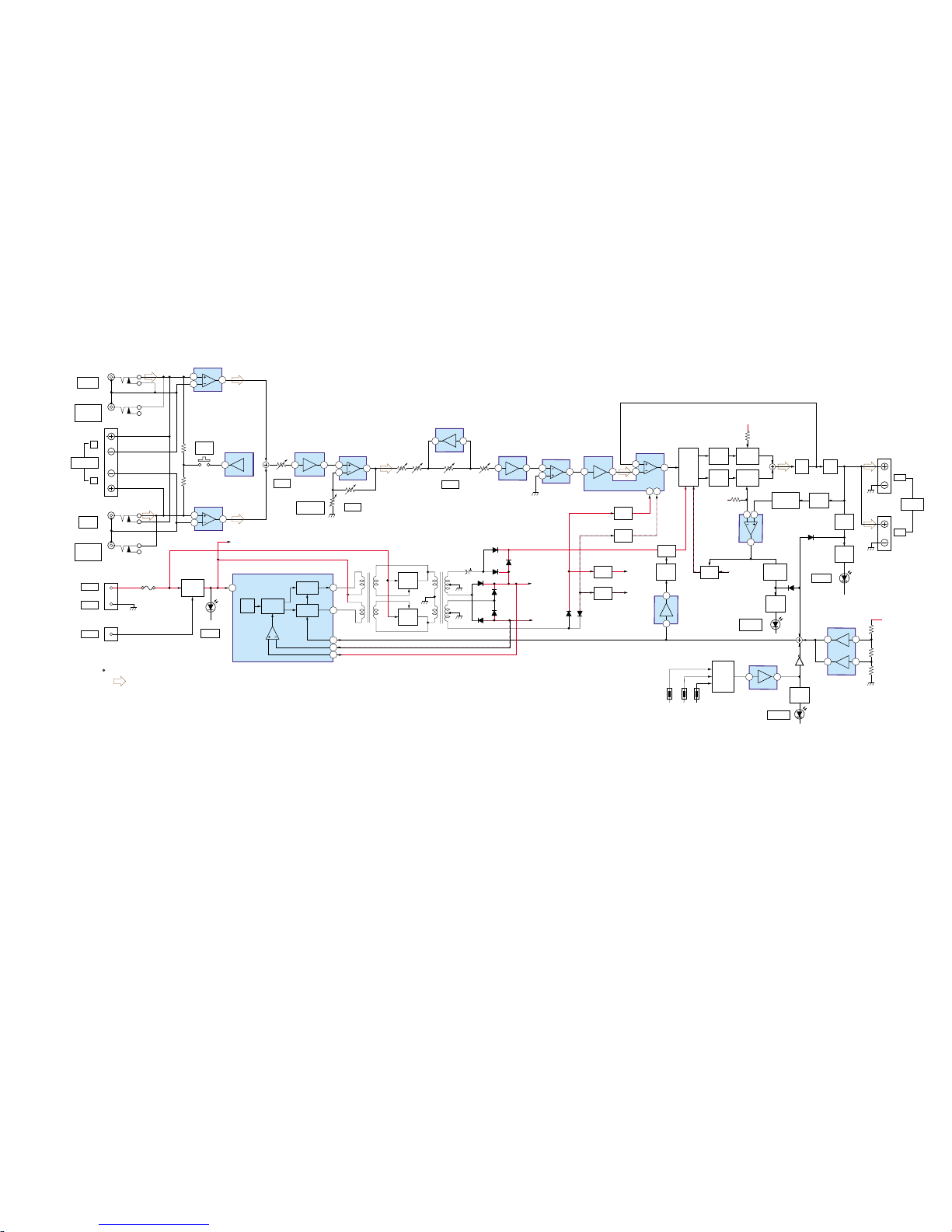

3-1. BLOCK DIAGRAM
5
1
275
1
5751
5
67
3
21
67
3
37 3
21
DRIVE
AMP
Q23-26
DRIVE
AMP
Q27-30
GND
CHANGE
Q5,PTC2
POWER
AMP
FET10-12
LPF
POWER
AMP
FET7-9
AMP
Q18,19
21,22,31
8 4
OSC
POWER
LED4
LEVEL
VR1-1
LEVEL
VR1-2
FILTER
VR3-3VR3-2VR3-1 VR3-4
OFF SET
LED2
THERMAL
LED1
OVER
CURRENT
LED3
LPF
B+ REG
Q3
B+ REG
Q1
B- REG
Q2
B- REG
Q32,33
TEST
TONE
LOW BOOST
(40Hz)
VR2
GND
CHANGE
Q36,PTC1
LED
DRIVE
Q39,42
OFFSET
DETECT
Q10
OVER LOAD
DETECT
Q35
AMP
Q17,34
LED
DRIVE
Q11,43
LED
DRIVE
Q14,15
THERMAL
AMP
Q7–9
ON/OFF
DRIVE
FET4-6
ON/OFF
DRIVE
FET1-3
B- REG
Q4
8
11
12
13
2
1
ON/OFF
CONTROL
ON/OFF
CONTROL
PWN
CONTROL
POWER
CONTROL
Q12,13
VCC
DC-DC CONVERTER
IC6
C1
T1 PT1
C2
OUT
CTL
JK1-1
L(MONO)
INPUT
L
JK1-3
L
OUTPUT
(THROUGH)
JK1-2
R
INPUT
JK1-4
R
OUTPUT
(THROUGH)
R
HIGH LEVEL
INPUT
L+R
R+L
SPEAKER
OUT
+12V
GND
REV
TM1
CNT1
TM2 13V
B-
B-
B-
B+
+17V
-17V
B+
OVER LOAD
DETECT
IC8
THR1 THR2 THR3
PRE AMP
IC1(2/2)
13V
LOW BOOST AMP
IC2(2/2) AMP
IC4(2/2) PHASE AMP
IC4(1/2)
LINE AMP
IC5(2/2)
LINE AMP
IC5(1/2)
FILTER AMP
IC2(1/2)
AMP
IC3(2/2)
PRE AMP
IC1(1/2)
TEST TONE GEN
IC3(1/2)
B+ CHECK
IC7(1/4),(2/4)
THERMAL DETECT
IC7(3/4)
Q16
TM3
TM4
SW1
FAULT DETECT
IC7(4/4)
Signal path
: AUDIO
FUSE 1-3
B+ REG
Q20
2 3
7
149
1
2
5
6
13
10

1010
XM-1600GSD
1
A
B
C
D
E
F
G
H
I
J
2 3 4 5 6 7 8 9 10 11 12 13 14
R95 R50
R51 R52
C15
D11
C7
C40
R66
R19
R65
R18
RG1
RG2
RG3
RG4
RG5
RG6
R81
R55
C35
R54
C36
R85
R84
R80
R67 R74
R78
R75
C31
R77 R56
R29
R27 R28
R32
R31
R160
C3
R35
R34 C13
C30
R10
C52
C29
C51
C28
C50
R11
C53 C24
C2
C23
C1
R22R21
R20
R25
Q34
Q10
RX1
R40
R41
R12
R14
R16 R15
C8
R38 R39
1-682-202- 11
1-682-203- 11
R13
C27
C4
C26
C12
R33
R36
R37
R2
R9 R8
R6
R163
R7
R4
R1
R157
R23
R24
C11
R70R68 R69 C6
R79
R82
R87
R17
R57
C39 R59
R43
R61 C38
R88
R76
R135
R120
R132
R133R125
R129 R127
R130 R131
R128 R126
R110
R109
R111
R171 R64
R181
R182
R180
R149
R170
R103
R154 R152
R104
R151
R158
C25
R3
R156
R153
R150
R162 R174
R105
R122
R112
R134
R123
R173
R172
R169
R106 R107
C41
R117
R115 R114
R136
R121
R116
R113
THR2
R118 R119
R164
R155
R166
R159
R161
C14
R60
R62
R53
R91
R58
C32
C33
C34
R86
R71
R94
C37
R89
R90 R93
R100
R83
R99
R92
MAIN BOARD (SIDE A)
LED BOARD
(SIDE A)
IC3
14
85
IC1
58
41
IC2
14
85
IC5
14
85
IC4
14
85
IC8
58
41
IC7
17
14 8
Q13
Q17
Q35
Q36
Q6
D9
Q42
Q43
Q5
Q39Q14
Q11
D1
Q8 Q7
Q44
Q16
Q15
D5 Q9
D3
BE
C
BE
C
BE
C
BE
C
BE
C
BE
C
BE
C
BE
C
EB
C
BE
C
BE
C
EB
C
EB
C
EB
C
EB
C
EB
C
BE
C
BE
C
BE
C
3-2. PRINTED WIRING BOARD — MAIN SECTION — • Refer to page 8 for Semiconductor Location.

11 11
XM-1600GSD
1
A
B
C
D
E
F
G
H
I
J
234567891011121314
EC7 EC9
Q3 MC10 MC9
C59
EC10
EC52
EC28
EC33 EC31
MC12
C19
C18
EC15
MC26
IC6
EC27 MC16
EC26
EC25
EC23
EC22
EC60
MC18
MC20
EC24
MC17
MC15
FET6
Q12
FET5
FET3
FET2
FET1
FET4
EC35EC37EC39EC41EC43EC45EC47EC49
THR1
FET12
FET11
FET10
FET9
FET8
FET7
EC16 EC17 EC18
MC22
C17
LF2 MC21
MC11
EC32 EC30EC34EC36EC38EC40EC42EC44EC46EC48
D20
THR3
D19
R137 R138
R139 R140 R141
R142
R143
R144
R145
R146
R147
R148
EC29
D15
D16
EC50
EC12
EC8
Q4
ZD3
ZD4
EC21
MC24 MC23
EC20 EC19
EC58
MC7 EC51
EC53
EC4
MC6
MC4
EC54
EC56 EC1
EC55 EC2
C9
EC5 EC6
Q31
Q32
EC57
ZD5
Q33
MC19
MC25
EC61
PTC1
PTC2
EC13
EC14
D14
D13
D12
Q22
Q26 Q25
Q30 Q29
Q28 Q27
Q21
Q20
Q19
D2
Q18
EC11
Q2
Q1
D8
ZD1 ZD2
CN1
MC2
MC1
MC5
MC3
EC3
R124
R101
LF1
18
16 9
LED1
THERMAL
LED2
OFF SET
LED3
OVER CURRENT
LED4
POWER
CNW1
MAIN BOARD (SIDE B)
LED BOARD
(SIDE B)
L+R
SPEAKER OUT
SPK2
TM2
TM1
L+R
SPK1
-2
-1
-4
-3
-2
-1
VR2VR1 VR3
VR2VR1 VR3
LOW
BOOST
(40Hz)
SW1
TEST TONE
LEVEL FILTER
JK1-4JK1-3 JK1-2 JK1-1
OUTPUT
(THROUGH)
RL
INPUT
RL
(MONO)HIGH LEVEL INPUT REM FUSE1
25A
FUSE2
25A
FUSE3
25A
GND +12V
RL
CNT1
PT1
T1
1-682-202- 11
1-682-203- 11
5
1
51
S
S
S
S
S
S
S
S
S
S
S
S
BD1 BD2 BD3 BD4 BD5 BD6
Q24 Q23

1212
XM-1600GSD
3-3. SCHEMATIC DIAGRAM —MAIN SECTION (1/2) —
R3 R158
R160
R17
EC5
EC6
R18
EC3
R161
R159
R4
EC4
R169
R13
R14 MC1
MC3
R16
MC2
R15R12
R174
R20
MC4
R24
R25 MC7
MC5
R21
R31
R32
C12
R34 R35
R36
C13
R27 R28
EC53
MC6
R38 R39
SW1
R10
R11
C30
C29
C28
C27
R6
R163
R164
R7
R41
R40 R43
RX1
R51
MC9
R52
MC10
R59 R60
C15
EC10
C14 EC9 R62
EC7
EC8
R61
C50
C1
C2
C23
R162 C24
R1
R156
R157
R2
R155
R130
R132
R125 C40
R126Q20
R111 R113
Q21
Q33 R119
Q32
Q22 Q31
Q25
Q26
Q29
Q30
R110
R114 R115
R116
R117
R120
MC11
C8
R134
R118
R123
MC21
MC22
MC23
MC24
EC16
EC17
EC18 EC19
EC20
EC21
R106
C41
R107
C11 R173
R172
MC25
EC29 EC28
CNT1
JK1-1
JK1-4
EC1
EC54
EC55
EC2
R148
R147
R146
R145
R144
R143
R137
R138
R139
R140
R141
R142
EC58
R105
C17
R136
R109
C51
C9
R112
R23
R50
EC52
R53
JK1-3
JK1-2 EC56
C52
C53
R8 R9
IC1
IC3
D1
R33
R37
IC2
R22
IC4
EC51
ZD1
ZD2
ZD3
ZD4
D15
D16
IC5
D11
R57
C39
R56
BD3
BD4
BD5
BD6
BD1
BD2
FET9FET7 FET8
FET10 FET11 FET12
R133
SPK1
SPK2
Q10
PTC1
Q36
R135
IC8
R131 R129
C7
R127
R124
D8
ZD5
R122
EC57
D2 R19
Q19
Q18
D9
R121
VR1-1
VR2
VR1-2
VR3-1
VR3-2
VR3-3
VR3-4
C25 C3
C26 C4
Q3
Q1
Q23 Q24 Q27
Q28
Q35
Q17
R29
C38 R128
Q34
LF2
EC59
EC61
Q2
Q4
(Page 13)

13 13
XM-1600GSD
IC B/D
EC60
TM1
TM2
FUSE1
FUSE2
FUSE3
EC22
EC23
EC24
EC25
EC26
EC27
MC18
C34R71 R86
MC20
R83
C35R54
R81
R153
R151
R152
C36
R84
R55 R149
R180
R150
MC19
R79C6
EC12
R78
R70
R69
R80 R170
R66
R171
R64
R87
R65
R67
THR2
C31
R77
EC50
R88
R101
MC15
MC17 MC16
R58
MC26
EC14
C33
IC6
C18
C37
R89
C32
EC13
R94
R91
R95
R92
R93
C19
R90
R68
CNW1CN1
R100
R99
EC15
MC12
D19
D20
D12
D13
EC30
EC32
EC34
EC36
EC38
EC40
EC42
EC44
EC46
EC48
EC31
EC33
EC35
EC37
EC39
EC41
EC43
EC45
EC47
EC49
Q13
R166
Q11
Q43
D3
Q39
Q14
Q42Q15
R104
R85R103
D5
IC7
Q6
PTC2
EC11
Q5
Q44
R74R75
Q7 Q8 Q9
LED4
LED3
LED1
LED2
D14
RG6 RG5 RG4
RG3 RG2 RG1
Q16
PT1
T1
R182
R181
R82
R154
FET1 FET2 FET3
FET4 FET5 FET6
Q12 LF1
R76
THR1 THR3
•Refer to page 8 for Waveform.
3-4. SCHEMATIC DIAGRAM —MAIN SECTION (2/2) —•Refer to page 8 for IC Block Diagram.
(Page 12)

1414
XM-1600GSD
MEMO

15
XM-1600GSD
• Accessories list are given in the last of
this parts list.
SECTION 4
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication ofAppearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
RR

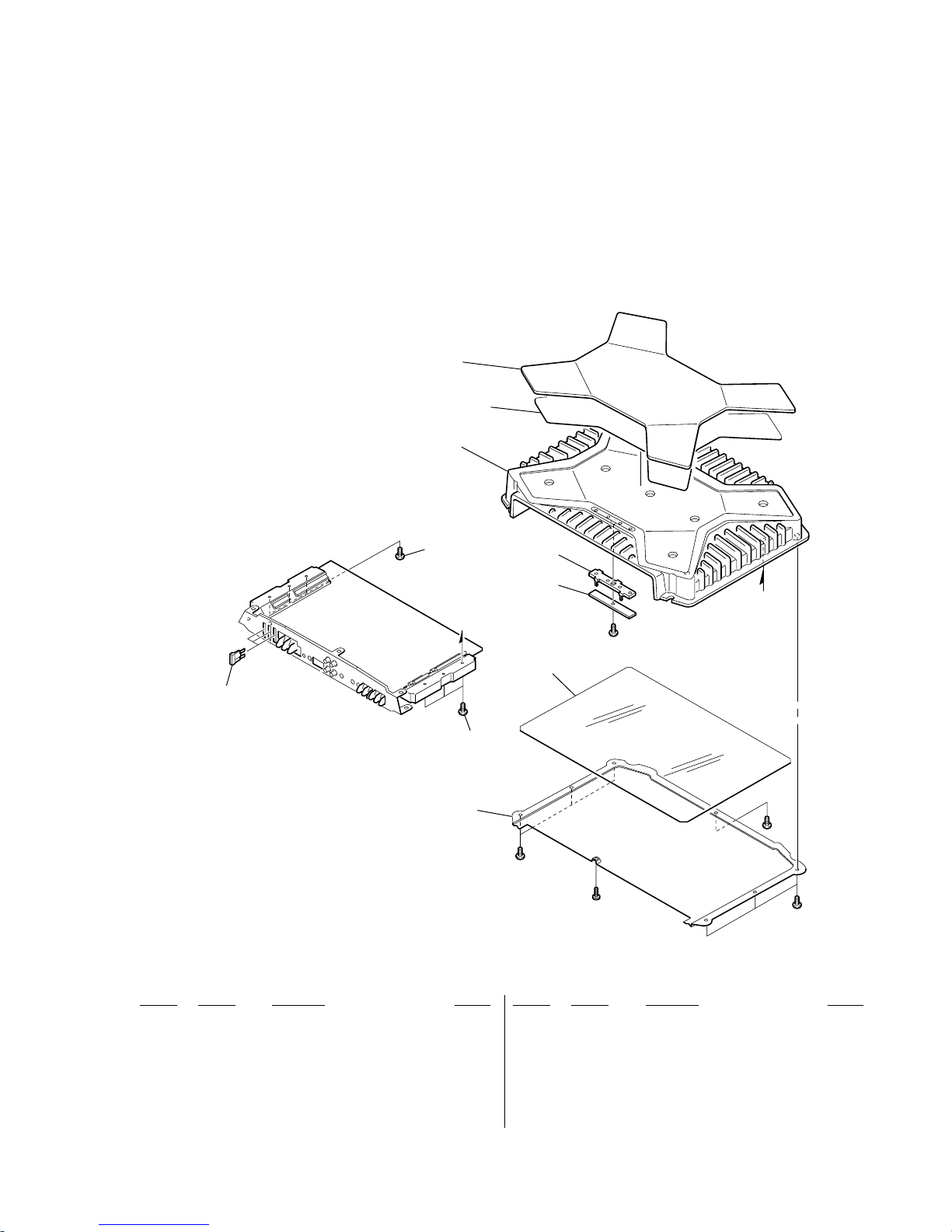

4-1. HEAT SINK (MAIN) SECTION
A
A
#1
#1
FUSE1,2,3
#2 #1
#1
1
2
8
3
4
6
7
5
5
1 3-239-398-31 PLATE (HEAT SINK), ORNAMENTAL
*2 3-225-071-02 HEAT SINK (MAIN)
*3 3-225-065-01 HOLDER, LED
4 1-682-203-11 LED BOARD
5 3-225-185-01 SCREW (+B.TT.3X14)
*6 3-225-081-02 SHEET, INSULATING
*7 3-225-068-02 PLATE, BOTTOM
8 3-225-153-02 SHEET (HEAT SINK), ADHESIVE
FUSE1 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) 25A
FUSE2 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) 25A
FUSE3 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) 25A
#1 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
#2 7-627-556-07 SCREW, PRECISION +P 2.6X2.8

16
XM-1600GSD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

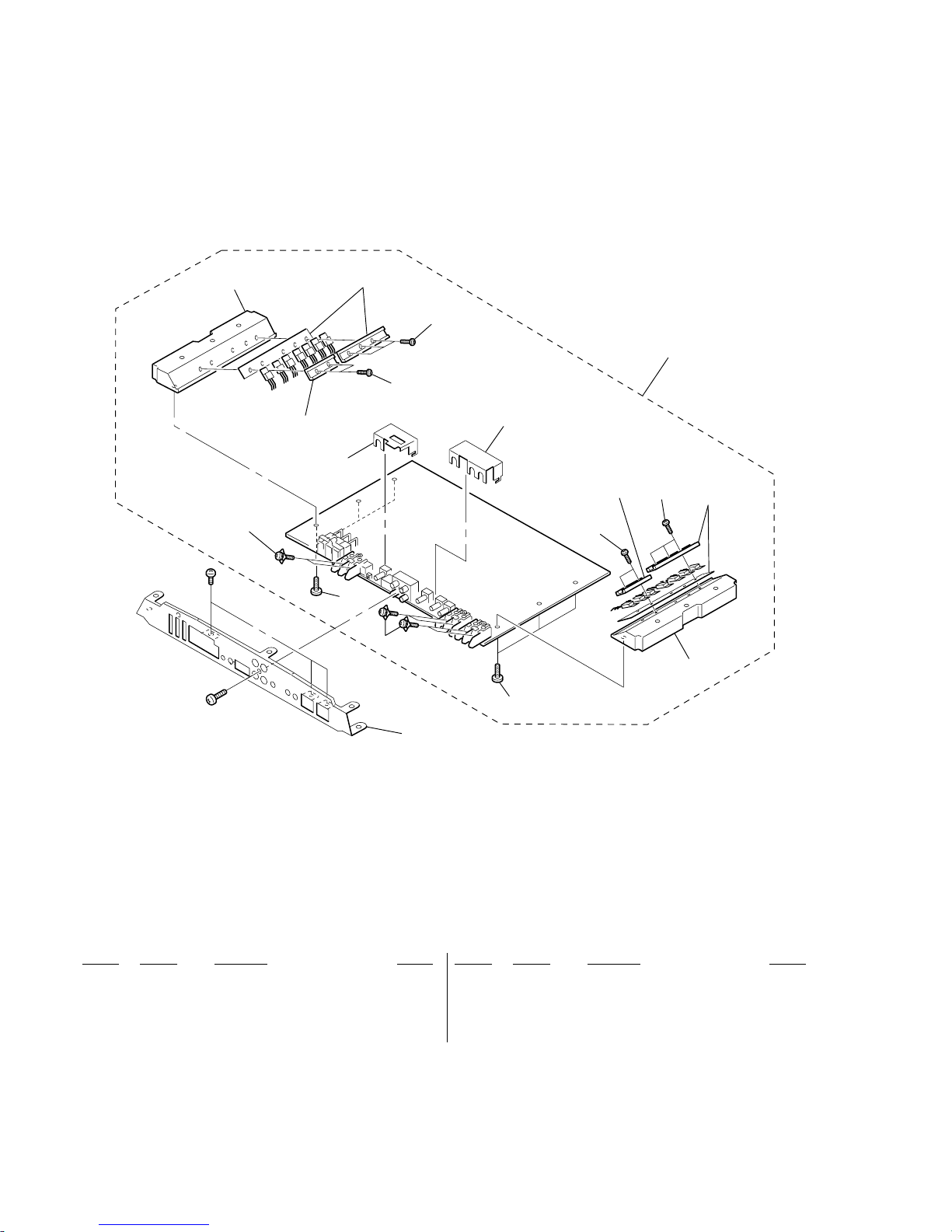

4-2. MAIN BOARD SECTION
51
53
53
55
57
58
56
55
54
54
not supplied
not supplied
not supplied
not supplied
not supplied
54
54
52
#3
#3
51 A-3340-148-A MAIN BOARD, COMPLETE
52 3-225-245-01 PANEL, FRONT (1CH)
53 3-230-028-01 HEAT SINK (SUB)
54 3-225-183-11 SCREW (+PSW.TT.3XL)
55 3-225-184-01 SCREW (+PS.TT.3X6)
*56 3-225-064-01 BRACKET (2CH.VR2)
57 3-233-813-02 SCREW (+PSW.TT.5X10)
58 3-912-432-01 SCREW (+–B)
#3 7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT

17
XM-1600GSD
SECTION 5
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAINLED
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*”are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
When indicating parts by reference
number, please include the board.
1-682-203-11 LED BOARD
**********
*3-225-065-01 HOLDER, LED
< DIODE >
LED1 8-719-302-91 LED SEL2111R (THERMAL (PROTECTOR))
LED2 8-719-302-91 LED SEL2111R (OFFSET (PROTECTOR))
LED3 8-719-302-91 LED SEL2111R
(OVERCURRENT (PROTECTOR))
LED4 8-719-064-23 LED SEL2411G (POWER)
*************************************************************
A-3340-148-A MAIN BOARD, COMPLETE
*********************
1-576-544-11 HOLDER, FUSE
*3-225-064-01 BRACKET (2CH.VR2)
3-225-183-11 SCREW (+PSW.TT.3XL)
3-225-184-01 SCREW (+PS.TT.3X6)
3-230-028-01 HEAT SINK (SUB)
7-685-646-79 SCREW +P 3X8 TYPE2 NON-SLIT
< FERRITE BEAD >
BD1 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD2 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD3 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD4 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD5 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
BD6 1-410-396-41 INDUCTOR, FERRITE BEAD 0.45uH
< CAPACITOR >
C1 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C2 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C3 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C4 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C6 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C7 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C8 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C9 1-130-777-00 MYLAR 0.1uF 10% 100V
C11 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C12 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C13 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C14 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C15 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C17 1-101-888-00 CERAMIC 68PF 5% 50V
C18 1-104-987-11 MYLAR 0.001uF 5% 100V
C19 1-130-479-00 CERAMIC CHIP 0.0047uF 5% 50V
C23 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C24 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C25 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C26 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C27 1-164-346-11 CERAMIC CHIP 1uF 16V
C28 1-164-346-11 CERAMIC CHIP 1uF 16V
C29 1-164-346-11 CERAMIC CHIP 1uF 16V
C30 1-164-346-11 CERAMIC CHIP 1uF 16V
C31 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C32 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C33 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C34 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C35 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C36 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C37 1-165-319-11 CERAMIC CHIP 0.1uF 50V
C38 1-216-073-00 METAL CHIP 10K 5% 1/10W
C39 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C40 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V
C41 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C50 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C51 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C52 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C53 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
< CONNECTOR >
CNT1 1-794-219-11 CONNECTOR 4P (HIGH LEVEL INPUT)
< DIODE >
D1 8-719-801-78 DIODE 1SS184
D2 8-719-160-84 DIODE RD30F-B2
D3 8-719-820-05 DIODE 1SS181
D5 8-719-801-78 DIODE 1SS184
D8 8-719-160-29 DIODE RD6.2F-B2
D9 8-719-800-76 DIODE 1SS226
D11 8-719-800-76 DIODE 1SS226
D12 8-719-987-67 DIODE 11EFS2
D13 8-719-987-67 DIODE 11EFS2
D14 8-719-987-67 DIODE 11EFS2
D15 8-719-987-67 DIODE 11EFS2
D16 8-719-987-67 DIODE 11EFS2
D19 8-719-076-60 DIODE FCH20A15
D20 8-719-076-61 DIODE FRH20A15

18
XM-1600GSD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
< CAPACITOR >
EC1 1-128-582-11 ELECT 10uF 20% 100V
EC2 1-128-582-11 ELECT 10uF 20% 100V
EC3 1-126-965-11 ELECT 22uF 20% 50V
EC4 1-126-965-11 ELECT 22uF 20% 50V
EC5 1-126-965-11 ELECT 22uF 20% 50V
EC6 1-126-965-11 ELECT 22uF 20% 50V
EC7 1-126-965-11 ELECT 22uF 20% 50V
EC8 1-126-965-11 ELECT 22uF 20% 50V
EC9 1-124-599-11 ELECT 220uF 20% 25V
EC10 1-124-599-11 ELECT 220uF 20% 25V
EC11 1-128-582-11 ELECT 10uF 20% 100V
EC12 1-126-965-11 ELECT 22uF 20% 50V
EC13 1-128-563-11 ELECT 100uF 20% 100V
EC14 1-128-563-11 ELECT 100uF 20% 100V
EC15 1-128-582-11 ELECT 10uF 20% 100V
EC16 1-107-711-11 ELECT 220uF 20% 35V
EC17 1-107-711-11 ELECT 220uF 20% 35V
EC18 1-107-711-11 ELECT 220uF 20% 35V
EC19 1-107-711-11 ELECT 220uF 20% 35V
EC20 1-107-711-11 ELECT 220uF 20% 35V
EC21 1-107-711-11 ELECT 220uF 20% 35V
EC22 1-115-814-11 ELECT 1000uF 20% 35V
EC23 1-115-814-11 ELECT 1000uF 20% 35V
EC24 1-115-814-11 ELECT 1000uF 20% 35V
EC25 1-115-814-11 ELECT 1000uF 20% 35V
EC26 1-115-814-11 ELECT 1000uF 20% 35V
EC27 1-115-814-11 ELECT 1000uF 20% 35V
EC28 1-115-837-11 ELECT 470uF 20% 35V
EC29 1-115-837-11 ELECT 470uF 20% 35V
EC30 1-128-556-11 ELECT 1000uF 20% 63V
EC31 1-128-556-11 ELECT 1000uF 20% 63V
EC32 1-128-556-11 ELECT 1000uF 20% 63V
EC33 1-128-556-11 ELECT 1000uF 20% 63V
EC34 1-128-556-11 ELECT 1000uF 20% 63V
EC35 1-128-556-11 ELECT 1000uF 20% 63V
EC36 1-128-556-11 ELECT 1000uF 20% 63V
EC37 1-128-556-11 ELECT 1000uF 20% 63V
EC38 1-128-556-11 ELECT 1000uF 20% 63V
EC39 1-128-556-11 ELECT 1000uF 20% 63V
EC40 1-128-556-11 ELECT 1000uF 20% 63V
EC41 1-128-556-11 ELECT 1000uF 20% 63V
EC42 1-128-556-11 ELECT 1000uF 20% 63V
EC43 1-128-556-11 ELECT 1000uF 20% 63V
EC44 1-128-556-11 ELECT 1000uF 20% 63V
EC45 1-128-556-11 ELECT 1000uF 20% 63V
EC46 1-128-556-11 ELECT 1000uF 20% 63V
EC47 1-128-556-11 ELECT 1000uF 20% 63V
EC48 1-128-556-11 ELECT 1000uF 20% 63V
EC49 1-128-556-11 ELECT 1000uF 20% 63V
EC50 1-124-570-11 ELECT 220uF 20% 16V
EC51 1-128-551-11 ELECT 22uF 20% 25V
EC52 1-126-965-11 ELECT 22uF 20% 50V
EC53 1-126-965-11 ELECT 22uF 20% 50V
EC54 1-128-582-11 ELECT 10uF 20% 100V
EC55 1-128-582-11 ELECT 10uF 20% 100V
EC56 1-104-665-11 ELECT 100uF 20% 25V
EC57 1-128-582-11 ELECT 10uF 20% 100V
EC58 1-128-552-11 ELECT 47uF 20% 63V
EC59 1-128-582-11 ELECT 10uF 20% 100V
EC60 1-126-948-11 ELECT 100uF 20% 35V
EC61 1-126-966-11 ELECT 33uF 20% 16V
< TRANSISTOR >
FET1 8-729-056-77 FET RFP70N06
FET2 8-729-056-77 FET RFP70N06
FET3 8-729-056-77 FET RFP70N06
FET4 8-729-056-77 FET RFP70N06
FET5 8-729-056-77 FET RFP70N06
FET6 8-729-056-77 FET RFP70N06
FET7 8-729-056-78 FET SSP45N20A
FET8 8-729-056-78 FET SSP45N20A
FET9 8-729-056-78 FET SSP45N20A
FET10 8-729-056-78 FET SSP45N20A
FET11 8-729-056-78 FET SSP45N20A
FET12 8-729-056-78 FET SSP45N20A
< IC >
IC1 8-759-700-38 IC NJM4559M
IC2 8-759-700-38 IC NJM4559M
IC3 8-759-700-38 IC NJM4559M
IC4 8-759-700-38 IC NJM4559M
IC5 8-759-064-92 IC NJM5532M-D
IC6 8-759-904-94 IC TL494CN
IC7 8-759-085-67 IC LM339NS
IC8 8-759-980-04 IC LM311PS
< JACK >
JK1 1-779-078-41 JACK, PIN 4P (INPUT,OUTPUT (THROUGH))
< COIL >
LF1 1-424-884-11 COIL, CHOKE (POWER) 11.3uH
LF2 1-424-885-11 COIL, CHOKE (OUTPUT) 230uH
< CAPACITOR >
MC1 1-137-401-11 MYLAR 0.22uF 5% 100V
MC2 1-107-357-11 MYLAR 0.47uF 5% 100V
MC3 1-137-401-11 MYLAR 0.22uF 5% 100V
MC4 1-137-472-11 MYLAR 0.68uF 5% 100V
MC5 1-137-472-11 MYLAR 0.68uF 5% 100V
MC6 1-137-472-11 MYLAR 0.68uF 5% 100V
MC7 1-137-472-11 MYLAR 0.68uF 5% 100V
MC9 1-130-777-00 MYLAR 0.1uF 10% 100V
MC10 1-130-777-00 MYLAR 0.1uF 10% 100V

19
XM-1600GSD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
MC11 1-137-401-11 MYLAR 0.22uF 5% 100V
MC12 1-137-391-11 MYLAR 0.0047uF 5% 100V
MC15 1-137-417-11 MYLAR 0.015uF 10% 100V
MC16 1-137-472-11 MYLAR 0.68uF 5% 100V
MC17 1-137-472-11 MYLAR 0.68uF 5% 100V
MC18 1-137-472-11 MYLAR 0.68uF 5% 100V
MC19 1-137-351-11 MYLAR 0.022uF 10% 100V
MC20 1-137-419-11 MYLAR 0.033uF 10% 100V
MC21 1-137-401-11 MYLAR 0.22uF 5% 100V
MC22 1-137-401-11 MYLAR 0.22uF 5% 100V
MC23 1-137-401-11 MYLAR 0.22uF 5% 100V
MC24 1-137-401-11 MYLAR 0.22uF 5% 100V
MC25 1-136-159-00 MYLAR 0.033uF 5% 50V
MC26 1-107-357-11 MYLAR 0.47uF 5% 100V
< TRANSFORMER >
PT1 1-437-468-11 TRANSFORMER, DC-DC CONVERTER
< PHOTO COUPLER >
PTC1 8-719-902-56 PHOTO COUPLER PC817
PTC2 8-719-902-56 PHOTO COUPLER PC817
< TRANSISTOR >
Q1 8-729-931-36 TRANSISTOR MPSA42
Q2 8-729-056-80 TRANSISTOR MPSA56
Q3 8-729-931-36 TRANSISTOR MPSA42
Q4 8-729-056-82 TRANSISTOR MPSA92
Q5 8-729-034-50 TRANSISTOR KTA1504
Q6 8-729-034-50 TRANSISTOR KTA1504
Q7 8-729-034-51 TRANSISTOR KTC3875
Q8 8-729-034-51 TRANSISTOR KTC3875
Q9 8-729-034-51 TRANSISTOR KTC3875
Q10 8-729-034-51 TRANSISTOR KTC3875
Q11 8-729-034-50 TRANSISTOR KTA1504
Q12 8-729-040-76 TRANSISTOR KTA1273-Y-AT
Q13 8-729-034-51 TRANSISTOR KTC3875
Q14 8-729-034-50 TRANSISTOR KTA1504
Q15 8-729-034-51 TRANSISTOR KTC3875
Q16 8-729-034-51 TRANSISTOR KTC3875
Q17 8-729-034-51 TRANSISTOR KTC3875
Q18 8-729-045-01 TRANSISTOR KTC3200GR
Q19 8-729-045-01 TRANSISTOR KTC3200GR
Q20 8-729-056-82 TRANSISTOR MPSA92
Q21 8-729-056-79 TRANSISTOR 2N5401
Q22 8-729-056-79 TRANSISTOR 2N5401
Q23 8-729-931-36 TRANSISTOR MPSA42
Q24 8-729-931-36 TRANSISTOR MPSA42
Q25 8-729-056-80 TRANSISTOR MPSA56
Q26 8-729-056-80 TRANSISTOR MPSA56
Q27 8-729-931-36 TRANSISTOR MPSA42
Q28 8-729-931-36 TRANSISTOR MPSA42
Q29 8-729-056-80 TRANSISTOR MPSA56
Q30 8-729-056-80 TRANSISTOR MPSA56
Q31 8-729-056-79 TRANSISTOR 2N5401
Q32 8-729-056-81 TRANSISTOR MPSA06
Q33 8-729-056-81 TRANSISTOR MPSA06
Q34 8-729-034-50 TRANSISTOR KTA1504
Q35 8-729-034-50 TRANSISTOR KTA1504
Q36 8-729-034-51 TRANSISTOR KTC3875
Q39 8-729-034-50 TRANSISTOR KTA1504
Q42 8-729-034-51 TRANSISTOR KTC3875
Q43 8-729-034-51 TRANSISTOR KTC3875
Q44 8-729-034-50 TRANSISTOR KTA1504
< RESISTOR >
R1 1-216-081-00 METAL CHIP 22K 5% 1/10W
R2 1-216-081-00 METAL CHIP 22K 5% 1/10W
R3 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R4 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R6 1-216-097-00 METAL CHIP 100K 5% 1/10W
R7 1-216-097-00 METAL CHIP 100K 5% 1/10W
R8 1-208-291-11 METAL CHIP 4.7M 5% 1/10W
R9 1-208-291-11 METAL CHIP 4.7M 5% 1/10W
R10 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R11 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R12 1-216-048-00 METAL CHIP 910 5% 1/10W
R13 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R14 1-216-068-00 METAL CHIP 6.2K 5% 1/10W
R15 1-216-072-00 METAL CHIP 9.1K 5% 1/10W
R16 1-216-072-00 METAL CHIP 9.1K 5% 1/10W
R17 1-216-049-11 METAL CHIP 1K 5% 1/10W
R18 1-216-049-11 METAL CHIP 1K 5% 1/10W
R19 1-216-089-00 METAL CHIP 47K 5% 1/10W
R20 1-216-041-11 METAL CHIP 470 5% 1/10W
R21 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R22 1-216-077-00 METAL CHIP 15K 5% 1/10W
R23 1-216-041-11 METAL CHIP 470 5% 1/10W
R24 1-216-041-11 METAL CHIP 470 5% 1/10W
R25 1-216-041-11 METAL CHIP 470 5% 1/10W
R27 1-216-073-00 METAL CHIP 10K 5% 1/10W
R28 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R29 1-216-049-11 METAL CHIP 1K 5% 1/10W
R31 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R32 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R33 1-216-101-00 METAL CHIP 150K 5% 1/10W
R34 1-216-073-00 METAL CHIP 10K 5% 1/10W
R35 1-216-073-00 METAL CHIP 10K 5% 1/10W
R36 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R37 1-216-101-00 METAL CHIP 150K 5% 1/10W
R38 1-216-033-00 METAL CHIP 220 5% 1/10W
R39 1-216-031-00 METAL CHIP 180 5% 1/10W
R40 1-216-073-00 METAL CHIP 10K 5% 1/10W
R41 1-216-073-00 METAL CHIP 10K 5% 1/10W
R43 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R50 1-216-061-00 METAL CHIP 3.3K 5% 1/10W

20
XM-1600GSD
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
R51 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R52 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R53 1-216-049-11 METAL CHIP 1K 5% 1/10W
R54 1-216-089-00 METAL CHIP 47K 5% 1/10W
R55 1-216-073-00 METAL CHIP 10K 5% 1/10W
R56 1-216-025-00 METAL CHIP 100 5% 1/10W
R57 1-216-081-00 METAL CHIP 22K 5% 1/10W
R58 1-216-049-11 METAL CHIP 1K 5% 1/10W
R59 1-216-039-00 METAL CHIP 390 5% 1/10W
R60 1-216-075-00 METAL CHIP 12K 5% 1/10W
R61 1-216-049-11 METAL CHIP 1K 5% 1/10W
R62 1-216-049-11 METAL CHIP 1K 5% 1/10W
R64 1-216-073-00 METAL CHIP 10K 5% 1/10W
R65 1-216-092-00 RES-CHIP 62K 5% 1/10W
R66 1-216-073-00 METAL CHIP 10K 5% 1/10W
R67 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R68 1-216-093-11 RES-CHIP 68K 5% 1/10W
R69 1-216-097-00 METAL CHIP 100K 5% 1/10W
R70 1-216-080-00 METAL CHIP 20K 5% 1/10W
R71 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R74 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R75 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R76 1-216-056-00 RES-CHIP 2K 5% 1/10W
R77 1-216-073-00 METAL CHIP 10K 5% 1/10W
R78 1-216-063-00 METAL CHIP 3.9K 5% 1/10W
R79 1-216-073-00 METAL CHIP 10K 5% 1/10W
R80 1-216-105-00 METAL CHIP 220K 5% 1/10W
R81 1-216-089-00 METAL CHIP 47K 5% 1/10W
R82 1-216-097-00 METAL CHIP 100K 5% 1/10W
R83 1-216-198-00 METAL CHIP 1K 5% 1/8W
R84 1-216-073-00 METAL CHIP 10K 5% 1/10W
R85 1-216-043-00 METAL CHIP 560 5% 1/10W
R86 1-216-073-00 METAL CHIP 10K 5% 1/10W
R87 1-216-105-00 METAL CHIP 220K 5% 1/10W
R88 1-216-080-00 METAL CHIP 20K 5% 1/10W
R89 1-216-073-00 METAL CHIP 10K 5% 1/10W
R90 1-208-849-11 RES-CHIP 620K 5% 1/10W
R91 1-216-073-00 METAL CHIP 10K 5% 1/10W
R92 1-216-056-00 RES-CHIP 2K 5% 1/10W
R93 1-216-060-00 RES-CHIP 3K 5% 1/10W
R94 1-216-121-00 METAL CHIP 1M 5% 1/10W
R95 1-216-121-00 METAL CHIP 1M 5% 1/10W
R99 1-216-198-00 METAL CHIP 1K 5% 1/8W
R100 1-216-198-00 METAL CHIP 1K 5% 1/8W
R101 1-215-880-11 METAL OXIDE 10 5% 2W F
R103 1-216-033-00 METAL CHIP 220 5% 1/10W
R104 1-216-037-00 METAL CHIP 330 5% 1/10W
R105 1-216-089-00 METAL CHIP 47K 5% 1/10W
R106 1-216-097-00 METAL CHIP 100K 5% 1/10W
R107 1-216-081-00 METAL CHIP 22K 5% 1/10W
R109 1-216-060-00 RES-CHIP 3K 5% 1/10W
R110 1-216-158-00 RES-CHIP 22 5% 1/8W
R111 1-216-158-00 RES-CHIP 22 5% 1/8W
R112 1-216-097-00 METAL CHIP 100K 5% 1/10W
R113 1-216-182-00 RES-CHIP 220 5% 1/8W
R114 1-216-190-00 RES-CHIP 470 5% 1/8W
R115 1-216-190-00 RES-CHIP 470 5% 1/8W
R116 1-216-198-00 METAL CHIP 1K 5% 1/8W
R117 1-216-198-00 METAL CHIP 1K 5% 1/8W
R118 1-216-198-00 METAL CHIP 1K 5% 1/8W
R119 1-216-190-00 RES-CHIP 470 5% 1/8W
R120 1-216-073-00 METAL CHIP 10K 5% 1/10W
R121 1-216-181-00 RES-CHIP 200 5% 1/8W
R122 1-216-182-00 RES-CHIP 220 5% 1/8W
R123 1-216-097-00 METAL CHIP 100K 5% 1/10W
R124 1-215-894-11 METAL OXIDE 2.2K 5% 2W F
R125 1-216-121-00 METAL CHIP 1M 5% 1/10W
R126 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R127 1-216-081-00 METAL CHIP 22K 5% 1/10W
R128 1-216-065-00 METAL CHIP 4.7K 5% 1/10W
R129 1-216-073-00 METAL CHIP 10K 5% 1/10W
R130 1-216-056-00 RES-CHIP 2K 5% 1/10W
R131 1-216-049-11 METAL CHIP 1K 5% 1/10W
R132 1-216-049-11 METAL CHIP 1K 5% 1/10W
R133 1-216-097-00 METAL CHIP 100K 5% 1/10W
R134 1-216-073-00 METAL CHIP 10K 5% 1/10W
R135 1-216-049-11 METAL CHIP 1K 5% 1/10W
R136 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R137 1-207-612-00 WIREWOUND 0.1 5% 2W F
R138 1-207-612-00 WIREWOUND 0.1 5% 2W F
R139 1-207-612-00 WIREWOUND 0.1 5% 2W F
R140 1-207-612-00 WIREWOUND 0.1 5% 2W F
R141 1-207-612-00 WIREWOUND 0.1 5% 2W F
R142 1-207-612-00 WIREWOUND 0.1 5% 2W F
R143 1-207-612-00 WIREWOUND 0.1 5% 2W F
R144 1-207-612-00 WIREWOUND 0.1 5% 2W F
R145 1-207-612-00 WIREWOUND 0.1 5% 2W F
R146 1-207-612-00 WIREWOUND 0.1 5% 2W F
R147 1-207-612-00 WIREWOUND 0.1 5% 2W F
R148 1-207-612-00 WIREWOUND 0.1 5% 2W F
R149 1-216-097-00 METAL CHIP 100K 5% 1/10W
R150 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R151 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R152 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R153 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R154 1-216-097-00 METAL CHIP 100K 5% 1/10W
R155 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R156 1-216-081-00 METAL CHIP 22K 5% 1/10W
R157 1-216-081-00 METAL CHIP 22K 5% 1/10W
R158 1-216-089-00 METAL CHIP 47K 5% 1/10W
R159 1-216-089-00 METAL CHIP 47K 5% 1/10W
R160 1-216-089-00 METAL CHIP 47K 5% 1/10W
R161 1-216-089-00 METAL CHIP 47K 5% 1/10W
R162 1-216-049-11 METAL CHIP 1K 5% 1/10W
R163 1-216-097-00 METAL CHIP 100K 5% 1/10W
R164 1-216-097-00 METAL CHIP 100K 5% 1/10W
