Sony XM-N1004 User manual

SERVICE MANUAL
Sony Corporation
Published by Sony Techno Create Corporation
XM-N1004
SPECIFICATIONS
STEREO POWER AMPLIFIER
9-893-784-01
2013G33-1
© 2013.07
Canadian Model
AEP Model
UK Model
E Model
Ver. 1.0 2013.07
Circuit system OTL (output transformerless)
circuit
Pulse power supply
Inputs RCA pin jacks
Input level adjustment range
0.3 – 6 V (RCA pin jacks)
Outputs Speaker terminals
Speaker impedance
2 – 8 Ω(stereo)
4 – 8 Ω(when used as a bridging
amplifier)
Maximum output
4 Speakers: 170 W × 4 (at 4 Ω)
3 Speakers: 250 W × 2 (at 2 Ω) +
500 W × 1 (BTL, at 4 Ω)
2 Speakers: 500 W × 2 (BTL, at
Rated output
(supply voltage at 14.4 V, 20 Hz – 20 kHz, 1 % THD)
4 Speakers:
70 W × 4 (at 4 Ω)
85 W × 4 (at 2 Ω)
2 Speakers: 175 W × 2 (BTL, at
Frequency response
5 Hz – 50 kHz ( dB)
Harmonic distortion
0.05 % or less (at 1 kHz, 4 Ω)
Low-pass filter 80 Hz, 18 dB/oct
High-pass filter 80 Hz, 12 dB/oct
Power requirements
12 V DC car battery
(negative ground)
Power supply voltage
10.5 – 16 V
at rated output: 36 A
(4 Ω, 70 W × 4)
Remote input: 1 mA
Dimensions Appr
(w/h/d) not incl. projecting parts
and controls
Mass Approx. 2.7 kg not incl.
accessories
Supplied accessories
Mounting screws (4)
Protection cap (1)
Design and specifications are subject to change
without notice.
High level input connector
(E and Indian models only)
(E and Indian models only)
2.8 – 12 V (High level input)
High level input cord (1)
(E and Indian models only)
All manuals and user guides at all-guides.com
all-guides.com

XM-N1004
2
TABLE OF CONTENTS
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
1. SERVICING NOTES ............................................. 3
2. GENERAL .................................................................. 4
3. DISASSEMBLY
3-1. Disassembly Flow........................................................... 5
3-2. Bottom Plate Block......................................................... 5
3-3. MAIN Board Block ........................................................ 5
3-4. MAIN Board ................................................................... 5
4. DIAGRAMS
4-1. Printed Wiring Board - MAIN Board -........................... 7

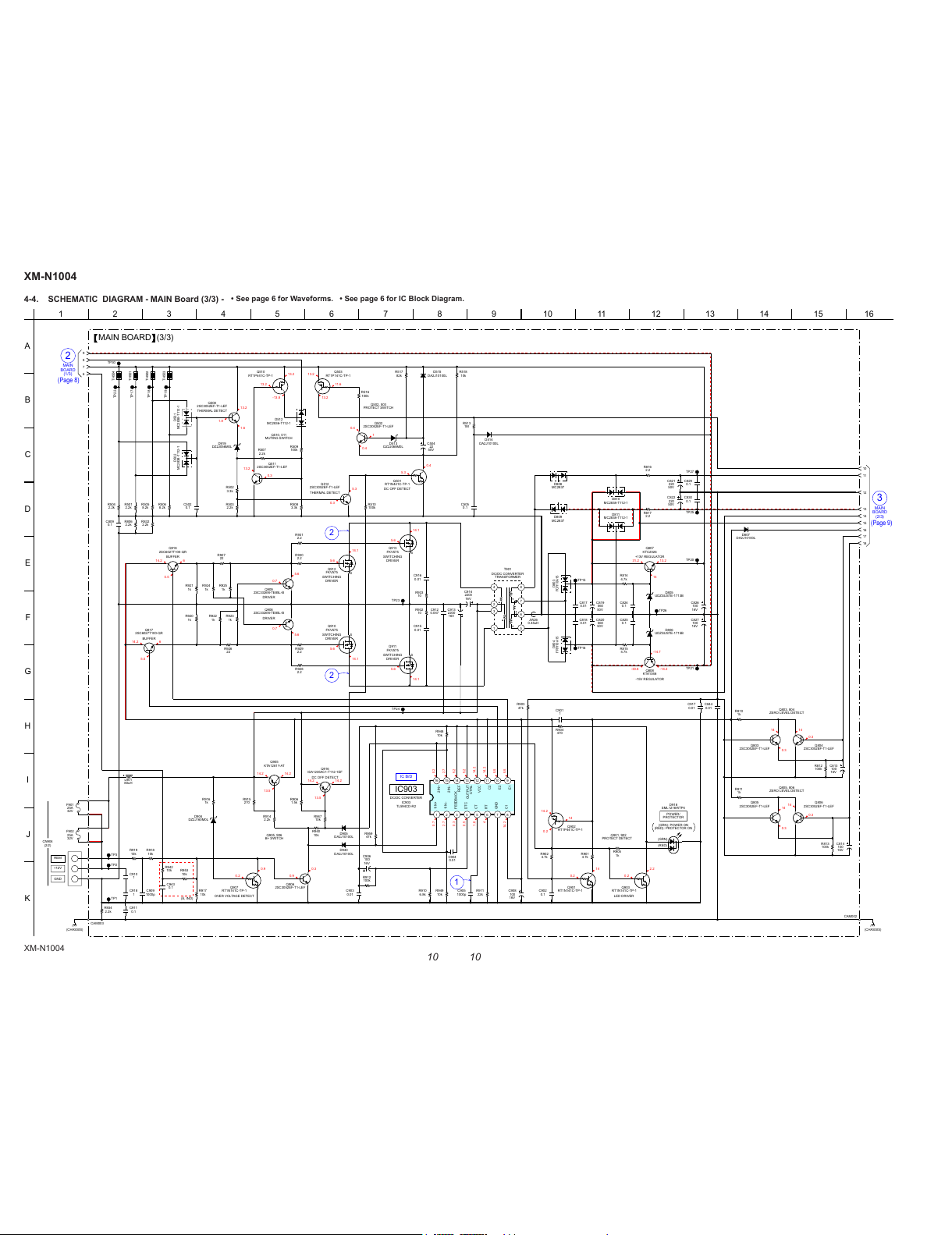

4-2. Schematic Diagram - MAIN Board (1/3) -..................... 8
4-3. Schematic Diagram - MAIN Board (2/3) -..................... 9
4-4. Schematic Diagram - MAIN Board (3/3) -..................... 10
5. EXPLODED VIEWS
5-1. Heat Sink (Main) Section ............................................... 11
5-2. MAIN Board Section ...................................................... 12
6. ELECTRICAL PARTS LIST .............................. 13
Accessories are given in the last of the electrical parts list.
All manuals and user guides at all-guides.com

XM-N1004
3
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
CONFIRMING THE OPERATION (E and Indian models)
Please confirm the car audio unit works even if REM output is not
connected when you connect this unit with the car audio unit by
the HIGH LEVEL input.
PROTECTOR OPERATION CHECK
Thermal Protect
1. Short across TH501 with the power on.
2. Verify that the protector is operated and D918 illuminates
green. When input the signal and verify that there is no output
on the SP-OUT even when the volume is increased.
3. Verify that the protector is released and there is an output on
the SP-OUT when the short is removed.
4. Likewise, perform items 1 to 3 for TH502, TH503 and TH504.
Over Current Protect
1. Short between the positive and negative sides of the speaker
output terminals CN903 and CN904 with the power on.
(Perform this shorting for each channel on FRONT and REAR)
2. Verify that the protector is operated and D918 illuminates red.
3. Verify that the protector is not released and D918 remains red
even when the short is removed.
4. Verify that the protector is released and D918 illuminates
green when the power is turned off and then on again.
Offset Protect
1. Short between the +12V terminal of CN904 and the (L+R) + or
(L+R) – of the speaker output terminal CN904.
(Short between +12V terminal and (L+R) + and between +12V
terminal and (L+R) –)
2. Verify that the protector is operated and D918 illuminates red.
3. Verify that the protector is not released and D918 remains red
even when the short is removed.
4. Verify that the protector is released and D918 illuminates
green when the power is turned off and then on again.
NOTE FOR REPLACEMENT OF THE TRANSISTORS
The transistors Q110, 111, 210, 211, 310, 311, 410 and 411 have
two different ranks: P rank and Y rank.
The rank of these transistors need to be selected properly accord-
ing to each channel. When replacing any one of these transistors,
check its rank and replace with the appropriate transistor of the
same rank.
Rank Q110, 210, 310, 410 Q111, 211, 311, 411
P 2SC5100-P 2SA1908-P
Y 2SC5100-Y 2SA1908-Y
DISCRIMINATION:
A1908: 2SA1908
C5100: 2SC5100
P: RANK P
Y: RANK Y
All manuals and user guides at all-guides.com

XM-N1004
4
SECTION 2
GENERAL
This section is extracted
from instruction manual.
Português
Ligações
Cuidados
ˎ Antes de fazer qualquer ligação, desligue o
terminal de massa da bateria do automóvel
para evitar curtos-circuitos.
ˎ Verifique se as colunas utilizadas têm uma
potência nominal adequada. Se utilizar colunas
de baixa capacidade, pode danificá-las.
ˎ Este amplificador é um amplificador de fase
invertida.
ˎ Não ligue o terminal ¾do sistema de colunas
ao chassis do automóvel nem o terminal ¾da
coluna direita ao terminal da coluna esquerda.
ˎ Instale os cabos de entrada e de saída longe do
cabo de alimentação porque se estiverem muito
perto podem gerar interferências.
ˎ Este aparelho é um amplificador de grande
potência. Como tal, pode não conseguir
utilizá-lo com a potência máxima se usar os
cabos para colunas fornecidos com o
automóvel.
ˎ Se o automóvel estiver equipado com um
computador de bordo para navegação ou para
outra finalidade, não retire o fio de ligação à
massa da bateria do automóvel. Se desligar o
fio, apaga a memória do computador. Para
evitar curtos-circuitos quando fizer as ligações,
ligue o cabo de ligação à corrente de +12V
somente depois de ligar todos os outros cabos.
Peças para instalação e ligações
(Ȑ)
Instalação
Antes de fazer a instalação
ˎ Monte o aparelho dentro da mala ou por baixo
do banco.
ˎ Escolha cuidadosamente o local de montagem
de modo a que o aparelho não interfira com os
movimentos normais do condutor e não fique
exposto à incidência direta dos raios solares
nem ao ar quente proveniente do sistema de
aquecimento.
ˎ Não instale o aparelho por baixo do tapete do
carro porque impedirá a dissipação de calor do
aparelho.
Monte o aparelho (ȑ)
Em primeiro lugar, coloque o aparelho no local
onde o pretende instalar e marque as posições
dos 4 furos para os parafusos na placa de
montagem (não fornecida). Depois,faça um furo
de 3 mm em cada marca e monte o aparelho na
placa, utilizando os parafusos de montagem
fornecidos. Como os parafusos de montagem têm
15 mm de comprimento, deve verificar se a placa
de montagem tem uma espessura superior a
15mm.
Ligações elétricas
Ligue os terminais (Ȓ)
Passe os fios pela capa de proteção, ligue-os e
depois tape os terminais com a capa de proteção.
Nota
Aperte bem o parafuso, mas não com binário
excessivo* para evitar danificá-lo.
* O valor do binário aplicado deve ser inferior a
a0ŞO
Estabelecer as ligações elétricas
(ȓ)
Notas sobre o fornecimento de corrente
ˎ Ligue o cabo de ligação à corrente de +12V somente
depois de ter ligado todos os outros cabos.
ˎ Ligue o fio de massa do aparelho a um ponto
metálico do automóvel. Uma ligação mal feita
pode avariar o amplificador.
ˎ Verifique se ligou o cabo do telecomando do
autorrádio ao terminal para telecomando.
ˎ Quando utilizar um autorrádio sem saída para
telecomando no amplificador,ligue o terminal de
entrada para telecomando (REMOTE) à fonte de
alimentação para acessórios.
ˎ Utilize um cabo de ligação à corrente com um
fusível incorporado (50 A).
ˎ Todos os cabos elétricos ligados ao borne positivo
da bateria devem ter um fusível a uma distância de
450 mm do borne da bateria e antes de passarem
por qualquer parte metálica.
ˎ Verifique se os cabos da bateria ligados ao
automóvel (ligação de massa ao chassis)*2têm uma
medida pelo menos igual à do cabo principal que
liga a bateria ao amplificador.
ˎ Durante o funcionamento com potência total, o
sistema é percorrido por uma corrente superior a
50 A. Assim, verifique se os cabos que vai ligar aos
terminais +12V e GND deste aparelho têm um
calibre superior a 10 (AWG-10) ou uma secção
transversal superior a 5 mm2.
Ligações de entrada
Para obter mais informações acerca das ligações
de entrada, consulte Ȕ, ȕe Ȗ.
Ligações às colunas
Ligue ou desligue os interruptores LPF e HPF da
parte de trás do autorrádio.
Para obter mais informações acerca das ligações
das colunas, consulte ȗ, Ș, șe Ț.
English
Connections
Cautions
ˎ Before making any connections, disconnect the
ground terminal of the car battery to avoid short
circuits.
ˎ Be sure to use speakers with an adequate
power rating. If you use small capacity speakers,
they may be damaged.
ˎ This is a Phase-Inverted Amplifier.
ˎ Do not connect the ¾terminal of the speaker
system to the car chassis, and do not connect
the ¾terminal of the right speaker with that of
the left speaker.
ˎ Install the input and output cords away from the
power supply wire as running them close
together can generate some interference noise.
ˎ This unit is a high powered amplifier.Therefore,
it may not perform to its full potential if used
with the speaker cords supplied with the car.
ˎ If your car is equipped with a computer system
for navigation or some other purpose, do not
remove the ground wire from the car battery. If
you disconnect the wire, the computer memory
may be erased. To avoid short circuits when
making connections, disconnect the +12V power
supply wire until all the other wires have been
connected.
Parts for Installation and
Connections (Ȑ)
Installation
Before Installation
ˎ Mount the unit either inside the trunk or under a
seat.
ˎ Choose the mounting location carefully so the
unit will not interfere with the normal
movements of the driver and it will not be
exposed to direct sunlight or hot air from the
heater.
ˎ Do not install the unit under the floor carpet,
where the heat dissipation from the unit will be
considerably impaired.
Mount the unit (ȑ)
First, place the unit where you plan to install it,
and mark the positions of the 4 screw holes on
the mounting board (not supplied). Then drill a
3mm pilot hole at each mark and mount the unit
onto the board with the supplied mounting
screws. The mounting screws are all 15 mm long,
so make sure that the mounting board is thicker
than 15 mm.
Power connections
Make the terminal connections
(Ȓ)
Pass the wires through the cap, connect the wires,
then cover the terminals with the cap.
Note
When you tighten the screw,be careful not to apply
too much torque* as doing so may damage the
screw.
* 6JGVQTSWGXCNWGUJQWNFDGNGUUVJCP0ŞO
Make the power connections
(ȓ)
Notes on the power supply
ˎ Connect the +12V power supply wire only after all
the other wires have been connected.
ˎ Be sure to connect the ground wire of the unit
securely to a metal point of the car. A loose
connection may cause a malfunction of the
amplifier.
ˎ Be sure to connect the remote control wire of the
car audio unit to the remote terminal.
ˎ When using a car audio unit without a remote
output on the amplifier, connect the remote input
terminal (REMOTE) to the accessory power supply.
ˎ Use a power supply wire with a fuse attached
(50 A).
ˎ All power wires connected to the positive battery
post should be fused within 450 mm of the battery
post, and before they pass through any metal.
ˎ Make sure that the vehicle’s battery wires
connected to the vehicle (ground to chassis)*2are
of a wire gauge at least equal to that of the main
power wire connected from the battery to the
amplifier.
ˎ During full-power operation, a current of more than
50 A will run through the system. Therefore, make
sure that the wires to be connected to the +12V and
GND terminals of this unit are at least 10-Gauge
(AWG-10) or have a sectional area of more than
5mm2.
Input Connections
For details on input connections, see Ȕ, ȕand
Ȗ.
Speaker Connections
Turn on or off the LPF and HPF switch at the unit
rear.
For details on speaker connections,see ȗ, Ș, ș
and Ț.
Conexiones de alimentación
Realice las conexiones de
terminal (Ȓ)
Pase los cables a través de la cubierta,conéctelos
y cubra los terminales con dicha cubierta.
Nota
Al apretar el tornillo, tenga cuidado de no aplicar
demasiada fuerza de torsión*, ya que puede dañarlo.
* El valor de fuerza de torsión debe ser inferior a
a0ŞO
Realice las conexiones de
alimentación (ȓ)
Notas sobre la fuente de alimentación
ˎ Conecte el cable de la fuente de alimentación de
+12V sólo después de haber conectado los otros
cables.
ˎ Asegúrese de conectar firmemente el cable de
toma a tierra de la unidad a un punto metálico del
automóvil. Una conexión floja puede causar fallos
de funcionamiento del amplificador.
ˎ Compruebe que conecta el cable de control remoto
del sistema de audio para automóvil al terminal
remoto.
ˎ Si utiliza un sistema de audio para automóvil sin
salida remota en el amplificador, conecte el
terminal de entrada remota (REMOTE) a la fuente
de alimentación auxiliar.
ˎ Emplee el cable de la fuente de alimentación con
un fusible fijado (50 A).
ˎ Todos los cables de alimentación conectados al
polo positivo de la batería deben conectarse a un
fusible situado a menos de 450 mm del polo de la
batería, y antes de pasar por ninguna pieza
metálica.
ˎ Asegúrese de que los cables de la batería del
vehículo conectados al mismo (a la masa del
chasis)*2tienen una anchura igual o superior a la
del cable de alimentación principal que conecta la
batería con el amplificador.
ˎ Durante el funcionamiento a pleno rendimiento,
fluye por el sistema una corriente superior a 50 A.
Por tanto, compruebe que los cables que va a
conectar a los terminales de +12V y GND de esta
unidad son del calibre 10 (AWG 10) como mínimo o
presentan un área de sección superior a 5 mm2.
Conexiones de entrada
Para obtener más información sobre las
conexiones de entrada, consulte Ȕ, ȕe Ȗ.
Conexiones de los altavoces
Encienda o apague los interruptores LPF y HPF
situados en la parte posterior de la unidad.
Para obtener más información sobre las
conexiones de los altavoces, consulte ȗ, Ș, șy
Ț.
Español
Conexiones
Precaución
ˎ Antes de realizar las conexiones, desconecte el
terminal de toma a tierra de la batería del
automóvil para evitar cortocircuitos.
ˎ Asegúrese de utilizar altavoces con una
potencia nominal adecuada. Si emplea
altavoces de capacidad reducida, pueden
dañarse.
ˎ Este amplificador es de fase invertida.
ˎ No conecte el terminal ¾del sistema de
altavoces al chasis del automóvil, ni el terminal
¾del altavoz derecho al del altavoz izquierdo.
ˎ Instale los cables de entrada y salida alejados
del cable de la fuente de alimentación, ya que
en caso contrario puede generarse ruido por
interferencias.
ˎ Esta unidad es un amplificador de alta potencia.
Por tanto, puede no funcionar a pleno
rendimiento si se utiliza con los cables de
altavoz suministrados con el automóvil.
ˎ Si el automóvil está equipado con un sistema de
ordenador para la navegación o para otra
finalidad, no desconecte el conductor de toma a
tierra de la batería del automóvil. Si lo
desconecta, la memoria del ordenador puede
borrarse. Para evitar cortocircuitos al realizar las
conexiones, desconecte el cable de la fuente de
alimentación de +12V hasta conectar todos los
cables.
Componentes de instalación y
conexiones (Ȑ)
Instalación
Antes de realizar la instalación
ˎ Monte la unidad en el interior del maletero o
debajo de un asiento.
ˎ Elija cuidadosamente el lugar de instalación de
forma que la unidad no dificulte las maniobras
normales del conductor y no quede expuesta a
la luz solar directa ni al aire caliente de la
calefacción.
ˎ No instale la unidad debajo de la moqueta del
suelo, en cuyo caso la disipación de calor de la
misma disminuirá considerablemente.
Monte la unidad (ȑ)
En primer lugar, coloque la unidad donde tenga
previsto instalarla y marque sobre la superficie
del tablero de montaje (no suministrado) las
posiciones de los 4 orificios para los tornillos. A
continuación, perfore los orificios con un diámetro
de aproximadamente 3 mm y monte la unidad
sobre el tablero con los tornillos de montaje
suministrados. Ya que la longitud de estos
tornillos es de 15 mm, compruebe que el grosor
del tablero de montaje sea superior a 15 mm.
ʓ
ø 5 × 15 mm
(× 4)
ʕʔ
Ȑ ȑ ʓ
Ȓ
ʕ
ʕ
q
ȓPower Connection Wires (not supplied)
Cables de conexión de alimentación (no suministrados)
Cabos de ligação à corrente (não fornecidos)
Car audio unit
Sistema de audio para
automóvil
Autorrádio
Remote output*1
Salida remota*1
Saída para
telecomando*1(REM)
to a metal point of the car
a un punto metálico del
automóvil
a um ponto metálico do
automóvel
Fuse (50 A)
Fusible (50 A)
Fusível (50 A)
less than 450 mm
menos de 450 mm
inferior a 450 mm
+12V car battery
Batería de automóvil de +12V
Bateria do automóvel de +12V
*2
*1If you have the factory original or some other car audio unit without a remote output for the amplifier, connect
the remote input terminal (REMOTE) to the accessory power supply.
In High level input connection, car audio unit can also be activated without need for REMOTE connection.
However, this function is not guaranteed for all car audio units.
*1Si dispone del sistema de audio para automóvil original de fábrica o de otro sistema sin una salida remota para
el amplificador, conecte el terminal de entrada remota (REMOTE) a la fuente de alimentación auxiliar.
En la conexión de entrada de alto nivel,el sistema de audio para automóvil también puede activarse sin
necesidad de conexión REMOTE. No obstante, esta función no se garantiza en todos los sistemas de audio para
automóvil.
*1Se tiver o autorrádio original fornecido de fábrica ou outro sistema de som para automóvel sem uma saída para
telecomando no amplificador,ligue o terminal de entrada para telecomando (REMOTE) à fonte de alimentação
para acessórios.
Na ligação da entrada de nível elevado, também pode activar o autorrádio sem precisar da ligação para
telecomando (REMOTE). No entanto, não é possível garantir o funcionamento desta função em todos os
autorrádios.
ȔLine Input Connection
Conexión de entrada de línea
Ligação de entrada de linha
Rear
Traseros
Traseira
Front
Delanteros
Frontal
Car audio unit
Sistema de audio para
automóvil
Autorrádio
LINE OUT
LINE OUT
ȕLine Input Connection
Conexión de entrada de línea
Ligação de entrada de linha
Car audio unit
Sistema de audio
para automóvil
Autorrádio
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
LINE OUT
ȖHigh Level Input Connection
Conexión de entrada de alto nivel
Ligação de entrada de nível elevado
Front right speaker output
Salida del altavoz delantero derecho
Saída da coluna dianteira direita
Front left speaker output
Salida del altavoz delantero izquierdo
Saída da coluna frontal esquerda
Rear right speaker output
Salida del altavoz trasero derecho
Saída da coluna traseira direita
Rear left speaker output
Salida del altavoz trasero izquierdo
Saída da coluna traseira esquerda
Grey
Gris
Cinzento
Striped
Con rayas
Às riscas
White
Blanco
Branco
Striped
Con rayas
Às riscas
Green
Verde
Verde
Striped
Con rayas
Às riscas
Striped
Con rayas
Às riscas
Purple
Violeta
Violeta
Car audio unit
Sistema de audio para
automóvil
Autorrádio
ʔ
High Level Input Connector
Conector de entrada de alto nivel
Conector de entrada de nível elevado
Grey
Gris
Cinzento
White
Blanco
Branco
Striped/White
Con rayas/Blanco
Às riscas/Branco
Striped/Grey
Con rayas/Gris
Às riscas/Cinzento
Striped/Purple
Con rayas/Violeta
Às riscas/Violeta
Purple
Violeta
Violeta
Striped/Green
Con rayas/Verde
Às riscas/Verde
Green
Verde
Verde
ȗ4-Speaker System
Sistema de 4 altavoces
Sistema de 4 colunas
Front speaker (min. 2 Ω)
Altavoces delanteros (mín. 2 )
Colunas frontais (mín. 2 )
Rear speaker (min. 2 Ω)
Altavoces traseros (mín.2 )
Colunas traseiras (mín. 2 )
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Ș3-Speaker System
Sistema de 3 altavoces
Sistema de 3 colunas
Subwoofer (min. 4 Ω)
Altavoz potenciador de graves (mín.4 Ω)
Subwoofer (mín. 4 )
Full range speakers (min. 2 Ω)
Altavoces de gama completa (mín. 2 Ω)
Colunas de gama total (mín. 2 )
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Notes
ˎ In this system, the volume of the subwoofer will
be controlled by the car audio unit fader control.
ˎ In this system, the output signals to the
subwoofer will be the combination of both the
REAR L and R INPUT jacks’ signals.
Notas
ˎ En este sistema, el volumen del altavoz
potenciador de graves se controla mediante el
control de equilibrio entre altavoces del sistema
de audio para automóvil.
ˎ En este sistema, las señales de salida que recibe
el altavoz potenciador de graves serán la
combinación de las señales de las tomas REAR L
y R INPUT.
Notas
ˎ Neste sistema, o volume do subwoofer será
controlado pelo controlo de fader do autorrádio.
ˎ Neste sistema, os sinais de saída para o
subwoofer serão a combinação dos sinais das
tomadas REAR L e R INPUT.
ș2-Way System
Sistema de 2 vías
Sistema de 2 vias
Note
In this system, the volume of the subwoofer will
be controlled by the car audio unit fader control.
Nota
En este sistema, el volumen del altavoz
potenciador de graves se controla mediante el
control de equilibrio entre altavoces del sistema
de audio para automóvil.
Nota
Neste sistema, o volume do subwoofer será
controlado pelo controlo de fader do autorrádio.
Subwoofer (min. 2 Ω)
Altavoz potenciador de graves (mín.2 Ω)
Subwoofer (mín. 2 )
Full range speakers (min. 2 Ω)
Altavoces de gama completa (mín. 2 )
Colunas de gama total (mín. 2 )
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Ț2-Speaker System
Sistema de 2 altavoces
Sistema de 2 colunas
Left
Izquierdo
Esquerdo
Right
Derecho
Direito
Subwoofer (min. 4 Ω)
Altavoz potenciador de graves (mín.4 Ω)
Subwoofer (mín. 4 )
Subwoofer (min. 4 Ω)
Altavoz potenciador de graves (mín.4 Ω)
Subwoofer (mín. 4 )
ȑʓ
(E, Indian)
(E, Indian)
Installation
Before Installation
ˎ Mount the unit either inside the trunk or under a
seat.
ˎ Choose the mounting location carefully so the
unit will not interfere with the normal
movements of the driver and it will not be
exposed to direct sunlight or hot air from the
heater.
ˎ Do not install the unit under the floor carpet,
where the heat dissipation from the unit will be
considerably impaired.
Mount the unit (ȑ)
First, place the unit where you plan to install it,
and mark the positions of the 4 screw holes on
the mounting board (not supplied). Then drill a
3mm pilot hole at each mark and mount the unit
onto the board with the supplied mounting
screws. The mounting screws are all 15 mm long,
so make sure that the mounting board is thicker
than 15 mm.
Instalación
Antes de realizar la instalación
ˎ Monte la unidad en el interior del maletero o
debajo de un asiento.
ˎ Elija cuidadosamente el lugar de instalación de
forma que la unidad no dificulte las maniobras
normales del conductor y no quede expuesta a
la luz solar directa ni al aire caliente de la
calefacción.
ˎ No instale la unidad debajo de la moqueta del
suelo, en cuyo caso la disipación de calor de la
misma disminuirá considerablemente.
Monte la unidad (ȑ)
En primer lugar, coloque la unidad donde tenga
previsto instalarla y marque sobre la superficie
del tablero de montaje (no suministrado) las
posiciones de los 4 orificios para los tornillos. A
continuación, perfore los orificios con un diámetro
de aproximadamente 3 mm y monte la unidad
sobre el tablero con los tornillos de montaje
suministrados. Ya que la longitud de estos
tornillos es de 15 mm, compruebe que el grosor
del tablero de montaje sea superior a 15 mm.
Instalação
Antes de fazer a instalação
ˎ Monte o aparelho dentro da mala ou por baixo
do banco.
ˎ Escolha cuidadosamente o local de montagem
de modo a que o aparelho não interfira com os
movimentos normais do condutor e não fique
exposto à incidência direta dos raios solares
nem ao ar quente proveniente do sistema de
aquecimento.
ˎ Não instale o aparelho por baixo do tapete do
carro porque impedirá a dissipação de calor do
aparelho.
Monte o aparelho (ȑ)
Em primeiro lugar, coloque o aparelho no local
onde o pretende instalar e marque as posições
dos 4 furos para os parafusos na placa de
montagem (não fornecida). Depois,faça um furo
de 3 mm em cada marca e monte o aparelho na
placa, utilizando os parafusos de montagem
fornecidos. Como os parafusos de montagem têm
15 mm de comprimento, deve verificar se a placa
de montagem tem uma espessura superior a
15mm.
All manuals and user guides at all-guides.com

XM-N1004
XM-N1004
55
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. BOTTOM PLATE BLOCK
3-2. BOTTOM PLATE BLOCK
(Page 5)
3-3. MAIN BOARD BLOCK
(Page 5)
SET
3-4. MAIN BOARD
(Page 5)
– Bottom view –
Note: Please spread a sheet under a unit
not to injure heat sink (main).
4bottom plate block
3two claws
1two screws
(+B, TT, B-TYPE, 3 uL)
1two screws
(+B, TT, B-TYPE, 3 uL)
2Remove the bottom
plate block in the
direction of an arrow.
3-3. MAIN BOARD BLOCK
3-4. MAIN BOARD
– Bottom view –
hole
hole
boss
boss
1three screws
(+P, TT, B-TYPE, 3 uL)
1three screws
(+P, TT, B-TYPE, 3 uL)
1three screws
(+P, TT, B-TYPE, 3 uL)
2screw
(+B, TT, B-TYPE, 3 uL)
Note 1: Please spread a sheet under a unit
not to injure heat sink (main).
3MAIN board block
Note 2: When installing the MAIN board block,
align two holes and two bosses.
2front panel
4MAIN board
MAIN board
3sheet heat transfer
1screw
(+P, TT, B-TYPE, 3 uL)
1screw
(+P, TT, B-TYPE, 3 uL)
1screw
(+P, TT, B-TYPE, 3 uL)
1screw
(+P, TT, B-TYPE, 3 uL)
1screw
(+P, TT, B-TYPE, 3 uL)
sheet heat transfer
6KHHWKHDWWUDQVIHUVHWWLQJ
All manuals and user guides at all-guides.com

XM-N1004
XM-N1004
66
SECTION 4
DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• Waveforms
– MAIN Board –
+
–
DTC
1IN+
ERROR
AMPLIFIER 1
PWM
COMPALATOR
UNDER
VOLTAGE
LOCKOUT
CONTROL
C1 1D
CTC
COMPALATOR
FEEDBACK
2IN+
2IN–
1
3
4
0.7mA
15
16
OSCILLATOR
PULSE-STEERING
FLIP-FLOP
REF
14
1IN– 2
CT
RT
OUTPUT CTRL
5
6
13
VCC
12
GND 7
+
–
ERROR
AMPLIFIER 2
C1 8E1
9
E2
10
C2
11
REFERENCE
REGURATOR
• IC Block Diagram
– MAIN Board –
IC903 TL594CD-R2
For Schematic Diagrams.
Note:
• All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ωand 1/4 W or less unless otherwise
specified.
• 2: Nonflammable resistor.
• C: Panel designation.
• A: B+ Line.
• B: B– Line.
• Power voltage is dc 14.4 V and fed with regulated dc
power supply from +12 V and REM terminals.
• Voltages and waveforms are dc with respect to ground
under no-signal conditions.
no mark : POWER ON
• Voltages are taken with VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F: AUDIO
• Abbreviation
IND : Indian model
For Printed Wiring Boards.
Note:
• X: Parts extracted from the component side.
• Y: Parts extracted from the conductor side.
• : Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
• Indication of transistor.
C
B
These are omitted.
E
Q
CEB
These are omitted.
B
These are omitted.
CE
Q
• Abbreviation
IND : Indian model
1IC903 5(CT)
2 V/DIV, 10 Ps/DIV
20 Ps
3.1 Vp-p
39.2 Ps
28.8 Vp-p
2Q910 – 913 (Drain)
20 V/DIV, 20 Ps/DIV
All manuals and user guides at all-guides.com
all-guides.com

XM-N1004
XM-N1004
77
4-1. PRINTED WIRING BOARD - MAIN Board - • : Uses unleaded solder.
Note: When replacing the Q110, Q111, Q210, Q211, Q310, Q311, Q410 and Q411 on the MAIN
board, refer to “NOTE FOR REPLACEMENT OF THE TRANSISTORS” on page 3.
BE
BE
G
S
G
S
G
S
G
S
D
D
D
D
85
41
E
B
E
B
E
B
E
B
E
B
E
B
B
E
B
E
EB
BE
BE BE
BE
EB EB
EB
JW180
JW181
JW182
JW183
JW184
JW185
JW186
JW187
JW188
JW189
JW190
JW191
JW192
JW193
JW194
JW196
JW197
JW199
C210
C213
C802
R269
C813
C814
C815
R469
C430
C819
C820
C821
C822
VR801
C826
VR802
C827
C251
JW200
JW201
JW202
JW203
JW204
JW205
JW206 JW207
JW208
Q104
JW209
C451
Q105
Q108
Q109
JW211
Q304
BE
Q404
Q305
EB
Q405
Q308 E
B
E
B
Q409
Q309
JW220
JW221
Q311
BE
Q310
BE
Q411
BE
Q410
JW222
D803
D804
Q905
Q910
Q911
SW101
Q912
Q913
L901
JW10
JW11
JW12
JW13 JW14
JW15
JW16
JW17 JW18 JW19
JW20
JW21
JW22
JW23
JW24
JW25
JW26
JW27
JW28 JW29
JW30
JW31 JW32
JW33
JW34
JW35
JW36 JW37
JW38
JW39
JW40
JW41
JW42
JW43
JW44
JW45
JW46
JW47
JW48
JW49
JW50
JW51
JW52
JW53 JW54
JW55
JW56
JW57
JW58
JW59JW60
JW61
JW62
JW63
JW64
JW65
JW66
JW67
JW68
JW69
JW70
JW71
JW72
JW73
JW74
C110
JW75
JW76
JW77
JW78
JW79
C309
JW80
C504
JW81 JW82
JW83
JW84
JW85
JW86
JW87
C123
JW88
JW90
JW91
R169
JW92
JW93
C323
JW94
JW95
JW96
JW97
JW98
JW99
C905
C906
C908
R369
C330
C913
C914
C151
JW100
JW101
JW102
JW103
JW104
JW105
JW106
JW107 JW108
JW109
C351
JW1
JW2
JW3
JW4
JW5
JW6
JW7
JW110
JW8
JW111
JW9
JW112
JW113
JW114
Q204
JW115
Q205
JW116
JW117
JW118
Q208
JW119
Q209
JW120
Q210
JW121
Q211
B
E
Q110
B
E
Q111
JW122
JW123
JW124
Q408
JW125
JW126
JW127
JW128
JW129
JW130 JW131
JW132
JW133
JW134
CAM001
JW135
CAM002
JW136
CAM003
JW137
CAM004
JW138
CAM005
JW139
CAM006
Q807
Q808
JW140
JW141 JW142
JW143
JW144
JW145
JW146
JW147
JW148
JW149
JW150
SW201
JW151
JW152
JW153
JW154
JW155
JW156
JW157
JW158
JW159
JW160
T901
JW161
JW162
JW163
JW164
JW165
JW166
JW167
JW168
JW169
JW170
JW171
JW172
JW173
JW174
JW175
JW176
JW177
JW178
JW179
916
81
D940
R401
R402
R403
R210
R404
R405
R212
R407
R214
R408
R215
R217
R412
R220
R415
JW195
R419
R802
R801 R803
R228
R804
R229
R806
R427
R234
R810
R811
R236
R812
R813
R814 R815
R816
R817
C200
C201
C202C102
C205 C207
C208
C209
C400
C401
C402
JC1
C211
C405
JC2
C406
C407
JC3
C214
JC4
JC6
R252
C216
JC7
C217
R253
JC8
R254
JC9
R255
R832
R256
R257 R258
R259
C412
C222
C416
R452
C417
R453
R260
R454
C801
R261
R455
R262
R456
C803
R263
R457
JC10
C804
R264
R458
JC11
R265
R459
JC12
R266
R267
JC14
R268
C809
JC15
JC16
JC17 JC18
R460
JC19
R461
R462
R463
R270
R464
C235
R271
R465
R272
R466
R467
JC20
R468
JC21
R275 JC22 R276
C817
R277
C818
R278
JC26
R470
R471
R472
R475
R476
R477
C824
R478
C825
JC32
C829
C252
C253
C830
C254
C255
Q101
Q102
JC43
Q103
Q106 C452
JC47
Q107
C453
C454
D201
C455
D202
Q301
Q302 Q303
C844
Q306
Q112
Q307
Q115
D401
D402
Q501
Q502
Q503
Q312
Q508
Q314
Q122
Q510
Q511
Q512
Q322
Q901
D805
Q902
D806
Q903
D807
D808
D809
Q906
Q907
Q908
Q909
D810
D811
Q916
Q917
Q918
IC801 IC802
IC803
IC804
IC806
R101 R201
R102 R103 R104 R105
R106
R107
R109
R301
R302 R303
R110
R304 R305
R112
R306
R307
R114
R308
R115
R116
R501 R502
R503
R504
R505R506
R312
R507
R313
R508
R509
R315
R316
R317
R126
R127 R227
R510
R128
R513
R514
R320
R516
R517
R518
R324
R901
R326
R902
R327
R903
R134
R328
R904
R329
R905
R906
C100
C101
R910
C105
R911
C106
R912
C107
R914
C109
R915
R916
R917
C300
R918
C301
R919
C302
C305 C306
C307
C308
R920
R921
R152
C116
R922
C117
R153
R923
R154
R924
R155
R925
C502
R156
R926
R157
R927
R158
R928
C505
TH501
C311
R159
R929
TH502
C312
TH503
TH504
C120C121
R352
C316
C317
R353
R160
R930
R354
R161
R931
R355
R162
R932
R356
R163
R933
R357
R164
R934
R358
TP1
R165
R359
TP2
R166
TP3
R167
R168
TP5
C322
TP6
TP8
R360
TP9
C901
R361
R362
C902
C903
R363
R170
C904
R940
R364
R171
R365
R172
R942
R366
R943 R944
R367
R368
R945 R946
R175
C909
R176
R947
R177
R948
R178
R949
C910
R370
C911
R371
C912
R372
R950
R951
C915
R375
C916
R376
R953
C917
R377
C918
R378
R959
C152
C153
TP10
C154
C925 C108
TP11
C155
C926
TP12
TP14
TP15
TP16
TP17
TP18
TP19
C352
C353
C354
D101
C355
D102
TP20
TP21
Q201
TP22
Q202
TP23
Q203
TP24
TP25
TP26
Q206
TP27
Q207
D301
D302
Q401
Q402
C943
Q403
TP30
Q406
Q212
Q407
D501
D502
Q412
D512
D513
Q803
D514
Q804
D515
Q805
Q806
D904
D905
D906 D907
D919
R202
R203
R204
R205
R206
R207
R209
D918
(GRN) (RED)
CN901
CNJ101
CN904
MAIN BOARD
(CHASSIS)
(CHASSIS) (CHASSIS)
(CHASSIS)
K/K
A
E
E
E
E
E
E
EE
A
E
K
A
K
A
A
K
K
A
E
E
E
AA AA
K/K K/K
KKA
K
A
E
EE
EE
K
A
A
K
A
E
K
A
A
K
E
E
E
E
E
E
K/A
K/K
AA
KA
AA
KA
K/K
A/K
KAKA
E
E
E
E
EKK
KK/K
AAA
A
K
E
E
E
E
E
A
KA
K
A/A
E
E
E
KA
E
14
85
14
8
5
(E, IND)
(E, IND)
(E, IND)
(E, IND)
(E, IND)
FRONT SPEAKER OUT
(L+R)
RL
CN903
-1
-2
LEVEL
FRONT
-2
-1
LP OFF HP
FILTER (80Hz)
SW101
E
1
4
8
5
-1
-2
LEVEL
REAR
HIGH LEVEL INPUT
SENSING POWER ON
FL FR RL RR
R
L(L+R)
REAR
R
L
(L+R)
FRONT
INPUT
(E, IND)
14
8
1
4
8
5
5
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
E
2B 1B
2C 1C
-1
-2
SW201
OFF ON
LPF (80Hz)
E
POWER/PROTECTOR
(GRN): POWER ON
(RED): PROTECTOR ON
D918
1-888-726- 12
GND+12VREM
25A 25A
F901 F902
REAR SPEAKER OUT
(L+R)
RL
A
B
C
D
E
F
G
H
1 2 3 4 5 6 7 8 9 10 11
DC/DC
CONVERTER
TRANSFORMER
(E, IND)
(E, IND)
(E, IND)
(E, IND)
BB01
IC903
WR1
All manuals and user guides at all-guides.com

XM-N1004
XM-N1004
88
4-2. SCHEMATIC DIAGRAM - MAIN Board (1/3) -
MAIN
(2/3)
BOARD
1
MAIN
(3/3)
BOARD
2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
-14.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
-14.2
13.2
0.1
-0.5
-0.5
0.1
13.2
13.2
-14.2
13.2
-14.2
13.2
-14.2
13.2
-14.2
13.2
-14.2
0.2
0.2
0.2
10k
R106
100
R127
22k
R202
10k
R220
10k
R236
10k
R115
NJM4565M(TE2)
IC803
8
POWER
4
GND
4P
CNJ101
NJM4565M(TE2)
IC803
5
6
7
100p
C207
SW101
+
–
NJM4565M(TE2)
IC801
3
2
1
50V
22
C213
NJM4565M(TE2)
IC804
8
POWER
4
GND
1k
R801
22k
R103
4.7k
R206
0.47
C211
22k
R102
2.2k
R802
NJM4565M(TE2)
IC801
5
6
7
0.1
C222
100
R227
100p
C107
47p
C926
10k
R207
0.1
C121
100p
C235
4.7k
R228
10k
R107
0.1
C120
22k
R217
4.7k
R128
100p
C106
22k
R203
10k
R951
47p
C105
0.47
C214
16V
220
C802
47p
C205
10k
R229
47p
C305
10k
R307
10k
R408
50V
22
C309
0.47
C311
4.7k
R324
10k
R329
0.1
C322
100p
C407
4.7k
R306
47p
C405
10k
R320
22k
R403
NJM4565M(TE2)
IC806
8
POWER
4
GND
22k
R402
NJM4565M(TE2)
IC802
3
2
1
47p
C306
4.7k
R328
NJM4565M(TE2)
IC802
5
6
7
NJM4565M(TE2)
IC802
8
POWER
4
GND
22k
R303
22k
R317
10k
R407
47p
C406
22k
R302
10k
R308
16V
100
C815
1k
R804
100p
C307
0.47
C308
2SC3052EF-T1-LEF
Q115
0.22
C801
0.22
C804
1k
R803
0.22
C803
100p
C201
0.1
C316
100p
C102
0.1
C117
10k
R946
220k
R205
100p
C401
100p
C101
0.1
C116
2.2k
R201 10k
R945
0.1
C217
0.1
C317
2.2k
R401
0.1
C417
100p
C202
MC2838-T112-1
D906
2.2k
R301
100p
C302
0.1
C216
100p
C402
1
2
3
4
5
6
7
8
8P
CN901
0.1
C416
100p
C301
220k
R305
220k
R304
220k
R204
10k
R943
10k
R944
220k
R105
220k
R104
220k
R405
220k
R404
10k
VR801
NJM4565M(TE2)
IC804
3
2
1
NJM4565M(TE2)
IC801
8
POWER
4
GND
15k
R110
NJM4565M(TE2)
IC804
5
67
15k
R210
R214
22k
100
R427
R114
22k
100
R327
10k
R215
NJM4565M(TE2)
IC803
3
2
1
47p
C925
10k
R950
330
R112
330
R212
10k
R313
47p
C312
330
R412
330
R312
10k
R419
10k
VR802
NJM4565M(TE2)
IC806
5
6
7
NJM4565M(TE2)
IC806
3
2
1
10k
R315
47p
C412
10k
R415
MC2838-T112-1
D907
2.2k
R101
100k
R514
3.3k
R116
3.3k
R316
R134
22k
R234
22k
0.1
C108
0.1
C109
0.1
C208
0.1
C209
30k
R109
30k
R209
SW201
50V
22
C110
50V
22
C210
50V
22
C330
50V
22
C430
2SC3052EF-T1-LEF
Q314
RTAN140C-T112-1
Q322
RTAN140C-T112-1
Q122
RL –
RR –
FR –
RR +
FL +
FL –
FR +
RL +
IC801
(1/3)
(2/3) (2/3) (2/3)
(3/3)
IC801
(3/3)
IC804
IC804
(1/3)
(1/3)
IC802
(2/3) (2/3)
IC802
(3/3)
MAIN BOARD (1/3)
8
6
9
7
PRE AMP
1
2
3
4
5
GAIN CONTROL AMP
IC803
(1/3)
(3/3)
IC803
(3/3)
IC806
(1/3)
IC806
(L+R)
L
R
R
(L+R)
L
REAR
FRONT
INPUT
-2
-1
SENSING POWER ON
HIGH LEVEL INPUT
-1
-2
GAIN CONTROL AMP
GAIN CONTROL AMP
GAIN CONTROL AMP
MUTING
LOW-PASS FILTER
PRE AMP
HIGH-PASS FILTERPRE AMP
MUTING
HIGH-PASS FILTER
LOW-PASS FILTER
PRE AMP
FILTER (80Hz)
HP OFF LP
ONOFF
LPF (80Hz)
(E, IND)
FRONT
LEVEL
LEVEL
REAR
-1
-2
-1
-2
15612
J
173
G
134
F
527
C
H
I
11 14 16
E
9
B
8
A
10
D
181
+
–
–
+
+
–
–
+
+
–
+
–
+
–
+
–
+
–
(Page 10)
(Page 9)
All manuals and user guides at all-guides.com

XM-N1004
XM-N1004
99
4-3. SCHEMATIC DIAGRAM - MAIN Board (2/3) -
Note: When replacing the Q110, Q111, Q210, Q211, Q310, Q311, Q410 and Q411 on the MAIN
board, refer to “NOTE FOR REPLACEMENT OF THE TRANSISTORS” on page 3.
(1/3)
1
MAIN
BOARD
MAIN
(3/3)
BOARD
3
0.2 0.2
13.2
0.2 0.2
13.2
13.2
13.2
0.2
0.2
0.2
0.2
0.2 0.2
-31.8
-31.8
0.9
0.2
0.9
-31.8
-31.8
0.2 0.2
0.9
-31.8
-31.8
0.2
0.9
-31.8
-31.8
0.2
32.332.3
-0.2
-0.2
32.3
0.2
32.3
0.2
-0.2
0.2
32.332.3
-0.2
0.2
32.3
0.2
32.3
32.9
32.3
1.3
-0.8
-31.8
-32.3
32.9
32.3
-0.8
-31.8
1.3
-32.3
32.9
32.3
-0.8
-31.8
1.3
-32.3
32.9
32.3
-0.8
-31.8
1.3
-32.3
0.8
1.3 31.2 13.7
31.2
-0.1
0.8 1.3 0.2
0.8
0.2
-0.8
-0.8 0.8 0.2
0.2
31.2 13.7
-0.8
0.2
31.2
1.3
-0.8
0.8
0.8
0.8
1.3 0.2
-0.1
0.8
0.2
31.2 13.7
-0.8
0.2
31.2
1.3
-0.8
0.8
0.8
0.8
1.3 0.2
-0.1
0.8
0.2
31.2 13.7
-0.8
0.2
31.2
1.3
-0.8
0.8
0.8
0.8
1.3 0.2
-0.1
0.8
-0.3 0.2
-0.8 -0.3
-30.8 -30.8
-0.3
-0.3
0.2
-0.8
-30.8-30.8
-0.3
-0.3
0.2
-0.8
-30.8-30.8
-0.3
-0.3
0.2
-0.8
-30.8-30.8
1.5k
R275
15k
R277
ISA1284AS1-T112-E
Q204
1.5k
R257
ISA1235AC1-T112-1EF
Q207
2SC3052EF-T1-LEF
Q212
100
R259
0.047
C255
ISC3244AS1-T112-E
Q205
10k
R254
0.1
R269
47k
R256
2SC5100-P
Q210
220
R266
47p
C252
22k
R261
2SA1618-YGRTE85R
Q202
0.1
C254
1.5k
R276
DA2J10100L
D202
2.2
R267
DA2J10100L
D201
220
R264
22p
C253
2SC3052F-T1-LF
Q206
1.5k
R258
2.2
R272
22k
R265
2SA1908-P
Q211
16V
47
C251
22k
R262
680
R263
10k
R270
47k
R255
KTA1023-Y-AT/P
Q209
100
R260
2.2
R268
2SC4207(T5RSONY,F)
Q203
KTC1027-Y-AT/P
Q208
0.047
C155
1.5k
R158
1.5k
R175
KTA1023-Y-AT/P
Q109
22k
R162
0.1
R169
1.5k
R157
DA2J10100L
D101
2.2
R172
100
R160
ISC3244AS1-T112-E
Q105
680
R163
220
R164
100
R159
2SC3052EF-T1-LEF
Q112
22k
R165
2.2
R168
10k
R170
2SA1618-YGRTE85R
Q102
1.5k
R176
22p
C153
2SA1908-P
Q111
47p
C152
2SC4207(T5RSONY,F)
Q103
22k
R161
10k
R154
2SC5100-P
Q110
DA2J10100L
D102
2SC3052F-T1-LF
Q106
47k
R156
ISA1284AS1-T112-E
Q104
16V
47
C151
ISA1235AC1-T112-1EF
Q107
220
R166
2.2
R167
KTC1027-Y-AT/P
Q108
TP5
TP6
C154
0.1
2.2k
R153
1.8k
R253
4.7k
R152
10k
R126
50V
22
C123
4.7k
R252
2.2
R472
0.047
C455
TP11
2.2
R372
0.047
C355
TP9
2.2
R467
15k
R477
47p
C452
10k
R478
KTA1023-Y-AT/P
Q409
ISC3244AS1-T112-E
Q405
47k
R456
10k
R454
22k
R462
KTC1027-Y-AT/P
Q408
100
R460
ISA1284AS1-T112-E
Q404
22k
R461
0.1
R469
0.1
C454
DA2J10100L
D401
1.8k
R453
16V
47
C451
2SA1908-P
Q411
2SA1618-YGRTE85R
Q402
2SC3052F-T1-LF
Q406
680
R463
1.5k
R457
2.2
R468
1.5k
R476
220
R464
1.5k
R458
2SC4207(T5RSONY,F)
Q403
10k
R470
2SC5100-P
Q410
100
R459
2SC3052EF-T1-LEF
Q412
ISA1235AC1-T112-1EF
Q407
220
R466
DA2J10100L
D402
1.5k
R475
47k
R455
22k
R465
22p
C453
1.5k
R376
2SC5100-P
Q310
1.5k
R357
2.2k
R353
100
R359
ISA1284AS1-T112-E
Q304
47p
C352
22p
C353
1.5k
R358
DA2J10100L
D301
2SC3052EF-T1-LEF
Q312
22k
R365
2SC4207(T5RSONY,F)
Q303
1.5k
R375
2SA1908-P
Q311
220
R366
ISA1235AC1-T112-1EF
Q307
22k
R361
2.2
R368
100
R360
47k
R355
2.2
R367
680
R363
10k
R370
15k
R377
22k
R362
DA2J10100L
D302
KTC1027-Y-AT/P
Q308
47k
R356
ISC3244AS1-T112-E
Q305
220
R364
10k
R354
KTA1023-Y-AT/P
Q309
16V
47
C351
2SA1618-YGRTE85R
Q302
10k
R378
2SC3052F-T1-LF
Q306
50V
22
C323
4.7k
R452
4.7k
R352
0.1
R369
TP14
TP12
TP10
TP8
10k
R326
10k
R278
0.1
C354
C400
47p
C300
47p
C200
47p
C100
47p
100k
R471
100k
R371
100k
R271
100k
R171
RTAN140C-T112-1
Q101
RTAN140C-T112-1
Q201
RTAN140C-T112-1
Q301
RTAN140C-T112-1
Q401
47k
R155
10k
R178
15k
R177
(2/3)MAIN BOARD
18
10
13
12
15
16
17
11
14
5
4
3
2
1
SWITCH
SWITCH
SWITCH
SWITCH
DIFFERENTIAL AMP DIFFERENTIAL AMP
DIFFERENTIAL AMP DIFFERENTIAL AMP
DIFFERENTIAL AMP DIFFERENTIAL AMP
DIFFERENTIAL AMP DIFFERENTIAL AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
DRIVE AMP
BIAS
BIAS DRIVE AMP
DRIVE AMP POWER AMP
POWER AMP
BIAS DRIVE AMP
DRIVE AMP
BIAS
POWER AMP
POWER AMP
BIAS DRIVE AMP
DRIVE AMP
BIAS
POWER AMP
POWER AMP
BIAS DRIVE AMP
DRIVE AMP
BIAS
POWER AMP
POWER AMP
5W
5W
5W
5W
OVER LOAD DETECT
OVER LOAD DETECT
OVER LOAD DETECT
OVER LOAD DETECT
(L+R)
+
L
–
+
–
+
–
+
–
R
L
R
(L+R)
OUT
FRONT
SPEAKER
CN903
SPEAKER
REAR
OUT
(1/2)
CN904
15612
J
173
G
K
134
F
52
M
7
C
H
I
11 14 16
E
9
L
B
8
A
10
D
1
-1 -2 -2 -1
-1 -2 -2 -1
-1 -2 -2 -1
-1 -2 -2 -1
(Page 10)
(Page 8)
All manuals and user guides at all-guides.com

XM-N1004
XM-N1004
1010
4-4. SCHEMATIC DIAGRAM - MAIN Board (3/3) - • See page 6 for Waveforms. • See page 6 for IC Block Diagram.
(2/3)
MAIN
3
BOARD
(1/3)
MAIN
2
BOARD
IC B/D
1
2
2
1.8
13.2
1.6
13.2 13.2
13.2 11.6
-13.8 13.2
13.2
0.3
0.4
1
0.4
0.4
5.3
0.3
5.3
14.1
5.6
5.6
14.1
5.6
0.7
0.7
5.6
5.6
14.1
5.6
14.1
14.2 6
5.5
6
5.5
14.2
14.2 14.2
13.5
14.214.2
13.5
0.9 0.3
0.2 0.9
14.2
14
0.2
0.2
14 2.2
0.2
0.7 2.7 0.3 0.5 1.8
4
14.2
0.2 2.7 5.2 14.2 5.5 14.2 5.5 5.2
-30.8 -14.2
-14.7
14
31.2 13.2
14 14
0.3
0.3
14
14
0.3
0.3
1.5k
R906
0.1
C911
10k
R919
1000p
C909
2.2k
R934
1k
R916
DZ2J160M0L
D904
KTA1281Y-AT
Q905
270
R915
2.2k
R914
10k
R940
10k
R947
DA2J10100L
D905
DA2J10100L
D940
0.01
C903
16V
100
C906
100k
R912
0.01
C904
6.8k
R910
1000p
C905
22k
R911
16V
100
C908
4.7k
R902
0.1
C902
4.7k
R901
0.01
C917
47k
R903
470
R904
1k
R905
(GRN)
(RED)
SML1216WTP4
D918
22
R926
22
R927
2.2
R930
2SC3326N-TE85L-B
Q908
2SC3326N-TE85L-B
Q909
FCH10A15
D803
FRH10A15
D804
0.01
C818
0.1
C824
0.1
C825
4.7k
R814
4.7k
R815
KTC2026
Q807
KTA1046
Q808
DA2J10100L
D807
1k
R811
50V
560
C820
50V
560
C819
ISA1235AC1-T112-1EF
Q916
2SC3052EF-T1-LEF
Q806
2SC3052EF-T1-LEF
Q805
2SC3052EF-T1-LEF
Q906
RT1N141C-TP-1
Q901
RT1N141C-TP-1
Q903
RT1N141C-TP-1
Q907
RT1P441C-TP-1
Q902
10k
R918
10k
R917
TP1
TP2
TP3
TP26
TP16
TP20
TP21
2SC3052EF-T1-LEF
Q804
2SC3052EF-T1-LEF
Q803
1k
R810
16V
100
C826
16V
100
C827
0.01
C817
1
C901
0.01
C915
0.047
C912
10
R933
16V
2200
C913
TP23
10
R932
0.01
C916
TP24
2.2
R931
2.2
R928
TP15
2.2
R929
16V
2200
C914
10k
R948
10k
R949
2SC3052EF-T1-LEF
Q508
TH501
82k
R517
100k
R510
2SC3052EF-T1-LEF
Q502
TP19
2.2k
R507 50V
22
C504
2SC3052EF-T1-LEF
Q511
8.2k
R505
RT1P441C-TP-1
Q510
TH503
1M
R513
DZ2J068M0L
D513
RT1N441C-TP-1
Q501
100k
R509
TP17
RT1P141C-TP-1
Q503
3.3k
R502
3.3k
R508
100k
R516
0.1
C502
2SC3052EF-T1-LEF
Q512
DA2J10100L
D515
0.1
C505
TP18
R501
2.2k 2.2k
R503
TH502
DA2J10100L
D514
MC2836-T112-1
D512
10k
R518
MC2838-T112-1
D501
8.2k
R506
10k
R953
10k
R942
0.1
C943
0.1
C809
2.2k
R832
2.2k
R806
0.01
C844
DZ2J056M0L
D919
UDZSUSTE-1713B
D805
UDZSUSTE-1715B
D806
80uH
L901
TP30
1k
R921
1k
R920
2.2
R817 TP25
MC2838-T112-1
D811
MC2838-T112-1
D810
TP27
MC2837
D809
0.1
C830
MC2837
D808 0.1
C829
2.2
R816
50V
220
C821
50V
220
C822
S
FKV575
Q911
S
FKV575
Q910
S
FKV575
Q912
S
FKV575
Q913
1k
R922
1k
R923
1k
R924
1k
R925
TH504
MC2838-T112-1
D502
2.2k
R504
TP22
2SC6027T100-QR
Q917
2SC6027T100-QR
Q918
1
C910
1
C918
T901
5
3
1
2
48
7
6
R813
100k
R812
100k
16V
100
C814
16V
100
C813
47k
R959
TL594CD-R2
IC903
12345678
9
10
11
1213
1415
16
JW26
0.45uH
(3/3)MAIN BOARD
6
8
7
9
10
12
11
13
14
15
16
17
18
LED DRIVER
IC903
GND
REM
+12V
32V
25A
32V
F901
F902
25A
CN904
(2/2)
(CHASSIS)
CAM002
(CHASSIS)
CAM003
THERMAL DETECT
BUFFER
BUFFER
DRIVER
DRIVER
THERMAL DETECT
DC OFF DETECT
PROTECT SWITCH
Q502, 503
Q510, 511
MUTING SWITCH
SWITCHING
DRIVER
SWITCHING
DRIVER
SWITCHING
DRIVER
SWITCHING
DRIVER
TRANSFORMER
DC/DC CONVERTER
DC/DC CONVERTER
Q901, 902
PROTECT DETECT
2IN+
2IN–
REF
OUTPUT
CTRL
VCC
C2
E2 E1
C1 GND RT CT DTC 1IN+ FEEDBACK 1IN–
DC OFF DETECT
Q905, 906
B+ SWITCH
OVER VOLTAGE DETECT
(E, IND)
+13V REGULATOR
-15V REGULATOR
PROTECTOR
POWER/
(GRN): POWER ON
(RED): PROTECTOR ON
Q803, 804
ZERO LEVEL DETECT
ZERO LEVEL DETECT
Q805, 806
15612
J
3
G
K
134
F
527
C
H
I
11 14 16
E
9
B
8
A
10
D
1
(Page 8)
(Page 9)
All manuals and user guides at all-guides.com

11
XM-N1004
SECTION 5
EXPLODED VIEWS
1 X-2587-556-1 PLATE TOP, ASSY
2 4-455-368-11 HEAT SINK (MAIN)
3 3-275-728-11 SCREW (+B, TT, P-TYPE, 2XL)
4 4-455-373-01 SHEET HEAT TRANSFER
5 4-410-613-01 SCREW (+P, TT, B-TYPE, 3XL)
6 3-273-612-01 SCREW (+B, TT, B-TYPE, 3XL)
7 4-455-371-01 PLATE, BOTTOM
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)

Parts Color Cabinet’s Color
5-1. HEAT SINK (MAIN) SECTION
• Abbreviation
CND : Canadian model
IND : Indian model
MX : Mexican model
1
6
6
7
6
66
5
5
5
5
5
5
5
5
5
2
MAIN board section
4
3
3
3
All manuals and user guides at all-guides.com
all-guides.com

12
XM-N1004
5-2. MAIN BOARD SECTION
• Bottom view
51 4-290-815-02 PANEL, FRONT (E, IND)
51 4-290-815-12 PANEL, FRONT (MX)
51 4-290-815-21 PANEL, FRONT (CND, AEP, UK)
52 A-1944-071-A MAIN BOARD, COMPLETE (CND, AEP, UK, MX)
52 A-1944-200-A MAIN BOARD, COMPLETE (E, IND)
53 4-410-613-01 SCREW (+P, TT, B-TYPE, 3XL)
54 4-410-614-01 SCREW (+PS, TT, 3X8)
55 3-912-431-01 SCREW (+-P)
CN903 1-780-132-11 TERMINAL BOARD (Including Screws)
(FRONT SPEAKER OUT)
CN904 1-780-134-12 TERMINAL BOARD (4P+3P+2FUSE)
(Including Screws)
(REAR SPEAKER OUT, 25A, REM, +12V, GND)
D803 8-719-079-00 DIODE FCH10A15
D804 8-719-079-01 DIODE FRH10A15
F901 1-576-256-11 FUSE (25 A/32 V)
F902 1-576-256-11 FUSE (25 A/32 V)
Q110 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q110 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q111 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q111 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q210 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q210 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q211 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q211 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q310 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q310 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q311 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q311 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q410 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q410 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q411 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q411 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q910 6-552-281-01 FET FKV575
Q911 6-552-281-01 FET FKV575
Q912 6-552-281-01 FET FKV575
Q913 6-552-281-01 FET FKV575
WR1 1-846-925-11 WIRE, HFUL3385 AWG16 BLK 75 mm
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN board
F902
F901
53
53
53
53
53
52
51
53
53
53
53
53
53
53
53
53
53
55
53
53
(E, IND)
CN904
CN903
WR1
not supplied not supplied
not supplied
54
Q311
54
54
Q411
Q410 Q211
D803
D804
Q913
Q912
54
Q210
54
54
Q310
54
54
54
54
54
54
Q110
Q111
Q911
Q910
54 54
55
55
55
55
55
55
55
55
55
55
Note: When replacing the Q110, Q111, Q210, Q211, Q310, Q311,
Q410 and Q411 on the MAIN board, refer to “NOTE FOR
REPLACEMENT OF THE TRANSISTORS” on page 3.
All manuals and user guides at all-guides.com

13
XM-N1004

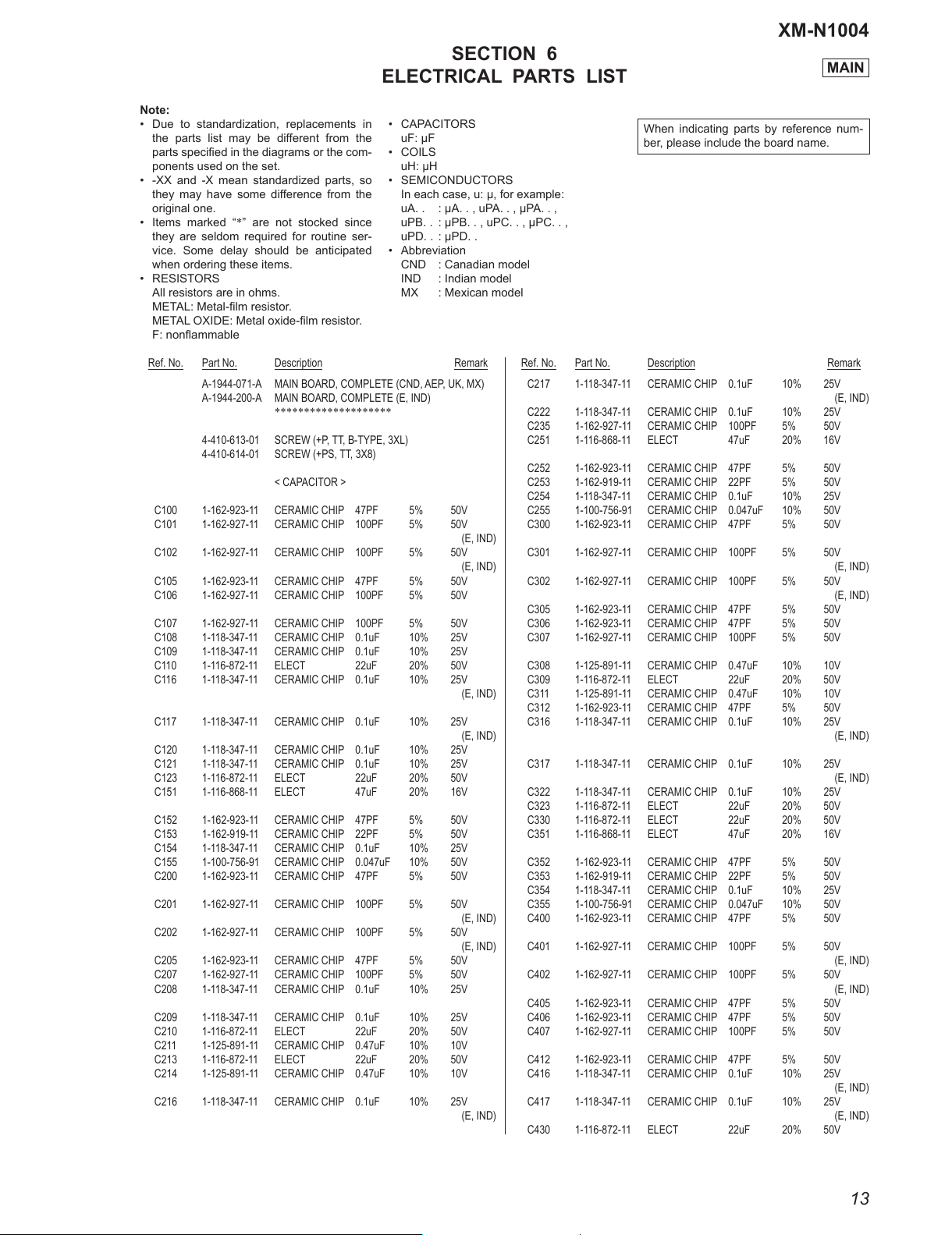

SECTION 6
ELECTRICAL PARTS LIST
A-1944-071-A MAIN BOARD, COMPLETE (CND, AEP, UK, MX)
A-1944-200-A MAIN BOARD, COMPLETE (E, IND)
********************
4-410-613-01 SCREW (+P, TT, B-TYPE, 3XL)
4-410-614-01 SCREW (+PS, TT, 3X8)
< CAPACITOR >
C100 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C101 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C102 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C105 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C106 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C107 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C108 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C109 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C110 1-116-872-11 ELECT 22uF 20% 50V
C116 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C117 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C120 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C121 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C123 1-116-872-11 ELECT 22uF 20% 50V
C151 1-116-868-11 ELECT 47uF 20% 16V
C152 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C153 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C154 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C155 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C200 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C201 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C202 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C205 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C207 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C208 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C209 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C210 1-116-872-11 ELECT 22uF 20% 50V
C211 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C213 1-116-872-11 ELECT 22uF 20% 50V
C214 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C216 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C217 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C222 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C235 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C251 1-116-868-11 ELECT 47uF 20% 16V
C252 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C253 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C254 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C255 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C300 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C301 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C302 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C305 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C306 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C307 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C308 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C309 1-116-872-11 ELECT 22uF 20% 50V
C311 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V
C312 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C316 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C317 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C322 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C323 1-116-872-11 ELECT 22uF 20% 50V
C330 1-116-872-11 ELECT 22uF 20% 50V
C351 1-116-868-11 ELECT 47uF 20% 16V
C352 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C353 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C354 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C355 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C400 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C401 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C402 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
(E, IND)
C405 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C406 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C407 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C412 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C416 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C417 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
C430 1-116-872-11 ELECT 22uF 20% 50V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
When indicating parts by reference num-
ber, please include the board name.
Note:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the com-
ponents used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• CAPACITORS
uF: μF
• COILS
uH: μH
• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .
• Abbreviation
CND : Canadian model
IND : Indian model
MX : Mexican model
MAIN
All manuals and user guides at all-guides.com

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
XM-N1004
14
C451 1-116-868-11 ELECT 47uF 20% 16V
C452 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C453 1-162-919-11 CERAMIC CHIP 22PF 5% 50V
C454 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C455 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C502 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C504 1-116-872-11 ELECT 22uF 20% 50V
C505 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C801 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C802 1-116-870-11 ELECT 220uF 20% 16V
C803 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C804 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V
C809 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C813 1-116-869-11 ELECT 100uF 20% 16V
C814 1-116-869-11 ELECT 100uF 20% 16V
C815 1-116-869-11 ELECT 100uF 20% 16V
C817 1-114-323-11 CERAMIC CHIP 0.01uF 10% 50V
C818 1-114-323-11 CERAMIC CHIP 0.01uF 10% 50V
C819 1-114-991-11 ELECT 560uF 20% 50V
C820 1-114-991-11 ELECT 560uF 20% 50V
C821 1-116-873-11 ELECT 220uF 20% 50V
C822 1-116-873-11 ELECT 220uF 20% 50V
C824 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C825 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C826 1-116-869-11 ELECT 100uF 20% 16V
C827 1-116-869-11 ELECT 100uF 20% 16V
C829 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C830 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C844 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C901 1-100-352-91 CERAMIC CHIP 1uF 20% 16V
C902 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C903 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C904 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C905 1-164-720-91 CERAMIC 0.001uF 5% 50V
C906 1-116-869-11 ELECT 100uF 20% 16V
C908 1-116-869-11 ELECT 100uF 20% 16V
C909 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C910 1-100-352-91 CERAMIC CHIP 1uF 20% 16V
C911 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C912 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C913 1-131-731-12 ELECT 2200uF 20% 16V
C914 1-131-731-12 ELECT 2200uF 20% 16V
C915 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C916 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C917 1-118-345-11 CERAMIC CHIP 0.01uF 10% 25V
C918 1-100-352-91 CERAMIC CHIP 1uF 20% 16V
C925 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C926 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C943 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
(E, IND)
< CONNECTOR >
CN901 1-580-283-11 PIN, CONNECTOR (PC BOARD) 8P (HIGH LEVEL
INPUT, SENSING POWER ON) (E, IND)
CN903 1-780-132-11 TERMINAL BOARD (Including Screws)
(FRONT SPEAKER OUT)
CN904 1-780-134-12 TERMINAL BOARD (4P+3P+2FUSE)
(Including Screws)
(REAR SPEAKER OUT, 25A, REM, +12V, GND)
< JACK >
CNJ101 1-779-078-21 JACK, PIN 4P (INPUT FRONT/REAR)
< DIODE >
D101 6-502-961-01 DIODE DA2J10100L
D102 6-502-961-01 DIODE DA2J10100L
D201 6-502-961-01 DIODE DA2J10100L
D202 6-502-961-01 DIODE DA2J10100L
D301 6-502-961-01 DIODE DA2J10100L
D302 6-502-961-01 DIODE DA2J10100L
D401 6-502-961-01 DIODE DA2J10100L
D402 6-502-961-01 DIODE DA2J10100L
D501 6-500-335-01 DIODE MC2838-T112-1
D502 6-500-335-01 DIODE MC2838-T112-1
D512 6-500-334-01 DIODE MC2836-T112-1
D513 6-502-970-01 DIODE DZ2J068M0L
D514 6-502-961-01 DIODE DA2J10100L
D515 6-502-961-01 DIODE DA2J10100L
D803 8-719-079-00 DIODE FCH10A15
D804 8-719-079-01 DIODE FRH10A15
D805 8-719-083-63 DIODE UDZSUSTE-1713B
D806 8-719-083-83 DIODE UDZSUSTE-1715B
D807 6-502-961-01 DIODE DA2J10100L
D808 6-501-579-01 DIODE MC2837
D809 6-501-579-01 DIODE MC2837
D810 6-500-335-01 DIODE MC2838-T112-1
D811 6-500-335-01 DIODE MC2838-T112-1
D904 6-503-030-01 DIODE DZ2J160M0L
D905 6-502-961-01 DIODE DA2J10100L
D906 6-500-335-01 DIODE MC2838-T112-1 (E, IND)
D907 6-500-335-01 DIODE MC2838-T112-1 (E, IND)
D918 8-719-025-62 LED SML1216W (POWER/PROTECTOR)
D919 6-502-966-01 DIODE DZ2J056M0L
D940 6-502-961-01 DIODE DA2J10100L
< FUSE >
F901 1-576-256-11 FUSE (25 A/32 V)
F902 1-576-256-11 FUSE (25 A/32 V)
< IC >
IC801 8-759-274-71 IC NJM4565M (TE2)
IC802 8-759-274-71 IC NJM4565M (TE2)
IC803 8-759-274-71 IC NJM4565M (TE2)
IC804 8-759-274-71 IC NJM4565M (TE2)
IC806 8-759-274-71 IC NJM4565M (TE2)
*IC903 8-759-346-78 IC TL594CD-R2
< JUMPER RESISTOR >
JC1 1-216-864-11 SHORT CHIP 0
JC2 1-216-296-11 SHORT CHIP 0
JC3 1-216-296-11 SHORT CHIP 0
JC4 1-216-296-11 SHORT CHIP 0
JC6 1-216-864-11 SHORT CHIP 0
JC7 1-216-296-11 SHORT CHIP 0
JC8 1-216-864-11 SHORT CHIP 0
JC9 1-216-296-11 SHORT CHIP 0
JC10 1-216-864-11 SHORT CHIP 0
JC11 1-216-296-11 SHORT CHIP 0
JC12 1-216-296-11 SHORT CHIP 0
MAIN
All manuals and user guides at all-guides.com

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
XM-N1004
1515
JC14 1-216-296-11 SHORT CHIP 0
JC15 1-216-296-11 SHORT CHIP 0
JC16 1-216-296-11 SHORT CHIP 0
JC17 1-216-296-11 SHORT CHIP 0
JC18 1-216-864-11 SHORT CHIP 0
JC19 1-216-864-11 SHORT CHIP 0
JC20 1-216-864-11 SHORT CHIP 0
JC21 1-216-864-11 SHORT CHIP 0
JC22 1-216-864-11 SHORT CHIP 0
JC26 1-216-296-11 SHORT CHIP 0
JC32 1-216-296-11 SHORT CHIP 0
JC43 1-216-296-11 SHORT CHIP 0
JC47 1-216-296-11 SHORT CHIP 0
< FERRITE BEAD/JUMPER RESISTOR >
JW26 1-410-396-41 FERRITE 0.45uH
JW195 1-216-864-11 SHORT CHIP 0
< COIL >
L901 1-460-660-11 CHOKE COIL 80uH
< TRANSISTOR >
Q101 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q102 8-729-014-85 TRANSISTOR 2SA1618-YGRTE85R
Q103 8-729-014-87 TRANSISTOR 2SC4207 (T5RSONY, F)
Q104 6-553-184-01 TRANSISTOR ISA1284AS1-T112-E
Q105 6-553-185-01 TRANSISTOR ISC3244AS1-T112-E
Q106 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF
Q107 6-551-696-01 TRANSISTOR ISA1235AC1-T112-1EF
Q108 6-552-812-01 TRANSISTOR KTC1027-Y-AT/P
Q109 6-552-810-01 TRANSISTOR KTA1023-Y-AT/P
Q110 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q110 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q111 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q111 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q112 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q115 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q122 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q201 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q202 8-729-014-85 TRANSISTOR 2SA1618-YGRTE85R
Q203 8-729-014-87 TRANSISTOR 2SC4207 (T5RSONY, F)
Q204 6-553-184-01 TRANSISTOR ISA1284AS1-T112-E
Q205 6-553-185-01 TRANSISTOR ISC3244AS1-T112-E
Q206 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF
Q207 6-551-696-01 TRANSISTOR ISA1235AC1-T112-1EF
Q208 6-552-812-01 TRANSISTOR KTC1027-Y-AT/P
Q209 6-552-810-01 TRANSISTOR KTA1023-Y-AT/P
Q210 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q210 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q211 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q211 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q212 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q301 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q302 8-729-014-85 TRANSISTOR 2SA1618-YGRTE85R
Q303 8-729-014-87 TRANSISTOR 2SC4207 (T5RSONY, F)
Q304 6-553-184-01 TRANSISTOR ISA1284AS1-T112-E
Q305 6-553-185-01 TRANSISTOR ISC3244AS1-T112-E
Q306 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF
Q307 6-551-696-01 TRANSISTOR ISA1235AC1-T112-1EF
Q308 6-552-812-01 TRANSISTOR KTC1027-Y-AT/P
Q309 6-552-810-01 TRANSISTOR KTA1023-Y-AT/P
Q310 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q310 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q311 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q311 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q312 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q314 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q322 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q401 6-551-863-01 TRANSISTOR RTAN140C-T112-1
Q402 8-729-014-85 TRANSISTOR 2SA1618-YGRTE85R
Q403 8-729-014-87 TRANSISTOR 2SC4207 (T5RSONY, F)
Q404 6-553-184-01 TRANSISTOR ISA1284AS1-T112-E
Q405 6-553-185-01 TRANSISTOR ISC3244AS1-T112-E
Q406 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF
Q407 6-551-696-01 TRANSISTOR ISA1235AC1-T112-1EF
Q408 6-552-812-01 TRANSISTOR KTC1027-Y-AT/P
Q409 6-552-810-01 TRANSISTOR KTA1023-Y-AT/P
Q410 8-729-024-79 TRANSISTOR 2SC5100-P (See Note)
Q410 8-729-024-80 TRANSISTOR 2SC5100-Y (See Note)
Q411 8-729-024-76 TRANSISTOR 2SA1908-P (See Note)
Q411 8-729-024-77 TRANSISTOR 2SA1908-Y (See Note)
Q412 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q501 8-729-038-28 TRANSISTOR RT1N441C-TP-1
Q502 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q503 8-729-027-23 TRANSISTOR DTA114EKA-T146
Q508 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q510 8-729-027-38 TRANSISTOR DTA144EKA-T146
Q511 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q512 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q803 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q804 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q805 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q806 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q807 6-553-395-01 TRANSISTOR KTC2026
Q808 6-553-396-01 TRANSISTOR KTA1046
Q901 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q902 8-729-027-38 TRANSISTOR DTA144EKA-T146
Q903 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q905 8-729-052-82 TRANSISTOR KTA1281Y-AT
Q906 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
Q907 8-729-038-23 TRANSISTOR RT1N141C-TP-1
Q908 8-729-203-25 TRANSISTOR 2SC3326N-TE85L-B
Q909 8-729-203-25 TRANSISTOR 2SC3326N-TE85L-B
Q910 6-552-281-01 FET FKV575
Q911 6-552-281-01 FET FKV575
Q912 6-552-281-01 FET FKV575
Q913 6-552-281-01 FET FKV575
Q916 6-551-696-01 TRANSISTOR ISA1235AC1-T112-1EF
Q917 6-551-431-01 TRANSISTOR 2SC6027T100-QR
Q918 6-551-431-01 TRANSISTOR 2SC6027T100-QR
< RESISTOR >
R101 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
(E, IND)
R102 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R103 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R104 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R105 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
MAIN
Note: When replacing the Q110, Q111, Q210, Q211, Q310, Q311,
Q410 and Q411 on the MAIN board, refer to “NOTE FOR
REPLACEMENT OF THE TRANSISTORS” on page 3.
All manuals and user guides at all-guides.com

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
XM-N1004
16
R106 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R107 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R109 1-218-882-11 METAL CHIP 30K 0.5% 1/10W
R110 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R112 1-216-815-11 METAL CHIP 330 5% 1/10W
R114 1-216-837-11 METAL CHIP 22K 5% 1/10W
R115 1-216-833-11 METAL CHIP 10K 5% 1/10W
R116 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R126 1-216-833-11 METAL CHIP 10K 5% 1/10W
R127 1-216-809-11 METAL CHIP 100 5% 1/10W
R128 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R134 1-216-837-11 METAL CHIP 22K 5% 1/10W
R152 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R153 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R154 1-216-222-00 METAL CHIP 10K 5% 1/8W
R155 1-216-841-11 METAL CHIP 47K 5% 1/10W
R156 1-216-841-11 METAL CHIP 47K 5% 1/10W
R157 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R158 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R159 1-216-809-11 METAL CHIP 100 5% 1/10W
R160 1-216-809-11 METAL CHIP 100 5% 1/10W
R161 1-216-837-11 METAL CHIP 22K 5% 1/10W
R162 1-216-837-11 METAL CHIP 22K 5% 1/10W
R163 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R164 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R165 1-216-837-11 METAL CHIP 22K 5% 1/10W
R166 1-216-182-00 METAL CHIP 220 5% 1/8W
R167 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R168 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R169 1-205-991-11 ENCAPSULATED COMPONENT 0.1 5W F
R170 1-216-833-11 METAL CHIP 10K 5% 1/10W
R171 1-216-845-11 METAL CHIP 100K 5% 1/10W
R172 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R175 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R176 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R177 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R178 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R201 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
(E, IND)
R202 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R203 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R204 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R205 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R206 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R207 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R209 1-218-882-11 METAL CHIP 30K 0.5% 1/10W
R210 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R212 1-216-815-11 METAL CHIP 330 5% 1/10W
R214 1-216-837-11 METAL CHIP 22K 5% 1/10W
R215 1-216-833-11 METAL CHIP 10K 5% 1/10W
R217 1-216-837-11 METAL CHIP 22K 5% 1/10W
R220 1-216-833-11 METAL CHIP 10K 5% 1/10W
R227 1-216-809-11 METAL CHIP 100 5% 1/10W
R228 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R229 1-216-833-11 METAL CHIP 10K 5% 1/10W
R234 1-216-837-11 METAL CHIP 22K 5% 1/10W
R236 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R252 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R253 1-216-824-11 METAL CHIP 1.8K 5% 1/10W
R254 1-216-222-00 METAL CHIP 10K 5% 1/8W
R255 1-216-841-11 METAL CHIP 47K 5% 1/10W
R256 1-216-841-11 METAL CHIP 47K 5% 1/10W
R257 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R258 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R259 1-216-809-11 METAL CHIP 100 5% 1/10W
R260 1-216-809-11 METAL CHIP 100 5% 1/10W
R261 1-216-837-11 METAL CHIP 22K 5% 1/10W
R262 1-216-837-11 METAL CHIP 22K 5% 1/10W
R263 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R264 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R265 1-216-837-11 METAL CHIP 22K 5% 1/10W
R266 1-216-182-00 METAL CHIP 220 5% 1/8W
R267 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R268 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R269 1-205-991-11 ENCAPSULATED COMPONENT 0.1 5W F
R270 1-216-833-11 METAL CHIP 10K 5% 1/10W
R271 1-216-845-11 METAL CHIP 100K 5% 1/10W
R272 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R275 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R276 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R277 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R278 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R301 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
(E, IND)
R302 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R303 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R304 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R305 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R306 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R307 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R308 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R312 1-216-815-11 METAL CHIP 330 5% 1/10W
R313 1-216-833-11 METAL CHIP 10K 5% 1/10W
R315 1-216-833-11 METAL CHIP 10K 5% 1/10W
R316 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R317 1-216-837-11 METAL CHIP 22K 5% 1/10W
R320 1-216-833-11 METAL CHIP 10K 5% 1/10W
R324 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R326 1-216-833-11 METAL CHIP 10K 5% 1/10W
R327 1-216-809-11 METAL CHIP 100 5% 1/10W
R328 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R329 1-216-833-11 METAL CHIP 10K 5% 1/10W
R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R353 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R354 1-216-222-00 METAL CHIP 10K 5% 1/8W
R355 1-216-841-11 METAL CHIP 47K 5% 1/10W
R356 1-216-841-11 METAL CHIP 47K 5% 1/10W
R357 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R358 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R359 1-216-809-11 METAL CHIP 100 5% 1/10W
R360 1-216-809-11 METAL CHIP 100 5% 1/10W
R361 1-216-837-11 METAL CHIP 22K 5% 1/10W
R362 1-216-837-11 METAL CHIP 22K 5% 1/10W
R363 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R364 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R365 1-216-837-11 METAL CHIP 22K 5% 1/10W
R366 1-216-182-00 METAL CHIP 220 5% 1/8W
MAIN
All manuals and user guides at all-guides.com
all-guides.com

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
XM-N1004
1717
R367 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R368 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R369 1-205-991-11 ENCAPSULATED COMPONENT 0.1 5W F
R370 1-216-833-11 METAL CHIP 10K 5% 1/10W
R371 1-216-845-11 METAL CHIP 100K 5% 1/10W
R372 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R375 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R376 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R377 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R378 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R401 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
(E, IND)
R402 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R403 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R404 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R405 1-216-849-11 METAL CHIP 220K 5% 1/10W
(E, IND)
R407 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R408 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R412 1-216-815-11 METAL CHIP 330 5% 1/10W
R415 1-216-833-11 METAL CHIP 10K 5% 1/10W
R419 1-216-833-11 METAL CHIP 10K 5% 1/10W
R427 1-216-809-11 METAL CHIP 100 5% 1/10W
R452 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R453 1-216-824-11 METAL CHIP 1.8K 5% 1/10W
R454 1-216-222-00 METAL CHIP 10K 5% 1/8W
R455 1-216-841-11 METAL CHIP 47K 5% 1/10W
R456 1-216-841-11 METAL CHIP 47K 5% 1/10W
R457 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R458 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R459 1-216-809-11 METAL CHIP 100 5% 1/10W
R460 1-216-809-11 METAL CHIP 100 5% 1/10W
R461 1-216-837-11 METAL CHIP 22K 5% 1/10W
R462 1-216-837-11 METAL CHIP 22K 5% 1/10W
R463 1-218-843-11 METAL CHIP 680 0.5% 1/10W
R464 1-218-831-11 METAL CHIP 220 0.5% 1/10W
R465 1-216-837-11 METAL CHIP 22K 5% 1/10W
R466 1-216-182-00 METAL CHIP 220 5% 1/8W
R467 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R468 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R469 1-205-991-11 ENCAPSULATED COMPONENT 0.1 5W F
R470 1-216-833-11 METAL CHIP 10K 5% 1/10W
R471 1-216-845-11 METAL CHIP 100K 5% 1/10W
R472 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R475 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R476 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R477 1-218-875-11 METAL CHIP 15K 0.5% 1/10W
R478 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
R501 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R502 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R503 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R504 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R505 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R506 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R507 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R508 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R509 1-216-845-11 METAL CHIP 100K 5% 1/10W
R510 1-216-845-11 METAL CHIP 100K 5% 1/10W
R513 1-216-857-11 METAL CHIP 1M 5% 1/10W
R514 1-216-845-11 METAL CHIP 100K 5% 1/10W
R516 1-216-845-11 METAL CHIP 100K 5% 1/10W
R517 1-216-844-11 METAL CHIP 82K 5% 1/10W
R518 1-216-222-00 METAL CHIP 10K 5% 1/8W
R801 1-216-198-91 METAL CHIP 1K 5% 1/8W
R802 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R803 1-216-198-91 METAL CHIP 1K 5% 1/8W
R804 1-216-198-91 METAL CHIP 1K 5% 1/8W
R806 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R810 1-216-821-11 METAL CHIP 1K 5% 1/10W
R811 1-216-821-11 METAL CHIP 1K 5% 1/10W
R812 1-216-845-11 METAL CHIP 100K 5% 1/10W
R813 1-216-845-11 METAL CHIP 100K 5% 1/10W
R814 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R815 1-216-214-00 METAL CHIP 4.7K 5% 1/8W
R816 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R817 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R832 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R901 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R902 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R903 1-216-841-11 METAL CHIP 47K 5% 1/10W
R904 1-216-817-11 METAL CHIP 470 5% 1/10W
R905 1-216-821-11 METAL CHIP 1K 5% 1/10W
R906 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R910 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R911 1-216-837-11 METAL CHIP 22K 5% 1/10W
R912 1-216-845-11 METAL CHIP 100K 5% 1/10W
R914 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R915 1-216-814-11 METAL CHIP 270 5% 1/10W
R916 1-216-821-11 METAL CHIP 1K 5% 1/10W
R917 1-216-833-11 METAL CHIP 10K 5% 1/10W
R918 1-216-833-11 METAL CHIP 10K 5% 1/10W
R919 1-216-222-00 METAL CHIP 10K 5% 1/8W
R920 1-216-821-11 METAL CHIP 1K 5% 1/10W
R921 1-216-821-11 METAL CHIP 1K 5% 1/10W
R922 1-216-821-11 METAL CHIP 1K 5% 1/10W
R923 1-216-821-11 METAL CHIP 1K 5% 1/10W
R924 1-216-821-11 METAL CHIP 1K 5% 1/10W
R925 1-216-821-11 METAL CHIP 1K 5% 1/10W
R926 1-216-158-00 METAL CHIP 22 5% 1/8W
R927 1-216-158-00 METAL CHIP 22 5% 1/8W
R928 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R929 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R930 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R931 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R932 1-216-150-91 METAL CHIP 10 5% 1/8W
R933 1-216-150-91 METAL CHIP 10 5% 1/8W
R934 1-216-206-00 METAL CHIP 2.2K 5% 1/8W
R940 1-216-833-11 METAL CHIP 10K 5% 1/10W
R942 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R943 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R944 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R945 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R946 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R947 1-216-833-11 METAL CHIP 10K 5% 1/10W
R948 1-216-833-11 METAL CHIP 10K 5% 1/10W
R949 1-216-833-11 METAL CHIP 10K 5% 1/10W
MAIN
All manuals and user guides at all-guides.com

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
XM-N1004
18
R950 1-216-833-11 METAL CHIP 10K 5% 1/10W
R951 1-216-833-11 METAL CHIP 10K 5% 1/10W
R953 1-216-833-11 METAL CHIP 10K 5% 1/10W
(E, IND)
R959 1-216-841-11 METAL CHIP 47K 5% 1/10W
< SWITCH >
SW101 1-786-916-11 SWITCH, SLIDE (LPF (80Hz))
SW201 1-798-257-11 SWITCH, SLIDE (FILTER (80Hz))
< TRANSFORMER >
T901 1-697-276-11 D.C-D.C CONVERTER TRANSFORMER
< THERMISTOR >
TH501 1-805-074-11 THERMISTOR
TH502 1-805-074-11 THERMISTOR
TH503 1-805-074-11 THERMISTOR
TH504 1-805-074-11 THERMISTOR
< VARIABLE RESISTOR >
VR801 1-227-768-11 RES, VAR, CARBON 10K/10K (LEVEL FRONT)
VR802 1-227-768-11 RES, VAR, CARBON 10K/10K (LEVEL REAR)
< WIRE >
WR1 1-846-925-11 WIRE, HFUL3385 AWG16 BLK 75 mm
*************************************************************
ACCESSORIES
************
4-464-857-21 MANUAL, INSTRUCTION (ENGLISH, SPANISH)
(CND, AEP, UK, MX)
4-464-857-31 MANUAL, INSTRUCTION
(FRENCH, GERMAN, ITALIAN) (CND, AEP, UK)
4-464-857-41 MANUAL, INSTRUCTION (DUTCH, SWEDISH,
PORTUGUESE) (CND, AEP, UK)
4-464-857-51 MANUAL, INSTRUCTION
(POLISH, RUSSIAN, UKRAINIAN) (CND, AEP, UK)
4-464-857-61 MANUAL, INSTRUCTION
(ENGLISH, SPANISH, PORTUGUESE) (E, IND)
4-464-857-71 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE, ARABIC, PERSIAN) (E)
*************************************************************
MAIN
Mounting screws
Ø5 u15 mm
(u4) PROTECTION CAP
u1
HIGH LEVEL INPUT CORD
u1
SCREW SUB ASSY
u1
501 502
503
(E, IND)
PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501 X-2108-372-1 SCREW SUB ASSY (Mounting screws)
(Tapping Screw (DIA. 5X15), 4 pieces, 1 set)
502 4-166-803-01 COVER (POWER) (Protection cap)
503 1-839-574-11 CORD (WITH CONNECTOR)
(High level input cord) (E, IND)
All manuals and user guides at all-guides.com

MEMO
XM-N1004
19
All manuals and user guides at all-guides.com

XM-N1004
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2013.07 New
All manuals and user guides at all-guides.com
