Sony Digital Betacam DVW-M2000 User manual

DIGITAL VIDEOCASSETTE RECORDER
DVW-2000/2000P
DVW-M2000/M2000P
MSW-2000
MSW-A2000/A2000P
MSW-M2000/M2000P
MSW-M2000E/M2000EP
HD DIGITAL VIDEOCASSETTE RECORDER
HDW-2000
HDW-M2000/M2000P
HDW-S2000/S2000P
DIGITAL VIDEOCASSETTE PLAYER
MSW-M2100/M2100P
MSW-M2100E/M2100EP
HD DIGITAL VIDEOCASSETTE PLAYER
HDW-M2100/M2100P
INSTALLATION MANUAL
1st Edition (Revised 11)

HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
HDW-2000 (SY) Serial No. 10001 and Higher
HDW-M2000 (SY) Serial No. 10001 and Higher
HDW-M2100 (SY) Serial No. 10001 and Higher
HDW-S2000 (SY) Serial No. 16001 and Higher
HDW-S2000P (SY) Serial No. 46001 and Higher
HDW-M2000P (SY) Serial No. 40001 and Higher
HDW-M2100P (SY) Serial No. 40001 and Higher
DVW-2000 (SY) Serial No. 10001 and Higher
DVW-2000P (SY) Serial No. 40001 and Higher
DVW-M2000 (SY) Serial No. 10001 and Higher
DVW-M2000P (SY) Serial No. 40001 and Higher
MSW-2000 (SY) Serial No. 10001 and Higher
MSW-A2000 (SY) Serial No. 10001 and Higher
MSW-M2000 (SY) Serial No. 10001 and Higher
MSW-M2000E (SY) Serial No. 10001 and Higher
MSW-M2100 (SY) Serial No. 10001 and Higher
MSW-M2100E (SY) Serial No. 10001 and Higher
MSW-A2000P (SY) Serial No. 40001 and Higher
MSW-M2000P (SY) Serial No. 40001 and Higher
MSW-M2000EP (SY) Serial No. 40001 and Higher
MSW-M2100P (SY) Serial No. 40001 and Higher
MSW-M2100EP (SY) Serial No. 40001 and Higher

HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1 (P)
For the customers in the Netherlands
Voor de klanten in Nederland
Hoe u de batterijen moet verwijderen, leest u in de
Onderhoudshandleiding.
Gooi de batterij niet weg maar lever deze in als klein
chemisch afval (KCA).
Für Kunden in Deutschland
Entsorgungshinweis: Bitte werfen Sie nur entladene
Batterien in die Sammelboxen beim Handel oder den
Kommunen. Entladen sind Batterien in der Regel dann,
wenn das Gerät abschaltet und signalisiert “Batterie
leer” oder nach längerer Gebrauchsdauer der Batterien
“nicht mehr einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die Batteriepole z.B. mit
einem Klebestreifen ab oder geben Sie die Batterien
einzeln in einen Plastikbeutel.
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.
5. Install the equipment while taking the operating
temperature of the equipment into consideration
For the operating temperature of the equipment, refer
to the specifications of the Operation Manual.
6. When performing the installation, keep the rear of
the unit 10 cm (4 inches) or more away from walls
in order to obtain proper exhaust and radiation of
heat.
When using a LAN cable:
For safety,do not connect to the connector for
peripheral device wiring that might have excessive
voltage.

HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to the
manufacturer’s instructions.
Vorsicht!
Explosionsgefahr bei unsachgemäßem Austausch
der Batterie.
Ersatz nur durch denselben oder einen vom
Hersteller empfohlenen ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des
Herstellers.
ATTENTION
Il y a danger d’explosion s’il y a remplacement
incorrect de la batterie.
Remplacer uniquement avec une batterie du même
type ou d’un type équivalent recommandé par le
constructeur.
Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
ADVARSEL!
Lithiumbatteri-Eksplosionsfare ved fejlagtig
håndtering.
Udskiftning må kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Lithiumbatteri - Eksplosjonsfare.
Ved utskifting benyttes kun batteri som
anbefalt av apparatfabrikanten.
Brukt batteri returneres
apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller en likvärdig typ
som rekommenderas av apparattillverkaren.
Kassera använt batteri enligt gällande
föreskrifter.
VAROITUS
Paristo voi räjähtää jos se on virheellisesti
asennettu.
Vaihda paristo ainoastaan laitevalmistajan
suosittelemaan tyyppiin.
Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
2 (P)

1
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Table of Contents
Manual Structure
Purpose of this manual .............................................................................................. 2
Related manuals ......................................................................................................... 2
1. Installation
1-1. Installation Procedure .................................................................................. 1-1
1-2. Supplied Accessories .................................................................................. 1-1
1-3. Operating Conditions .................................................................................. 1-1
1-4. Power Supply .............................................................................................. 1-2
1-4-1. Voltage and Power Requirements .............................................. 1-2
1-4-2. Power Cord ................................................................................. 1-2
1-5. Installation Space ........................................................................................ 1-3
1-6. Rack Mounting ............................................................................................ 1-4
1-7. Connection .................................................................................................. 1-8
1-7-1. Attaching the Clamp Filters (HDW Series Only) ...................... 1-8
1-7-2. Matching Connectors and Cables ............................................... 1-9
1-8. Signal Inputs and Outputs ......................................................................... 1-10
1-9. Switch Settings on Connector Panel ......................................................... 1-15
1-10. Switch Settings on Circuit Boards ............................................................ 1-16
1-10-1. APR-52 Board .......................................................................... 1-16
1-10-2. AU-272 Board (Other than HDW-2000, DVW-2000/2000P,
MSW-2000).............................................................................. 1-18
1-10-3. CUE-13 Board (Other than MSW-2000/A2000/A2000P) ....... 1-19
1-10-4. SS-89 Board ............................................................................. 1-20
1-10-5. VN-13 Board
(MSW-M2000E/M2000EP/M2100E/M2100EP only) ............ 1-21
1-11. Operation Mode Settings (For DVW-2000/M2000 Only) ........................ 1-21
1-11-1. Operation Procedure of Destination Selection Mode ............... 1-21
1-12. Removing/Reattaching Lower Control Panel Unit ................................... 1-22
1-13. Switching Search Dial Mode .................................................................... 1-24
1-14. Reference System ...................................................................................... 1-25
1-14-1. Recorder ................................................................................... 1-25
1-14-2. Player ........................................................................................ 1-25
1-15. Settings and Adjustment when External Equipment is Connected ........... 1-26
1-15-1. Settings for Time Code (Recorder Only) ................................. 1-26
1-15-2. VTR Constant Values Settings of Editor ................................. 1-27
1-15-3. System Phase Alignment .......................................................... 1-28
1-15-4. Setup Menu Settings ................................................................ 1-28
1-15-5. Other Settings ........................................................................... 1-28
1-16. Removing/Reattaching Plug-in Board ...................................................... 1-29
1-17. Taking Out the Cassette in Tape Slacking ................................................ 1-30
Appendix A Setting Check Sheet

2
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Purpose of this manual
This manual is the installation manual of the following models.
HD Digital Videocassette Recorder HDW-2000/M2000/M2000P/S2000/S2000P
HD Digital Videocassette Player HDW-M2100/M2100P
Digital Videocassette Recorder DVW-2000/2000P/M2000/M2000P,
MSW-2000/A2000/A2000P/M2000/
M2000P/M2000E/M2000EP
Digital Videocassette Player MSW-M2100/M2100P/M2100E/M2100EP
This manual is intended for use by trained system and service engineers, and
provides the information that is required to install (environment, connection infor-
mation, initial setting, etc.) and the setting check sheet.
n
The figures in this manual are MSW-A2000 unless otherwise specified.
Related manuals
Besides this “installation manual”, the following manuals are available for this unit.
If these manuals are required, please contact your local Sony Sales Office/Service
Center.
..
..
.Operation Manual (Supplied with this unit.)
This manual is necessary for application and operation (and installation) of this unit.
..
..
.Maintenance Manual (Available on request)
Volume-1 : Service Instruction
Volume-2 : Parts List, Block Diagrams, and Board Layouts
Volume-3 : Schematic Diagrams
These manuals describe the maintenace and service information (service over-
view, adjustments, board layouts, schematic diagrams, detailed parts list, etc.) for
this unit.
..
..
.Protocol Manual of Remote (9-pin) Connector (Available on request)
This manual explains the protocol for controlling the VTR via the RS-422A (9-pin
serial remote).
..
..
.Interface Manual of Parallel I/O (50-pin) Connector (Available on
request)
This manual explains the protocol for controlling the VTR via the parallel (50-
pin).
..
..
.“Semiconductor Pin Assignments”CD-ROM (Available on request)
This “Semiconductor Pin Assignments” CD-ROM allows you to search for
semiconductors used in this unit.
Semiconductors that cannot be searched for on this CD-ROM are listed in the
maintenance manual (volume-2) for the corresponding unit. The maintenance
manual (volume-2) contains a complete list of all semiconductors and their ID
Nos., and thus should be used together with the CD-ROM.
Part number: 9-968-546-XX
Manual Structure

1-1
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1-3. Operating Conditions
1-4. Power Supply
1-5. Installation Space
1-6. Rack Mounting
1-7. Connection
1-8. Signal Inputs and Outputs
1-9. Switch Settings on Connector
Panel
1-10. Switch Settings on Circuit
Boards
1-11. Operation Mode Settings
(For DVW-2000/M2000 only)
1-12. Removing/Reattaching
Lower Control Panel Unit
1-13. Switching Search Dial Mode
1-14. Reference System
1-15. Settings and Adjustment
when External Equipment
is Connected
Start
Determination of
installation place
Unpacking
Rack mounting
*Connection
*Initial setup
*Operation check
End
n
If an error message appears on the time data
display area, refer to the operation manual.
(For more details, refer to the maintenance
manual volume-1.)
n
When the unit is transported, it is required to
pack the unit into the specified new packing
materials.
Do not reuse the packing materials.
Section 1
Installation
1-2. Supplied Accessories
.Screws for rack mounting (PSW 4 x16) ....................... 4
.Clamp filters (HDW series only) ............................ 4 or 6
.Operation manual
Japanese *1 ................................................................... 1
English ........................................................................ 1
.Operation manual CD-ROM (PDF) ............................... 1
.Installation manual
Japanese*1 .................................................................... 1
English ........................................................................ 1
.Operation manual & application software CD-ROM
(PDF)*2 ........................................................................... 1
.BKMW-E3000 Installation manual*2 ............................. 1
*1: Supplied with DVW series only.
*2: Supplied with MSW-M2000E/M2000EP/M2100E/
M2100EP only.
1-3. Operating Conditions
c
Good air circulation is essential to prevent internal heat build-
up. Place the unit in location with sufficient air circulation.
Do not block the ventilation holes of the cabinet and the
front and rear panels.
Operating temperature: 5 dC to 40 dC
Operating humidity: 25 % to 80 % (non-condensing)
Storage temperature: _20 dC to 60 dC
Locations to avoid:
.Areas where the unit will be exposed to direct sunlight
of any other strong lights.
.Areas near heat sources.
.Dusty areas or areas subject to vibration.
.Areas with strong magnetic field.
.Areas with much electrical noise.
.Areas with much static electricity.
.Areas that is impossible to find a specified room for
installation. (Refer to “1-5. Installation Space”.)
.Areas windtight.
Tilt allowance: Within 30d(Do not slant the front
and rear of the unit more than 30d.)
c
Fix the unit securely to avoid drop when the unit is operat-
ed at not-horizontal place.
1-1. Installation Procedure
Installation procedure of this unit is shown on the follow-
ing flowchart.
Refer to each section about detail of each flow.
The operation manual is also required to do *-marked
flow.

1-2
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1-4-2. Power Cord
This unit does not come with a power cord.
To get a power cord, please contact your local Sony Sales
Office/Service Center.
w
Use the specified power cord only when connecting the
AC power. Never use a injured power cord.
For customers in the U.S.A. and Canada:
1Power cord 125 V 10 A (2.4 m): !1-557-377-11
2Plug holder (Brown): 3-613-640-01
For customers in the United Kingdom:
1Power cord 250 V 10 A (2.0 m): !1-777-823-12
2Plug holder (Brown): 3-613-640-01
For customers in European countries except the United
Kingdom:
1Power cord 250 V 10 A (2.0 m): !1-551-631-22
2Plug holder (Brown): 3-613-640-01
For customers in the China:
1Power cord 250 V 10 A (1.8 m): !1-783-481-12
2Plug holder (Brown): 3-613-640-01
If the unit is used in the area except above, please contact
your local Sony Sales Office/Service Center.
1-4. Power Supply
1-4. Power Supply
1-4-1. Voltage and Power Requirements
This unit’s power line has a switching regulator.
c
Be sure to operate the unit within the range of following
power voltage.
Power voltage: AC 100 to 240 V ±10 %
Power frequency: 50 Hz or 60 Hz
Power consumption: Maximum 240 W
(With all of the presumed optional kits.)
Rush current:
Model Power Voltage
100 V IN 240 V IN
HDW-2000 20 A 40 A
Other HDWs 14 A 50 A
DVWs, MSWs 20 A 54 A
n
AC power supply is required a capacity which is commen-
surate with rush current.
If the capacity of the AC power supply is not enough, the
breaker of AC power of a supply side may operate or this
unit may not operate normally.
AC inlet
2
1
21
AC inlet
21 AC inlet
AC inlet
2
1

1-3
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
15.9
45445105
577(Maximum traveling distance)
112 3131
12.7
123.8
34
263.5
415.9
457.5
48 (38.5)
8787
70.6
36.2
465
481
17419.5
87
36431.5
427
53345.5
544
416(Rail-installed width)
427(Unit width)
(Mass of this unit : approx. 23 kg)
1-5. Installation Space
Moreover, an air flow that is effective in cooling the unit is
essential. If the ventilation is not enough, the unit may be
damaged because of an increase of the internal tempera-
ture.
n
This unit is air-cooled by the five fans. The operation with
the upper lid is removed affects the air cooling by the fans.
Complete the work in a short time as possible when operat-
ing the unit for inspection with the upper lid removed. If it
takes a long time, blow to the unit by an electric fan to cool
the unit.
1-5. Installation Space
When installing, the installation space must be secured in
consideration of the ventilation and service operation.
.Do not block the ventilation slots at the left side and
right side panels, and vents of the fans.
.Leave a space around the unit for ventilation.
.Leave more than 40 centimeters of space in the rear of
the unit to secure the operation area.
When the unit is installed on the desk or the like, leave at
least four centimeters of space in the left and right sides.
Leaving 40 centimeters or more of space above the unit is
recommended for service operation.
Dimensions when Rack-Mounting
n
This unit allows the operation with the detached lower control panel unit.
For details, refer to Section 1-12.
nRemove the feet when rack mounting. Unit : mm

1-4
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
PS4 x20
Feet
PS4 x20
Feet
Parts Packed in RMM-131
.Slide rails .......................................................... 2
.Rack angles (handles) with lock mechanism ... 2
.Rail brackets ..................................................... 4
.Plate nuts (large) .............................................. 4
.Plate nuts (small) .............................................. 4
.Screws (B4 x 8) ............................................... 8
.Hexagon socket head cap screws ..................... 8
.Flat washers ...................................................... 8
.Screws (RK5 x 14) .......................................... 2
.Ornamental washers ......................................... 2
.L-shaped hexagon wrench ............................... 1
Rack Mounting Procedure
.Removing the feet
1. Set the unit its side panel down.
2. Unscrew the four screws to remove the feet from the
bottom plate of the unit.
3. Set the unit in a horizontal position.
n
Keep these screws and the feet.
When operating the unit after demounting it from the rack,
be sure to reattach the feet.
Tightening torque: 98 x10_2N .m {10 kgf .cm}
1-6. Rack Mounting
1-6. Rack Mounting
Explains how to mount this unit into a 19-inch standard
rack.
Two positions (center and low) are available to attach the
inner rails of the slide rails to this unit.
Be sure to mount this unit (*) into a rack accurately
following the procedure and notes mentioned below.
*: The center position only is available for the units listed
below.
MSW-A2000 : Serial No. 10001 through 10180
MSW-A2000P : Serial No. 40001 through 40520
w
.To prevent toppling over the rack, fix it on the horizontal
and firm floor securely with bolts, etc.
.When installing the unit in an Outside Broadcasting van,
be sure to fix the unit to the rack using the screws and
ornamental washers supplied with the rack mount kit.
c
.Use the specified rack mount rail.
The use of other rail of low strength may drop the unit
and cause the risk of injury.
.Mount the unit into a rack with a steady posture.
m
.When other equipment with built-in hard disk drive is
already mounted in the same rack for mounting this unit,
turn off the power of the equipment before mounting this
unit.
.Connect long enough cables on the connector panel,
considering that the unit is pulled out from the rack.
.Do not operate this unit without the upper lid and bottom
plate except when servicing it.
.Adjust the temperature inside the rack within the range
of the unit’s operating temperature.
(Refer to Section 1-3.)
Specified Rack Mount Kit
RMM-131 (Optional accessory)
m
.When mounting this unit into Sony LMS (Library
Management System) VTR console, it is necessary to
modify the VTR console.
.When mounting this unit into Flexicart, be sure to use
the specified kit below.
VTR Mounting kit: BKFC-53/3
.The RMM-130 rack mount kit also can be used for the
center position.

1-5
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Outer rail
Intermediate rail
Inner rail
Stopper
A
B
.Attaching the rack angles (handles)
8. Remove the four screws from both sides (left and
right) of the unit.
n
Keep these screws (B4 x6).
Be sure to use these screws when directly fixing the
side panels without the rack angles.
The use of longer screws such as the screws (PSW 4 x
16) for fixing the rack angles of RMM-130 will cause
a malfunction of the unit.
9. Attach the two rack angles to both sides (left and right)
of the unit with the four screws (PSW4 x16).
Tightening torque: 120 x10_2N .m {12.2 kgf .cm}
n
.For RMM-131, screws with stop washers are used
for fixing the rack angles.
.For RMM-130, use the supplied screws PSW4 x16
as shown in Fig. 1.
1-6. Rack Mounting
.Attaching the inner rails
4. Pull out the inner rails from the two intermediate rails.
5. While pressing the stopper of the inner rail in the
direction of the arrow A in the figure, pull the inner
rail out in the direction of the arrow B.
6. Remove the ten screws from both sides (left and right)
of the unit as shown in the figure below.
7. Attach the two inner rails to both sides (left and right)
of unit with the removed screws in the step 6.
Tightening torque: 120 x10_2N .m {12.2 kgf .cm}
m
.Be sure to use the (B4 x 6) screws when attaching
the inner rail. The use other-sized screws may cause
a malfunction.
.Pay attention not to fasten the screws to the screw
holes other than actually used screw holes for fixing
the inner rails on both sides of the unit.
If unnecessary screws are fastened, rack mounting
will be unenabled.
n
When replacing a 5U size Sony VTR with this unit, attach
the inner rails to the low position, so that the bottom of the
unit becomes same as that of the 5U size VTR.
Inner rail
B4 x6
Inner rail
B4 x6
B4 x 6
B4 x 6
B4 x 6
PSW4 x 16
PSW
4 x 16
Rack angle
Rack angle
Rack angle
Fig.1 For RMM-130 (Left side)

1-6
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Plate nut (small)
Rail bracket
Rail
Flat washer
Hexagon socket
head cap screw
L-shaped hexagon wrench
By 4U
2U
Rack
50 to 55 mm
Outer rail
Rack angle B4 x8
Rail bracket
.Attaching the outer rails
12. Loosely attach the two outer rails to the middle of the
4U space in the rack for mounting this unit, with the
eight hexagon socket head cap screws, eight flat
washers, and four plate nuts (small).
13. As shown in the following figure, adjust each front-
side position of the outer rails on both sides (left and
right) so that the distance from the surface of the rack
to the tip of the rail becomes within the range of 50 to
55 millimeters.
14. Fully tighten the eight screws (B4 x 8) fixing the four
rail brackets.
Tightening torque: 120 x10_2N .m {12.2 kgf .cm}
1-6. Rack Mounting
.Loosely attaching the rail brackets
10. Slide the intermediate rail as shown in the figure, and
then loosely attach the rail bracket to the outer rail
with a plate nut (large) and the two screws.
11. Slide the ball retainer in the direction of the arrow, and
then loosely attach the rail bracket to the outer rail
with a plate nut (large) and the two screws.
Plate nut (large)
Rail bracket
Outer rail
Intermediate rail
B4 x8
Plate nut (large) Rail bracket
Outer rail
Intermediate rail
B4 x8
Ball retainer

1-7
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
A'
A
Intermediate rails
Width : A = A' =416 mm
15. Check that the two intermediate rails attached to the
rack are parallel.
16. To fix the two outer rails to the rack, fully tighten the
eight loosely fitted hexagon socket head cap screws in
step 12 using the L-shaped hexagon wrench.
1-6. Rack Mounting
.Mounting in rack
c
Be sure to carry the unit by the two persons or more.
17. Slide each ball retainer of intermediate rails on both
sides (left and right) in the direction of the arrow.
18. Pull equal length of each rail on both sides out.
19. Lift the unit holding the gripes on both sides, slowly
insert the inner rails into the intermediate rails.
20. While pressing each stopper of inner rails on both
sides, slowly push the unit into the rack.
c
Be careful not to catch your finger or hand in rack
mount rail.
n
Pushing the unit in the depths of the rack, the lock mecha-
nism prevents the unit from being pulled out.
To pull the unit out of the rack, pull the unit while pressing
the release buttons of the rack angles.
Intermediate rail
Ball retainer
Intermediate rail
Stopper
Stopper
Inner rail
Release button
Release button

1-8
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
21. Slide the unit in and out from the rack about three
times and check that the slide rails move smoothly.
If they are not smoothly, demount the unit and go back
to “Attaching the outer rails”(step 12).
c
When demounting the unit, carry it by the two persons
or more.
n
This unit does not have the feet at this operating.
Put down the unit on the floor or other, being careful
not to damage the unit.
22. Push the unit in the depths of the rack. The unit is
fixed to the rack by the lock mechanism.
Attempt to pull the rack angles and confirm that the
unit cannot be pulled out of the rack.
w
When installing the unit in an Outside Broadcasting
van, be sure to fix the unit to the rack using the screws
and ornamental washers supplied with the rack mount
kit.
Tightening torque: 120 x10_2N .m {12.2 kgf .cm}
n
When the unit is not fixed to the rack or the clearances
between the rack angle and rack are existed, it is
necessary to perform the adjustment for the lock
mechanism.
Refer to the RMM-131 installation guide for more
detailed information.
1-6. Rack Mounting
1-7. Connection
Ornamental
washer
Release button
Release button
RK5 x14
Ornamental washer
RK5 x14
1-7. Connection
1-7-1. Attaching the Clamp Filters (HDW
Series Only)
In the case of HDW series, to make the unit compliant with
the EMC regulation, be sure to attach the clamp filter on
each XLR cable connected to the following connectors.
n
In the case of DVW series and MSW series, it is not
required.
Supplied Accessories
Clamp filter (1-543-798-21) 6 pieces (Recorder)
or 4 pieces (Player)
Connectors of the XLR Cables
Required Attachment of the Clamp Filters
.MONITOR OUT L
.MONITOR OUT R
.TIME CODE IN (Recorder only)
.TIME CODE OUT
.CUE IN (Recorder only)
.CUE OUT
Attaching Position
Snap on the clamp filter at the place 50 to 150 mm away
from the connector plug of the XLR cable.
XLR connector plug
Clamp filter
50 to 150 mm

1-9
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1-7-2. Matching Connectors and Cables
When external cables are connected to the connector of this unit, the hardware listed below (or equiva-
lents) must be used.
Panel indication Matching connector (cable) Sony part No. Remarks
AUDIO INPUT XLR 3P, MALE 1-508-084-00 Recorder only
CUE IN
TIME CODE IN
AUDIO OUTPUT XLR 3P, FEMALE 1-508-083-00
CUE OUT
MONITOR OUT
TIME CODE OUT
REF INPUT BNC 75Z, MALE 1-569-370-12
VIDEO INPUT
VIDEO OUTPUT
AUDIO INPUT (AES/EBU) BNC 75Z, MALE *11-569-370-12
AUDIO OUTPUT (AES/EBU)
REMOTE 2 D-SUB 50P, MALE and 1-565-516-11
PARALLEL I/O (50P) JUNCTION SHELL 50P 1-563-379-11
REMOTE 1-IN (9P) 9P remote control cable (RCC-G series) _
REMOTE 1-OUT (9P) or or
D-SUB 9P, MALE and 1-560-651-00
JUNCTION SHEEL 9P 1-561-749-00
RS-232C D-SUB 9P, FEMALE 1-563-815-21
CONTROL PANEL 10P, MALE 1-792-418-11/BKMW-103 (10 m, available separately)
(exclusive connecting cable)
VIDEO CONTROL (15P) D-SUB 15P, FEMALE and 1-561-610-21
JUNCTION SHELL 15P 1-561-929-00
VIDEO CONTROL (9P) D-SUB 9P, MALE and 1-561-651-00 HDW series only
JUNCTION SHELL 9P 1-561-749-00
(OPTION) Specified by optional kit _DVW/MSW series only
or
D-SUB 9P, MALE and 1-560-651-00
JUNCTION SHEEL 9P 1-561-749-00
HD SDI BNC 75Z, MALE *21-569-370-12 HDW series only
SDI BNC 75Z, MALE *31-569-370-12
SDTI-CP
SDTI (OPTION)
Ethernet *5Cable compliant with 1000BASE-T standard MSW-M2000E/M2000EP/M2100E/M2100EP only
(UTP cable: Category 5e and higher) *4
PHONE JM-60 stereo phone plug _Upper control panel connector
*1: Coaxial cable length : max. 600 meters (Reference value based on HDW/DVW/MSW series)
It is recommended to connect the BELDEN 8281 cable or equivalent to this connector.
*2: Coaxial cable length : max. 100 meters (Reference value based on HDW series)
It is recommended to connect the BELDEN 1694A cable or equivalent to this connector.
*3: Coaxial cable length : max. 200 meters (Reference value based on HDW/DVW/MSW series)
It is recommended to connect the BELDEN 8281 cable or equivalent to this connector.
*4: Coaxial cable length : max. 100 meters
A category 5 cable can only be used for 100BASE-TX communication.
*5: Ethernet is a registered trademark of Xerox corporation.
1-7. Connection

1-10
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1-8. Signal Inputs and Outputs
1-8. Signal Inputs and Outputs
n
Meanings of “*”marks applied for the connector names are shown below:
*1 : Connector for recorder
*2 : Connector for player
*3 : Connector for HDW
*4 : Connector for DVW
*5 : Connector for MSW
*6 : Connector for MSW-M2000E/M2000EP/M2100E/M2100EP
Input connectors
1AUDIO INPUT *1XLR 3-pin x 4 (1 set : CH1, CH2, CH3, and CH4)
Analog audio
LOW OFF : _60 dBu, high impedance, balanced
HIGH OFF : +4 dBu (Standard), high impedance, balanced
HIGH ON : +4 dBm (Standard), 600 Ztermination, balanced
1CUE IN *1, 3, 4 XLR 3-pin x 1
Analog audio
LOW OFF : _60 dBu, high impedance, balanced
HIGH OFF : +4 dBu (Standard), high impedance, balanced
HIGH ON : +4 dBm (Standard), 600 Ztermination, balanced
1TIME CODE IN *1XLR 3-pin x 1
Time code 0.5 to 18 V p-p, 10 kZ, balanced
2VIDEO INPUT, REF.VIDEO *1, 4, 5 BNC x 2 in loop through connection
REF. INPUT, REF.VIDEO *2, 5 Outside reference video signal
REF. INPUT *3SD : 0.3 V p-p, 75 Z, sync negative (Black burst or composite sync)
HD : 0.6 V p-p, 75 Z, sync negative (Ternary SYNC) (HDW series only)
2VIDEO INPUT, COMPOSITE *1, 4, 5 BNC x 2 in loop through connection
Analog composite video 1.0 V p-p, 75 Z, sync negative
2VIDEO INPUT, COMPONENT *1, 4, 5 BNC x 3 (1 set : Y, R-Y, and B-Y)
Analog component video
Y : 1.0 V p-p, 75 Z, sync negative
R-Y/B-Y : 0.7 V p-p, 75 Z
3AUDIO INPUT (AES/EBU) *1BNC x 4 (1 set : CH1/2, CH3/4, CH5/6, and CH7/8) or
BNC x 2 (1 set : CH1/2, CH3/4)
Digital audio
AES/EBU format, complies with AES-3id-1995
5SDI INPUT *1, 4, 5 BNC x 1 (active through out x 1)
Serial digital interface (270 Mbit/s), complies with SMPTE 259M & ITU-R BT.656
5SDTI-CP INPUT *1, 5 BNC x 1
Serial data transport interface (270 Mbit/s), complies with SMPTE 326M (SDTI-CP)
5HD SDI INPUT *1, 3 BNC x 1 (input monitor x 1)
Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M
5SDTI INPUT (OPTION) *1, 3 BNC x 1
Serial data transport interface (270 Mbit/s), complies with SMPTE 305M (SDTI)

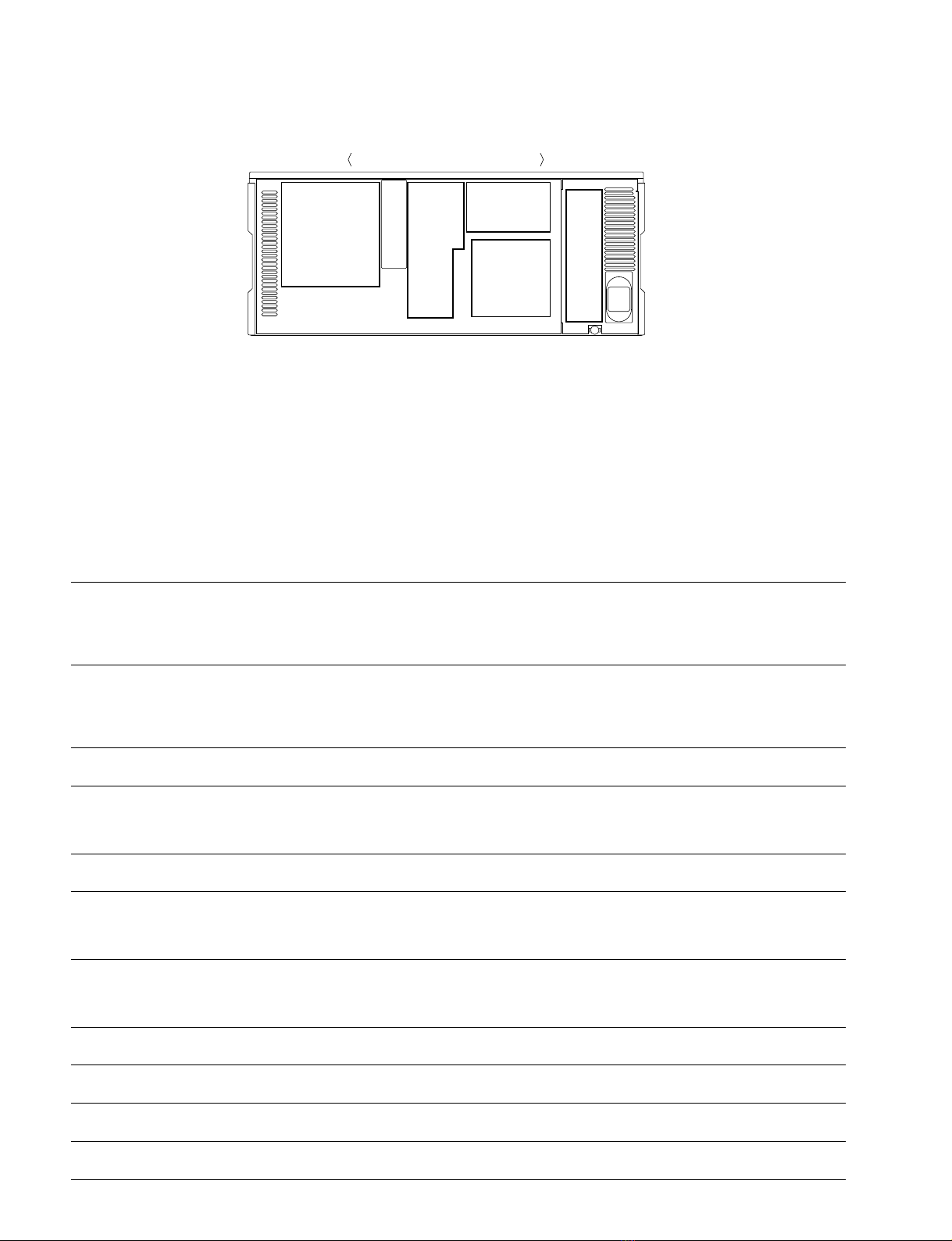

Reduced drawing of rear panel
12
5
3
4

1-11
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
1-8. Signal Inputs and Outputs
Remote connectors
4REMOTE 2 PARALLEL I/O (50P) *** D-SUB 50P connector
4REMOTE1-IN (9P) D-SUB 9P connector (RS-422A interface), Remote control
4REMOTE1-OUT (9P) D-SUB 9P connector (RS-422A interface), Remote control
4RS-232C D-SUB 9P connector (RS-232C interface) for ISR (Interactive Status Reporting)
4CONTROL PANEL 10P connector for an outside control panel connection only
4VIDEO CONTROL (15P) D-SUB 15P connector for a TBC remote controller (BVR-50) exclusive connection
4VIDEO CONTROL (9P) *3D-SUB 9P connector for a TBC remote controller (HKDV-900) connection
4(OPTION) *4, 5 D-SUB 9P connector for an optional kit
*** : Refer to Optional “Interface manual”for details.
Output connectors
1AUDIO OUTPUT XLR 3-pin x4 (1 set : CH1, CH2, CH3, and CH4)
Analog audio
+4 dBm (Standard) (600 Zload), low impedance, balanced
1CUE OUT XLR 3-pin x4 (1 set : CH1, CH2, CH3, and CH4)
(Excl. MSW-2000/A2000/A2000P) Analog audio
+4 dBm (Standard) (600 Zload), low impedance, balanced
1TIME CODE OUT XLR 3-pin x1
Time code 2.2 V p-p, low impedance, balanced
1MONITOR OUTPUT XLR 3-pin x2 (1 set : L and R)
Analog audio
+4 dBm (Standard) (600 Zload), low impedance, balanced
2VIDEO OUTPUT, COMPOSITE BNC x3 (including 1 for character superimpose)
Analog composite video 1.0 V p-p, 75 Z, sync negative
2VIDEO OUTPUT, COMPONENT BNC x3 (1 set : Y, R-Y, and B-Y)
Analog component video
Y : 1.0 V p-p, 75 Z, sync negative
R-Y/B-Y : 0.7 V p-p, 75 Z
3AUDIO OUTPUT (AES/EBU) BNC x4 (1 set : CH1/2, CH3/4, CH5/6, and CH7/8) or
BNC x2 (1 set : CH1/2, CH3/4)
Digital audio
AES/EBU format, complies with AES-3id-1995
5HD SDI OUTPUT *3BNC x3 (including 1 for character superimpose)
Serial digital interface (270 Mbit/s), complies with SMPTE 292
5SDI OUTPUT BNC x3 (including 1 for character superimpose)
Serial digital interface (270 Mbit/s), complies with SMPTE 259M & ITU-R BT.656
5SDTI-CP OUTPUT *5BNC x2
Serial data transport interface (270 Mbit/s), complies with SMPTE 326M (SDTI-CP)
5SDTI OUTPUT (OPTION) *3BNC x2
Serial data transport interface (270 Mbit/s), complies with SMPTE 305M (SDTI)
PHONE JM-60 stereo phone jack
(Upper control panel) Analog audio
up to _12 dBu (8 Zload), unbalanced
Input/Output connector
5Ethernet *6RJ-45 modular jack (with LED)
1000BASE-T (compliant with IEEE802.3ab)
100BASE-TX (compliant with IEEE802.3u)
10BASE-T (compliant with IEEE802.3i)
(Automatically detected by Auto-Negotiation)

1-12
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
Other
Memory stick Memory stick x1
(Switch panel) Applicable memory stick (8 MB to 128 MB)
Memory card PCMCIA x1
(Switch panel) Recommended usable memory card :
(Excl. DVW-2000/2000P/M2000/M2000P 2 MB : Part No. 1-772-003-11
and MSW-2000) 4 MB : Part No. 1-772-004-11
1-8. Signal Inputs and Outputs

1-13
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
117
External view
3450
33 18
1-8. Signal Inputs and Outputs
REMOTE 2 PARALLEL I/O: 50-pin (female)
Pin No. I/O **
**
*1Setting change **
**
*2Signal Description
1INOFF CLOSURE SW (FF)
2 OUT XREC SW PANEL REC SW OUT
3 OUT XPLAY SW PANEL PLAY SW OUT
4 OUT XSTOP SW PANEL STOP SW OUT
5 OUT XENTRY SW PANEL ENTRY SW OUT
6 OUT XREF SYSTEM ALARM Non-REFERENCE
7 OUT XCF LOCK COLOR FRAME LOCK STATUS
8 OUT XDRUM LOCK LOCK STATUS OF DRUM SERVO
9 OUT XCAP LOCK LOCK STATUS OF CAPSTAN SERVO
10 OUT OCUE PRESET EDIT PRESET STATUS of the CUE Channel
11 OUT OTC PRESET EDIT PRESET STATUS of the TC Channel
12 OUT OOXIDE/METAL OXIDE/METAL TAPE STATUS
13 OUT OTAPE THICKNESS TAPE THICKNESS STATUS
14 OUT XSPARE SPARE
15 OUT XSPARE SPARE
16 —— —— +12V (Maximum output current 50 mA)
17 —— —— GND SIGNAL GND
18 IN OPREROLL CLOSURE SW (PREROLL)
19 IN OSTBY ON CLOSURE SW (STANDBY ON)
20 IN OREW CLOSURE SW (REW)
21 IN OENTRY CLOSURE SW (ENTRY IN)
22 IN OSTBY OFF CLOSURE SW (STANDBY OFF)
23 IN OEJECT CLOSURE SW (EJECT)
24 OUT XREC REC STATUS
25 OUT XCH CONDITION RED CHANNEL CONDITION RED STATUS
26 OUT OASSEMBLE PRESET ASSEMBLE PRESET STATUS
27 OUT OEDIT OUT EDIT STATUS
28 OUT OEJECT OUT EJECT STATUS
29 OUT OANALOG/DIGITAL ANALOG/DIGITAL STATUS
30 OUT OREEL HUB REEL HUB STATUS
31 OUT XREM2 SETTING DATA RESET REMOTE2 SETTING DATA RESET STATUS
32 OUT XALL REC INHIBIT ALL REC INHIBIT STATUS
33 —— —— GND
34 IN OPLAY CLOSURE SW (PLAY)
35 IN OSTOP CLOSURE SW (STOP)
(Continue)

1-14
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
External view
51
69
External view
15
96
1-8. Signal Inputs and Outputs
(Continued)
Pin No. I/O **
**
*1Setting change **
**
*2Signal Description
36 IN OREC CLOSURE SW (REC)
37 OUT XREV LAMP REV LAMP STATUS
38 OUT ODA2 PRESET DA2 EDIT PRESET STATUS
39 OUT ODA1 PRESET DA1 EDIT PRESET STATUS
40 OUT XFWD LAMP FWD LAMP STATUS
41 OUT ODA4 PRESET DA4 EDIT PRESET STATUS
42 OUT ODA3 PRESET DA3 EDIT PRESET STATUS
43 OUT XSTOP STOP STATUS
44 OUT OVIDEO PRESET VIDEO EDIT PRESET STATUS
45 OUT OINSERT PRESET INSERT EDIT PRESET STATUS
46 OUT XSTBY ON STANDBY ON STATUS
47 OUT XPLAY PLAY STATUS
48 OUT XREMOTE REMOTE STATUS
49 OUT XALARM SYSTEM ALARM STATUS
50 OUT OPREROLL PREROLL STATUS
*1: Input ; 47 kZpull up to +5 V (close/open)
Output ; 10 kZpull up to +5 V (0 V or open)
*2: The pins described as Omark are possible to change the setting.
Refer to the optional interface manual for changing the setting.
RS-232C: 9-pin (male)
REMOTE1-IN: 9-pin (female)
REMOTE1-OUT: 9-pin (female)
Pin No. Signal
1 GND
2 RM TX(_)
3 RM RX(+)
4 GND
5 PRIORITY
6 GND
7 RM TX(+)
8 RM RX(_)
9 GND
Pin No. Signal
1 DCD ; Data Carrier Detect (Input)
2 RXD ; Received Data (Input)
3 TXD ; Transmitted Data (Output)
4 DTR ; Data Terminal Ready (Output)
5 SG ; Signal Ground
6 DSR ; Data Set Ready (Input)
7 RTS ; Request to Send (Output)
8 CTS ; Clear to Send (Input)
9NC
