Sony ECM-44BMP User manual

Sony Lavalier Microphones
Actual size
ECM-88 Series
ECM-88FPT
ECM-77 Series
ECM-66 Series
ECM-55 Series
ECM-44 Series
ECM-166 Series
ECM-V1BMP
ECM-X7BMP

2
Sony is a leading provider of professional
lavalier microphones.
The ECM-50, Sony’s rst lavalier microphone released in 1969, was an epoch-making
product that achieved a perfect balance between compact size and excellent
performance. The ECM-50 led to the development of the broadcast-standard
ECM-30, a smaller and less expensive lavalier released a few years later.
More than four decades later, Sony is still a leader in the lavalier microphone market
with nine models and 21 variations, including the ECM-55 which is the successor of the
legendary ECM-50, and the ECM-44 which is the successor of the ECM-30.
Sony’s ECM-88 is a series of ultra-miniature, omni-directional lavalier microphones,
whose performance is highly acclaimed within broadcast, production, and theatrical
circles. The ECM-77 is also very well regarded, especially by broadcasters.
The ECM-66 is another top-of-the-line model with uni-directional directivity, which
provides good isolation and resistance to feedback.
Sony is also a leading manufacturer of digital wireless microphone systems*1.
Recently, the ECM-66, ECM-55, and ECM-44 series have been qualied for use with
digital wireless by enhancing the capsule shielding to reduce radio frequency
interference susceptibility, as well as the ECM-77 series*2. In addition to superb sound
quality, digital systems offer a number of advantages such as stable transmission and a
more exible channel plan.
Lavalier microphones from Sony are an ideal choice for virtually all quality-conscious
sound-gathering applications, including public address, ENG/EFP, studio, theater, and
use with musical instruments.
*1 The digital wireless microphone system is not available in some countries.
*2 Digital wireless system requires use of the /9X version lavalier microphones.
The ECM-77, ECM-66, ECM-55, and ECM-44 series have already been switched to the /9X version.
VARIATION OF THE INTERFACE
B type *3BC type BMP type
Supplied with an in-line battery unit, or a
DC-78 DC power supply unit. Two-way
powering possible - internal AA-size (LR6)
alkaline-battery operation or external DC
(12 to 48 V) operation.
Supplied with a Sony 4-pin connector
(SMC9-4P), for use with the WRT-8B/822A/822B,
UHF-synthesized transmitter, or DWT-B01
bodypack transmitter.
Supplied with a 3-pole locking mini plug for
use with the bodypack transmitter included in
the UWP series.
BPT type *4*5FPT type
Supplied without a connector (pigtail), ena-
bling users to choose connectors according
to their transmitter.
Beige-colored model supplied without a
connector (pigtail), enabling users to choose
connectors according to their transmitter.
B BC BMP BPT FPT
/9X
BPT
BC
FPT
BMP
Legend:
Note: /9X version shown (bottom microphone
image in each box ) includes a different
color strain relief at the top of the
connector.
Type of applicable interface.
Digital wireless model
B
*3 ECM-44B does not support external DC operation.
*4 There is no difference in appearance between the conventional BPT type and “/9X” BPT type.
*5 Radio-frequency interference from the digital wireless system may occur if the self-prepared connector has not been grounded sufciently.

ECM-88 series ECM-77 series ECM-66 series
FEATURES
Directivity Characteristics Directivity Characteristics
Frequency Response Characteristics Frequency Response Characteristics Frequency Response Characteristics
FEATURES FEATURES
• Ultra-miniature, omni-directional
electret condenser microphone.
• Designed for quality-critical
applications in broadcasting, theater,
and eld productions.
• Choice of model variations to suit
specic user requirements.
• Flat-and-wide frequency response
provides natural sound reproduction.
• Water-resistant design maintains
sound clarity in almost any
application or environment.
• Dual-diaphragm mechanism
contributes to high sensitivity, wide
dynamic range, and low noise.
• Low cable-noise characteristics.
• Miniature design makes it easy to
conceal in a stage costume.
• Miniature, omni-directional electret
condenser microphone.
• Performance and reliability in studio,
ENG, and EFP applications.
• Choice of model variations to suit
specic user requirements.
• Wide frequency response,
high sensitivity, and low-noise
characteristics.
• Miniature design makes it easy to
conceal.
• Ideal for use with DWT-B01.
• Uni-directional, electret condenser
microphone.
• Resistant to howling by rejecting
indirect sound.
• Ideal for institutional use and sound-
contracting applications such as
speeches, lectures, and conferences.
• Designed for a wide range
of applications from voice to
instrumental recording.
• Wide dynamic range (101 dB), and
high maximum input-sound-pressure
level (130 dB SPL).
• Low inherent-noise characteristics.
B BC BMP BPT FPTB BC BMP BPT FPT
/9X /9X
B BC BMP BPT FPT
100Hz
1KHz
6KHz
10KHz
0°
30°
60°
90°
120°
150° 150°
180°
120°
90°
60°
30° 0dB
-5
-10
-15
-20
100Hz
1KHz
10KHz
0°
30°
60°
90°
120°
150° 150°
180°
120°
90°
60°
30° 0dB
-5
-10
-15
-20
50 100 200 500 1k 2k 5k
90°
180°
10k 20k20
-20
-10
0
+10
+20
Response (dB)
Frequency (Hz)
0°
0°
90°
180°
50 100 200 500 1k 2k 5k 10k 20k20
-20
-10
0
+10
+20
Response (dB)
Frequency (Hz)
100Hz/
1kHz
6KHz
10KHz
0°
30°
60°
90°
120°
150° 150°
180°
120°
90°
60°
30° 0dB
-5
-10
-15
-20
Directivity Characteristics
180°
50 100 200 500 1k 2k 5k 10k 20k20
Frequency (Hz)
0°
-20
-10
0
+10
+20
Response (dB)
90°
Product Description
3

4
ECM-55 series ECM-44 series ECM-166 series
FEATURES FEATURES FEATURES
• Omni-directional, electret condenser
microphone.
• High signal-to-noise ratio and low
inherent-noise characteristics.
• Large microphone head of 10.6 mm
(7/16 inch) diameter offers rich sound
reproduction.
• Successor to the ECM-50 microphone,
the world's rst electret condenser
lavalier microphone.
• Omni-directional, electret condenser
microphone.
• Choice of model variations to suit
specic user requirements.
• Cost-effective miniature microphone
provides superb sound quality.
ECM-44B does not support external DC
operation.
• Uni-directional, electret condenser
microphone.
• Resistant to howling by rejecting
indirect sound.
• Reasonably priced lavalier
microphone, ideal for institutional use
and sound-contracting applications
such as presentations, lectures, and
conferences.
BBC BMP BPT FPT B BC BMP BPT FPT B BC BMP BPT FPT
Directivity Characteristics Directivity Characteristics
Frequency Response Characteristics Frequency Response Characteristics
100Hz
1KHz
3KHz
10KHz
120°
0°
30°
60°
90°
150° 150°
180°
120°
90°
60°
30° 0dB
-5
-10
-15
-20
100Hz
/1KHz
3KHz
10KHz
120°
0°
30°
60°
90°
150° 150°
180°
120°
90°
60°
0dB
-5
-10
-15
-20
0°
90°
180°
50 100 200 500 1k 2k 5k 10k 20k20
-20
-10
0
+10
+20
Response (dB)
Frequency (Hz)
0°
90°
180°
50 100 200 500 1k 2k 5k 10k 20k20
-20
-10
+10
+20
Response (dB)
Frequency (Hz)
0
/9X /9X
Product Description

5
ECM-V1BMP ECM-X7BMP ECM-322 series
FEATURES FEATURES
FEATURES
• The lavalier microphone supplied with
the UWP package is available as an
individual microphone.
• Omni-directional, electret condenser
microphone.
• Reasonably priced lavalier
microphone, ideal for ENG and EFP
uses.
• The lavalier microphone supplied with
the UWP package is available as an
individual microphone.
• Uni-directional, electret condenser
microphone.
• Resistant to howling by rejecting
indirect sound.
• Reasonably priced lavalier
microphone, ideal for institutional use
and sound-contracting applications
such as speeches, lectures, and
conferences.
• Omni-directional, electret condenser
microphone.
• Headset microphone, ideal for a
variety of multimedia presentation
applications ranging from seminars
and conferences to lectures and
workshops.
• Ear-clip-style design, wearable on
either the left or right ear.
• The position of the microphone is
adjustable.
• With the adjustable soft-texture ear
hook and detachable headband, the
headset microphone is comfortable
to wear and ts stably on the ear, even
during lengthy presentations.
B BC BMP BPT FPT B BC BMP BPT FPT
BBC BMP BPT FPT
Directivity Characteristics Directivity Characteristics
Frequency Response Characteristics Frequency Response Characteristics
1KHz
120°
0°
30°
60°
90°
210° 150°
180°
240°
270°
300°
330° 0dB
-5
-10
-15
400Hz
1KHz
4KHz
120°
30°
60°
90°
210° 150°
180°
240°
270°
300°
0dB
-15
-20
0°
330°
-5
-10
50 100 200 500 1k 2k 5k 10k 20k20
Frequency (Hz)
-20
-10
+10
+20
Response (dB)
0
Frequency (Hz)
0°
90°
180°
-20
-10
+10
+20
Response (dB)
0
50 100 200 500 1k 2k 5k 10k 20k20
* The characteristics are measured as UTX-B2V. * The characteristics are measured as UTX-B2X.

6
ECM-88 Series ECM-77 Series ECM-66 Series ECM-55 Series
Model Variations
XLR type
(Supplied with a battery unit and XLR-3-12C type
connector.)
ECM-88B with supplied DC-78 ECM-77B ECM-66B ECM-55B
SMC type
(Supplied with a Sony 4-pin <SMC9-4P> connector.)
ECM-88BC ECM-77BC ECM-66BC —
BMP type
(Supplied with a 3.5 mm diameter, 3-pole mini plug.)
— ECM-77BMP — —
Pigtail type
(Supplied without a connector <pigtail>.)
ECM-88BPT
ECM-88FPT
ECM-77BPT — —
Capsule type Electret Condenser Electret Condenser Electret Condenser Electret Condenser
Frequency response 20 Hz to 20 kHz 40 Hz to 20 kHz 70 Hz to 14 kHz 30 Hz to 18 kHz
Directivity Omni-directional Omni-directional Uni-directional Omni-directional
Sensitivity
(0 dB=1 V/Pa,at 1 kHz)
XLR type −52.0 dB ± 2 dB* −52.0 dB ± 2 dB −50.0 dB ± 2 dB −52.0 dB ± 2 dB
SMC/BMP/Pigtail type −39.0 dB ± 2 dB −39.0 dB ± 2 dB −36.5 dB ± 2 dB —
Output impedance
at 1 kHz
XLR type 100  ± 20% (balanced)* 150  ± 20% (balanced) 100  ± 20% (balanced) 100  ± 20% (balanced)
SMC/BMP/Pigtail type 2.5 k ± 30% (unbalanced) 2.5 k ± 30% (unbalanced) 2.5 k ± 30% (unbalanced) —
Dynamic Range 99 dB or more 90 dB or more 101 dB or more 98 dB or more
Signal-to-noise ratio (A-weighted, 1 kHz, 1 Pa.) 68 dB or more 64 dB or more 65 dB or more 66 dB or more
Inherent noise (0dB SPL = 2E-5 Pa.) 26 dB SPL or less 30 dB SPL or less 29 dB SPL or less 28 dB SPL or less
Wind noise (with windscreen, at 2m/s)
(0 dB SPL = 2E-5 Pa.)
45 dB SPL or less 40 dB SPL or less 50 dB SPL or less 40 dB SPL or less
Induction noise from external magnetic eld
(dB SPL/1E-7 T, 0 dB SPL = 2E-5 Pa.)
5 dB SPL or less 5 dB SPL or less 5 dB SPL or less 5 dB SPL or less
Maximum input sound pressure level (0 dB SPL = 2E-5 Pa.) 125 dB SPL 120 dB SPL 130 dB SPL 126 dB SPL
Power supply
(XLR type only)
Battery IECR6 or LR6* IECR6 or LR6 IECR6 or LR6 IECR6 or LR6
Battery life (LR6) Approx.6000 h* Approx.6000 h Approx.400 h Approx.6000 h
External power DC 12 to 48 V* DC 12 to 48 V DC 24 to 48 V DC 12 to 48 V
Power requirements XLR type DC 1.5 V* DC 1.5 V DC 1.5 V DC 1.5 V
SMC/BMP/Pigtail type DC 1.1 to 10.0 V DC 1.1 to 10.0 V DC 1.1 to 10.0 V —
Current drain XLR type (internal battery) 0.3 mA or less* 0.3 mA or less 3.5 mA or less 0.3 mA or less
XLR type (external battery) 2 mA or less* 2 mA or less 2 mA or less 2 mA or less
SMC/BMP/Pigtail type 0.4 mA or less 0.4 mA or less 0.4 mA or less —
Cable length XLR type 8.2 feet (2.5 m) 9.8 feet (3.0 m) 9.8 feet (3.0 m) 9.8 feet (3.0 m)
SMC/BMP type 3.9 feet (1.2 m) 3.9 feet (1.2 m) 3.9 feet (1.2 m) —
Pigtail type 8.2 feet (2.5 m) 9.8 feet (3.0 m) — —
Dimensions Microphone head 5/32 x 5/32 x 11/16 inch
(3.5 x 3.5 x 16.8 mm)
Clip attachment area:
5/32 inch (3.9 mm) diameter
1/4diameter x 1/2inch
(5.6 diameter x 12.5 mm)
7/16 diameter x 31/32 inch
(10.6 diameter x 24.2 mm)
7/16 diameter x 27/32 inch
(10.6 diameter x 21 mm)
Power unit (XLR type only) 13/16 diameter x 5 3/4inches
(20.0 diameter x 144 mm)
13/16 diameter x 5 1/4inches
(20.0 diameter x 133 mm)
13/16 diameter x 6 1/2inches
(20.0 diameter x 163 mm)
13/16 diameter x 5 1/4inches
(20.0 diameter x 133 mm)
Weight Microphone head only 0.02 oz (.6 g) 0.05 oz (1.5 g) 0.25 oz (7 g) 0.23 oz (6.5 g)
Total XLR type 5.7 oz (162 g) 4.3 oz (122 g) 5.9 oz (167 g) 4.5 oz (127 g)
SMC type 0.7 oz (22 g) 0.8 oz (23 g) 1.1 oz (30 g) —
BMP type — 0.6 oz (17 g) — —
Pigtail type 0.7 oz (20 g) 0.9 oz (26 g) — —
Supplied accessories Single/Horizontal type tie clip
(x1)*2,
Single/Vertical type tie clip
(x1)*2,
Double/Horizontal type tie clip
(x1)*3,
Urethane type windscreen
(x1)*2,
Microphone case (x1)*3,
Operating instructions (x1),
Ferrite clamp (x1)
Single/Horizontal type tie clip
(x1)*4,
Single/Vertical type tie clip
(x1)*4,
Double/Horizontal type tie
clip (x1),
Metal-mesh type windscreen
(x1),
Microphone case (x1)*4,
Operating instructions (x1)
Single/Horizontal type tie
clip (x1),
Single/Vertical type tie clip
(x1)*5,
Urethane type windscreen (x1),
Microphone case (x1),
Operating instructions (x1)
Single/Horizontal type tie
clip (x1),
Single/Vertical type tie clip (x1),
Double/Horizontal type tie
clip (x1),
Metal-mesh type windscreen
(x1),
Microphone case (x1),
Operating instructions (x1)
*1 ECM-88B used with the supplied DC-78 battery unit.
*2 ECM-88FPT is not supplied with mic accessories.
*3 Double / Horizontal type tie clip and microphone case are supplied with ECM-88B only.
*4 Single / Vertical type tie clip,Double / Horizontal type tie clip, and microphone case are supplied with ECM-77B only.
*5 Single / Vertical type tie clip and microphone case are supplied with ECM-66B only.
SPECIFICATIONS

7
ECM-44 Series ECM-166 Series ECM-V1 Series*7ECM-X7 Series*8ECM-322 Series
Model Variations
XLR type
(Supplied with a battery unit and XLR-3-12C
type connector.)
ECM-44B — — — —
SMC type
(Supplied with a Sony 4-pin <SMC9-4P> connector.)
ECM-44BC ECM-166BC — — ECM-322BC
BMP type
(Supplied with a 3.5 mm diameter, 3-pole mini plug.)
ECM-44BMP ECM-166BMP ECM-V1BMP ECM-X7BMP ECM-322BMP
Pigtail type
(Supplied without a connector <pigtail>.)
ECM-44BPT — — — —
Capsule type Electret Condenser Electret Condenser Electret Condenser Electret Condenser Electret Condenser
Frequency response 40 Hz to 15 kHz 100 Hz to 10 kHz 40 Hz to 20 kHz 100 Hz to 15 kHz 50 Hz to 18 kHz
Directivity Omni-directional Uni-directional Omni-directional Uni-directional Omni-directional
Sensitivity
(0 dB=1 V/Pa,at 1 kHz)
XLR type −53.0 dB ± 3 dB — — — —
SMC/BMP/Pigtail type −40.0 dB ± 3 dB −45.0 dB ± 3 dB −43.0 ± 3 dB −44.0 ± 3 dB −42 dB ± 3 dB
Output impedance
at 1 kHz
XLR type 250  ± 20% (balanced) — — — —
SMC/BMP/Pigtail type
2.5 k ± 30% (unbalanced) 2.5 k ± 30% (unbalanced) 1.2 k ± 30% (unbalanced) 1.2 k ± 30% (unbalanced) 1.4 k ± 30% (unbalanced)
Dynamic Range 90 dB or more 96 dB or more 86 dB or more 88 dB or more 81 dB or more
Signal-to-noise ratio (A-weighted, 1 kHz, 1 Pa.) 62 dB or more 60 dB or more 60 dB or more 62 dB or more 60 dB or more
Inherent noise (0dB SPL = 2E-5 Pa.) 32 dB SPL or less 34 dB SPL or less 34 dB SPL or less 32 dB SPL or less 34 dB SPL or less
Wind noise (with windscreen, at 2m/s)
(0 dB SPL = 2E-5 Pa.)
40 dB SPL or less — — — 55 dB SPL or less
(without windscreen)
Induction noise from external magnetic eld
(dB SPL/1E-7 T, 0 dB SPL = 2E-5 Pa.)
5 dB SPL or less — — — —
Maximum input sound pressure level (0 dB SPL = 2E-5 Pa.) 122 dB SPL 130 dB SPL 120 dB SPL 120 dB SPL 115 dB SPL
Power supply
(XLR type only)
Battery IECR6 or LR6 — — — —
Battery life (LR6) Approx. 6000 h — — — —
External power — — — — —
Power requirements XLR type DC 1.5 V — — — —
SMC/BMP/Pigtail type DC 1.1 to 10.0 V DC 1.1 to 10.0 V DC 5 V DC 5 V DC 1.1 to 10.0 V
Current drain XLR type (internal battery) 0.3 mA or less — — — —
XLR type (external battery) — — — — —
SMC/BMP/Pigtail type 0.4 mA or less 0.4 mA or less 0.2 mA or less 0.2 mA or less 1.3 mA or less
Cable length XLR type 9.8 feet (3.0 m) — — — —
SMC/BMP type 3.9 feet (1.2 m) 3.9 feet (1.2 m) 3.9 feet (1.2 m) 3.9 feet (1.2 m) 3.9 feet (1.2 m)
Pigtail type 9.8 feet (3.0 m) — — — —
Dimensions Microphone head 11/32 diameter x
19/32 inch
(8.5 diameter x 14.5 mm)
1/2diameter x
15/16 inch
(12.5 diameter x 23.5 mm)
9/32 diameter x
25/32 inch
(6.8 diameter x 19.5 mm)
15/32 diameter x
13/16 inch
(11.5 diameter x 20.5 mm)
11/32 diameter (capsule
case) x 6 5/6inch
(8.4 diameter x 168 mm)
Power unit (XLR type only) 13/16 diameter x 5 inches
(20.0 diameter x 126 mm)
————
Weight Microphone head only 0.07 oz (2 g) 0.12 oz (3.5 g) — — —
Total XLR type 4.3 oz (121 g) — — — —
SMC type 0.8 oz (24 g) 1.0 oz (25 g) — —
0.4 oz (10 g) without connector
BMP type 0.6 oz (18 g) 0.7 oz (19 g) 0.57 oz (16.2 g) 0.63 oz (18.0 g) 0.4 oz (10 g) without connector
Pigtail type 1.0 oz (29 g) — — — —
Supplied accessories Single/Horizontal type tie
clip (x1),
Urethane type windscreen
(x1),
Microphone case
(x1)*6,
Operating instructions (x1)
Single/Horizontal type tie
clip (x1),
Urethane type windscreen
(x1),
Operating instructions (x1)
Single/Horizontal type tie
clip (x1),
Urethane type windscreen
(x1)
Single/Horizontal type tie
clip (x1),
Urethane type windscreen
(x1)
Headband (x1), clip (x1),
Carrying case (x1),
Operating instructions (x1)
*6 The microphone case is supplied with ECM-44B only.
*7 The characteristics are measured as UTX-B2V.
*8 The characteristics are measured as UTX-B2X.

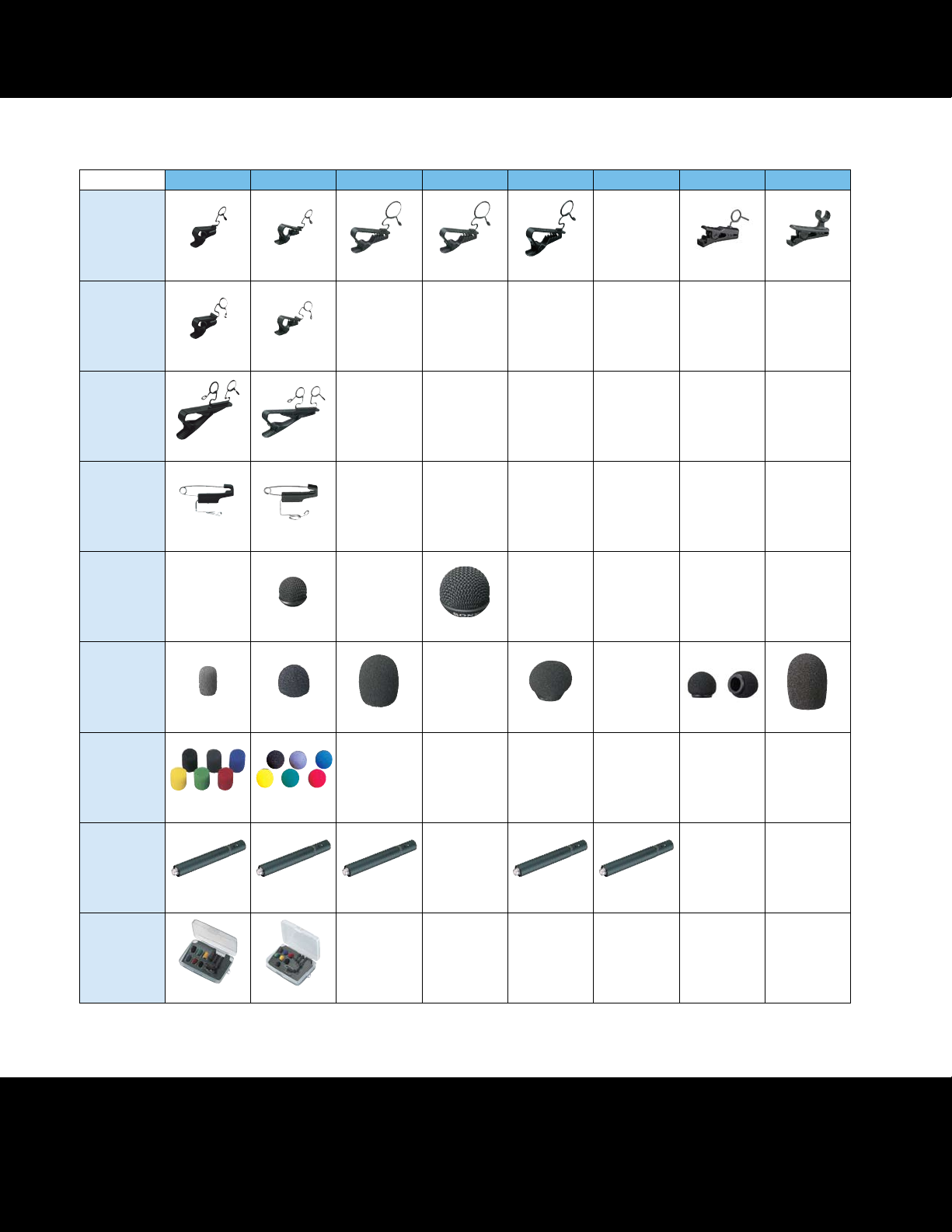

ECM-88 ECM-77 ECM-66 ECM-55 ECM-44 ECM-166 ECM-V1 ECM-X7
Single/Hori-
zontal type tie
clip
SAD-H88B (x 6) SAD-H77B (x 10) SAD-H55B (x 10) SAD-H55B (x 10) SAD-H44B (x 10)
—
SAD-HV1B2 (x 4) SAD-HV1B (x 4)
Single/Vertical
type tie clip
SAD-V88B (x 6) SAD-V77B (x 10)
——————
Double/
Horizontal type
tie clip
SAD-W88BL (x 6) SAD-W77BL (x 6)
——————
Safety-pin type
microphone
holder
SAD-S88B (x 6) SAD-S77 (x 6)
——————
Metal-mesh
windscreen —
AD-R77B (x 6)
—
AD-R55B (x 6)
————
Urethane
windscreen
AD-R88B (x 12) AD-C77B (x 12) AD-R66B (x 12)
—
AD-R44B (x 12)
—
AD-RV1B2 (x 5) AD-RX7 (x 6)
Color
windscreens
AD-C88 (x 2
sets)
AD-C77 (x 2
sets)
——————
DC power
supply unit
(SMC9-4S to
XLR 3-pin) DC-78 Supplied
with ECM-88B DC-78 DC-78
—
DC-78 DC-78
— —
Microphone
accessory kit
AD-KIT88B AD-KIT77
——————
OPTIONAL ACCESSORIES
A-1175-A (MK10077V4)
© 2012 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony; Sony Make.Believe logo is a trademark of Sony.
Printed in USA (2/12)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/proaudio
