Sony ICF ICF-SW11 User manual

ICF-SW11
US Model
Canadian Model
AEP Model
E Model
Chinese Model
Tourist Model
SERVICE MANUAL
FM STEREO/SW1-9/
MW/LW 12 BAND RECEIVER
MICROFILM
SPECIFICATIONS
Frequency range:
FM: 87.5 – 108 MHz (Other models)
76 – 108 MHz (Tourist model)
SW1: 4.750 – 5.060 MHz (Other models)
3.850 – 4.050 MHz (Tourist model)
SW2: 5.900 –6.200 MHz
SW3: 7.100 – 7.350 MHz
SW4: 9.400 – 9.990 MHz
SW5: 11.600 – 12.100 MHz
SW6: 13.570 – 13.870 MHz
SW7: 15.100 – 15.800 MHz
SW8: 17.480 – 17.900 MHz
SW9: 21.450 – 21.750 MHz
MW: 525 – 1620 MHz
LW: 141 – 290 kHz
Speaker Approx. 5.7 cm (21/4inches) dia., 4 Ω
Power output 140 mW (at 10 % harmonic distortion)
Ourput Headphones jack (stereo minijack, 3.5 mm dia)
Power requirements
3 V DC, two R6 (sizeAA) batteries
DC IN 3V jack accepts : AC power adaptor
(Except chinese model)
AC-E30L, HG (not supplied)
Battery life Approx. 30 hours with Sony SUM-3 (NS)
Dimensions Approx. 162 ×93.8 ×34.8 mm(w/h/d)
(61/2×33/4×13/8inches)
Mass Approx. 340 g (12 oz) incl. batteries
Supplied accessory
Short wave guide (1)
Accessories not supplied
AC power adaptor
*AC-E3L, HG
LW/MW/SW wide range antenna AN-1, AN-102
*The voltage of power supply is different depending on the country .
Please buy anAC power adaptor in the country where the radio is
to be used.
Design and specifications are subject to change without notice.
Ver 1.0 1999. 09

— 2 —
TABLE OF CONTENTS
1. GENERAL ·········································································· 3
2. DISASSEMBLY
2-1. Rear Cabinet ··································································· 4
2-2. Front Cabinet, Main Board ············································· 4
2-3. Dial Pointer Setting························································· 5
3. ELECTRICAL ADJUSTMENT ···································· 6
4. DIAGRAMS
4-1. IC Block Diagram ··························································· 8
4-2. Printed Wiring Board ······················································ 9
4-3. Schematic Diagram······················································· 11
5. EXPLODEDVIEWS ······················································ 13
6. ELECTRICAL PARTS LIST ······································· 14

— 3 —

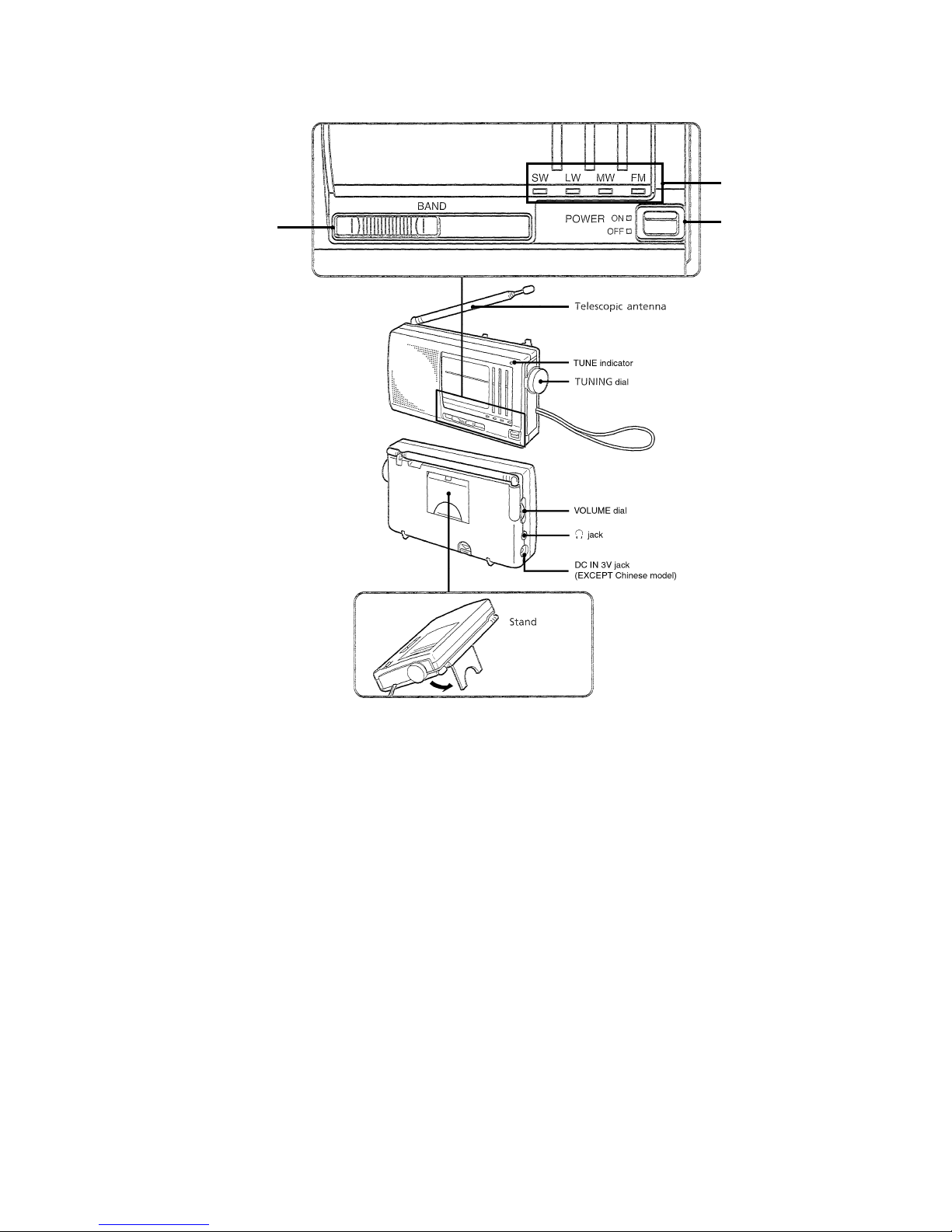

SECTION 1
GENERAL
BAND
select switch
BAND
indicator
POWER
switch

— 4 —

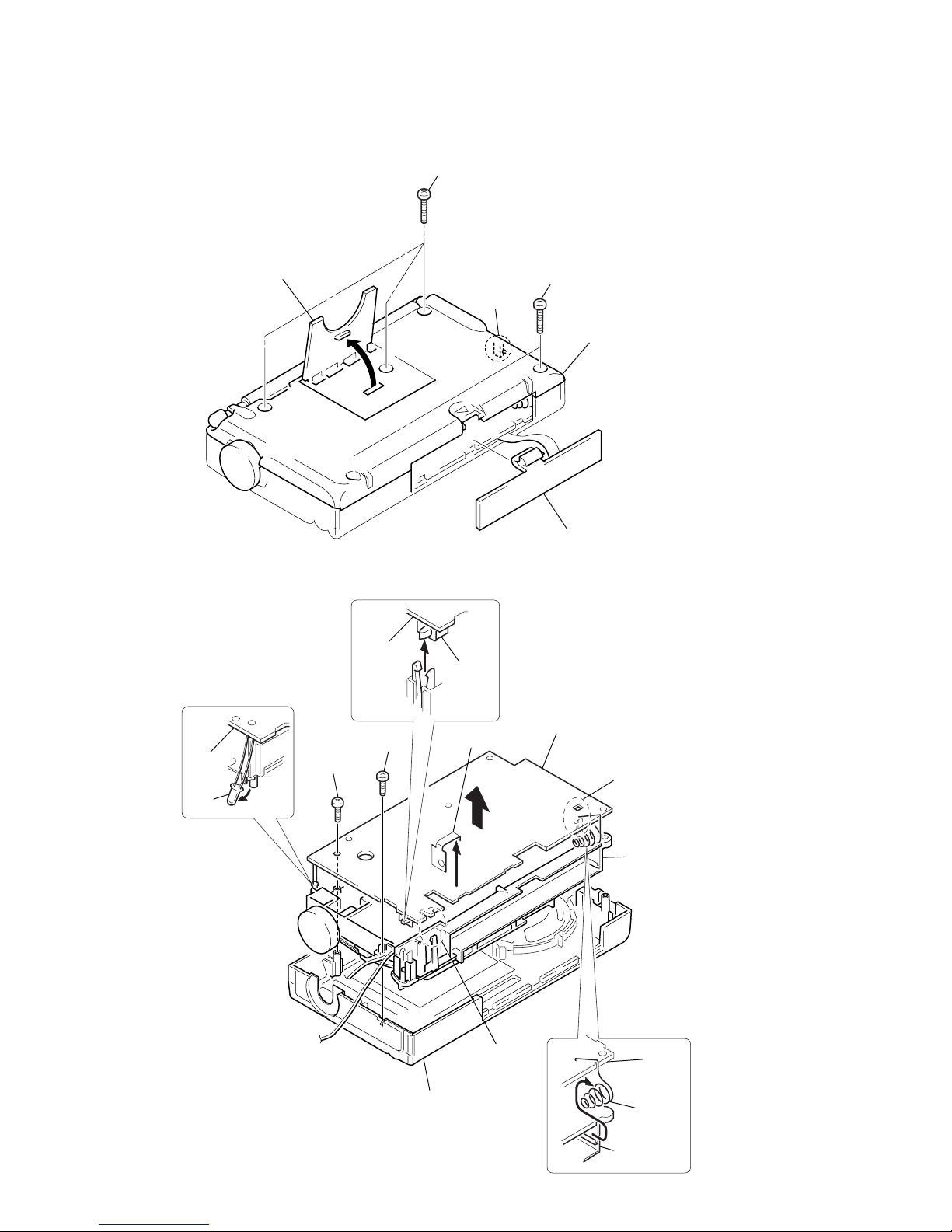

SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. REAR CABINET
2-2. FRONT CABINET, MAIN BOARD
2 Stand
3 Three screws
(P2.6
× 16)
4 Two screws
(P2.6
× 16)
5 Cabinet (rear)
(The cabinet is locke
d
by the claws)
1 Lid, battery case
Claw
2 Front Cabinet
5
6
Main chassi
s
Main
chassis
Claw
Claw
8 MAIN BOARD
4 Terminal, battery
7 Terminal
(Minus),
battery
D2
MAIN
board
MAIN
board
S2
MAIN
board
1 Screw
(P2 × 8)
3 Screw
(BTP2.6 × 8)

— 5 —

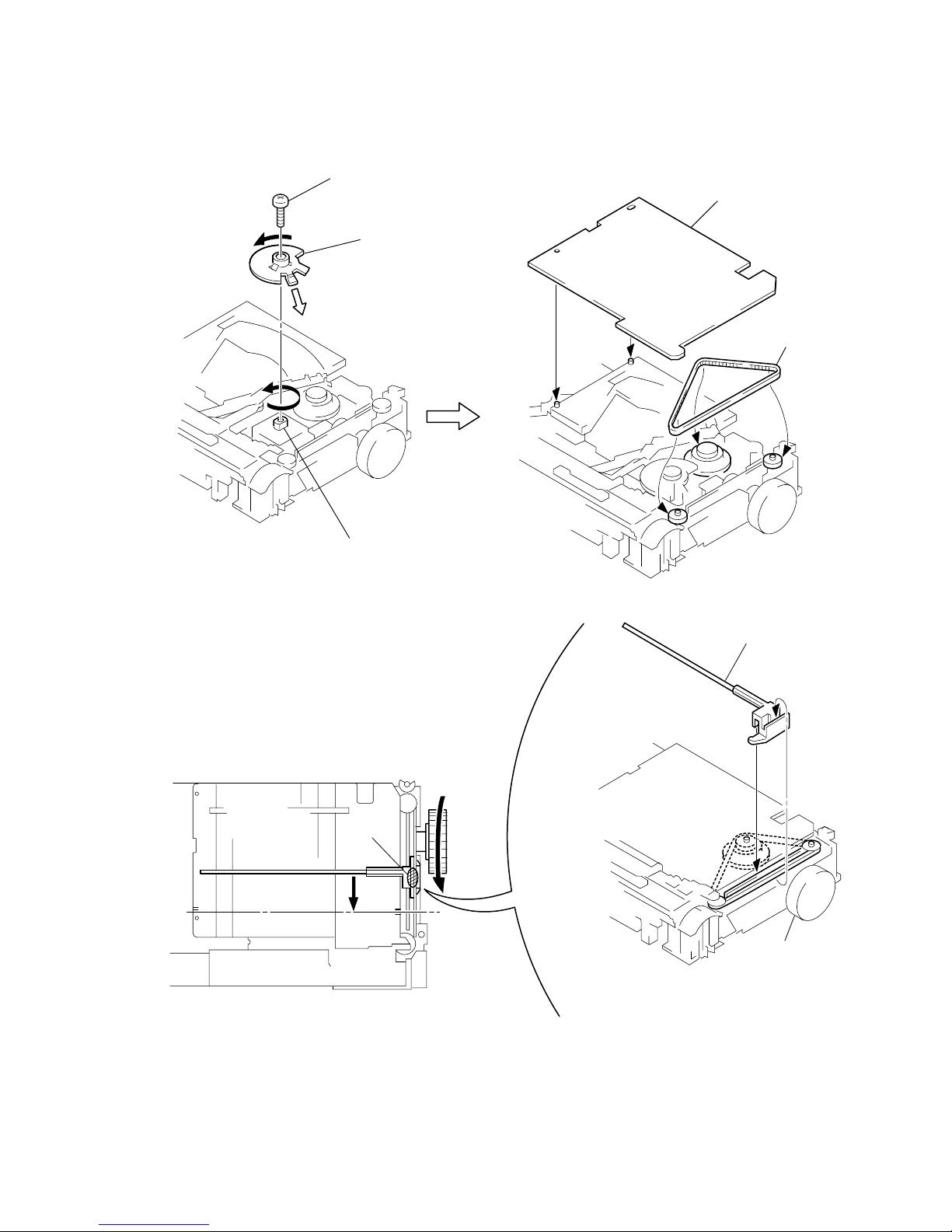

2-3. DIAL POINTER SETTING
3 Screw
(1.7
× 3) Flat (+) special
2 Mach the hole with setting
the variable capacitor gear gap
in the arrow
A direction.
1 Turn the variable capacitor
fully counterclockwise.
5 Scale, dial
4 Belt (Tun)
A
7 First, turn the tuning shaft fully in the arrow A direction.
Move only the dial pointer in the arrow B direction and
set it on the center of the scratched lines on the dial scale plate.
Apply suitable locking compound to C portion.
6 Pointer
Knob (Tun)
Center of
scratched line
A
C
B

— 6 —

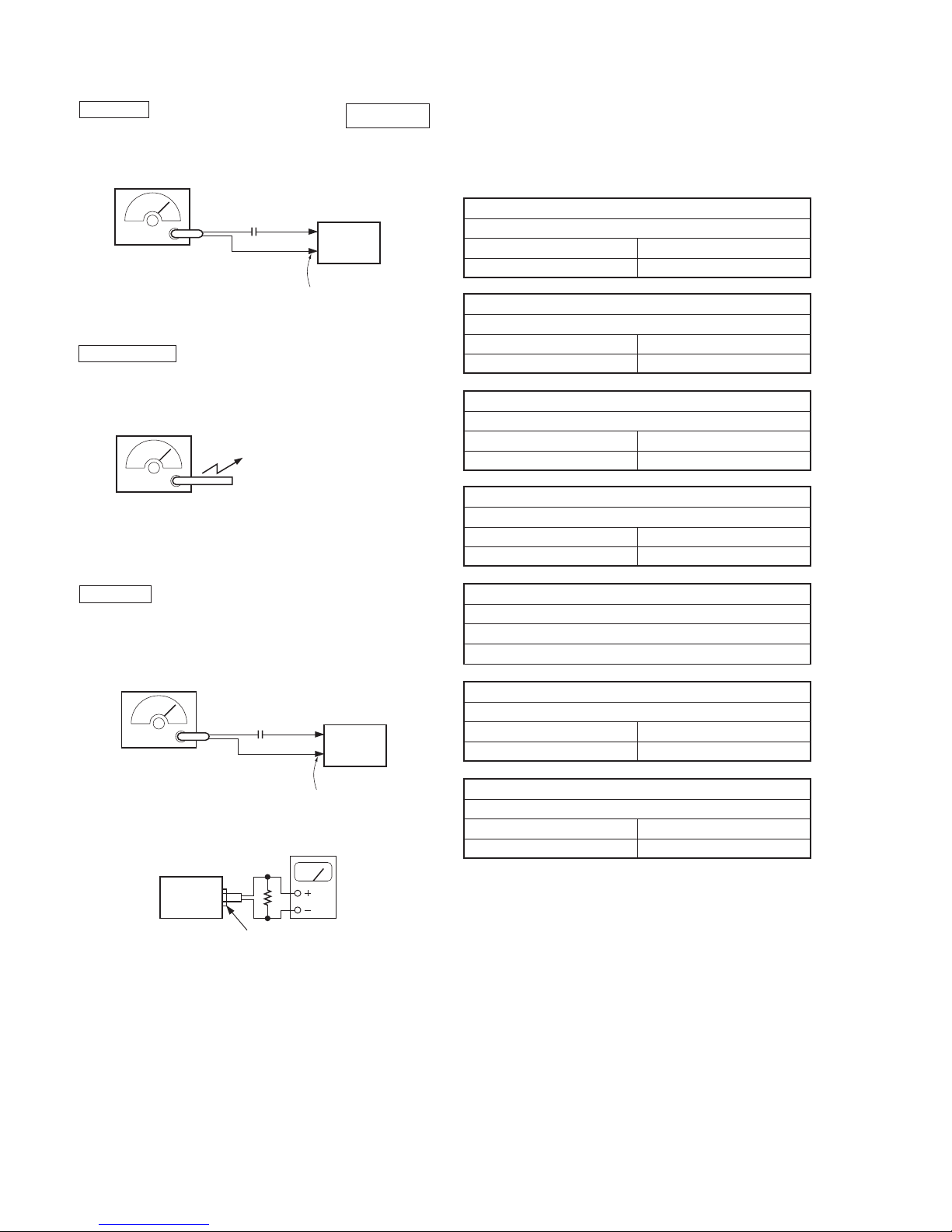

SECTION 3
ELECTRICAL ADJUSTMENTS
FM FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on Level meter.
L7 CT1-4
87.3MHz (75MHz) 108.3MHz (109.5MHz)
FM TRACKING ADJUSTMENT
Adjust for a maximum reading on Level meter.
L6 CT1-3
87.3MHz (75MHz) 108.3MHz (109.5MHz)
MW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on Level meter.
L4 CT1-2
520kHz 1,650kHz
MW TRACKING ADJUSTMENT
Adjust for a maximum reading on Level meter.
L1 CT1-1
600kHz 1,400kHz
AM IF ADJUSTMENT
Adjust for a maximum reading on Level meter.
T1
455kHz
LW FREQUENCY COVERAGE ADJUSTMENT
Adjust for a maximum reading on Level meter.
L5 CT3
137kHz 295kHz
LW TRACKING ADJUSTMENT
Adjust for a maximum reading on Level meter.
L2 CT2
155kHz 260kHz
FM section
Setting
BAND switch : FM
22.5 kHz frequency
deviation by
400 Hz signal
Output level : as low as possible telescopic antenna inpu
t
FM RF signal
generator
Set
0.01
µ F
MW/LW section
Setting
BAND switch : MW/LW
AM RF signal
generator
Put the lead-wir
e
antenna close
to the set.
30% amplitude
modulation by
400 Hz signal
Output level : as low as possible
SW section
Setting
BAND switch : SW1 – SW9
30 % amplitude
modulation by
400 Hz signal
Output level : as low as possible telescopic antenna inpu
t
AM RF signal
generator
Set
8pF
Set
Headphones jack (J1)
Level meter
32 Ω
• Repeat the procedures in each adjustment several times, and the
frequency coverage and tracking adjustments should be finally
done by the trimmer capacitors.
• This adjustment should be executed after MW band adjustment
is completed because the LW and SW bands use the BAR ANT
and CV1 in common with the MW band.
Therefore, if MW band is adjusted, the LW and SW bands must
also be readjusted.
• Preparation for SW band adjustment
After making sure that the MW band adjustment has completed,
set the pointer to the center of character of 6.0, 7.2, 11.8 or
21.6MHz which is reference position of dial character, and fix
the CV1 at this position.
( ) : Tourist model
0 dB=1µV

ICF-SW11
D2
TUNE
CF2
L29
R16
C36
C39
L6
L7
L26
2
1
CV-1,CT-1
TUNING CT1
-
1
3
E
B
C
C
C
B
B
E
E
1
5
10
1516
20
30
25
+
–
Frequency counte
r
33kΩ
1µF
SECTION 4
DIAGRAMS
SW FREQUENCY CENTER ADJUSTMENT
Adjust for a maximum reading on Level meter.
SW1 L25 4.85MHz (3.88MHz)
SW2 L24 6MHz
SW3 L23 7.2MHz
SW4 L22 9.62MHz
SW5 L21 11.8MHz
SW6 L20 13.65MHz
SW7 L19 15.35MHz
SW8 L18 17.65MHz
SW9 L17 21.6MHz
1. After completionofSW1-9adjustment,confirmthateachcenter
frequency+910kHzsignalisreceived fromAMreferencesignal
generator.
2. If not received, readjust, then repeat 1.
( ) : Tourist model
[VCO Adjustment]
Procedure :
Center frequency :98 MHz
Modulation : no modulation
Output level :0.1V (100dB) telescopic antenna inpu
t
FM RF signal
generator
Set
1. Insert the plug to Headphones jack (J1).
2. Connect frequency counter to the positions shown the figure
right.
3. Tune the set to 98 MHz.
4. Adjust RV1 so that the frequency counter reading becomes
76,000Hz.
Specification Value :
Frequency counter
75,950 – 76,050 Hz
Adjustment Location : MAIN board (component side)
MAIN BOARD (conductor side)
4-1. IC BLOCK DIAGRAM
IC1 CXA1238M-T6
30 29
4 5 6 7 8 9 10 11 12 13 14 15321
28 27 26 25 24 23 22 21 20 19 18 17 16
REG
FM FRONT-END
AM FRONT-END
VCO MPX REG.
1/2
COUNTER
1/2
COUNTER
PD1
PD2
MUTING
DECODER AMP
MONO/ST
SELECT
RIPPLE
FILTER
AUTOBLEND
BAND PASS
MUTE
TUNING
INDICATOR
FM IF/
DISCRI
AM
IF/DET
GND PLL LPF2 MPX REG VCO FM DISCRI MUTE AM OSC AFC FM OSC REG FM RF AM RF IN FM RF IN
BAND SELECT
AM IF IN
FM IF IN
TUNE IND
GND
VCC
L CH OUT
R CH OUT
ST IND/
VCO CHECK
PILOT DET LPF2 PILOT DET LPF2
PLL LPF1
AGC AFC2 AGC AFC1
RIPPLE
FILTER
FM GND FM/AM FE OUT
— 7 — — 8 —
L24 L21 L25 L23 L22
SW Frequency Center Adjustment
L20 L19 L18 L17 L7 CT1-4
CT1-3
T1
AM IF
Adjustment
L1
MW
Tracking
Adjustment
L2
LW
Tracking
Adjustment
L5
LW Frequency
Coverage
Adjustment
CT1-2 MW Frequency
Coverage
Adjustment
CT2 LW Tracking
Adjustment
CT1-1 MW Tracking
Adjustment
FM Tracking
Adjustment
L4
MW Frequency
Coverage
Adjustment
CT3
LW Frequency
Coverage
Adjustment
L6
FM Frequency Coverage Adjustment
RV1
VCO
Adjustment

ICF-SW11

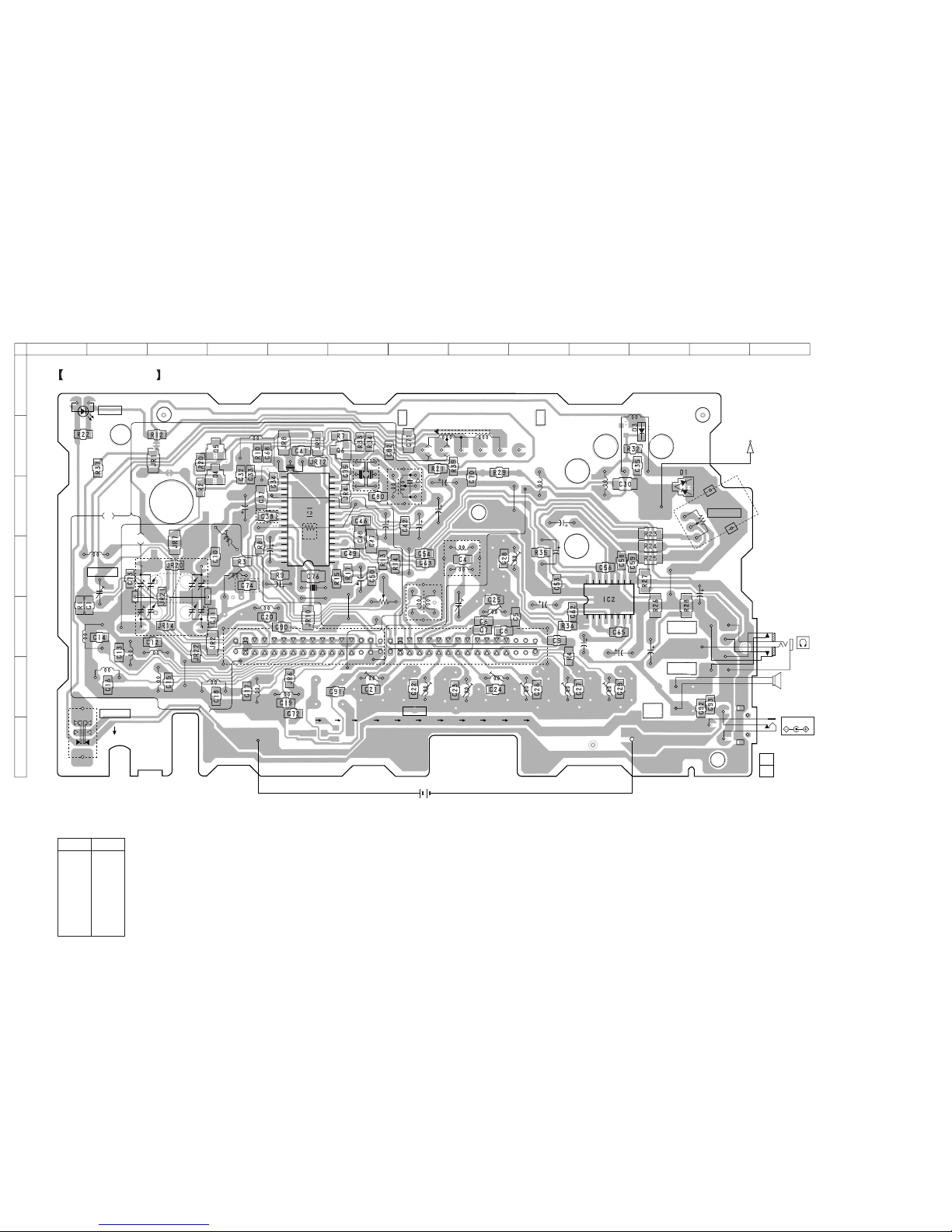

4-2. PRINTEDWIRING BOARD
12
A
B
C
D
E
F
G
345678910111213
JE MODEL
EXCEPT JE MODEL
EXCEPT JE
MODEL
MAIN BOARD
15
(15)
DC IN 3V
J2
J1
DRY BATTERY
SIZE "AA"
(ICE DESIGNATION R6)
2PCS, 3V
SP901
(SPEAKER)
RV1
ANT1
TELESCOPIC
ANTENNA
RV2
VOLUME
D2
TUNE
S2
POWER
OFF
ON
L27
L28
L24
L3
C57
C55
C60
C61
C67
C66
C64
L25L23L22L19L18
L17
L15
L13
L20
L21
CT3
L5
L4
L1
MW L2 LW
12
BAR
ANTENNA
C52
C44
C45
C51
C40
C43
T1
CF1
CF2
L29
R16
C36
C39
L6
L7
L26
L10
L12
L11 L14
L16
S1
L9
L8
2
1
CV-1,CT-1
TUNING CV1-1
CV1-2
CV1-4
CT1-4
CT1-2
CT1-1
CT1-3
CV1-3
CF3
2SI BAND
FW MW LW SW9 SW8 SW7 SW6 SW5 SW4 SW3 SW2 SW1
16
18
916
E
B
C
C
C
B
B
E
E
CT2
-2
-3
-1
-4
1
5
10
1516
20
30
25
— 9 — — 10 —
Ref. No. Location
D1 C-11
D2 A-1
D3 B-11
IC1 C-5
IC2 D-10
Q4 B-4
Q5 B-4
Q6 B-6
• Semiconductor
Location
Note on PrintedWiring Board:
•X: parts extracted from the component side.
•b: Pattern from the side which enables seeing.
• Abbreviation
JE : Tourist model

ICF-SW11
4-3. SCHEMATIC DIAGRAM
— 11 — — 12 —
L7,CT1-4
FM FREQUENCY
COVERAGE
L17-L25
SW FREQUENCY
COVERAGE
L6, CT1-3
FM TRACKING
L4, CT1-2L5, CT3
MW FREQUENCY COVERAGE
LW FREQUENCY COVERAGE
L1, CT1-1
MW TRACKING
L2, CT2
LW TRACKING
EXCEPT
JE
MODEL
EXCEPT JE
MODEL
(JE)
27µH(EXCEPT JE)
JE MODEL
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•U: B+ Line.
•C: panel designation.
•H: adjustment for repair.
no mark :
( ) : MW
< > : SW
[]:LW
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
• Signal path.
F: FM
• Abbreviation
JE : Tourist model
• Refer to page 8 for IC Block Diagrams.

ICF-SW11
— 13 — — 14 —

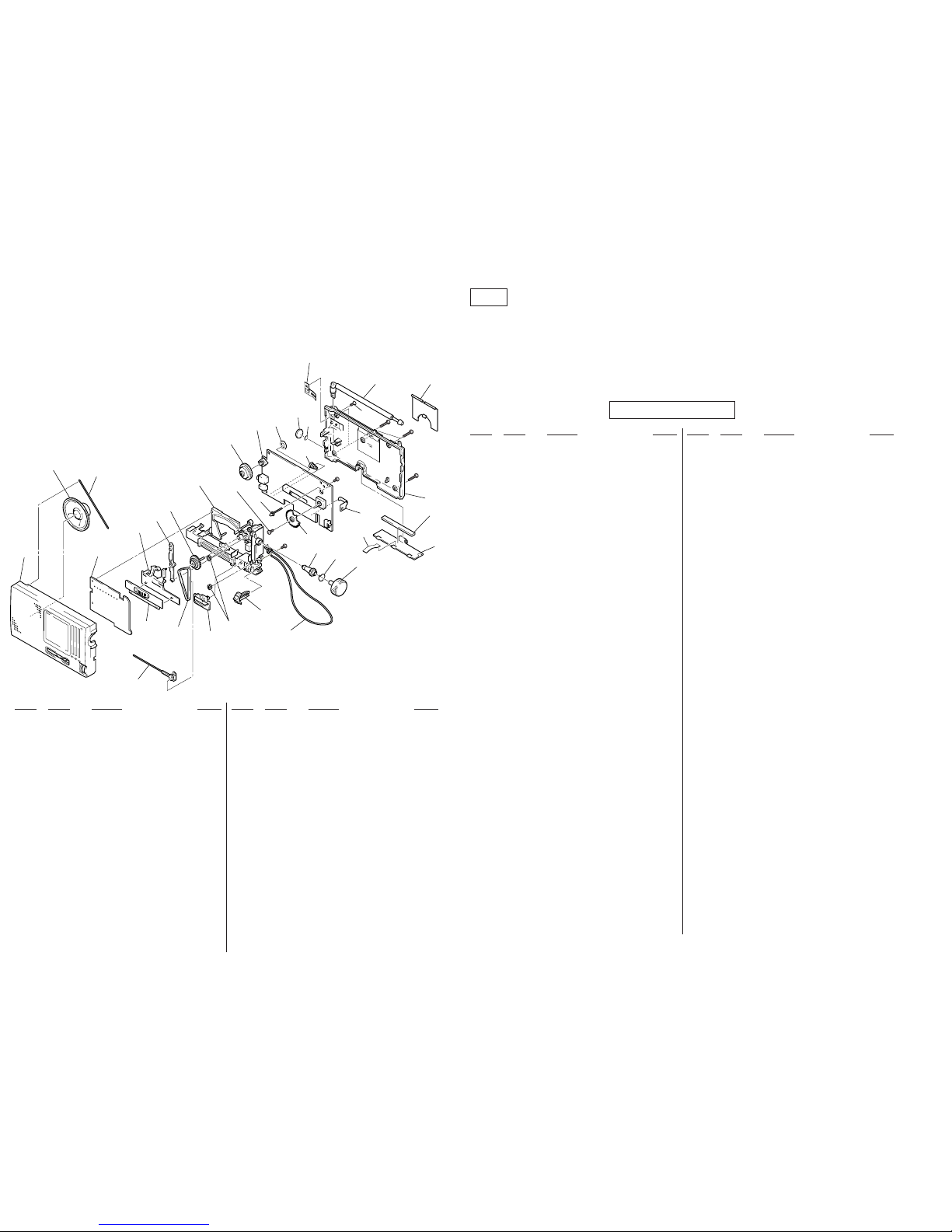

SECTION 5
EXPLODEDVIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delayshouldbeanticipated whenordering these
items.
• Themechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
IT : Italian model
EA : Saudi Arabia model
CH : Chinese model
JE : Tourist model
CABINET
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
SP901
4
7
58910
13
14
18
15 16
25
26
29
27
24
17
28
23
21
20
19
D2
12
11
6
33
22
3031
32
#3
#1
#2
#2
#2
ANT1
SECTION 6
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specifiedin thediagrams orthe components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• CAPACITORS:
uF: µF
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• COILS
uH: µH
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
• Abbreviation
CND : Canadian model
IT : Italian model
EA : Saudi Arabia model
CH : Chinese model
JE : Tourist model
When indicating parts by reference number,
please include the board name.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-3377-979-1 CABINET (FRONT) ASSY (JE)
1 X-3377-980-1 CABINET (FRONT) ASSY (CH)
1 X-3377-981-1 CABINET (FRONT) ASSY (AEP,IT,E,EA)
1 X-3377-982-1 CABINET (FRONT) ASSY (US,CND,AEP,IT,E,EA)
1 X-3378-083-1 CABINET (FRONT) ASSY (CH)
*2 3-911-534-01 SPRING, PLUG
3 3-039-997-01 SCALE, DIAL (US,CND,AEP,IT,E,CH,EA)
3 3-039-997-11 SCALE, DIAL (JE)
4 3-039-998-01 POINTER
5 3-039-999-01 KNOB(BAND)
6 3-910-552-01 INDICATOR (A)
7 3-382-324-01 BELT(TUN)
8 3-910-553-01 INDICATOR (B)
9 3-900-157-01 PULLEY
10 3-040-002-01 KNOB(POWER)
11 3-380-910-01 GEAR, MIDWAY
12 3-910-548-01 CHASSIS
13 3-893-381-01 STRAP, HAND
14 3-380-908-01 SHAFT (TUN)
15 3-386-845-01 SPRING, RING
16 3-380-909-01 KNOB(TUN)
17 3-380-918-31 STAND
18 3-380-914-01 GEAR(A), TUNING CAPACITOR
19 3-880-990-00 SCREW (1.7 ×3),FLAT,(+) SPECIAL
20 3-380-913-01 KNOB(VOL)
*21 A-3679-565-A MAIN BOARD, COMPLETE(CND,AEP,IT,E,CH,EA)
*21 A-3679-765-A MAIN BOARD, COMPLETE (JE)
*21 A-3683-132-A MAIN BOARD, COMPLETE (US)
22 3-911-535-01 TERMINAL (MINUS), BATTERY
23 3-893-840-01 PLATE (ANTENNA), CONTACT
24 3-382-006-01 TERMINAL, BATTERY
25 3-380-922-11 LID,BATTERY CASE
26 3-312-059-11 CUSHION, BATTERY
27 3-910-547-21 CABINET (REAR) (US,CND,AEP,IT,E,JE,EA)
27 3-910-547-31 CABINET (REAR) (CH)
28 3-918-696-01 SCREW (M3 ×6 LOCK ACE)
29 3-040-003-01 RIBBON (BATTERY CASE LID)
30 3-040-964-01 COVER(DC) (CH)
31 3-040-965-01 SHEET(COVER DC), ADHESIVE (CH)
32 3-563-515-01 WASHER(A), FIBER
33 3-040-000-01 BASE(BAND)
D2 8-719-812-41 DIODE GL3PR8 (TUNE)
ANT1 1-501-222-81 ANTENNA, TELESCOPIC (FM)
SP901 1-544-517-11 SPEAKER
#1 7-685-105-19 TPG +P 2 ×8, TYPE 2, NON-SLIT
#2 7-685-138-19 SCREW +P 2.6 ×16 TYPE2 NON-SLIT
#3 7-685-134-19 SCREW +BTP 2.6 ×8 TYPE2 N-S
*A-3679-565-A MAIN BOARD, COMPLETE
(CND,AEP,IT,E,CH,EA)
*********************
*A-3679-765-A MAIN BOARD, COMPLETE (JE)
*********************
*A-3683-132-A MAIN BOARD, COMPLETE (US)
*********************
3-831-441-99 CUSHION, STOPPER
< CAPACITOR >
C1 1-163-137-00 CERAMIC CHIP 680PF 5% 50V
C4 1-163-377-11 CERAMIC CHIP 100PF 5% 50V
C5 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
C6 1-163-110-00 CERAMIC CHIP 51PF 5% 50V
C7 1-163-248-11 CERAMIC CHIP 75PF 5% 50V
C8 1-163-249-11 CERAMIC CHIP 82PF 5% 50V
C9 1-163-115-00 CERAMIC CHIP 82PF 5% 50V
C10 1-163-102-00 CERAMIC CHIP 24PF 5% 50V
C11 1-163-097-00 CERAMIC CHIP 15PF 5% 50V (JE)
C11 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
(US,CND,AEP,IT,E,CH,EA)
C12 1-163-096-00 CERAMIC CHIP 13PF 5% 50V
C13 1-163-231-11 CERAMIC CHIP 15PF 5% 50V
C14 1-163-091-00 CERAMIC CHIP 8PF 50V
C15 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C16 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C17 1-163-096-00 CERAMIC CHIP 13PF 5% 50V
C18 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
C19 1-163-092-00 CERAMIC CHIP 9PF 0.25PF 50V
C20 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V (JE)
C20 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V
(US,CND,AEP,IT,E,CH,EA)
C21 1-163-113-00 CERAMIC CHIP 68PF 5% 50V
C22 1-163-108-00 CERAMIC CHIP 43PF 5% 50V
C23 1-163-105-00 CERAMIC CHIP 33PF 5% 50V
C24 1-163-367-11 CERAMIC CHIP 39PF 5% 50V
C25 1-163-102-00 CERAMIC CHIP 24PF 5% 50V
C26 1-163-100-00 CERAMIC CHIP 20PF 5% 50V
C27 1-163-102-00 CERAMIC CHIP 24PF 5% 50V
C28 1-163-100-00 CERAMIC CHIP 20PF 5% 50V
C29 1-163-093-00 CERAMIC CHIP 10PF 5% 50V
C30 1-163-063-00 CERAMIC CHIP 0.022uF 50V
C32 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C33 1-163-108-00 CERAMIC CHIP 43PF 5% 50V
C34 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C35 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C36 1-104-396-11 ELECT 10uF 20% 16V
C37 1-163-063-00 CERAMIC CHIP 0.022uF 50V
C38 1-163-087-00 CERAMIC CHIP 4PF 50V
(US,CND,AEP,IT,E,CH,EA)
C39 1-126-794-11 ELECT 4.7uF 20% 25V
C40 1-104-396-11 ELECT 10uF 20% 16V
C41 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C42 1-164-346-11 CERAMIC CHIP 1uF 16V
C43 1-126-794-11 ELECT 4.7uF 20% 25V
C44 1-126-794-11 ELECT 4.7uF 20% 25V
C45 1-104-396-11 ELECT 10uF 20% 16V
C46 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C47 1-163-074-00 CERAMIC CHIP 0.033uF 50V
C48 1-163-074-00 CERAMIC CHIP 0.033uF 50V
C49 1-164-346-11 CERAMIC CHIP 1uF 16V
C50 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C51 1-126-794-11 ELECT 4.7uF 20% 25V
C52 1-126-382-11 ELECT 100uF 20% 6.3V
C53 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C54 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C55 1-104-396-11 ELECT 10uF 20% 16V
C56 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C57 1-126-794-11 ELECT 4.7uF 20% 25V
C58 1-164-346-11 CERAMIC CHIP 1uF 16V
C59 1-164-005-11 CERAMIC CHIP 0.47uF 25V
C60 1-126-935-11 ELECT 470uF 20% 6.3V
C61 1-126-382-11 ELECT 100uF 20% 6.3V
C62 1-163-031-11 CERAMIC CHIP 0.01uF 50V
C63 1-163-038-91 CERAMIC CHIP 0.1uF 25V
C64 1-126-794-11 ELECT 4.7uF 20% 25V
C65 1-164-346-11 CERAMIC CHIP 1uF 16V
C66 1-126-935-11 ELECT 470uF 20% 6.3V
C67 1-104-396-11 ELECT 10uF 20% 16V
C68 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C70 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C71 1-163-063-00 CERAMIC CHIP 0.022uF 50V
C72 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C73 1-163-087-00 CERAMIC CHIP 4PF 50V
C74 1-163-085-00 CERAMIC CHIP 2PF 50V (JE)
C75 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C80 1-163-033-91 CERAMIC CHIP 0.022uF 50V
C82 1-164-346-11 CERAMIC CHIP 1uF 16V
C90 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V(US)
C90 1-163-129-00 CERAMIC CHIP 330PF 5% 50V
(CND,AEP,IT,E,JE,CH,EA)
C91 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V(US)
C91 1-163-129-00 CERAMIC CHIP 330PF 5% 50V
(CND,AEP,IT,E,JE,CH,EA)
C92 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C93 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
MAIN

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 15 —
< FILTER >
CF1 1-577-317-11 FILTER, CERAMIC
CF2 1-760-238-71 FILTER, CERAMIC
CF3 1-760-238-71 FILTER, CERAMIC
< TRIMMER >
CT2 1-141-411-11 CAP, ADJ 20PF
CT3 1-141-411-11 CAP, ADJ 20PF
CT1 1-141-550-11 CAP, VAR (INCLUDING CV1) (JE)
CT1 1-151-636-11 CAP, VAR (INCLUDING CV1)
(US,CND,AEP,IT,E,CH,EA)
< VARIABLE CAPACITOR >
CV1 1-141-550-11 CAP, VAR (JE)
CV1 1-151-636-11 CAP, VAR (US,CND,AEP,IT,E,CH,EA)
< DIODE >
D1 8-719-800-76 DIODE 1SS226
D2 8-719-812-41 DIODE GL3PR8 (TUNE)
D3 8-719-921-22 DIODE 1SS277
< IC >
IC1 8-752-062-48 IC CXA1238M-T6
IC2 8-752-064-80 IC CXA1522M
< JACK >
J1 1-566-891-11 JACK (HEADPHONE)
J2 1-764-799-11 JACK, EXTERNAL POWER (DC IN 3V)
< JUMPER RESISTOR >
JR1 1-216-296-91 SHORT 0
JR2 1-216-296-91 SHORT 0
JR4 1-216-295-91 SHORT 0
JR6 1-216-295-91 SHORT 0
JR7 1-216-296-91 SHORT 0
JR8 1-216-296-91 SHORT 0
JR9 1-216-296-91 SHORT 0
JR10 1-216-296-91 SHORT 0
JR12 1-216-295-91 SHORT 0
JR14 1-216-295-91 SHORT 0
JR20 1-216-295-91 SHORT 0
JR21 1-216-295-91 SHORT 0
JR22 1-216-295-91 SHORT 0
< COIL >
L1 1-501-683-11 ANTENNA, FERRITE-ROD (LW/MW)
L2 1-501-683-11 ANTENNA, FERRITE-ROD (LW/MW)
L3 1-414-142-61 INDUCTOR 1uH
L4 1-406-028-00 COIL, OSC (MW)
L5 1-416-749-11 COIL (LW OSC)
L6 1-428-768-11 COIL, AIR-CORE (US,CND,AEP,IT,E,CH,EA)
L6 1-428-840-11 COIL, AIR-CORE (JE)
L7 1-406-042-00 COIL, FM OSC (US,CND,AEP,IT,E,CH,EA)
*L7 1-422-202-11 COIL (AIR-CORE) (JE)
L8 1-408-592-11 INDUCTOR 1.2uH
L9 1-408-594-21 INDUCTOR 1.8uH
L10 1-408-596-31 INDUCTOR 2.7uH
L11 1-408-597-31 INDUCTOR 3.3uH
L12 1-408-599-31 INDUCTOR 4.7uH
L13 1-408-601-31 INDUCTOR 6.8uH
L14 1-408-410-00 INDUCTOR 12uH
L15 1-408-412-00 INDUCTOR 18uH
L16 1-408-608-31 INDUCTOR 27uH (US,CND,AEP,IT,E,CH,EA)
L16 1-408-611-31 INDUCTOR 47uH (JE)
L17 1-409-895-11 COIL (OSC)
L18 1-409-515-11 COIL (OSC)
L19 1-409-514-11 COIL (OSC)
L20 1-409-513-11 COIL (OSC)
L21 1-409-512-11 COIL (OSC)
L22 1-409-511-11 COIL (OSC)
L23 1-409-510-11 COIL (OSC)
L24 1-409-509-11 COIL (OSC)
L25 1-409-508-11 COIL (OSC) (US,CND,AEP,IT,E,CH,EA)
L25 1-411-856-11 COIL (OSC) (JE)
L26 1-414-142-61 INDUCTOR 1uH
L27 1-414-167-11 INDUCTOR 1mH
L28 1-414-167-11 INDUCTOR 1mH
L29 1-428-769-11 COIL, AIR-CORE
< TRANSISTOR >
Q4 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q5 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R1 1-216-065-91 RES,CHIP 4.7K 5% 1/10W
R2 1-216-115-00 METAL CHIP 560K 5% 1/10W
R3 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R4 1-216-073-00 METAL CHIP 10K 5% 1/10W
R7 1-216-025-91 RES,CHIP 100 5% 1/10W
R8 1-216-073-00 METAL CHIP 10K 5% 1/10W
R9 1-216-105-91 RES,CHIP 220K 5% 1/10W
R10 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R12 1-216-049-91 RES,CHIP 1K 5% 1/10W
R13 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R14 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R15 1-216-105-91 RES,CHIP 220K 5% 1/10W
R16 1-247-883-00 CARBON 150K 5% 1/4W
(US,CND,AEP,IT,E,CH,EA)
R17 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R20 1-216-105-91 RES,CHIP 220K 5% 1/10W
R21 1-216-089-91 RES,CHIP 47K 5% 1/10W
R22 1-216-073-00 METAL CHIP 10K 5% 1/10W
R23 1-216-198-91 RES,CHIP 1K 5% 1/8W
R24 1-216-198-91 RES,CHIP 1K 5% 1/8W
R25 1-216-206-00 RES,CHIP 2.2K 5% 1/8W
R26 1-216-174-00 RES,CHIP 100 5% 1/8W
R27 1-216-234-00 RES,CHIP 33K 5% 1/8W
R28 1-216-174-00 RES,CHIP 100 5% 1/8W
R29 1-216-001-00 METAL CHIP 10 5% 1/10W
R32 1-216-093-91 RES,CHIP 68K 5% 1/10W
R33 1-216-033-00 METAL CHIP 220 5% 1/10W
R34 1-216-099-00 METAL CHIP 120K 5% 1/10W
R35 1-216-049-91 RES,CHIP 1K 5% 1/10W
R36 1-216-049-91 RES,CHIP 1K 5% 1/10W
R37 1-216-037-00 METAL CHIP 330 5% 1/10W
R39 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
MAIN

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
— 16 —
< VARIABLE RESISTOR >
RV1 1-228-995-00 RES, ADJ, METAL22K
RV2 1-238-555-11 RES, VAR, CARBON 50K
< SWITCH >
S1 1-692-846-11 SWITCH, SLIDE (BAND)
S2 1-571-850-81 SWITCH, SLIDE (POWER)
< TRANSFORMER >
T1 1-416-021-11 COIL (AM IFT)
************************************************************
MISCELLANEOUS
**************
ANT1 1-501-222-81 ANTENNA, TELESCOPIC (FM)
SP901 1-544-517-11 SPEAKER
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
3-867-546-02 MANUAL, INSTRUCTION
(JAPANESE,ENGLISH,KOREAN,CHINESE)(JE,CH)
3-867-546-12 MANUAL, INSTRUCTION
(ENGLISH,FRENCH,GERMAN,SPANISH,DUTCH,
SWEDISH,ITALIAN,PORTUGUESE)
(US,CND,AEP,IT)
3-867-546-22 MANUAL, INSTRUCTION
(DANISH,FINNISH,POLISH,RUSSIAN)(AEP)
3-867-546-32 MANUAL, INSTRUCTION
(ENGLISH,FRENCH,GERMAN,SPANISH,
PORTUGUESE,KOREAN,ARABIC)(E,EA)
3-912-863-05 GUIDE, SHORT WAVE
ICF-SW11
Sony Corporation
Personal Audio Company 99I1674-1
Printed in Japan ©1999.9
Published by General Engineering Dept.
9-927-176-11
MAIN
