Sony Bravia KE-55XH9005 Operation instructions

Dismantling information for use
by professional recyclers
LCD TV
9-888-784-41
Model
：
KE-55XH9005
KE-55XH9077
KE-55XH9096
KE-55XH9288
KE-55XH9296
KE-55XH9299
FW-55BZ40H
KE-65XH9005
KE-65XH9077
KE-65XH9096
KE-65XH9288
KE-65XH9296
KE-65XH9299
FW-65BZ40H
KE-75XH9005
KE-75XH9096
KE-75XH9288
KE-75XH9296
KE-75XH9299
FW-75BZ40H
KE-85XH9096
FW-85BZ40H
ORIGINAL MANUAL ISSUE DATE: 2021.02
Conditions of Use:
(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any
purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the
prior written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date
before using it.Sony Home Entertainment & Sound Products Inc.
© 2021.02

MODEL LISTS
MODEL REMOTE DESTINATION
KE-55XH9005 RMF-TX500E CEI , UKA
KE-55XH9077 RMF-TX500E CEI
KE-55XH9096 RMF-TX500E CEI
KE-55XH9288 RMF-TX600E CEI
KE-55XH9296 RMF-TX500E UKA
KE-55XH9299 RMF-TX600E CEI
FW-55BZ40H RMT-TB400U CEI
KE-65XH9005 RMF-TX500E CEI, UKA
KE-65XH9077 RMF-TX500E CEI
KE-65XH9096 RMF-TX500E CEI
KE-65XH9288 RMF-TX600E CEI
KE-65XH9296 RMF-TX500E UKA
KE-65XH9299 RMF-TX600E CEI
FW-65BZ40H RMT-TB400U CEI
KE-75XH9005 RMF-TX500E CEI, UKA
KE-75XH9096 RMF-TX500E CEI
KE-75XH9288 RMF-TX600E CEI
KE-75XH9296 RMF-TX500E UKA
KE-75XH9299 RMF-TX600E CEI
FW-75BZ40H RMT-TB400U CEI
MODEL REMOTE DESTINATION
KE-85XH9096 RMF-TX500E CEI, UKA
FW-85BZ40H RMT-TB400U CEI

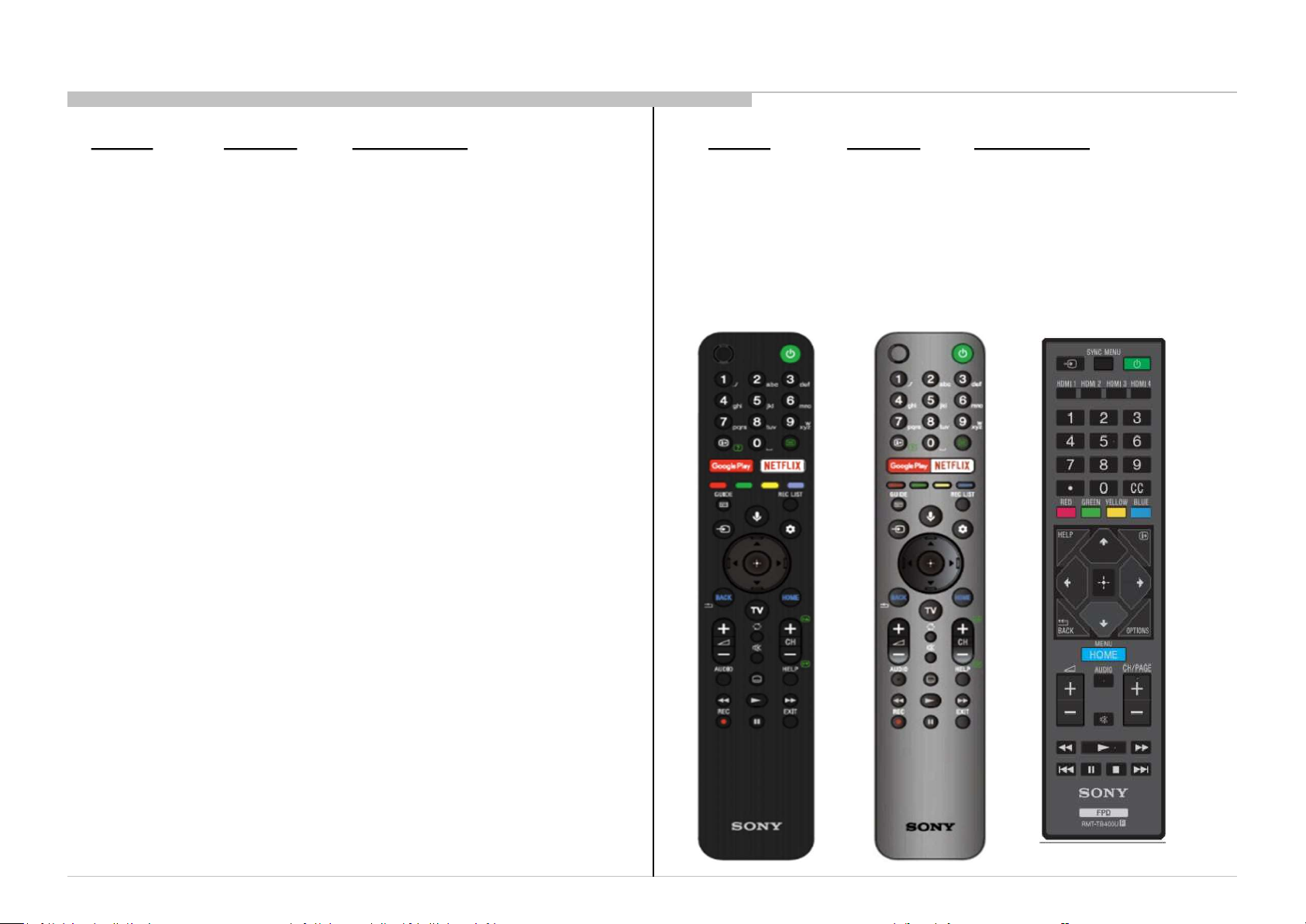

RMF-TX600ERMF-TX500E RMT-TB400U

3

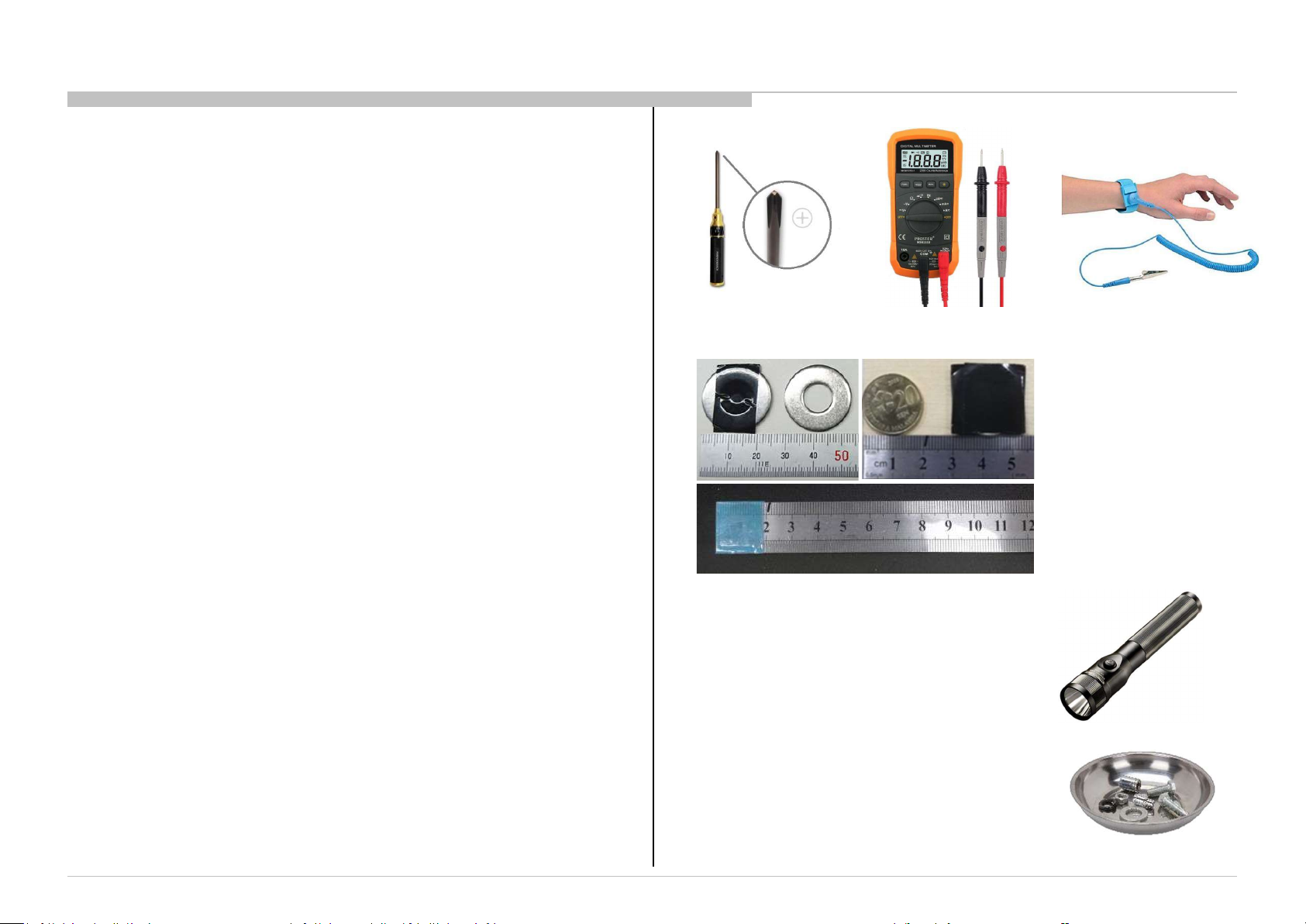

TOOLS & EQUIPMENTS
1 LIST OF ITEMS TO BRING
1. Screwdriver (e.g. #2 Phillips Screwdriver)
2. Multimeter
3. ESD Wrist Straps
4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
2 OPTIONAL EQUIPMENT
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
3. Flashlight
For Surface Mounted Parts/Connectors;
Hot-Air Type soldering Iron is needed.
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
Plastic or Metal Ruler
(In case of Metal ruler, wrap
in tape (L=50mm) for prevent
scratches)

4
DISSASSEMBLY AND REMOVAL CAUTION 55”

Stand
5
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
1-4 EXPLODED VIEW AND
PART LIST
1
2
3
7
8
9
10
11
12
13
14
15
17 18
16
4
5
6
EXPLODED VIEW 55”

REF. NO PART NO. DESCRIPTION REMARKS
11-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-
CN1202(BT)(1)
21-006-508-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-
CN102(H)(1)
31-007-098-11 CONNECTOR ASSY 15P CN6601(PSU)-
CN1003(LD)(1)
41-007-185-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-
CN1000(LD)(1)
51-007-218-11 CONNECTOR ASSY 6P (SP) CN3501(B)-
SP(1)
61-007-220-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-
CON3(TCON)(1)
71-007-186-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-
U2(TCON)(1)
81-007-460-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-U1(TCON)(1)
6
1
4
3
2
5
67
8
HARNESS/CABLES 55”

REF. NO PART NO. DESCRIPTION REMARKS
2 1-005-621-11 C7L AC POWER CODE SETS (EU) (CEI)
2 1-005-628-11 C7L AC POWER CODE SETS (UK) (UKA)
10 A-5014-805-A COMPL SVC BM5_WW_B2B_55 FW-55BZ40H
10 A-5014-795-A COMPL SVC BM5_EUUK_55 Except FW-55BZ40H
12 1-006-134-21 G04P - STATIC CONVERTER(TV)
14 A-5012-968-A 20LD24A1 COMPL
15 1-007-573-11 MOUNTED PWB E-T-CON(55)
16 A-5016-544-A P-MOD (YDAS055DND01) FW-55BZ40H
16 A-5016-501-A P-MOD (YDAS055DND01) KE-55XH9005/9096/9288/9296/9299 (CEI/UKA)
16 A-5016-506-A P-MOD (YDAS055DND01) KE-55XH9077 (CEI)
7
SET PART LIST
!
!
!
!
!
Cable
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
PARTS LIST 55”

8
DISSASSEMBLY AND REMOVAL CAUTION 65”

1
2
3
8
9
10
12
13
14
15
16
18 19
17
4
6
7
5
5
11
Stand
9
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
2-4 EXPLODED VIEW AND
PART LIST

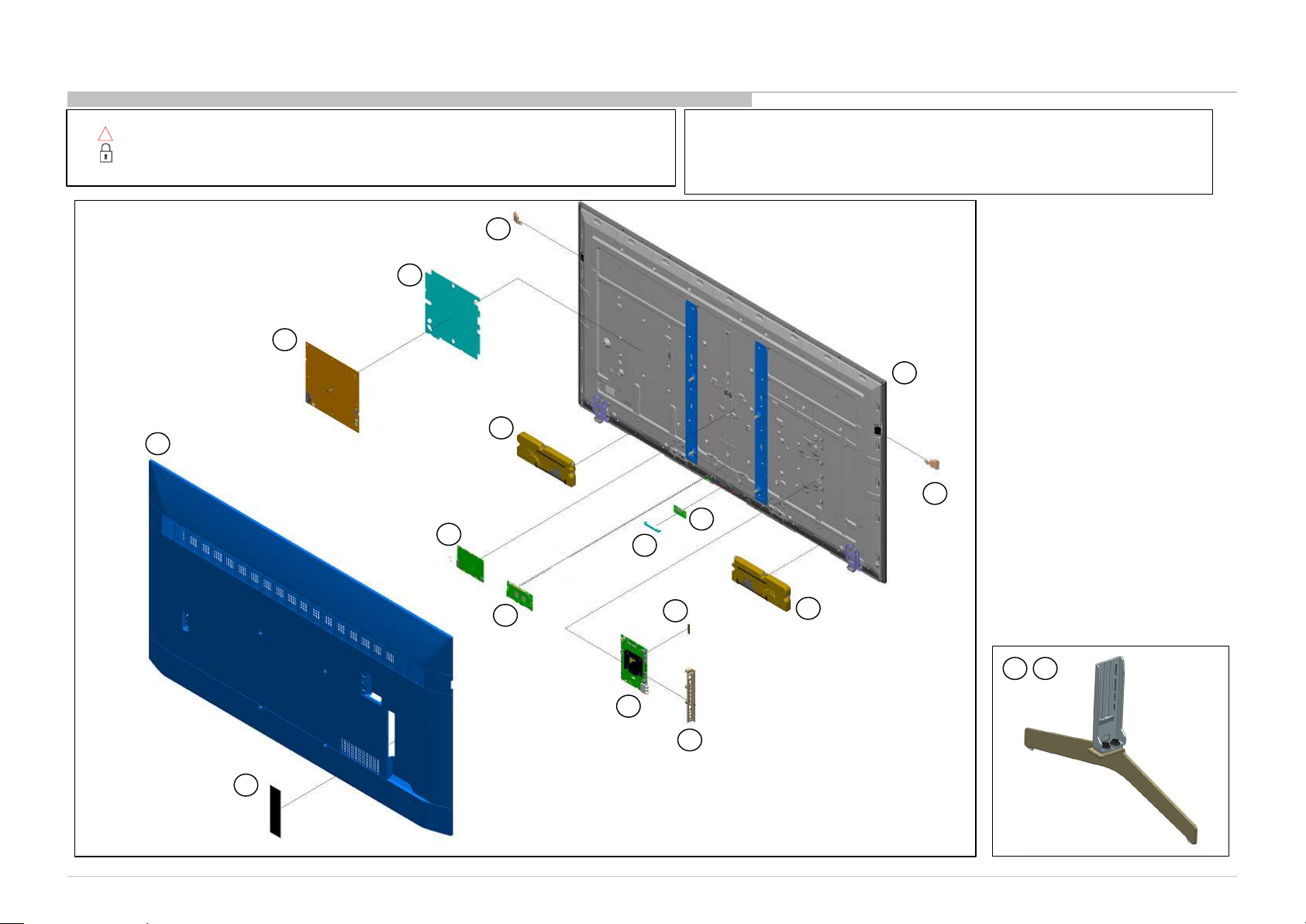

EXPLODED VIEW 65”

10
REF. NO PART NO. DESCRIPTION REMARKS
11-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-
CN1202(BT)(1)
21-006-508-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-
CN102(H)(1)
31-007-098-11 CONNECTOR ASSY 15P CN6601(PSU)-
CN1003(LD)(1)
41-007-113-11 CONNECTOR ASSY 4P (PZ) CN3500(B)-
PZ(1)
51-007-185-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-
CN1000(LD)(1)
61-007-219-11 CONNECTOR ASSY 6P (SP) CN3501(B)-
SP(1)
71-007-220-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-
CON3(TCON)(1)
81-007-187-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-
U2(TCON)(1)
91-007-461-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-
U1(TCON)(1)
1
4
3
2
5
6
78
9
HARNESS/CABLES 65”

REF. NO PART NO. DESCRIPTION REMARKS
31-005-621-11 C7L AC POWER CODE SETS (EU) (CEI)
31-005-628-11 C7L AC POWER CODE SETS (UK) (UKA)
11 A-5014-274-A COMPL SVC BM5_WW_B2B FW-65BZ40H
11 A-5014-265-A COMPL SVC BM5_EUUK Except FW-65BZ40H
13 1-006-110-12 G01-STATIC CONVERTER (TV)
15 A-5012-967-A 20LD32A2 COMPL
16 1-007-575-11 MOUNTED PWB E-T-CON(65)
17 A-5016-552-A P-MOD (YDAS065DND01) FW-65BZ40H
17 A-5016-516-A P-MOD (YDAS065DND01) Except FW-65BZ40H/KE-65XH9077
17 A-5016-521-A P-MOD (YDAS065DND01) KE-65XH9077
11
SET PART LIST
!
!
!
!
!
!
PARTS LIST 65”
Cable
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display

12

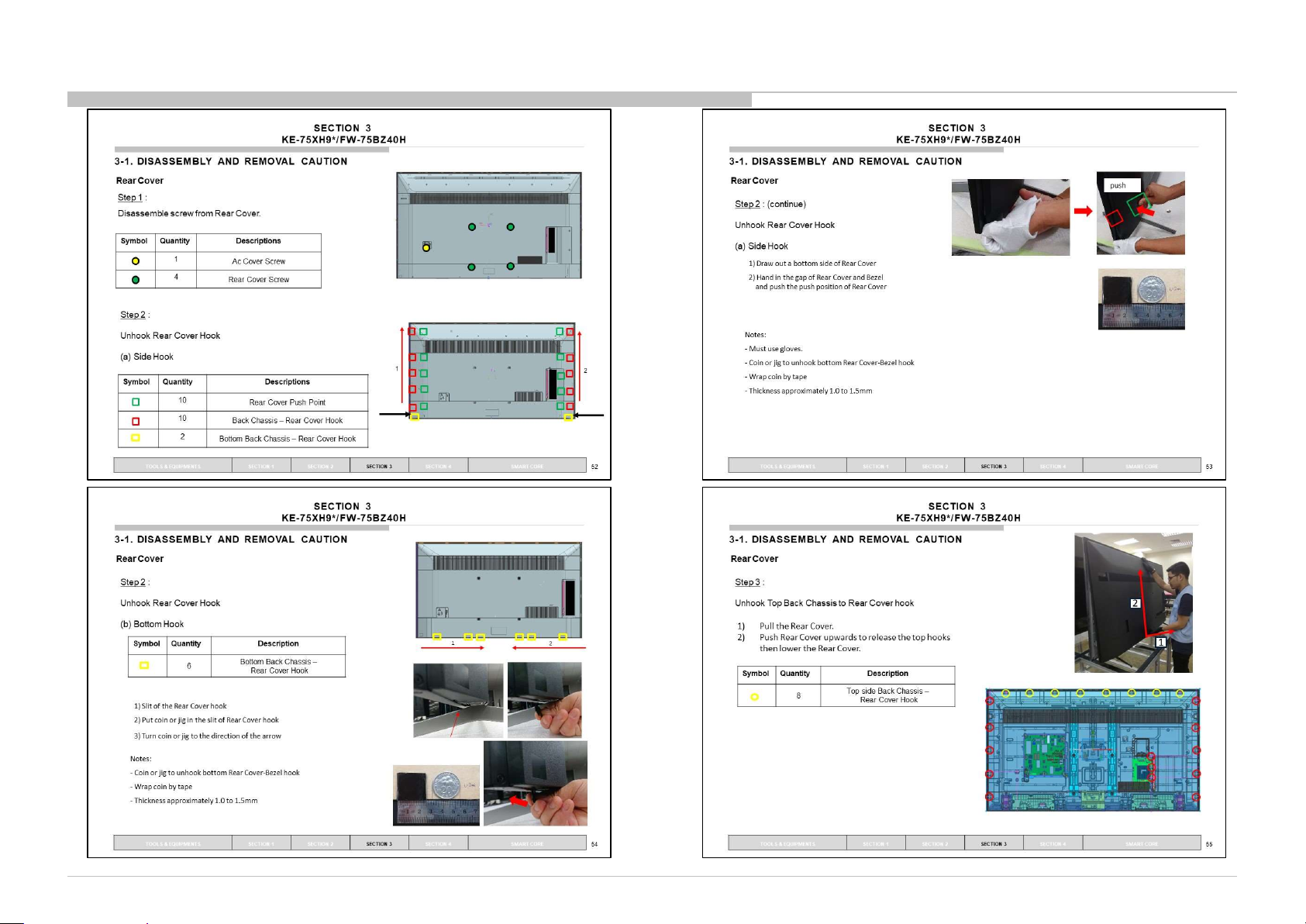

DISSASSEMBLY AND REMOVAL CAUTION 75”

1
23
8
9
10
12
13
14
15
16
18 19
17
4
6
7
5
5
11
Stand
13
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
3-4 EXPLODED VIEW AND
PART LIST
EXPLODED VIEW 75”

14
1
4
3
2
5
6
78
9
REF. NO PART NO. DESCRIPTION REMARKS
1 1-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-
CN1202(BT)(1)
2 1-006-508-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-
CN102(H)(1)
3 1-007-098-11 CONNECTOR ASSY 15P CN6601(PSU)-
CN1003(LD)(1)
4 1-007-114-11 CONNECTOR ASSY 4P (PZ) CN3500(B)-
PZ(1)
5 1-007-188-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-
CN1000(LD)(1)
6 1-007-221-11 CONNECTOR ASSY 6P (SP) CN3501(B)-
SP(1)
7 1-007-220-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-
CON3(TCON)(1)
81-007-187-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-
U2(TCON)(1)
91-007-461-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-
U1(TCON)(1)

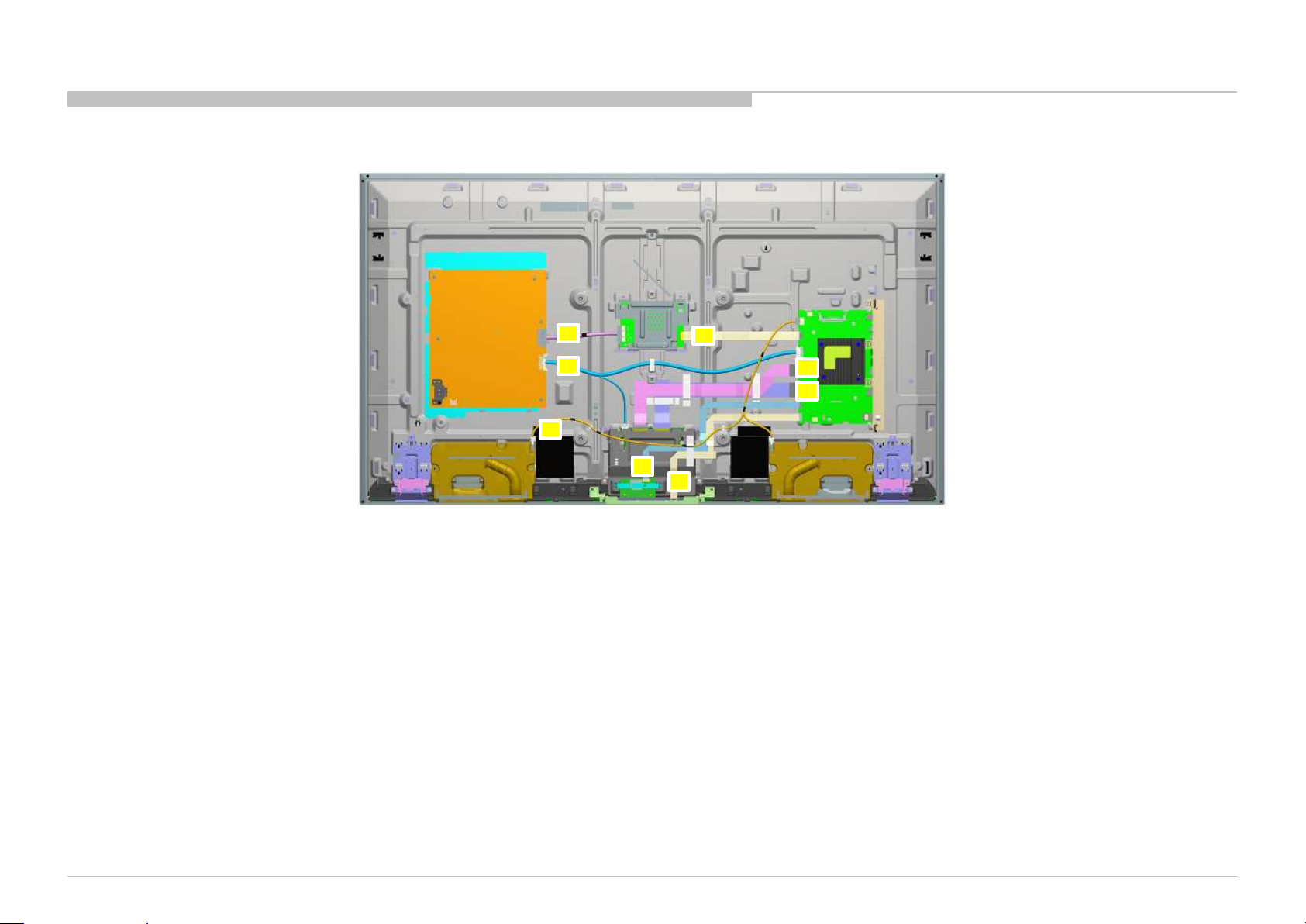

HARNESS/CABLES 75”

REF. NO PART NO. DESCRIPTION REMARKS
3 1-005-621-11 C7L AC POWER CODE SETS (EU) (CEI)
3 1-005-628-11 C7L AC POWER CODE SETS (UK) (UKA)
11 A-5014-274-A COMPL SVC BM5_WW_B2B FW-75BZ40H
11 A-5014-265-A COMPL SVC BM5_EUUK Except FW-75BZ40H
13 1-006-133-21 G03BP - STATIC CONVERTER(TV)
15 A-5012-966-A 20LD32A1 COMPL
16 1-007-577-11 MOUNTED PWB E-T-CON(75)
17 A-5016-558-A P-MOD (YDAS075DND01) FW-75BZ40H
17 A-5016-527-A P-MOD (YDAS075DND01) Except FW-75BZ40H
15
SET PART LIST
!
!
!
!
!

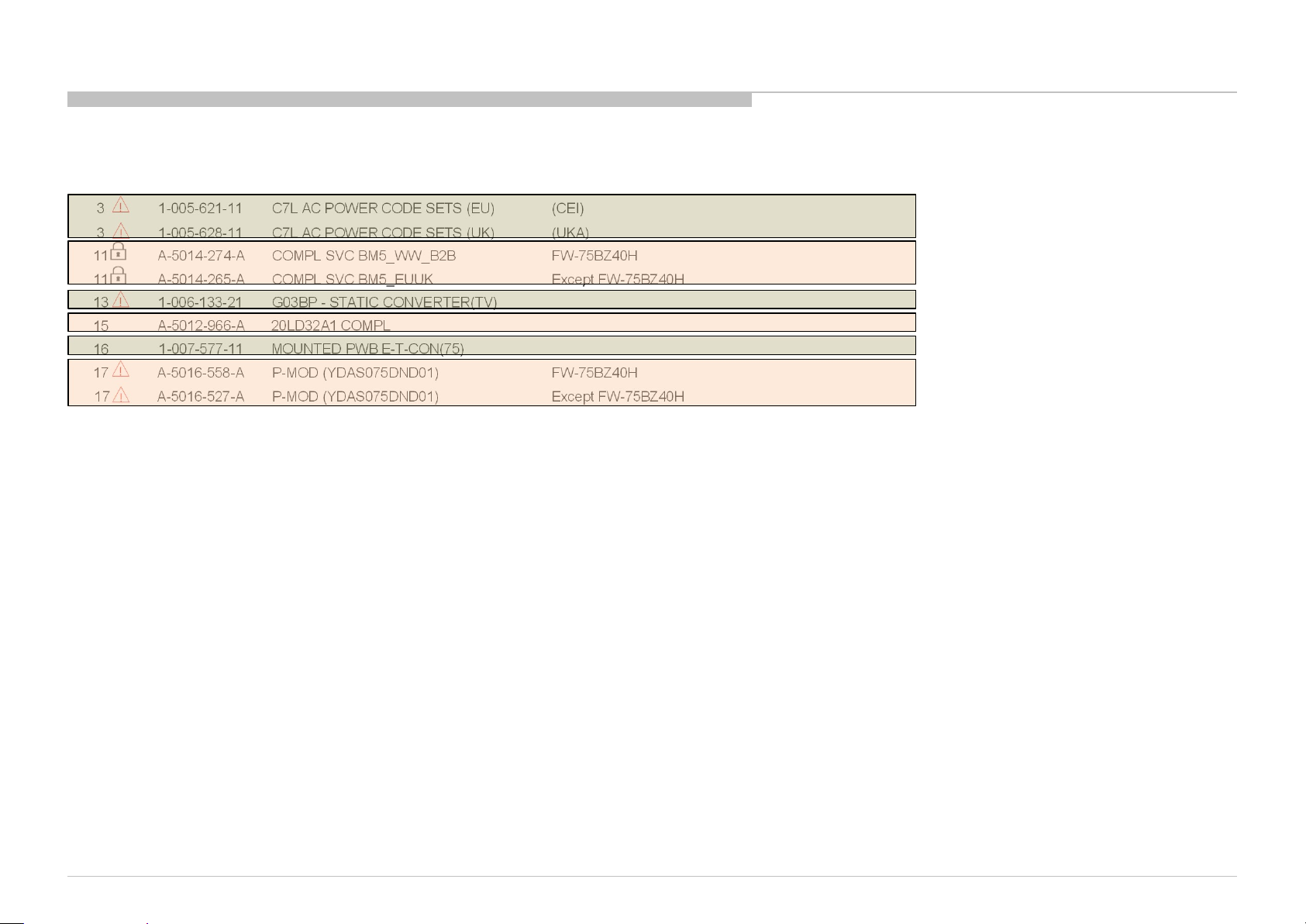

PARTS LIST 75”
Cable
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display

16
DISSASSEMBLY AND REMOVAL CAUTION 85”

Stand
17
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
4-4 EXPLODED VIEW AND
PART LIST
1
2
3
8
9
10
12
13
14
15
16 17
4
6
7
5
11
3
EXPLODED VIEW 85”

18
1
4
3
2
5
6
78
9
REF. NO PART NO. DESCRIPTION REMARKS
11-006-521-11 FLEXIBLE FLAT CABLE 20P CN3801(B)-
CN1202(BT)(1)
21-006-524-11 FLEXIBLE FLAT CABLE 25P CN1200(B)-
CN102(H)(1)
31-007-223-11 CONNECTOR ASSY 15P CN6601(PSU)-
CN1003(LD)(1)
41-007-224-11 CONNECTOR ASSY 4P (PZ) CN3500(B)-
PZ(1)
51-007-192-11 FLEXIBLE FLAT CABLE 30P CN1603(B)-
CN1000(LD)(1)
61-007-225-11 CONNECTOR ASSY 6P (SP) CN3501(B)-
SP(1)
71-007-222-11 CONNECTOR ASSY 28P CN1700(B)-CN6401(PSU)-
CON3(TCON)(1)
81-007-193-11 FLEXIBLE FLAT CABLE 41P CN4201(B)-
U2(TCON)(1)
91-007-194-11 FLEXIBLE FLAT CABLE 51P CN4200(B)-
U1(TCON)(1)
HARNESS/CABLES 85”

REF. NO PART NO. DESCRIPTION REMARKS
9 A-5014-274-A COMPL SVC BM5_WW_B2B FW-85BZ40H
9 A-5014-265-A COMPL SVC BM5_EUUK KE-85XH9096
11 1-006-109-22 G03P - STATIC CONVERTER (TV)
13 A-5012-965-A 20LD40A1 COMPL
14 1-007-935-11 MOUNTED PWB E-T-CON(85)
15 A-5016-564-A P-MOD (YDAS085DNU02) FW-85BZ40H
15 A-5016-535-A P-MOD (YDAS085DNU01) KE-85XH9096
!
19
SET PART LIST
!
!

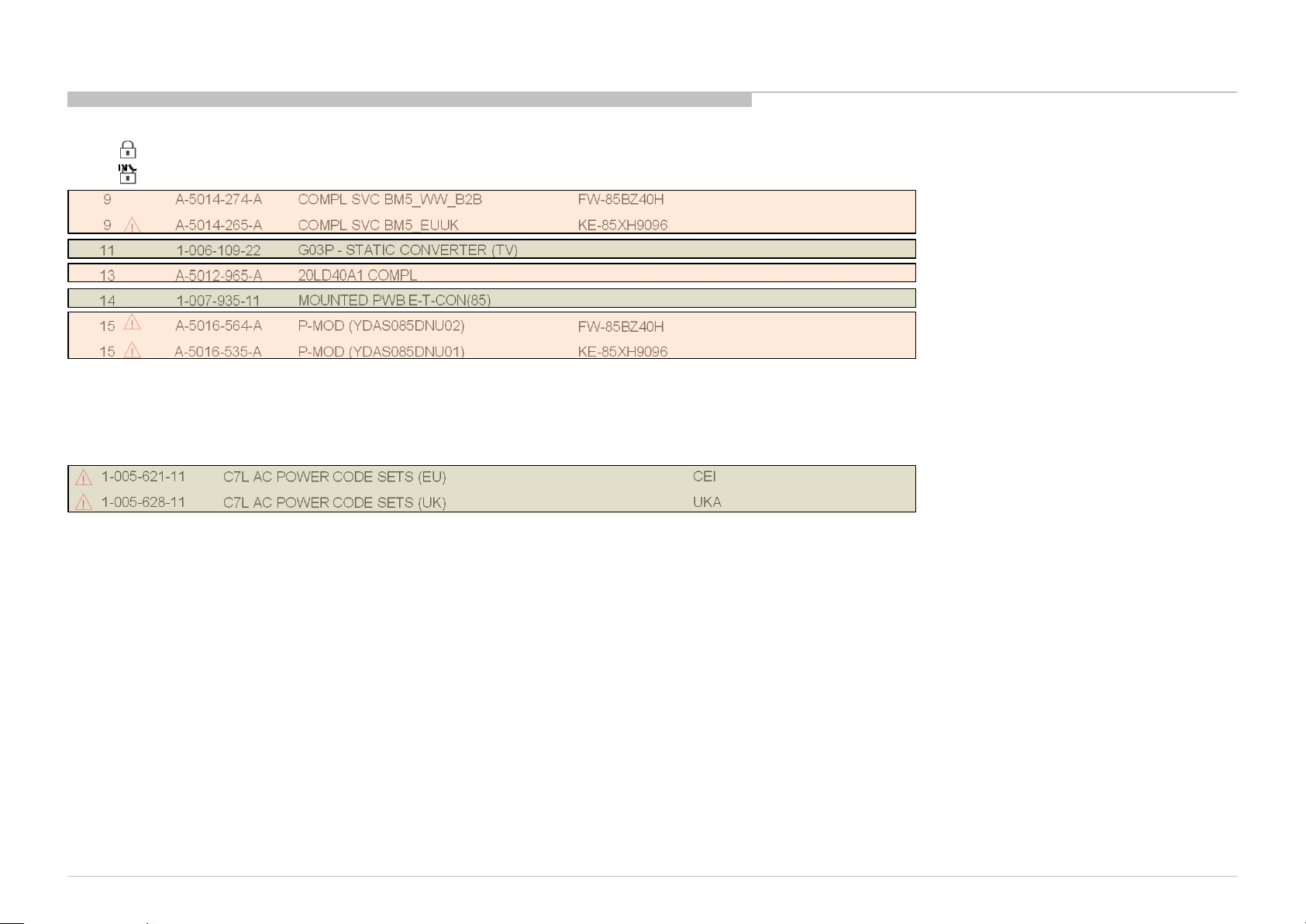

PARTS LIST 85”
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
PART NO. DESCRIPTION REMARKS
1-005-621-11 C7L AC POWER CODE SETS (EU) CEI
1-005-628-11 C7L AC POWER CODE SETS (UK) UKA
OTHER PARTS
!
!Cable

20
