Sony HT-X9000F User manual

SERVICE MANUAL
Sony Video & Sound Products Inc.
Amplier section
(X9000F: US)
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(FTC)
Front L + Front R:
With 4ohms loads, both channels
driven, from 200 - 20,000Hz; rated
35W per channel minimum RMS
power, with no more than 1% total
harmonic distortion from 250mW to
rated output.
POWER OUTPUT (reference)
Front L/Front R speaker blocks: 100W
(per channel at 4ohms, 1kHz)
(X9000F: CND/XF9000: AEP, UK)
POWER OUTPUT (rated)
Front L + Front R: 60W + 60W
(at 4ohms, 1kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R speaker blocks: 100W
(per channel at 4ohms, 1kHz)
Inputs
HDMI IN*
ANALOG IN
TV IN (OPT)
Outputs
HDMI OUT (TV (ARC))*
*HDMI IN and HDMI OUT (TV (ARC)) jacks
support HDCP 2.2 protocol. HDCP 2.2 is
newly enhanced copyright protection
technology that is used to protect
content such as 4K movies.
HDMI Section
Connector
Type A (19pin)
USB section
(USB) port:
Type A (For connecting USB memory)
BLUETOOTH section
Communication system
BLUETOOTH Specication version 4.2
Output
BLUETOOTH Specication Power
Class1
Maximum communication range
Line of sight approx. 30m 1)
Maximum number of devices to be
registered
9 devices
Frequency band
2.4 GHz band (2.4GHz - 2.4835GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH proles2)
A2DP (Advanced Audio Distribution
Prole)
AVRCP (Audio Video Remote Control
Prole)
Supported Codecs3)
SBC4), AAC5)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency
32kHz, 44.1kHz, 48kHz)
1) The actual range will vary depending on
factors such as obstacles between
devices, magnetic elds around a
microwave oven, static electricity,
cordless phone use, reception
sensitivity, the operating system,
software applications, etc.
2) BLUETOOTH standard proles indicate
the purpose of BLUETOOTH
communication between devices.
3) Codec: Audio signal compression and
conversion format
4) Abbreviation for Subband Codec
5) Abbreviation for Advanced Audio
Coding
Front L/Front R speaker block section
Speaker system
Full Range speaker system, Acoustic
suspension
Speaker
40mm × 100mm (1 5/8 in. × 4 in) cone
type
General
Power requirements
120 V AC, 60 Hz (X9000F: US, CND)
Power consumption
On: 38W
[Bluetooth Standby] - [On]: Less than
2W
[Bluetooth Standby] - [O]: Less than
0.5W
Dimensions* (approx.) (w/h/d)
930mm × 58mm × 85mm (36 5/8 in ×
2 3/8 in × 3 3/8 in)
*Not including projection portion
Mass (approx.)
2.5kg (5 33/64 lb)
Frequency band
2.4GHz (2.4000GHz - 2.4835GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Design and specications are subject to
change without notice.
Wireless Transmitter/
Receiver Section
220 V - 240 V AC, 50 Hz/60 Hz
(XF9000: AEP, UK)
What’s in the Box
t#BS4QFBLFS
t4VCXPPGFS
t3FNPUFDPOUSPM
t3TJ[F"""CBUUFSZ
t)%.*DBCMFTVQQPSUTUIFTQFDJöDBUJPO
equal to Premium High Speed HDMI
Cable with Ethernet) (1) (X9000F: US, CND)
t0QUJDBMEJHJUBMDBCMF9'"&16,
t8"--.06/55&.1-"5&
t4UBSUVQ(VJEF
t0QFSBUJOH*OTUSVDUJPOT
HT-X9000F/XF9000
SA-X9000F/XF9000
SPECIFICATIONS
HT-X9000F/XF9000
SOUND BAR
SA-X9000F/XF9000
ACTIVE SPEAKER SYSTEM
9-896-483-01
2018A33-1
© 2018.01
US Model
Canadian Model
HT-X9000F/SA-X9000F
AEP Model
UK Model
HT-XF9000/SA-XF9000
Ver. 1.0 2018.01
• All of the units included in the HT-X9000F
(SA-X9000F/SA-WX9000F/Remote
control) or HT-XF9000 (SA-XF9000/SA-
WXF9000/Remote control) are required
to confirming operation of SA-X9000F/
XF9000. Check in advance that you have
all of the units.
COMPONENT MODEL NAME
HT-X9000F HT-XF9000
Bar Speaker (Active Speaker System) SA-X9000F SA-XF9000
Subwoofer (Active Subwoofer) SA-WX9000F SA-WXF9000
• Please refer to service manual separately issued for Subwoofer.
Note:
Be sure to keep your PC used for service and
checking of this unit always updated with the
latest version of your anti-virus software.
In case a virus affected unit was found during
service, contact your Service Headquarters.
Photo: SA-X9000F

HT-X9000F/XF9000
2
NOTES ON CHIP COMPONENT REPLACEMENT
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)
1.5 kΩ0.15 μF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
This system incorporates Dolby* Digital
and the DTS** Digital Surround System.
*Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, Dolby
Atmos, Dolby Vision, and the double-D
symbol are trademarks of Dolby
Laboratories.
**For DTS patents, see http://
patents.dts.com. Manufactured under
license from DTS, Inc. DTS, the Symbol,
DTS and the Symbol together, DTS:X, and
the DTS:X logo are registered trademarks
and/or trademarks of DTS, Inc. in the
United States and/or other countries. ©
DTS, Inc. All Rights Reserved.
The BLUETOOTH®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
T
his system incorporates High-Denition
Multimedia Interface (HDMI™) technology.
T
he terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the
United States and other countries.
“BRAVIA” logo is a trademark of Sony
Corporation.
“ClearAudio+” is a trademark of Sony
Corporation.
WALKMAN® and WALKMAN® logo are
registered trademarks of Sony
Corporation.
“PlayStation” is a registered trademark or
trademark of Sony Interactive
Entertainment Inc.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
T
his product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
“DSEE” is a trademark of Sony Corporation.
“TRILUMINOS” and “TRILUMINOS” logo are
a registered trademark of Sony
Corporation.
All other trademarks are trademarks of
their respective owners.
Copyrights and Trademarks

HT-X9000F/XF9000
3
1. SERVICING NOTES ............................................. 4
2. DISASSEMBLY
2-1. Disassembly Flow........................................................... 8
2-2. Top/Bottom Cabinet Block-1.......................................... 9
2-3. Top/Bottom Cabinet Block-2.......................................... 10
2-4. SK1 LED Board.............................................................. 11
2-5. Speaker Connection Cable (L-ch)................................... 12
2-6. Speaker Connection Cable (R-ch) .................................. 13
2-7. Loudspeaker (L-ch/R-ch), Top Cabinet Assy ................. 14
2-8. Bluetooth Module ........................................................... 14
2-9. Holder (BT) Block .......................................................... 15
2-10. SK1-WS-CHUKEI Board............................................... 16
2-11. SK1 IR REP (2) Board.................................................... 17
2-12. Main Chassis Block-1..................................................... 18
2-13. Main Chassis Block-2..................................................... 19
2-14. Power-supply Cord ......................................................... 20
2-15. MAIN Board-1................................................................ 21
2-16. MAIN Board-2................................................................ 22
2-17. SK1 IR REP (1) Board.................................................... 23
2-18. SK1-JACK Board ........................................................... 24
2-19. SK1 AMP Board ............................................................. 25
2-20. POWER Board................................................................ 26
2-21. MAIN Board Service Position........................................ 26
3. TEST MODE ............................................................ 27
4. TROUBLESHOOTING .......................................... 31
TABLE OF CONTENTS
5. DIAGRAMS
5-1. Block Diagram - HDMI Section -................................... 37
5-2. Block Diagram - MAIN Section -................................... 38
5-3. Block Diagram - AMP Section - ..................................... 39
5-4. Block Diagram
- PANEL/POWER SUPPLY Section -............................ 40
5-5. Printed Wiring Board - MAIN Board -........................... 42
5-6. Printed Wiring Boards
- SK1-JACK/SK1-WS-CHUKEI Boards - ..................... 43
5-7. Schematic Diagram
- SK1-JACK/SK1-WS-CHUKEI Boards - ..................... 43
5-8. Printed Wiring Board - SK1 AMP Board - ..................... 44
5-9. Schematic Diagram - SK1 AMP Board - ........................ 45
5-10. Printed Wiring Board - POWER Board -........................ 46
5-11. Schematic Diagram - POWER Board - .......................... 47
6. EXPLODED VIEWS
6-1. Foot Section .................................................................... 51
6-2. Top Cabinet Section........................................................ 52
6-3. Bottom Cabinet Section .................................................. 53
6-4. MAIN Board Section ...................................................... 54
6-5. SK1 AMP Board Section ................................................ 55
6-6. POWER Board Section................................................... 56
7. ELECTRICAL PARTS LIST .............................. 57
Accessories are given in the last of the electrical parts list.

HT-X9000F/XF9000
4
SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
NOTE OF REPLACING THE FUSE
The fuse is or could be in the neutral. When a fuse is being re-
placed, the main plug shall be disconnected from the AC outlet to
prevent electric shock.
ADVANCE PREPARATION WHEN CONFIRMING OP-
ERATION
All of the units included in the HT-X9000F (SA-X9000F/SA-
WX9000F/Remote control) or HT-XF9000 (SA-XF9000/SA-
WXF9000/Remote control) are required to confirming operation
of SA-WX9000F/WXF9000. Check in advance that you have all
of the units.
DISCHARGE PROCESSING
Before checking the operation of the boards for the electric shock
prevention, perform the discharge processing by connecting the
resistor at both ends of the specified capacitor with referring to the
figure below.
Note: Be sure to discharge using a resistor of 800 or higher.
– POWER Board (Conductor Side) –
C923
C917
800 :/2 W
800 :/2 W
NOTE OF PERFORMING THE OPERATION CHECK IN
THE STATE THAT HEAT SINK IS REMOVED
When performing the operation check in the state that this unit is
disassembled, it is possible to perform the operation check in the
state that heat sink is removed. However, don’t perform the opera-
tion check in the long time, and perform the operation check in the
volume state as low as possible.
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
ABOUT THE PROTECTION
All the indicators flash quickly and
the system is turned off.
qDisconnect the AC power cord (mains
lead) and make sure nothing is
obstructing the ventilation holes of
the system.
Æ
MODEL IDENTIFICATION

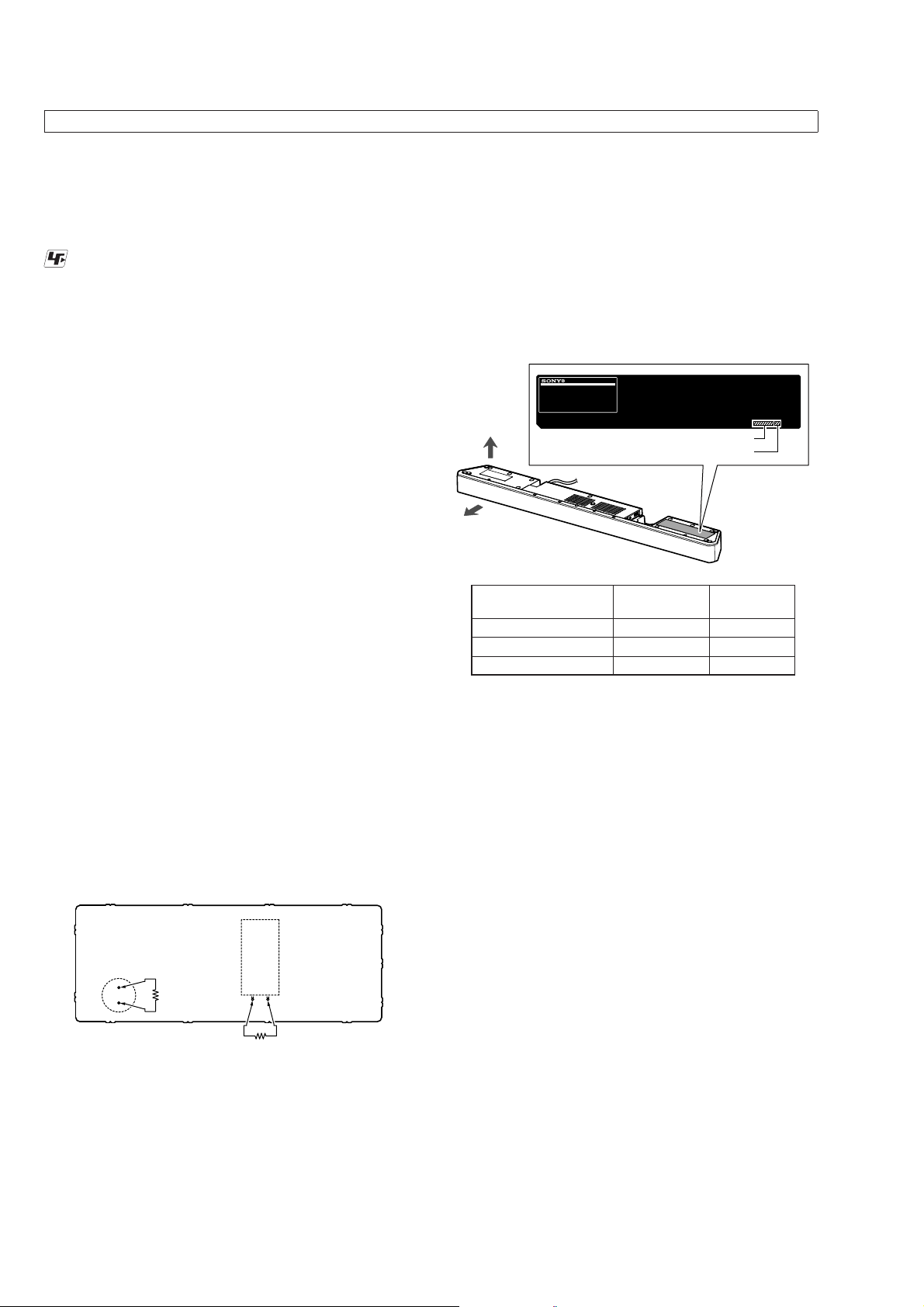

Distinguish by Part No. and Destination code of the model number
label on the bottom side of the main unit.
front side
bottom side
MODEL NUMBER LABEL
Destination code
Part No.
Destination Part No. Destination
code
X9000F: US, CND 4-724-090-0[] UC2
XF9000: AEP 4-724-092-0[] CEL
XF9000: UK 4-724-093-0[] CEK
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for UK, Ireland), East European
area, CIS area (Moldova) and Middle East area (Israel,
Jordan) models
CND : Canadian and Latin American area (Puerto Rico) models
UK : European area (UK and Ireland) model

HT-X9000F/XF9000
5
SERIAL NUMBER WRITING WORK WHEN THE MAIN
BOARD REPLACED
When the MAIN board is replaced, be sure to serial number writ-
ing work is necessary. Perform works according to the following
procedure.
Note: For the serial number writing work, need a TV monitor compatible
with resolution “1920 × 1080 P” of video format.
Serial number writing procedure:
1. Take a memorandum of the serial number on the bottom of this
unit.
front side
bottom side
Serial number position
Serial number (7 digit)
2. Connect this unit with TV monitor.
3. Touch the [1] button to turn the power on.
4. Press button on the remote commander in order of the follow-
ing.
[AUTO SOUND] →[DISPLAY] →[.] →[V]
(Make the interval when each button is pressed within one sec-
ond)
5. The LEDs light up/flash on this unit as shown in the following
figure, then enter the service mode to display the service mode
menu on TV monitor.
The all LEDs light up.
TV monitor screen
The all LEDs keep flash.
Service diag [ver x.xx.xx]
System Information
Serial number Editor
Exit
6. Press the [V]/[v] buttons on the remote commander to select
the “Serial number Editor”.
7. Press the [ ] button on the remote commander, display the se-
rial number editor screen.
Serial
number
Serial number Editor
[EDIT]
[CLEAR]
[SAVE]
[XXXXXXX]
(Displayed characters in the above figure are example)
8. Press the [V]/[v] buttons on the remote commander to select
the “[EDIT]”, and press the [ ] button on the remote com-
mander. The cursor moves to the right serial number side.
9. Press the [V]/[v]/[B]/[b] buttons on the remote commander,
input the serial number you memoranda in step 1.
Operation:
[B]/[b] Select the digit to edit
[V]/[v] Make the selected number to +1/–1
10. Press the [ ] button on the remote commander, return to the
cursor position [EDIT].
11. Press the [V]/[v] buttons on the remote commander to select
the “[SAVE]”.
12. Press the [ ] button on the remote commander, the message
“>OK” is appear and serial number is written.
Serial number Editor
[EDIT]
[CLEAR]
[SAVE]
> OK
[ 1234567 ]
(Displayed characters in the above figure are example)
13. Press the [BACK] button on the remote commander, return to
the service mode menu screen.
14. Press the [V]/[v] buttons on the remote commander to select
the “Exit”.
Service diag [ver x.xx.xx]
System Information
Serial number Editor
Exit
15. Press the [ ] button on the remote commander, the service
mode is released and turn the power off automatically.

HT-X9000F/XF9000
6
WIRELESS CONNECTION (LINK) WORK OF BAR SPEAK-
ER AND SUBWOOFER
When the Bluetooth module of bar speaker or Bluetooth module of
subwoofer are replaced, the wireless connection (LINK) of the bar
speaker and subwoofer will be disconnected.
Before returning repaired products to the customer, follow the pro-
cedure below to LINK the bar speaker and subwoofer.
Note: If only the bar speaker or subwoofer is brought in for repair, wire-
less connection (LINK) is not possible. Refer to “What to do if only
bar speaker or subwoofer are brought in for repair”.
Replacing parts for repairing that required wireless con-
nection (LINK)
• Replacing the Bluetooth module of bar speaker
• Replacing the Bluetooth module of subwoofer
Wireless connection (LINK) method
When the repairing unit is not secure link:
After replacing the Bluetooth module of the bar speaker or replac-
ing the Bluetooth module of the subwoofer, when turn the power
on, it will automatically wireless connection.
When the repairing unit was secure link:
After replacing the Bluetooth module of the bar speaker or replac-
ing the Bluetooth module of the subwoofer, even if turn the power
on, if you do not automatically wireless connection, there is a pos-
sibility that the repairing unit was secure link.
In this case, perform the secure link according to “Secure link
method” below.
Also, press and hold the [LINK] button on the rear side of sub-
woofer to cancel the secure link, it can automatically wireless con-
nection.
Secure link method
Procedure:
1. Connect bar speaker with TV monitor.
2. Press the [1] button on the bar speaker to turn the power on.
3. Press the [1] button on the rear side of subwoofer to turn the
power on.
4. Press the [HOME] button on the remote commander.
5. From the display of home menu on the TV monitor, operate
and decision in the following order.
“Setup” →“Advanced settings” →“Speaker settings” →“Se-
cure Link”→“On”
6. Press the [LINK] button on the rear side of subwoofer.
Note: Perform the next step within 2 minutes after the power indicator is
flashed.
7. From the display of home menu on the TV monitor, select the
“Start” and decision.
8. The message “Finish” is displayed on the TV monitor, the
power indicator of the subwoofer is lit in orange and secure
link is completed.
What to do if only bar speaker or subwoofer are brought
in for repair
If only the bar speaker or subwoofer is brought in for repair situa-
tion, and the Bluetooth module is replaced, by customer must wire-
less connection (LINK) the bar speaker and subwoofer.
• If the customer was not performing the secure link
It will automatically wireless connection (LINK) with the bar
speaker and subwoofer when turn the power on.
• If the customer was performing the secure link
The customer must need perform the secure link setting again, or
customer must need to cancel the secure link of the bar speaker or
subwoofer at hand of the customer and perform a normal wireless
connection.
Secure link cancellation method of bar speaker
Procedure:
1. Connect bar speaker with TV monitor.
2. Press the [1] button to turn the power on.
3. Press the [HOME] button on the remote commander.
4. From the display of home menu on the TV monitor, operate
and decision in the following order.
“Setup” →“Advanced settings” →“Speaker settings” →“Se-
cure Link”
5. Since the “On/Off” switching of Secure Link is displayed, se-
lect the “Off” and decision.
Secure link cancellation method of subwoofer
Procedure:
1. Press the [1] button on the rear side of subwoofer to turn the
power on.
2. Press and hold the [LINK] button on the rear side of subwoof-
er.
Press and hold the [LINK] button.
3. When the secure link is canceled, the power indicator is flashes
in green.

HT-X9000F/XF9000
7
RESETTING THE SYSTEM
Æ
1Press HOME.
The home menu appears on the TV
screen.
2Select [Setup] - [Advanced
Settings] on the home menu.
3Select [Resetting].
4Select the menu item you want to
reset.
5Select [Start].
To cancel resetting
Select [Cancel] in step 5.
Press and hold
Æ
(power) and –
(volume) on the main unit for more
than 5 seconds.
The settings return to their initial
status.
If You Cannot Perform
Resetting Using the Home
Menu
Note: By perform resetting, the link with the subwoofer may be lost. In
this case, refer to “WIRELESS CONNECTION (LINK) WORK OF
BAR SPEAKER AND SUBWOOFER” on page 6.
ADVANCE CONFIRMATION WHEN SOUND IS NOT
OUTPUTTED, OR WHEN THE SUBWOOFER IS NOT
LINKED
If in the symptoms such as not sound outputted of ARC, or the
subwoofer is not linked, be sure to refer to the TROUBLESHOOT-
ING below before repairing.
When the sound is not outputted of ARC:
Refer to “The sound is not outputted of ARC” on the TROUBLE-
SHOOTING (page 34).
When the subwoofer is not linked:
Refer to “The subwoofer is not linked” on the TROUBLESHOOT-
ING (page 35).
NOTE OF REPLACING THE SK1 TOUCH, SK1 LED,
SK1 IR REP (1) OR SK1 IR REP (2) BOARDS FOR
REPAIRING
When the SK1 TOUCH, SK1 LED, SK1 IR REP (1) or SK1 IR
REP (2) boards are defective, replace the complete mounted board
or the whole parts including the applicable board.
The mounted parts cannot be replaced with single for repairing.
NOTE OF REPLACING THE MAIN BOARD FOR RE-
PAIRING
When the MAIN board is defective, replace the complete mounted
board.
The mounted parts cannot be replaced with single for repairing.
Block diagram and printed wiring board are described for refer-
ence purposes in this service manual.
Also, after replacing the MAIN board please refer to “SERIAL
NUMBER WRITING WORK WHEN MAIN BOARD RE-
PLACED” on page 5.
NOTE OF REPLACING THE ELECTRICAL PARTS ON
EACH BOARDS FOR REPAIRING
Among mounted electrical parts on each boards, only parts that
are described in the electrical parts list can be replaced for repair.
The parts that are not described in the electrical parts list cannot be
replaced with single for repairing.
SPREADING OF COMPOUND
When the IC6006 on the SK1 AMP board or the SK1 AMP board
is replaced, spread the compound to the touching portion between
the IC6006 and the heat sink.
– SK1 AMP Board (Side A) –
IC6006
compound
MALFUNCTION PREVENTION OF THE BUTTON (TOUCH
PANEL SWITCH)
When the button portion on the top side of the main unit are
touched with something such as the floor surface, there is a pos-
sibility of occurring the malfunction.
When performing the operation check in the state that the top side
on this unit is under, set the stand etc. to the position that avoids the
button portion as shown in the figure below, perform in the state
that the button portion does not touch anything.
bottom side
stand
stand
button portion
FLEXIBLE FLAT CABLE FOR EXTENSION
If it necessary to the long flexible flat cable connecting the MAIN
board (CN701) and the SK1 AMP board (CN6005), use the follow-
ing flexible flat cable.
Part No. Description
1-912-603-11 FLEXIBLE FLAT CABLE (MB~AMP)
(28 CORE) (Length: 330 mm)

HT-X9000F/XF9000
8
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SET
2-21. MAIN BOARD SERVICE POSITION
(Page 26)
2-2. TOP/BOTTOM CABINET BLOCK-1
(Page 9)
2-3. TOP/BOTTOM CABINET BLOCK-2
(Page 10)
2-5. SPEAKER CONNECTION
CABLE (L-ch)
(Page 12)
2-7. LOUDSPEAKER (L-ch/R-ch),
TOP CABINET ASSY
(Page 14)
2-6. SPEAKER CONNECTION
CABLE (R-ch)
(Page 13)
2-4. SK1 LED BOARD
(Page 11)
2-9. HOLDER (BT) BLOCK
(Page 15)
Bottom cabinet block
Top cabinet block
2-10. SK1-WS-CHUKEI BOARD
(Page 16)
2-11. SK1 IR REP (2) BOARD
(Page 17)
2-12. MAIN CHASSIS BLOCK-1
(Page 18)
2-13. MAIN CHASSIS BLOCK-2
(Page 19)
2-14. POWER-SUPPLY CORD
(Page 20)
2-15. MAIN BOARD-1
(Page 21)
2-16. MAIN BOARD-2
(Page 22)
2-17. SK1 IR REP (1) BOARD
(Page 23)
2-19. SK1 AMP BOARD
(Page 25)
2-18. SK1-JACK BOARD
(Page 24)
2-20. POWER BOARD
(Page 26)
2-8. BLUETOOTH MODULE
(Page 14)

HT-X9000F/XF9000
9
front side
right side
left side
1eight screws
(BVTP3 u10)
1ten screws
(BVTP3 u10)
top side
+RZWRLQVWDOOWKHWRSFDELQHWEORFN
2two screws
(BVTP3 u6)
top cabinet block
rear side
left side
right side
top side
front side
soft cloth, etc.
Turn over.
rear side
front side
4Remove the top cabinet block
in the direction of the arrow.
3Lift up the top cabinet
block in the direction
of the arrow.
3Lift up the top cabinet
block in the direction
of the arrow.
top cabinet block
left side
bottom cabinet block
top cabinet block
6Push the top cabinet
block.
Push.
Note: Install the top cabinet block on the left and right at the same time.
The figures below explain using illustrations of the left side.
1First install the front side of the top
cabinet block as shown below.
2Open to the outer side with your
fingers so that the corner of the
top cabinet block does not touch.
3Install the top cabinet
block in the direction
of the arrow.
5Slowly lower the top cabinet
block straight down.
Attach in order from 1to 6.
4Check.
Note: Follow the disassembly procedure in the numerical order given.
2-2. TOP/BOTTOM CABINET BLOCK-1
• Continued on 2-3 (page 10).

HT-X9000F/XF9000
10
2-3. TOP/BOTTOM CABINET BLOCK-2
3speaker connection cable
connector (CN6004)
(See Fig. B)
4speaker connection cable
connector (CN6003)
(See Fig. B)
5top cabinet block
2FFC (16P)
(CN3004)
(See Fig. A)
6bottom cabinet block
terminal
side
CN3004
< Fig. A >
NG
front side
1Open the top cabinet block
in the direction of the arrow.
soft cloth, etc.
left side
right side
rear side
top cabinet block
:LUHVHWWLQJ
MAIN board
heatsink main
The FFC (16P) must not
touch the heatsink main.
FFC (16P)
heatsink
main
–7RSYLHZ–
< Fig. B >
SK1 AMP board Bend. Bend.
CN6004
CN6003
speaker connection
cable [red/black]
(for R-ch)
speaker connection
cable [gray/black]
(for L-ch)
FFC (16P)
–7RSYLHZ–

HT-X9000F/XF9000
11
2-4. SK1 LED BOARD
front side
right side
top side
left side
+RZWRLQVWDOOWKH))&3
))&3VHWWLQJ
short
long
front side
The opposite side
is terminal side.
SK1-TOUCH board
FFC (6P)
SK1 LED board
CN1306
The opposite side
is terminal side.
SK1-TOUCH board
SK1 LED board
SK1 LED board
A
A
1FFC (6P)
(CN1306)
4FFC (16P)
(CN1302)
(See Fig. C)
2two screws
(BVTP3 u8)
3Remove the SK1 LED board block
in the direction of the arrow.
hole
hole
boss
boss
5SK1 LED board
Note 2: When installing the SK1 LED board,
align the two bosses and two holes.
soft cloth, etc.
front side
–%RWWRPYLHZ–
Hold down.
&DEOHDUUDQJHPHQWZKHQLQVWDOOLQJWKH6./('ERDUGEORFN
Hold down.
)LJ&!
–%RWWRPYLHZ–
front side
top cabinet block
Note 1: Check that the speaker connection
cable is in the two grooves.
Install the SK1 LED board on top of the speaker connection cable while holding down
the connector with your fingers so that the speaker connection cable does not rise.
CN1302
FFC (16P)

HT-X9000F/XF9000
12
2-5. SPEAKER CONNECTION CABLE (L-ch)
front side
right side
left side
top cabinet block
3speaker connection cable
[gray/black] (for L-ch)
2 terminal (wide)
[gray]
2 terminal (narrow)
[black]
top side
1 Draw the speaker connection
cable out of two grooves.
two grooves
two grooves
left side
front side
Note 2: When connecting the terminals of the speaker connection
cable to the loudspeaker, be careful of the direction of the
terminals.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOV
loudspeaker (for L-ch)
speaker connection cable
terminal (wide)
[gray]
terminal (narrow)
[black]
OK
NG
OK
NG
front side
OK NG
right side
right side
soft cloth, etc.
1 Draw the speaker connection
cable out of two grooves.
loudspeaker
(for L-ch)
guide line
+RZWRLQVWDOOWKHVSHDNHUFRQQHFWLRQFDEOHIRU/FK
&DEOHFRQQHFWRUVHWWLQJ
'LUHFWLRQIRUWKHFRQQHFWRU
Note 3: When installing the speaker connection cable,
set the position and orientation of the connector
as shown below.
speaker connection cable
:LUHVHWWLQJ
Note 1: When pressing the speaker connection cable
into the grooves, set the wire as shown below.
–%RWWRPYLHZ–

HT-X9000F/XF9000
13
2-6. SPEAKER CONNECTION CABLE (R-ch)
1 Draw the speaker connection
cable out of two grooves.
3speaker connection cable
[red/black] (for R-ch)
(See Fig. D)
2 terminal (narrow)
[black]
2 terminal (wide)
[red]
front side
right side
left side top cabinet block
top side
left side right side
front side three
grooves
two
grooves
left side
OK NG
Note 2: When connecting the terminals of the speaker
connection cable to the loudspeaker, be careful
of the direction of the terminals.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOV
speaker connection cable
OK
NG
OK
NG
loudspeaker (for R-ch)
front side
terminal (wide)
[red]
terminal (narrow)
[black]
1 Draw the speaker
connection cable out
of three grooves.
soft cloth, etc.
)LJ'!
loudspeaker (for R-ch)
+RZWRLQVWDOOWKHVSHDNHUFRQQHFWLRQFDEOHIRU5FK
guide line
&DEOHFRQQHFWRUVHWWLQJ
'LUHFWLRQIRUWKHFRQQHFWRU
Note 3: When installing the speaker connection cable,
set the position and orientation of the connector
as shown below.
–%RWWRPYLHZ–
speaker connection cable
:LUHVHWWLQJ
Note 1: When pressing the speaker connection
cable into the grooves, set the wire as
shown below.

HT-X9000F/XF9000
14
2-7. LOUDSPEAKER (L-ch/R-ch), TOP CABINET ASSY
front side
right side
top side
left side
3 loudspeaker (for R-ch)
Note 1: When installing the loudspeaker
(for R-ch), align the two bosses
and two holes.
1two screws
(BVTP3 u10)
1two screws
(BVTP3 u10)
1two screws
(BVTP3 u10)
3 loudspeaker (for L-ch)
Note 1: When installing the loudspeaker (for L-ch),
align the two bosses and two holes.
1two screws
(BVTP3 u10)
soft cloth, etc.
boss
boss
boss
SK1-TOUCH
board
boss
hole
hole
hole
hole
5indicator (LED)
Note 2: When installing the indicator (LED),
align the two bosses and two holes.
2
2
boss
boss
terminal
side
6FFC (6P)
(CN1901)
7top cabinet assy
(Including SK1-TOUCH board)
4
hole
hole
– Inner view –
Note 3: When installing the loudspeaker, make the position
of terminals as shown in the figure below.
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHUIRU/FK
Note 3: When installing the loudspeaker, make the position
of terminals as shown in the figure below.
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHUIRU5FK
top side
terminals position
– Inner view –
top side terminals position
left side
right side
2-8. BLUETOOTH MODULE
2screw
(BVTP3 u8)
3
catcher
catcher
terminal
side
4bluetooth module
front side
right side
top side
bottom cabinet block
1Draw the FFC (18P)
out of the connector.
Note: When the bluetooth module is replaced, be
sure to refer to “WIRELESS CONNEC-
TION (LINK) WORK OF BAR SPEAK-
ER AND SUBWOOFER” on page 6.

HT-X9000F/XF9000
15

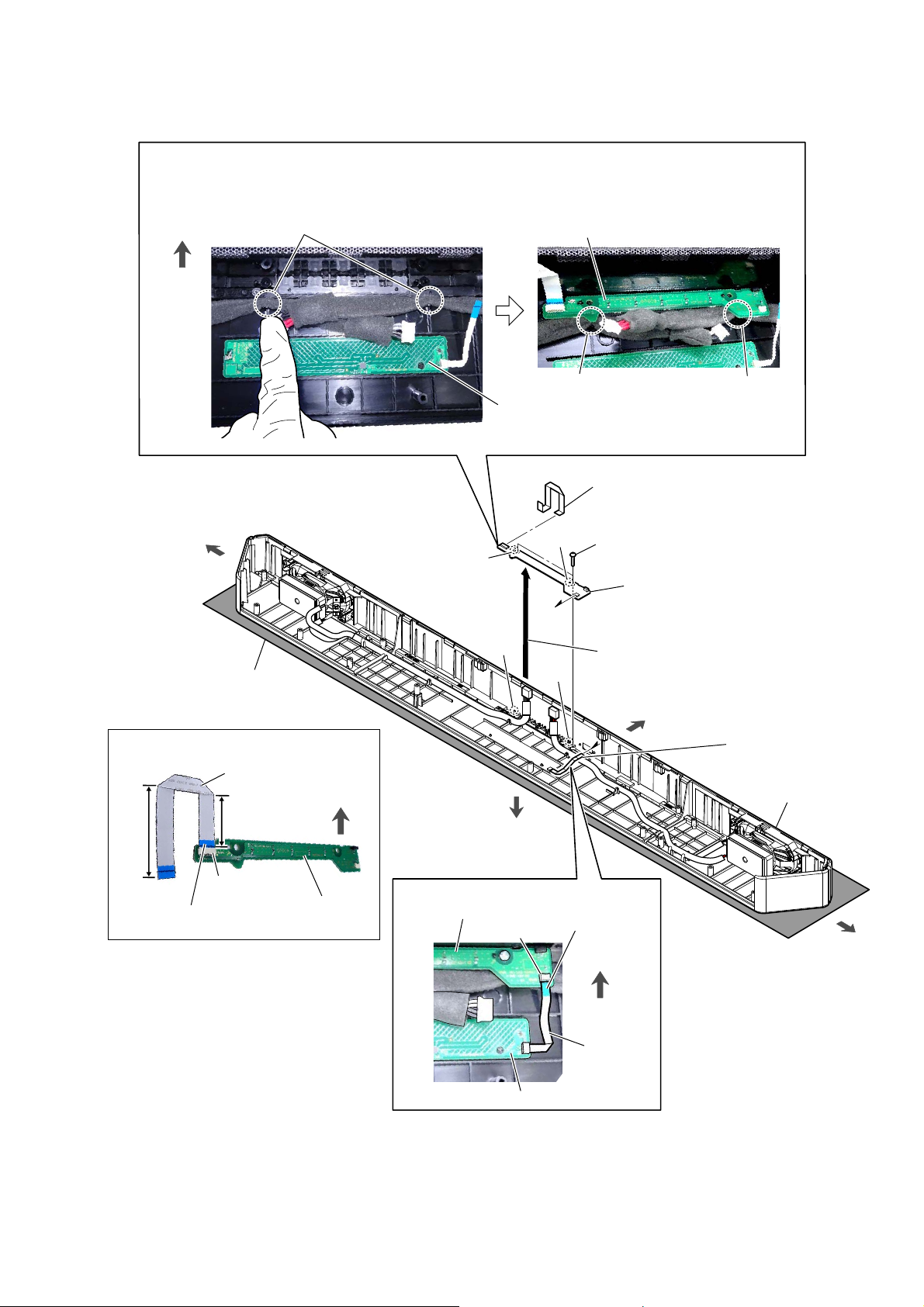

2-9. HOLDER (BT) BLOCK
front side
right side
top side
))&3VHWWLQJ
bottom cabinet block
rear side
right side
2two screws
(BVTP3 u8)
2screw
(BVTP3 u8)
3Lift up the holder (BT) block
in the direction of the arrow.
4FFC (18P)
(CN1502)
1Turn over the end of the
cushion (absorbent).
boss
boss
hole
hole
terminal
side
holder (BT) block
terminal
side
FFC (18P)
CN1502
SK1-WS-CHUKEI board
Pass the FFC (18P) underneath
the holder (BT) block.
holder (BT) block
5holder (BT) block
Note: When installing the holder (BT) block,
align the two bosses and two holes.
CN1502

HT-X9000F/XF9000
16
2-10. SK1-WS-CHUKEI BOARD
:LUHVHWWLQJ
front side
front side
right side
top side
CN1501
screw boss
screw boss
SK1-WS-CHUKEI board
right side
OK NG
Gap. (Do not touch
the shield main.)
Gap.
No gap. (Touch
the shield main.)
1MAIN board cable
connector (CN1501)
bottom cabinet block
boss
hole
boss
hole
Twist the MAIN board
cable two times.
screw boss groove
groove groove
packing (CZ2)
groove
groove
shield
main
shield
main
–7RSYLHZ–
left side
3 Draw the MAIN board cable
out of three grooves.
5screw
(BVTP3 u8)
6SK1-WS-CHUKEI board
Note: When installing the SK1-WS-CHUKEI
board, align the two bosses and two holes.
3 Draw the MAIN board cable
out of two grooves.
5screw
(BVTP3 u8)
2packing (CZ2)
CN702
Pass the MAIN board cable
beside the screw boss.
4MAIN board cable
connector (CN702)

HT-X9000F/XF9000
17
2-11. SK1 IR REP (2) BOARD
SK1 IR REP (2) board
CN1101
front side
right side
right side
top side
:LUHVHWWLQJ
bottom cabinet block
boss
catcher
catcher
catcher
catcher
–7RSYLHZ–
rear side
left side
2screw
(BVTP3 u10)
4SK1 IR REP board cable
connector (CN1101)
3Lift up the SK1 IR REP (2) board
block in the direction of the arrow.
1 Draw the SK1 IR REP board
cable out of two catchers.
1 Draw the SK1 IR REP board
cable out of two catchers.
hole
groove
5SK1 IR REP (2) board
Note: When installing the SK1 IR REP (2) board,
align the hole and groove with the two bosses.
boss

HT-X9000F/XF9000
18
2-12. MAIN CHASSIS BLOCK-1
• Continued on 2-13 (page 19).
front side
right side
top side
left side 1six screws
(BVTP3 u10)
hole
IR repeater portion
(SK1 IR REP (1) board)
hole
MAIN board
front side
bottom cabinet block
2Lift up the main chassis block
in the direction of the arrow.
4main chassis block
Note: When installing the main chassis
block, align the boss and hole.
boss
3Draw the IR repeater portion out
of the hole in bottom cabinet.
IR repeater portion
hole
– Top view –
Note about installing the main chassis block

HT-X9000F/XF9000
19
2-13. MAIN CHASSIS BLOCK-2
front side
right side
right side
top side
left side
3power-supply cord
connector (CN901)
claw side
cord bushing
3RZHUVXSSO\FRUGEORFNVHWWLQJ
POWER board
power-supply
cord
lock side
two claws
cord bushing
1four screws
(BVTP3 u8)
1screw
(BVTP3 u8)
1screw
(BVTP3 u8)
1screw
(BVTP3 u8)
1screw
(BVTP3 u8)
hole
hole
hole
hole
4 Draw the power-supply
cable out of catcher.
5 Draw the cord bushing
portion out of groove.
CN901
catcher
–7RSYLHZ–
6 main chassis block
2insulator top
Note: When installing the insulator top,
align the four ribs and four holes.
rib
rib
rib
rib
groove
catcher
power-supply cord
[white]: US, CND
[blue]: AEP, UK
[black]: US, CND
[brown]: AEP, UK

HT-X9000F/XF9000
20

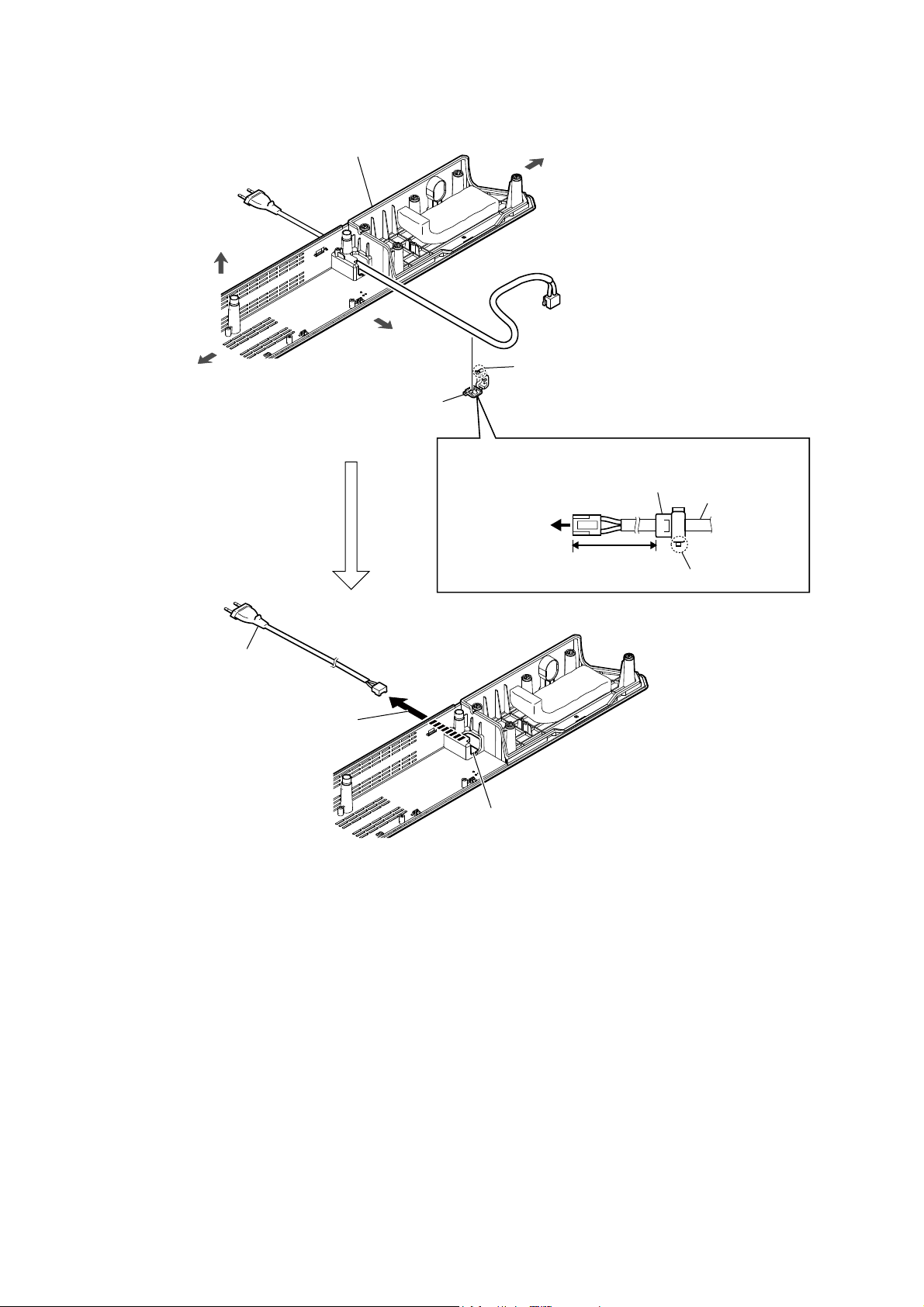

2-14. POWER-SUPPLY CORD
front side
right side
top side
left side
4power-supply
cord
power-supply cord
cord bushing (FBS001)
lock side
to POWER board
3Draw the power-supply cord out
of the hole in bottom cabinet.
,QVWDOODWLRQSRVLWLRQRIWKHFRUGEXVKLQJ)%6
80 ± 5 mm
bottom cabinet block
hole
2cord bushing
(FBS001)
1Unlock.
