Sony SA-WMS345 User manual

1
Ver 1.1 2003. 04
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
SA-VE345
For the U.S. model
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
with 8 ohm loads, from 20 – 200 Hz; rated
120 watts per channel minimum RMS power,
with no more than 0.8% total harmonic
distortion from 250 milliwatts to rated
output.
SS-V345 (front and surround speakers)
Speaker system Full range, magnetically
shielded
Speaker units 5.5 ×11 cm
(2 1/4 ×4 3/8 in.), cone type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 110 watts
Sensitivity level 85 dB (1 W, 1 m)
Frequency range 120 Hz – 20,000 Hz
Dimensions (w/h/d) Approx. 85 ×152 ×112
mm (3 3/8 ×6 ×4 1/2 in.),
including front grille
Mass Approx. 850 g
(1 lb 14 oz) each
SPECIFICATIONS
SS-CN345 (center speaker)
Speaker system Full range, magnetically
shielded
Speaker units 5.5 ×11 cm
(2 1/4 ×4 3/8 in.), cone type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 110 watts
Sensitivity level 85 dB (1 W, 1 m)
Frequency range 90 Hz – 20,000 Hz
Dimensions (w/h/d) Approx. 300 ×81 ×122
mm (11 7/8 ×31/4×47/8 in.),
including front grille
Mass Approx. 1100 g (2 lb 7 oz)
SA-WMS345 (subwoofer)
Speaker system Active subwoofer,
magnetically shielded
Speaker unit Woofer: 20 cm (8 in.),
cone type
Enclosure type Advanced SAW type
Reproduction frequency range
26 Hz – 200 Hz
Amplifier section
Continuous RMS power output
120 W (US, CND model)
110 W (AEP, UK, AUS,
SP, MY model)
(8 ohms, 20 Hz – 20 kHz,
0.8% THD)
• SA-VE345 consists of the following models respectively.
Sony Corporation
Home Audio Company
Published by Sony Engineering Corporation
9-877-088-02
2003D0400-1
© 2003. 04
MICRO SATELLITE SYSTEM
SA-VE345/WMS345/
SS-CN345/V345
Active Subwoofer SA-WMS345
Front and Surround Speakers SS-V345
Center Speaker SS-CN345
SA-WMS345
Inputs
LINE IN (input pin jack)
SPEAKERIN(input terminals)(US, CNDmodel only)
Outputs (US, CND model only)
SPEAKER OUT (output terminals)
General
Power requirements
US, CND model: 120 V AC, 60 Hz
AEP, UK model: 220 – 230 VAC, 50/60 Hz
AUS model: 220 – 240 VAC, 50/60 Hz
SP, MY model: 110 – 120/220 – 240 V AC,
50/60 Hz
Power consumptions 90 W
1 W (standby mode)
Dimensions (w/h/d) Approx. 230 ×392 ×464
mm(91/8 ×151/2×183/8 in.),
(US, CND model)
Approx. 230 ×392 ×447
mm (AEP, UK, AUS, SP,
MY model)
including front grille
Mass Approx. 13.2 kg (29 lb 2 oz)
SS-CN345SS-V345
– Continued on next page –

2
SA-VE345/WMS345/SS-CN345/V345
TABLE OF CONTENTS
1. DIAGRAMS
1-1. Circuit Boards Location (SA-WMS345) ............................ 3
1-2. Printed Wiring Boards (SA-WMS345) ............................... 5
1-3. Schematic Diagram (SA-WMS345) ................................... 6
2. EXPLODED VIEWS
2-1. Front Panel Section (SA-WMS345).................................... 7

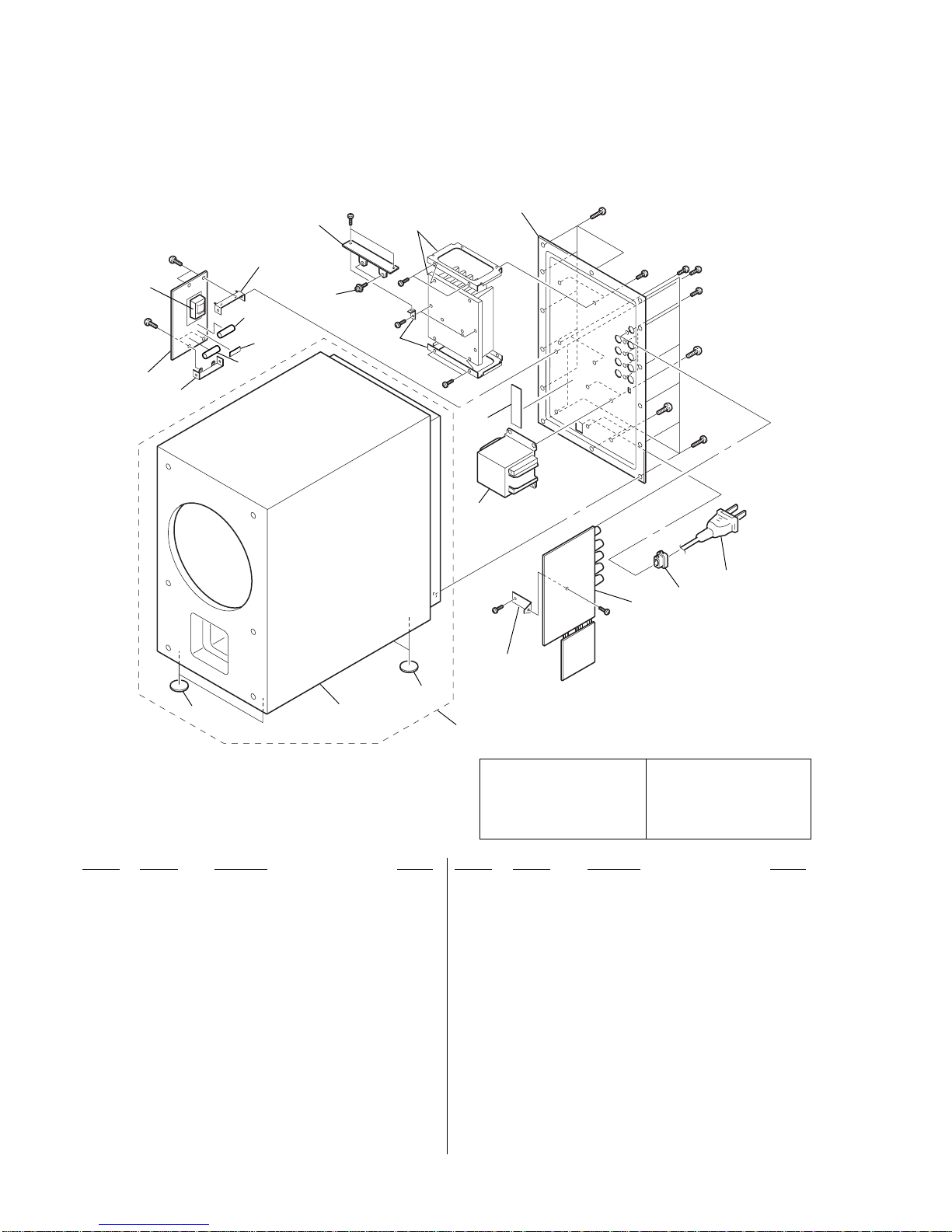

2-2. Rear Panel Section (SA-WMS345)..................................... 8
2-3. Center Speaker Section (SS-CN345) .................................. 9
2-4. Front and Surround Speakers Section (SS-V345)............. 10
3. ELECTRICAL PARTS LIST......................................... 11
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
To Exposed Metal
Parts on Set
0.15µF 1.5k
Ω
AC
voltmeter
(0.75V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of aVOM
or battery-operatedAC voltmeter. The “limit” indication is 0.75
V, so analog meters must have an accurate low-voltage scale. The
Simpson 250 and Sanwa SH-63Trd are examples of a passive
VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)
Supplied accessories
Foot pads (20)
Audio connecting cord (1)
Speaker connecting cords, 10 m (32.8 ft) (2)
Speaker connecting cords, 3.5 m (11.5 ft) (3)
Design and specifications are subject to change without
notice.
•Abbreviation
CND : Canadian model
AUS:Australian model
SP : Singapore model
MY : Malaysia model
Ver 1.1

3
SA-VE345/WMS345/SS-CN345/V345

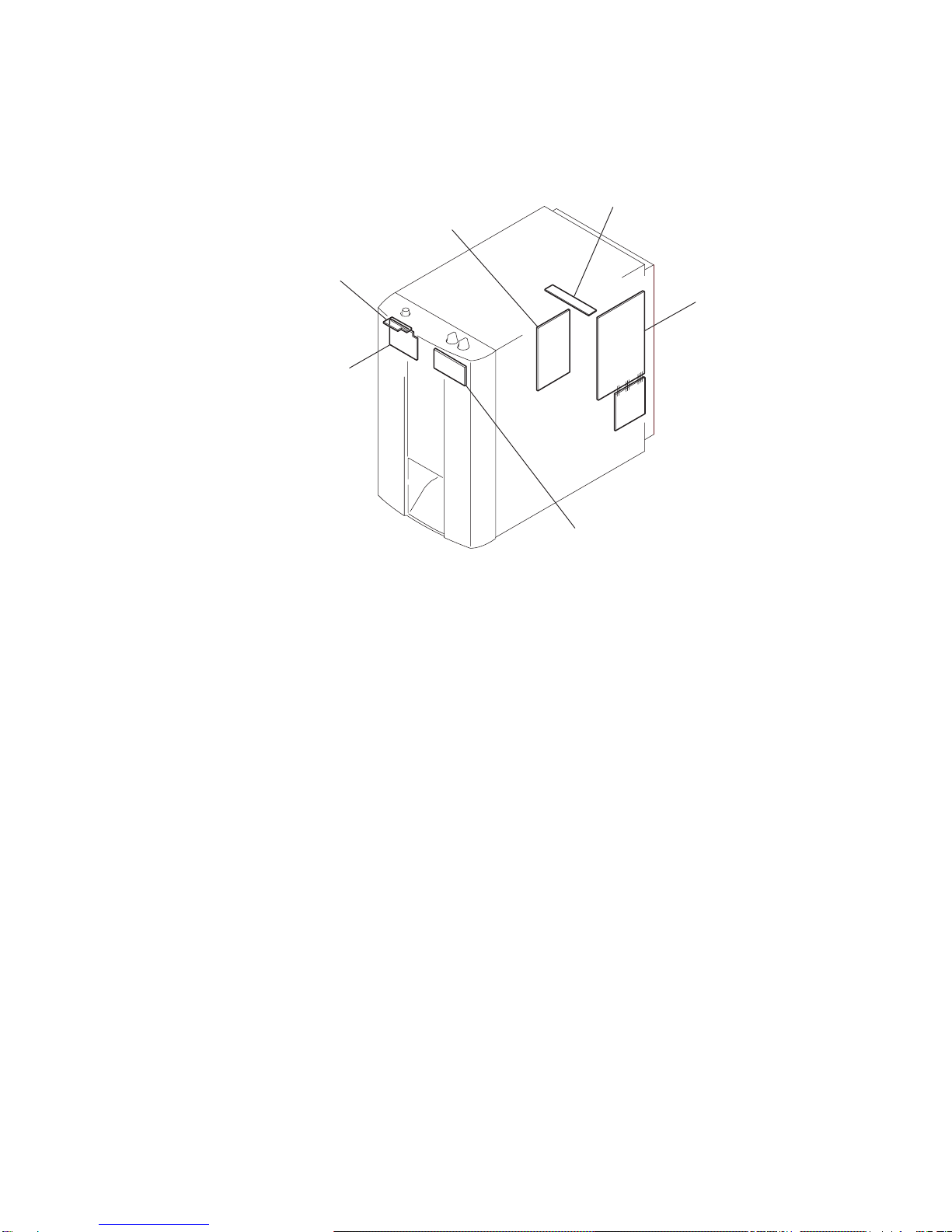

1-1. CIRCUIT BOARDS LOCATION (SA-WMS345)
SECTION 1
DIAGRAMS
AUTO POWER board
MAIN boar
d
POWER board
LED board
POWER SWITCH board
CONTROL board

4
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Location
(D101) C-3
(D102) C-4
(D103) B-3
(D104) B-3
D201 I-4
D202 H-4
D303 E-3
D304 E-3
D305 F-6
D306 E-8
D501 C-8
D502 E-8
D503 E-8
D504 E-8
D505 E-8
D506 F-7
D507 E-7
D601 I-7
D602 I-7
D603 J-7
D604 J-7
D605 H-7
D606 H-7
D607 J-9
D608 H-8
D701 B-5
D702 C-5
D703 C-5
D704 C-5
D801 F-13
IC101 C-3
IC102 C-2
IC104 C-5
IC201 H-3
IC202 H-1
IC203 H-3
IC204 H-4
IC701 B-6
Q101 C-1
Q301 E-3
Q302 E-2
Q303 E-2
Q304 D-2
Q305 D-3
Q306 D-3
Q307 D-3
Q308 E-7
Q309 F-6
Q310 E-6
Q311 E-6
Q401 J-3
Q402 J-3
Q403 J-2
Q404 J-5
Q501 F-7
Q502 E-7
Q601 H-7
Q602 G-7
Q701 B-6
Q702 C-6
Q703 B-7
Q704 B-7
Q705 A-7
•Semiconductor
Location
(): US, CND model
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•2: nonflammable resistor.
•5: fusible resistor.
•C: panel designation.
Note:
The components identi-
fied by mark 0or dotted
linewith mark0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiéspar
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
•A: B+ Line.
•B: B– Line.
•Voltage is dc with respect to ground under no-signal
(detuned) condition.
•Voltagesare takenwith aVOM (Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
•Abbreviation
CND : Canadian model.
AUS:Australian model.
SP : Singapore model.
MY : Malaysia model.
Note on Printed Wiring Boards:
•X: parts extracted from the component side.
•: Pattern from the side which enables seeing.
•Abbreviation
CND : Canadian model.
AUS:Australian model.
SP : Singapore model.
MY : Malaysia model.
Ver 1.1

55
SA-VE345/WMS345/SS-CN345/V345
1-2. PRINTEDWIRING BOARDS (SA-WMS345) • Refer to page 3 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
J
234567891011121314
JW61
R201
CN201
C201 R202
JW64
R221
IC201
IC102
IC101
IC104
IC701 S701
IC203
IC204
JW59
C213
JW57
C211 C212
R215
R217
R214
D201
R210
JW60
C209
R209
R211 R220
R219
C214
C210
D202
R218
R216
R407
Q404
C401
JW56
R406
R404
CN401
Q401
Q403
Q402
JW55
R405
R402 R401 R403
JW58
R212
R213
C208
RV201
15
R205
S201
S201
MODE LEVEL
MUSIC
MOVIE
C204 R208
IC202
C207
R203
C203
R206
C206
R302
C301
R301
R304 JW48
JW32
Q306
Q301 D304
D303
R311
Q302
C308
Q303
JW29
JW30
JW46
C303
R305
R307
R313
C311
RY301
R335
C315
JW50
Q310
Q309 Q311
JW39
JW27 JW26 JW38
R704
R707 R706
Q703
Q704
Q705
R710
D501
R708
JW37 JW25
Q702
JW36
CN502
R141
C118
JW24
JW23
JW22
Q307
R310
R314
Q305 Q304
Q101
R309 R119
C108
J101
IN POWER
SAVE
S701
LINE
TM101
SPEAKERLR
IN
OUT
C105
R115
R117
R110
C103
R137
C116
R138
R107
R108
R103 R104
R102
C106
R113
R123
R122
R126 C111
R125
CN101
R124
JW20
R120
C109
R121
JW1 R114
C104
R308
C511
C512
C304
C305
JW21
R118
R111
C107
C117
R116
JW6
JW7
JW8
C307
D701
D104
D101
D102
D103
C101
R105
R106
Q701
C701
JW13
JW11
JW12 C515
JW10
R703
R702
R705
R711
R709
JW3
C516
R701
C513
C514
R136
R101
C102
R109
R140
R139
R317
R318
JW9
JW2
D702
D703
D704
JW40
JW41
Q502
JW54
Q501
Q308
R338
R337
C316
D506
D507
C508
R504
JW51
C506
C505
D503
D502
CN501
T501
D505
D306
C503
CN801
C504
R336
CN701
D504
C1
R503
C317
R340 R339
JW34 JW35
JW33
R320
CN301
JW47
R316
R312 R315
R306
C306
R303
JW53
C309
JW49
R319
R341
D305
C509 C507
R502
R501
JW52
CN901
CN1
CN902
C501
C502
JW42
JW45
JW44
JW43
JW28
JW15
JW19
JW14
JW18
JW17
JW16
JW5
JW4
C510
CN302
C310
C202
R204
JW63
R207
JW62
C205
POWER BOARD
MAIN BOARD
CONTROL BOARD
13
31
1
4
8
5
1
4
8
5
1
4
8
5
1
4
8
5
21
1
1
5
14
6
13
1-680-784- (11)
11
1-680-787-
(11)
11
1-680-788-
(11)
11
1-680-785-
(11)
11
1-680-786- (11)
11
85
14
85
14
8
61
5
14 85
14
LED BOARD
POWER SWITCH BOARD
(CHASSIS)
(CHASSIS)
SP1
SPEAKER
BLK
+
–
RED
AUTO OFF
~~
13
13
1
2
S1
POWER
D801
ON/STANDBY
US, CND MODEL
US, CND
MODEL
RY602
T601
RY601
D608
R602
C602
JW604
JW601 JW602
C5
F601
F602
C2
D605
D601 D602
JW606
C606
D606
C604
R601
C601
D604
D603
D607
Q601
JW609
JW608
C3
CN604
CNT1
CNT2
CN602
AC IN
CN601
JW605
JW600
S601
VOLTAGE
SELECTOR
C4
CN605
C605
C603
Q602
AUTO POWER BOARD
3
1
2
1
1
2
41
1-680-789- (11)
11
4
5
6
2
3
1
12 3
65 4
SP, MY MODEL SP, MY
MODEL
EXCEPT SP, MY MODEL
Ver 1.1

66
SA-VE345/WMS345/SS-CN345/V345
1-3. SCHEMATIC DIAGRAM (SA-WMS345)
R122
R118
C106
R115
C104
C105
R306
R307
Q303Q302
R308C305
C304
R309 R310 R318
R701
R705
R706
R704
R707
R711
Q308
Q309
Q310
R317
C118
R139
R312
R311
CN502
CN302
R340
R339
R338
R336
C311
R319
R335
C315
R703
C701
C107
C307
C308
R702 S701
CN701
R709
IC701(1/2)
IC701(2/2)
R314
Q306
Q305Q304
R404
R405
R403
R402
R401
R406
R407
C511
R126
C512
R303
C301 R302
R301
R313
CN501
R501
R502
C501
C502
C503
C504
R503
R504
C507
C508
C509
C510
Q101
CN301
CN101
CN801
C201 R202
R201 C204
R205
S201
CN201
C211 C213 C212
C214
IC202(1/2)
IC202(2/2)
C207
R208
RV201 C208
R209
R212
R210
IC204(1/2)
IC204(2/2)
R221
IC203(1/2)
IC203(2/2)
R218
R217
R117
C303
C309
Q301
C306
R316
R121
R341
C316
D506
D507
R708
R710
Q307
CN401
Q404
Q403
SP1
CN1
S1
C1
C513
C515
C514
C516
J101
D303
D304
C310
Q401
Q402
IC102(1/2)
IC102(2/2)
Q311 D306 D305
Q501
Q502
D502
D503
D504
D505
T501
Q701
D702
Q702
D703
D704
Q703
Q705
Q704
D202
D201
IC201
RY301
D501
R103
R104
R111
TM101
R109 R110
C101
C102
C103
IC104(1/2)
R140 R138
C116
C117
R136
R137
R304
IC101(1/2)
IC104(2/2)
IC101(2/2)
R107
R108
R106
R105
R141
R113
R114
R315
R305
R119
C108
C109
R120
R123 C111
R124 R125
C202 C203
R203
R204
C205 C206
R206
R207
R211
R214
R215
R216 C210
R213
R219 R220
C209
R320
R337
CN901 CN902
R101
D102
D101
R102 D103
D104
C401
C317
C505
C506
D701
D801
R116
D601
D604
D602
D603
CN604
Q602
R601
R602
CN605
F601
D607
S601
RY601
RY602
D608
T601
F602
C601
C602
C605
C606
CN601
Q601
D605
D606 C604
C603
CN602
C2
C3
C5
C4
JW604
JW605
JW600
JW608
JW609
JW602
JW601
Ver 1.1

7
SA-VE345/WMS345/SS-CN345/V345
SECTION 2
EXPLODED VIEWS
Ref. No. Part No. Description Remark
2-1. FRONT PANEL SECTION
(SA-WMS345)
Ref. No. Part No. Description Remark
NOTE:
•The mechanical parts with no reference
number in the exploded views are not supplied.
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND : Canadian model
AUS:Australian model
SP : Singapore model
MY : Malaysia model
•Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
•Accessories are given in the last of this
parts list.
RR
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
11-680-785-11 CONTROL BOARD
2X-4955-364-1 PANEL ASSY, FRONT (US,CND)
2X-4955-488-1 PANEL ASSY, FRONT (EXCEPT US,CND)
33-703-564-21 SCREW, TAPPING
44-227-298-01 SHEET
54-999-482-11 KNOB (VOL) (SP,MY)
54-999-482-51 KNOB (VOL) (EXCEPT SP,MY)
64-231-866-01 PACKING
71-680-788-11 LED BOARD
84-973-938-31 KNOB (A), PUSH (SP,MY)
84-973-938-61 KNOB (A), PUSH (EXCEPT SP,MY)
91-680-787-11 POWER SWITCH BOARD
SP1 1-529-296-12 SPEAKER (20cm) (WOOFER)
#1 7-685-664-79 SCREW +P 4X20 TYPE1
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
2
3
3
4
5
8
9
6
7
1
SP1
supplied with
RV201 and S201
#1
#1
#2
#2
not
supplied
Ver 1.1

8
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-2. REAR PANEL SECTION
(SA-WMS345)
51 4-235-237-01 FOOT (EXCEPT US,CND)
51 4-981-864-01 FOOT (US,CND)
52 1-680-789-11 AUTO POWER BOARD
*53 3-701-946-24 LABEL, FUSE RATING (US,CND)
54 1-680-786-11 POWER BOARD
55 3-905-609-01 SCREW (TRANSISTOR)
*56 3-703-044-26 LABEL, CAUTION (US,CND)
057 1-696-570-21 CORD, POWER (UK)
057 1-696-845-31 CORD, POWER (AUS)
057 1-769-744-52 CORD, POWER (AEP,SP,MY)
057 1-783-531-11 CORD, POWER (US,CND)
*58 3-703-244-00 BUSHING (2104), CORD
59 A-4732-162-A MAIN BOARD, COMPLETE (EXCEPT US,CND)
59 A-4732-172-A MAIN BOARD, COMPLETE (US,CND)
60 A-4736-759-A CABINET ASSY, SPEAKER (US,CND)
60 A-4736-769-A CABINET ASSY, SPEAKER (EXCEPT US,CND)
0F601 1-532-463-31 FUSE (T1AL/250V) (AEP,UK,AUS)
0F601 1-532-501-31 FUSE (T0.8AL/250V) (SP,MY)
0F601 1-533-418-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(2.5A/125V) (US,CND)
0F602 1-532-503-31 FUSE (T1.6AL/250V) (SP,MY)
0T501 1-435-999-11 TRANSFORMER, POWER (US,CND)
0T501 1-437-219-12 TRANSFORMER, POWER (SP,MY)
0T501 1-437-246-11 TRANSFORMER, POWER (AEP,UK,AUS)
0T601 1-435-993-11 TRANSFORMER, POWER (US,CND)
0T601 1-435-994-11 TRANSFORMER, POWER (AEP,UK,AUS)
0T601 1-435-995-11 TRANSFORMER, POWER (SP,MY)
#3 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#4 7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S
#5 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que par unepiéce
portant le numéro spécifié.
51
60
51
52
54
55
53
59
56
57
58
T501
not supplied
not supplied
not supplied not supplied
not supplied
not supplied
not
supplied
F601
T601
#3
#3
#3 #4
#4
#4
#4
#5
#5
#3
#3 #3 #3
#3
#3
#3
F602
Ver 1.1

9
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-3. CENTER SPEAKER SECTION
(SS-CN345)
101 X-4955-358-1 FRAME (CN) ASSY, GRILLE
102 4-874-614-21 SCREW (1) (3.5X14), TAPPING
103 1-823-042-11 CORD (WITH C) (US,CND,AEP,UK)
104 4-986-971-11 SCREW (3.5)
105 1-694-516-21 TERMINAL, SPEAKER
106 A-4736-755-A SYSTEM (CN) ASSY (US,CND,AEP,UK)
106 A-4737-036-A SYSTEM (CN) ASSY (AUS,SP,MY)
#6 7-688-004-01 W 4, SMALL
101
102
103
104
105
106
not supplied
not supplied
#6
#6
Ver 1.1

10
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
2-4. FRONT AND SURROUND SPEAKERS SECTION
(SS-V345)
151 X-4955-356-1 FRAME (V) ASSY, GRILLE
152 4-874-614-21 SCREW (1) (3.5X14), TAPPING
153 1-823-042-11 CORD (WITH C) (US,CND,AEP,UK)
154 4-986-971-11 SCREW (3.5)
155 1-694-516-21 TERMINAL, SPEAKER
156 A-4736-754-A SYSTEM (V) ASSY (US,CND,AEP,UK)
156 A-4737-035-A SYSTEM (V) ASSY (AUS,SP,MY)
151
152
152
153
154
156
155
not supplied
not supplied
not supplied
not supplied
A
A
Ver 1.1

11
SA-VE345/WMS345/SS-CN345/V345
SECTION 3
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
•-XX and -X mean standardized parts, so
they may have some difference from the
original one.
•RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
•Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA.. uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD..
•CAPACITORS
uF : µF
•COILS
uH : µH
•Abbreviation
CND : Canadian model
AUS:Australian model
SP : Singapore model
MY : Malaysia model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
AUTO POWER
1-680-789-11 AUTO POWER BOARD
******************
1-533-217-31 HOLDER, FUSE
< CAPACITOR >
0C2 1-113-925-11 CERAMIC 0.01uF 20% 250V
0C3 1-113-925-11 CERAMIC 0.01uF 20% 250V
(EXCEPT SP,MY)
0C4 1-113-925-11 CERAMIC 0.01uF 20% 250V
(SP,MY)
0C5 1-113-924-11 CERAMIC 0.0047uF 20% 250V
C601 1-104-666-11 ELECT 220uF 20% 25V
C602 1-104-666-11 ELECT 220uF 20% 25V
C603 1-126-964-11 ELECT 10uF 20% 50V
C604 1-126-964-11 ELECT 10uF 20% 50V
C605 1-126-964-11 ELECT 10uF 20% 50V
C606 1-126-964-11 ELECT 10uF 20% 50V
< CONNECTOR >
*CN601 1-580-230-11 PIN, CONNECTOR (PC BOARD) 2P
CN602 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
*CN604 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
CN605 1-564-507-11 PLUG, CONNECTOR 4P
< DIODE >
D601 8-719-024-99 DIODE 11ES2-NTA2B
D602 8-719-024-99 DIODE 11ES2-NTA2B
D603 8-719-024-99 DIODE 11ES2-NTA2B
D604 8-719-024-99 DIODE 11ES2-NTA2B
D605 8-719-068-42 DIODE HZ13BP-TK
D606 8-719-068-42 DIODE HZ13BP-TK
D607 8-719-991-33 DIODE 1SS133T-77 (EXCEPT SP,MY)
D608 8-719-991-33 DIODE 1SS133T-77 (SP,MY)
< TRANSISTOR >
Q601 8-729-205-11 TRANSISTOR 2SC1815Y-TPE2
Q602 8-729-231-13 TRANSISTOR 2SA1015TP-Y
< RESISTOR >
R601 1-247-843-11 CARBON 3.3K 5% 1/4W
R602 1-247-843-11 CARBON 3.3K 5% 1/4W
< RELAY >
0RY601 1-755-458-11 RELAY (EXCEPT SP,MY)
0RY602 1-755-458-11 RELAY (SP,MY)
< SWITCH >
0S601 1-771-474-11 SWITCH, POWER (VOLTAGE SELECTOR) (SP,MY)
*************************************************************
1-680-785-11 CONTROL BOARD
***************
< CAPACITOR >
C201 1-130-475-00 MYLAR 0.0022uF 5% 50V
C202 1-131-696-11 FILM 0.22uF 5% 50V
C203 1-131-696-11 FILM 0.22uF 5% 50V
C204 1-126-964-11 ELECT 10uF 20% 50V
C205 1-131-696-11 FILM 0.22uF 5% 50V
C206 1-131-696-11 FILM 0.22uF 5% 50V
C207 1-126-964-11 ELECT 10uF 20% 50V
C208 1-126-964-11 ELECT 10uF 20% 50V
C209 1-131-696-11 FILM 0.22uF 5% 50V
C210 1-131-688-31 FILM 0.047uF 5% 50V
C211 1-126-964-11 ELECT 10uF 20% 50V
C212 1-126-964-11 ELECT 10uF 20% 50V
C213 1-164-159-21 CERAMIC 0.1uF 50V
C214 1-164-159-21 CERAMIC 0.1uF 50V
< CONNECTOR >
*CN201 1-564-508-11 PLUG, CONNECTOR 5P
< DIODE >
D201 8-719-991-33 DIODE 1SS133T-77
D202 8-719-991-33 DIODE 1SS133T-77
< IC >
IC201 8-759-145-58 IC uPC4558C
IC202 8-759-145-58 IC uPC4558C
IC203 8-759-145-58 IC uPC4558C
IC204 8-759-145-58 IC uPC4558C
< RESISTOR >
R201 1-249-417-11 CARBON 1K 5% 1/4W
R202 1-249-429-11 CARBON 10K 5% 1/4W
R203 1-249-425-11 CARBON 4.7K 5% 1/4W
R204 1-249-439-11 CARBON 68K 5% 1/4W
R205 1-249-429-11 CARBON 10K 5% 1/4W
CONTROL
Ver 1.1

12
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CONTROL
R206 1-249-429-11 CARBON 10K 5% 1/4W
R207 1-249-437-11 CARBON 47K 5% 1/4W
R208 1-249-429-11 CARBON 10K 5% 1/4W
R209 1-249-429-11 CARBON 10K 5% 1/4W
R210 1-249-431-11 CARBON 15K 5% 1/4W
R211 1-249-417-11 CARBON 1K 5% 1/4W
R212 1-247-807-31 CARBON 100 5% 1/4W
R213 1-249-430-11 CARBON 12K 5% 1/4W
R214 1-249-425-11 CARBON 4.7K 5% 1/4W
R215 1-249-425-11 CARBON 4.7K 5% 1/4W
R216 1-249-430-11 CARBON 12K 5% 1/4W
R217 1-249-429-11 CARBON 10K 5% 1/4W
R218 1-249-429-11 CARBON 10K 5% 1/4W
R219 1-249-427-11 CARBON 6.8K 5% 1/4W
R220 1-249-427-11 CARBON 6.8K 5% 1/4W
R221 1-247-807-31 CARBON 100 5% 1/4W
< VARIABLE RESISTOR >
RV201 1-225-826-11 RES, VAR, CARBON 20K (LEVEL)
< SWITCH >
S201 1-771-632-12 SWITCH, ROTARY (MODE)
*************************************************************
1-680-788-11 LED BOARD
**********
< CONNECTOR >
CN801 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D801 8-719-028-30 LED SPR-39MVWF (ON/STANDBY)
*************************************************************
A-4732-162-A MAIN BOARD, COMPLETE (EXCEPT US,CND)
A-4732-172-A MAIN BOARD, COMPLETE (US,CND)
*********************
< CAPACITOR >
C101 1-162-286-31 CERAMIC 220PF 10% 50V
(US,CND)
C102 1-162-286-31 CERAMIC 220PF 10% 50V
(US,CND)
C103 1-162-286-31 CERAMIC 220PF 10% 50V
(US,CND)
C104 1-162-286-21 CERAMIC 220PF 10% 50V
C105 1-126-964-11 ELECT 10uF 20% 50V
C106 1-162-215-31 CERAMIC 47PF 5% 50V
C107 1-162-215-31 CERAMIC 47PF 5% 50V
C108 1-131-696-11 FILM 0.22uF 5% 50V
C109 1-131-696-11 FILM 0.22uF 5% 50V
C111 1-131-688-31 FILM 0.047uF 5% 50V
C116 1-136-153-00 FILM 0.01uF 5% 50V
(US,CND)
C117 1-136-153-00 FILM 0.01uF 5% 50V
(US,CND)
C118 1-126-964-11 ELECT 10uF 20% 50V
C301 1-131-679-31 FILM 0.01uF 5% 50V
C303 1-126-964-11 ELECT 10uF 20% 50V
MAINLED
C304 1-162-282-31 CERAMIC 100PF 10% 50V
C305 1-162-302-11 CERAMIC 0.0022uF 30% 16V
C306 1-101-804-00 CERAMIC 10PF 5% 500V
C307 1-101-810-00 CERAMIC 100PF 5% 500V
C308 1-126-934-11 ELECT 220uF 20% 10V
C309 1-128-560-11 ELECT 22uF 20% 100V
C310 1-128-560-11 ELECT 22uF 20% 100V
C311 1-117-165-11 FILM 0.047uF 2% 100V
C315 1-126-934-11 ELECT 220uF 20% 10V
C316 1-126-964-11 ELECT 10uF 20% 50V
C317 1-126-948-11 ELECT 100uF 20% 35V
C501 1-117-162-11 FILM 0.01uF 2% 100V
C502 1-117-162-11 FILM 0.01uF 2% 100V
C503 1-100-054-11 ELECT 10000uF 20% 80V
C504 1-100-054-11 ELECT 10000uF 20% 80V
C505 1-104-666-11 ELECT 220uF 20% 25V
C506 1-104-666-11 ELECT 220uF 20% 25V
C507 1-126-964-11 ELECT 10uF 20% 50V
C508 1-126-964-11 ELECT 10uF 20% 50V
C509 1-126-947-11 ELECT 47uF 20% 25V
C510 1-126-947-11 ELECT 47uF 20% 25V
C511 1-164-159-21 CERAMIC 0.1uF 50V
C512 1-164-159-21 CERAMIC 0.1uF 50V
C513 1-126-964-11 ELECT 10uF 20% 50V
C514 1-126-964-11 ELECT 10uF 20% 50V
C515 1-164-159-21 CERAMIC 0.1uF 50V
C516 1-164-159-21 CERAMIC 0.1uF 50V
C701 1-104-661-11 ELECT 330uF 20% 16V
< CONNECTOR >
*CN101 1-564-508-11 PLUG, CONNECTOR 5P
*CN301 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
CN302 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
*CN501 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P
CN701 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D101 8-719-991-33 DIODE 1SS133T-77 (US,CND)
D102 8-719-991-33 DIODE 1SS133T-77 (US,CND)
D103 8-719-991-33 DIODE 1SS133T-77 (US,CND)
D104 8-719-991-33 DIODE 1SS133T-77 (US,CND)
D303 8-719-991-33 DIODE 1SS133T-77
D304 8-719-991-33 DIODE 1SS133T-77
D305 8-719-991-33 DIODE 1SS133T-77
D306 8-719-991-33 DIODE 1SS133T-77
0D501 8-719-302-37 DIODE RBV-602
0D502 8-719-024-99 DIODE 11ES2-NTA2B
0D503 8-719-024-99 DIODE 11ES2-NTA2B
0D504 8-719-024-99 DIODE 11ES2-NTA2B
0D505 8-719-024-99 DIODE 11ES2-NTA2B
D506 8-719-110-41 DIODE RD15ES-B2
D507 8-719-110-41 DIODE RD15ES-B2
D701 8-719-991-33 DIODE 1SS133T-77
D702 8-719-991-33 DIODE 1SS133T-77
D703 8-719-991-33 DIODE 1SS133T-77
D704 8-719-991-33 DIODE 1SS133T-77
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que par unepiéce
portant le numéro spécifié.
Ver 1.1

13
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
< IC >
IC101 8-759-145-58 IC uPC4558C
IC102 8-759-145-58 IC uPC4558C
IC104 8-759-145-58 IC uPC4558C
IC701 8-759-145-58 IC uPC4558C
< JACK >
J101 1-770-377-31 JACK, PIN 1P (LINE IN)
< TRANSISTOR >
Q101 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q301 8-729-117-41 TRANSISTOR 2SA1174-P
Q302 8-729-117-41 TRANSISTOR 2SA1174-P
Q303 8-729-117-41 TRANSISTOR 2SA1174-P
Q304 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q305 8-729-119-78 TRANSISTOR 2SC2785-HFE
0Q306 8-729-214-51 TRANSISTOR 2SA1145-O
0Q307 8-729-270-51 TRANSISTOR 2SC2705-O
Q308 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q309 8-729-178-41 TRANSISTOR 2SC2784-P
Q310 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q311 8-729-029-86 TRANSISTOR DTC124ESA
0Q501 8-729-205-11 TRANSISTOR 2SC1815Y-TPE2
0Q502 8-729-231-13 TRANSISTOR 2SA1015TP-Y
Q701 8-729-029-86 TRANSISTOR DTC124ESA
Q702 8-729-119-77 TRANSISTOR 2SA1175-FEK
Q703 8-729-029-86 TRANSISTOR DTC124ESA
Q704 8-729-029-40 TRANSISTOR DTA124ESA
Q705 8-729-029-40 TRANSISTOR DTA124ESA
< RESISTOR >
R101 1-260-107-11 CARBON 4.7K 5% 1/2W
(US,CND)
R102 1-260-107-11 CARBON 4.7K 5% 1/2W
(US,CND)
R103 1-249-437-11 CARBON 47K 5% 1/4W
(US,CND)
R104 1-249-437-11 CARBON 47K 5% 1/4W
(US,CND)
R105 1-249-433-11 CARBON 22K 5% 1/4W
(US,CND)
R106 1-249-433-11 CARBON 22K 5% 1/4W
(US,CND)
R107 1-249-433-11 CARBON 22K 5% 1/4W
(US,CND)
R108 1-249-433-11 CARBON 22K 5% 1/4W
(US,CND)
R109 1-249-417-11 CARBON 1K 5% 1/4W
(US,CND)
R110 1-249-417-11 CARBON 1K 5% 1/4W
(US,CND)
R111 1-249-429-11 CARBON 10K 5% 1/4W
(US,CND)
R113 1-249-435-11 CARBON 33K 5% 1/4W
R114 1-249-433-11 CARBON 22K 5% 1/4W
R115 1-249-441-11 CARBON 100K 5% 1/4W
R116 1-249-421-11 CARBON 2.2K 5% 1/4W
(EXCEPT US,CND)
R116 1-249-427-11 CARBON 6.8K 5% 1/4W
(US,CND)
R117 1-247-843-11 CARBON 3.3K 5% 1/4W
R118 1-249-429-11 CARBON 10K 5% 1/4W
R119 1-249-425-11 CARBON 4.7K 5% 1/4W
R120 1-247-843-11 CARBON 3.3K 5% 1/4W
R121 1-249-439-11 CARBON 68K 5% 1/4W
R122 1-249-417-11 CARBON 1K 5% 1/4W
R123 1-249-437-11 CARBON 47K 5% 1/4W
R125 1-249-429-11 CARBON 10K 5% 1/4W
R126 1-247-807-31 CARBON 100 5% 1/4W
R136 1-249-431-11 CARBON 15K 5% 1/4W
(US,CND)
R137 1-249-433-11 CARBON 22K 5% 1/4W
(US,CND)
R138 1-249-435-11 CARBON 33K 5% 1/4W
(US,CND)
R139 1-249-421-11 CARBON 2.2K 5% 1/4W
R140 1-249-421-11 CARBON 2.2K 5% 1/4W
(US,CND)
R141 1-247-903-00 CARBON 1M 5% 1/4W
R301 1-249-429-11 CARBON 10K 5% 1/4W
R302 1-249-429-11 CARBON 10K 5% 1/4W
R303 1-249-429-11 CARBON 10K 5% 1/4W
R305 1-249-437-11 CARBON 47K 5% 1/4W
R306 1-249-411-11 CARBON 330 5% 1/4W
R307 1-249-431-11 CARBON 15K 5% 1/4W
R308 1-249-408-11 CARBON 180 5% 1/4W
0R309 1-249-408-11 CARBON 180 5% 1/4W
0R310 1-249-408-11 CARBON 180 5% 1/4W
R311 1-249-429-11 CARBON 10K 5% 1/4W
R312 1-249-433-11 CARBON 22K 5% 1/4W
0R313 1-249-407-11 CARBON 150 5% 1/4W
0R314 1-249-401-11 CARBON 47 5% 1/4W
R315 1-249-437-11 CARBON 47K 5% 1/4W
R316 1-249-419-11 CARBON 1.5K 5% 1/4W
0R317 1-249-393-11 CARBON 10 5% 1/4W
0R318 1-249-393-11 CARBON 10 5% 1/4W
0R319 1-249-393-11 CARBON 10 5% 1/4W
R335 1-249-433-11 CARBON 22K 5% 1/4W
R336 1-249-430-11 CARBON 12K 5% 1/4W
R337 1-249-437-11 CARBON 47K 5% 1/4W
R338 1-249-441-11 CARBON 100K 5% 1/4W
R339 1-249-441-11 CARBON 100K 5% 1/4W
R340 1-249-433-11 CARBON 22K 5% 1/4W
0R341 1-216-458-11 METAL OXIDE 1.8K 5% 2W F
R501 1-249-393-11 CARBON 10 5% 1/4W
R502 1-249-393-11 CARBON 10 5% 1/4W
R503 1-249-421-11 CARBON 2.2K 5% 1/4W
R504 1-249-421-11 CARBON 2.2K 5% 1/4W
R701 1-249-441-11 CARBON 100K 5% 1/4W
R702 1-249-417-11 CARBON 1K 5% 1/4W
R703 1-249-430-11 CARBON 12K 5% 1/4W
R704 1-249-429-11 CARBON 10K 5% 1/4W
R705 1-249-429-11 CARBON 10K 5% 1/4W
R706 1-249-441-11 CARBON 100K 5% 1/4W
R707 1-247-903-00 CARBON 1M 5% 1/4W
R708 1-249-417-11 CARBON 1K 5% 1/4W
R709 1-249-421-11 CARBON 2.2K 5% 1/4W
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que par unepiéce
portant le numéro spécifié.
Ver 1.1

14
SA-VE345/WMS345/SS-CN345/V345
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
R710 1-249-421-11 CARBON 2.2K 5% 1/4W
R711 1-249-429-11 CARBON 10K 5% 1/4W
< RELAY >
RY301 1-515-920-11 RELAY (24V)
< SWITCH >
S701 1-771-188-11 SWITCH, SLIDE (POWER SAVE)
< TERMINAL >
TM101 1-537-737-11 TERMINAL BOARD (SPEAKER) (US,CND)
*************************************************************
1-680-786-11 POWER BOARD
*************
< CAPACITOR >
C401 1-126-947-11 ELECT 47uF 20% 16V
< CONNECTOR >
*CN401 1-564-243-11 PIN, CONNECTOR (3.96mm PITCH) 6P
< TRANSISTOR >
Q401 8-729-141-30 TRANSISTOR 2SC3623A-LK
Q402 8-729-119-77 TRANSISTOR 2SA1175-FEK
0Q403 8-749-010-25 TRANSISTOR MN2488-OPY-M
0Q404 8-749-010-26 TRANSISTOR MP1620-OPY-M
< RESISTOR >
R401 1-249-437-11 CARBON 47K 5% 1/4W
R402 1-249-421-11 CARBON 2.2K 5% 1/4W
R403 1-249-414-11 CARBON 560 5% 1/4W
0R404 1-249-408-11 CARBON 180 5% 1/4W
0R405 1-249-408-11 CARBON 180 5% 1/4W
0R406 1-217-151-00 METAL 0.22 10% 2W F
0R407 1-217-151-00 METAL 0.22 10% 2W F
*************************************************************
1-680-787-11 POWER SWITCH BOARD
********************
< CAPACITOR >
0C1 1-113-924-11 CERAMIC 0.0047uF 20% 250V
< CONNECTOR >
*CN1 1-695-044-11 PIN, CONNECTOR (3.96mm PITCH) 2P
< SWITCH >
0S1 1-554-920-61 SWITCH, PUSH (AC POWER) (1 KEY) (POWER)
*************************************************************
MISCELLANEOUS
***************
057 1-696-570-21 CORD, POWER (UK)
057 1-696-845-31 CORD, POWER (AUS)
057 1-769-744-52 CORD, POWER (AEP,SP,MY)
057 1-783-531-11 CORD, POWER (US,CND)
103 1-823-042-11 CORD (WITH C) (US,CND,AEP,UK)
105 1-694-516-21 TERMINAL, SPEAKER
153 1-823-042-11 CORD (WITH C) (US,CND,AEP,UK)
155 1-694-516-21 TERMINAL, SPEAKER
0F601 1-532-463-31 FUSE (T1AL/250V) (AEP,UK,AUS)
0F601 1-532-501-31 FUSE (T0.8AL/250V) (SP,MY)
0F601 1-533-418-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(2.5A/125V) (US,CND)
0F602 1-532-503-31 FUSE (T1.6AL/250V) (SP,MY)
SP1 1-529-296-12 SPEAKER (20cm) (WOOFER) (SA-WMS345)
0T501 1-435-999-11 TRANSFORMER, POWER (US,CND)
0T501 1-437-219-12 TRANSFORMER, POWER (SP,MY)
0T501 1-437-246-11 TRANSFORMER, POWER (AEP,UK,AUS)
0T601 1-435-993-11 TRANSFORMER, POWER (US,CND)
0T601 1-435-994-11 TRANSFORMER, POWER (AEP,UK,AUS)
0T601 1-435-995-11 TRANSFORMER, POWER (SP,MY)
*************************************************************
ACCESSORIES
************
01-569-008-32 ADAPTOR, CONVERSION (SP,MY)
1-751-598-53 CORD, CONNECTION (PIN-PIN)
1-769-433-13 CORD, SPEAKER (10m)
1-769-433-62 CORD, SPEAKER (3.5m)
4-244-848-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH) (US,CND)
4-244-848-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
GERMAN,ITALIAN) (AEP,UK,AUS)
4-244-848-31 MANUAL, INSTRUCTION (SPANISH,DUTCH,
SWEDISH,POLISH) (AEP)
4-244-848-41 MANUAL, INSTRUCTION (PORTUGUESE,
RUSSIAN,FINNISH,DANISH) (AEP)
4-244-848-51 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH,TRADITIONAL CHINESE)
(SP,MY)
4-972-322-01 FOOT (Y)
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour
la sécurité.
Neles remplacer que par unepiéce
portant le numéro spécifié.
POWER POWER SWITCH
Ver 1.1

15
SA-VE345/WMS345/SS-CN345/V345
MEMO

16
SA-VE345/WMS345/SS-CN345/V345
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper on the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2003. 02 New
1.1 2003. 04 AUS, SP, MY model addition.
