Sony SS-CT52 User manual

SERVICE MANUAL
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
US Model
Canadian Model
SS-CT52/TS53/TS54/TS55/TS56W/WS53
AEP Model
UK Model
SS-CT52/TS53/TS55/TS56W
E Model
Australian Model
SS-CT52/TS53/TS55/TS56W/WS53
SPEAKER SYSTEM
9-887-214-03
2006I16-1
© 2006.09
Ver. 1.2 2006.09
SPECIFICATIONS
SS-CT52/TS53/TS54/TS55
TS56W/WS53
SS-WS53 SS-TS54SS-TS56W SS-TS55
•SS-CT52 is the speaker section in DAV-
DZ810W/DZ820KW/FX500/FX900W/
FX900KW.
•SS-TS53 is the speaker section in DAV-
DX315/DZ410/DZ520K/DZ620K/DZ720.
•SS-TS54 is the speaker section in DAV-
FX500.
•SS-TS55 is the speaker section in DAV-
DZ810W/DZ820KW/FX500/FX900W/
FX900KW.
•SS-TS56W is the speaker section in DAV-
DZ810W/DZ820KW/FX900W/FX900KW.
•SS-WS53 is the speaker section in DAV-
FX500/FX900W/FX900KW. SS-TS53 SS-CT52
Speaker system Bass reflex, magnetically
shielded
Speaker unit Woofer: 70 100 mm
(2
7
/ 8 4 inches) cone type
Tweeter: 25 mm (1 inch)
dia. balanced dome type
Rated impedance 3.0 ohms
Dimensions (approx.) 92 593 80 mm
(3
5
/ 8 23
3
/ 8 3
1
/ 4 inches)
(w/h/d)
Mass (approx.) 1.6 kg (3 lb 9 oz)
SS-CT52
SS-WS53
SS-TS53
SS-TS54
SS-TS55/TS56W
Speaker system Closed, magnetically
shielded
Speaker unit 30 ××
×
×
××
×
×
××
×
××
×
×
80 mm (1
3
/ 16 3
1
/ 4
inches) dia. cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 380 47 61 mm
(15 1
7
/ 8 2
1
/ 2 inches)
(w/h/d)
Mass (approx.) 0.5 kg (1 lb 2 oz)
Speaker system Bass reflex, magnetically
shielded
Speaker unit 70 100 mm (2
7
/ 8 4
×
(2
7
/ 8 4
inches) cone type
inches) cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 92 224 88 mm
(3
5
/ 8 8
7
/ 8 3
1
/ 2 inches)
××
(3
5
/ 8 23
3
/ 4 3
3
/ 8 inches)
(w/h/d)
Mass (approx.) 0.8 kg (1 lb 13 oz)
(3 lb 2 oz)
Speaker system Bass reflex, magnetically
shielded
Speaker unit 200 mm (7 7/
8 inches) dia.
cone type
Rated impedance 1.5 ohms
Dimensions (approx.) 170 396 442 mm
(6 3/
4 15 5/ 8 171/ 2
inches) (w/h/d)
Mass (approx.) 8.1 kg (17 lb 14 oz)
Speaker system T
magnetically shield
wo-Way Bass reflex,
Speaker unit Woofer:70 100mm
Tweeter: 50 mm
cone type
Rated impedance 3.0 ohms
Dimensions (approx.) 92 602 83 mm
(w/h/d)
Mass (approx.) 1.4 kg
×
×
××
××
××
××
(2 inches)

2
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SECTION 1
DIAGRAMS
For Schematic Diagrams.
Note:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•C: panel designation.
THIS NOTE IS COMMON FOR PRINTEDWIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
•A: B+ Line.
•Voltages are dc with respect to ground under no-signal
(detuned) conditions.
•Voltages are dc with respect to ground in service mode.
no mark : DVD STOP
•Voltages are taken with VOM (Input impedance 10 MΩ).
•Circled numbers refer to waveforms.
•Signal path.
F: AUDIO
For Printed Wiring Boards.
Note:
•X: parts extracted from the component side.
• a: Through hole.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•Indication of transistor.
Caution:
Pattern face side: Parts on the pattern face side seen from
(SIDE B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE A) the parts face are indicated.
C
B
These are omitted.
E
Q

33
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SS-CT52W/TS53/TS54/TS55/TS56W/WS53
1-1. PRINTED WIRING BOARD – BUILT PD BOARD (SIDE A) ,BUILT PD BOARD (SIDE B), PD JACK BOARD (for SS-TS56W)– :Uses unleaded solder.
IC7301
IC7302
(TA-WR4)
1
1
34
6
12
1324
E
E
BUILT PD BOARD (SIDE A) BUILT PD BOARD (SIDE B)
PD JACK BOARD
2
1
1-870-028-
11
(11)
1-870-028-
11
(11)
1-870-029-
11
(11)
12
A
B
C
D
E
F
G
H
I
34567891011
C7324
C7322
R7312
C7319
C7316
C7315
L7304
C7320
C7318
L7306
L7305 C7323
C7321
C7310
C7305
C7303
C7302
C7304
C7306
C7308
R7304
C7312
C7314
C7307
L7303
R7303
C7313
L7301
C7311
L7302
C7301
R7301
R7311
R7310
R7309
Q7302
C7317
R7307
R7302
C7309 R7306
R7308
R7305
Q7301
CN7301
D7304 D7303 D7302 D7301
R100
J100
C100
CN100

44
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SS-CT52W/TS53/TS54/TS55/TS56W/WS53
1-2. SCHEMATIC DIAGRAM – BUILT PD BOARD (SIDE A) ,BUILT PD BOARD (SIDE B), PD JACK BOARD (for SS-TS56W)–
R7301
R7311
D7304
D7303
D7302
D7301
Q7301
R7309
Q7302
R7304
R7303
R7302
R7306
R7312
R7307
CN7301
C7318
C7316
C7308
IC7301
L7304
L7302
L7306
TP7302
R7308
L7303
C7314
R7305
TP7301
R7310
C7317
C7322
C7319
C7323
C7315C7310
C7309
C7311
C7313
C7312
C7307
C7304
C7303
C7306
C7305
C7320
L7301
C7321
R100
CN100
J100
C7301
C7324
L7305
IC7302
2.2k
10
PP508
PP508
PP508
PP508
2SA1162G-TE85L
1k
2SC2712G-TE85L
33k
1.5k
1k
22k
10k
10k
2P
47
6.3V
47
6.3V
47 6.3V
CXA3668N-T4
#
RF
10k
47 6.3V
1k
#DET
100
10p
0.1
0.1
0.01
0.10.001
0.1
0.01
0.1
0.0047
0.0068
0.0068
47p
0.1
100p
0.01
0.1
0
2P
0.1
100
16V
TK11225CMCL-G
RECEIVER
REGILATOR WITH
ON/OFF SWITCH
Q7301,Q7302
AMP

5
SS-CT52/TS53/TS54/TS55/TS56W/WS53

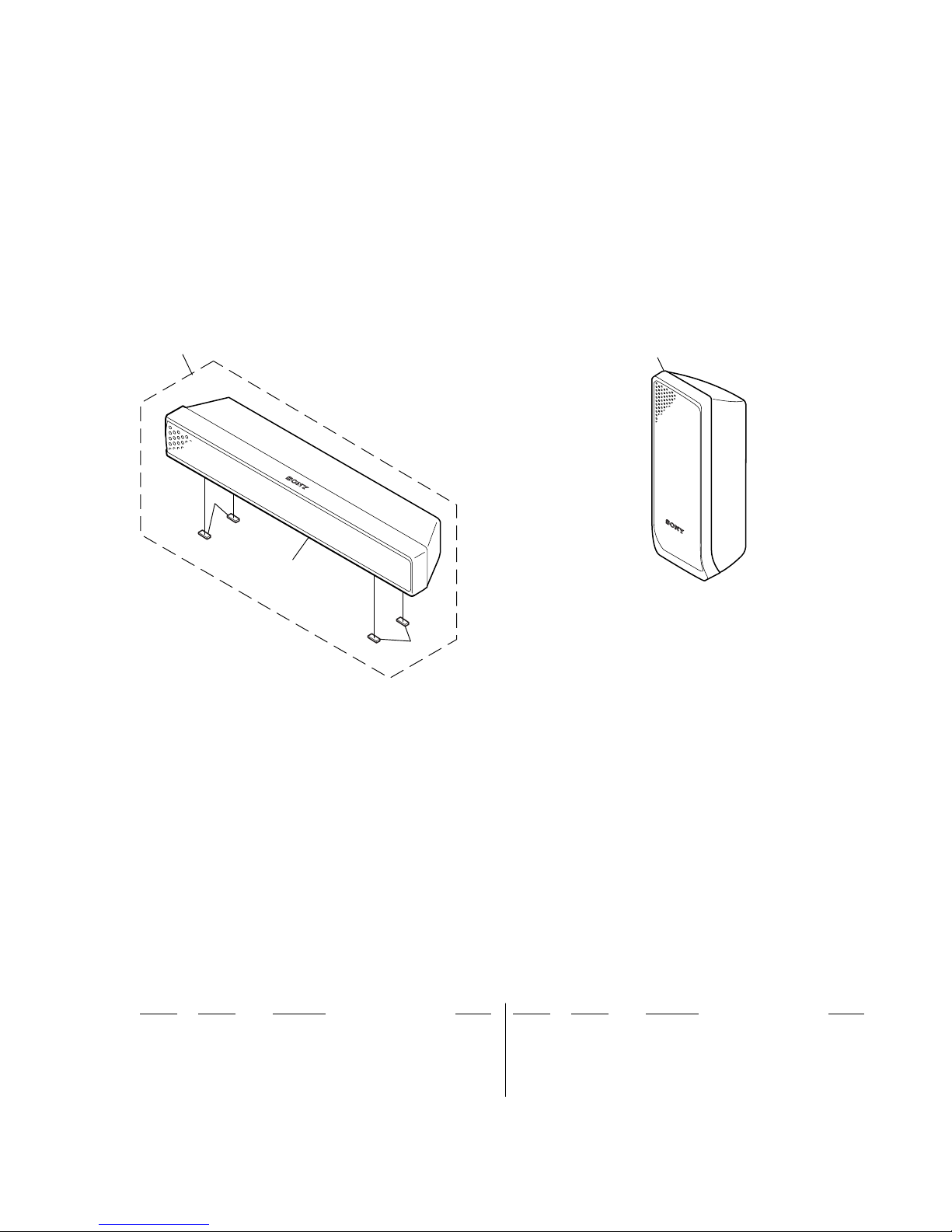

EXPLODED VIEWS
NOTE:
•The mechanical parts with no reference
numberin the exploded viewsarenot supplied.
•XX and -X mean standardized parts, so they
mayhave some differencefrom theoriginalone.
SS-CT52
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1A-1154-614-A OVERALL ASSY (SS-CT52)
(AEP, UK, RU, E3, SP)
1A-1154-615-A OVERALL ASSY (SS-CT52)
(US, CND, KR, AUS, TW)
1A-1154-616-A OVERALL ASSY (SS-CT52) (AR, E32)
•Abbreviation
AR : Argentina model
AUS:Australian model
CND : Canadian model
E3 : 240V AC area in E model
E32 : 110-240V AC area in E model
KR : Korean model
RU : Russian model
SP : Singapore model
TW : Taiwan model
24-255-545-01 FOOT
3A-1154-612-A OVERALL ASSY (SS-TS54) (L-ch)
3A-1175-991-A OVERALL ASSY (SS-TS54) (R-ch)
1
2
2
not
supplied
3
SS-TS54
Ver. 1.2

6
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SS-TS53
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-1146-453-A OVERALL ASSY (SS-TS53)
(AEP, UK, RU, E3, SP)
51 A-1146-454-A OVERALL ASSY (SS-TS53)
(US, CND, AUS, KR)
52 A-1163-145-A OVERALL ASSY (SS-TS55) (SURROUND)
(AEP, UK, RU, E3, SP)
52 A-1163-146-A OVERALL ASSY (SS-TS55) (SURROUND)
(US, CND, KR, AUS, TW)
52 A-1163-147-A OVERALL ASSY (SS-TS55) (SURROUND)
(AR, E32)
52 A-1175-993-A OVERALL ASSY (SS-TS55) (FRONT : R-ch)
(AEP, UK, RU, E3, SP)
52 A-1175-994-A OVERALL ASSY (SS-TS55) (FRONT : R-ch)
(US, CND, KR, AUS, TW)
52 A-1175-995-A OVERALL ASSY (SS-TS55) (FRONT : R-ch)
(AR, E32)
52 A-1175-996-A OVERALL ASSY (SS-TS55) (FRONT : L-ch)
(AEP, UK, RU, E3, SP)
52 A-1175-997-A OVERALL ASSY (SS-TS55) (FRONT : L-ch)
(US, CND, KR, AUS, TW)
52 A-1175-998-A OVERALL ASSY (SS-TS55) (FRONT : L-ch)
(AR, E32)
51
52
SS-TS55
Ver. 1.2

7
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SS-TS56W
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1174-756-A BUILT PD BOARD, COMPLETE
102 A-1175-207-A DIR-RS1
103 A-2022-128-A SPEAKER ASSY
104 A-1163-148-A OVERALL ASSY (SS-TS56W)
(AEP, UK, RU, E3, SP)
104 A-1163-149-A OVERALL ASSY (SS-TS56W)
(US, CND, KR, AUS, TW)
104 A-1163-150-A OVERALL ASSY (SS-TS56W) (AR, E32)
SP1 1-826-200-13 SPEAKER (7X10cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
SP1
102
101
104
103
not
supplied
not
supplied
not
supplied
not
supplied
#1
Ver. 1.2

8
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SS-WS53
Ref. No. Part No. Description Remark
151 A-1156-726-A OVERALL ASSY (SS-WS53)
152 X-2103-279-1 FRONT PANEL ASSY
152
151
not
supplied
not
supplied not
supplied not
supplied
Ver. 1.2

9
SS-CT52/TS53/TS54/TS55/TS56W/WS53
SECTION 3
ELECTRICAL PARTS LIST
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•CAPACITORS
uF: µF
•COILS
uH: µH
•RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
PD JACK
When indicating parts by reference number,
please include the board name.
A-1174-756-A BUILT PD BOARD, COMPLETE
************************
< CAPACITOR >
C7301 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7303 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
C7304 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V
C7305 1-162-927-11 CERAMIC CHIP 100PF 5% 50V
C7306 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7307 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V
C7308 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C7309 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V
C7311 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C7312 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V
C7313 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7314 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C7315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7316 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C7317 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V
C7318 1-126-205-11 ELECT CHIP 47uF 20% 6.3V
C7319 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7320 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C7321 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7322 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C7323 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V
C7324 1-117-681-11 ELECT CHIP 100uF 20% 16V
< CONNECTOR >
*CN7301 1-564-517-11 PLUG, CONNECTOR 2P
< DIODE >
D7301 8-719-058-49 DIODE PP508
D7302 8-719-058-49 DIODE PP508
D7303 8-719-058-49 DIODE PP508
D7304 8-719-058-49 DIODE PP508
< IC >
IC7301 8-753-208-23 IC CXA3668N-T4
IC7302 6-704-261-01 IC TK11225CMCL-G
< COIL >
L7301 1-412-006-31 INDUCTOR 10uH
L7302 1-412-006-31 INDUCTOR 10uH
L7303 1-412-006-31 INDUCTOR 10uH
L7304 1-412-006-31 INDUCTOR 10uH
L7305 1-469-152-11 FERRITE, EMI (SMD) (2012)
L7306 1-400-305-11 INDUCTOR 47uH
< TRANSISTOR >
Q7301 8-729-216-22 TRANSISTOR 2SA1162-G
Q7302 8-729-230-49 TRANSISTOR 2SC2712-YG
< RESISTOR >
R7301 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R7302 1-216-821-11 METAL CHIP 1K 5% 1/10W
R7303 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R7304 1-216-839-11 METAL CHIP 33K 5% 1/10W
R7305 1-216-821-11 METAL CHIP 1K 5% 1/10W
R7306 1-216-837-11 METAL CHIP 22K 5% 1/10W
R7307 1-216-833-11 METAL CHIP 10K 5% 1/10W
R7308 1-216-833-11 METAL CHIP 10K 5% 1/10W
R7309 1-216-821-11 METAL CHIP 1K 5% 1/10W
R7310 1-216-809-11 METAL CHIP 100 5% 1/10W
R7311 1-216-797-11 METAL CHIP 10 5% 1/10W
R7312 1-216-833-11 METAL CHIP 10K 5% 1/10W
************************************************************
PD JACK BOARD
*************
< CONNECTOR >
CN100 1-564-505-11 PLUG, CONNECTOR 2P
< JACK >
J100 1-818-633-11 JACK, PIN 1P (TA-WR4)
< RESISTOR >
R100 1-216-864-11 SHORT CHIP 0
************************************************************
MISCELLANEOUS
**************
SP1 1-826-200-13 SPEAKER (7X10cm)
************************************************************
•SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
BUILT PD

SS-CT52/TS53/TS54/TS55/TS56W/WS53
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2006.04 New
1.1 2006.05 Addition of E3 (240V AC area in E model), Singapore, Korean, Russian,
Argentina, E32 (110-240VAC area in E model), and Australian models
for SS-CT52/TS55/TS56W
Addition of Singapore, Korean, Argentina, E32 (110-240V AC area in E
model) and Australian models for SS-WS53
1.2 2006.09 Addition of Taiwan model for SS-CT52/TS55/TS56W/WS53
Change of EXPLODED VIEWS for SS-WS53 (SPM-06050)
