Sony MSAC-US1 User manual

3-061-238-13 (1)
Memory Stick
Reader/Writer
2000 Sony Corporation
MSAC-US1
Operating Instructions
Mode d’emploi
US
FR

2-US
English
Before operating the unit, please read this instructions thoroughly, and
retain it for future reference.
For the customers in U.S.A.
If you have any questions about this product, you may call: Sony
Customer Information Center 1-800-222-SONY(7669) or write to: Sony
Customer Information Center 1 Sony Drive, Mail Drop #T1-11, Park Ridge,
NJ 07656
CAUTION
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The specified USB cable (supplied) must be used with the equipment in
order to comply with the limits for a digital device pursuant to Subpart B
of Part 15 of FCC Rules.
Declaration of Conformity
Trade Name : SONY
Model : MSAC-US1
Responsible Party : Sony Electronics lnc.
Address : 1 Sony Drive, Park Ridge, NJ, 07656 USA
Telephone number : 201-930-6972
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions.: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

3-US
For the customers in Germany
Directive:EMC Directive 89/336/EEC.
92/31/EEC
This equipment complies with the EMC regulations when used under the
following circumstances:
• Residential area
• Business district
• Light-industry district
(This equipment complies with the EMC standard regulations EN55022 Class B.)
You can connect this unit to a personal computer so that data in a “Memory
Stick” can be transferred to the personal computer at high speed. You can also
use a “Memory Stick” as a removable disk.
This manual describes how to connect this unit, how to install the driver, how to
use and customer service.
PNotes
• We recommend backing up valuable data.
• The contents of data cannot be compensated if recording or playing back is not
made due to malfunctions such as a “Memory Stick” error.
• Do not touch the terminals on the “Memory Stick” with your fingers or metal
objects.
• To prevent recording or deletion of data on “Memory Stick”s set the “Memory
Stick” write-protect switch to “Lock”.
• The communications state is sometimes not restored even if your personal
computer is restored from a suspend/resume state or sleep state.
• Do not optimize “Memory Stick”s.
• Do not compress the data on “Memory Stick”s.
“Memory Stick” and are trademarks of Sony Corporation.
Microsoft® and Windows® are registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Macintosh, iMac and Mac OS are trademarks of Apple Computer, Inc.
MMX™ and Pentium® are registered trademarks or trademarks of Intel
Corporation.
All other company names and product names mentioned here may be the
trademarks or registered trademarks of their respective companies.

4-US
About Formatting “Memory Stick”s
When “Memory Stick”s are shipped from the factory, they are already
formatted to a special standard format. When you format “Memory Stick”s, we
recommend formatting them on the device you are using so that they are
compatible when used on “Memory Stick”-compatible device.
Cautions When Formatting “Memory Stick”s on a Personal Computer
Pay attention to the following points when formatting “Memory Stick”s on the
personal computer, for example, that you are using.
• Operation of “Memory Stick”s formatted on Windows machines is not
guaranteed on “Memory Stick”-compatible device. To use a “Memory Stick”
that has been formatted on a Windows machine, the “Memory Stick” must be
reformatted on “Memory Stick”-compatible device. Note, that, in this case all
data stored on the “Memory Stick” will be lost.
• “Memory Stick” formatted on a Macintosh sometimes cannot be used on
“Memory Stick”-compatible device. Do not format “Memory Stick” on the
Macintosh.

5-US
Table of Contents
Parts identification ............................................................................................... 6
Before You Begin
Checking the accessories ..................................................................................... 7
How to use
For Windows ......................................................................................................... 8
For Macintosh ..................................................................................................... 10
For users of SONY digital HandyCam and Cyber-shot ............................... 12
Additional Information
Troubleshooting.................................................................................................. 13
Specifications....................................................................................................... 14
Recommended connections .............................................................................. 15

6-US
Parts identification

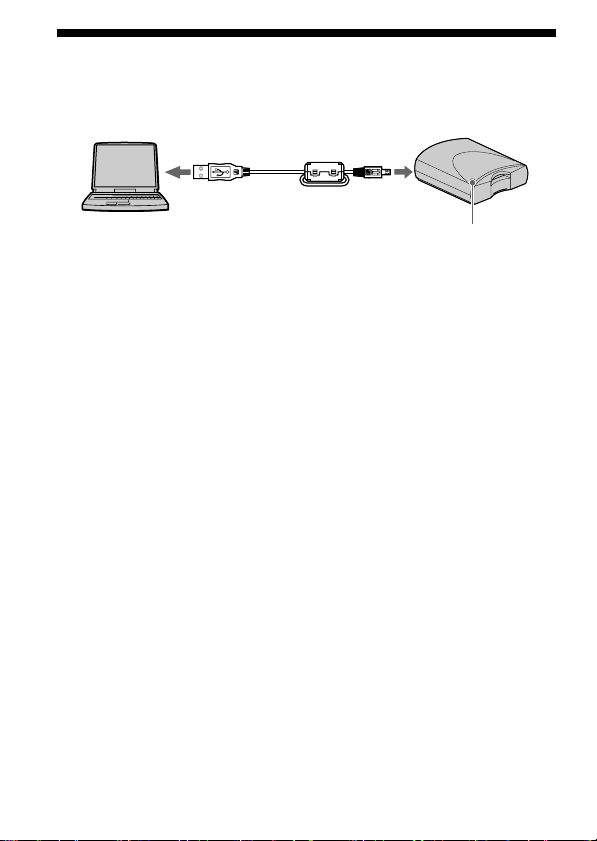

Connector A Connector B
Access lamp
•Connector A
Insert the connector (A) on the specified USB cable into the USB
connector on the personal computer (into any USB connector on the
personal computer if the personal computer has more than one USB
connector).
•Connector B
Insert the connector (B) on the specified USB cable into the USB jack on
this unit until it clicks into place.
PNote
The access lamp lights when you access data on “Memory Stick”.
When the access lamp is lit, never remove the “Memory Stick”, turn off the
power of your personal computer or pull out the USB cable.

Before You Begin
7-US
BBefore You Begin
Checking the accessories
Make sure that you have all the accessories below. If some of the
accessories are missing, contact the store or purchase of a Sony dealer or
local authorized Sony service facility.

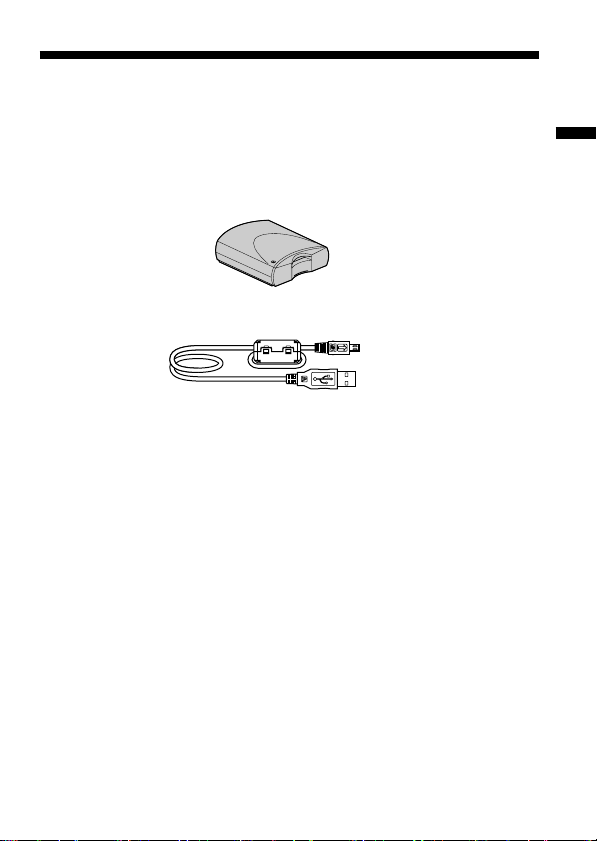

•Memory Stick Reader/Writer (1)
•Specified USB cable (1)
•USB driver software (for Windows/Macintosh)
CD-ROM (1)
•Manual (1)
•WARRANTY CARD (1)

8-US
BHow to use
For Windows
First, you must install the USB driver software in the package on the
personal computer you are using. Follow the procedure below to install
the USB driver software.
Installation
1Turn on your machine to start up Windows 98.
2Insert the USB driver software CD-ROM (supplied) into the CD-
ROM drive.
3Insert “Memory Stick” into the unit, and connect the USB jack
on the personal computer to the USB jack on this unit using
the specified USB cable (supplied).
4The Windows machine will recognize this unit, and Windows
98’s Add Hardware Wizard will start up.
5Follow the on-screen instructions to specify the CD-ROM
drive, and install the USB driver software.

How to use
9-US
How to use
Insert “Memory Stick” into the unit, and open “Explorer” or “My
computer.”
Removable disk is newly set up so that you can access data on “Memory Stick.”
* Note that setting up the removable disk takes a while.
Removing “Memory Stick”
1Close softwares such as Explorer running for this unit.
2Make sure that the access lamp is not lit, then remove the
“Memory Stick.”
PNotes
• Insert “Memory Stick” into the unit before installing the USB driver software.
Otherwise you cannot install the software.
• The Add Hardware Wizard starts twice because two USB drivers are installed.
Do not cancel the installation midway, and complete the installation.
• When installing the USB driver software, other installation program may start.
If this happens, follow the instructions of the program.

10-US
For Macintosh
First, you must install the USB driver software in the package on the
personal computer you are using. Follow the procedure below to install
the USB driver software.
Installation
1Turn on your Macintosh to start up the Mac OS.
2Insert the USB driver software CD-ROM (supplied) into the CD-
ROM drive.
3Connect the USB jack on the personal computer to the USB
jack on this unit using the specified USB cable (supplied).
4Double-click the CD-ROM drive icon.
5Double-click the hard disk icon containing the System Folder
to open the hard disk window.
6Drag the following two Mac driver folders in the window
opend in step 4 onto the System Folder in the window
opened in step 5. (Drag and Drop):
• Sony Peripheral USB Driver
• Sony Peripheral USB Shim
7The message “Place files in Extensions Folder?” is displayed.
Select “OK.”
8Restart your Macintosh.
How to use
When you insert “Memory Stick” into the unit, Memory Stick icon
appears on the desktop.
You can access data on “Memory Stick.”
* Note that displaying the Memory Stick icon takes a while.

How to use
11-US
Removing “Memory Stick”
1Close softwares running for this unit.
2Make sure that the access lamp is not lit.
3Move the Memory Stick icon from the hard disk to Trash or
select [Eject] from [Special] menu.
4Remove the “Memory Stick.”
PNotes
• When using the Macintosh, connect the USB cable after your personal
computer starts.
• You may not be able to copy the whole of folder on “Memory Stick” at once to
the hard disk on the Macintosh. In this case, open the folder first and copy the
contents in the folder.

12-US
For users of SONY digital HandyCam
and Cyber-shot
You can view or capture data on “Memory Stick” on a personal computer
by connecting this unit to a personal computer on which the USB driver
software has been installed using the specified USB cable (supplied).
For details on how to use Sony digital HandyCam or Cyber-shot, refer to
the manual for your digital HandyCam or Cyber-shot.
“Memory Stick” data made on a SONY digital HandyCam or Cyber-shot is
stored to the following file names in the following folders.
Recording mode
Still picture
Moving picture
VOICE
E-MAIL
Folder name
Dcim
Mssony
Mssony
Mssony
Folder name
100msdcf
Moml0001
Momlv100
Imcif100
File name (Example)
Mov00001.mpg
Dsc00001.mpg
PNotes
• The folder names and file names vary according to the equipment you are
using. Refer to the user's manual for the equipment you are using.
• Digital HandyCam can record only still images on “Memory Stick.”

Additional Information
13-US
BAdditional Information
Troubleshooting
Symptom
You cannot install the
USB driver software.
Memory Stick icon does
not appear in Explorer or
My computer.
(Windows)
Memory Stick icon does
not appear.
(Macintosh)
Cause/Solution
•The specified USB cable is not correctly
connected.

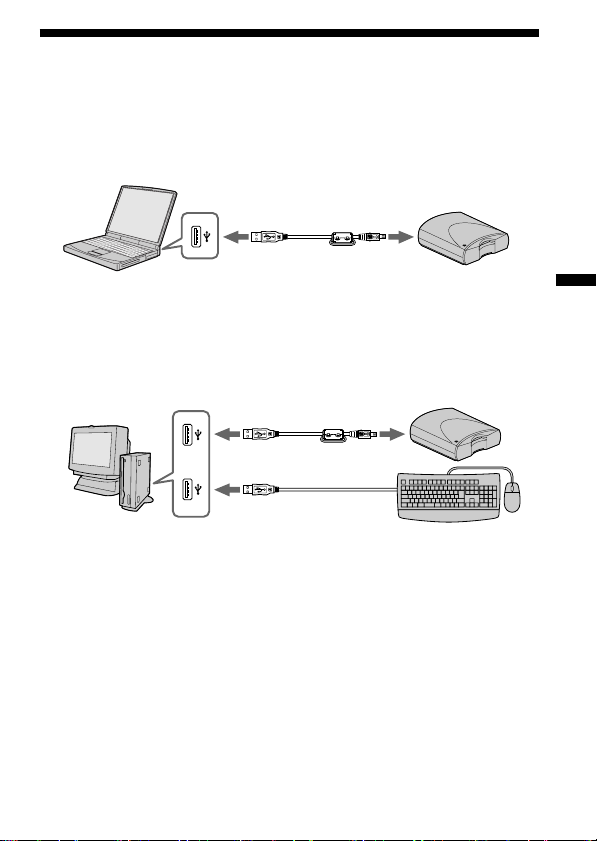

tConnect correctly. (page 15)
•Device other than this unit is connected
to the USB jack on the personal
computer.
tDisconnect the USB devices except
the keyboard and the mouse.
•“Memory Stick” is not in the unit.
tInsert “Memory Stick” into the unit.
•The connection between the personal
computer and the unit is not correct.
tConnect the cable correctly. (page 15)
•“Memory Stick” is not in the unit.
tInsert “Memory Stick” into the unit.
•The connection between the personal
computer and the unit is not correct.
tConnect the cable correctly. (page 15)
•“Memory Stick” is not in the unit.
tInsert “Memory Stick” into the unit.

14-US
Specifications
Memory Stick Reader/Writer
Interface: USB interface
Baud rate: Max. 12 Mbps
Required system
Recommended Windows environment
OS: Microsoft® Windows® 98, Windows® 98SE (standard
installation)
Operation in a Windows® 98 environment after upgrading from
Windows® 3.1/Windows® 95 is not guaranteed.
Operation in a Windows® 98SE environment after upgrading from
Windows® 98 is not guaranteed.
CPU: MMX™ Pentium® 200 MHz or more
* The USB jack must be installed as standard.
Recommended Macintosh environment
OS: Mac OS 8.5.1/8.6/9.0 (standard installation)
Update to Mac OS 9.0 on the following Macintoshes:
•iMac on which Mac OS 8.6 is installed as standard and the CD-ROM
is a slot-loading type
•iBook and G4 on which Mac OS 8.6 is installed as standard
* The USB jack must be installed as standard.
Operating voltage 5V DC (supplied from USB cable)
Current consumption Action Max. 100 mA
Standby Max. 500 µA
External dimensions Approx. 2 3/4 ×1 ×3 5/8 in.
(Approx. 68 ×25 ×89 mm) (w/h/d)
Mass Approx. 70 g
Operating environment 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C) (condensation
not allowed)

Additional Information
15-US
Recommended connections
Operation when connected as follows has been confirmed.
1When this unit is connected to the USB port on the personal
computer, and nothing is connected to the other USB port:
2When a USB keyboard is connected to the USB port on a
personal computer on which a USB keyboard and mouse are
equipped as standard, and this unit is connected to the other
USB port by the specified USB cable:
PNotes
• Operation is not guaranteed when two or more USB devices (excluding the
keyboard and mouse) are connected to a single personal computer.
• Make sure that the specified USB cable is connected to the USB jack on the
personal computer. Operations are not guaranteed when the USB cable is
connected to other jacks such as on the keyboard or the hub.
• Operation is sometimes not normal depending on the USB devices that are
used simultaneously.
• Operation on all personal computers in the recommended environment is not
guaranteed.

2-FR
Français
Avant la mise en service de cet appareil, prière de lire attentivement ce mode
d’emploi que l’on conservera pour toute référence future.
Cet appareil peut être raccordé à un ordinateur pour transférer les données d’un
“Memory Stick” rapidement sur un ordinateur. Le “Memory Stick” pourra aussi
être utilisé comme disque amovible.
Ce manuel indique comment raccorder cet appareil, comment installer le pilote
et commet utiliser le service client.
PRemarques
• Il est conseillé de sauvegarder toutes données jugées importantes.
• Le contenu des données ne peut pas être compensé si l’enregistrement ou la
lecture n’a pas pu être effectué en raison d’un mauvais fonctionnement, par
exemple une erreur de “Memory Stick”.
• Ne pas toucher les bornes du “Memory Stick” avec les doigts ou des objets
métalliques.
• Pour éviter l’enregistrement ou l’effacement de données de “Memory Stick”,
mettez le taquet d’interdiction d’écriture sur la position de verrouillage (Lock).
• Les communications ne se rétablissent parfois pas après une mise en veille ou
une suspension du fonctionnement de l’ordinateur.
• N’optimisez pas les “Memory Stick”.
• Ne pas compresser les données des “Memory Stick”.
“Memory Stick” et sont des marques de fabrique de Sony Corporation.
Microsoft® et Windows® sont des marques déposées ou des marques de
fabrique de Microsoft Corporation, enregistrées aux Etats-Unis et/ou dans
d’autres pays.
Macintosh, iMac et Mac OS sont des marques de fabrique de Apple Computer,
Inc.
MMX™ et Pentium® sont des marques déposées ou des marques de fabrique de
Intel Corporation.
Tous les autres noms de sociétés et de produits mentionnés dans ce manuel sont
soit des marques de fabrique soit des marques déposées de leurs détenteurs
respectifs.

3-FR
Table des matières
A propos du formatage des “Memory Stick”
Les “Memory Stick” sont formatés en usine dans un format spécial. Lorsque
vous formatez des “Memory Stick”, il est conseillé de les formater sur l’appareil
utilisé pour qu’ils soient compatibles.
Précautions lors du formatage de “Memory Stick” sur un ordinateur
Veuillez prendre les précautions suivantes lors du formatage de “Memory
Stick” sur un ordinateur.
• Le fonctionnement des “Memory Stick” formatés sur des machines Windows
n’est pas garanti sur un appareil compatible avec les “Memory Stick”. Pour
utiliser un “Memory Stick” qui a été formaté sur une machine Windows, le
“Memory Stick” devra être reformaté sur l'appareil compatible avec les
“Memory Stick”. Notez que dans ce cas, toutes les données du “Memory
Stick” seront perdues.
• Un “Memory Stick” formaté sur un Macintosh ne peut parfois pas être utilisé
sur un appareil compatible avec les “Memory Stick”. Ne pas formater de
“Memory Stick” sur un Macintosh.
Identification des éléments ................................................................................. 4
Informations préliminaires
Vérification des accessoires ................................................................................. 5
Fonctionnement
Windows ................................................................................................................ 6
Macintosh .............................................................................................................. 8
Pour les utilisateurs des appareils photo numériques SONY HandyCam
et Cyber-shot ....................................................................................................... 10
Informations complémentaires
En cas de problème ............................................................................................ 11
Spécifications....................................................................................................... 12
Raccordements conseillés .................................................................................. 13

4-FR
Identification des éléments
Connecteur A Connecteur B
Voyant d’accès
•Connecteur A
Insérez le connecteur (A) du câble USB spécifié dans la prise USB de
l’ordinateur (n’importe quelle prise USB d’un ordinateur pourvu de
plusieurs prises USB).
•Connecteur B
Insérez le connecteur (B) du câble USB spécifié dans la prise USB de cet
appareil jusqu’à ce qu’il s’encliquette.
PRemarque
Le voyant d’accès s’allume lorsque vous accédez au “Memory Stick”.
Lorsque le voyant d’accès s’allume, ne jamais retirer le “Memory Stick”,
éteindre l’ordinateur ni débrancher le câble USB.

Informations préliminaires
5-FR
BInformations préliminaires
Vérification des accessoires
Assurez-vous d’être en possession de tous les accessoires indiqués ci-
dessous. Si certains manquent, contactez votre revendeur Sony ou un
service après-vente agréé Sony.
•Lecteur/enregistreur de Memory Stick (1)
•Câble USB spécifié (1)
•Pilote USB (pour Windows/Mactintosh)
CD-ROM (1)
•Mode d’emploi (1)
•CARTE DE GARANTIE (1)

6-FR
BFonctionnement
Windows
Vous devez tout d’abord installer le pilote USB fourni sur l’ordinateur que
vous utilisez. Pour ce faire suivez les instructions ci-dessous.
Installation
1Allumez la machine pour démarrer Windows 98.
2Insérez le CD-ROM contenant le pilote USB (fourni) dans le
lecteur de CD-ROM.
3Insérez le “Memory Stick” dans l’appareil et reliez la prise USB
de l’ordinateur à la prise USB de cet appareil à l’aide du câble
USB spécifié (fourni).
4La machine Windows reconnaît cet appareil et l’assistant
d’ajout de périphérique de Windows 98 se met en marche.
5Suivez les instructions qui apparaissent à l’écran pour spécifier
le lecteur de CD-ROM et installez le pilote USB.
