Sony StorStation AITe200-UL User manual

2-067-134-13(1)
©2004 Sony Corporation
Operating Instructions
AIT Drive
AIT-2 Turbo TAPE DRIVE
AITe200-UL/AITe200T-UL
AIT-2 TAPE DRIVE
AITe130V-UL
AIT-1 Turbo TAPE DRIVE
AITe100-UL/AITe100T-UL
AIT-1 TAPE DRIVE
AITe90V-UL

2Safety Regulations
Safety Regulations
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below.
Refer to them whenever you call upon your dealer regarding this product.
Model No. Serial No.
Information
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
MODEL No. for Regulatory Compliance
Your AITe200-UL or AITe200T-UL is assigned the MODEL No.
ATDEA3A (respectively) for regulatory compliance certifications. Your
AITe130V-UL, AITe100-UL, AITe100T-UL or AITe90V-UL is assigned the
MODEL No. ATDEA2A (respectively) for regulatory compliance
certifications. The number is indicated on the model number label on your
drive along with the rated voltage and current.
For customers in the USA
You are cautioned that any changes or modifications not expressly approved
in this manual could void your authority to operate this equipment.
FCC Compliance
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
All interface cables used to connect peripherals must be shielded in order to
comply with the limits for a digital device pursuant to Subpart B of Part 15 of
FCC Rules.

Safety Regulations 3
CAUTION
The mains plug on this equipment must be used to disconnect mains power.
Please ensure that the socket outlet is installed near the equipment and shall
be easily accessible.
ACHTUNG
Zur Trennung vom Netz ist der Netzstecker aus der Steckdose zu ziehen,
welche sich in der Nähe des Gerätes befinden muß und leicht zugänglich
sein soll.
Hinweis: Maschinenlärminformations-Verordnung - 3. GPSGV, der
höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO
7779.
NOTICE
Use the power cord set approved by the appropriate testing organization for
the specific countries where this unit is to be used.
HINWEIS
Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden.
Es sind die zutreffenden nationalen Errichtungs- und/oder
Gerätebestimmungen zu beachten. (Für einen Nennstrom bis 6A)
Es ist eine geprüfte flexible PVC-ummantelte Leitung entsprechend IEC
60227 (H05VV-F 3G 0,75 mm2oder H05VVH2-F 3G 0,75 mm2) zu
verwenden. Andernfalls ist eine flexible Leitung aus synthetischem Gummi
entsprechend IEC 60245 (Bauartkurzzeichen H05RR-F 3G 0,75 mm2) zu
verwenden.
If you have any questions about this product, please refer to Sony contact in
the instruction manual.
DECLARATION OF CONFORMITY
Trade Name: SONY
Model: ATDEA2A, ATDEA3A
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo San Diego, CA.
92127 U.S.A.
Telephone number: 858-942-2230
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Für kunden in Deutschland
Diese Ausrüstung erfüllt die Europäischen EMC-Bestimmungen für die
Verwendung in folgender/folgenden Umgebung(en):
–Wohngegenden
–Gewerbegebiete
–Leichtindustriegebiete
(Diese Ausrüstung erfüllt die Bestimmungen der Norm EN 55022, Klasse B.)

4Safety Regulations
ATTENTION
According to the EU Directives related to product safety, EMC and R&TTE the
manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku
Tokyo, 108-0075 Japan. The Authorised Representative is Sony Deutschland
GmbH, Hedelfinger Strasse 61,70327 Stuttgart, Germany. For any service or
guarantee matters please refer to the addresses given in separate service or
guarantee documents.
AUFMERKSAMKEIT
Im Sinne der EU Richtlinien bezüglich Produktsicherheit, EMV und R&TTE
ist Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan der
Hersteller dieses Produktes. Bevollmächtigter ist Sony Deutschland GmbH,
Hedelfinger Strasse 61, D-70327 Stuttgart. Für Service oder
Garantieangelegenheiten wenden Sie sich bitte an die in separaten Service
oder Garantiedokumenten angegebenen Adressen.
European Union Restriction of Hazardous Substances Directive
compliant.
Entspricht der Richtlinie der Europäischen Union zur
Beschränkung der Verwendung gefährlicher Stoffe.

Safety Regulations 5
IMPORTANT SAFEGUARDS
For your protection, please read these safety
instructions completely before operating the
appliance, and keep this manual for future reference.
Carefully observe all warnings, precautions and
instructions on the appliance, or the one described in
the operating instructions and adhere to them.
USE
Power Sources – This unit should be operated only
from the type of power source indicated on the
marking label. If you are not sure of the type of
electrical power, consult your dealer or local power
company.
For the unit with a three-wire grounding type ac
plug:
If you are unable to insert the plug into the outlet,
contact your electrician to have a suitable plug
installed. Do not defeat the safety purpose of the
grounding plug.
AC Power cord:
The AC power cord should have appropriate safety
approvals or marking for the country in which the
equipment will be used. Consult your dealer or
local power company.
Cleaning – Unplug the unit from the wall outlet
before cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners.
Use a cloth lightly dampened with water for
cleaning the exterior of the unit.
Object and Liquid Entry – Never push objects of any
kind into the unit through openings as they may
touch dangerous voltage points or short out parts
that could result in a fire or electric shock. Never
spill liquid of any kind on the unit.

6Safety Regulations
INSTALLATION
Water and Moisture – Do not use power-line
operated units near water - for example, near a
bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Power-Cord Protection – Route the power cord so
that it is not likely to be walked on or pinched by
items placed upon or against them, paying particular
attention to the plugs, receptacles, and the point
where the cord exits from the appliance.
Accessories – Do not place the unit on an unstable
cart, stand, tripod, bracket, or table. The unit may
fall, causing serious injury to a child or an adult, and
serious damage to the unit. Use only a cart stand
tripod, bracket, or table recommended by the
manufacturer.
Ventilation – The slots and openings in the cabinet
are provided for necessary ventilation. To ensure
reliable operation of the unit, and to protect it from
overheating, these slots and openings must never be
blocked or covered.
•Never cover the slots and openings with a cloth or
other materials.
•Never block the slots and openings by placing the
unit on a bed, sofa, rug or other similar surface.
•Never place the unit in a confined space, such as a
bookcase, or built-in cabinet, unless proper
ventilation is provided.
SERVICE
Damage Requiring Service – Unplug the unit from
the wall outlet and refer servicing to qualified
service personnel under the following conditions:
•When the power cord or plug is damaged or
frayed.
•If liquid has been spilled or objects have fallen
into the unit.
•If the unit has been exposed to rain or water.
•If the unit has been subject to excessive shock by
being dropped, or the cabinet has been damaged.
•If the unit does not operate normally when
following the operating instructions. Adjust only
those controls that are specified in the operating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the unit to normal operation.
• When the unit exhibits a distinct change in
performance - this indicates a need for service.
Servicing – Do not attempt to service the unit
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards.
Refer to all servicing to qualified service personnel.

Table of Contents 7
• Sony cannot accept liability for data written to cartridges lost as a result of using this product.
• Sony bears no responsibility for any financial damages, lost profits, or claims made by third parties
arising from the use of this product.
Table of Contents
How To Use This Guide .................................................................... 8
Chapter 1
Introduction
About the AIT Drive........................................................................... 9
Features .................................................................................................... 9
System Requirements ............................................................................ 11
Compatible Data Cartridges .................................................................. 11
Part Names and Functions ............................................................. 13
Front Panel ............................................................................................. 13
Rear Panel .............................................................................................. 14
Chapter 2
Preparation
Supplied Items................................................................................. 15
Interconnections ............................................................................. 16
Option Switches (DIP Switch) ........................................................ 17
i.LINK ................................................................................................... 19
Chapter 3
Operation
How To Use the AIT Drive .............................................................. 21
Cartridge Removal ................................................................................. 22
Attaching the Dust Cover ............................................................... 23
Chapter 4
Care and
Maintenance
Taking Care of the Drives ............................................................... 25
Safety Considerations ............................................................................ 25
Avoiding Damage .................................................................................. 25
Taking Care of Cartridges .............................................................. 27
Usage Precautions ................................................................................. 27
Storage Precautions ............................................................................... 27
Cleaning ........................................................................................... 28
How To Clean ........................................................................................ 28
Appendix Specifications .................................................................................. 29
Sony Contacts ................................................................................. 33

8How to Use this Guide
How To Use This Guide
This guide describes how to use and care for the AITe200-UL, AITe200T-UL,
AITe130V-UL, AITe100-UL, AITe100T-UL or AITe90V-UL. Please read it
carefully before using the drives and save it for future reference.
The guide consists of four chapters and an appendix. Refer to the chapters
that relate to your use of the drives.
Chapter 1 Introduction
Describes the features of the drives, system requirements, and the names and
functions of each part.
Chapter 2 Preparation
Describes the necessary connections between the drives and the host
computer. Read this chapter when you install the drives.
Chapter 3 Operation
Describes how to use the drives, including how to turn it on, and how to
insert and remove cartridges. Read this chapter when you are going to use the
drives.
Chapter 4 Care and Maintenance
Describes how to take care of the drives and cartridges, and how to clean the
drive. Read this chapter before using the drives.
Appendix
Contains the specifications of the drives.
Notation
IEEE 1394 and i.LINK refer to the same type of interface. In this guide, we
have used i.LINK throughout to refer to the interface.
Trademarks
• Microsoft and Windows are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• i.LINK™ is a designation referring to IEEE 1394-1995 and IEEE 1394a-
2000. i.LINK and the i.LINK logo “ ” are trademarks of Sony
Corporation.
• All other system names, products, and services are either registered
trademarks or trademarks of their respective owners. The ™ or ® marks do
not appear in this manual.

Chapter 1 Introduction 9
Chapter 1 Introduction
About the AIT Drive
The AITe200-UL is an external AIT drive using data cartridges that conform
to the AIT-2 Turbo, AIT-2, AIT-1 Turbo, AIT-1, and AIT-E Turbo formats.
The AITe130V-UL is an external AIT-2 drive using data cartridges that
conform to the AIT-2 and AIT-1 formats.
The AITe100-UL is an external AIT drive using data cartridges that conform
to the AIT-1 Turbo, AIT-1, and AIT-E Turbo formats.
The AITe90V-UL is an external AIT drive using data cartridges that conform
to the AIT-1 format.
Features
The AITe200-UL drive has the following features.
•Uses the Advanced Intelligent Tape (AIT) format AIT-2 Turbo, AIT-2,
AIT-1 Turbo, AIT-1, and AIT-E Turbo data cartridges. AIT-2 Turbo data
cartridges provide 80 GB of storage (no compression) on a 186-m tape.
AIT-2 data cartridges provide 50 GB of storage (no compression) on a
230-m tape. AIT-1 Turbo data cartridges provide 40 GB of storage (no
compression) on a 186-m tape. AIT-1 data cartridges provide 35 GB of
storage (no compression) on a 230-m tape. AIT-E Turbo data cartridges
provide 20 GB of storage (no compression) on a 98-m tape. The Read After
Write function and Third Level Error Correction Code ensure high data
reliability.
•The drive comes with a data compression function, providing a maximum
of 208 GB of storage on an AIT-2 Turbo data cartridge (186-m tape), 130
GB of storage on an AIT-2 data cartridge (230-m tape), 104 GB on an AIT-
1 Turbo data cartridge (186-m tape), 91 GB on an AIT-1 data cartridge
(230-m tape), and 52 GB on an AIT-E Turbo data cartridge (98-m tape).*1
The AITe130V-UL drive has the following features.
•Uses the Advanced Intelligent Tape (AIT) format AIT-2 and AIT-1 data
cartridges. AIT-2 data cartridges provide 50 GB of storage (no
compression) on a 230-m tape. AIT-1 data cartridges provide 35 GB of
storage (no compression) on a 230-m tape. The Read After Write function
and Third Level Error Correction Code ensure high data reliability.
•The drive comes with a data compression function, providing a maximum
of 130 GB of storage on an AIT-2 data cartridge (230-m tape) and 91 GB
on an AIT-1 data cartridge (230-m tape).*1
*1 Assuming a 2.6:1 hardware compression ratio.
The actual degree of compression during recording depends on the system environment and
the type of data.

10 Chapter 1 Introduction
The AITe100-UL drive has the following features.
•Uses the Advanced Intelligent Tape (AIT) format AIT-1 Turbo, AIT-1, and
AIT-E Turbo data cartridges. AIT-1 Turbo data cartridges provide 40 GB of
storage (no compression) on a 186-m tape. AIT-1 data cartridges provide
35 GB of storage (no compressio on a 230-m tape. AIT-E Turbo data
cartridges provide 20 GB of storage (no compression) on a 98-m tape. The
Read After Write function and Third Level Error Correction Code ensure
high data reliability.
•The drive comes with a data compression function, providing a maximum
of 104 GB on an AIT-1 Turbo data cartridge (186-m tape), 91 GB on an
AIT-1 data cartridge (230-m tape), and 52 GB on an AIT-E Turbo data
cartridge (98-m tape).*1
The AITe90V-UL drive has the following features.
•Uses the Advanced Intelligent Tape (AIT) format AIT-1 data cartridges.
AIT-1 data cartridges provide 35 GB of storage (no compression) on a
230-m tape. The Read After Write function and Third Level Error
Correction Code ensure high data reliability.
•The drive comes with a data compression function, providing a maximum
of 91 GB of storage on an AIT-1 data cartridge (230-m tape).*1
Stored data is automatically checked for compression. The drive can also
read data recorded with other devices.
The drive is equipped with a USB and i.LINK (IEEE 1394) interface. You
can therefore connect the drive to either connector to your computer.
Note
You cannot use the USB and i.LINK interfaces simultaneously.
The drives support Hot Plug, which means that you can connect and
disconnect it while the drives and/or your computer is on.
To remove the AIT drive, execute “Safely Remove Hardware” on the
Windows taskbar, and then disconnect the AIT drive.
*1 Assuming a 2.6:1 hardware compression ratio.
The actual degree of compression during recording depends on the system environment and
the type of data.

Chapter 1 Introduction 11
System Requirements
The following are the minimum system requirements to use the drives.
•PC/AT-compatible computer (300 MHz or faster)
•When using the NT backup:Windows XP or Windows Server 2003
When using the 1Safe™: Windows XP, Windows 2000, Windows Me, or
Windows 98 SE
•CD-ROM drives (to install the software necessary to the drives)
•i.LINK and/or USB interface
Compatible Data Cartridges
The AITe200-UL can be used with data cartridges marked with the AIT-2
Turbo, AIT-2, AIT-1 Turbo, AIT-1, or AIT-E Turbo logo.
The AITe130V-UL can be used with data cartridges marked with the AIT-2 or
AIT-1 logo.
The AITe100-UL can be used with data cartridges marked with the AIT-1
Turbo, AIT-1, or AIT-E Turbo logo.
The AITe90V-UL can be used with data cartridges marked with the AIT-1 logo.
AIT-2 Turbo Logo AIT-2 Logo
AIT-2 Turbo/AIT-2 Data Cartridges
Name Capacity (no compression)
TAIT2-80N 80 GB
TAIT2-80C 80 GB
SDX2-50C 50 GB
SDX2-36C 36 GB
AIT-1 Turbo Logo AIT-1 Logo
AIT-1 Turbo/AIT-1 Data Cartridges
Name Capacity (no compression)
TAIT1-40N 40 GB
TAIT1-40C 40 GB
SDX1-35C 35 GB
SDX1-25C 25 GB

12 Chapter 1 Introduction
AIT-E Turbo Logo
AIT-E Turbo Data Cartridge
Name Capacity (no compression)
TAITE-20N 20 GB
AIT Cleaning Cartridges
Name Description
SDX1-CL AIT drive cleaning cartridge
Notes
•Be sure to use only data cartridges designed specifically for AIT.
•Do not use anything but AIT cartridges with this system, as doing so can
damage the AIT drive. Although commercially available 8 mm videotapes
resemble AIT cartridges in appearance, they have entirely different
specifications and cannot be used.

Chapter 1 Introduction 13

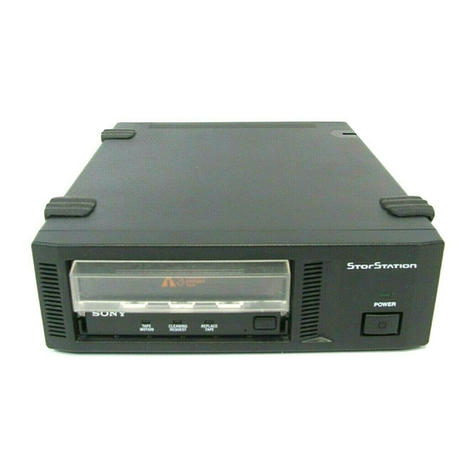

Part Names and Functions
Front Panel
Advanced
Intelligent
Ta p e
12
6354
1AIT Data Cartridge Receptacle
See page 21 to 22 for information on inserting and removing a AIT data
cartridge.
2POWER Indicator
Lights while the drive is on.
3Dust Cover
This cover protects the AIT data cartridge receptacle.
4LED Indication for Drive Status
The LED indicators are defined as follows.
LED
TAPE CLEANING REPLACE Sense
MOTION REQUEST TAPE
Independent Independent Tape Loaded
Independent Independent Tape Access in Progress
(write/read)
Independent Independent Tape Access in Progress (others)
Independent Independent Cleaning is requested
Independent Independent Cleaning is Not Completed
Independent Independent Media Error Occurred
H/W Error Occurred
on
Slow
1 pulse (0.9 sec on/0.3 sec off)
Fast
1 pulse (0.3 sec on/0.3 sec off)

14 Chapter 1 Introduction
5EJECT Button
Push to remove a data cartridge from the drive.
6POWER Switch
Press to turn the drive on or off.
Rear Panel
23 4
1
1AC IN Connector
Connect the supplied power cable here.
2i.LINK Connectors ( )
Connects to the i.LINK connector of the host computer.
3USB Connector ( )
Connects to the USB connector of the host computer or a USB hub.
4Cooling Fan

Chapter 2 Preparation 15
Chapter 2 Preparation
After you confirm that all the necessary items are accounted for, connect the
drives to the host computer or to a USB hub.
Supplied Items
When you open the package, make sure that it contains the following.
Contact your supplier if any of these items are missing and/or damaged.
•AIT Drive Unit
•Quick start guide
•AIT Data Cartridge
•Operating instructions CD-ROM
•1Safe™ CD-ROM (excluding AITe200-UL/AITe200T-UL)
•USB 2.0 cable
•i.LINK cables (6-pin to 6-pin, 6-pin to 4-pin, 1 each)
•Power cable
•Warranty card*
•Safety regulations
*Warranty coverage may vary from region to region.
*The supplied items are listed on the bundled goods list affixed to the box.

16 Chapter 2 Preparation
Interconnections
Connecting to the USB Interface
Connect the USB connector of the host computer or USB hub to the USB
connector of the drives with the USB cable.
Connecting to the i.LINK Interface
Connect the i.LINK connector of the host computer to the i.LINK connector
of the drives with the one of the i.LINK cables. You can also add the drives
to a daisy chain.
Caution
You cannot use the USB and i.LINK interfaces simultaneously.
AC power
USB or i.LINK cable (supplied with the drives)

Chapter 2 Preparation 17
Option Switches (DIP Switch)
Remove the two slotted screws by using a slotted screwdriver. Remove the
access cover to change the DIP switch settings. (Refer to the following
figure for details changing the DIP switch settings.)
After changing the DIP switch settings, replace access cover and tighten the
two slotted screws using a slotted screwdriver.
CAUTION
Before removing the access cover to change DIP switch settings on the
drive, turn off the computer and disconnect the power cord from the unit.
Once the DIP switch settings have been changed, replace the access cover
using the two original slotted screws provided.
DIP Switch Access
DIP Switch Positions
Default
ON
OFF
12345678
Access Cover
DIP Switch
Slotted
Screws
1Drive Mode (OFF)
2Drive Mode (OFF)
3Drive Mode (OFF)
4Drive Mode (OFF)
5Reserved (OFF)
6Periodic Cleaning Req (OFF)
7DC Control (1) (ON)
8DC Control (2) (OFF)

18 Chapter 2 Preparation
Cleaning Request Mode
Automatic cleaning requests can be enabled by a DIP switch.
When switch 6 is ON, cleaning requests are enabled. When enabled, the
“CLEANING REQUEST” LED on the front panel lights after every 100
hours of operation.
When this LED lights, clean the drive with a head cleaning cartridge.
Note
To maintain the drive in optimum condition in environments affected by dust and other
contaminants, we recommend keeping cleaning requests enabled.
ON
OFF
12345678
Emulation Mode* (only for AITe130V-UL and AITe90V-UL)
To enable Emulation Mode, set position 1 - 4 Drive Mode switches to ON.
ON
OFF
12345678
*Emulation Mode for the AITe130V-UL drive returns the following as the
Product Identification field of the Inquiry command.
SDX-520C
*Emulation Mode for the AITe90V-UL drive returns the following as the
Product Identification field of the Inquiry command.
SDX-420C
Data Compression Control DIP switch
Data compression can be selected by DIP switches. Data compression is
enabled while position 7 [DC Control (1)] is ON. Control by host can be
disabled when position 8 [DC Control (2)] is ON.
1Drive Mode
2Drive Mode
3Drive Mode
4Drive Mode
5Reserved
6Periodic Cleaning Req (ON)
7DC Control (1)
8DC Control (2)
1Drive Mode (ON)
2Drive Mode (ON)
3Drive Mode (ON)
4Drive Mode (ON)
5Reserved
6Periodic Cleaning Req
7DC Control (1)
8DC Control (2)

Chapter 2 Preparation 19
i.LINK
This section explains the specifications and features of i.LINK.
Restrictions that are not outlined below may apply, depending on the features
and specifications of individual i.LINK devices.
What is i.LINK?
i.LINK is a digital serial interface that allows bi-directional transfer of digital
video and audio data between devices equipped with i.LINK connectors. It
also allows one device equipped with an i.LINK connector to control another
device that is similarly equipped.
Two i.LINK devices are connected through a single i.LINK cable. Using
i.LINK, a wide variety of audio-visual devices can be connected for control
or data transfer. Use of i.LINK is expected to expand to a wider variety of
devices in the future, providing even more options for control and data
transfer.
When multiple i.LINK devices are connected in series, control and data
transfer can be extended to devices connected through other i.LINK devices,
as well as to those connected directly. This means that devices can be
connected in any sequence. However, whether data can be transferred with a
particular device, as well as how or if that device can be controlled, depends
on the characteristics and specifications of the individual device.
Note
i.LINK, the internationally popular name for the IEEE 1394 interface
standard, is a Sony trademark.
IEEE 1394 is an international standard established by the Institute of
Electrical and Electronics Engineers.
Connection Using i.LINK
i.LINK devices are connected in series using i.LINK cables. This is often
referred to as a “daisy chain”.
Data transfer and control are possible even when two i.LINK devices
are connected through other devices.
i.LINK cable

20 Chapter 2 Preparation
Branching is also possible
•When devices have three or more i.LINK connectors, it is possible to create
branches midway through the i.LINK daisy chain.
•Up to 63 i.LINK devices (including these drives) can be interconnected.
However, only 17 devices can be present on the longest individual path. (Up
to 16 i.LINK cables can be used in the chain making up a path of the
maximum possible length.)
The length of a path is indicated in terms of the number of i.LINK cables used,
with each cable counted as one “hop.” For example, in the figure below, the path
between A and C is 6 hops, while that between A and D is 3 hops.
Any of the paths (A pB, A pC, A pD, B pC, B pD, and C pD) can be
composed of a maximum of 17 devices. (A maximum of 16 hops.)
Care must be taken to ensure that no path loops back up on itself
The digital signal passes through all the connected i.LINK cables. Circular
connections must be avoided to prevent signals from returning to the device
from which they originated. Such circular connections are referred to as
“loops.”
Examples of correct connections
Examples of loops
Connection Precautions
•Some i.LINK devices, such as computers, must be turned on to relay data to
other i.LINK devices. When connecting an i.LINK device, refer to the
instructions accompanying the device.
•The maximum data transfer rate supported by any given i.LINK device is
indicated near the i.LINK connector. The maximum i.LINK data transfer
rates are defined as being approximately 100, 200, and 400 Mbps,
respectively noted as S100, S200, and S400. When devices having different
maximum data transfer rates are connected together, rates achieved by
individual devices may be less than their rated maximums.
