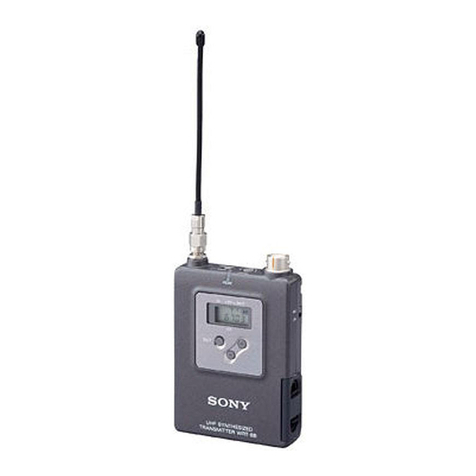

Sony DWT-B30 User manual

DIGITAL WIRELESS TRANSMITTER
DWT-B30
SERVICE MANUAL
1st Edition
利用条件:
① 本情報はソニー製品の販売、設置、設定、使用の目的でのみご利用ください。かかる目的以外での利用を禁止します。
② 著作者の事前の書面による許可なく、本情報の全部または一部の複写、複製、転載、改変、翻訳、送信等を禁止します。
情報改訂:
本情報は、当社の裁量により、予告なく変更されることがあります。ご使用される場合、本情報が最新の情報であることを確認のうえ、
ご使用ください。
Conditions of Use:
(1) Please use this information only for the purpose of sales, installation, configuration, and use of Sony products. Using this information
for any purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part without the prior
written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-date before
using it.

DWT-B30
!警告
このマニュアルは，サービス専用です。
お客様が，このマニュアルに記載された設置や保守，点検，修理などを行うと感電や火災，
人身事故につながることがあります。
危険をさけるため，サービストレーニングを受けた技術者のみご使用ください。
!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.

DWT-B30 1 (P)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type rec-
ommended by the manufacturer.
When you dispose of the battery, you must obey the
law in the relative area or country.
ATTENTION
Il y a danger d’explosion s’il y a remplacement incor-
rect de la batterie. Remplacer uniquement avec
une batterie du même type ou d’un type équivalent
recommandé par le constructeur.
Lorsque vous mettez la batterie au rebut, vous devez
respecter la législation en vigueur dans le pays ou la
région où vous vous trouvez.
VORSICHT
Explosionsgefahr bei Verwendung falscher Batterien.
Batterien nur durch den vom Hersteller empfohlenen
oder einen gleichwertigen Typ ersetzen.
Wenn Sie die Batterie entsorgen, müssen Sie die
Gesetze der jeweiligen Region und des jeweiligen
Landes befolgen.
注意
指定以外の電池に交換すると，破裂する危険があり
ます。
必ず指定の電池に交換してください。
使用済みの電池は，国または地域の法令に従って
処理してください。
FÖRSIKTIGHET!
Fara för explosion vid felaktigt placerat batteri.
Byt endast mot samma eller likvärdig typ av batteri,
enligt tillverkarens rekommendationer.
När du kasserar batteriet ska du följa rådande lagar
för regionen eller landet.
PAS PÅ
Fare for eksplosion, hvis batteriet ikke udskiftes
korrekt.
Udskift kun med et batteri af samme eller tilsvarende
type, som er anbefalet af fabrikanten.
Når du bortskaffer batteriet, skal du følge
lovgivningen i det pågældende område eller land.
HUOMIO
Räjähdysvaara, jos akku vaihdetaan virheellisesti.
Vaihda vain samanlaiseen tai vastaavantyyppiseen,
valmistajan suosittelemaan akkuun.
Noudata akun hävittämisessä oman maasi tai
alueesi lakeja.
FORSIKTIG
Eksplosjonsfare hvis feil type batteri settes i.
Bytt ut kun med samme type eller tilsvarende
anbefalt av produsenten.
Kasser batteriet i henhold til gjeldende avfallsregler.
注意
注意
如果更换的电池不正确，就会有爆炸的危险。
只更换同一类型或制造商推荐的电池型号。
处理电池时，必须遵守相关地区或国家的法律。

1 (E)
DWT-B30
Table of Contents
1. Service Overview
1-1. About Destination Determination .............................1-1 (E)
1-2. Board Location..........................................................1-1 (E)
1-3. Required Tool ............................................................ 1-2 (E)
1-3-1. Installation/Removal of Coaxial Harness ........1-2 (E)
1-3-2. Hexagonal Nut of Antenna ..............................1-3 (E)
1-3-3. LEMO Connector Board (CN-4078 Board) .... 1-3 (E)
1-4. Water Detection Sheet...............................................1-4 (E)
1-5. Item List in Test Mode .............................................. 1-5 (E)
2. Troubleshooting
2-1. Trouble Diagnosis .....................................................2-1 (E)
2-1-1. Sound Is Not Output ........................................2-1 (E)
2-1-2. Remote Function Does Not Operate................2-1 (E)
2-1-3. Radio Wave Is Not Output ............................... 2-2 (E)
2-1-4. Image Is Not Displayed on the EL Display .....2-3 (E)
2-2. Error Message ........................................................... 2-4 (E)
3. Notes on Removing and Replacing the
Main Parts
3-1. Tightening Torque .....................................................3-1 (E)
3-2. Disassembly ..............................................................3-2 (E)
3-2-1. Battery Case Assembly ....................................3-2 (E)
3-2-2. Antenna............................................................3-2 (E)
3-2-3. Case (Lower)....................................................3-3 (E)
3-2-4. TX-172 Board..................................................3-4 (E)
3-2-5. DPR-396 Board/Organic EL Display
Element ............................................................3-5 (E)
3-2-6. CN-4088 Board................................................3-7 (E)
3-2-7. CN-4148 and CN-4078 Boards........................3-8 (E)
3-2-8. RM-215 Board ...............................................3-10 (E)
3-2-9. LED-498 Board.............................................. 3-11 (E)
3-2-10. Battery Terminal Assembly............................ 3-11 (E)
3-3. Notes on Replacement of Parts ...............................3-12 (E)
3-3-1. Water Detection Sheet....................................3-12 (E)
3-3-2. Sheet and Cushion ......................................... 3-13 (E)
3-3-3. Notes on Replacing the TX-172 Board..........3-14 (E)
3-3-4. Notes on Replacing the DPR-396 Board .......3-14 (E)
3-4. Checking when Replacing or Removing Parts........ 3-15 (E)
4. Electrical Alignment
4-1. Preparation ................................................................4-1 (E)
4-1-1. Required Equipment ........................................4-1 (E)
4-1-2. Tool List...........................................................4-1 (E)
4-2. Performance Check ...................................................4-2 (E)
4-2-1. DC Current Measurement................................4-2 (E)
4-2-2. RF Performance Check....................................4-3 (E)
4-2-3. Audio Circuit Performance Check................. 4-10 (E)
4-2-4. RF Remote Performance Check .................... 4-11 (E)
4-3. Operation Check...................................................... 4-14 (E)
4-3-1. Sound Output Check......................................4-14 (E)
4-3-2. Radio Wave Check.........................................4-15 (E)
4-3-3. Indicator Lighting Check...............................4-15 (E)
4-3-4. RF Remote Operation Check.........................4-15 (E)
5. Firmware Update
5-1. Preparation ................................................................5-1 (E)
5-2. Installation of Update File.........................................5-1 (E)
5-2-1. Unzipping of Package File............................... 5-1 (E)
5-2-2. Preparation in Advance (Windows 8/8.1 and
Windows 10)....................................................5-2 (E)
5-2-3. Installation of Updater ...................................5-15 (E)
5-3. Installation of USB Driver ...................................... 5-18 (E)
5-4. Firmware Update.....................................................5-29 (E)
5-5. Writing of Serial Number........................................5-33 (E)
5-6. Version Check Procedure ........................................5-34 (E)
6. Spare Parts
6-1. Notes on Repair Parts...................................................... 6-1
6-2. Exploded Views............................................................... 6-2
Case (Lower) and Boards................................................ 6-2
Case (Upper) and Connectors ......................................... 6-4
6-3. Packing Materials & Supplied Accessories..................... 6-6

2 (E) DWT-B30
7. Diagrams
7-1. Circuit Description ....................................................7-1 (E)
7-1-1. TX-172 Board..................................................7-1 (E)
7-1-2. DPR-396 Board ...............................................7-2 (E)
7-1-3. RM-215 Board
(Reference Nos. 2000 to 2999)........................7-2 (E)
7-2. Pin Description of CPU
(IC402 on the DPR-396 Board) ................................ 7-3 (E)
7-3. Block Diagrams............................................................... 7-5
Overall............................................................................. 7-5
7-4. Frame Wiring................................................................... 7-6
Frame Wiring................................................................... 7-6
Revision History

1-1 (E)
DWT-B30
Section 1
Service Overview
1-1. About Destination Determination
There are four destinations in this unit.
Determine the destination by referring to the model number label and the following table.
The model name plate is printed on the case (lower).
Destination Indication label of
model name plate
Indication of channel Indication of model name in
this manual
Japan (J) L 13-36 DWT-B30/L (J)
MH 29-53 DWT-B30/MH (J)
G 1.2L, 1.2M, 1.2H DWT-B30/G (J)
North America
(UC)
_14-36, 38 DWT-B30 (UC)
Europe (CE) L 21-38 DWT-B30/L (CE)
H 33-51 DWT-B30/H (CE)
China (CN) 29 29-35 DWT-B30 (CN)
1-2. Board Location
DWT-B30
MODEL
5-014-625-XX
Case (lower)
Destination on model
number
Model
number
label
Indication of channel
Destination on model
number
Part number on model number
(Example) Destination: UC
Model name
TX-172 board
CN-4088 board
CN-4078 board
(H (CE), L (CE))
DPR-398 board
CN-4148 board
(CN, UC, G (J), MH (J))
LED-498 board
RM-215 board

1-2 (E) DWT-B30
1-3. Required Tool
1-3-1. Installation/Removal of Coaxial Harness
Required Tool
Use the tool and skewer below when replacing a coaxial harness.
Parts name: Connector removal tool
Parts No.: J-7121-750-A
Installation
1. Slide the connector removal tool in the direction of the arrow 1and interpose the connector.
2. Adjust the position to the connector on the board and push the coaxial harness vertically in the direc-
tion of the arrow 2.
3. Slide the connector removal tool in the direction of the arrow 3and remove it.
4. Push the connector by the even plane of the skewer.
Removal
1. Slide the connector removal tool in the direction of the arrow 1and install it.
2. Pull out the connector removal tool vertically in the direction of the arrow 2.
3. Remove the connector removal tool from the coaxial harness in the direction of the arrow 3.
1
2
3
1
2
3
Connector removal tool
Coaxial harness Coaxial harness
Connector removal tool
or
Coaxial harness Coaxial harness
Connector removal toolConnector removal tool
or
3
2
1
3
2
1

1-3 (E)
DWT-B30
1-3-2. Hexagonal Nut of Antenna
When replacing the antenna, use the following tool.
Part name: SMA antenna mounting tool
Part number: J-7121-660-A
t
.Use this tool together with the SH type open head (SH8D3/8) made by TOHNICHI or equivalent.
.Use this tool together with the SMA nut mounting tool (part number: J-7120-810-A ) or equivalent.
1-3-3. LEMO Connector Board (CN-4078 Board)
When replacing the LEMO connector board (CN-4078 board) which is used mainly for CE destination,
use the following tool.
Part name: Bit (LEMO) tool (LEMO nut mounting tool)
Part number: J-7121-650-A
t
Use this tool together with the torque driver made by TOHNICHI or equivalent.
Ɛ
9.53
25
5.5
Unit: mm
ĭ10.8
18
Shape of the
tip of driver Unit: mm

1-4 (E) DWT-B30
1-4. Water Detection Sheet
The three water detection sheets are attached to this unit.
These sheets are used to judge whether water has entered inside of this unit due to submergence, etc.
Judgment method
t
If the water detection sheet gets wet and becomes blurred, it does not return to the original state even after
it is dried. The water detection sheet does not react to the dampness. It reacts only to the dew drop and
water drop.
Procedure after judgment
When the water detection sheet is blurred, replace it referring to Section 3-3-1.
Back side of case (upper)
Water detection sheets Water detection sheet
Back side of case (lower)
When the water detection sheet is
not wet
When the water detection sheet is
wet

1-5 (E)
DWT-B30
1-5. Item List in Test Mode
The item list in the test mode used for operation confirmation is described below. To enter each item,
hold down the [SET] button. The setting of each item can be switched using [+] and [_] buttons. There
are items in which the change in setting brings a violation of the law. For the item whose change is
prohibited, therefore, do not change the setting. Turn on the power again when you changed the setting
incorrectly. The change in setting may be able to be recovered.
Entering the test mode
1. Turn on the power of this unit.
2. Move a menu to VERSION.
3. Hold down the [SET] button for two seconds or more.
4. Press the [+], [_], and [+] buttons sequentially.
5. Lastly, hold down the [_] button for two seconds or more.
Exiting the test mode
1. Turn off the power of this unit.
Item Change Function
MAIN CPU VER-
SION
_Displays the firmware version of CPU (IC402) on the DPR-396 board.
FPGA VERSION _Displays the firmware version of FPGA (IC201) on the DPR-396 board.
REMOTE VERSION _Displays the firmware version of remote CPU (IC2000) on the RM-215 board.
CH PLAN VERSION _Displays the version of the channel plan built in EEPROM (IC813) on the
TX-172 board.
SERIAL NUMBER _Displays the serial number of this unit.
DESTINATION Prohibited Sets the destination of the RF circuit. Change is prohibited.
Not used for maintenance service.
RANGE0 Prohibition
of numerical
change
Changes the GAIN of the amplifier circuit of the RF circuit per frequency. The
value cannot be changed. In the service, the transmission frequency can be
changed by moving the screen to B (C), B (L) and B (H) used for the setting
of frequency during the measurement of RF.
RANGE1
RANGE2
RANGE3
RANGE4
TX DATA WRITE Prohibited The changed status of the TX-172 board is written in EEPROM (IC813).
Notice that the status cannot be recovered when it is written incorrectly.
Change is prohibited. Not used for maintenance service.
REMOTE MODE Changeable The remote mode can be changed. Not used for maintenance service.
REMOTE FREQ Changeable CH used for pairing can be changed. Not used for maintenance service.
INTERNAL MAC _Displays the remote control ID of this unit.
PAIRING MAC _Displays the remote control ID of a pairing partner.
CPU UPDATE Prohibited This is used for design and investigation. Not used for maintenance service.
ADC RESET Changeable This is used for design and investigation. Not used for maintenance service.
FREQ SET Changeable This is used for design and investigation. Not used for maintenance service.
ADC MODE Prohibited This is used for design and investigation. Not used for maintenance service.
IQ DAC CONTROL Changeable IQ DAC (IC300) on the DPR-396 board can be put into the SLEEP state.
In the SLEEP state, a non-modulated signal is output from the RF circuit.
Used during RF frequency measurement.
QMOD CONTROL Changeable This is used for design and investigation. Not used for maintenance service.
OEL ALL LIGHT Changeable Lights up all dots of the organic EL display.
All lights during ALL LIGHT setting.
FREQ 6MHz JUMP Changeable The transmit frequency of the RF circuit can be changed in units of 6 MHz.
Not used for maintenance service.

1-6 (E) DWT-B30
Item Change Function
SIGNAL SELECT Changeable The signal format to be modulated can be selected.
PACKET AUDIO: Modulates the input audio signal.
PACKET PN9: Packets reference signal PN9 and modulates it.
RAWDATA PN9: Not packet reference signal PN9 and modulates it.
RAWDATA PN23: Not packet reference signal PN23 and modulates it.
GUARD PATTERN Changeable This is used for design and investigation. Not used for maintenance service.
BATT TEMP _Displays the battery voltage and internal temperature.
PHANTOM
FUNCTION
_Not used in this unit.
PHANTOM ON/OFF _Not used in this unit.

2-1 (E)
DWT-B30
2-1. Trouble Diagnosis
t
A failure may have occurred due to the submergence of this unit. Check the state of the water detection
sheet as required. (Refer to Section 1-4.)
2-1-1. Sound Is Not Output
2-1-2. Remote Function Does Not Operate
When the RF remote function does not operate, refer to “4-2-4. RF Remote Performance Check”.
Section 2
Troubleshooting
Check if the radio wave is output using the receiver.
When this unit is moved close to the receiver, do the
RF level display and QL level display show the
maximum level?
The QL level display
does not show the
maximum level.
The RF level display
does not show the
maximum level.
Refer to “2-1-3. Radio Wave
Is Not Output”.
(Failure of RF circuit or
antenna portion)
Replace the DPR-396 board.
(Failure of signal processing
portion)
START
No
No
Yes
Replace the DPR-396 board.
(Failure of signal processing
portion)
Possible causes
1) AF harness disconnection: Check CN500 (TX-172 board) and CN4012 (CN-4148 board) or CN4002 (CN-4078 board).
2) Disconnection of AF harness: Replace the AF harness. (Refer to the Section 3-2-7.)
3) Failure of TX-172 board (failure of audio circuit): Replace the TX-172 board.
Is the sound output when the
setting menu “Internal SG” is
used?
Check the following possible
causes and replace the parts.
Yes
&
Internal SG: Instead of the sound input from the microphone head,
the audio signal of 1kHz is generated in this unit.
&
Replacement procedure of DPR-396 board:
Refer to Section 3-2-5.
Replacement procedure of TX-172 board:
Refer to Section 3-2-4.

2-2 (E) DWT-B30
2-1-3. Radio Wave Is Not Output
.Main line
.2.4 GHz remote
Refer to “4-2-4. RF Remote Performance Check”.
Connect the power meter to the
output of this unit and perform
the measurement.
Is the output as specified?
Additionally tighten the
antenna connector.
Check the tightening of the
antenna connector.
Is it loose?
Connect the power meter using the coaxial conversion
connector (SMA-HSC) to the coaxial connector (CN880)
on the TX-172 board and perform the measurement.
Is the output as specified?
START
No
Yes
NoYes
Replace the TX-172 board.
(Failure of RF circuit )
Possible causes
1) Coming off of wire material or disconnection:
Check CN880 (TX-172 board)/CN1001 (CN-4088 board).
2) Failure of CN-4088 board:
Replace the CN-4088 board. (Refer to Section 3-2-6.)
Check the following possible
causes and replace the parts.
Yes
No
Replace the antenna.
(Disconnection)
(Refer to Section 6.)
&
Replacement procedure of TX-172 board:
Refer to Section 3-2-4.

2-3 (E)
DWT-B30
2-1-4. Image Is Not Displayed on the EL Display
Is the power of 13.5 V supplied?
Check the capacitor (C400)
voltage on the DPR-396 board.
START
NoYes
Replace the DPR-396 board.
(Failure of power circuit)
Possible causes
1) EL cable disconnetion:
Check CN400 (DPR-396 board).
2) Failure of organic EL display element:
Replace the organic EL display element.
(Refer to Section 3-2-5.)
Check the following possible
causes and replace the parts.
&
Replacement procedure of DPR-396 board:
Refer to Section 3-2-5.

2-4 (E) DWT-B30
2-2. Error Message
The following error message may be displayed on the display portion by the self-diagnosis function built
in this unit.
Error message Contents Solution
XPLL ERROR CAN'T LOCK
XBOOT ERROR STEP No.11
The setting of built-in PLL synthe-
sizer has failed.
It is likely that there is some trouble in the IC808 on
the TX-172 board peripheral circuit.
Check if there is any abnormality in the path and
parts connected to IC808.
XFPGA ERROR CONFIG TIMEOUT
XBOOT ERROR STEP No.12
The FPGA startup has failed. It is likely that the data of flash memory in IC203 on
the DPR-396 board is abnormal.
Write the data by referring to Section 5. If the error
message is still displayed, there is a large possibility
that some trouble in the peripheral circuit of IC201,
IC202, IC203, IC721, IC722 or IC723 on the DPR-
396 board has occurred.
Check if there is any abnormality in the path and
parts.
XBOOT ERROR STEP No.2
XBOOT ERROR STEP No.7
XBOOT ERROR STEP No.8
XBOOT ERROR STEP No.9
The data reading from EEPROM
(IC813) on the TX-172 board has
failed and the startup process has
stopped.
It is likely that the EEPROM data in IC813 is abnor-
mal.
Write the data by referring to Section 5.
If the error message is still displayed, check if there is
any abnormality in the path and parts connected to
the periphery of IC490.
XCHANNEL PLAN FORMAT ERROR There is an abnormality in the data
of channel plan stored in EEPROM
(IC813) on the TX-172 board.
XREMOTE ERROR DEVICE NOT
FOUND
There is no response from IC2000
in the writing process of IC2000 on
the RM-215 board.
It is likely that there is some trouble in the IC2000
peripheral circuit.
Check if there is any abnormality in the path and
parts connected to IC2000.
XBOOT ERROR STEP No.4
XBOOT ERROR STEP No.5
The power on process has failed
and the startup process has
stopped.
Write the data by referring to Section 5.
If the error message is still displayed, it is likely that
there is some trouble in the IC402 or IC601 on the
DPR-396 board peripheral circuit.
Check if there is any abnormality in the path and
parts.
XBOOT ERROR STEP No.6 The reading process of microcom-
puter built-in data has failed and the
startup process has stopped.
XBOOT ERROR STEP No.10
XBOOT ERROR STEP No.19
The startup and setting processes in
the audio portion have failed and the
startup process has stopped.
XBOOT ERROR STEP No.13
XBOOT ERROR STEP No.14
XBOOT ERROR STEP No.15
XBOOT ERROR STEP No.16
XBOOT ERROR STEP No.17
XBOOT ERROR STEP No.18
XBOOT ERROR STEP No.20
The startup and setting processes
of RF in the modulation portion have
failed and the startup process has
stopped.
XBOOT ERROR STEP No.21 The startup process has failed and
the startup process has stopped.
XIIC ERROR ERROR CODE xx There is an abnormality in EEPROM
(IC813) on the TX-172 board, and
the reading or writing has failed.
Check if there is any abnormality in the path and
parts connected to the periphery of EEPROM
(IC813).

3-1 (E)
DWT-B30
Section 3
Notes on Removing and Replacing the Main Parts
3-1. Tightening Torque
This unit is designed with drop protection. In order to maintain the drip-proof performance, be sure to
tighten the screw with the specified torque.
Tightening Torque:
.P1.7 x1.6: 0.12 ?0.01 N.m
.P1.7 x11: 0.30 ?0.05 N.m
.LRT screw M2: 0.30 ?0.05 N.m
.PSW1.7 x3.5: 0.15 ?0.01 N.m
.PSW1.7 x6: 0.15 ?0.01 N.m
.Nut (supplied with this unit) (LEMO connector): 1.00 ?0.10 N.m
.Nut (supplied with this unit) (SMA connector): 0.80 ?0.12 N.m
.Special head screw (3ULR-F): 0.12 ?0.01 N.m
.Antenna: 0.60 ?0.09 N.m
When using the torque driver with the notation of cN.m, interpret it as follows.
Example: 0.8 N.m = 80 cN.m

3-2 (E) DWT-B30
3-2. Disassembly
n
In this section, remove the parts in numerical order shown in the illustration.
3-2-1. Battery Case Assembly
3-2-2. Antenna
Required Tool
.Bit (3ULR-F) tool (for mounting special head screw): Part number J-7121-640-A
.SMA antenna mounting tool: Part number J-7121-660-A
1Pinch the battery slides
in the directions of the
arrows Ato remove the
battery case assembly
in the direction of
the arrow B.
B
A
A
2Antenna
1Special head screw
(P1.7 )1.6)

3-3 (E)
DWT-B30
3-2-3. Case (Lower)
Workflow: Battery case assembly (Section 3-2-1) →Antenna (Section 3-2-2) →Case (lower)
2Five screws
(M1.7 )11)
1LRT type machine screw (M2)
3Case (upper)
4Lid (USB)

3-4 (E) DWT-B30
3-2-4. TX-172 Board
Workflow: Battery case assembly (Section 3-2-1) →Antenna (Section 3-2-2) →Case (lower) (Section
3-2-3) →TX-172 board
4Four screws
(PSW1.7 )6) 1Harness (PWR)
3Harness (AF)
5TX-172 board
2Coaxial cable
&
Check that the coaxial
cable does not ride on
these portions.
&
Push the extra length
of the coaxial cables in
between the TX-172
board and RM-215
board.
CN880
B to B connectors
RM-215 board
Notes on connection of harness (PWR)
Notes on connection of harness (AF)
CN601
CN500
1
2
1Harness (PWR)
$
Check that the harness (PWR) does not ride on 1 and 2.
12
HRS connector assembly (CN-4148 board) LEMO connector assembly (CN-4078 board)
Check that the harness
does not ride on this portion.
Twist the harness from CN4002 two and
a half turns, then connect it to CN500.
The convex portions of the
case (lower) are inserted
into the two mesh portions.
Do not block them.
Connect the harness to CN500
through the notch of CN-4184
board from CN4012.
CN4002
CN4012
CN500
CN500 Push the extra
length of the harness
in this space.
Harness (PWR)
TX-172 board
CN601
