Operating Instructions

WLA-NWB1K [GB] 3-196-849-12(1)
2
WLA-NWB1K [GB] 3-196-849-12(1)
WARNING
To reduce the risk of re or
electric shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualied
personnel only.
Do not install the appliance in a conned
space, such as a bookcase or built-in cabinet.
To reduce the risk of re, do not cover the
ventilation of the apparatus with newspapers,
tablecloths, curtains, etc. And do not place
lighted candles on the apparatus.
To reduce the risk of re or electric shock, do
not place objects lled with liquids, such as
vases, on the apparatus.
Connect the AC power adaptor to an
easily accessible AC outlet. Should you
notice an abnormality in the AC power
adaptor, disconnect it from the AC outlet
immediately.
Do not expose the battery to excessive heat
such as direct sunlight, re or the like.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Hereby, Sony Corp., declares that this
equipment is in compliance with the essential
requirements and other relevant provisions
of Directive 1999/5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
Use of this radio equipment is not allowed in
the geographical area within a radius of 20
km from the centre of Ny-Alesund, Svalbard
in Norway.
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries with
separate collection systems)
is symbol on the product or
on its packaging indicates that
this product shall not be treated
as household waste. Instead
it shall be handed over to the
applicable collection point
for the recycling of electrical
and electronic equipment. By
ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
e recycling of materials will help to conserve
natural resources. For more detailed information
about recycling of this product, please contact
your local Civic Oce, your household
waste disposal service or the shop where you
purchased the product.
e Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Sony Corporation is
under license.
Other trademarks and trade names are those
of their respective owners.

WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
3
Table of Contents
Features................................................4
Getting Started
Checking supplied items.....................5
Location and Function of Parts..........6
Bluetooth headset ............................... 6
Bluetooth transmitter......................... 7
Basic use of headset.............................8
Charging the headset ......................... 8
Wearing.............................................. 11
Folding ............................................... 12
Unfolding........................................... 12
Connecting to a Walkman................13
Operating
Listening to music of the
Walkman ........................................14
Controlling a Walkman with the
headset............................................16
Advanced operation
Pairing with other Bluetooth devices
........................................................17
What is pairing?................................ 17
Pairing transmitter with other
Bluetooth receiving devices........... 17
Pairing headset with other Bluetooth
transmitting devices ....................... 20
Re-pairing the transmitter and the
headset ............................................. 22
Calling with headset .........................23
Preparation for calling (Bluetooth
connection)...................................... 23
To receive a call................................. 24
To call ................................................. 24
To terminate a call ............................ 24
Controlling the Bluetooth mobile
phone – HFP, HSP.......................... 25
Calling while playing back music.....26
Additional Information
What is Bluetooth technology? ........27
Precautions........................................27
Disposing of the headset...................30
Troubleshooting................................31
Initializing .........................................33
Initializing the transmitter .............. 33
Initializing the headset..................... 33
Specications.....................................34
General............................................... 34
Transmitter........................................ 34
Headset .............................................. 34

WLA-NWB1K [GB] 3-196-849-12(1)
4
WLA-NWB1K [GB] 3-196-849-12(1)
Features
is product is an audio kit comprising of a Bluetooth transmitter
and headset using Bluetoothwireless technology.
You can enjoy music wirelessly by transmitting the audio signals to a
headset by connecting the Bluetooth transmitter to a Walkman with
the WM-PORT* (22 pin).
You can also enjoy music by combining the Bluetooth headset with
another Bluetooth transmitting device (mobile phone, PC, etc.)*.
* WM-PORT is a dedicated multiple connector for connecting accessories to your
Walkman.
* Bluetooth receiving devices are required to support A2DP (Advanced Audio
Distribution Prole).
is product’s features are as follows:
Can send the audio signals wirelessly with the transmitter and
receive with the headset, using Bluetooth wireless technology.
Can be used with any Walkman with a WM-PORT (22 pin).
AVRCP (Audio/Video Remote Control Prole) supported
– Allows basic operation (playback, stop, etc.) of a Walkman by BluetoothAllows basic operation (playback, stop, etc.) of a Walkman by Bluetooth
headset
– Allows volume control (+/–) operation of Bluetooth speaker*Allows volume control (+/–) operation of Bluetooth speaker**, etc., by a
Walkman
* AVRCP (Vol +/–) compatibility required
No need to charge the Bluetooth transmitter; receives power fromNo need to charge the Bluetooth transmitter; receives power from
Walkman.
Walkman with
WM-PORT (22 pin)
Bluetooth
transmitter Bluetooth headset
Tip
For details on Bluetooth technology, see page 27.
For details on available Bluetooth devices, access the following URL:
Europe: http://www.sonydigital-link.com/DNA/
Latin America: http://www.sony-latin.com/index.crp

WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
5
Getting Started
Checking supplied items
Bluetooth headset (1)
Bluetooth transmitter (1)
AC power adaptor (1)
Operating Instructions (1)
Warranty Card (1)

6
WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
Location and Function of Parts
Bluetooth headset

Headset indicator (blue)
Indicates the communication
status of the headset.

Headset indicator (red)
Indicates the power status of
the headset.

Multi function button
Controls various functions
when calling with a headset
by combining with a
Bluetooth mobile phone.
Press the button on the tactile
dots.

Jog switch
Controls various functions
when listening to music with
a headset.

RESET button
Push this button when the
headset does not operate
properly. Pairing information
is not deleted by this
operation.

VOL (volume) +*⁄–
buttons

Neckband

Left housing 

Ear pad

Right housing 

POWER button

Microphone

DC IN 3 V jack
* is button has a tactile dot.

WLA-NWB1K [GB] 3-196-849-12(1)
7
WLA-NWB1K [GB] 3-196-849-12(1)

WM-PORT (22 pin)
Connects to the WM-PORT
of a Walkman (page 13).

Transmitter indicator
Indicates the transmitter’s
status.


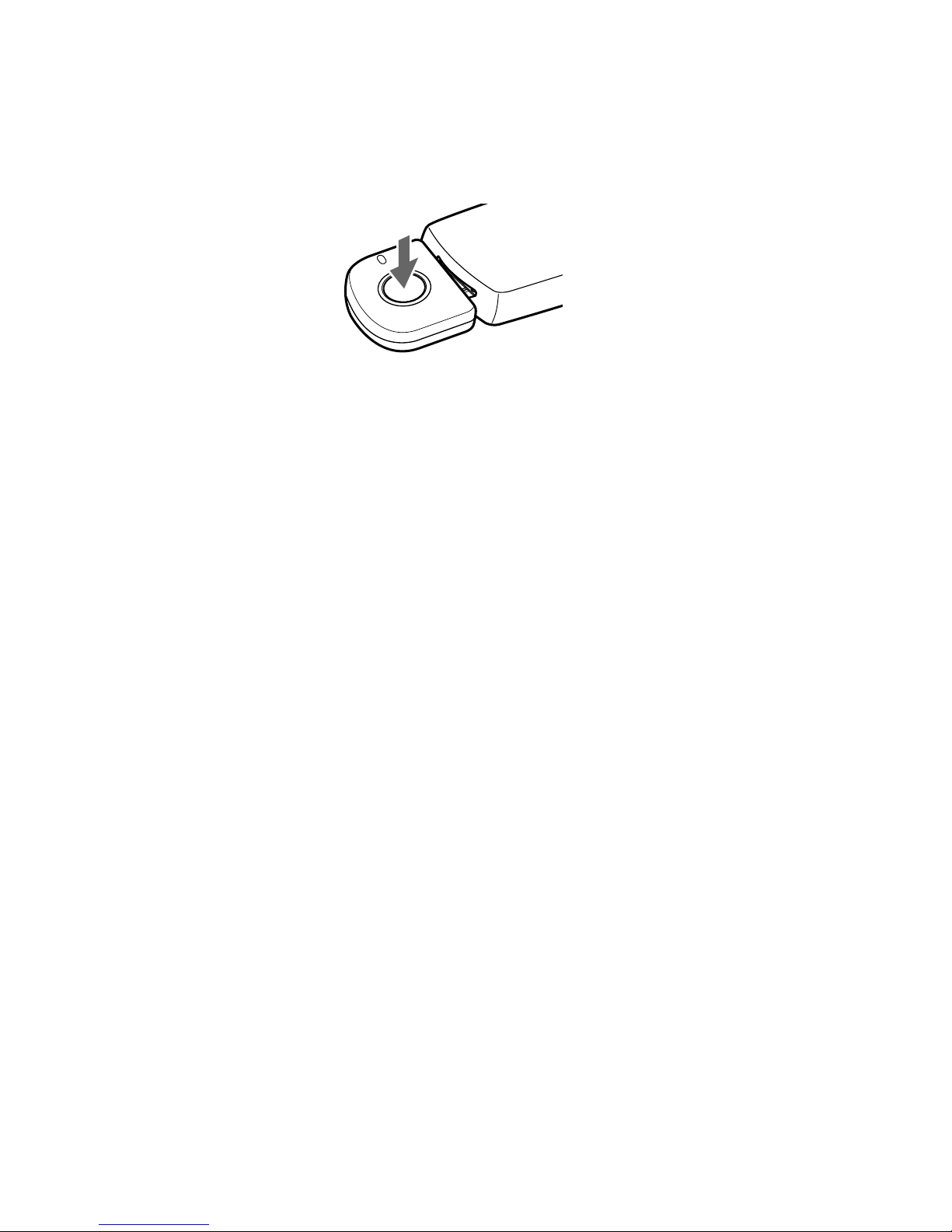

Power button
Performs the following:
• Turning on/o of the
transmitter (page 13).
• Pairing (page 17).
• Initializing the transmitter
(page 33).

MODE switch
Selects the transmission
mode by sliding the switch to
1 or 2 (page 15).
Front Rear
Bluetooth transmitter
Hereaer, “Bluetooth headset” is abbreviated as “headset,” and “Bluetooth
transmitter” as “transmitter.”

8
WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
e headset contains a rechargeable Lithium-Ion battery, which
should be charged before using for the rst time.
1 Connect the supplied AC power adaptor to the DC IN 3 V jack on the
headset.
Bluetooth headset
To DC IN 3 V jack
To an AC outlet
AC power adaptor (supplied)
When the AC power adaptor is connected to an AC outlet,
charging starts.
Tip
If the AC power adaptor is connected to an AC outlet while the headset is
turned on, the headset will be turned o automatically.
2 Make sure that headset indicator (red) lights up while charging.
Charging is completed in about 3 hours* and the headset
indicator (red) goes o automatically.
* Time required for empty battery to recharge.
Basic use of headset
Charging the headset

WLA-NWB1K [GB] 3-196-849-12(1)
9
WLA-NWB1K [GB] 3-196-849-12(1)
Caution
If the headset detects a problem while charging, the headset indicator (red) may
turn o, although charging is not complete.
Check for the following causes:
– Ambient temperature exceeds the range of 0 °C – 40 °C (32 °F – 104 °F).
– ere is a problem with the battery.
In this case, charge again within the above-mentioned temperature range.
If the problem persists, consult your nearest Sony dealer.
Notes
If the battery is not used for a long time, battery may be quickly depleted,
however, aer a few recharges, battery life will improve.
If the life of the built-in rechargeable battery drops to half the normal length, the
battery should be replaced. Consult your nearest Sony dealer for replacement of
the rechargeable battery.
Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust or
mechanical shock. Never leave in a car parked in the sun.
Use only the supplied AC power adaptor. Do not use any other AC power
adaptor.
Battery usage hours *
Status Approx. usage hours
Communication time (including music
playback time) (up to)
11 hours
Standby time (up to) 100 hours
* Time stated above may vary, depending on ambient temperature or conditions
of use the headset.
Continued


10
WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
Checking the remaining battery
When pressing the POWER button while the headset is turned on,
the headset indicator (red) ashes. You can check the remaining
battery by the number of times the headset indicator (red) ashes.
Headset Indicator (red) Status
3 times Full
2 times Mid
1 time Low (needs to charge)
Note
You cannot check the remaining battery immediately aer the headset is turned on,
or while pairing.
When the battery is almost empty
e headset indicator (red) ashes slowly automatically.
When the battery becomes empty, a beep sounds and the headset will turn o
automatically.

WLA-NWB1K [GB] 3-196-849-12(1)
11
WLA-NWB1K [GB] 3-196-849-12(1)
1 Place the neckband on the neck.
e headset with the POWER button is the right housing (for
the right ear).
2 Lift up the headset slightly above the ear level, put down the
neckband so that it hooks on your ears and put the ear pads on
your ears.
3 Adjust the angle and position of the neckband so that the headset
is fitted comfortably on your ears.
Wearing
Neckband
Left ear
Ear pad

12
WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
Unfolding
1 Unfold the left and right
neckband as illustrated.
2 Lift up and open up the
remaining half of the
neckband.
Notes
Do not pull open this way.
Be careful not to hit your face or
eyes with the top of the neckband.
Folding
1 Hold near the foldable part
with both hands and lift up
the left housing to fold it as
illustrated.
Fold the right housing in
the same manner.
2 Close the folded left and
right neckband.

WLA-NWB1K [GB] 3-196-849-12(1)
13
WLA-NWB1K [GB] 3-196-849-12(1)
Connecting to a Walkman
Connect the transmitter to the WM-PORT of a Walkman rmly.
To turn on the transmitter
Connect the transmitter to the Walkman, then the power of the
transmitter will turn on automatically. If the power of the transmitter
is o while the transmitter is connected to the Walkman, press and
hold the transmitter’s power button for about 2 seconds to turn it on.
When the transmitter turns on, the transmitter indicator ashes twice.
To turn off the transmitter
To turn o the transmitter, press and hold the transmitter’s power
button for about 2 seconds. e transmitter indicator ashes once
and the transmitter turns o.
Tip
Maximum communication time or standby time may vary depending on your
Walkman. For details, access the following URL:
Europe: http://www.sonydigital-link.com/DNA/
Latin America: http://www.sony-latin.com/index.crp
Notes
To listen to music from the headphone jack of the Walkman, disconnect the
transmitter from the Walkman.
While the transmitter is turned on, it consumes power from the Walkman. We
recommend turning o the transmitter when not using the Bluetooth function.

If you turn o the transmitter while the Walkman is playing back, playback will stop.

ere is no need to charge the transmitter as it will receive power from the connected
Walkman. It is recommended to check the Walkman’s remaining battery before using.
Depending on the Walkman model, you may not be able to connect the
headphone to it when the transmitter is connected to the Walkman.
WM-PORT (22 pin)
Power button

WLA-NWB1K [GB] 3-196-849-13(1)
14
WLA-NWB1K [GB] 3-196-849-13(1)
Listening to music of the Walkman
You can listen to music of the Walkman on the headset.
1 Press and hold the POWER button on the headset for about 3
seconds.
e headset indicator (blue) and headset indicator (red) ash
together twice and the headset is turned on.
2 Connect the transmitter to the Walkman then turn on the
Walkman.
e transmitter indicator status will vary as follows, and the
Bluetooth connection between the transmitter and the headset
is established.
Transmitter indicator ashes twice: Power is on
 
Transmitter indicator ashes (at about 1-second intervals):
Connecting in process
 
Transmitter indicator ashes twice: Connecting successful
 
Indicator ashes slowly (at about 5-second intervals):
Connecting
If the Bluetooth connection is not established within 5 minutes,
the transmitter automatically turns itself o. In this case, turn
it on again by pressing and holding the power button on the
transmitter for about 2 seconds.
Note
If you want to establish the Bluetooth connection with a Bluetooth device that
is paired before either of the last two devices recognized, turn on the unit and
establish the Bluetooth connection from the Bluetooth device while the unit’s
indicator ashes slowly from 10 to 13 times (for about 10-13 seconds). If the
problem persists, pair the devices again.
Operating

WLA-NWB1K [GB] 3-196-849-13(1)
WLA-NWB1K [GB] 3-196-849-13(1)
15
3 Start playback on the Walkman connected to the transmitter.
e music of the Walkman is played back on the headset.
Tip
You can control the volume on the headset. You can also fast-forward or fast-
rewind while playing back (page 16).
Notes
Depending on your Walkman, when it is in Sleep status, you may need to keep
pressing the play button in order to start playback.
Even if you control the volume on the Walkman, sound from the headset will not
change. If the Bluetooth receiving device is supported by AVRCP (Vol +/–), you
can control its volume.
When this transmitter establishes the Bluetooth connection with the Walkman,
AVLS (Automatic Volume Limiter System) is deactivated and beep sounds are
not emitted.
If the transmitter and the headset become out of range and the Bluetooth
connection terminates, repeat the procedure from step 1. Note, however, that if
the transmitter and the headset come into connectable range again within about
10 minutes, the Bluetooth connection will be reestablished automatically.
To listen to an FM broadcast received by a Walkman with a built-in FM tuner
through the headset, make sure to connect the Walkman’s headphones, as its
cord works as an antenna, otherwise FM signals cannot be received.
If the recording level of audio data on the Walkman is too high, the output
sound quality from the headset, may not meet the user customized settings, e.g.,
“Equalizer” etc.
Playback through a Bluetooth connection may cause noise, sound break, or
playback speed change depending on the location and the usage (page 27).
About the MODE switch on transmitter
You can select the sound quality or wireless communication stability preferentially.
MODE 1: Sound quality takes priority.
MODE 2: Reception stability takes priority.
Notes
When you set the MODE switch to MODE 1, and experience sound breaks, set
to MODE 2.
Sound break may occur depending on your Bluetooth receiving device when
switching between MODE 1 and 2.

WLA-NWB1K [GB] 3-196-849-12(1)
16
WLA-NWB1K [GB] 3-196-849-12(1)
Controlling a Walkman with the headset
You can control a Walkman using the control button of the headset.
Before starting remote control operation, check that step 1 and 2 of
“Listening to music of the Walkman” are completed (page 14).
Remote control
(playback, stop., etc.) Headset
Control for the Walkman
You can playback or stop the Walkman by pressing the  button.
Control music
You can skip forward or backward each song on the Walkman by
pressing the /button. You can also fast-forward or fast-
rewind songs by holding down the /button.
Tip
When you turn o your Walkman, the Bluetooth connection enters standby mode.
When in this mode, you can turn on your Walkman by operating the headset.
Notes
You may not be able to control the Walkman by the remote control depending on
the state of the Walkman.
Even if you control the volume on the Walkman, the volume of the headset, does
not change.

When operating the Walkman by remote control, do not cover the transmitter with
your hands, etc.
Do not cover the
transmitter with hands.
Transmitter

WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
17
Pairing with other Bluetooth devices
What is pairing?
Bluetooth devices need to be “paired” with each other beforehand.
Once Bluetooth devices are paired, there is no need for pairing
again, except in the following cases:
Pairing information is deleted aer repair, etc.

is product is paired with 9 or more receiving devices.
is product can be paired with up to 8 Bluetooth device respectively.
If a new device is paired aer 8 devices have been paired, the device
with the oldest connection time among the 8 paired devices is replaced
by the new one.
is product is initialized.
All pairing information is deleted (page 33).
Pairing transmitter with other Bluetooth receiving devices
1 Connect the transmitter to the Walkman (page 13).
e power of the transmitter turns on.
2 Press and hold the power button of the transmitter for about 2 seconds
to turn it off.
3 Place the transmitter and the Bluetooth receiving device to be
paired together within 1 m.
4 Set the Bluetooth receiving device to enter “Pairing in process.”
(See the operating instructions supplied with the Bluetooth receiving
device.)
Note
Passcode* of the transmitter is xed at “0000.” Depending on the Bluetooth
receiving device, it may be necessary to input the passcode (in this case,
“0000”). e transmitter cannot be paired with a Bluetooth receiving device
whose passcode is not “0000.”
* Passcode may be called “Passkey,” “PIN code,” “PIN number,” or “Password.”
Advanced operation
Continued


WLA-NWB1K [GB] 3-196-849-12(1)
18
WLA-NWB1K [GB] 3-196-849-12(1)
5 Press and hold the power button of the transmitter for more than
about 7 seconds to enter“Pairing in process.”
Aer about 2 seconds, the transmitter indicator will ash twice,
but keep pressing the power button.
When the transmitter indicator ashes quickly, stop pressing.
e transmitter enters “Pairing in process.”
e transmitter indicator status will vary as follows, and pairing
is established with the Bluetooth receiving device.
e transmitter indicator ashes quickly: Pairing in process
 
e transmitter indicator ashes when responding to the
Bluetooth receiving device: Pairing successful
 
e transmitter indicator ashes (at about 5-second intervals):
Connectable
Notes
“Pairing in process” of the transmitter is released aer about 5 minutes. If
pairing is not established within about 5 minutes, repeat the above procedure
from step
4
.
To enter “Pairing in process,” you need to turn o the power of the
transmitter rst.
When not completed pairing
Repeat the procedure from step 2 .
To quit “Pairing in process”
Press and hold the power button of the transmitter for about 2 seconds to turn o
the transmitter.
Tip
When pairing the transmitter with a number of Bluetooth receiving devices, repeat
steps 2 to 5 for each device individually.

WLA-NWB1K [GB] 3-196-849-12(1)
WLA-NWB1K [GB] 3-196-849-12(1)
19
Notes
Depending on the Bluetooth receiving device, the transmitter may not enter
“Connectable” automatically. In this case, see the operating instructions supplied
with the device.
For using the Bluetooth function, it is required that the Bluetooth device on the
other side is corresponding with the same prole as the transmitter. However,
even if it is corresponding with the same prole, functions may dier depending
on the specication of the Bluetooth device.
Remote control for the Bluetooth receiving device by the
Walkman.
You can control the Bluetooth receiving device using the control
button of the Walkman.
Notes
When operating the Walkman as the Bluetooth receiving devices remote
control, point the transmitter toward the Bluetooth receiving device.
You may not be able to change the volume by the remote control from the
Walkman depending on your Bluetooth receiving device.

Remote control (Vol +/–, etc.) Speaker with AVRCP
Point the transmitter toward
the Bluetooth receiving device.

WLA-NWB1K [GB] 3-196-849-12(1)
20
WLA-NWB1K [GB] 3-196-849-12(1)
Pairing headset with other Bluetooth transmitting devices
1 Place the Bluetooth transmitting device to be paired together
within 1 m of the headset.
2 Press and hold the POWER button of the headset for about 7
seconds or more to enter“Pairing in process.”
Release the POWER button when the headset indicator starts
ashing quickly. e headset enters the pairing process.
3 Turning Bluetooth transmitting device to pairing standby
mode.
(See the operating instructions supplied with the Bluetooth
transmitting device.)
e list of detected devices appears on the display of the
Bluetooth transmitting device.
e headset is displayed as “DR-BT21G.”
is headset indicator status will vary as follows, and pairing is
established with the Bluetooth transmitting device.
e headset indicator ashes quickly: Pairing in process
 
e headset indicator ashes when responding to the Bluetooth
transmitting device: Pairing successful
 
e headset indicator ashes (at about 5-second intervals):
Connectable
Note
Passcode* of the headset is xed at “0000.” Depending on the Bluetooth
receiving device, it may be necessary to input the passcode (in this case,
“0000”). e headset cannot be paired with a Bluetooth receiving device whose
passcode is not “0000.”
* Passcode may be called “Passkey,” “PIN code,” “PIN number,” or “Password.”
