Sound Storm DD405 User manual

4.5" In-Dash Double-DIN DVD/MP3/CD Receiver
with USB, SD Memory Card
Ports and Front Panel AV Input

1. HANDLING COMPACT DISCS
MOISTURE CONDENSATION
NOTES ON CDs
P. 2
P. 3
P. 4
P. 1 P. 6
P. 7
1.
2.
3.
4.
5.
Stickers that are beginning
to peel away leave a
sticky residue (P.6).
Labels are attached (P.7).
On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.
Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for
about an hour until the moisture has evaporated.
A dirty or defective disc may cause sound
dropouts while playing. To enjoy optimum
sound, handle the disc as follows.
Handle the disc by its edge. To keep the disc
clean, do not touch the surface (P.1).
Do not stick paper or tape on the disc (P.2).
Before playing, clean the discs with an
optional cleaning cloth. Wipe each disc from
the centre out (P.4).
Do not use solvents such as benzine,
thinner,commercially available cleaners, or
antistatic spray intended for analog discs.
Do not expose the discs to direct sunlight or
heat sources such as hot air-ducts, or leave
them in a car parked in direct sunlight where
there can be a considerable rise in
temperature inside the car (P.3).
Do not use CDs with old labels that are
beginning to peel off.
Do not use CDs with labels or stickers
attached.
**************
*******
*******
*******
*******
*******
*******
*******
*******
Do Not Use Special Shape CDs
Be sure to use round shape CDs only. Do
not use any special shape CDs. Use of
special shape CDs may cause the unit to
malfunction.(P.8).
P. 8
CD-Rs and CD-RWs which have not
undergone finalization processing cannot
be played. (For more information on
finalization processing, refer to the manual
for your CD-R/CD-RW writing software or
CD-R/CD-RW recorder.) Additionally,
depending on the recording status, it may
prove impossible to play certain CDs
recorded on CD-R or CD-RW.
E - 1
P. 5
NOTES ON DISCS
If you use the discs explained below, the sticky
residue can cause the CD to stop spinning and
may cause malfunction or ruin your discs.
Do not use CDs that have a sticky residue on the
surface (for example, from peeled-off stickers or
from ink, or glue leaking from under the
stickers).
****
*******
******* *******
*******
Paste or sticky residue.

E - 2
2. INSTALLATION
Before finally installing the unit, connect the wiring temporarily and make sure it is all
connected up properly and the unit and system work properly.
Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or other
modifications of the vehicle.
Install the unit where it does not get in the driver's way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its optimum
performance.
Avoid installing the unit where it would be subject to high temperature, such as from direct
sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive
vibration.
Be sure to remove the front panel before installing the unit.

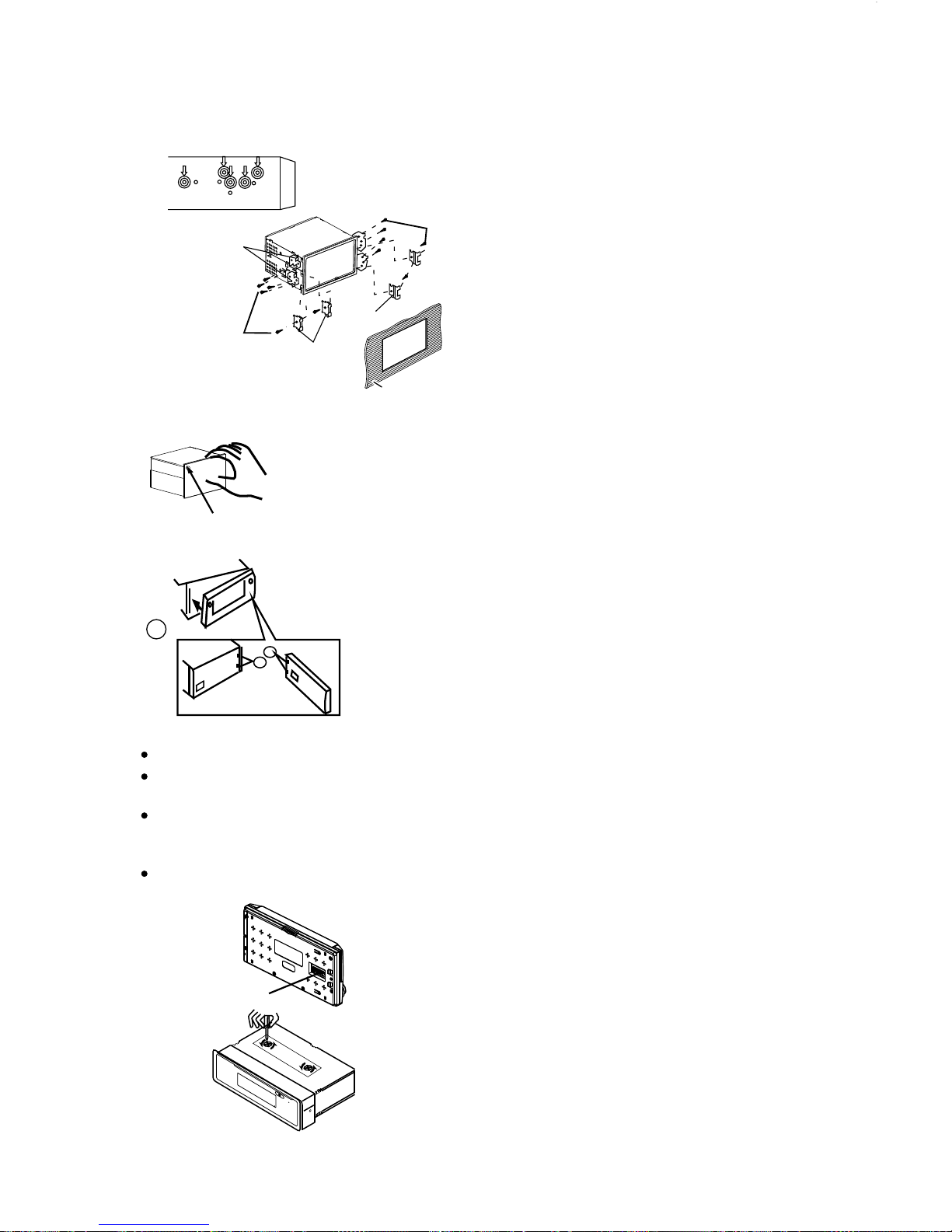

DIN FRONT/REAR-MOUNT
30
DIN FRONT-MOUNT (Method A)
Installation the unit 1. Dashboard
2. Screw
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5x15mm)
5. Screw
6. Support Strap
Be sure to use the support strap to secure the
back of the unit in place. The strap can be bent by
hand to the desired angle.
7. Plain washer
Trim Plate Installation:
Push the trim plate against the chassis until it is fitted.
You must do this before you install the front panel, otherwise it can't be attached.
1
7
4
23
5
6
178
100
1
2
This unit can be property installed either from Front (conventional DIN Front-mount) or Rear (DIN
Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,
refer to the following illustrated installation methods A and B.
REAR LINE OUT LEFT & RIGHT
FRONT LINE OUT LEFT & RIGHT
VIDEO OUT (1 & 2)
A/V IN (AUDO LEFT)
A/V IN (AUDIO RIGHT)
A/V IN (VIDEO IN)
ANTENNA JACK
BACKSIGHT RCA
SUB-W OUT

E - 3
DIN REAR-MOUNT (METHOD B)
Installation using the screw holes on the sides of the unit.
Fastening the unit to the factory radio mounting bracket.

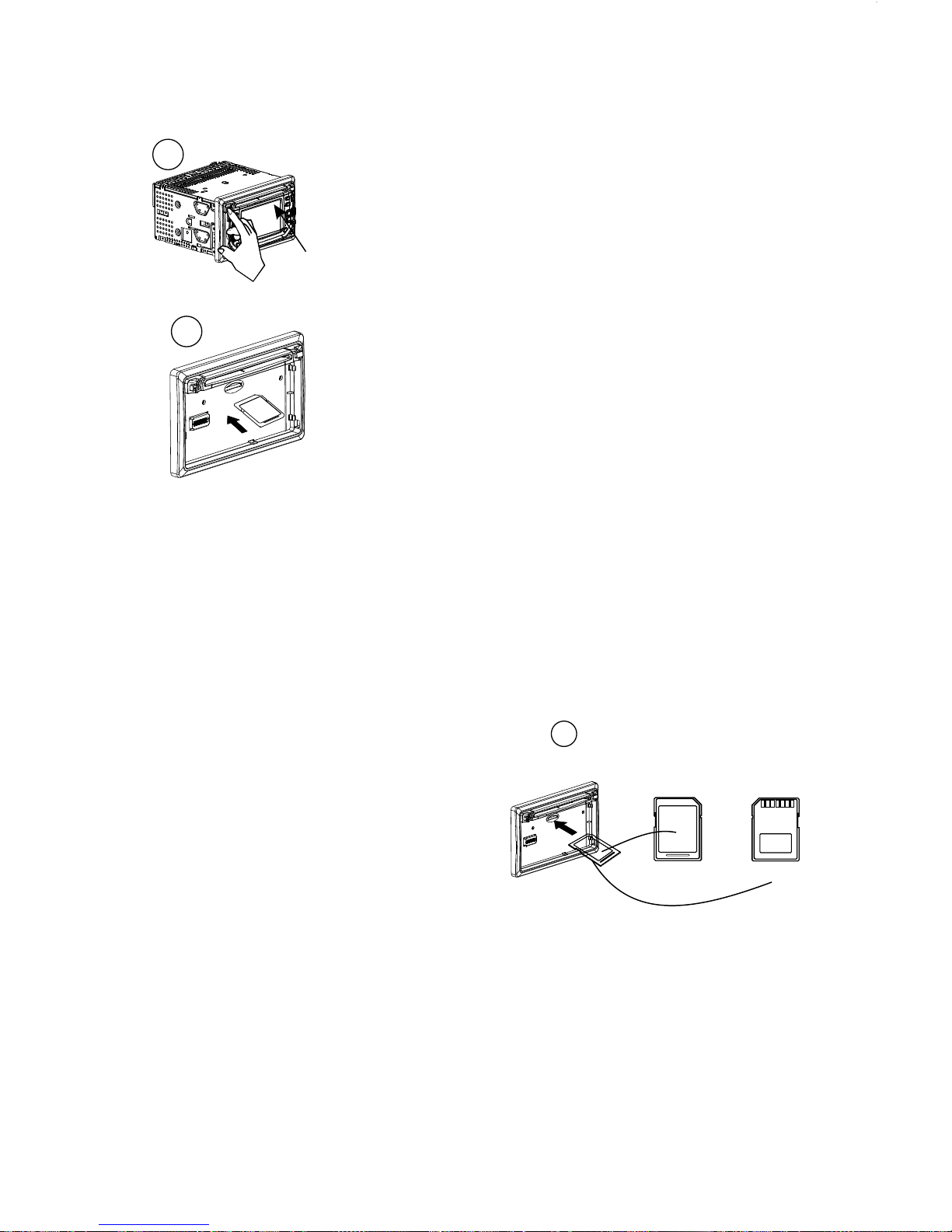

DETACHABLE CONTROL PANEL (D.C.P.)
Removing The Detachable Control Panel (D.C.P.).
2
Attaching the DCP
CAUTION
DO NOT insert the D.C.P from the left side. Doing so may damage it.
The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case
and be careful not to drop it or subject it to strong shocks.
When the release button is pressed and the D.C.P is unlocked, the car's vibrations may
cause it to fall. To prevent damage to the D.C.P, always store it in a protective case after
detaching it.
The rear connector that connects the main unit and the D.C.P is an extremely important
part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.
These 2 screws are used to prevent damage to the CD
mechanism during transportation Please make sure to
remove the 2 screws before installing the unit into the
vehicle. DO NOT insert a CD into the unit before
removing the 2 screws.
IMPORTANT
A
Note:
If the D.C.P is dirty, wipe off the dirt with soft, dry cloth
only. And use a cotton swab soaked in isopropyl
alcohol to clean the socket on the back of the D.C.P.
1. Turn the power off
2. Press the D.C.P. release button
3. Remove the D.C.P.
1. Attach the panel at the right side first, with
point B on the main unit touching point A on
the D.C.P. (As shown on the digram).
2. Then press the left side of D.C.P. onto the
B
Socket
Screw
Screw
Factory radio
mounting bracket
Dashboard or console
Hook
Hook
Note: the mounting box, outer
trim ring,and half-sleeve are not
used for this installation.
Note: The mounting box, metal
half sleeve, hook & screws are
not included in the packnig.
PANEL RELEASE
BUTTON
main unit until a click sound is heard.

E - 4
3. ELECTRICAL CONNECTION
a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a
converter will be necessary).
b. Before starting wiring connections, disconnect the power supply by removing the fuse from
the fuse box.
c. Connect the power wire to one of the extra terminals of the fuse box.
d. Connect the black ground wire to a metal part of the car. It is important to make good
contact.
e. Make other wiring connections as shown.
f. If your car does not have ISO connector, you can purchase it from car accessory shops.
Notes: INCORRECT WIRING OR OPERATION WILL VOID THE WARRANTY OF THIS UNIT.
Fuse Replacement:
To replace the fuse, pull out the blown fuse
from the socket. Insert a new one with same
rating
(CAR UNIT BACK SIDE)
The RESET button is located on the main unit (as shown on the diagram). To press it vertically
with a ballpoint pen or metal object to activate it. The reset button should be activated for the
following reasons:
Initial installation of the unit when all wiring is completed.
All the function buttons do not operate.
Error symbol on the display.
RESET BUTTON
Note: If you press the RESET button, and the unit still cannot function normally, please use a
cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.
FUSE

4
E - 5

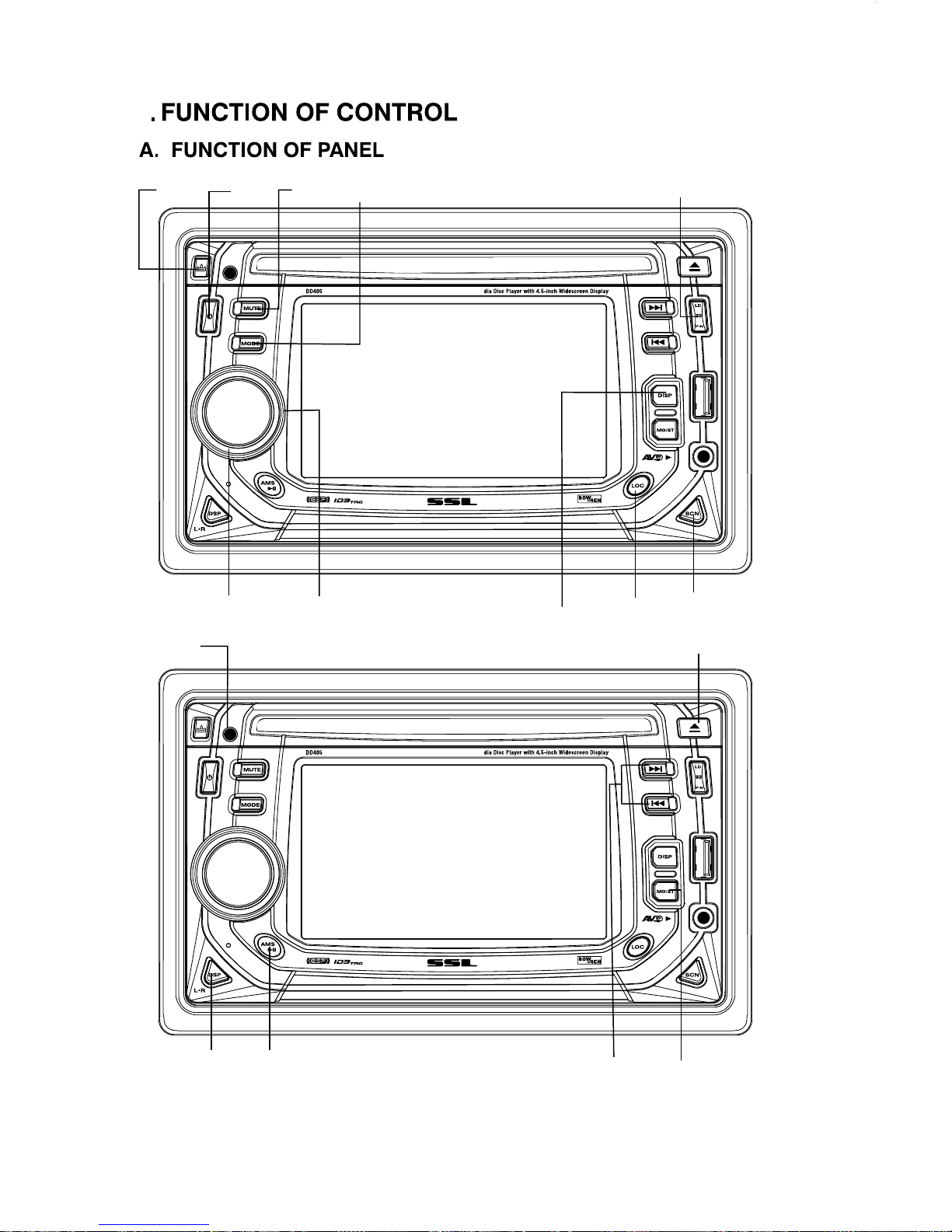

MUTE
BUTTON
PANEL
RELEASE
BUTTON
POWER
BUTTON
FUNCTION
SELECT
BUTTON
BAND/
LOUDNESS/
APL/NTSC
BUTTON
AMS/
PLAY/PAUSE
BUTTON
LOC
BUTTON
SCAN
BUTTON
FM MONO /
STEREO
BUTTON
ENCODER
VOLUME
KNOB DISPLAY
BUTTON
MODE
BUTTON
INFRARED
REMOTE
SENSOR
DSP/
LEFT/
RIGHT
BUTTON
TUNING /
SEEK
UP/DOWN
NEXT/BACK
BUTTON
EJECT
BUTTON

E - 6

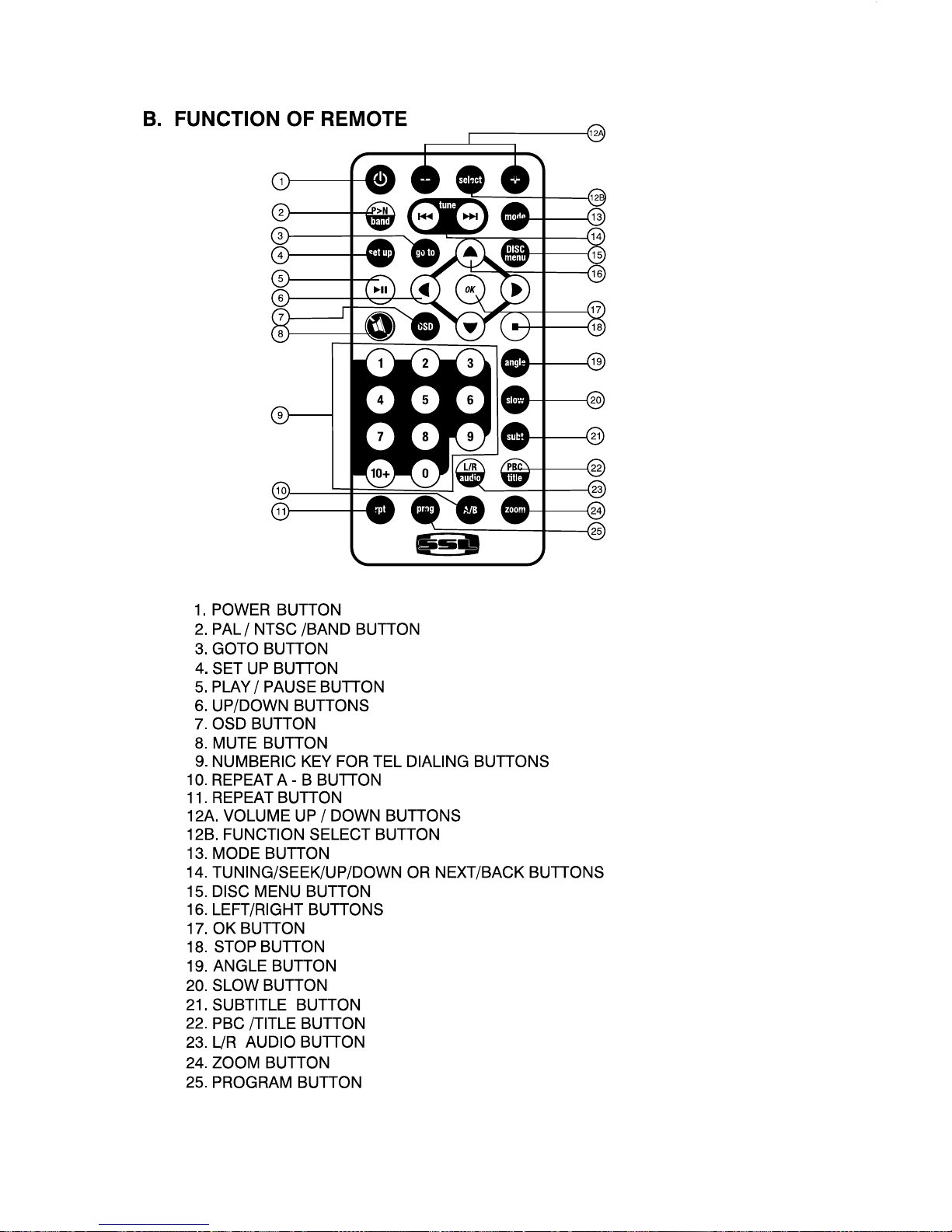

E - 7
5. BASIC OPERATION
POWER BUTTON
Press power button to turn on/off the unit.
Press this button to remove the control panel.
PANEL RELEASE BUTTON
MUTE BUTTON ( MUTE)
Press MUTE button to mute the sound quickly. the display is flashing Press it again to restore the
previous sound level. When mute is on, the Mute indicator on the LCD will light up.
LOUDNESS BUTTON (LOUD)
Long press this LOUD button control to increase bass output.
MODE BUTTON
A/V- IN FRONT /A/V-IN REAR.
(MODE)
SELECT BUTTON (SEL)
press SEL button for less than 1 second to open the Audio menu.
press SEL repeatedly to navigate through the following functions:
VOLUME (VOL) -> BASS (BAS) -> TREBLE (TRE) -> BALANCE (BAL) -> FADER (FAD)
Use Volume Up/Down to adjust desired level within 5 seconds.
NOTE: BASS AND TREBLE WILL BE SKIPPED IF DSP MODE IS ACTIVATED
ENCODER VOLUME KNOB
Turn this knob to adjust desired volume level.
PRESET EQUALIZER BUTTON (DSP)
Press this PEQ button then use V-UP / V-DN to toggle the following EQ settings.
At DSP off mode preset equalizer will be controlled by Bass / Treble setting.
FRONT PANEL A/V IN JACK
NOTE:The unit is only support the 3.5mm A/V Jack Pin Assignment shown as the diagram remove
extra.
3.5mm A/V Cable ( not included )
Video
Right Audio
Left Audio
Ground
1
2
3
4
Press SELECT button for more than 3 seconds to activate or turn off the Sub-woofer
(Sub-woofer on/off is an optional feature)
SUB-WOOFER ON/OFF
DISPLAY BUTTON( DISP )
Press this button briefly, the LCD will display the clock for about 3 seconds,
The unit is allowed to connect with external Audio/Video
system such like digital Camera or Game Console, You
can connect the external A/V system thru the A/V in jack
on front panel. After connecting the external A/V system,
press mode to A/V IN FRONT to enjoy this external A/V
system on this unit.
Press this button to select radio,DISC/USB/SD/MMC/
POP -> ROCK -> CLASSIC -> DSP OFF

E - 8
Basic operation of menu setup
1. General setup menu
In main menu,touch " "to enter into"SETTINGS"mode.
2.Choose menu setup
* Touch cursor and choose setup menu.
3.Enter or exit menu
* Touch in the menu and enter into"SETTINGS"menu.
* Touch in the SETTINGS menu to exit current setup menu.
4.Menu setup operation
TIME SETUP: The unit utilizes a 24 hr time format, touch on the touch screen directly to
adjust hour and minute.
CALIBRATION : Touch + center with a pen point, and touch it again to enter into the calibration menu
and display.
Users can operate"touch rectiflcation"if the touch character deviates.
Users must Touch+in the center rectification or else it will affect precision.
6. SYSTEM SETUP
++
++
++
++++
++
To determine how the beep sound is generated when the keys are pressed.
BEEP/ON OFF:
DUAL FREQUENCY SELECTION
Unit is defaulted in U.S.A(America) frequency, if EURO frequency is required, touch the Icon
at the main menu to go to settings menu.And then touch and tick “EUROPE” to change to EURO
frequency.

E - 9

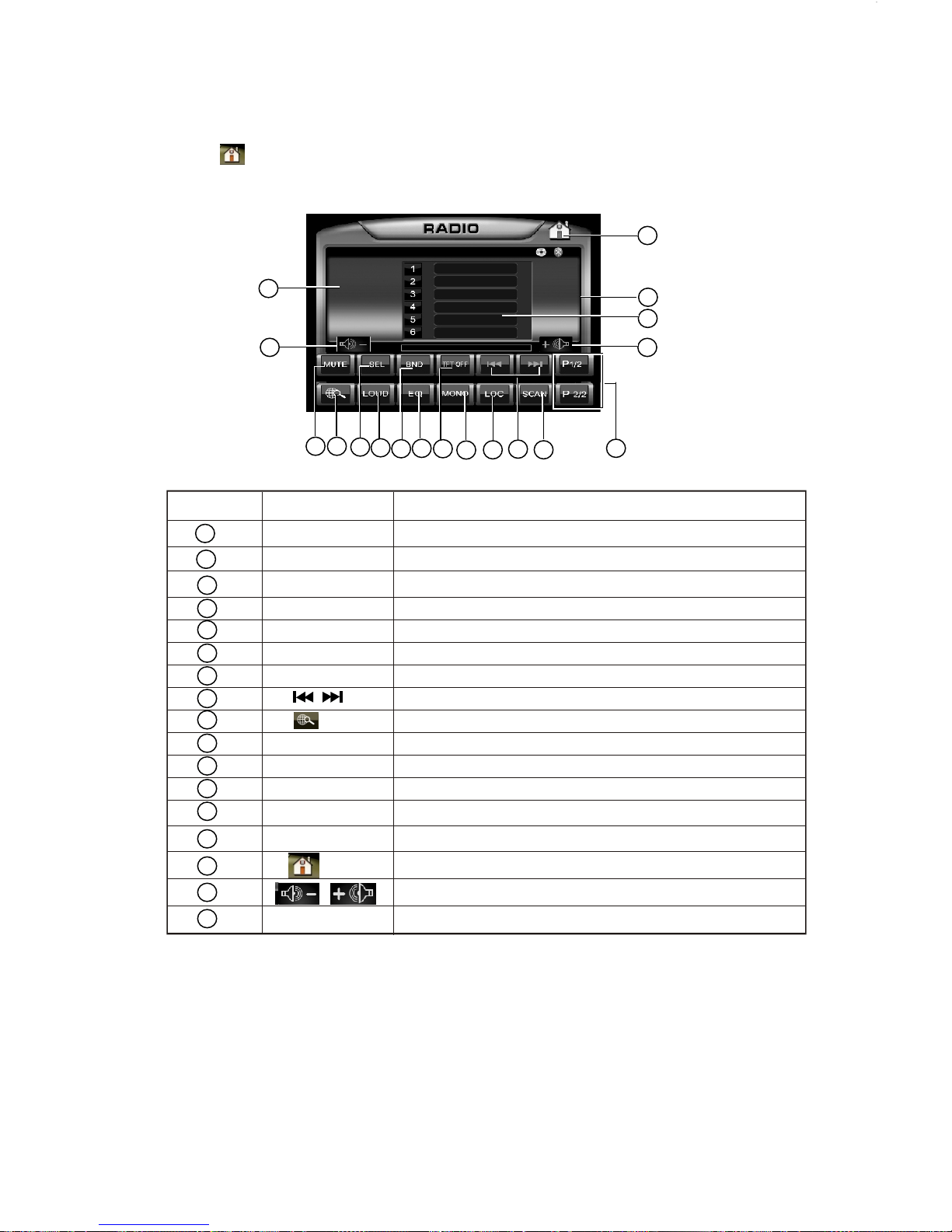

7. RADIO OPERATION
RADIO FUNCTION KEY
Touch the icon in any mode to go back to the main menu and select"RADIO"to enter the
radio mode.
Serial number Name Function description
1
2
Information CURRENT BAND AND FREQUENCY
CLOCK CURRENT TIME
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MUTE CLOSE\OPEN AUDIO OUTPUT
SEL VOL-BASS-TRE-BAL-FAD
BND BAND SWITCH(FM1\FM2\FM3\AM1 AM2 )
TFT OFF
//FREQUENCY BACKWARD/FREQUENCY FORWARD
LOUD LOUDNESS ON/OFF
EQ ROCK\POP\CLASS\EQ.OFF
MONO
LOC
SCAN
LOCAL/DX
TFT DISPLAY ON/ OFF
Radio TOUCH TO SELECT RADIO AND PRESS LONGER TO STORE CURRENT FREQUENCY
BACK TO MAIN MENU
AUTO SCAN AND STORE RADIO
ST:ON \OFF
P1/2- P2/2 ANOTHER FANCTION KEY
ADJUST DESIRED VOLUME LEVEL
SEARCH STATIONS
FM1
CH-00
87.50M
12:06
AM
87.50MHZ
90.10MHZ
98.10MHZ
106.10MHZ
107.90MHZ
87.50MHZ
12
3
14
16
15
45678
910 11 12 13 17
16

E - 10
Use this control to select stereo or mono reception for FM radio stations. You can sometimes
improve reception of distant stations by selecting mono mode.
FM MONO / STEREO BUTTON (MONO)
LOCAL / DX BUTTON (LOC)
This control can be used to change between Local and Distant (-DX) tuning mode. Local
mode improves reception in some areas where the signal is too strong.
STATION PRESET BUTTONS (M1-M6)
You can store & recall six preset radio stations by pressing M1-M6 buttons
TO STORE A STATION: 1) select a band (if needed)
2) select a station by tuning up / down button
3) hold a preset button which you want store the station for at least 2
seconds. The preset number will appear on the display
accompanied by a beeps sound.
TO RECALL A STATION: 1) select a band (if needed)
2) press a preset button briefly to recall the stored station.
SCAN BUTTON (SCAN)
Press this button, the radio will tune up to search stations, the available stations will blinking and
stay on the display for a few seconds.
AUTO MEMORY STORE / PRESET SCAN BUTTON (AMS)
PRESET SCAN: press AMS button for less than 1 second to scan all preset stations in the
memories of the current band and stay on each memory stations for about 5
seconds. The memory location indicator on the LCD will flash during the process.
To stop preset scan, press AMS button again.
AUTO MEMORY STORE: press AMS button for more than 1 second to enter auto store mode. The
radio will automatically store 6 stations to the 6 preset memories of the current band. To stop auto
store, press AMS button again.
BAND BUTTON (BAND)
Press this button to change between band FM1, FM2, FM3 or MW(AM)1, MW(AM)2 bands .
TUNING UP / DOWN BUTTON ( )
1.Press these buttons briefly will operate MANUAL SEARCH tuning mode, the radio will tune up
or down to the next station and remain on the frequency.
2.Press these buttons more than 2 seconds, operate as AUTO SEARCH buttons, under this mode
the tuning frequency will advance up or down rapidly when the button is pressed. If the buttons
are not pressed within 3 seconds, they will return to auto search mode.

AUDIO OSD OK
MENU TITLE NUM ++
8. DISC/MULTI-MEDIA FILES OPERATIONS
E - 11

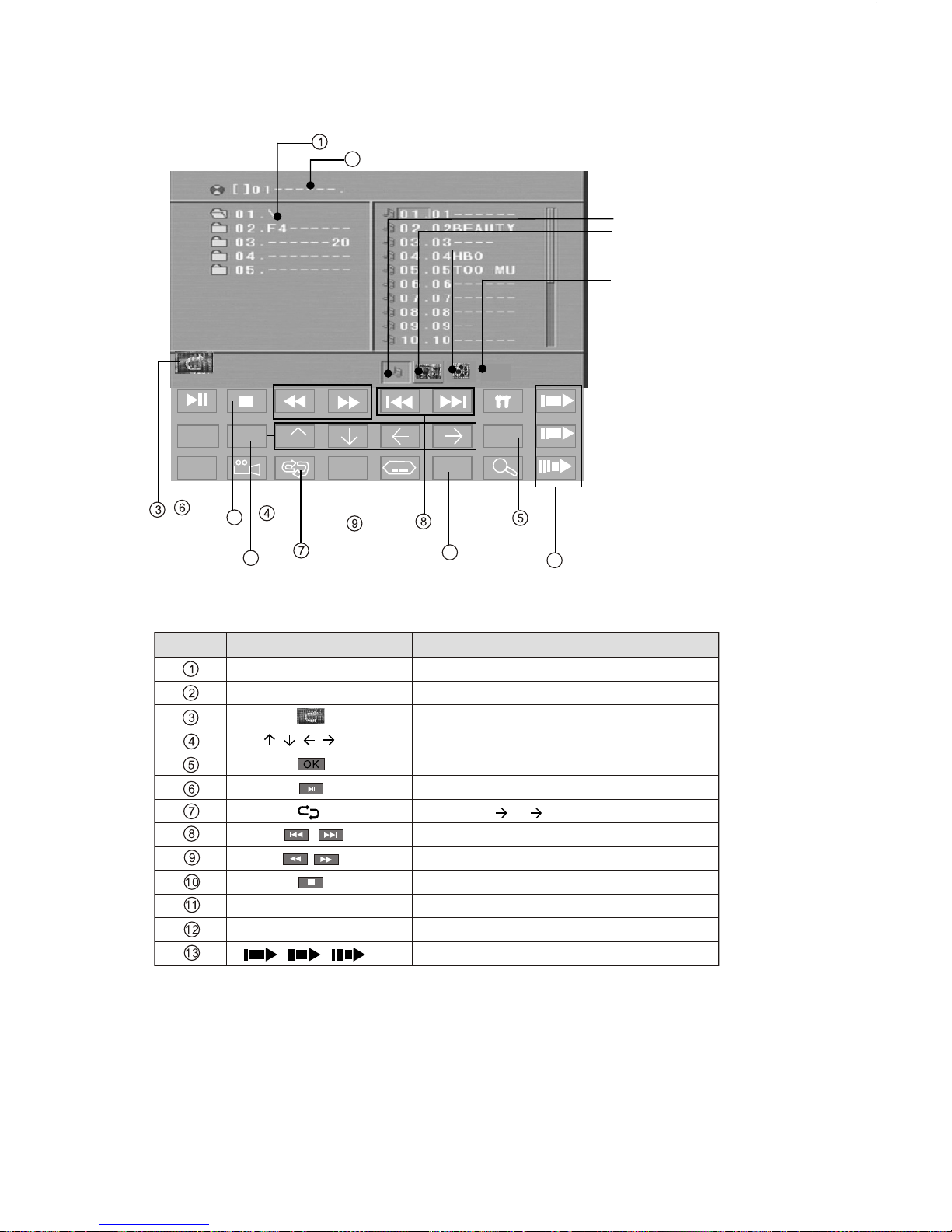

CURRENT DIRECTORY NAME
The playing file is a Music file.
The playing file is a Photo file.
File Switch Region: Displays the file
type of the playing and the switching.
S.N NAME FUNCTION DESCRIPTION
Information
Menu
DISPLAY DISC INFO RMATION
BACK TO MAIN MENU
MOVE CURSOR DIRECTION
CONFIRM SELECTED INFORMATION
PAUSE/PLAY
REPEAT. REPI DIR ALL
PREVIOUS MUSIC/
FORWARD
NEXT MUSIC
BACKWARD/
KEY
Function KEY
2
STOP BUTTON
OSD
NUM
THIRD TIME TO MAKE THE OSD DISAPPEAR.
ANOTHER FANCTION KEY
NUMBER
10
11 12 13

E - 12
MULTI-MEDIA FILE OR FOLDER SEARCHING
Selecting a Track to Play
1. Use the UP/DOWN/LEFT/RIGHT direction buttons to move to different file/folder
Numbers.
2. Press OK on a file number, and that file will begin to play, or by direct numeric input,
3. Enter a file number with the numeric buttons (0-9) and +10 button to play the input Files
Number.
REPEAT A- REPEAT A- B REPEAT A-B CANCEL
REPEAT A-B BUTTON (A-B)
1. Press REPEAT A-B at your chosen starting point.
2. Press REPEAT A-B again at your chosen end point.
The section A and B can be set only within the same track.
The section will now repeat continuously.
3. To exit the sequence, press REPEAT A-B.
The screen willdisplay the followingmessage:
NOTE:This operate is with CD function only.
Stop the current disc playback.
Press STOP two times consecutively to enter the clear stop mode. Under the clear stop mode, if PLAY is
pressed, the disc will resume the playback from the beginning of the disc.
Briefly press the STOP button to stop the unit playback, when the PLAY button is pressed, normal playback will
continue.
STOP BUTTON( )
NUMERIC BUTTONS
When playback CD/Musicfile use fortrack number orFile number directaccess and
Use when functionneed numeric Selectionor Input, likein the Gotofunction, etc.
UP/DOWN/LEFT/RIGHT BUTTON ( / / / )
Use to movecursor up/down/left/right.
OK BUTTON
Use this buttonto confirm theselection.
Press this button briefly to pause disc play, press again to resume play.
PLAY/PAUSE BUTTON ( )
Long press the & buttons under the play mode, the unit will start to forward or rewind. you
can play discs at various speeds. with each consecutive long press the & buttons , the
playback speed increases. there are 5 speed levels for discs in FWD/REV: X2, X4, X8,X16, X20.
there are 4 speed levels for disc types other than disc: X2, X4, X8,X16,X20.
Press PLAY to resume the playback at normal speed.
NEXT/BACK BUTTONS( & )
When NEXT is pressed, the unit will go to the next track and start the playback.
When BACK is pressed, the unit will go back to the preivous track and start the playback.
CD SLOT
Insert the disc into CD slot. The CD will begin to play.
EJECT BUTTON
Press this button to eject the CD from the unit. The receiver will switches to radio mode
automatically.

E - 13
PROGRAM BUTTON (PROG)
A. For example:Pressnumeric button 2,PROGRAM 0002 appearsit means track2 will
be player firstthen press numericbutton 4 andPROGRAM 0004 appears,pressthe
different numeric buttonto select thecorresponding track andthen you canprogram
tracks to yourneed if youwant to completeprogram setting pressPLAY buttonto play
tracks in programmedorder.
B.Press the ( / / / )buttons to highlightselect program modeor track number
and press PLAY button toconfirm it.
C.If you exitprogram mode andprogram off appearspress STOP buttonthen press
PLAY button.
ID3 INFORMATION DISPLAY
If any Music file contains any ID3-TAG information, user can view these ID3-TAG information such
as Track title, Artist title, Album title, etc, These ID3-TAG information will be displayed on the lower
left hand corner of the TFT monitor.
Press PROG buttonthe screen willdisplay the followingmessage.
PROG
PLAY
1 0002
3 ----
5 ---- 9 ---- 13 ----
6 ---- 10 ---- 14 ----
7 ---- 11 ---- 15 ----
4 ---- 8 ---- 12 ---- 16 ----
2 0004
CLEAR
GO TO BUTTON (GO TO)
Using GO TOfeature to selecttrack number orspecific time.
A. Press GO TO button,the screen will display the following message:
B. Press ArrowLeft/Right buttons tohighlight the tracknumber or thetime option.
C. Use numeric buttons to enter the track you want to play or the elapsed time you
wantto go toin that track.
D. Press OK button to start playback.For example entering 00:01:56 will start playback
one minutes andfifty-six seconds intothe title.
TRK 001/021
A
00:01:56

E - 14
9. PLAY MULTI-MEDIA FILES OPERATION
Current directory name
Current file name.
The playing file is a Music file.
The playing file is a Photo file.
File Switch Region: Displays the file
type of the playing and the switching.
KEY
Function KEY
Use the Arrow ( / / / )buttons to enter the Directory Region and highlight the desired
directory, then the first track under it starts playback; Also you can use the Arrow( / / / )
buttons to enter the File Region and select the file you want to play.
Press the Left and Right arrow buttons, you can activate Directory Region, File Region and File
Switch Region separately.
The highlight in Directory Region and File Region is shown as the picture above;
While it appears a transparent rectangle in File Switch Region.
You can press the Numeric buttons to select the file you want to play. For example, if
th
you desire the 15 track in current list, press the “10+” button once, then press “5”,
th
the 15 starts playback.
When a picture is playing or paused, press the Arrow buttons to change the display
angle:
NOTE:
NOTE:
Place a disc into the player, and the player will automatically search the directories saved files.
After searching, it will auto go to the first directory saved files (to the disc containing both Music and
Photo files; To the disc containing single type of files, it will automatically go to the first directory)
and play the first song in the directory (“01:” is highlighted).The screen displays as the picture
below:

E - 15
START THE USB DEVICE MODE
1.The USB mini socket is accessible as indicated in
picture 1.(P.1)
2.Plug in the USB drive / device completely as indicated
in picture 2(P.2) and display will show “USB” to indicate
that the USB drive / device is being plugged in correctly
& the download has begun.
3.Does not matter what mode the unit is in, once a USB
drive / device is being plugged into the unit, unit will
automatically switch to USB mode.
4.All the USB files playback function is same as normal disc
playback.
1.Always unplugg the USB gently from the unit,
excessive force used will cause permanent & serious
damage to the unit & the USB drive / device.
TO STOP USB PLAYBACK
1.If the USB drive / device is unplugged, the unit will automatically switch to radio mode.
Or user can use mode button to switch to other modes.
2.The user can use the mode button to choose USB mode (only if USB drive / device is
inserted in the unit ) or any other modes, when they are in any mode.
CAUTION
COMPATIBILITY
Due to the fast changing technology world, this unit may
or may not be compatible to all the USB drive / device
available with all the future technology, especially those
USB drive / device which require to install a driver.
Always choose a compatible USB drive / device which is
compatible with this unit.
Warning: Excessive weight or size USB drive/device may
cause permanent & serious damage to the unit and may
cause access to the buttons on the front panel impossible.
User must use an extension cable (provide by USB device
manufacturer) to connect with USB socket to prevent any
damage cause.
P. 1
USB SPECIFICATION
* SUPPORT MAX IG USB FLASH MEMORY
* SUPPORT MAX 999 SONGS
* USB 1.1 DEVICE SUPPORT
* USB 2.0 DEVICE SUPPORT
(TRANSFER SPEED SAME AS VER 1.1)
* FILE MANAGER: FAT12/FAT16/FAT32
P. 2
USB SOCKET
P. 3
10. MMC/SD CARD & USB DEVICE OPERATIONS

E - 16
START THE SD/MMC MODE
CAUTION
2.Please make sure to insert the SD or MMC
card in the correct direction / orientation as
indicated in picture 7(P.7). Wrong insert will
cause permanent & serious damage to the
unit & the SD or MMC card.
TO STOP SD/MMC CARD PLAYBACK
1.Push on the end of the SD or MMC card to eject the SD or MMC card. Once the SD or MMC
card is taken out, the unit will automatically switch to previous mode.
2.User can use the mode button to choose SD / MMC mode (only if SD or MMC is inserted in
the unit ) or any other modes, when they are in any mode.
SD/MMC SPECIFICATION
* SUPPORT MAX 4G SD/MMC CARD
* SUPPORT MAX 999 SONGS
Back side
Front side
P. 7
P. 6
P. 4 1.Press panel release button to release the front panel.(P.4)
2.The SD/MMC card slot is located on top of the front panel as
indicated in (P.5).
3. Insert the SD/MMC card into the card slot in the correct direction
until a “CLICK” sound is heard.
4.Close the front panel.
5. The display will show “CARD” to indicate that the SD or
MMC card is correctly inserted. Once the SD or MMC card is
inserted, the file will automatically loaded & playback will also
start.
6. Does not matter what mode the unit is in, once a SD or MMC
card is being inserted in the unit, unit will automatically switch to
SD / MMC mode.
7. All the SD / MMC files playback function is same as normal CD or
Multi-Media disc playback.
D.C.P.

E - 17
S.N Name Function Description
Information bar DISPLAY DISC INFO.
BACK TO MAIN MENU
MOVE CURSOR UP/DOWN/LEFT/RIGHT
CONFIRM SELECTED INFORMATION
PAUSE/PLAY
BACK TO MAIN MENU OF DISC
PREVIOUS MUSIC/
FORWARD
ENTER INTO SETUP MENU OF AUDIO AND VIDEO
NEXT MUSIC
BACKWARD/
STOP BUTTON
OSD
NUM
DISPLAY THE AMOUNT OF TIME PLAYED
14 ANOTHER FANCTION KEY
15
16
17
18
19
AUDIO
TITLE
++
REPEAT CHAPTER/TITLE/ALL
SUBTITLE
ZOOM
ANGLE
NUMBER
SELECT LEFT AND RIGHT CHANNEL
TITLE MENU
AUDIO OSD OK
MENU TITLE NUM ++
14
15 16 17 18 19
DVD TT 01/05 CH 011/018 01:11:56
21
11. VIDEO DISC OPERATIONS

10
11
12
13
USER/STDY /BRIG/ SOFT /SHAR
E - 18
14
HUE - / HUE +
Press this button briefly to pause disc play, press again to resume play.
PLAY BUTTON ( )
Stop the current disc playback.
Press STOP two times consecutively to enter the clear stop mode. Under the clear stop mode, if
PLAY is pressed, the disc will resume the playback from the beginning of the disc.
Briefly press the STOP button to stop the unit playback,when the PLAY button is pressed,normal
playback will continue.
STOP BUTTON( )
UP/DOWN/LEFT/RIGHT BUTTON ( / / / )
Use to movecursor up/down/left/right.
OK BUTTON
Use this buttonto confirm theselection.
Long press the & buttons under the play mode, the unit will start to forward or rewind.
you can play discs at various speeds. with each consecutive long press the of &
buttons , the playback speed increases. there are 5 speed levels for discs in FWD/REV: X2,
X4, X8, X16,X20. there are 4 speed levels for disc types other than disc: X2, X4, X8,X16,X20.
Press PLAY to resume the playback at normal speed.
NEXT/BACK BUTTONS( & )
When NEXT is pressed, the unit will go to the next track and start the playback.
When BACK is pressed, the unit will go back to the preivous track and start the playback.
10 11 12
13 14
