Soundcore Rave Neo User manual

USER MANUAL
Soundcore Rave Neo

English 01
Čeština 09
Dansk 17
Deutsch 25
Español 33
Suomi 41
Français 49
Italiano 57
Nederlands 65
Norsk 73
Język polski 81
Portugues do Brasil 89
Pусский 97
Slovenský Jazyk 105
Türkçe 113
日本語 121
한국어 129
简体中文 137
繁體中文 145
ةيِبَرَعل 153
תי ִ רב 161

01 EN
At a Glance
Top Panel
1 2 3 4
7 6
5
1
• Press or press and hold for 2 seconds to
power on.
• Press and hold for 2 seconds to power
off.
2
• Press to turn on/off BassUp mode.
• Press and hold for 2 seconds to switch
between indoor/outdoor sound mode.
3
• Press to turn on/off the light mode and
switch the light modes.
• Press and hold for 2 seconds to turn off
the light mode.
4
• Press and hold for 2 seconds to enter
the PartyCast mode.
• In PartyCast mode, press to mutually
switch the primary and secondary
speakers.
• Press and hold for 2 seconds to exit the
PartyCast mode.
5
• Press to enter Bluetooth pairing mode
when powered on.
• Press and hold for 2 seconds to enter
TWS pairing mode.
6
(Multi-function button)
• Press to play/pause music.
• Press to answer or end a call.
• Press and hold for 2 seconds to reject an
incoming call.
• Press to put the current call on hold and
answer an incoming call.
• Press and hold for 2 seconds to switch
between held call and active call.
7
• Press to decrease/increase volume.
• Press and hold for 2 seconds to
continuously decrease/increase volume.

EN 02
Connectors
USB-C USB AUX
1
2 3
1USB-C
• Connect to the power supply.
2USB (PowerIQ)
• Charge an external USB device.
• Connect to a USB storage device.
3AUX
• Connect to an external audio device through
a 3.5mm AUX cable (not provided).
Charging
Charging your Speaker
• Fully charge this speaker before the rst use to prolong the lifespan of the built-in
battery.
USB-C
Battery level <25%
Battery level 25% - 50%
Battery level 50% - 75%
Battery level 75% - 100%
Fully charged

03 EN
Checking Battery Level
Battery level <10%
Battery level 10% - 25%
Battery level 25% - 50%
Battery level 50% - 75%
Battery level 75% - 100%
Charging your USB Devices
Charge your USB devices through the USB connector.
USB
Powering On/O󽗈
Connect this speaker to an AC mains outlet by using the provided USB-C cable. The
built-in battery can also be used as the power supply of this speaker.
SoundcoreRave Neo
Soundcore Rave Neo
2
Soundcore Rave Neo
1
<2”
3
SoundcoreRave Neo

EN 04
Power on Press Steady white
Power o󽗈 Press and hold for 2
seconds Light o󽗈
• Unplug the power cable from the AC mains outlet when not in use for an
extended period of time.
• This speaker will power off automatically 30 minutes after no audio input or
button inactivity.
Using your Soundcore Rave Neo
Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.
SoundcoreRave Neo
Soundcore Rave Neo
2
Soundcore Rave Neo
1
<2”
3
SoundcoreRave Neo
Press Enter Bluetooth pairing mode
Flashing blue Bluetooth pairing
Steady blue Bluetooth connected
• Dual Bluetooth Connection: This speaker can pair up to 2 mobile devices via
Bluetooth. This speaker can only play music on one mobile device at a time. To
play from another connected device, pause the currently active device rst.
• To pair with another Bluetooth device, press the Bluetooth button to re-enter
Bluetooth pairing mode.

05 EN
• Each time you power on your Soundcore speaker, it will automatically connect to
your last connected device if available within the Bluetooth range. If not, press
the Bluetooth button to enter Bluetooth pairing mode.
• You may also control music in the Soundcore App.
TWS (True Wireless Stereo) Mode
Two identical Soundcore speakers (A3395) can pair with each other for stereo sound.
1. On both Soundcore speakers, press and hold the Bluetooth button for at least 2
seconds to enter TWS pairing mode.
2. In TWS mode, connect either speaker with your Bluetooth enabled device. The two
speakers can play music as the left channel and right channel.
Press and hold for 2 seconds Enter TWS pairing mode
Flashing white TWS pairing
Steady blue TWS connected (Primary speaker)
Steady white TWS connected (Secondary speaker)

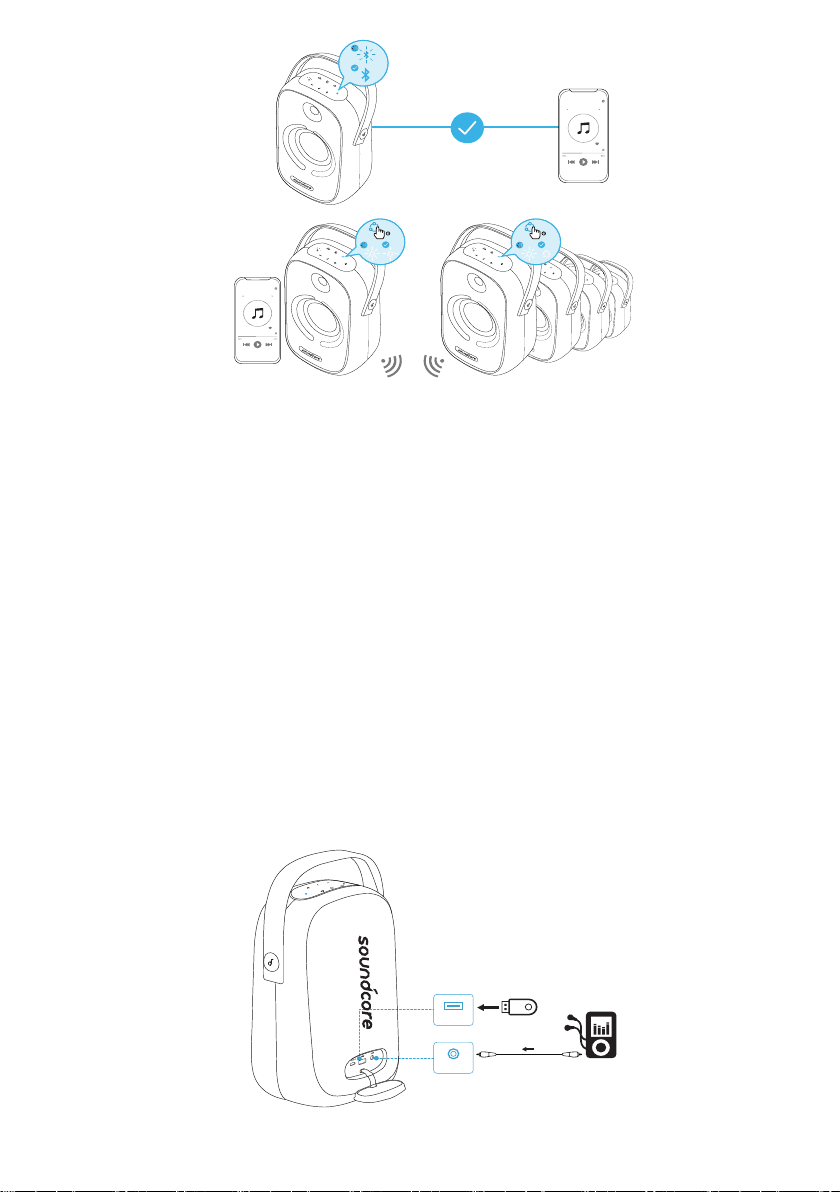

PartyCast Mode
Set up one Rave Neo as the primary speaker and connect it with more than 100+
secondary Rave Neo speakers to control audio and all the light modes.
1. Connect one Rave Neo speaker to your Bluetooth device via Bluetooth.
2. Press and hold the PartyCast button for 2 seconds on multiple Rave Neo speakers
to enter PartyCast mode.
3. When successfully connected, the PartyCast LED on the primary speakers will
continue ashing white, while on the secondary speakers will turn white.

EN 06
Primary Speaker
Primary Speaker
Secondary Speaker
>2” >2”
When PartyCast mode is successfully entered:
• You can power off, adjust the volume, or switch light modes for all speakers by
controlling the primary speaker only.
• You can power off or switch light modes for each secondary speaker individually.
• You can't adjust the volume for each secondary speaker individually.
• Any secondary speaker can be switched to become the primary speaker by
pressing the PartyCast button and connecting to your smartphone. Any primary
speaker can be switched to become the secondary speaker by pressing the
PartyCast button and searching for an available primary speaker.
• To exit the PartyCast mode, press and hold the PartyCast button on any speaker
for 2 seconds.
AUX/USB Mode
Plug in a 3.5mm audio cable or insert a USB storage device, then open the
Soundcore App to select AUX or USB mode.
AUX
USB
AUX
USB
• When using AUX mode, control audio playback via the connected device.

07 EN
Button Controls
Press Play/Pause
Press twice Next track
Press thrice Previous track
Press Volume down/up
Press Turn BassUp on/off
Press and hold for 2 seconds Switch between indoor/outdoor sound
modes
Switching Light Modes
• Download the Soundcore App to check all available light modes.
Switching
Light Patterns
X1
<2”
Soundcore App
Download the Soundcore App for enhanced product experience.
• Set up Bluetooth connections
• Check product information
• Update rmware
• Indicate battery status
• Switch among multiple light modes (Default light mode is “Party”)
• Switch between indoor and outdoor sound modes
• Light DJ mode to support light and sound variation
• Enjoy party games

EN 08
• Switch BassUp mode
• Remotely control the volume and play/pause
• Read user manual
• Store memory data
• Set Auto-power off time
Soundcore
Apple and the Apple logo are trademarks
of Apple Inc.
Google Play and the Google Play logo are
trademarks of Google Inc.
Speci󽗉cations
Specications are subject to change without notice
DC power input 5 V 2 A (USB Type-C)
Battery capacity 5000 mAh / 7.2 V
USB output 5 V 2 A (USB Type-A)
Output power 50 W
Charging time 6 hours
Playtime (varies by volume level and music content) 18 hours
Waterproof level IPX7
Bluetooth version V5.0
Bluetooth range 20 m / 66 ft
USB audio format .mp3, .wma
