SOUNDMASTER IR3000DAB User manual

IR3000DAB / English Instruction Manual
Page 1
Contents
1. Main Control Key List ………………………………………………………………… 1
1.1. Remote Control Key List ……………………………………………………….. 2
2. Getting Started/Set up ……………………………………………………………….. 3
2.1. Setup Wizard …………………………………………………………………… 3
3. Operation ………………………………………………………………………………. 4
3.1. Menu Navigation…………………………………………………………………… 4
3.2. Presets …………………………………………………………………………… 6
4. Settings ………………………………………………………………………………… 7
4.1. Equaliser ……………………………………………………………………….. 7
4.2. Network ……………………………………………………………………………. 7
4.2.1. Network Wizard …………………………………………………………. 8
4.2.2. PBC Setup (WiFi Protected Setup) …………………………………… 9
4.2.3. View Settings ……………………………………………………………. 10
4.2.4. Wlan region ………………………………………………………………. 10
4.2.5. Manual Settings ………………………………………………………… 10
4.2.6. Network profile …………………………………………………………… 10
4.3. Time/Date ………………………………………………………………………… 10
4.3.1. Set Time/Date (wizard) …………………………………………………. 11
4.3.2. Auto update (From DAB, FM or network) (wizard) …………………. 11
4.3.3. Set Format (wizard) …………………………………………………… 11
4.4.
4.5. Language ……………………………………………………………………….. 12
4.6. Factory Reset ………………………………………………………………… 12
4.7. Software update ………………………………………………………………….. 12
4.8. Setup Wizard ……………………………………………………………………. 12
4.9. Info ……………………………………………………………………………….. 13
4.10. Backlight ………………………………………………………………………….. 13
5. Internet radio mode …………………………………………………………………….. 13
5.1.Last listened ………………………………………………………………………. 14
5.2.Favourites …………………………………………………………………………. 14
5.3.Browse ……………………………………………………………………………. 14
5.4.Search ……………………………………………………………………………… 15
5.5.My added stations ………………………………………………………………….. 15
5.6.Now playing information …………………………………………………..………. 15
5.7.Internet radio portal registration ………………………………………………….. 16
6. Music player mode (Network) ………………………………………………………… 17
6.1.Shared media ……………………………………………………………………. 18
6.1.1. Wake-on-LAN …………………………………………………………….. 19
6.1.2. Prune servers ……………………………………………………………... 19
6.2. My Playlist ………………………………………………………………………….. 19
6.3. Repeat/shuffle …………………………………………………………………….. 19
6.4. Now playing information …………………………………………………………. 19
6.5. Setting up a music server…………………………………………………………. 20
6.6. Sharing media with Windows Media Player ……………………………………. 20
6.7. Using the “Play To” feature in Windows 7 to stream media…………………… 21
6.8. Use “Play To” in Windows Media Player ……………………………………….. 21
6.9. Use “Play To” elsewhere in Windows 7 ………………………………………… 22

IR3000DAB / English Instruction Manual
Page 2
6.10. Now playing information ………………………………………………………. 22
7. DAB+ Radio Mode …………………………………………………………………… 22
7.1. Scanning for stations ……………………………………………………………… 22
7.2. Selecting stations ………………………………………………………………. 23
7.3. Now playing information …………………………………………………………. 23
7.4. Settings …………………………………………………………………………… 23
8. FM Radio Mode ………………………………………………………………………… 24
8.1. Selecting stations ……………………………………………………………….. 24
8.2. Now playing information ………………………………………………………….. 24
8.3. Settings ………………………………………………………………………….. 25
9. Aux in mode ………………………………………………………………………….. 25
10.Alarms and Sleep ……………………………………………………………………….. 25
10.1. Alarms ……………………….……………………………………………………. 25
10.2. Sleep …………………………………………………………………………….. 26
11.Troubleshooting and error messages ………………..…………………………….. 27
11.1. Error messages ……………………………………………………………… 27
11.2. Troubleshooting ……………………………………………………………... 28
12.Technical Data ………………………………………………………………………….. 30
13.Glossary ……………………………………………………………………………….. 30

IR3000DAB / English Instruction Manual
Page 1
IR3000DAB Internet Radio
1.Main Control Key List
NO.
Button
Function/Usage
1
On/Off
Turn on or turn off the unit.
2
Sleep
When playing, standby after a set time. When alarm is sounding, snooze for a set
time.
3
Menu
Show menu for the current mode. Press again to show Now playing screen.
4
Mode
Cycle through the modes: Internet Radio, Music player,DAB,FM,Aux in.
5
Back
Return to previous screen. In play mode, this button may be used to return to the last
track list or station list.
6
Vol-
Decrease volume.
7
Vol+
Increase volume.
8
Information
View more information about the station or track playing. Press again to cycle
through further information screens then return to the normal Now playing screen.
9
Preset
Press for the preset recall or save menu. Scroll up or down to select the preset
number, then press “Select” to confirm.
10
Alarm
Enter alarm wizard, turns off alarm(when alarm is sounding) and, in standby, sets
which alarms are active.
Rotary Control
Function/Usage
Tuning/Select
Turn clockwise or anticlockwise to scroll down or up through a menu, list of items
or station list. The current item is highlighted in reverse text(dark characters on a
white background).Then press to select the highlighted item.
Note: Some buttons have alternate functions depending on whether they are pressed briefly or held down for
a few seconds.

IR3000DAB / English Instruction Manual
Page 2
Remote Control Key List
The remote control operates in a similar way to the main unit control keys.
Button
Function
Remote Control Photo
Standby: Turn on or back to standby mode(showing clock
and date).Cancel sleep function.
Cycle through the modes: Internet Radio, Music
player,DAB,FM,Aux in.
Sleep/Snooze: When playing, standby after a set time.
When alarm is sounding, snooze for a set time.
Mute.
Increase volume.
Menu: Show menu for the current mode. Press again to show
Now playing screen.
Tune up station and skip back.
Tune down station and skip forward.
Info:View more information about the station or track playing.
. Repeat press to cycle through further information screens.
Press to select the highlighted item.
Enter alarm wizard, turns off alarm(when alarm is sounding)
and, in standby, sets which alarms are active.
Press for the Preset recall or save menu. Scroll up or down to
select the preset number then press” Select to confirm”.
Decrease volume.
Return to previous screen. In play mode, this button may be
used to return to the last track list or station list.
Shift: Music player or Radio preset shift songs.
Set or recall preset 5 or 10.
Set or recall preset 4 or 9.
Set or recall preset 3 or 8.
Set or recall preset 2 or 7.
Set or recall preset 1 or 6.
Mode
Slee
p
SNZ
Vol+
Menu
|◄◄
Dow
n
Info
Select
Alarm
Vol-
Back
Shift
5
4
3
2
1
Preset
►►|
Up

IR3000DAB / English Instruction Manual
Page 3
2. Getting Started/Set up
The various listening modes have different requirements:
Internet Radio requires a suitable internet broadband connection (usually via a local wired or
wireless network).
Music Player requires connection to a wired or wireless network.
DAB/FM requires a DAB/FM broadcast signal via the built in antenna.
Aux-In requires connection via the Aux-In socket.
Connect the unit to a suitable power source using the power supply provided. After showing a
starting screen, it will enter the last used listening mode. When the unit is started for the first time, the
setup is launched automatically.
2.1 Setup Wizard
When the unit is started for the first time, it runs through a setup
wizard to configure settings for date/time and net work. Once this
has finished, the system is ready to use in most modes.
Note: To change these settings later, select Menu>System settings
>and select the required settings option(s)(see section 4
settings for further detail(s).
To run the setup wizard again, select Menu > System settings >
Setup Wizard.
Select Yes to start the setup wizard.
If you choose NO, the next screen asks if you would like to run the wizard next time the unit is
started. The system then starts without configuring time/date and network settings and enters the
Main Menu.
Note: If power is removed while the wizard is in progress, the wizard will run again next time
the unit is started.
The Setup wizard guides you through the basic setup parameters for time/Date and Network
connection. For details see the relevant settings in section 4 Settings. To change any settings later
all setting functions are accessible from the Settings Menu.

IR3000DAB / English Instruction Manual
Page 4
3. Operation
To select a Mode, press Mode repeatedly until the required Mode splash screen is displayer. After a
brief moment the unit switches to that mode. The last station or track previously used in that m ode is
selected. If this is not possible, the unit scans for relevant stations, networks, or prompts the user for
appropriate input. See the relevant Mode section for details of how to use each listening mode.
3.1Menu Navigation
The primary control for moving through menus and options is the Select Control. Rotate the control
to move up or down a menu. Once the required option or value is highlighted press the Select
Control. All menus and lists act as loops such that turning the control to go beyond the first or last
entry in a menu or list takes you to the opposite end of the menu or list. So going up from the first
entry in a menu will take you to the last option in the menu, etc.
A scroll bar appears on the right of the screen if there are more options above or below those visible
To enter the menu tree in a particular mode press Menu. To move back a menu level press Back. To
exit the menu system, press Menu again.
Each mode has a Mode menu, with options specific to that mode.
For example, the FM mode menu has two mode specific options:
Scan setting and Audio setting.
In addition, each mode menu has two final options: System settings
and Main menu>. The >indicates options lead to further menus.
The System settings menu present system setting functions to
allow the user to setup how the unit behaves. This includes network,
time, language and software parameters.
The Main menu presents and alternative method for selecting
listening
Modes plus sleep and alarm functions.
Some menus, for example the System settings menu, have several
submenus.
A menu map for the various listening modes and the System Settings
and Main menu shown on the following page.

IR3000DAB / English Instruction Manual
Page 5
Men
u
Menu
Menu
Menu
Menu
Mode
Mode
Mode
My Favourites
Local Germany
Stations
Podcasts
My Added Stations
Help
<List of media libraries available on your network
<List of tracks added to your Playlist
<List of available radio stations>
<List of available radio ensembles>
DAB Menu
Station List >
Scan
Manual Tune >
Prune invalid
DRC >
Station order >
System Settings >
Main Menu >
DRC High
DRC Low
DRC Off
Alphanumeric
Ensemble
Valid
Internet Radio Menu
Last Listened
Station List >
System Settings
Main Menu
Music Player Menu
Shared Media >
My Playlist >
Repeat Play:Off
Shift Play:Off
Clear My Playlist
Prune Servers
System Settings
Main Menu
FM Menu
Scan Setting
Audio Settings
System Setting
Main Menu
Aux in Menu
System Settings
Main Menu
Menu
Menu

IR3000DAB / English Instruction Manual
Page 6
Figure 1 Mode Menu Structure
Figure 2 System Settings and Main Menu
3.2 Presets
In Internet Radio, DAB and FM modes, up to ten preset stations can be stored and recalled.
Presets are stored in the radio and cannot be accessed from other radios.
To store the current radio station as a preset, press and hold Preset until the display shows the Save
preset screen. Select one of the 10 presets to save the currently playing station.
To select a preset, press Preset briefly, then select one of the listed preset stations. When a preset
station is playing, its preset store number Pn(P1, P2 etc) is shown in the bottom of the screen.
System Settings
Equaliser﹥
Network﹥
Time/Date﹥
Language﹥
Factory Reset
Software Update
Setup Wizard
Info
Backlight﹥
Normal|Flat|Jazz|Rock|Movie|Classic|Pop|News|My EQ|My EQ profile setup
Network Menu
Network Wizard
SPBC Wlan Setup
View Settings
Wlan region
Manual settings
Network profile
Set Time/Date
Auto update
Set format
Language 1| Language 2| Language 3|etc
Timeout
On level
Dim level
Main Menu
Internet Radio
Music Player
DAB
FM
Aux in
Sleep
Alarms﹥
System Settings
Alarm Menu
Enable: Off| Daily| Once| Weekends| Weekdays
Time: hh:mm AM
Mode: Internet Radio| Music Player| DAB| FM| Aux In
Preset: Last listened
Volume: 0-32
Save
Info
Sleep
Alar
m

IR3000DAB / English Instruction Manual
Page 7
4.Settings
All the settings parameters for the unit are available on the Settings menu.
Note: Settings included in the Setup Wizard are indicated w “wizard”.
Settings menu options:
Equaliser
Network-wizard
Time/Date-wizard
Language
Factory Reset
Software update
Setup Wizard
Info
Backlight
4.1 Equaliser
Several preset EQ modes are available; also a
user defined setting(My EQ)
To choose an EQ setting, select Menu > System
Settings> Equaliser.
You can then choose from a variety of preset modes
My EQ.
The last option (My EQ profile setup) allows you to define
your own settings for the “My EQ” option, with custom
bass and treble settings.
4.2 Network
Network Wizard-wizard
WPS Setup
View Settings
Wlan region-wizard
Manual Settings
Network profile
This unit is compatible with all common network protocols and encryption methods, including WiFi
Protected Setup (WPS).
To connect this unit to your network, you need one of the following:

IR3000DAB / English Instruction Manual
Page 8
A wired router and an Ethernet (RJ45 network) cable.
A WiFi wireless router, together with passphrase key if set.
To select a network use either the Network wizard or Manual settings.
4.2.1 Network Wizard
This guides you through the necessary steps to join a network. This is also automatically run as part
of the Setup wizard. The screens and options presented will depend on the type of network and
network protection used.
Selecting a network
When the Network wizard is chosen this unit automatically scans for available wireless networks and
presents a list of SSID's (Service Set Identifier for the networks. Those options starting with WPS in
brackets indicates encrypted networks offering WiFi Protected Setup (WPS) options, for further
details ee under section 4.2.2 PBC Setup (WiFi Protected Setup).
This unit remembers login details for the last four wireless network it has connected to and will
automatically connect to them when they are available. If connection to a network is temporarily lost,
the unit will automatically reconnect.
WiFi network (SSID), select a network from the list.
To connect to a wired network, select [Wired], after ensuring
that the Ethernet cable from the wired router is connected to
the Ethernet socket of the unit.
Open Network
If the network is open (non-encrypted), the unit connects and no further details are require ; see
Completion below..
Standard encrypted network
If the wireless network is protected the next screen presents options to enter the network key or
passphrase.
Note: The default passphrase for most wireless s routers is printed on a label on the router..
To enter the network's key (passphrase), use the
Select control to highlight the next relevant
character and press to select each character in turn
As each character is selected, the key is built up and
displayed in the field at the top of the display.
The three options -Backspace OK and Cancel are
included in the selection loop. These can be
accessed just using the Select control, or a short
cut is available pressing the Info key, which moves
the selection highlight to the BackSpace option.

IR3000DAB / English Instruction Manual
Page 9
On Completion
The unit connects to the selected network.
If connecting fails, the unit returns to a previous screen to
try again. To exit the process use the Back/Menu button
If the network connection is lost, the unit automatically
reconnects.
4.2.2 PBC Setup (WiFi Protected Setup)
WPS encrypted networks are identified by 'WPS' at
the start of the network name, and have two methods
of connection. Select one and follow the prompts
When using the network wizard an additional option
to Skip WPS is available.
Push Button
The unit prompts you to press the connect button
on the router and then press the select control
Pin> (code number) this unit generates at an 8-digit
code number which you enter into the wireless
router.
Skip WPS>
Enter key as for a standard encrypted network, above.
The unit connects to the network; see 'On completion above.
For more information on setting up a WPS encrypted network,
see your WPS router's instructions.

IR3000DAB / English Instruction Manual
Page 10
4.2.3 View Settings
Displays the settings details for the current network setup, including:
Active connections
MAC Address
Wlan region
DHCP
SSID
IP Address
Subnet mask
Gateway address
Primary DNS
Secondary DNS
4.2.4 Wlan region
Presents a list of regions to configure the appropriate wlan behavior of the unit Select the appropriate
region for the location in which the unit will be used.
4.2.5 Manual Settings
There are also other options for viewing and manually altering network settings from Menu > System
settings> Network >(for example setting up a wired network).
Users experienced with networking may find these options useful for diagnosing and fixing network
problems.
Wired/Wireless
DHCP enabled/disabled
SSIP
Authentication
Encryption type
Passphrase/key
4.2.6 Network profile
This displays a list of the networks remembered by the unit (up to a maximum of 4). You can see the
list of registered networks through Menu> System settings> Network > Network profile>From
here you can delete unwanted networks by turning and pressing Select then confirming delete Yes.
4.2.7 Keep Network connected
This function helps to keep active the WiFi connection, once the device will be switched into Standby,
so that the Internet connecting going quicker after reboot. You can choose to activate or deactivate
this function from Menu> System settings> Network >Keep network connected ? YES or NO
Default setting is being in YES.
4.3. Time/Date
Set Time/Date
Auto Update
Set Format

IR3000DAB / English Instruction Manual
Page 11
4.3.1 Set Time/Date (wizard)
The date and time are displayed as dd-mm-yyyy and
hh:mm AM/PM with the first value, dd, active (flashing).
Adjust each value with the Select control. As each
value is set by pressing the Select control, the next
value becomes active ready for adjustment
4.3.2 Auto update (from DAB, FM or Network) (wizard)
Auto-update works with data sent over DAB, FM or the Internet.
The clock is only updated when in a corresponding mode, so
It is best to select a mode you use regularly.
DAB and FM use time signals broadcast with radio
transmissions.
Network uses a time signal sent from the Frontier Silicon Internet radio portal when in any network
connected mode.
1. Select Update from DAB, Update from FM, Update from Network or No update.
2. If you are updating from the network, set your time zone.
3. If your country uses daylight saving, the automatically updated time from the network may
be wrong by one hour. When daylight savings are in effect (during the winter), turn on the
Daylight savings option to rectify this.
Note that if you are updating the time from DAB or FM, the Daylight savings option has no effect on
the clock's time.
The unit will auto update from the selected source when time information is available.
4.3.3 Set Format (wizard)
Allows you to change between 12 and 24 hour display,
Set Time/Date
05-02-2013
1:15 PM

IR3000DAB / English Instruction Manual
Page 12
4.5. Language
The default language is English. To change, select Menu > System settings > Language >then
select your language.
List of Language
No.
Language
No.
Language
No.
Language
No.
Language
No.
Language
1
English
4
Finish
7
Italian
10
Spanish
13
Turkish
2
Danish
5
French
8
Norwegian
11
Portuguese
3
Dutch
6
German
9
Polish
12
Swedish
4.6 Factory Reset
A factory reset resets all user settings to default values, so time/date, network configuration and
presets are lost. However, the radio's current software version is maintained, as is registration with
the Internet radio portal. Internet radio favorites therefore remain unless you re-register your radio
with another account on the portal website.
To perform a factory reset, select Menu > System settings> Factory reset Proceed> Yes,
4.7 Software update
From time to time, Frontier Silicon may make software upgrades available with bug fixes and/or
additional features. You can either check manually, or set the unit to check periodically automatically
(this is the default). If the unit detects that newer software is available, it asks if you want to go ahead
with an update. If you agree, the new software is then downloaded and installed. After a software
upgrade, all user settings are maintained.
CAUTION: Before starting a software upgrade, ensure that the unit is plugged into
a stable mains power connection. Disconnecting power during a software
update may permanently damage the unit.
To turn automatic checking on or off, select Menu > System settings> Software update> Auto
check setting.
4.8 Setup Wizard
This allows you to run the Setup wizard at any time. Guides you through the essential settings in the
following order:
1. Date/Time -Set format
2. Auto update-select clock update source or No Update.
3. Set Time/Date (this step is only needed if the ‘No Update' option is selected in Auto update).
4. Network wizard automatically runs (see section 4.2.1 Network Wizard).
Once you are connected to a network the wizard is completed.

IR3000DAB / English Instruction Manual
Page 13
4.9 Info
Shows details of the current system including:
SW Version: Software version number
Radio ID: Unique code used to identify this particular radio device.
Friendly name: (name by which the radio is identified on a network.
4.10 Backlight
The unit display can be set to dim, when in Standby, after a Timeout period. This option allows you to
set the timeout period and the brightness settings before (On level) and after (Dim level) the timeout
period..
For the On level High, Medium and Low, plus an Auto setting are available.
For the Dim level, Medium, Low and Off, plus an Auto setting are available.
5.Internet radio mode
The unit can play thousands of radio stations and podcasts from around the world though a
broadband Internet connection.
When you select Internet radio mode, the unit contacts Internet radio portal to get a list of stations,
organised into different categories like Country Most popular and Genre Once you select a station,
the unit connects directly to that station.

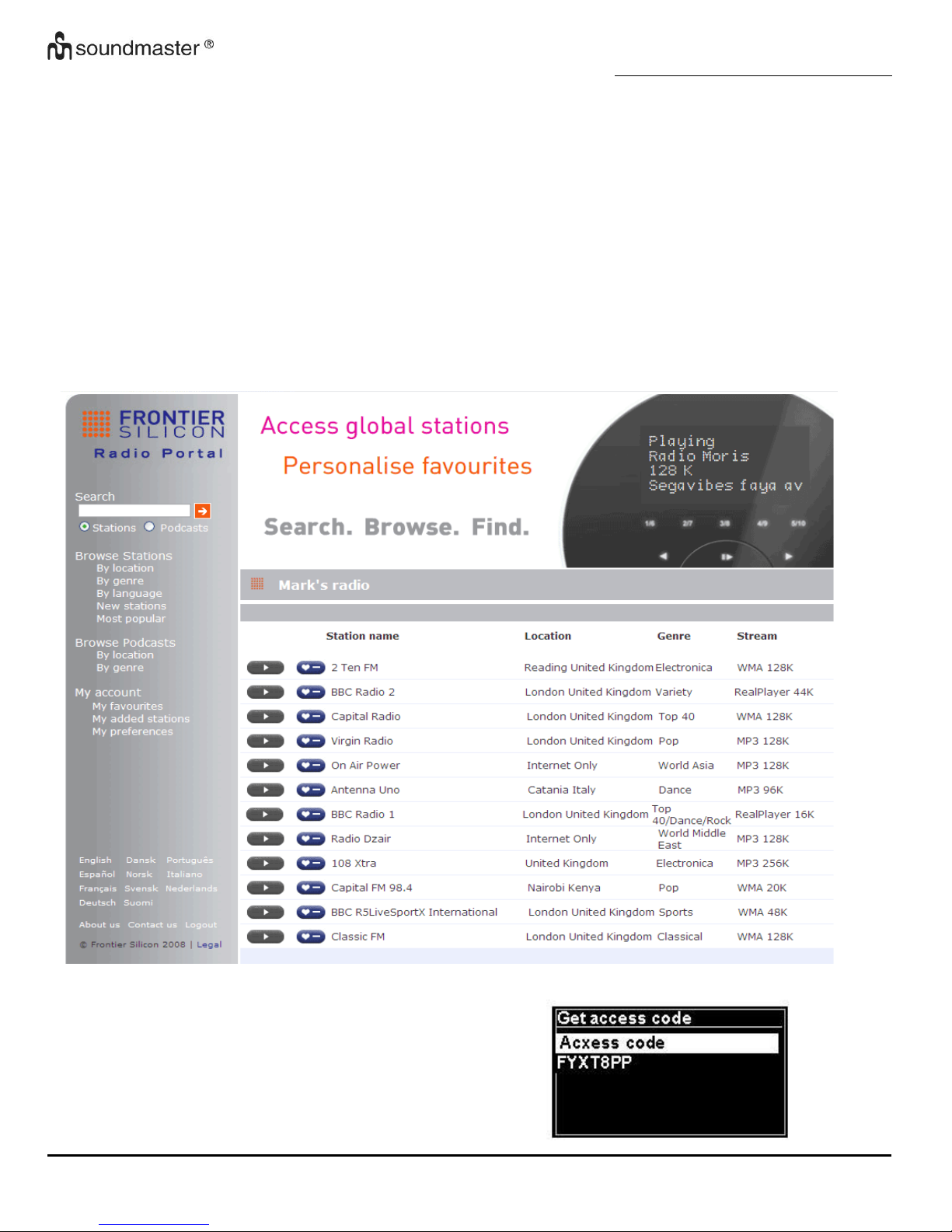

The portal also enables multiple lists of favorite station that you can personalise, for example Andy’s
stations Jo's favourites Talkshows . To use the favorites feature, register your radio with the portal
website as described in Section 5.7 Internet radio portal registration. If you have several Frontier
Silicon radios, you can register them all on the same account so that each radio has access to your
favorites lists. It is possible to add favourites either directly through the unit or through any computer
with a web browser.
To enter Internet Radio mode, either press Mode until the display shows Internet Radio or select
Menu> Main menu >Internet Radio.
Note: The station list menu is provided from the Internet radio portal, so it is only accessible when the
unit is connected to the Inter net. Station lists and submenus may change from time to time.

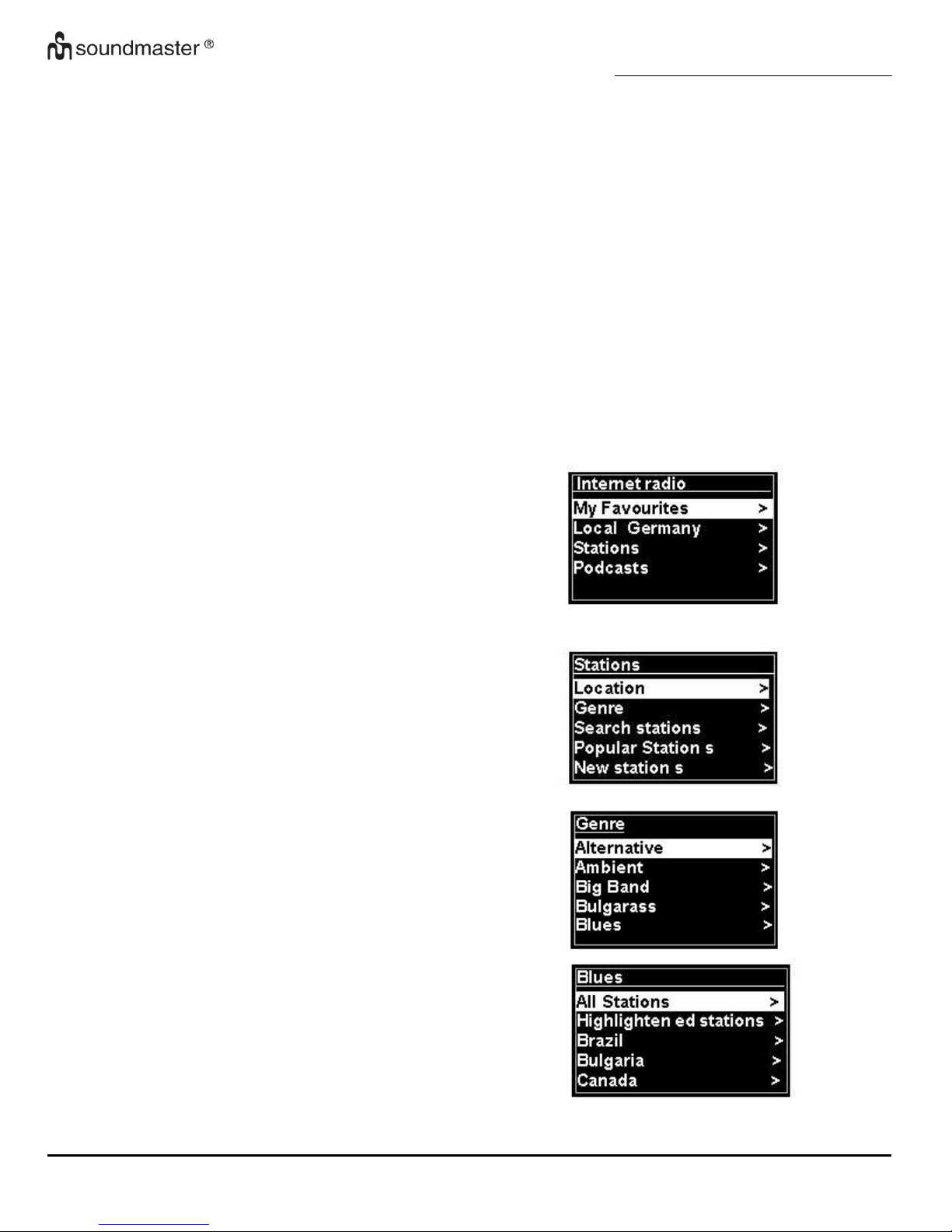

There are several ways of selecting stations.
Directly from the radio:
Last listened
Presets
From the portal through the Menu > Station list >menu:
Location-find a radio station based on its location in the world.
Genre-Search for stations broadcasting the type of music you like.
Search Stations -Search for a station name.
Popular Stations -lists the most popular, listened to stations on the internet.
New stations-lists the lastest stations broadcasting.

IR3000DAB / English Instruction Manual
Page 14
5.1 Last listened
When Internet radio mode restarts, the last-listened station is selected. To select another recently
used station, select Menu > Last listened then one of the stations listed. Most recent stations
appear at the top of the list.
5.2 Favourites
Favourites are stored on the Internet radio portal. Before you set up an account on the portal from its
Web interface (www.wifiradio-frontier.com), the favourites are associated solely with the radio on
which you set them. After you set up a portal account, all the favourites from your different radios are
merged into a combined favourites list .This combined list is available to all the radios on your
account.
To store a playing station as a favourite, press and hold Select until the display shows 'Favourite
added’. The station appears in the default favourites list Stations.
To select a favourite, select Menu >Station list > My favourites > [Favourites list]> > [Station].
5.3. Browse
To browse Internet broadcasts, select Menu > Station
list >Browse through the menus to find appropriate
broadcasts. For example: Select Stations:
And the Stations menu is displayed, select Genre:
To see the Genre menu, Select Blues:
And the Blues menu allows you to select a station
from a complete list or from specific countries.
Choose a radio station from the list to tune to that station.

IR3000DAB / English Instruction Manual
Page 15
5.4 Search
You can also search through Internet broadcasts for
stations or podcasts with particular keywords in their title.
To search, select Menu > Station list>then either
Search Stations >
Enter a keyword by selecting characters then OK
The search entry screens are similar in operation to
the Wi-Fi passphrase entry screen.
Select a broadcast from the list.
For podcasts, you may be able to select a particular
episode.
5.5 My added stations
Even though the Internet radio portal contains thousands of stations, you may want to listen to
stations not listed. You can add your own stations via the portal. These added stations are accessible
from unit by selecting Menu> Station list >
5.6 Now playing information
While the stream is playing, the screen shows its name and description. If artist and track information
is available, this is also shown. To view further information, press Info.

IR3000DAB / English Instruction Manual
Page 16
Each time you press Info, another set of information is displayed, cycling through the following
details:
Artist and track name (default; where available)
Station description
Station genre and location
Signal reliability
Codec and sampling rate
Playback buffer
Today's date
5.7 Internet radio portal registration
The Frontier Silicon Internet radio portal website allows you to organise your favourites lists and also
listen to Internet radio on a computer.

IR3000DAB / English Instruction Manual
Page 17
To register your unit with the portal, switch to
Internet radio mode as described in Section , and then
obtain your radio's unique portal access code by
selecting Menu >Station list > Help > Get access
code>Write down the access code.
Note:The displayed access code is only valid for a few minutes. If you fail to register your radio within
the time window you will need to repeat the above step to get a new access code and try again.
Do not confuse the portal access code with the Radio ID (from )
Visit the portal website at www.wifiradio-frontier.com.
If this is your first visit to the portal, register for a new account, entering the following information:
access code,
your e-mail address,
passphrase
radio model (RD1363DAB).
If you already have an account and wish to add an additional radio, log in to your account and select
My preferences>Add another Wi-Fi radio.
Once your radio is registered with the portal, you can immediately use the Internet radio favourites
and added stations features.
6.Music player mode(Network)
Music player mode plays audio files such as MP3s,AACs, WMAs or FLACs from a computer on the
local network, or a hard drive.
To enter Music player mode, either press Mode until the display shows Music player or select Menu
>Main menu >Music player.
Once in music player mode, press Menu, then
select Shared media.
If you are already playing a music file, you can press Back rather than Menu to quickly return to the
last visited branch of the menu tree. For example, listening to the track 1of an album through
browsing shared media as described in section 6.1 below.
Pressing Back would return you to the track listing for the album.
Pressing Back again would list all available albums by the same artist.
Pressing Back again would list all album artists , and so on.

IR3000DAB / English Instruction Manual
Page 18
6.1 Shared media
Select Menu > Shared media
If you have set up shared media (see section 6.5 Setting up a music server for details), You should
see an entry consisting of <computer name>\<Shared media name>, for example JB-Laptop:
Audio . If you have more than one computer sharing media, the alternatives are listed Select the
shared media you want to play.
From this point on, the menus are generated from
the shared media server (typically Windows Media
Player). The first menu shows a list of media types,
for example Music , Video, Pictures and Playlists
The unit can only play music and playlists.
There is also a search function, which finds tracks in a
similar way to Internet radio search, as described on
page 13
In the Music menu there are numerous options for
selecting tracks .Select one of the options to find
the music you want to listen to.
Once you have found a track you want to play, press Select A short press plays the track
immediately and a long press adds the track to “My Playlist” .. You can also add entire albums to “My
Playlist” .
Playlists you have created on your shared media server can be accessed and played via the Playlists
option in the Shared media menu.
