Soundstream VRCP-65 Administrator Guide

Page 1 of 37
Operation Instruction Manual VRCP-65


OperationInstructionManual
VRCP‐65




Page 2 of 37
Operation Instruction Manual VRCP-65
Content
1. Appearance‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐3
2. WiringConnection‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐4
3. Frontpaneldescription‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐5
4. MainMenu‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐6
5. Settings‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐7
6. AppleCarPlay‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐13
7. Radio‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐14
8. SiriusXM®Operation‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐15
9. DISC‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐21
10.USB‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐24
11.BTAudio‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐26
12.BTPhone‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐28
13.AuxIN‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐31
14.RearCamera‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐32
15.E‐Link‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐33
16.RemoteControl‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐34
17.Specification‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐36


Sirius,XMandallmarksandlogosaretrademarksofSiriusXMRadioInc.Allrightsreserved.

Page 3 of 37
Operation Instruction Manual VRCP-65

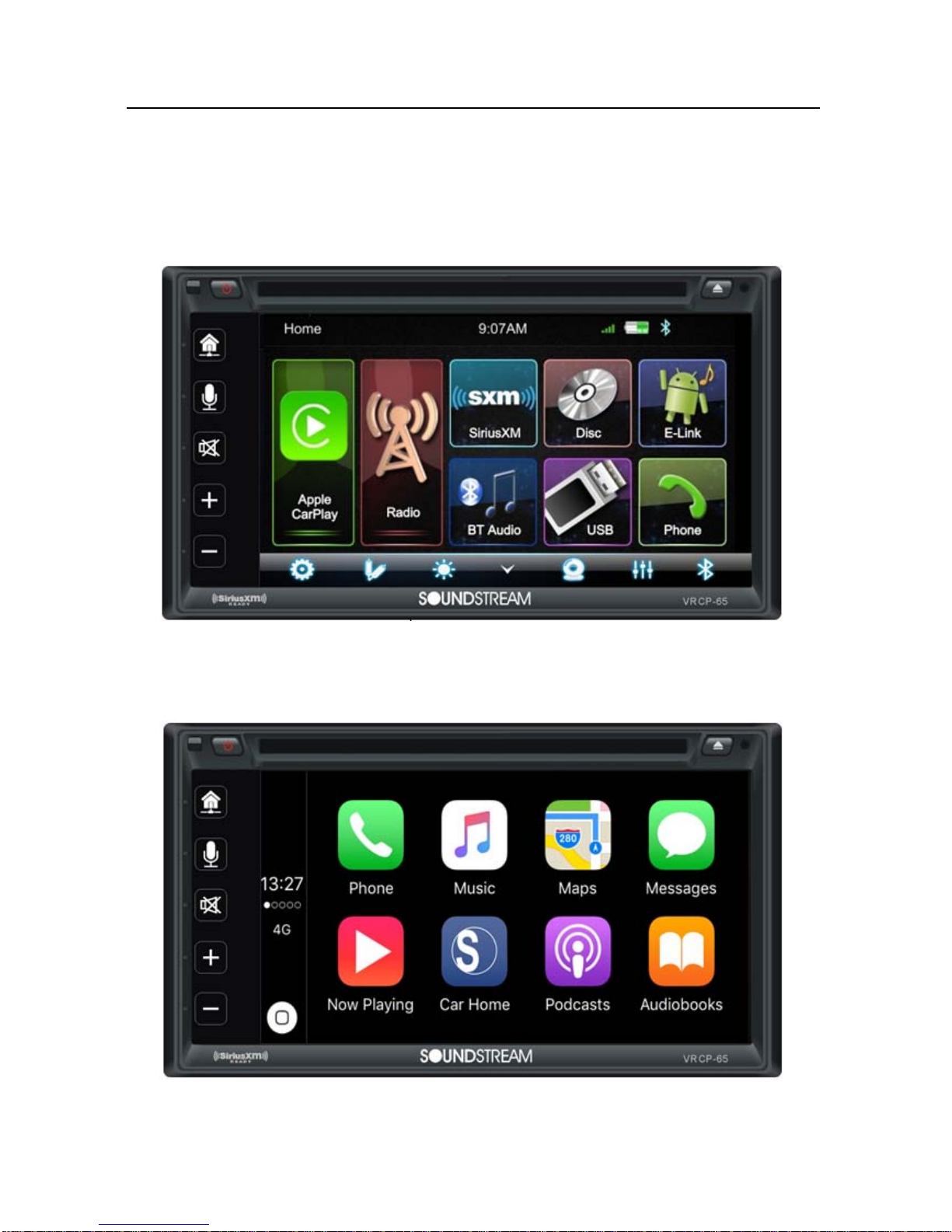

1. Appearance

MainMenu




CarPlayMenu




Page 4 of 37
Operation Instruction Manual VRCP-65
2. WIRINGCONNECTION






Page 5 of 37
Operation Instruction Manual VRCP-65

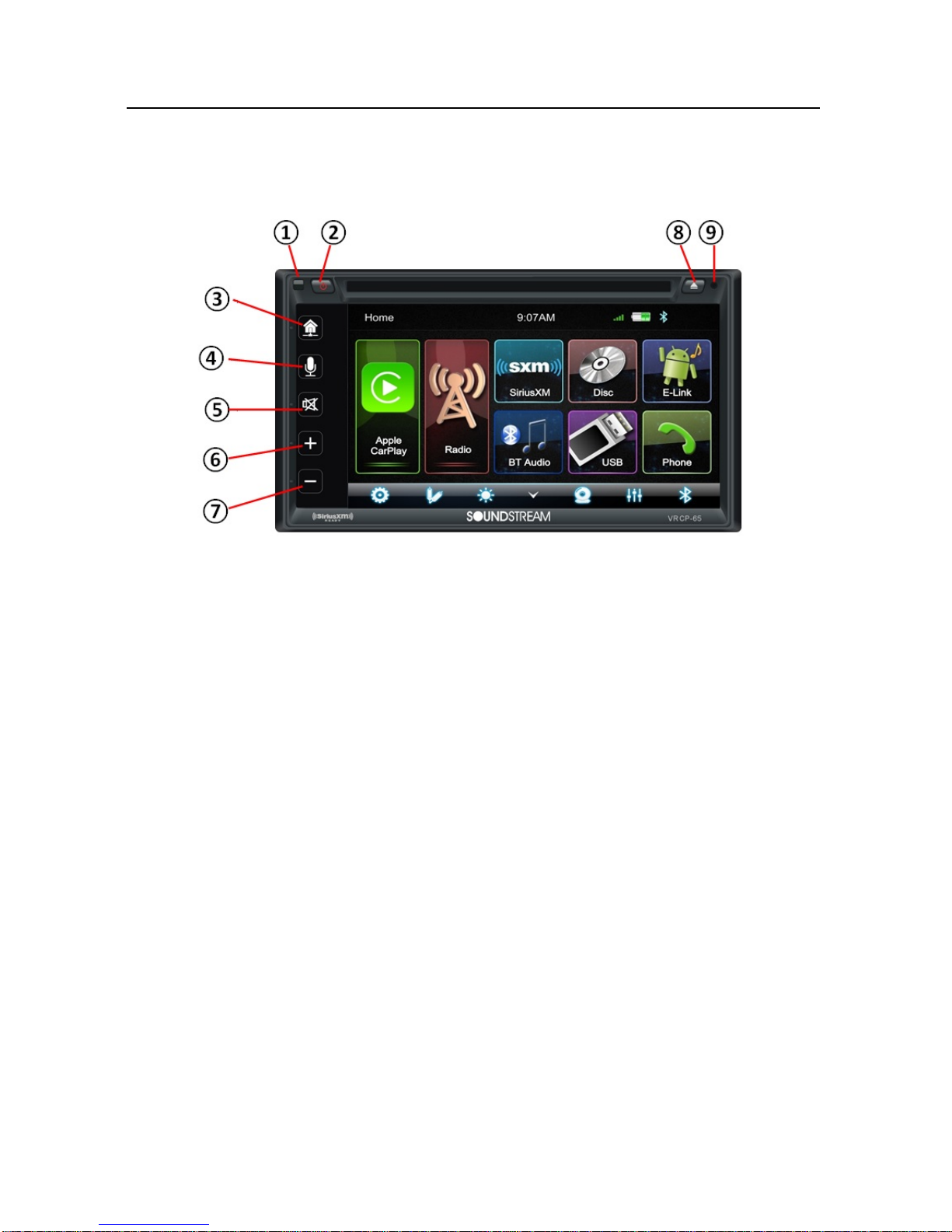

3. FRONTPANELDescription




①IRSENSOR
IRRemotecontrolsignalreceivingwindows.Maxdistanceis6‐8meters,in45degree.
②POWER
TurnPoweronoroff.DuringpowerOFF,pressPowerbuttontoturnONtheHeadunit.
DuringtheunitisON,longpresspowerbuttontoturnOFFtheHeadunit
③Home
Inanymode,touchtheHomebuttontoentertotheMainMenu.
④SIRI
InCarPlaymode,touchtheSIRIbuttontostarttheAppleSIRIfunction.
⑤MUTE
TotoggleMuteandunmute
⑥VOL+
IncrementtheVolumelevel(0~50).
⑦VOL‐
DecrementtheVolumelevel(50~0).
⑧EJECT
Insertorejectthedisc.
⑨RESET
ToresettheHeadunitforanyreason,useaballpenorpintopresstheRESETbutton.
Afterresettheheadunit,theheadunitwillberestart,allparameterandsettingwillbekept
asperviousstatus


Page 6 of 37
Operation Instruction Manual VRCP-65
4. MAINMENU
VRCP‐65isaTwoDinCarAudiowiththefollowingfunctions:
AppleCarPlay,Radio,SiriusXM®,BluetoothAudio,Disc(DVD),USB,E‐link(Android5.0orabove
smartphone)andPhone
TheMODEiconingreymeanthecorrespondingfunctionisnotreadyorproperdevicehavenot
beenconnected.
Touc hthecorrespondingMODEicontoenterplayingmode.







Hiddensoftbuttonbar
Ahiddenpopupsoftbuttonbarislocatedatthebottom.Touchtheicontoshownthesoft
buttonbar.Touchthetohidden.

Popupthesoftbuttonbar
Hiddenthepopupsoftbuttonbar
Setup,toentertheSettingsMenu
AUXIN,toentertheAUXandA/VINinterface
Dimming,tochangeDaylightorNight(IflightingdetectisOFFinDisplaySetting)
RearCamera,toenterthecamerasettingmode
EQSetting,toentertheAudioEQsettingmenu
Bluetoothpairing

Page 7 of 37
Operation Instruction Manual VRCP-65

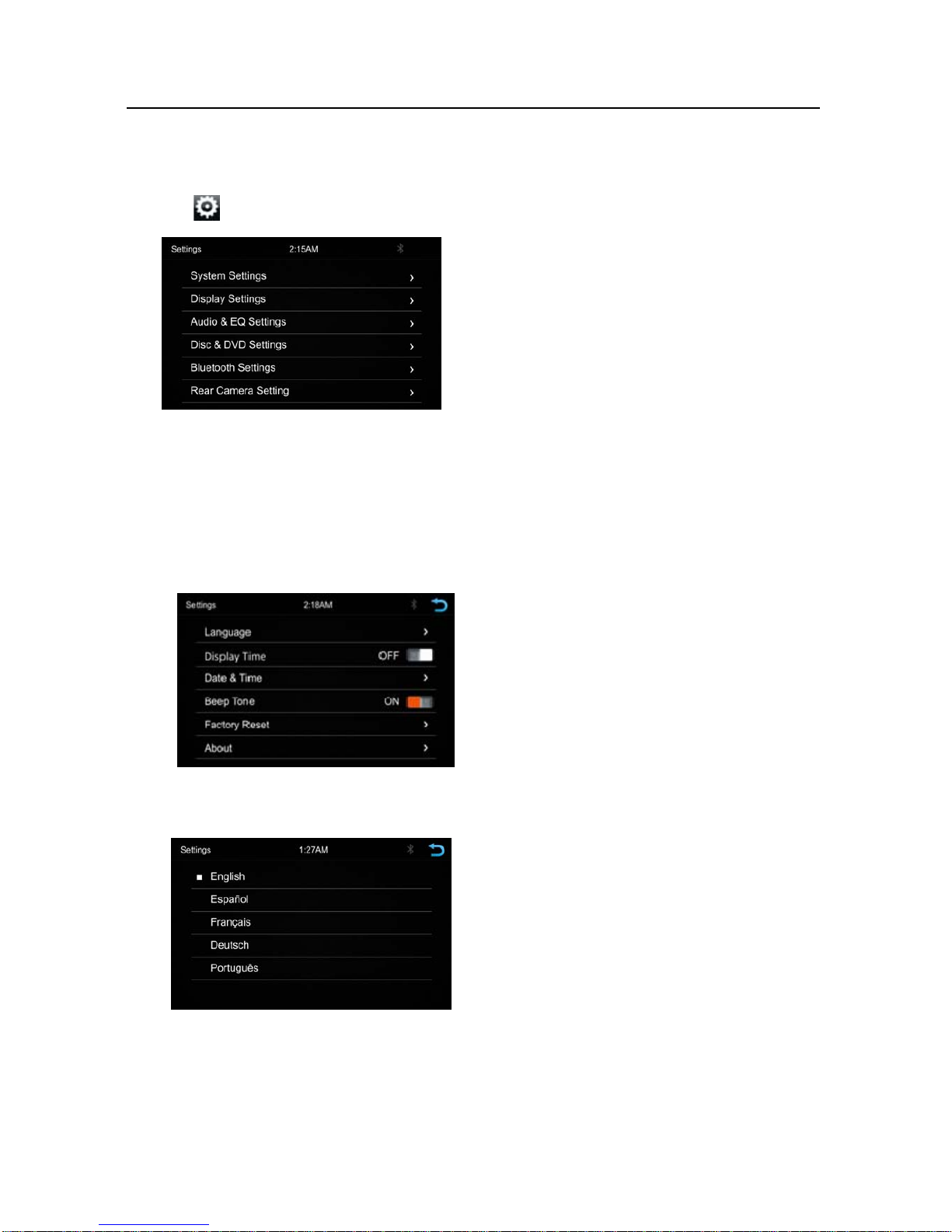

5. Settings
Touc htheicontoentertheSetupmenu.







TheSetupmenuisincludedSystemSettings,DisplaySettings,Audio&EQSettings,Disc&DVD
Settings,BluetoothSettingsandRearCameraSettings

SystemSettings
TheSystemSettingsallowtheusertosetuptheLanguage,DisplayTime,Date&Time,BeepTone,
FactoryResetandAbout


Language







DisplayTime:ON/OFF
‐Toselectdisplayfullformatdatetime



Page 8 of 37
Operation Instruction Manual VRCP-65
Date&Time:
‐TosettingTimedisplayformat(12Hor24H),settingthedateandtime
 

BeepTone:On/Off
‐TosetthetouchbuttonbeeptuneOnorOff

FactoryReset
‐Toresetthedefaultfactorysetting.
 

About
‐TodisplaytheUnitHardwareandFirmwareversion


Page 9 of 37
Operation Instruction Manual VRCP-65
DisplaySettings
BelowistheDisplaysettingmenu,usercanselectLightingDetect,DaylightDimmingLevel,Night
DimmingLevel,IlluminationandWallpaper.





LightingDetect:On/Off
DaylightDimmingLevel:0–8
NightDimmingLevel:‐8–0
Illumination:Red/Yellow/Blue/Green/White








Wallpaper
UsercanselectthepresetwallpaperorselectthepictureinUSBdriverasthewallpaper.







Touc hthecorrespondingpicturetoselectthepreferbackground.
Touc h“+“,theheadunitwillsearchtheUSBphotofileforwallpaper.
SelectapictureandtouchOKtoaddthewallpaper

Page 10 of 37
Operation Instruction Manual VRCP-65

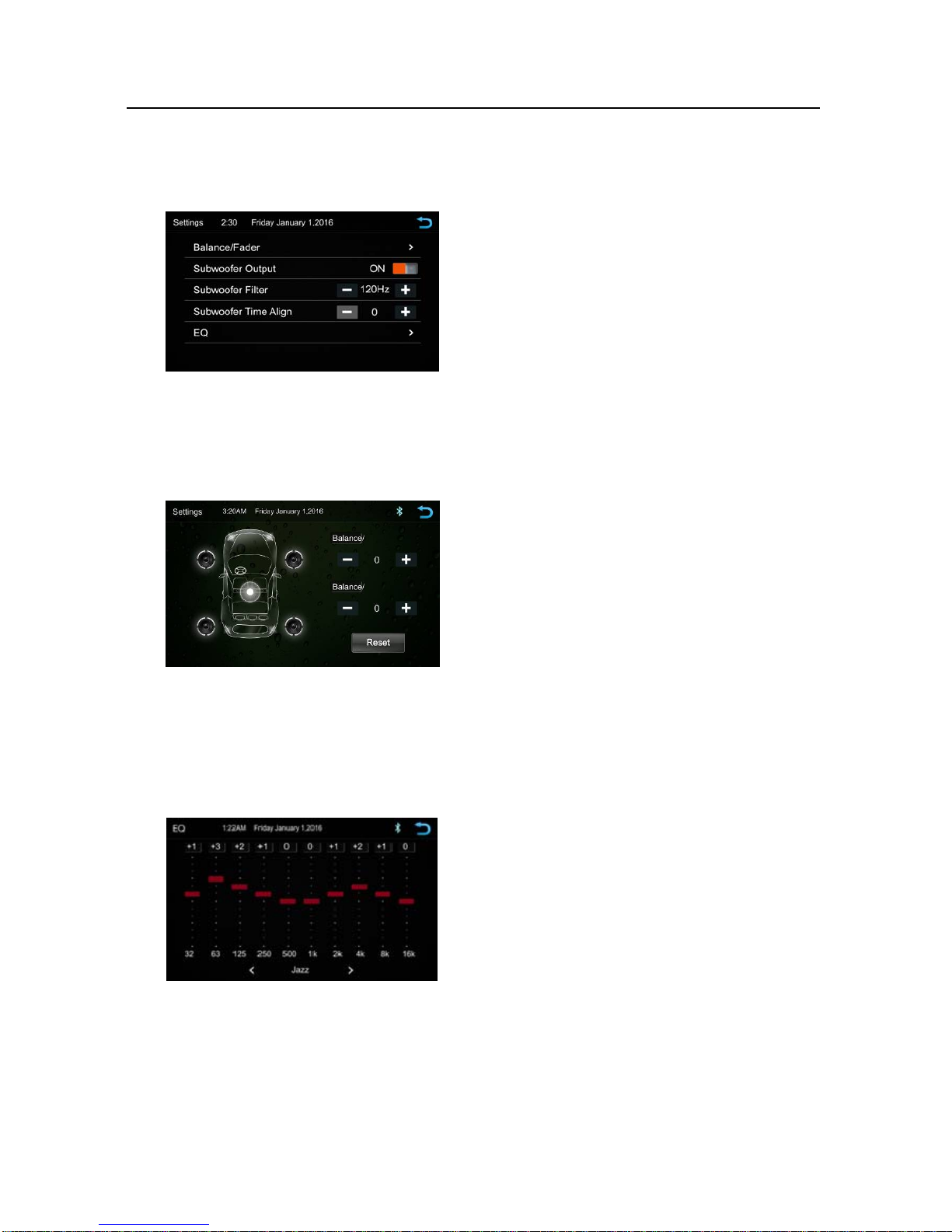

Audio&EQSettings
BelowshownistheAudioSettingMenu





 
Balance/Fader:
Touc hthe+or–ofBalance/Fadetotuneforthedriverandpassengerpreference.
ThevalueofBalance(Left15–Right15)andFade(Front15–Rear15)
Touc hResettosetbothBalanceandFadetozero








˙SubwooferOutput On/Off
˙SubwooferFilterOFF/50Hz/80Hz/120Hz/160Hz
˙SubwooferTimeAlign0–18ms
˙10‐BandEqualizer 10bandofEQtuning,slidetheEQbartotuneeachbandfrequency
levelaccordingtouserpreference.Touc hResettosetallBandto0.



Orusercantouch<or>atthebottomtoselectthefollowingpresetEQ:
OFF/Custom/Jazz/Hip‐Hop/Pop/Rock/R&B




Page 11 of 37
Operation Instruction Manual VRCP-65

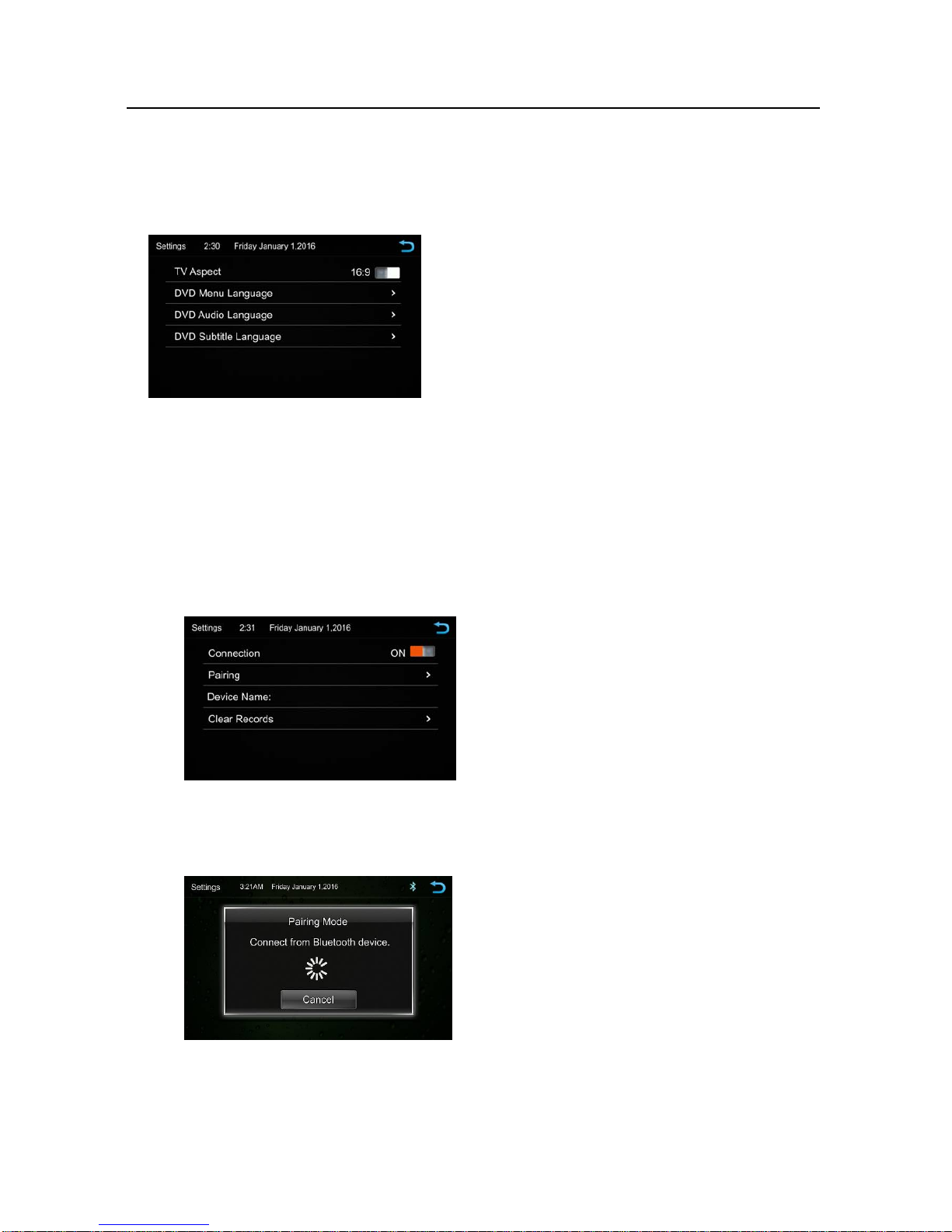

Disc&DVDSettings

Touc htheDisc/DVDSettingsfromthemenutoentertheDisc/DVDsettinginterface.








TVAspectSelectbetween16:9and4:3aspectratio
DVDMenuLanguage:
DVDAudioLanguage:
DVDSubtitleLanguage:

BluetoothSettings
Touc htheBluetoothSettingsfromthesettingmenuwillbeshownbelow







Connection:On/Off(SelectBluetoothconnectiononoroff)
Pairing>(Tostartthepairing)









DeviceName:showntheconnectedphoneordevice
ClearRecords(Toclearthedevicelistrecords)



Page 12 of 37
Operation Instruction Manual VRCP-65
RearCameraSetting

Touc hRearViewCameraintheSettingMenutoenterrearcamerasettinginterfaceasfollow:






RearCameraInput:On/Off
RearCameraView:Normal/Reverse
ParkingAssistGuide:On/Off
ParkingAssistGuideAdjustment
Touc h>toenterParkingAssistGuideAdjustmentinterfacetoshowthebelowscreen


SelecttheadjustpositionandTouch ˂/˃/˄/˅toadjust.
Touc hResettoresumethedefaultParkingAssistLine


Page 13 of 37
Operation Instruction Manual VRCP-65
6. AppleCarPlay
PlugtheiPhone(iPhone5orlattermodels,andiOS7.1orabove)throughthelighteningcableto
theUSBportoftheHeadunit.TheiPhonewillbeshownthe“CarPlay”.TheHeadunitwillenterthe
CarPlayinterface,theAPPthatsupporttheCarPlayfeaturewillbedisplayedontheHeadUnitas
shownbelow.TouchthecorrespondingAPPcanoperationtheoperation,touchthe buttonto
gobacktotheCarPlayinterface.








SIRI
InCarPlaymode,usercantalktoSIRItocontroltheCarPlayfunction.Pressbuttontostartthe
SIRIfunction,ortouchthebuttonfor2secondortheHOMEbuttonofiPhoneintheCarPlay
HomescreentotalktoSIRIforplayingmusic,GPS……
Notice:FortheSIRIfunctionintheHeadunit,theMicrophonehastobeenconnected.
InCarPlaymodel,touchbuttonorMainmenuicontoentertheHeadunitmainmenu


Page 14 of 37
Operation Instruction Manual VRCP-65

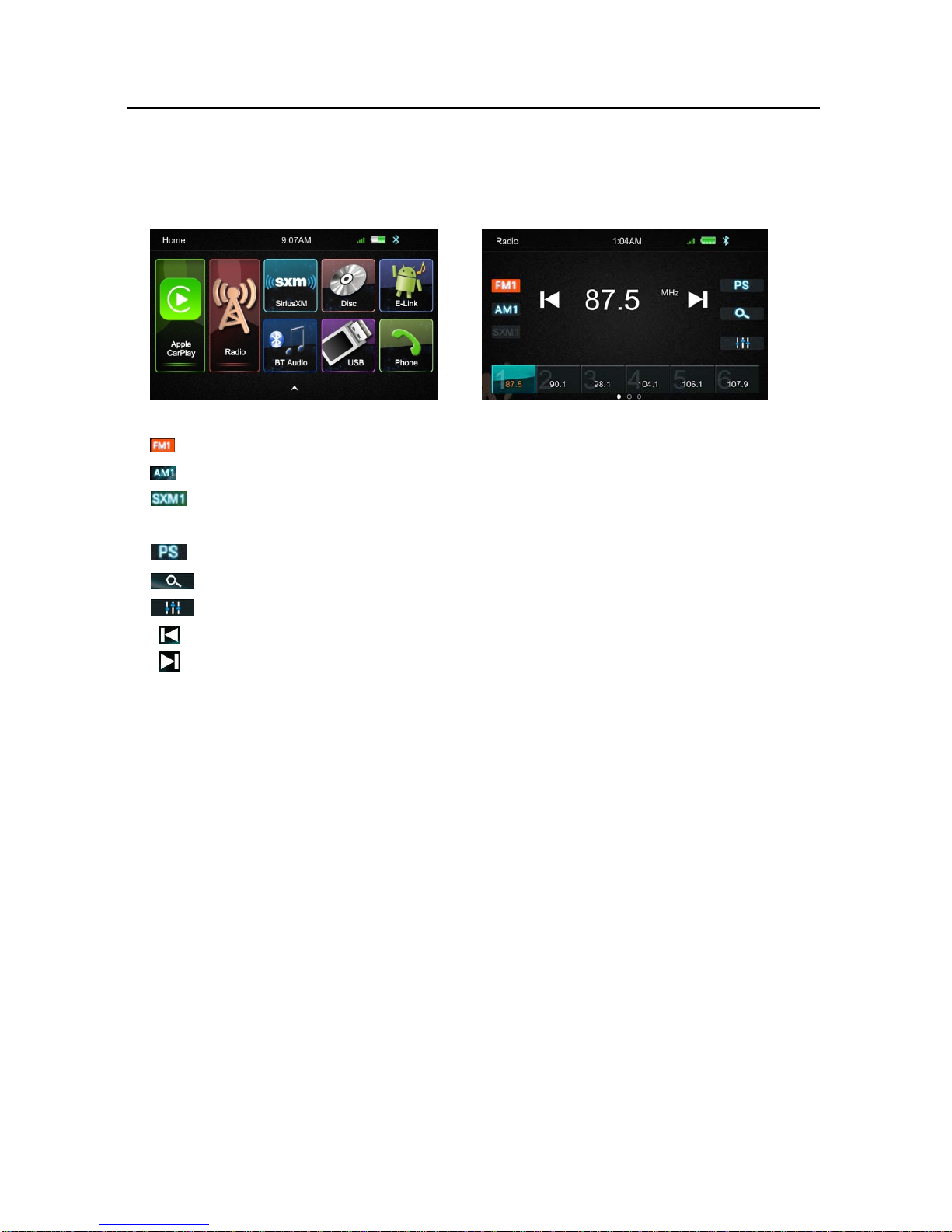

7. RadioMode
Touc htheRadiomodeicontoenterRadiomode








Touc hFMcanchangebetweenFM1=>FM2=>FM3
Touc hAMcanchangebetweenAM1=>AM2
Touc hSiriusXMtoenterSiriusXMMode, ifaSiriusXMtunerisconnectedwiththeunit.
*Note - ASiriusXMConnectVehicleTunerandSubscriptionarerequiredandsoldseparatly.
Touc hforPrescansearch,eachscannedstationwillbeplayfor3sec,touchagaintostop.
Touc hitfortheAutoScansearching.
Touc hittoenterEQsetting
ShorttouchforTune‐,longtouchforSeek‐.
ShorttouchforTune+,longtouchforSeek+.

Presetchannel,Sixpresetbuttonsstoreandrecallstationsforeachband.Touchandslidethepreset
channelcanswitchtonextbandFM1/FM2/FM3orAM1/AM2
SlidethefrequencytoSeek+/‐tonextstation

StoreaStation
1. Tuneradiotodesiredstation.
2. Touc handholdtheoneofthepresetchannelbuttonformorethan3seconds,thenthe
presetbuttonswillbehighlightedonthescreen,andthepresetstationwillbestore.


Page 15 of 37
Operation Instruction Manual VRCP-65

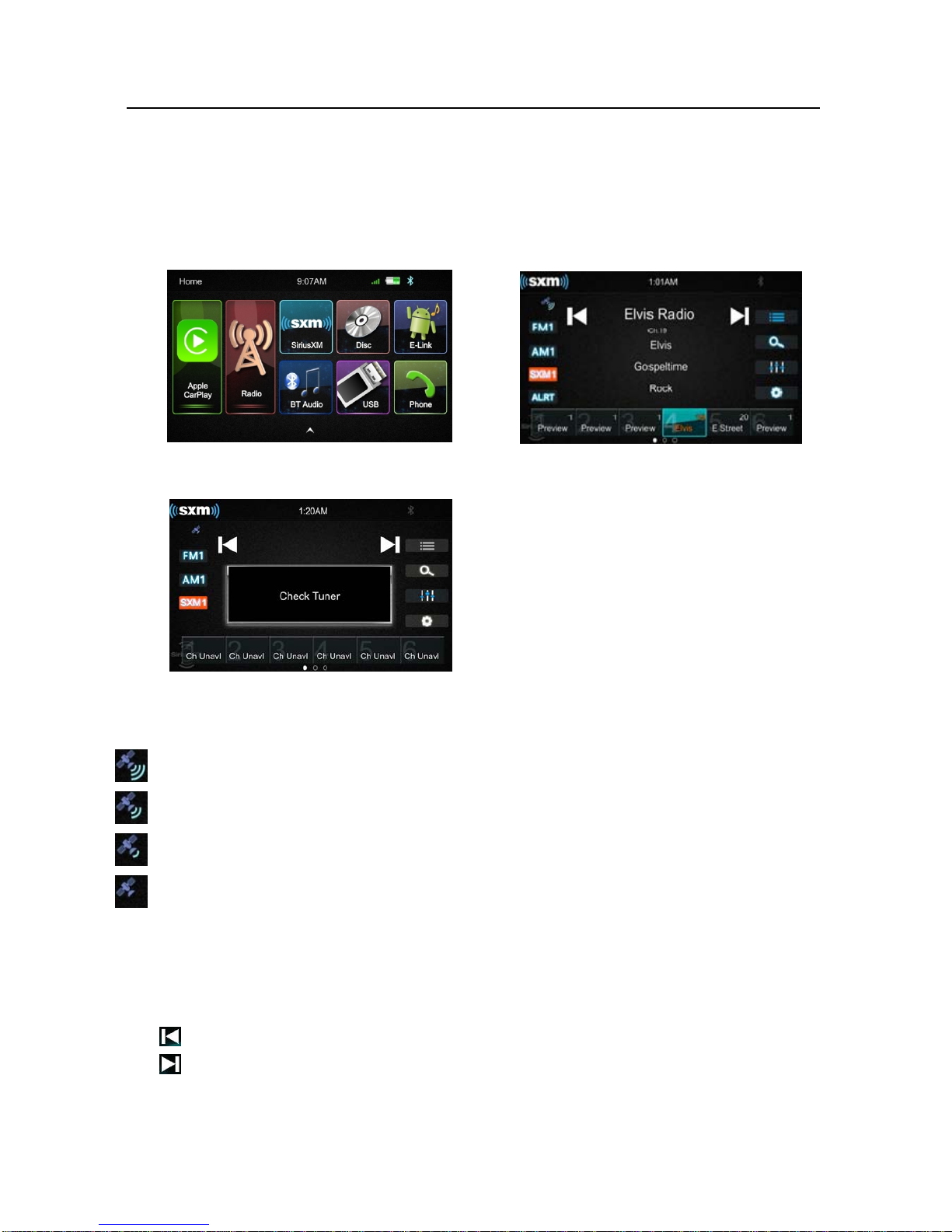

8. SiriusXMOperation
VRCP‐65isSiriusXMSatelliteRadioReady,tooperationthisfunction,connectanoptionalSiriusXM
ConnectVehicleTuner.
ToenterSiriusXMMode,touchtheSXMiconontheMainMenu.

Ifthescreenisshown“CheckTuner”asbelow,checktheSiriusXMtunerconnection.







SignalStrength
TheTopLeftcornerofthescreenisshowingtheSignalStrengthoftheSiriusXMsatellite
SiriusXMSignalisExcellent
SiriusXMSignalisGood
SiriusXMSignalisWeak
NoSiriusXMSignal

InSiriusXMmode,SiriusXMiconishighlighted.
Touc hFM1togotoFMradio
Touc hAM1togotoAMradio
Presstogotothenextchannel
Presstogototheperviouschannel
PresetStationsisshownatthebottom,sixpresetbuttonsstoreandrecallstationsforeachband.

Page 16 of 37
Operation Instruction Manual VRCP-65

Thefollowingfunctionsarealsosupported
Browsefunction
FavoriteAlerts,Touchtolistthefavoritechanneltodirectselectthechannel
DirectTunefunction
EQSettingfunction
SiriusXMSettingMenu

ArtistandSongAltert
WhilelisteningtoSiriusXMSatelliteRadio,usercanmarkArtistsand/orSongsforwhichyouwishto
bealerted.TheradiowilldisplayanAlertmessagewhenamatchingartistorsongisfoundon
anotherchannel.Thenusercanchooseifyouwanttotunetothatfavoriteorusercanignorethe
alertandstayonyourcurrentchannel.
Tostoreanartistorsongtitle,touchonthe"artist"or"Song"metadataonthedisplay.Userwill
thenbepromptedtosetthealertfortheArtistortheSongTitle.
Userwillbealertedwhenoneofyourstoredartistsorsongsisplayingonanotherchannel.If
multilealertshappenatthesametime,orthealertgetsdismissed,usercantouchtheALRTbutton
tolistthechannelsthatarecurrentlyplayingyourartistorsong.

BrowserFunction
Touch to browse the channel. User can browse by select the Channel List and Category List.
ChannelList
Touc h“Channel”buttonatLeftsidetoshowthechannellisting

Page 17 of 37
Operation Instruction Manual VRCP-65
Slidethebaratrighttobrowsethechannel
Touc h“Channel”buttonattoprightcornertochangethedisplaydifferentMetadataasChannel
Name,SongTitle,Artist/CategoryName,ContentInfoandCategoryName

CategoryList
Touc hthe“Category”fortheCategorylist







ThechannelwillbeshownaccordingtodifferentCategory.Touch<or>toselectdifferentCategory.
Touc h“Channel”buttonattoprightcornertochangethedisplaydifferentMetadataasChannel
Name,SongTitle,Artist/CategoryNameandContentInfo.

DirectTune
Press toshownthedirecttuneinterface,usercandirectenterthechannelnumberand
touchtogotothedesirechannel.Pressbackspacetocleartheperviousdigit






SiriusXMSettingMenu
Touc htoentertheSiriusXMsettingmenu.ItallowsusertoChangePasscode,LockChannel
andchecktheVersion.



Page 18 of 37
Operation Instruction Manual VRCP-65

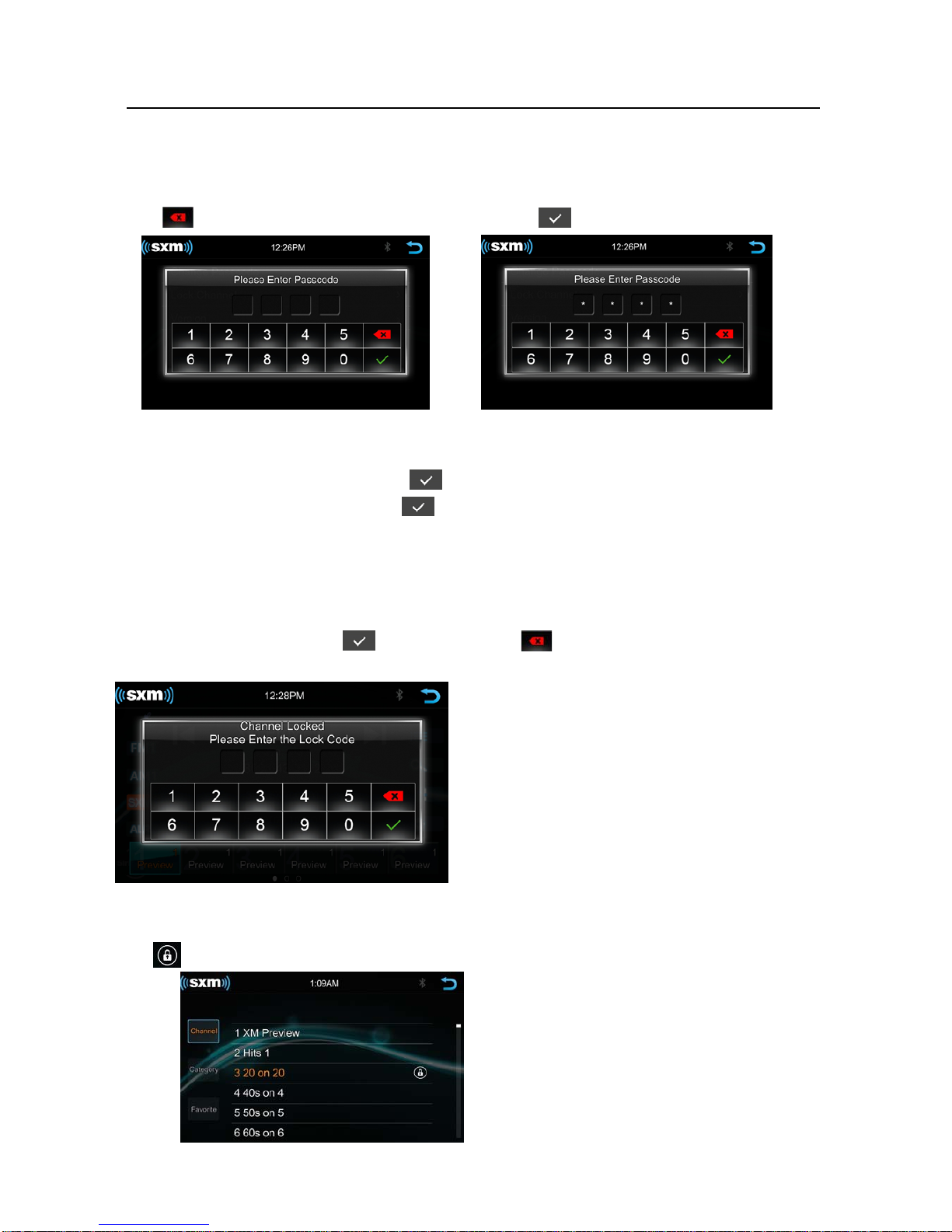

ChangePasscode
Touc h>oftheChangePasscodetoshowthebelowscreen.Inputthepasscodebyusingthekeypad.
Presstocleartheperviousdigitifinputwrong.Touchtoconfirminput.
 

Ifthepasscodeiscorrect,thebelowscreenwillbeshowntoallowusertoEnterNEWPasscode.
Inputanew4digitspasscodeandselecttoconfirmthenewpasscode
Inputthepasscodeagainandpresstoconfirm,thenthepasscodecanbesuccessfully
changed.

LockChannel
Press>oftheLockChannelinSiriusXMsettingmenutoentertheLockchannelinterfaceasbelow.
Inputthepasscodeandtouchtoconfirm,presstobackspacetoremovethepervious
digitifinputwrongly

Ifthepasscodeiscorrect,theunitwillenterthelockchannellist,selectthechannelforanychannel
thathasbeenlocked.Tapthelockedchannelagaintoremovefromthelockedchannellist.Thelock
iconwillbeshownthatthatyouwouldliketolock.







Page 19 of 37
Operation Instruction Manual VRCP-65
Version
PressVersioninthemenu,thebelowscreenwillbeshowntheVRCP‐65Softwareversion
information


ResetSiriusXMpasscode
ThedefaultSiriusXMpasscodeis0000,Ifyouforgetthepasscode,followthestepsbelowtorestore
theunittothedefault.
1. EnterSettings；
2. Setthetimeformatis24Handthedate/timeto2001‐1‐1 01：01；
3. EnterSiriusXMmodeandselectdirecttune;
4. Inputthechannelnumber9992（thedisplayonlycanshow999）；
5. PressconfirmtoresettheSiriusXMpasscodetodefault

RadioID
Tunetochannel0todisplaytheRadioID.youcanusechannelup/downordirecttune.

AdvisoryMessage
On‐ScreenDisplayAdvisoryMessageCauseExplanation/Solution
CheckAntennaCheckAntenna
Theradiohasdetectedafaultwiththe
SiriusXMantenna.Theantennacablemay
beeitherdisconnectedordamaged.
•Verifythattheantennacableisconnectedtothe
SiriusXMConnectVehicleTuner.
•Inspecttheantennacablefordamageandkinks.
Replacetheantennaifthecableisdamaged.
CheckTunerCheckTuner
•Theradiohasdifficultycommunicating
withtheSiriusXMConnectVehicleTuner.
•Thetunermaybedisconnectedor
damaged
•VerifythattheSiriusXMConnectVehicleTuner
cableissecurelyconnectedtotheradioSiriusXM
connector/cable.
•Iftheproblempersists,disconnectandreconnect
thetunerandthencontactyourdealer.

Page 20 of 37
Operation Instruction Manual VRCP-65
NoSignalNoSignal
TheSiriusXMConnectVehicleTunerhas
difficultyreceivingtheSiriusXMsatellite
signal.
•Verifythatyourvehicleisoutdoorswithaclear
viewofthesouthernsky.
•VerifythattheSiriusXMmagneticmountantenna
ismountedonametalsurfaceontheoutsidethe
vehicle.
•MovetheSiriusXMantennaawayfromany
obstructions.
•Inspecttheantennacablefordamageandkinks.
Replacetheantennaifthecableisdamaged.
•Iftheproblempersists,disconnectandreconnect
thetunerandthencontactyourdealer.
ChannelNot
Available
ChannelNot
Available
Thechannelthatyouhaverequestedisnot
avalidSiriusXMchannelorthechannel
thatyouwerelisteningtoisnolonger
available.Youmayalsoseethismessage
brieflywhenfirstconnectinganew
SiriusXMConnectVehicletuner.Visit
www.siriusxm.comformoreinformation
abouttheSiriusXMchannellineup.
Visitwww.siriusxm.com/channellineupformore
informationabouttheSiriusXMchannellineup.
ChannelNot
Subscribed
ChannelNot
Subscribed
Thechannelthatyouhaverequestedisnot
includedinyourSiriusXMsubscription
packageorthechannelthatyouwere
listeningtoisnolongerincludedinyour
SiriusXMsubscriptionpackage
•QuestionsaboutyoursubscriptionintheUnited
Statespleasevisit
http://www.siriusxm.com/activatenoworcall
SiriusXMListenerCareat1‐866‐635‐2349.
•QuestionsaboutyoursubscriptioninCanada
pleasevisit
http://www.siriusxm.ca/help/activation‐help/or
callXMListenerCareat1‐877‐438‐9677
ChannelLockedChannelLockedThechannelthatyouhaverequestedis
Lockedbytheradio
SeethesectiononLockChannel,page18formore
informationontheLockChannelfeatureandhow
toaccesslockedchannels
PleaseEnterthe
LockCode
PleaseEnterthe
LockCode
Userpromptedtoenterthelock/unlock
code.Enterthefourdigitcodetounlockthechannel
IncorrectPasscode
Entered
IncorrectPasscode
Entered
Theunlockcodeenteredbytheuseris
incorrect
•Inputthecorrectfourdigitcodetounlockthe
channel.
•Resetlockcodetodefaultfollowinginstructions
onpage19

