Spa Electrics ARGON Series User manual

1: CABLE PREPARATION
ARGON SERIES
NOTE
IF CABLE LENGTH ALLOWS,
CUT CABLE BACK UNTIL
FRESH COPPER APPEARS.
STRIP POOL LIGHT CABLE
TO SPECIFIED LENGTH.
FEED THE CONNECTOR
BARREL ONTO THE CABLE.
2: START ASSEMBLY OF CONNECTOR PLUG
3: CHOOSE THE APPROPRIATE GLAND
SELECT THE CABLE
GLAND THAT FITS THE
EXISTING POWER CABLE
WITHOUT BULGING.
1: FEED THE CONNECTOR
COLLAR ONTO THE CABLE,
THEN FEED THE GLAND
NUT ONTO THE CABLE.
4: CONTINUE ASSEMBLY OF CONNECTOR PLUG
1: FEED THE TWO
STRIPPED CABLE ENDS
THROUGH THE TWO HOLES
IN THE BACK OF THE
SCREW TERMINAL END.
2: USE A FLAT BLADE
SCREWDRIVER TO
TIGHTEN THE FASTENERS
ON EITHER SIDE OF THE
SCREW TERMINAL.
5: CONNECT THE SCREW TERMINAL END
3/4” (19mm)
9/32” (7mm)
CONNECTOR
BARREL
CABLE
GLAND
CONNECTOR
COLLAR
GLAND
NUT
SCREW TERMINAL END
2
1
3/4” (19mm)
9/32” (7mm)
1 2
CABLE INSTALLATION GUIDE

For assistance please cоtact
[phone]
[email protected]
spaelectrics.com.au
20211025
1 2
“CLICK”
1 2 3
1: REMOVE
2 X FILLER SCREWS
AND O’RING SEALS
FROM SCREW
TERMINAL PLUG.
2: INJECT LANOLIN
INTO LEFT FILLER HOLE
UNTIL VISIBLE IN
RIGHT FILLER HOLE.
3: REPLACE THE
O’RING SEALS AND
2 X FILLER SCREWS IN
THE FILLER HOLES.
ENSURE NOT TO
OVER TIGHTEN.
2
BACK OF CONNECTOR
BARREL
GLAND
CABLE
TIGHT SEAL
ASSEMBLED VIEW OF CONNECTOR PLUG.
3
“CLICK”

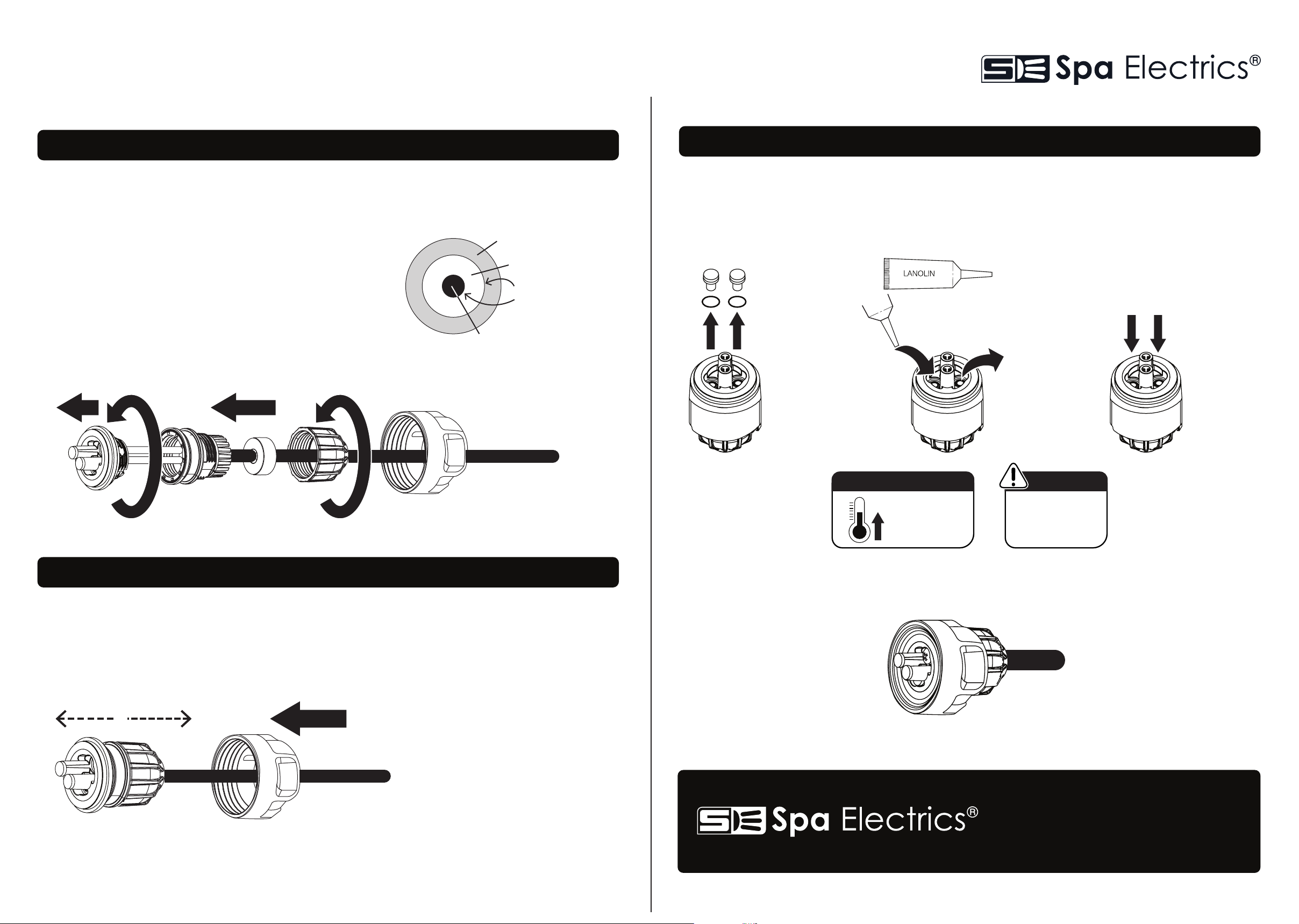

6: START ASSEMBLY OF CONNECTOR PLUG
1: CAREFULLY THREAD CONNECTOR BARREL ONTO
SCREW TERMINAL AND TIGHTEN FIRMLY BY HAND.
2: SEAT CABLE GLAND ALL THE WAY
INTO CONNECTOR
(DO A VISUAL CHECK TO MAKE SURE
A SEAL BETWEEN GLAND AND CABLE)
3: CAREFULLY THREAD GLAND NUT
ONTO CONNECTOR BARREL AND
TIGHTEN FIRMLY BY HAND.
7: CONTINUE ASSEMBLY OF CONNECTOR PLUG
1: PUSH CONNECTOR COLLAR ALL THE WAY IN TO
THE END UNTIL THERE ARE TWO DISTINCT
“CLICKS”. THE END WILL BE FREE TO ROTATE.
8: ADD LANOLIN
3 4
ARGON SERIES
CABLE INSTALLATION GUIDE
ASSEMBLED VIEW
LANOLIN USE
GENTLY WARM
LANOLIN
BEFORE USE
NOTE
USE A TOWEL TO
PROTECT POOL
SURROUNDING
