Spacerails Level 2 User manual

LEVEL 2
PRODUCT AND CONSUMER WARNING
CHOKING HAZARD: This product contains small parts and is not intended for children under 3.
• This product is intended for users 8 years of age and older.
• To avoid choking, keep small parts away from children.
• Use caution—this product contains parts with sharp edges.
• To avoid potential damage to the product, only insert the included marbles into the elevator.

Page 2 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
PARTS INCLUDED
Keep parts together to avoid misplacing them.
BASE COMPONENTS
Base Base Holder A Base Holder B
x2 x1 x1
RECOMMENDED TOOLS & ITEMS
(NOT INCLUDED)
Wire Cutters or Utility Scissors
Pen or Marker
3 AA Batteries (newer models) or 1 C Battery
Ruler (in Centimeters)
ELEVATOR COMPONENTS
Power Box
x1
Elevator Helix
x12
Elevator Ring
x3
Elevator Cover
x1
Elevator Guard
x2
Power Box Stand
x1
SHAFT COMPONENTS
Shaft (300mm)
x7
Shaft (200mm)
x2
Shaft Connector
(50mm) x1
ARM COMPONENTS SEE-SAW ARM COMPONENT
Arm Clip
x17
Arm Sheath
x20
Arm Holder A
x17
Arm Holder B
x20
Arm Lock
x37
See-Saw Arm
x3
RAIL COMPONENTS
Rail Coupling
4 PCS
Marble
2 PCS
Rail
10,000 mm
Rail Clip
x40

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 3
1PREPARE COMPONENTS
B
AARM A QTY: 17
Step 1: Attach one Arm Holder A and one
Arm Holder B with one Arm Sheath. Insert
one Arm Clip into Arm Holder A.
Step 3: Turn the Arm Lock
counter-clockwise to secure
the Arm Clip in place.
Step 2: Insert Arm Lock through
Arm Holder A and Arm Clip.
To avoid damaging parts, do not move or adjust the Rail Clip while locked in the arm. To move the Rail Clip,
release Arm Lock by turning clockwise, position Rail Clip as desired, then secure Arm Lock again.
Attach Arm Holder B to the square receiver side of Arm Sheath to
create the arm. Attach the arm to the shaft and the shaft to the
base prior to attaching the round receiver side of the Arm Sheath
to the See-Saw Arm.
SEE-SAW ARM QTY: 1 LEFT & 2 RIGHT
Cut two 55 mm lengths of rail
and insert into See-Saw Arm
as shown using a Rail Clip to
support the ends of the rail.

Page 4 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com

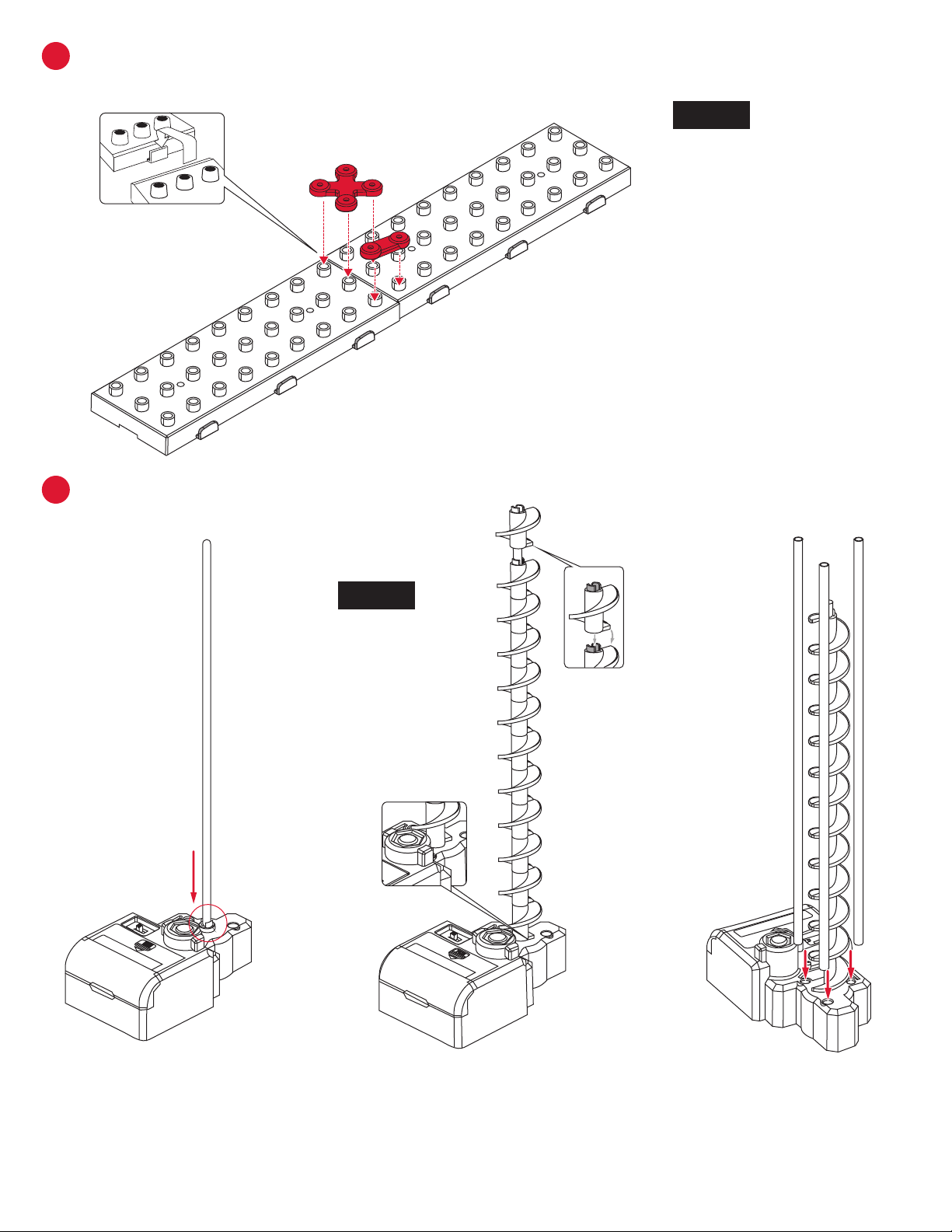

Step 1: Interlock base
block tabs as shown.
Step 2: Press Base Holder A and
Base Holder B pieces into the base
blocks for a more secure hold.
BASE ASSEMBLY
Step 3: Once the corkscrew
is built, attach three support
shafts to the Power Box.
Step 1: Place a 300 mm
shaft in the white hole on
the Power Box.
ELEVATOR ASSEMBLY
Illustrations are approximately 33% of actual size.
Step 2: Connect Elevator
Helix pieces together with
the male part facing up to
ll the shaft.
NOTE:
Install the rst
Elevator Helix
piece male side up
and rotate it until
it slides in place
and engages with
driver at the base
of Power Box.
NOTE:
Please see the included full size
drawings. This will simplify the
positioning of base, arms, shafts,
and the rail cut lengths.
C
D

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 5
Step 4: Slide each Elevator
Ring into position on the
support shafts right-side up.
NOTE:
The Marble may
fall out of the
elevator if it
enters too fast.
Step 7: Insert Elevator Guards to the
right of the Rail Clips on the bottom two
Elevator Rings.
Step 5: Place the Elevator
Cover onto the top of the
elevator assembly.
NOTE:
Elevator Rings are right side up
when tabs in red are on the top.
Step 6: Attach Rail Clips to
each Elevator Ring as shown.
250 mm
50 mm
Step 8: Attach Power Box Stand
to the Power Box.
Step 9: Firmly seat the posts
from the Power Box in the holes
on the base.
Posts attach
to base

Page 6 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
Shaft A
49 68 105 163 212 263 300
Shaft B
145 194
200
Shaft C
20 49 86 138 182 197
200
Shaft D
52 193 269 300
Shaft E
40 199 281 300
SHAFT ASSEMBLY
Slide Arm Holder B of each arm on to a shaft and
lock in place with Arm Lock. Pay attention to
orientation and location of each arm. In later steps
the letter of each shaft and number of each arm will
guide in the installation of the rails. Illustration of
shafts are 60% of scale. Arm
Holder B
D
SHAFT TO BASE ORIENTATION
TOP
FRONT OF BASE
BACK OF BASE
BOTTOM

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 7
ATTACH SHAFTS TO BASE

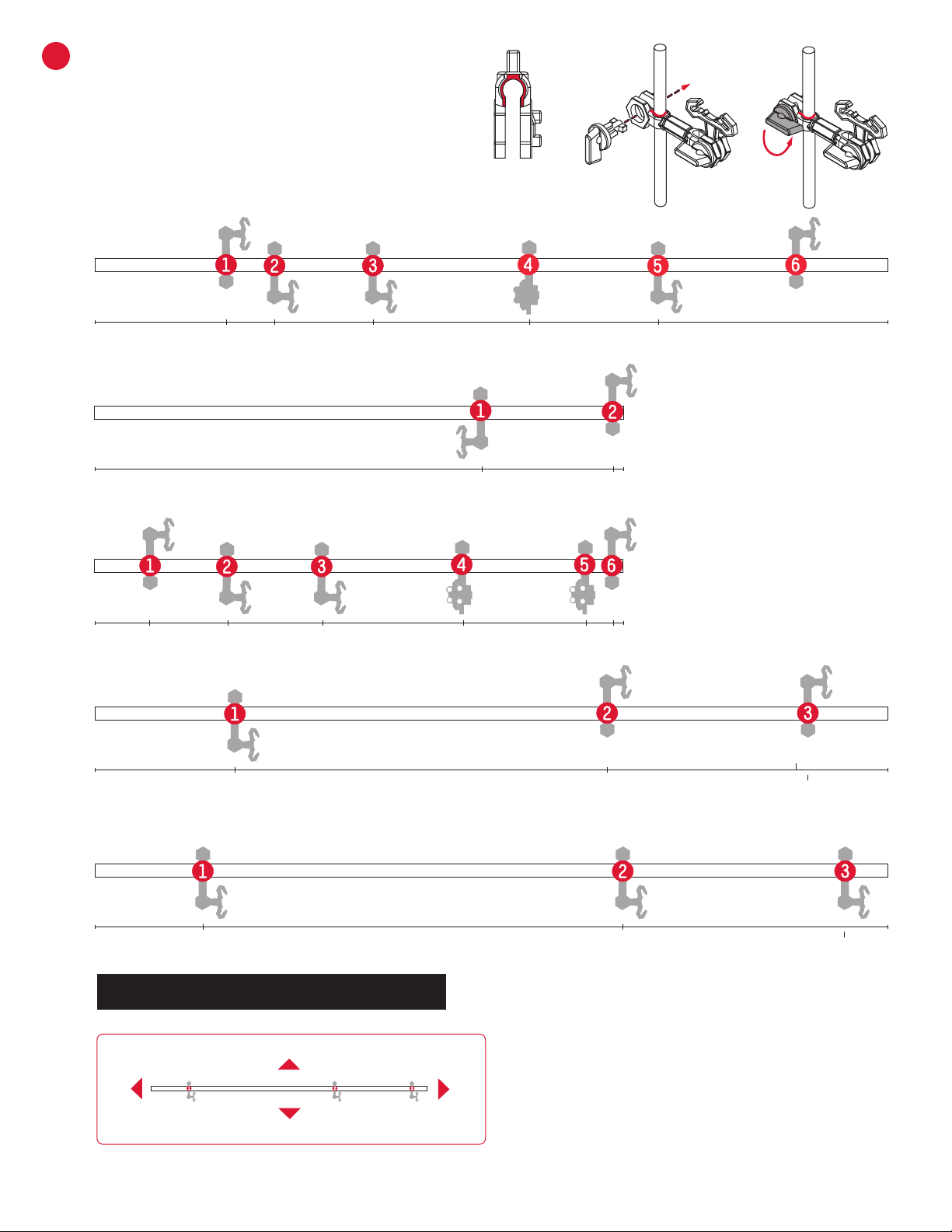

Use diagrams on these pages for location
of each shaft. Push shaft into holes on base
until sturdy.
Now is a good time to attach the See-Saw
Arms as shown.
Attach Shaft Connector
between shafts D and E.
245 cm
a
105 cm
b
26 cm
c
G
Step 1: Measure each section and mark the
cutting point with a pen.
Step 2: Cut each section according to your
measurement. Make sure to cut at a 90° angle.
Tip: To help avoid do-overs and using too
much rail, cut generously (slightly longer than
required) to begin with. You can always cut a
long rail shorter.
(Illustration of rail lengths is 16.5% of actual size).
CUT THE RAIL TO SIZE

Page 8 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
2CONSTRUCTING THE ROLLER COASTER
Connecting rails to arms: To install the rails, press them into the arm as
shown. You should hear a click when the rail is locked in place.
When building a curved rail, Clips and Arm Clips can be
adjusted to create a banked curve. Plenty of Rail Clips
are included so that they can be applied liberally.
Attach Rail Clips every 8-10 cm along rail to
maintain stability and keep rails parallel. Keeping
rails uniform maintains speed and avoids throwing
the Marble o course.
Rails should extend into the elevator
enough to catch the Marble.
Rail Couplings are provided but not needed. If
more length is needed for a rail, insert the coupling
into the end of both rails being joined.
Keep incline as smooth as possible to avoid
losing speed or contact with rails.
TIPS FOR INSTALLING RAILS
A

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 9

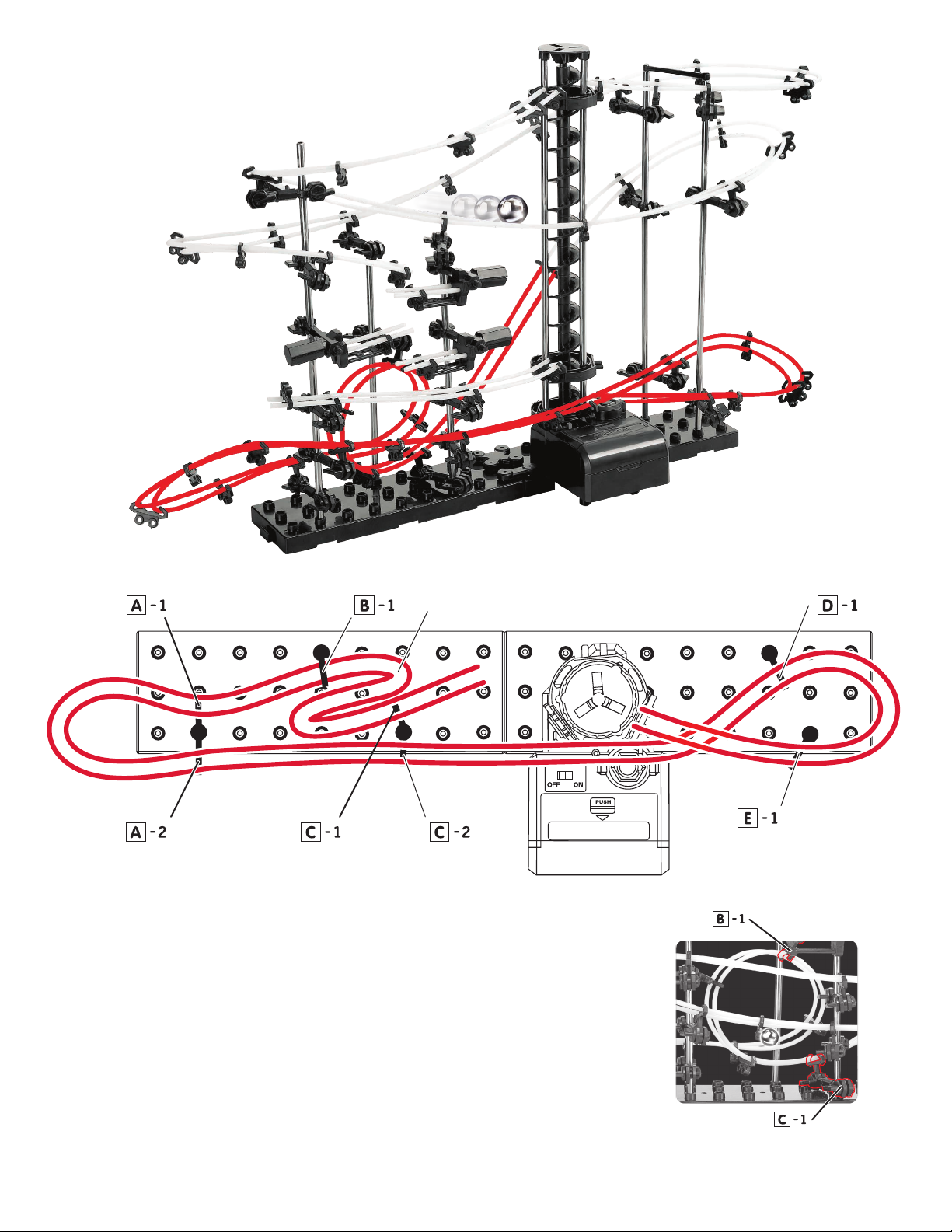

BINSTALLING RAIL
Rail Section 1:
Step1: Starting at the top Elevator Ring on the left side Rail Clip connect Rail A (245 cm). Keeping rail
tight connect through A-6 then around to arm C-6, E-2, and D-2. Repeat for second rail and move to
next illustration and step 2 on the next page.

Page 10 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
Step2: Continue from arm-D-2 down and attach next at arm C-1 and loop up to
arm B-1 creating a 10 cm loop. Exit loop past Arm B and attach at arm A-1 extend
rail beyond base to create a banked turn and attach at arm A-2. Next attach arm
C-2, E-1, and back to arm D-1. Finish at the Rail Clip on the lower right elevator
entrance. Repeat step for second rail.
Loop Trick
Fine Tune: Once each rail section is completed run a Marble
down your course and make sure it travels well.
Rail Section 1:

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 11
BINSTALLING RAIL
Rail Section 2:
Step1: Starting at the top Elevator Ring on the right
side Rail Clip connect rail B (105 cm). Connect through
arm E-3 then around to arm D-3, B-2, and A-5. Repeat
for second rail. The end of this section drops the Marble
onto the See-Saw section.
Step2: The last See-Saw Arm will drop the Marble
on the exit section. To construct use rail C (26 cm)
and start connecting at arm A-3 and pass through
armC-3 entering the left facing Rail Clip on the second
Elevator Ring. Repeat for second rail.
NOTE:
Congratulations on completing Spacerails Level 2! Fine tune the rails and see how many marbles you can get going
at the same time. If the marbles are coming into the elevator too quickly it may knock other marbles already in the
tower out. Create a dip or nd other ways to slow marbles to just the right speed at entrance.

Seaich Corporation
1910 West 1040 South
Salt Lake City, UT 84104
[phone]
[email protected]
Spacerails LLC
www.spacerails.com
