Spacerails Level 7 User manual

LEVEL 7
PRODUCT AND CONSUMER WARNING
CHOKING HAZARD: This product contains small parts and is not intended for children under 3.
• This product is intended for users 8 years of age and older.
• To avoid choking, keep small parts away from children.
• Use caution – this product contains parts with sharp edges.
• To avoid potential damage to the product, only insert the included marbles into the elevator.

Page 2 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
Keep the parts together to avoid misplacing them.
ARM COMPONENTS
BASE COMPONENTS
ELEVATOR COMPONENTS
PARTS INCLUDED
PARTS NOT INCLUDED
Ruler (Centimeters)
9 AA Batteries (newer models) or 3 Size C Batteries
Wire Cutters
Pen or Marker
Arm Clip
x80
Arm Holder A
x80
Arm Sheath
x100
Arm Holder B
x100
Arm Lock
x180
Base
x13
Big Base Holder
x6
Small Base Holder
x8
Double Base
x2
Elevator Cover
x3
Elevator Helix
x36
Elevator Ring
x9
Elevator Guard
x4
Power Box
x3
Power Box Stand
x3
RAIL COMPONENTS
Rail
36,000 mm
Rail Coupling
x10
Rail Clip
x150
Marble
x8
Shaft (391mm)
x1
Shaft (300mm)
x30
Shaft (200mm)
x13
Shaft (159mm)
x1
Shaft (65mm)
x1
Shaft Connector (90 mm)
x3

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 3
PREPARE COMPONENTS
Arms
Rotation Arm A: Attach 2 Arm
Holder B on each side of 1 Arm
Sheath, and insert 1 Arm Lock.Arm Holder B
Shaft Installation Side
Arm Holder B
Shaft Installation Side
Arm Sheath
Arm Wrench
Step 1: Interlock Base and Double
Base in the 3 congurations as
shown on the following page.
BBASE ASSEMBLY
Step 2: Press Big Base Holders
and Small Base Holders onto the
base congurations as shown on
the following page.
Arm Holder B Arm Holder A
Arm Installation Side
Shaft Installation Side
Arm Sheath
Arm
Arm Wrench
Rotation Arm B: Attach 1 Arm
Holder B and 1 Arm Holder A
to 1 Arm Sheath. Then insert 1
Arm Clip into Arm Holder A, and
attach 1 Arm Lock.
Rotation Arm C: Attach 1 Arm
Holder B and 1 Arm Holder A to
1 Arm Sheath. Then insert 1 Arm
Clip into Arm Holder A and attach
1 Arm Lock, and turn the lock
clockwise. Don’t turn the lock too
tightly to avoid marring.
A

Page 4 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
CBASE ASSEMBLY
F K
G L
O
P
D I
E J
Base Level 1:
13 - Bases
9- Small Base
Holders
6- Big Base
Holders
Base Level 2:
1- Double Base
Indicated by:
Base Level 2 will
attach atop of the
200mm shafts: F, K,
O, P, G, L, P, R
Base Level 3:
1- Double Base
Indicated by:
Base Level 3 will
attach atop of the
base level 2, 200mm
shafts: D, E, I & J.
Assemble base components as shown
in the following congurations.

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 5
Use each step to assemble all 3 elevators.
Step 3: Attach 3 of Shaft 300mm
to the Power Box.
DELEVATOR ASSEMBLY
Step 2: Connect Elevator Helix
pieces together and slide onto
the shaft.
NOTE:
There should be no
space between the
Power Box and the
Helix. If the Elevator
Helix is not installed
correctly, the elevator
will not run.
NOTE:
Make sure convex
parts point upward.
Step 1: Place Shaft 300mm into the
Power Box.
Step 5: Place the Elevator Cover
on top of the shafts.
Step 6: Attach Rail Clips onto the
elevator rings.
Step 4: Place the 3 Elevator Rings
over the 3 shafts. For 1:1 ratio
placement, see the tri-fold.
0 mm
5 mm
51 mm
255 mm

Page 6 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
Power Box Stand
Power Box
This piece is now
attached at the base
of the elevator.
Elevator Power Box: Attach
Power Box Stand to Power Box
before installing to base.
EELEVATOR & SHAFT INSTALLATION
Elevator Guard: Attach 1 Elevator
Guard 1 to each of the 3 Elevator Rings.
NOTE:
The Marble
may fall out
if it enters
too quickly.
Shaft Connector: Insert Shaft
Connector at the top of shafts and
push into shafts until secure.
Specic shafts indicated on pages 11
and 16 by:
Rotation arms: Attach rotation arms to shafts. Pay close attention
to the placement and direction of the rotation arms on each shaft.
Rotation arms are composed of arm components from page 3.
Rotation Arm A
Rotation Arm B
Rotation Arm C
Secure rotation arm: Turn
Arm Lock counter-clockwise
90° to secure arm.
Rotation arm assembly: Insert
shaft into arm holder and insert
Arm Lock. To avoid damage, do
not force.

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 7
1st Floor
Elevator
2nd Floor
Elevator
1st Floor
Elevator
2nd Floor
Elevator
3rd Floor
Elevator
1st Floor
Elevator

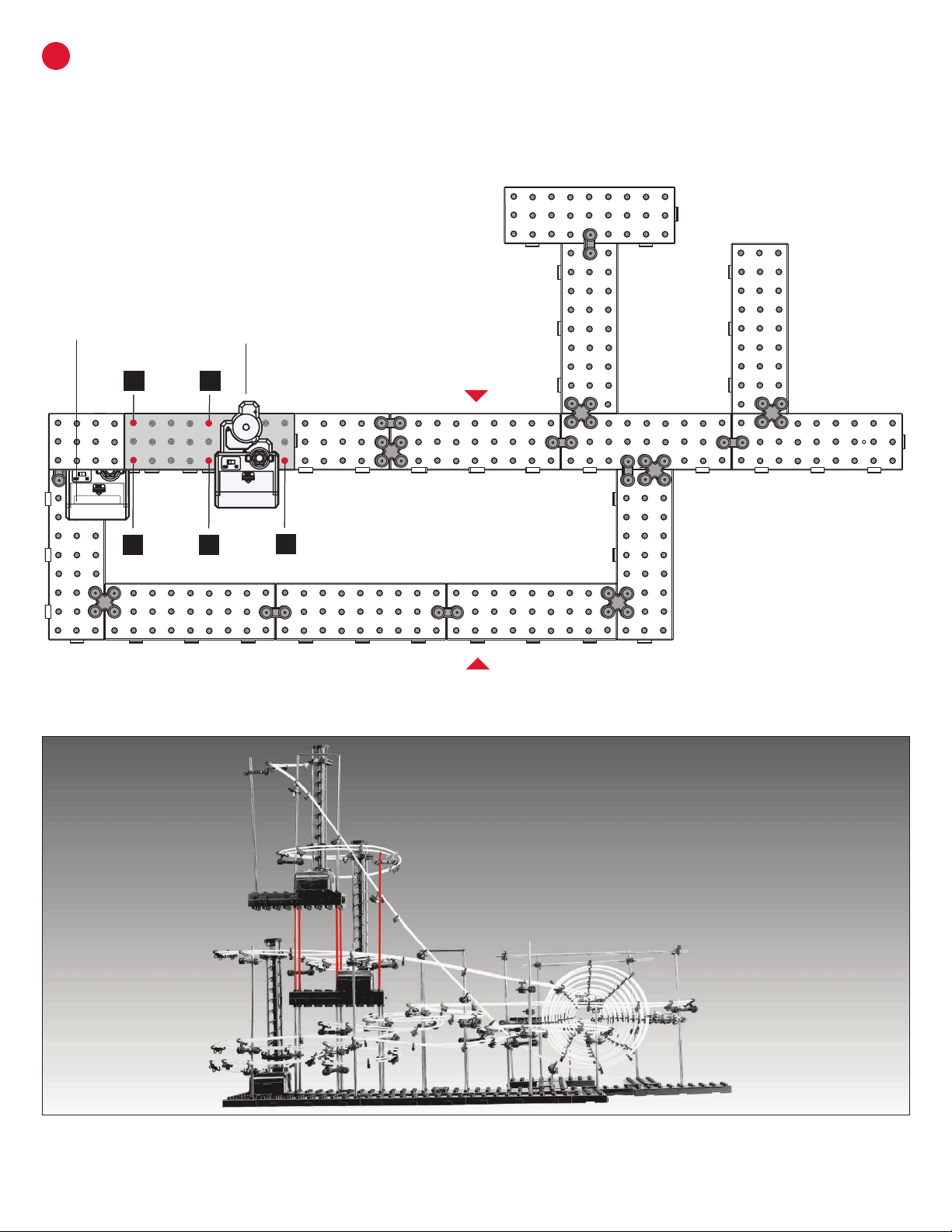

FELEVATOR POSITIONS
Install each elevator on its
respective base level oor.
Below is a 3D rendering of
where each elevator will be set
within the completed rail set
for reference.
3rd Floor
2nd Floor
1st Floor

Page 8 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com

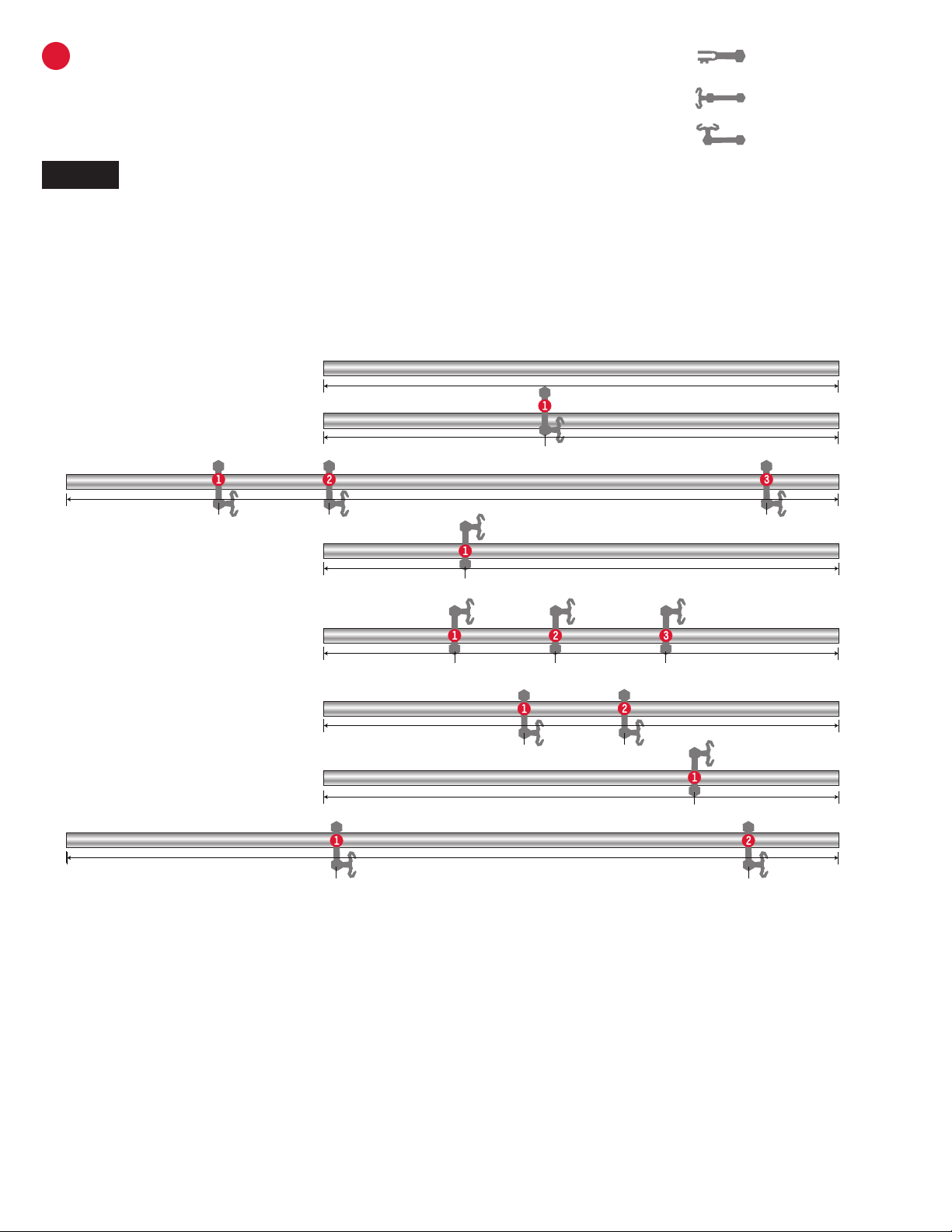

GARM PLACEMENT - LEVEL 1A
Step 1: Place arms onto each shaft.
NOTE:
Shaft lengths and rotation arms are
not to scale in the illustration. Shafts
and arm placement at 1:1 scale are
shown in the tri-fold.
Rotation Arm A
Rotation Arm B
Rotation Arm C
F
G
B
K
M
L
O
P
0300mm
0300mm
0200mm
0200mm
0200mm
0200mm
0200mm
0200mm
86mm
272mm102mm59mm
90mm 133mm
117mm78mm
144mm
264mm105mm
51mm
55mm

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 9
HSHAFT PLACEMENT - LEVEL 1A
B M
F
LG P
FK O
BACK
FRONT
1st Floor
Elevator
Step 1: Place shafts in the base of Level 1
where the illustration indicates.

Page 10 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
IARM PLACEMENT - LEVEL 1B Rotation Arm A
Rotation Arm B
Rotation Arm C
Step 1: Place arms onto each shaft.
NOTE:
Shaft lengths and rotation arms are
not to scale in the illustration. Shafts
and arm placement at 1:1 scale are
shown in the tri-fold.
AE
Z
X
W
V
S
T
R
Q
0300mm
212mm124mm
0200mm
107mm 166mm
0300mm
138mm 167mm 197mm 226mm 255mm 285mm
268mm
21mm 51mm 81mm 109mm
10mm
0300mm
107mm 146mm 284mm
0300mm
131mm 193mm
0300mm
112mm 154mm
0300mm
166mm 292mm
0300mm
138mm
065mm
52mm

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 11
JSHAFT PLACEMENT - LEVEL 1B
B M X
RLG P
FQ
T
S
U
AG
AA
YAC
AB
AF
AE
W
V Z AD
AH
K O BACK
FRONT
1st Floor
Elevator
Step 1: Place shafts in the base of Level 1
where the illustration indicates.

Page 12 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
KARM PLACEMENT - LEVEL 1C
Rotation Arm A
Rotation Arm B
Rotation Arm C
Step 1: Place arms onto each shaft.
NOTE:
Shaft lengths and rotation arms are
not to scale in the illustration. Shafts
and arm placement at 1:1 scale are
shown in the tri-fold.
U
AA
0159mm
0200mm
AB
0200mm
113mm 190mm
AF
0300mm
161mm 190mm 220mm 250mm
268mm
280mm
42mm22mm 72mm 101mm 131mm
10mm
AH
0391mm
AD
167mm
288mm
145mm
0300mm
115mm 145mm
AC
227mm
0300mm
122mm
123mm
AG
0300mm
Y
277mm146mm
0300mm

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 13
B M X
RLG P
FQ
T
S
U
AG
AA
YAC
AB
AF
AE
W
V Z AD
AH
K O
BACK
FRONT
1st Floor
Elevator
LSHAFT PLACEMENT - LEVEL 1C
Step 1: Place shafts in the base of Level 1
where the illustration indicates.

Page 14 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
MARM PLACEMENT - LEVELS 2 & 3
Step 1: Place arms onto each shaft
for Levels 2 & 3.
NOTE:
Shaft lengths and rotation arms are
not to scale in the illustration. Shafts
and arm placement at 1:1 scale are
shown in the tri-fold.
Rotation Arm A
Rotation Arm B
Rotation Arm C
Level 3 Shafts
Level 2 Shafts D
I
J
E
N
0300mm
48mm
201mm 278mm65mm
0200mm
0200mm
0200mm
0200mm
A
C
H
0300mm
102mm
0300mm
143mm 244mm
0300mm
268mm

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 15
BACK
FRONT
N
D I
E J
2nd Floor
Elevator
1st Floor
Elevator
SHAFT PLACEMENT - LEVEL 2
Step 1: Place shafts in the base of the
Level 2 & where the illustration indicates.
N

Page 16 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
BACK
FRONT
A C H
2nd Floor
Elevator
3rd Floor
Elevator
1st Floor
Elevator
SHAFT PLACEMENT - LEVEL 3
Step 1: Place shafts in the base of the
Level 3 & where the illustration indicates.
O

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 17
Entry
Exit
Entry
Exit
Create the correct rail angle for the Marble to
drop slowly into the helix of the elevator.
The elevator entrance and exit must be traveling
in opposite directions.
Install the rail as close as possible to the elevator
entrance and exit for a smooth run.
The track needs to be a smooth curve that
provides the Marble an easy entry into the
elevator entrance.
A poor angle of the rail can stop the Marble,
preventing it from continuing on the track and
successfully entering the elevator.
Do not create a rail incline before the Marble
enters the elevator, it can cause the Marble to hit
the helix and rebound o the rails.
PELEVATOR ASSEMBLY TIPS
Assemble the elevator for optimal performance.

Page 18 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
Assemble rail with banked turn angles to keep
the Marble from falling o the track.
Keep rails taut between connections for stable
coasting and consistent traveling.
Keep rails smooth and free of bumps or kinks.
Before a curve, the rails should be adjusted to
reduce the Marble’s speed.
A steep decline just before a curve will give the
Marble too much speed to be able to successfully
make the curve.
Curves with incorrect angling will lose the Marble
o the rails because of the Marble’s speed.
QRAIL ASSEMBLY TIPS
Assemble the rails to create the smoothest rail run.

Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com Page 19
Inner LoopSteep Height
[ Click ]
Install rails at an angle for the best speed and
smoothest traveling.
Join rails together with Rail Couplings if a
segment of rail is cut too short and needs to be
extended.
Keep rails stable by attaching Rail Clips for any
rail segments that need additional support.
Outer Loop
Inner Loop
The track needs a steep incline to gain speed to
travel through the loops smoothly.
While creating multiple loops, keep the outer
loop larger than the inner loop.
RAIL TIPS CONTINUEDR
To ensure stability of the rails, you should hear a
click when the rail is securely in place.
Install the rails by pressing the rails rmly into
each side of the arm.
Loops should be as close to perfect circles as
possible to run most eectively.

Page 20 Seaich Corporation, LLC. All rights reserved. www.seaich.com |Spacerails, LLC. www.spacerails.com
CUT RAIL TO SIZE
RAIL PLACEMENT
S
O
Step 1: Measure each section and mark the
cutting point with a pen. Rail measurements
are in Centimeters. Measure by a ruler or tape
measure, or see the included insert for full size
drawings of the rail measurements.
Step 2: Cut each section at a 90° angle to the
correct length.
Use these informational
elements to understand how
to best install the rail to its
proper placement on the
following pages.
E-1
Rail
Rail point to
attach arm
Shaft
letter
Shaft placement
on the base
Arm number




NOTE:
To avoid do-overs and using too much
rail, cut generously (slightly longer than
required) to begin with. You can always cut
a long rail shorter.
1150 cm
a
450 cm
b
100 cm
c
100 cm
d
