Spagna Vetro 218 Series Assembly instructions

Installation Guide
and Users Manual
Wall Mount Range Hood
218 Series Wall Mount Range Hood
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
IMPORTANT:
Read and save these instructions.
Rev. 1024u.3a
SPAGNA VETRO

Page 1
Important Safety Notice
Read all Instructions before Installing and operating this appliance
The installation in this manual is intended for qualied installers, service technicians or persons with •
similar qualied background. Installation and electrical wiring must be done by qualied profession-
als and in accordance with all applicable codes and standards, including re-rated construction.
DO NOT• attempt to install this appliance yourself. Injury could result from installing the unit due to
lack of appropriate electrical and technical background.
Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any •
parts for installing, cleaning or servicing.
Activating any switch ON before completing installation may cause ignition or an explosion.•
Due to the size and weight of this range hood, two people installation is recommended.•
To reduce the risk of re, electric shock, or injury to persons:
For general ventilating use only. • DO NOT use to exhaust hazardous or explosive materials and va-
pors.
The combustion air ow needed for safe operation of fuel-burning equipment may be affected by this •
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society of
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to pre-•
vent power from being switched ON accidentally.
Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make •
sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics
or garages.
Ducted fans MUST always be vented to the outdoors.•
Use only metal ductwork and this unit MUST be grounded.•
Sufcient air is needed for proper combustion and exhausting of gases through the duct to prevent •
back drafting.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid-•
den utilities.
All electrical wiring must be properly installed, insulated and grounded.•
Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.•
Check all joints on duct work to insure proper connection and all joints should be properly taped.•
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the •
vendor.
To reduce the risk of a stove top grease re:
Keep all fan, bafe, spaces, lter, grease tunnel, oil container and grease-laden surfaces clean. Grease •
should not be allowed to accumulate on fan, bafe, spaces, lter, grease tunnel and oil container.
Always turn range hood ON when cooking at high heat or when cooking aming foods. •
Use high settings on cooking range only when necessary.•
Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers •
that may ignite. Heat oils slowly on low or medium settings.

Page 2
Important Safety Notice
Read all Instructions before Installing and operating this appliance
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to ob-
serve the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-
ligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to per-
sonal property or real estate or any bodily injuries whether caused directly or indirectly by the range
hood.
Clean ventilating fan frequently.•
Always use appropriate cookware and utensils size.•
Always use cookware appropriate for the size of the surface element.•
To reduce the risk of injury to persons in the event of a stove top grease re:
SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner. •
BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the ames DO
NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.•
Use an extinguisher ONLY if:•
You know you have a Class A, B, C extinguisher, and you already know how to operate it.•
The re is small and contained in the area where it is started.•
The re department is being called.•
You can ght the re with your back to an exit.•
To reduce the risk of injury to persons in the event of a gas leaks:
Extinguish any open ame.•
DO NOT turn on the range hood fan or any type of ventilator.•
DO NOT turn on the lights or any type of appliance.•
Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re •
department, or dial your local emergency service immediately.
WARNING
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety mes-
sages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others.
All safety messages will follow the safety alert symbol and the word “WARNING”.

Table of Contents
INSTALLATION
Tools needed....................................................3
Parts supplied...................................................4
Venting requirements.......................................5
Mount heights & clearance...........................5-6
Calculating vent system length.......................6
Venting methods & ductless conversion..........7
Charcoal lters & electrical requirements.......8
Preparation......................................................9
Installation................................................10-11
Installation overview.....................................11
USE AND CARE
Range hood operations.............................12-13
Troubleshooting...........................................14
Use and care information...............................15
Specications..............................................15

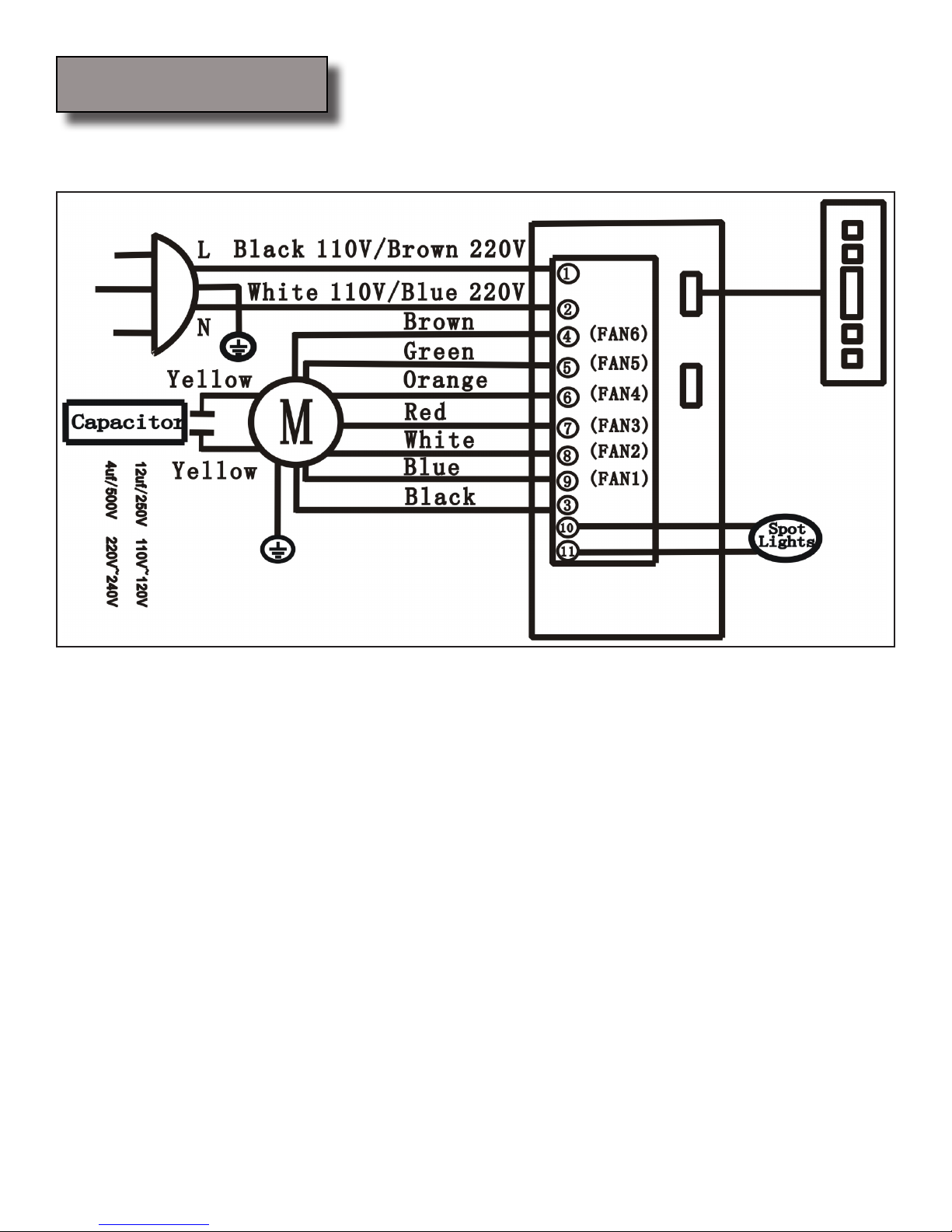

Wiring diagram..............................................16
MAINTENANCE
Cleaning, replacing lter & light bulb......17-18
WARRANTY
Coverage & exceptions.................................19
Disclaimer & contact information.................20
Tools needed:
Page 3
Level
Flat-blade and
Phillips screw-
drivers
Powered
screwdriver
or drill
Measuring
tape
Utility knife
Marker or
pencil

Page 4
Lower Standard Chimney Upper Standard Chimney (Not supplied with re-circulating kit)
Range Hood
(vary with model)
Flappers
Air Diverter
(Optional re-circulating kit, pre-installed
when ordered together with range hood)
Parts supplied:
Hex Key
Qty: 1 PCS
(Optional with glass canopy)
Glass Canopy Screw
Qty: 4 PCS
(Optional with glass canopy)
Qty: 4 PCS
(For sheet rock only)
A
Qty: 4 PCS
B
Qty: 4 to 8 PCS
(Vary with model)
C
Grease/Oil Cup
Flexible
Duct Tube
Charcoal lter
(Optional re-circulating kit,
pre-installed when ordered
together with range hood)
Chimney
Mounting Bracket

Page 5
Venting Requirements
Vent system must terminate to the outside •
(roof or side wall).
DO NOT terminate the vent system in an at-•
tic or other enclosed area.
DO NOT use 4” (10.2 cm) laundry-type wall •
caps.
Use metal/aluminum vent only. Rigid metal/•
aluminum vent is recommended.
DO NOT use plastic vent.•
Always keep the duct clean to ensure proper •
airow.
Calculate the following gures before instal-•
lation:
Distance from the oor to the ceiling.1.
Distance between the oor to the coun-2.
tertop/stove (recommend* 28” to 31”).
Distance between the countertop/stove3.
to the range hood.
Height of hood and duct cover.4.
For the most efcient & quiet operation:
A distance of 28” to 31” is recommended* •
between stove top and the bottom of range
hood.
It is recommended that the range hood be •
vented vertically through the roof through 6”
(15.24 cm) or bigger round metal/aluminum
vent work.
The size of the vent should be uniform.•
Use no more than three 90° elbows.•
Make sure there is a minimum of 24” (61 •
cm) of straight vent between the elbows if
more than one elbow is used.
DO NOT install two elbows together.•
The length of vent system and number of •
elbows should be kept to a minimum to pro-
vide efcient performance.
The vent system must have a damper. If •
roof or wall cap has a damper, DO NOT
use damper (if supplied) on top of the range
hood.
Use silver tape or duct tape to seal all joints •
in the vent system.
Use caulking to seal exterior wall or roof •
opening around the cap.
* Due to different ceiling height congurations, rec-
ommended height may not be applicable.
Height & Clearance
Max*: 110”
Standard
Upper
Chimney
Extension available*
Range hood
Mounting
Bracket
Standard
Lower
Chimney
Extension available*
36” base
Maximum* ceiling clearance
110” at 31” hood mounting
height above countertop/stove
(may vary with different
model). Chimney extensions
available for higher ceiling.
* Higher ceiling requires chim-
ney extension. Available at your
local resellers.
Min: 28”
Max: 31”
Countertop/Stove

Page 6
Duct Run Calculation:
Recommended maximum run
6” or 3-1/4 x 10” duct 50 ft
Vent piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each 6” to 3/14 x 10” transition used 7 ft
Side wall cap with damper 0 ft
Roof cap 0 ft
Duct Run Calcuation example:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for
straight duct run.
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system
from the recommended maximum duct run.
Calculating Vent System Length
IMPORTANT:
A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) •
must be used to maintain maximum airow efciency.
Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to •
maximize airow when connecting to provided duct.
Please use• Duct Run Calculation below to compute the total available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase •
duct size from 6” to 7” or 8”. If a reducer is used, install a long reducer instead of a pancake reducer. Reduc-
ing duct size will restrict airow and decrease airow, thus reduce duct size as far away from opening as pos-
sible.
If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.•
Minimum mount height between stove top to hood bottom should be no less than 28-inch*.•
Maximum mount height between stove top to hood bottom should be no higher than 31-inch*.•
It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat •
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and efciency.
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood •
mounting height above range.
* Due to different ceiling height congurations, recommended height may not be applicable.
Minimum Duct Size:
Round - 6” minimum•
Rectangular - 3-1/4 x 10” minimum (requires a 6” to 3-1/4x10” adaptor, not supplied)•

Page 7
Ductless Conversion
Ductless conversion is intended for applications where an exhaust duct work is not possible to be installed. •
When converted, the hood functions as a purifying hood rather than an exhaust hood. Fumes and exhaust
from cooking is drawn and ltered by a set of charcoal lters. The air is then puried and re-circulated back
within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct •
work, if possible. Only when the exhaust option is not possible should you recourse to converting the hood
into a purifying unit.
When converted to be a “purifying” unit, a set of charcoal lters and an air-diverter are required in addition to •
its standard aluminum lter set. Available at your local resellers. The standard aluminum lters are intended
to capture residue from cooking, the optional charcoal lters help to purify fumes exhausted from cooking,
and the optional air-diverter redirects ltered clean air back to the house.
Venting Methods
This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa-•
tions, see Recirculating (Non-Vented) Kit on Page 10.
Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.•
IMPORTANT:
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. •
All exhaust must be ducted to the outside.
Use metal/aluminum duct work only. •
Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.•
Use caulking to seal exterior wall or roof opening around the cap.•
Option 2:
Side wall cap
Vertical roof venting
Roof cap
Horizontal wall venting
Option 1:

Page 8
Electrical Requirements
NOTE: The charcoal lters are preinstalled if you purchased the range hood with re-circulating kit from us.
Remove aluminum lters on hood.1.
Position the charcoal lters onto each side of the motor and turn until it locks. Re-install aluminum lters.2.
Charcoal lters must be replaced after 120 hours of use (or approximately every 2 to 3 months based on the 3.
average of 1 to 2 hours of daily cooking time). Available at your local resellers.
Charcoal Filter Installation
IMPORTANT: Observe all governing codes and ordinances.
(Please consult with a qualied electrician for 220-Volt 50 Hz voltage)
It is the customer’s responsibility:
To contact a qualied electrical installer.•
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/•
NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22. 2 No.
0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that
the ground path is adequate.
A 120-Volt, 60 Hz, AC-only (USA & Canada standard)
DO NOT ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
DO NOT have a fuse in the neutral or ground circuit.
IMPORTANT: Save this Installation Guide for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through exible
armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provided at each
end of the power supply cable.
Wire sizes (copper wire only) and connections must conform with the rating of the appliance as specied on
the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code
ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22.
2 No. 0-M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit con-
nector must be provided at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575

Page 9
Advanced Preparations:
Read the entire installation guide and users manual thoroughly, understand instructions and warnings.1.
Be familiar with the controls of the range hood by reading through 2. Range Hood Operations,Page 12.
Place the range hood on a at, stable surface. Connect the range hood to a designated standard outlet (please 3.
refer the product label for the suitable voltage of this unit) and verify no debris has entered the vent openings,
then turn on the range hood. Verify all operations of the range hood by referring to Range Hood Operations,
Page 12.
Place all supplied parts and required hardware on a at, stable surface and verify the existence of all supplied 4.
parts listed on Page 4.
Carefully remove the white plastic protective coat from the chimney covers and range hood if any.5.
WARNING
Severe Injury
Hood may have very shape edges. Please wear
protective gloves if it is necessary to remove
any parts for installing, cleaning or servicing.
Preparation
WARNING
Excessive Weight
Require three or more person to move and
install this range hood. Spinal or other bodi-
ly injuries could occur if it is not followed.
Preparations:
NOTE: To avoid damage to your hood, prevent debris from
entering the vent opening.
Determine and mark the center line on the ceiling where the 1.
range hood will be installed. Make sure there is proper clear-
ance within the ceiling or wall for exhaust vent.
Due to the weight and size of this unit, please make sure that 2.
the support system or framework being used is stable and
secure in the ceiling.
Put a thick, protective covering over counter top, cook top or 3.
range to protect from damage or dirt. Remove any hazardous
objects around the area when installing.
Mark the locations of the support mounting bracket holes, 4.
vent cutout (if used) and power supply cable cutout on the
ceiling. Use drill and saber saw or keyhole saw to cut open-
ings for power supply cable and vent (see Venting Methods
and Electrical requirements, Pages 7-8).
If venting to the outside install vent system (see 5. Venting
Methods, Page 7). Use caulking to seal exterior wall or roof
openings.
Disconnect main electrical supply, prepare and run electrical 6.
wiring through ceiling. Leave approximately 12” of electri-
cal cord hanging from the ceiling. Do not restore power until
wiring is completed.
Disconnect power cord, remove the aluminum grease lters 7.
or stainless steel bafe lter..
Set aside the lters until the range hood is properly in-8.
stalled.
If the range hood comes with a glass canopy and has not 9.
already been mounted to the hood, loosen the four canopy
screws and washers from the hood top, carefully place the
canopy on the hood top, and loosely tighten the four canopy
screws along with washers. DO NOT put excessive pressure
against the glass.

Page 10
Installations (refer to Page 4 for parts):
Measure the distance between stove top and the bottom of
range hood. A distance of 28” to 31” is recommended*.
*Due to different ceiling height congurations, recom-
mended height may not be applicable.
Using references in1. Height & Clearance on Page 5, mark
the leveling point of the hood. Position two mounting
screws on the wall, leaving 1/8” space away from the
wall.
Measure the width of the chimney then attach the chim-2.
ney-mounting brackets to the wall as high as you want
the upper chimney to be.
NOTE: Use threaded drywall anchors only when mount-
ing the hood on sheet rock. Mounting the hood on wall
studs or lumbars is highly recommended.
Align hood-mounting holes to the screws on the wall and3.
hook the hood into place. Tighten screws to secure hood
to the wall. CAUTION: Make certain the range hood
is secure before releasing!
Connect the venting duct between the hood and the ex-4.
haust opening either on the ceiling or wall. Use alumi-
num tape to make all joints secure and air tight.
Connect the range hood to a designated standard outlet (please refer the product label for the suitable voltage 5.
of this unit) or cut off the plug and connect three wires (black, white and green) to house wires and cap with
wire connectors. Connect according to colors (i.e. black to black, white to white, and green to green).
SAFETY WARNING: Risk of electrical shock. This range hood must be properly grounded. Make sure
this is done by qualied electrician in accordance with all applicable national and local electrical codes.
Before connecting wires, switch power off at service panel and lock service panel to prevent power from
being switched on accidentally.
Installation
Figure 1
DO NOT INSTALL THE RANGE HOOD BEFORE TESTING IT. MECHAN-
ICAL DAMAGE MIGHT HAVE OCCURRED DURING TRANSPORTION.
Plug in the range hood to the USA/Canada 120V standard outlet (220V for Eu-
rope and other countries), test the blower and the lights before installing it.

Page 11
Store excess wires in the wiring box.6.
Install both chimneys and tighten screws to secure the 7.
lower chimney to the range hood as shown in Figure
5.
To avoid scratching the chimney, extend the upper 8.
chimney slowly and carefully to the chimney-mount-
ing bracket and tighten screws as shown in Figure 6.
Turn power ON in control panel. Check all lights and 9.
fan operations.
Make sure to leave this Installation Guide for the ho-10.
meowner.
Installation (Continued)
Figure 3 Figure 4
Figure 6
Figure 5
Figure 2

Page 12
Control Panel Layout and Buttons Congurations:
Power
Decrease Value
Light
Increase Value
Blower Power Indicator
Blower Speed Indicator
Power-On Elapsed Digital Timer
Power-Off Delay Digital Timer
Power-Off Delay Timer Indicator
Light Power Indicator
Range Hood Operations
This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results,
start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear
all smoke and odors from the kitchen.
Button functions:•
Power: Power ON/OFF the range hood and activate power-off delay timer.•
Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer mode.•
Increase Value: Blower (motor) speed increase timer value increase, and cumulative timer reset.•
Blower Power Indicator: Lights up when blower (motor) is running.•
Blower Speed Indicator: Shows current blower (motor) speed (1-6).•
Light Power Indicator: Lights up when lights turned on.•
Light: Turns ON/OFF and dim halogen lights.•
Power-On Elapsed Digital Timer: Indicates the accumulated time the system is running.•
Power-Off Delay Digital Timer: Indicates the length of time left for delay off function.•
Power-Off Delay Timer Indicator: Lights up when auto-shutdown delay timer function is on.•
Controls:•
Automatic cleaning reminder:•
This range hood is equipped with a cleaning reminder that will activate following 30 hours of use. •
When blower (motor) starts to rotate, cumulative running time will be shown in Power-On Elapsed
Digital Timer. This timer icon ashes when 30 hours is up and reminds user to clean the aluminum
lter.
After cleaning the lter and when the motor is not in use, press and hold • Increase Value button over 3
seconds to reset the timer. Please note that turning off the system will not reset the Power-On Elapsed
Digital Timer.
Adjusting the blower (motor) speed:•
Press• Power button once to turn on the system. The Blower Power Indicator icon ashes showing that
the blower (motor) is ready. Decrease Value button will decrease the speed of the blower (motor) from
6 to 1 (strongest to quietest). Increase Value button will increase the speed of the blower (motor) from
1 to 6 (quietest to strongest).
Press• Power button once to turn off the system.
Note: The system saves user congurations, settings such as light, timer and blower (motor) speed will re-
main the same the next time it is turned on.

Page 13
Control Panel Layout and Buttons Congurations:
Controls:•
Adjusting the timer function:•
While the blower (motor) is not running, press and hold • Decrease Value button over 3 seconds to
enter timer mode. Adjust to desired period of delay off timer by pressing Increase Value or Decrease
Value button (minimum 1 minute to maximum 15 minutes). This setting will be saved immediately.
Activating the timer function:•
While the blower (motor) is running, press and hold • Power button for over 3 seconds to activate
delay off timer. Power-off delay indicator will lit up and power-off delay digital timer will begin to
countdown, when it reaches zero, the blower (motor) will shut down.
Adjusting the light:•
Press• Light button once to turn on the lights, and once again to turn off the lights.
While the lights are off, press and hold • Light button for over 3 seconds to dim the lights from low to
high. Level of brightness will be stored in system’s memory.
CAUTION: DO NOT touch the lights until switched OFF and cooled.
Note: Light settings are independent from other settings (including power-off delay) and lights has to be
manually turned on or off.
Note: The system saves user congurations, settings such as light, timer and blower (motor) speed will re-
main the same the next time it is turned on.
Range Hood Operations (Continued)
Power
Decrease Value
Light
Increase Value
Blower Power Indicator
Blower Speed Indicator
Power-On Elapsed Digital Timer
Power-Off Delay Digital Timer
Power-Off Delay Timer Indicator
Light Power Indicator

Troubleshooting
Page 14
If the range hood or halogen light does not operate 1.
after installation:
Check if the range hood has been plugged in, make •
sure that all power has been turned back ON, fused
not blown and all electrical wiring are properly con-
nected.
Swap out light assembly to working ones to deter-•
mine whether it is caused by defective bulbs. See
Replacing the light bulbs on Page 17.
The range hood vibrates when the blower is on:2. The range hood might not have been secured prop-•
erly on to the ceiling or wall. Check with your in-
staller
The blower or fan seems weak:3. Check that the duct sized used is at least 6” or 3-1/4 •
x 10”. Range hood WILL NOT function efciently
with insufcient duct size. For example: 7” duct
over 6” hole and loosely secured.
Check if duct is clogged or if damper unit (half-cir-•
cular apper) is not installed correctly or opening
properly. A tight mesh on a side wall cap unit might
also cause restriction to the air ow.
The lights work but the blower is not spinning at all, 4.
is stuck or is rattling.
The blower might be jammed or scraping the bot-•
tom due to shipping damage. Please contact us im-
mediately.
The hood is not venting out properly:5. Make sure the distance between the stove top and •
the bottom of the hood is within* 28” and 31” in
distance. *Due to different ceiling height congura-
tions, recommended height may not be applicable.
Reduce the number of elbows and length of duct •
work. Check if all joints are properly connected,
sealed, and taped.
Make sure the power is on high speed for heavy •
cooking.
Purpose of the slots/holes/openings near the top of 6.
the upper chimney:
These slots/holes/openings are used to exhaust •
cleaned air with optional re-circulating kit. If you
did not install one, you do not need them.
NOTE: For all other inquiries, please contact us. Our contact information can be found on the back cover page.

Page 15
Specications*:
Body Stainless Steel / Tempered Glass
Power Rating 220V/50Hz or 120V/60Hz (USA & Canada standard)
General Input Power 288 W (218W + 2x35W)
Motor Input Power 218 W
Motor Revolution 600 RPM (±10%) to 1800 RPM (±10%)
Levels Of Speed Control 6 Levels
Maximum Airow 650 CFM
Air Pressure 320 pa
Noise Level (dB / sone) Approximately 23 / 0.3 to 68 / 7.0 (Lowest to highest Speed)
Motor Type Dual Chamber Ultra Quiet
Fan Type Dual Centrifugal / Sirocco
Control Type 6 Speed Electronic Control Panels with LCD Display
Filtration Type Aluminum Filter with Reversible Handle
Illumination Halogen 35W or LED 3W Type GU10 120V (220V for Europe)
Venting Size Top, 6 inches Round
Interference Protection Radio Frequency Interference Protected
Use and Care Information
Operations:
Read and understand all instructions and warnings in this manual before operating the appliance. Save these •
instructions for future reference.
Always leave safety grills and lters in place. Without these components, operating blowers could catch on to •
hair, ngers and loose clothing.
NEVER dispose cigarette ashes, ignitable substances, or any foreign objects into blowers.•
NEVER leave cooking unattended. When frying, oil in the pan can easily overheat and catch re. The risk of •
self combustion is higher when the oil has been used several times.
NEVER cook on “open” ames under the range hood. Check deep-fryers during use: Superheated oil may be •
ammable.
Cleaning:
The saturation of greasy residue in the blower and lters may cause increased inammability. Keep unit clean •
and free of grease and residue build-up at all times to prevent possible res.
Filters must be cleaned periodically and free from accumulation of cooking residue (see cleaning instructions •
on Page 17). Old and worn lters must be replaced immediately.
DO NOT operate blowers when lters are removed. Never disassemble parts to clean without proper instruc-•
tions. Disassembly is recommended to be performed by qualied personnel only. Read and understand all
instructions and warnings in this manual before proceeding.
Specications
* Subject to change without notice, please contact your local reseller for details.

Page 16
Wiring Diagram
Six Speed with Type GU10 Bulb

Page 17
WARNING
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched off and cooled.
Touching hot bulbs could cause serious burns.
Align arrows on both rings
Maintenance
SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating!
For optimal operation, clean range hood and all bafe/spacer/lter/grease tunnel/oil container regularly. Regular care will
help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. Comet •
Power Scruv®, EZ-Off® oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel
surface. For heavier soil use liquid degrease such as “Forumla 409®” or “Fantastic®” brand cleaner.
If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting •
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: Do not
leave on too long as this may cause damage to hood nish. Use soft towel to wipe off the cleaning solution, gently
rub off any stubborn spots. Use dry soft towel to dry the hood.
After cleaning, you may use non abrasive stainless steel polish such as 3M• ® or ZEP®, to polish and buff out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
DO NOT allow deposits to accumulate or remain on the hood.•
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.•
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel •
for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after ex-
posure and wipe dry with a clean cloth.
Cleaning Aluminum Grease Filter / Stainless Steel Filterless Grill:
IMPORTANT: Drain oil from oil containers before oil and residue overow!
The metal lters tted by the factory are intended to lter out residue and grease from cooking. It need not be replaced •
on a regular basis but are required to be kept clean.
Filters should be cleaned after every 30 hours of use.•
Remove and clean by hand or dishwasher. Spray “Formula 409• ®” or equivalent degreasing detergent and leave to soak
if heavily soiled. Dry lters and re-install before using hood.
Replacing Filters:
Should lters wear out due to age and prolonged use, please contact your local reseller for replacement lters.•
Note: Also replace damaged lter that has punctured or broken mesh, bent or broken frame.•
Replacing the light bulb:
This range hood uses LED or halogen bulb (please refer to the actual specication of the hood purchased):•
USA/Canada: Halogen 35W Type GU10 120V (Europe : 220V)
USA/Canada: LED 3W Type GU10 120V (Europe : 220V)
Make sure the range hood is unplugged or turn OFF breaker. •
Make sure the lights are cool to touch, carefully align the arrow on the in-•
ner ring with the arrow on the outer ring where it says OPEN. The inner
ring will loosen and the light bulb will be available for removal. Install a
new halogen light bulb and reverse the steps.
Turn ON breaker and range hood to test for operation.•

Page 18
WARNING
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched off and cooled.
Touching hot bulbs could cause serious burns.
Replacing the Light Bulb Using the Inner Ring Opener:
Make sure the range hood is unplugged or turn OFF breaker.•
Make sure the lights are cool to touch, carefully align the arrow on the inner ring with the arrow on the outer ring where •
it says OPEN with the Inner Ring Opener as shown in Figure 1.
Figure 1.
The inner ring will loosen and the light bulb will be available for removal as shown in Figure 2. •
Figure 2.
Install a new light bulb and reverse the steps.•
Turn ON breaker and range hood to test for operation.•
Maintenance (Continued)
