Sper scientific 800024 User manual

1
4 Channel
Datalogging Thermometer
800024
Instruction Manual

2
TABLE OF CONTENTS
INTRODUCTION ................................................................ 3
FEATURES.......................................................................... 4
MATERIALS SUPPLIED .................................................... 4
FRONT PANEL DESCRIPTION......................................... 5
LCD DISPLAY ..................................................................... 6
SET UP................................................................................ 7
MEASUREMENT PROCEDURES................................... 12
SOFTWARE INSTALLATION........................................... 16
DATALOGGING ................................................................ 19
POWER SUPPLY.............................................................. 26
CARE AND MAINTENANCE............................................ 26
SPECIFICATIONS ............................................................ 27
WARRANTY ...................................................................... 28

3
INTRODUCTION
This Sper Scientic 4 Channel Datalogging Thermometer
(Model 800024) displays data from four thermocouple
probes simultaneously on a large backlit LCD. Up to
16,000 data records for each channel can be stored in the
meter and saved, graphed and processed on a computer
through the included USB interface and software. Real-
time data can be logged both in the eld and with the meter
connected to a computer.

4
FEATURES
• Four-channel simultaneous display
• Customizable High/Low Alarm (Channel 1)
• Maximum/minimum/average values
• O󰀨set to compensate for probe errors
• T1 – T2 Δ delta mode
• 16,000 data points stored per channel
• Direct upload of data to EXCEL, text, or graph les.
• Customizable data graphing
• Adjustable Automatic shuto󰀨
• Backlight
• Instant Recall Function
MATERIALS SUPPLIED
• Datalogging Thermometer
• USB Cable
• Two K-type Beaded Wire Probes
• Software Disc
• Instruction Manual
• Four AAA batteries
• Carrying Case

5
FRONT PANEL DESCRIPTION
1. Thermocouple Input 8. Record Button
2. LCD Display 9. Recall Button
3. Power Button 10. Setup Button
4. Backlight Button 11. Memory Button
5. Maximum/Minimum/
Average Button
12. USB Interface/
Power Supply
6. Data Hold Button 13. Tilt Stand
7. Temperature Unit
Selector
14. Battery Compartment

6

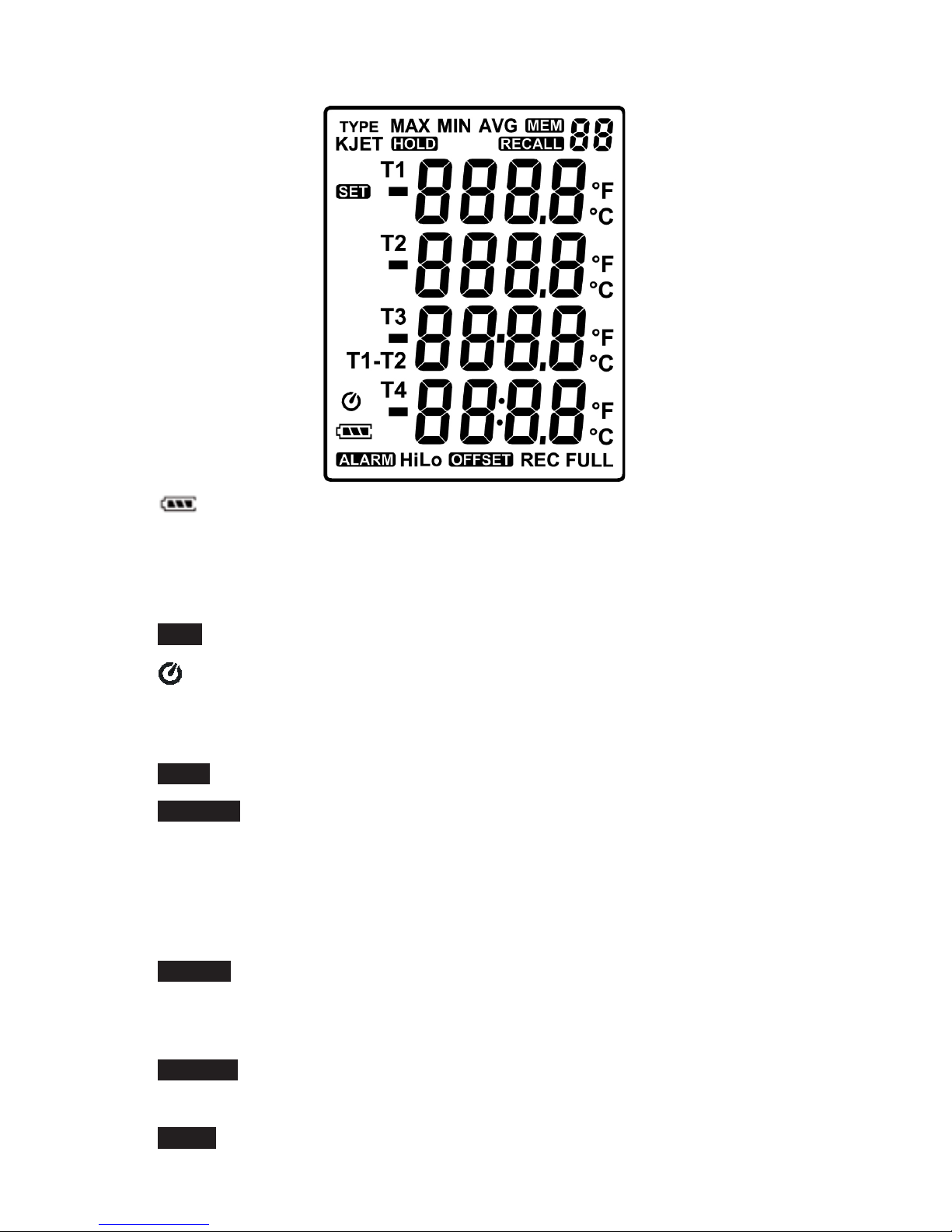

LCD DISPLAY
Low-Battery Icon
MIN Minimum Reading
MAX
Maximum Reading
AVG
Average Reading
SET Setup Mode
Automatic Shuto󰀨 Indicator
REC
Recording In Process
FULL
Memory Full Indicator
MEM 88 Save Reading In Memory
RECALL88 Recall stored reading
TYPE KJET
Thermocouple type
-8888 Temperature reading
T1 T2 T3 T4 Temperature channel
T1  T2 Δ Delta mode
ALARM Alarm indicator
Hi High temperature alarm
Lo Low temperature alarm
OFFSET O󰀨set on to compensate for probe errors
°C °F Temperature units
HOLD Data hold indicator

7
SETUP
Meter On and O󰀨
1. Press POWER to turn the meter on.
2. Press and hold POWER for 3 seconds to turn the meter o󰀨.
Setup Mode
1. Press POWER to turn the meter on.
2. Press SETUP to enter Setup Mode.
3. Press MEM to cycle through the setup options.
Note…
Press SETUP to exit Setup Mode. The meter will return to
Normal Mode.
Thermocouple Type
1. “Type” appears on the display along with the
thermocouple type. Press ▲or ▼ to cycle through K, J, E
and T types.
2. Press MEM to save the selection.

8
Time Interval
The time interval range for storing data is 1 seconds to 60
minutes 59 seconds.
1. “Int” appears on the display along with the time interval in
minutes and seconds. The minutes ash on the display.
2. Press ▲or ▼ to adjust the minutes.
3. Press ◄ or ►. To move from seconds to minutes.
4. Press ▲or ▼ to adjust the seconds.
5. Press MEM to save the selection.
O󰀨set Values
Thermometer readings can be adjusted to compensate for
probe errors. The o󰀨set range is ± 5 °C or ± 9 °F.
1. “T1” through “T4” appear on the display. Press ◄ or ► to
cycle through the thermocouple channels.
2. Press ▲or ▼ to increase or decrease the o󰀨set value.
3. Press MEM to save the selection.

9
Alarm
High and low alarm values can be set for channel T1.
1. “OFF” or “On” ashes on the display. Press ▲or ▼ to
toggle between alarm o󰀨 and on.
2. With the alarm on, press MEM to set the alarm thresholds.
3. The rst digit of the high alarm threshold ashes. Press
▲or ▼ to increase or decrease the value.
4. Press ► to select the next digit.
5. Press ▲or ▼ to increase or decrease the value.
6. Repeat steps 4-5 to set both the high and low alarm
threshold values. Press ◄ if needed to return to a
previous digit.
7. Press MEM to save the selection.

10
T1 - T2 ΔDelta Mode
“OFF” or “On” ashes on the display. Press ▲or ▼ to toggle
between T1 - T2 Δ Delta Mode o󰀨 and on.
Automatic Shuto󰀨
1. Press ▲or ▼ to disable automatic shuto󰀨 or to select
10 or 30 minutes or 1, 2, 4, or 8 hours before automatic
shuto󰀨.
2. Press MEM to save the selection.

11
Date and Time
1. The date and time display and the year ashes. Press
▲or ▼ to set the year.
2. Press ► to select the month. Press ◄ if needed to return
to a previous selection.
3. Press ▲or ▼ to set the month.
4. Press ► to select the day.
5. Press ▲or ▼ to set the day.
6. Press ► to select the hour.
7. Press ▲or ▼ to set the hour.
8. Press ► to select the minutes.
9. Press ▲or ▼ to set the minutes.
10. Press MEM to save the selection.

12
MEASUREMENT PROCEDURES
1. Insert the thermocouple(s) into the appropriate port(s).
2. Press POWER to turn the meter on.
Backlight
1. Press the backlight button to illuminate the LCD screen.
2. The backlight will shut o󰀨 automatically after 30 seconds,
or press the backlight button to turn it o󰀨 sooner.
Select Temperature Units
Press °C °F to toggle between Celsius and Fahrenheit
temperature units.

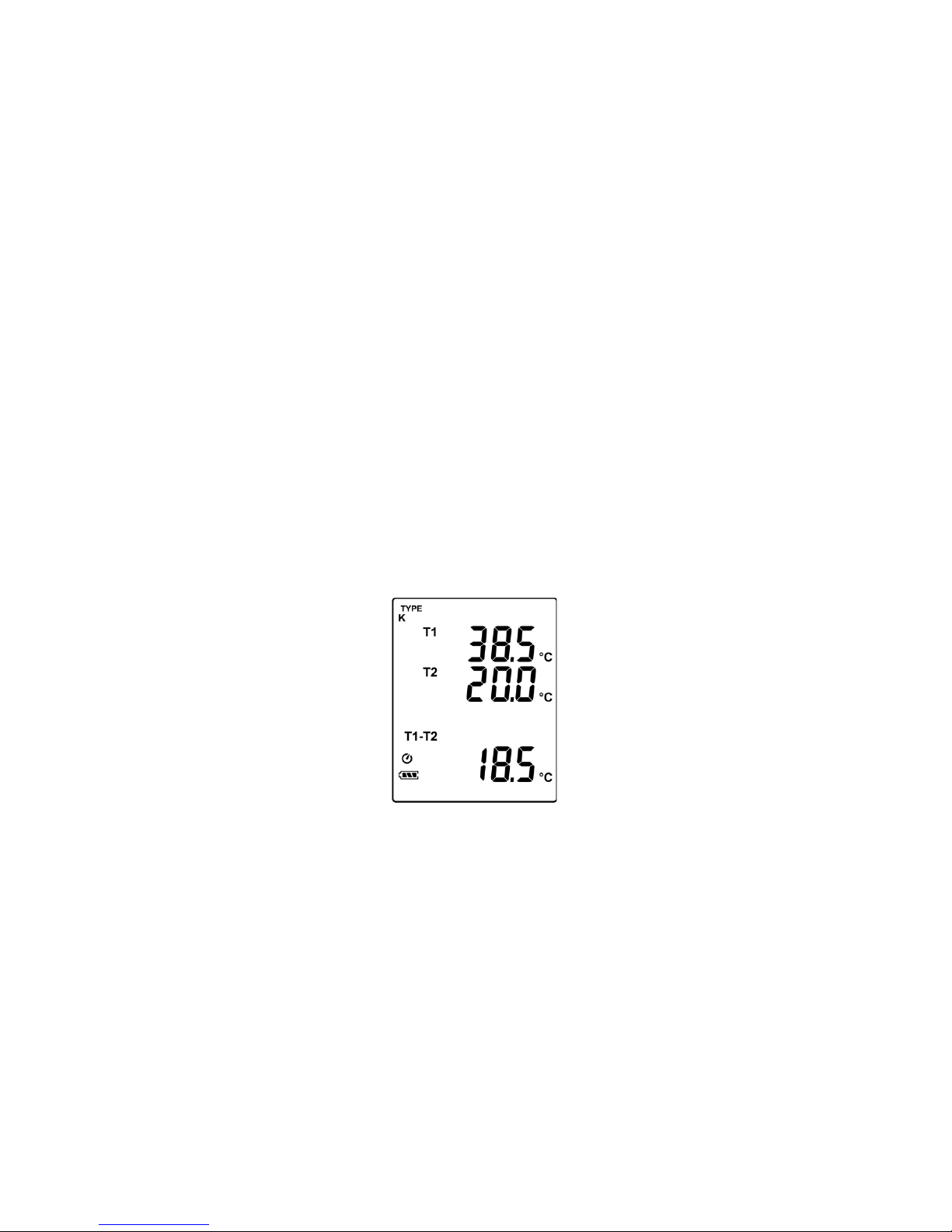

T1 - T2 Δ Delta mode
If T1 – T2 Δ Delta mode is selected the temperature
di󰀨erence displays on the lower right of the LCD.

13
Data Hold
Note…
The MIN/MAX/AVG, °C °F, RECALL and SETUP buttons on
the meter are disabled during data hold.
1. Press HOLD to freeze the reading on the display. “Hold”
appears at the top of the LCD.
2. Press HOLD to return to Normal Mode.
Maximum/Minimum/Average Mode
Note…
Viewing the maximum, minimum and average values will
not interrupt temperature measurement. The maximum,
minimum and average values will continue to be updated.
1. Press MIN/MAX/AVG to enter Maximum/Minimum Mode
and record maximum, minimum and average values.
“MAX” values are continually updated and displayed.
2. Press MIN/MAX/AVG. Minimum values are continually
updated and displayed.
3. Press MIN/MAX/AVG. Average for the values are
continually updated and displayed.
4. Press MIN/MAX/AVG. “MAX,” “MIN” and “AVG” blink.
The meter displays real-time readings while continually
updating its’ MIN/MAX/AVG records internally.
5. Press and hold MIN/MAX/AVG for 2 seconds to return to
Normal Mode.

14
Recording Data
Note…
Most of the buttons on the meter are disabled during recording.
All settings must be selected before recording begins.
1. Press REC to begin recording the readings. “REC”
displays on the LCD. If 16,000 readings have been stored
for a channel, “REC FULL” blinks on the LCD.
2. Press REC to stop recording.
Note…
The meter will not record if battery power is extremely low.
Note…
REC FULL stays on the display until the data is cleared.
Computer can still access the data even though REC FULL
is displayed.
Clearing the Recorded Data
1. Press and hold POWER for 3 seconds to turn the meter o󰀨.
2. Press and hold REC.
3. While continuing to hold REC, press and hold POWER to
turn the meter on.
4. Continue to hold REC and POWER. The meter displays
“REC,” “Clr” and “SUrE 5” and counts down to zero.
5. To exit the process without clearing the memory, release
the REC and POWER buttons before “SUrE 0” displays.

15
Memory Function
To save a reading:
1. Press MEM to save the reading on the display.
2. The “MEM 88” symbol lights up for 2 seconds to show the
next number of the saved reading, from 00 to 99.
To recall a reading:
1. Press RECALL. The “RECALL 88” symbol lights up on the
display.
2. Use the ▲ or ▼ buttons to select a saved memory. The
LCD shows the time of the reading for 2 seconds followed
by the saved data.
3. Press RECALL to return to Normal Mode.
Clearing Readings in Memory
1. Press and hold POWER for 3 seconds to turn the meter o󰀨.
2. Press and hold MEM.
3. While continuing to hold MEM, press and hold POWER to
turn the meter on.
4. Continue to hold MEM and POWER. The meter displays
“MEM,” “Clr” and “SUrE 5” and counts down to zero.
5. “CLr 0” displays as the meter begins erasing records.
6. To exit the process without clearing the memory, release
the MEM button before “SUrE 0” displays.

16
SOFTWARE INSTALLATION
System
Requirements
Windows XP / VISTA / 7 / 8 / 10
Minimum Hardware
Requirements
PC or laptop with CD-ROM
≥50 MB hard disk space to
install SE800024
Screen resolution ≥ 1024 x 768
Note…
Di󰀨erent computer systems may require slightly di󰀨erent
installation steps than those below.
1. The rst most important step in software installation is to
verify that the target system meets the general hardware
requirements of the application. Beginning the installation
in a computer which does not possess the minimum
requirements can lead to either an unsuccessful installation
or failure of the program to run after installing it.
2. Since programs in general are written to be Operating
System dependent, make sure that the version of the
application you are installing corresponds to the Operating
System platform running on your machine.
3. Aside from the general hardware requirements, some
computer programs also have software requirements prior to
installation. Double check if you need to update or upgrade
your Operating System or if there is a need to download
other tools or utilities.

17
4. Once all the initial requirements have been met, make sure
that there are no unnecessary programs running before
beginning the installation procedure. In some instances,
applications may require that the antivirus programs be
disabled. Make sure that you are installing a legitimate
application before disabling your protection software.
5. Software installation can be done either from the Internet
(skip to step 8) or from an installation disc provided by the
software manufacturer. To install from the disc, simply open
the CD or DVD drive and insert the installer.
6. A setup wizard window should be launched. In case there
is none, open the Explorer and navigate to the optical drive.
Double click on either the Autorun or Setup le.
7. Once the wizard is running, simply follow the prompts until
the installation process is completed. For novice users,
accept the default values to minimize potential problems
during the procedure. Jump to step 10.
8. For installation from the Web, launch your browser
application, Go to: www.sperdirect.com/software.htm, nd
your meter, and download the setup le to your hard drive.
9. After completion of the downloading process, run the setup
program to execute the setup wizard that will handle the
automatic installation of the software. Do step 7.
10. After the installation procedure has been completed and the
setup wizard has terminated, reboot your machine before
launching the newly installed software.

18
Uninstalling the Software
If you wish to remove SE800024 from your computer, the
software may be uninstalled using one of the following
methods. Note that your system may require slightly di󰀨erent
steps.
1. Click on the Start Menu.
2. Select “Control Panel.”
3. Launch the Add/Remove Programs.
4. Highlight “SE800024.”
5. Click on “Add/Remove.”
6. Click “Next.”
7. Click “Next.”
8. Click “Finish.”
OR
1. Click on the Start Menu.
2. Select “Control Panel.”
3. Select “Programs and Features.”
4. Double-click on “SE800024.”
5. The Installation Dialog Box appears. Select “Uninstall” and
click “Next.”
6. Click “Next.”
7. Click “Finish.”

19
DATALOGGING
Recording Real-Time Data in Graph Form
1. Press POWER to turn the meter on.
2. Insert the thermocouple(s) into the appropriate port(s).
3. Connect the meter to the PC using the USB cable provided.
4. Open the SE800024 program. An image of the meter
displays along with a real-time graph.
5. The readings on the meter should display on the on-screen
panel. If “No Connection” displays, re-connect the cable.
6. Click “Real Time” to begin recording real-time data.
7. Click “Run.” The Real-Time Setup Menu displays.
8. Enter the number of data points to record.
9. Enter the sampling rate.
10. Enter the recording period.
11. Click “Start” to begin recording and graphing.
12. Click to end recording.

20
Tool Bar Options
Hide or display the statistics above the graph
(Statistic 1.)
Hide or display the statistics below the graph
(Statistic 2.)
Restore normal cursor.
Change cursor to an “X.” Click anywhere on the
graph to mark it with an “X.” This option is not
available when “Split” is selected.
Change cursor to an “I.” Click anywhere on the
graph to add an annotation.
This option is not available when “Split” is
selected.
Set annotation color, ensuring su󰀩cient contrast
with the graph background.
Split Separate or combine the four channels in the
graph.
When “Split” is not selected the graph will use
T1 as the Y axis.
