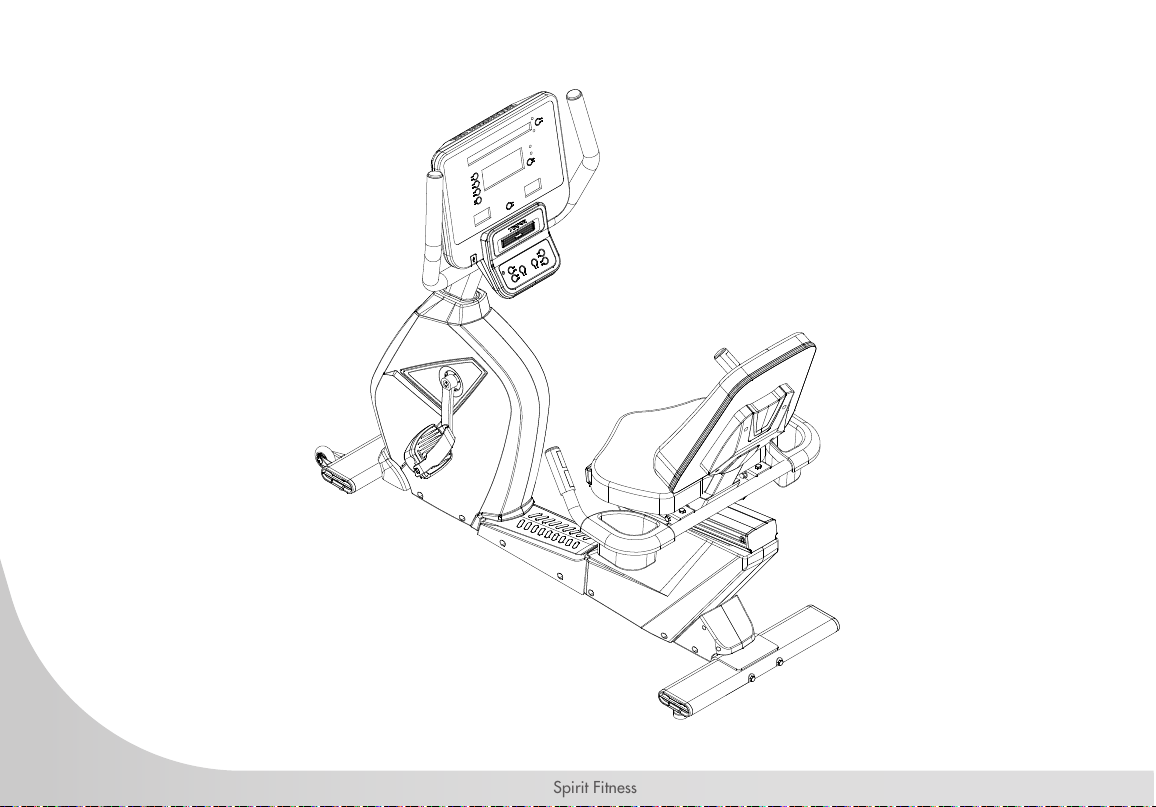

CR800 RECUMBENT BIKE
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com
TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
5 IMPORTANT OPERATION INSTRUCTIONS
7 CU800 ASSEMBLY INSTRUCTIONS
12 CONSOLE OPERATION
16 PROGRAMMABLE FEATURES
28 HEART RATE PROGRAMS
34 GENERAL MAINTENANCE
35 MANUFACTURER’S LIMITED WARRANTY
39 EXPLODED VIEW
40 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality tness bike from Spirit Fitness. Your new tness bike
was manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this tness bike
is your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to
provide you with the technical knowledge and service personnel to make your experience more
informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number,
and the date of purchase below to make any future, needed contact easy. We appreciate your
support and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER______________________________________
DEALER PHONE #______________________________________
PURCHASE DATE______________________________________

3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.

4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health conditions.
• Keep children away from the tness bike. There are
obvious pinch points and other
caution areas that can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your tness bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes,
sandals or bare feet are not suitable for use on your
tness bike. Quality athletic shoes are recommended
to avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing A.C. power
while the tness bike is being used. Do not service
the tness bike while the generator is spinning; serious
electric shock could occur.
NEVER expose this tness bike to rain or moisture. This
product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.
The operating temperature specication is 40 to
120 degrees Fahrenheit, and humidity is 95% non-
condensing (no water drops forming on surfaces).

5
www.spirittness.com
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this tness bike without reading and completely understanding the results of any operational
change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the
computer console and release the adjustment key. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your tness bike; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State
of California to cause Cancer and birth defects or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov

6
Spirit Fitness

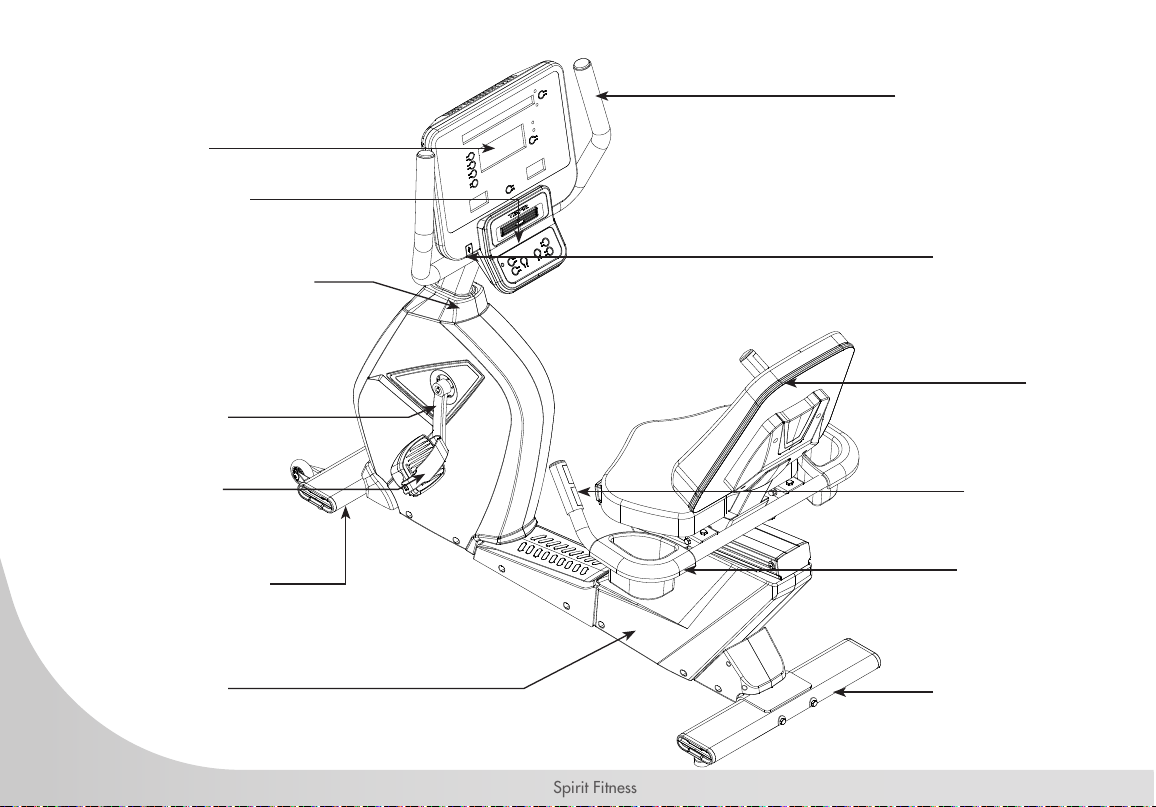

CONSOLE FAN
CONSOLE
FRONT STABILIZER
CRANK ARMS
PEDALS
CONSOLE MAST COVER
MAIN FRAME
PULSE GRIPS
CUP HOLDER
REAR STABILIZER
CONSOLE MAST
SEAT
FRONT HANDLEBARS

7
www.spirittness.com
CR800 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
14/15mm Wrench
12/14mm Wrench
Phillips Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Rear Stabilizer
1 Seat Back Frame
1 Front Handle Bar
1 Handle Bar
1 Seat Back Cover
1 Console Mast Cover
1 Front Stabilizer Cover
1 Rear Stabilizer Cover
1 Console
1 Seat Cushion
2 Cup Holders
2 Pedals
1 Hardware Kit

8
Spirit Fitness
CR800 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
65 HEX HEAD BOLT 3/8” x 135mm 2
77 FLAT WASHER 3/8” x 19 x 1.5T 6
176 HEX HEAD BOLT 3/8” x UNC16 x 3/4” 6
203 CURVED WASHER 3/8 X 23 X 2.0T 2
1. Install the Rear Stabilizer (No.7) onto the Main
Frame (No.1) with 2 Hex Head Bolts (No.65)
and 2 Curved Washers (No.203).
2. Install the Seat Back Bracket (No.5) to the
Seat Carriage (No.4) using 6 Hex Head Bolts
(No.176) and 6 Flat Washers (No.77).

9
www.spirittness.com
R
L
R
L
CR800 STEP TWO
1. Install the Rear Handlebar (No.6) onto
the Seat Carriage (No.4) with 4 Hex
Head Bolts (No.71) installed through
the top holes and secured with 4 Flat
Washers (No.77) and Nylon Nuts
(No.89). Install 2 Hex Head Bolts
(No.175) through the side holes and
secure with 2 Flat Washers (No.77) and
Nylon Nuts (No.89).
2. Plug the Left Hand Pulse Wire (No.27)
into the corresponding Left Socket
(No.42) located in the left plastic side
case under the seat carriage, and the
Right Hand Pulse Wire (No.21) into the
Right Socket (No.26).
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
71 HEX HEAD BOLT 3/8” x 1-3/4” 2
77 FLAT WASHER ø3/8” x ø19 x 1.5T 4
89 NYLON NUT 3/8” x 7T 4
175 HEX HEAD BOLT 3/8X2-3/4” 2

10
Spirit Fitness
CR800 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
68 HEX HEAD BOLT 5/16”X5/8” 8
76 FLAT WASHER ø8 x ø19 x 1.5T 6
82 SPLIT WASHER ø5/16” x 1.5T 2
83 CURVED WASHER ø5/16” x 19 x 1.5T 2
1. Install the Console Mast Cover (No.31) onto the
Console Mast (No.2), making sure it is facing the
correct direction as in the picture below. Run the two
wire harnesses through the bottom of the console mast
tube and out the top opening.
2. Pull the Computer Cable (No.44) and the Handpulse
Wire (No.45) through Console Mast (No.2)
3. Slide the Console Mast into the Main Frame (No.1)
being careful to not pinch the wires. Fasten the
console mast with 6 Hex Head Bolts (No.68) and 4
Flat Washers (No.76) on the side bolts and 2 Curved
Washers (No.83) on the front bolts. Snap the Console
Mast Cover (No.31) in place.
4. Install the Front Handlebars (No.3) onto the Console
Mast (No.2) with 2 Hex Head Bolts (No.68), Split
Washers (No.82) and Flat Washers (No.76).
R
L
R
L

11
www.spirittness.com
CR800 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
98 HEX HEAD BOLT M6 X 15MM 4
99 PHILIPS HEAD SCREW M5X12MM 4
105 SHEET METAL SCREW 4MMX16MM 4
1. Install the left and right Cup Holders (No.39 & 38)
to the rear handlebars with 4 Sheet Metal Screws
(No.105).
2. Install the bottom Seat Cushion (No.61) to the Seat
Carriage (No.4) with 4 Hex Head Bolts (No.98).
3. Install the Pedals (No.116 L, 117 R) into the Crank
Arms (No.51 L, 51 R). Remember that the left
pedal has a reverse thread and will be screwed in
with the opposite rotation. Make sure to tighten the
pedals as much as you possibly can.
4. Connect the 2 Wire Harnesses (No.44 & 45)
to the corresponding connectors on the back of
the console. Install the Console (No.19) onto the
Console Mast (No.2) and secure with 4 Philips
Head Screws (99) being careful to not pinch the
wires.
R
L
R
L

12
Spirit Fitness

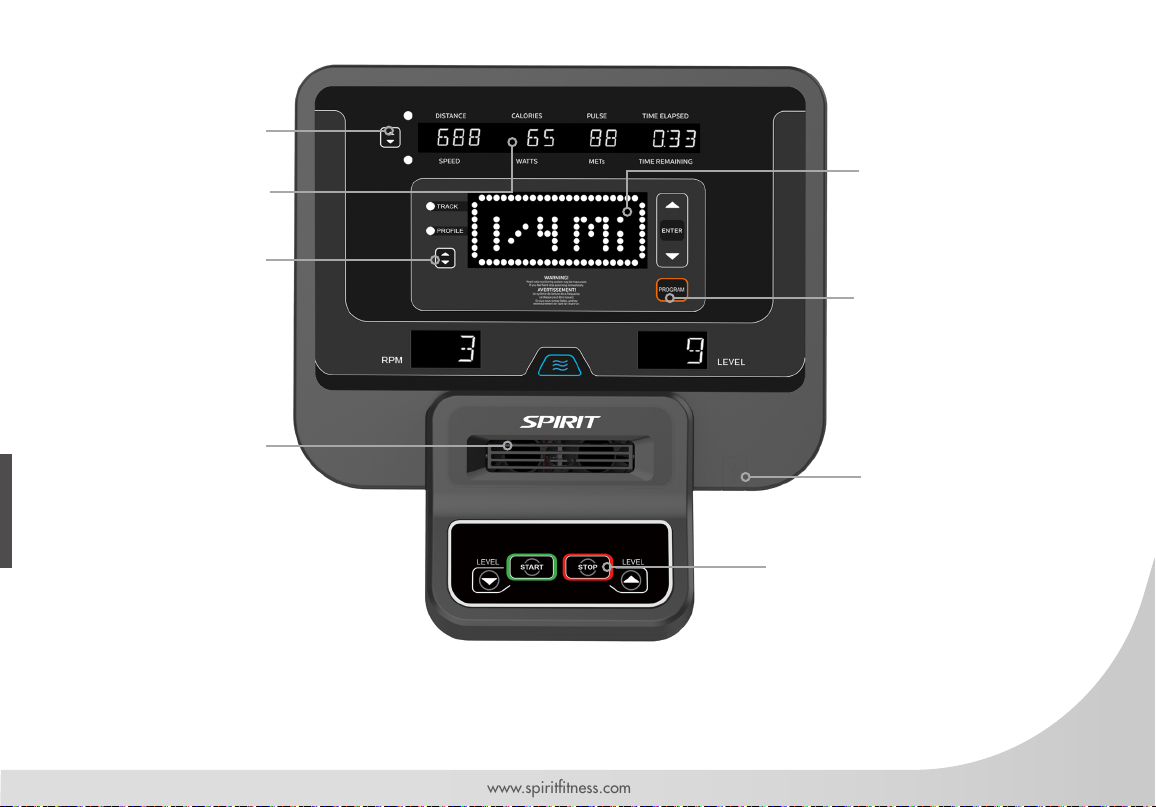

CR800 CONSOLE OPERATION

13
www.spirittness.com
Fan
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Dot Matrix
Message Center
Start, Stop, Level
Controls
Up, Down,
Program Controls
LED Data Display
Windows
USB
Charger

14
Spirit Fitness
POWER
The recumbent has a built-in generator for power and do not need to be plugged into an AC outlet. To
power up the recumbent simply start to pedal, the console will turn on automatically.
When initially powered on, the console will perform an internal self-test. During this time the display may
not light up for a few seconds. Continue pedaling and the display will light up. Once powered on, the Dot
Matrix Message Center will be scrolling the start-up message. You may now begin your workout program.
CSAFE FEATURE
Your console is equipped with a CSAFE feature. The Power (POWER) port can be used for powering a re-
mote controlled audio-visual system by connecting a cable from the remote to the Power port at the back of
the console. The Communication port (COMM) can be used to interact with tness software applications.

15
www.spirittness.com
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start key
to begin. This will initiate the Quick Start mode. In Quick Start the Time will count up from zero,
all workout data will start to accrue and the workload may be adjusted manually by pressing the
Level Up and Down buttons. The Dot Matrix Message Center display will show just the bottom
row lit. As you increase the workload more rows will light indicating a harder workout. The bike
will get harder to pedal as the rows increase. The Dot Matrix Message Center has 24 columns
of lights and each column represents 1 minute. At the end of the 24th column (or 24 minutes of
work) the display will wrap around and start at the rst column again.
There are 40 levels of resistance – displayed as 10 rows of lights – available for plenty of
variety. The rst 10 levels are very easy workloads, and the changes between levels are set to a
good progression for de-conditioned users. Levels 10-20 are more challenging but the increases
from one level to the next remain small. Levels 20-30 start getting tough as the levels jump more
dramatically. Levels 30-40 are extremely hard and are good for short interval peaks and elite
athletic training.
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed around the dot matrix window. The ashing dot indicates
your progress. In the center of the track there is a lap counter for reference.
HEART RATE WINDOW
The Pulse (Heart Rate) window will display your current heart rate in beats per minute during the workout.
You must use both left and right stainless steel sensors to pick up your pulse. Pulse values are displayed

16
Spirit Fitness
anytime the computer is receiving a Grip Pulse signal. You may use the Grip Pulse feature while in Heart Rate
Control. The CR800 will also pick up wireless heart rate transmitters that are Polar compatible, including coded
transmissions.
TO TURN BIKE OFF
The display will automatically turn off (go to sleep) after 30 minutes of inactivity. This function is called sleep
mode. In sleep mode, the bike will power down most everything except for a minimum of circuitry for detecting
button presses and the safety button so it will start up again if these are activated. There is only a tiny amount
of current used in sleep mode (about the same as your TV when it is turned off) and it is perfectly ne to leave
the main power switch on in sleep mode. Of course you may also remove the safety button or turn off the main
power switch to power down the bike.
BASIC INFORMATION
The Dot Matrix Message Center, or Prole Window, will display the workout Prole. The LED Data
Display Window displays pertinent exercise data. There is a RPM window for pedal speed and a
Level window indicating machine resistance.
The LED Data Display Windows will initially be displaying Distance, Calories,Pulse and Time
Elapsed information. When the Up/Down Scan key is pressed the next set of information will appear:
Speed, Watts, METs, Time Remaining. Pressing the Up/Down Scan button, the Scan mode is activat-
ed and the LED Data Display Window will show each set of data for four seconds then switch to the
next set of data in a continuous loop. Pressing the Up/Down Scan button again will bring you back to
the beginning.

17
www.spirittness.com
The Stop key button actually has several functions. Pressing the Stop key once during a program
will pause the program for 5 minutes. If you need to get a drink, answer the phone, or any of
the many things that could interrupt your workout, this is a great feature. To resume your workout
during Pause just press the Start key. If the Stop key is pressed twice during a workout, the pro-
gram will end and the console will return to the start-up screen. If the Stop key button is held down
for 3 seconds, the console will perform a complete Reset. During data entry for a program the
Stop key performs a Previous Screen function. This allows you to go back one step in the pro-
gramming each time you press the Stop key button.
The Program Key is used to preview each program. When you rst turn the console on, you may
press Program key to preview what the program prole looks like. If you decide that you want to
try a program, press the Enter key to select the program and enter into the data set-up mode.

18
Spirit Fitness
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit
your needs. Some of the information asked for is necessary to ensure the readouts are correct.
You will be asked for your Age and Weight. Your Age is also necessary during the Heart Rate
control program to ensure the correct settings are in the program for your Age. Otherwise the
work settings could be too high or low for you; entering your Weight aides in calculating a more
correct calorie reading. Although we cannot provide an exact calorie count we do want to be as
close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym
or at home, are not accurate and tend to vary widely. They are meant only as a guide to monitor
your progress from workout to workout. The only way to measure your calorie burn accurately is
in a clinical setting connected to a host of machines. This is because every person is different and
burns calories at a different rate.
ENTERING & CHANGING SETTINGS
When you enter a program, you have the option of entering your own personal settings. If you
want to work out without entering new settings, then just press the Start key. This will bypass the
programming of data and take you directly to the start of your workout. If you want to change the
personal settings, then just follow the instructions in the Dot Matrix Message Center. If you start a
program without changing the settings, the default, or pre-saved settings will be used.
