Spirit Commercial CR800ENT User manual

CR800ENT FITNESS BIKE
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com
TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 IMPORTANT ELECTRICAL INSTRUCTIONS
4 IMPORTANT OPERATION INSTRUCTIONS
5 PRODUCT REGISTRATION
6 CR800ENT ASSEMBLY INSTRUCTIONS
11 CONSOLE OPERATION
20 TOUCHSCREEN OPERATION
27 PROGRAMMING THE CONSOLE
34 GENERAL MAINTENANCE
35 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality tness bike from Spirit Fitness. Your new tness bike was
manufactured by one of the leading tness manufacturers in the world and is backed by one of the
most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we can to make
your ownership experience as pleasant as possible for many years to come. If not purchased direct
from Spirit Fitness, the local dealership where you purchased this tness bike is your administrator for
all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to
remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health conditions.
• Keep children away from the tness bike. There are
obvious pinch points and other caution areas that can
cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your tness bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your tness
bike. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER expose this tness bike to rain or moisture. This
product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.
The operating temperature specication is 40 to
120 degrees Fahrenheit, and humidity is 95% non-
condensing (no water drops forming on surfaces).

4
Spirit Fitness
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this tness bike without reading and completely understanding the results of any operational
change you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment key. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your tness bike; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control keys. They are precision set to function properly with little nger
pressure.
WARNING:
This product may contain a chemical known to the state of California to cause cancer, birth defects, or
other reproductive harm.
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
Serial Number Location

5
www.spirittness.com
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.

6
Spirit Fitness
CR800ENT PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
TOOLS INCLUDED:
14/15mm Wrench
12/14mm Wrench
Phillips Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Rear Stabilizer
1 Seat Back Frame
1 Front Handlebar
1 Handlebar
1 Seat Back Cover
1 Console Mast Cover
1 Front Stabilizer Cover
1 Rear Stabilizer Cover
1 Console
1 Seat Cushion
2 Cup Holders
2 Pedals
1 Hardware Kit

7
www.spirittness.com
TOOLS INCLUDED:
14/15mm Wrench
12/14mm Wrench
Phillips Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Console Mast
1 Rear Stabilizer
1 Seat Back Frame
1 Front Handlebar
1 Handlebar
1 Seat Back Cover
1 Console Mast Cover
1 Front Stabilizer Cover
1 Rear Stabilizer Cover
1 Console
1 Seat Cushion
2 Cup Holders
2 Pedals
1 Hardware Kit
CR800ENT STEP ONE
4
21
89
89
77
77
77
77
89
89
27
27
175
71
21
6
71
65
65
65
84
84
84 7
45
44
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
65 BOLT 3/8”X2-1/4” 4
71 BOLT 3/8”X2” 4
77 FLAT WASHER 3/8”X19 6
84 FLAT WASHER 3/8”X1” 4
89 NYLON NUT 3/8” 6
175 BOLT 3/8X2-3/4” 2
1. Install the REAR STABILIZER (7) onto the MAIN
FRAME with 4 BOLTS (65) and 4 WASHERS (84).
2. Install the HANDLEBAR ASSEMBLY (6) onto the
SEAT CARRIAGE (4) with 4 BOLTS (71) installed
through the top holes and secured with 4 FLAT
WASHERS (77) and NYLON NUTS (89). Install 2
BOLTS (175) through the side holes and secure with
2 FLAT WASHERS (77) and NYLON NUTS (89).
3. Plug the LEFT HAND PULSE WIRE (27) into the
corresponding LEFT SOCKET (42) located in the
left plastic side case under the seat carriage, and
the RIGHT HAND PULSE WIRE (21) into the RIGHT
SOCKET (26).

8
Spirit Fitness

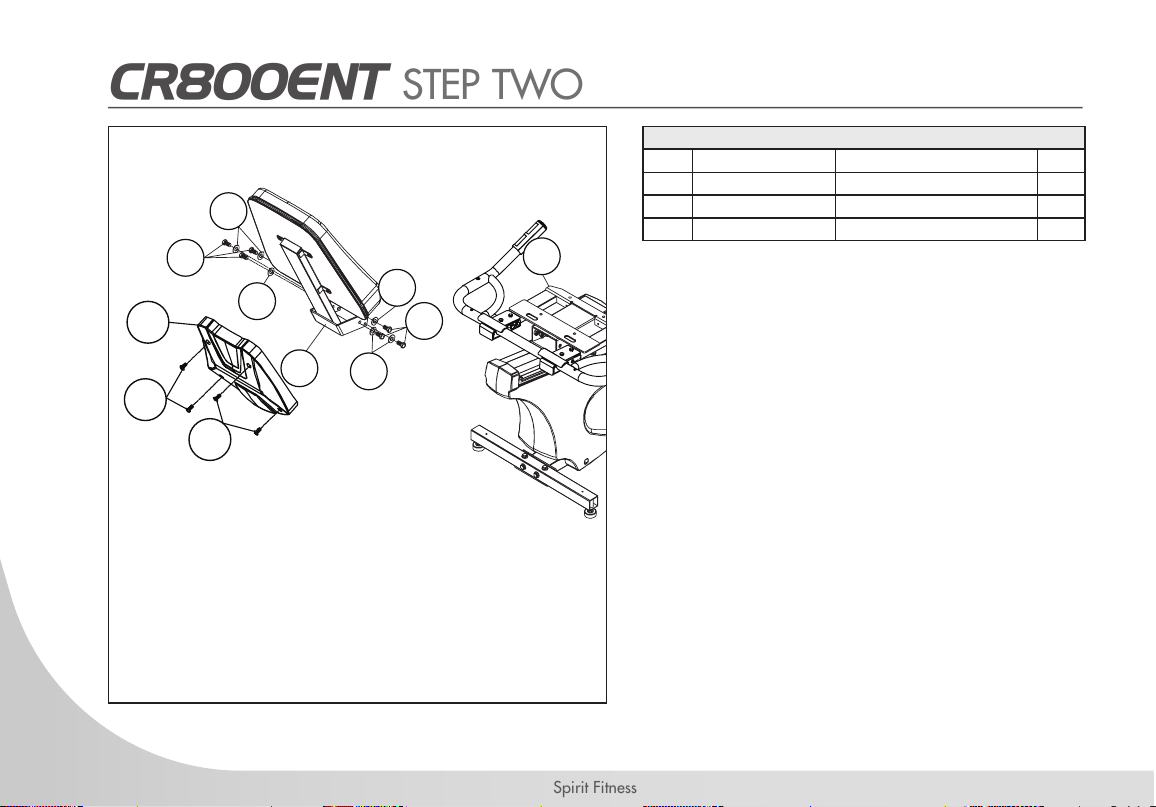

CR800ENT STEP TWO
577
77
77
4
176
77
176
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
77 FLAT WASHER 3/8”X19 MM 6
136 SCREW M5X15 4
176 BOLT 3/8”X3/4” 6
1. Install the SEAT BACK FRAME (5) onto the SEAT
CARRIAGE (4) with 6 BOLTS (176) and FLAT
WASHERS (77).
2. Install the SEAT BACK COVER (128) onto the Seat
Back with 4 PHILLIPS HEAD SCREWS (136).
128
136
136

9
www.spirittness.com
CR800ENT STEP THREE
3
82
29
68
68
2
31
68
83
76
30
76
76
190
191
192
193
44
195
197
1
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
68 BOLT 5/16”X5/8” 8
76 WASHER 5/16”X18 MM 6
82 SPLIT WASHER 5/16” 2
83 CURVED WASHER 5/16”X3/4” 2
1. Install the CONSOLE MAST COVER (31) onto the
CONSOLE MAST (2), making sure it is facing the
correct direction as in the picture below. Run the
COMPUTER CABLE (44), HANDPULSE WIRE(195),
CSAFE W/CABLE(190), TV SIGNAL CABLE(191),
NETWORK W/CABLE(192), CONSOLE POWER
CORD (193), and HDMI CABLE(197) through the
bottom of the console mast tube and out the top
opening.
2. Slide the CONSOLE MAST into the RECEIVING
TUBE (1) being careful to not pinch the wires.
Fasten the console mast with 6 BOLTS (68) and
4FLAT WASHERS (76) on the side bolts and 2
CURVED WASHERS (83) on the front bolts. Snap the
CONSOLE MAST COVER in place.
3. Install the FRONT HANDLEBARS (3) onto the
CONSOLE MAST with 2 BOLTS (68), SPLIT
WASHERS (82) and FLAT WASHERS (76).

10
Spirit Fitness

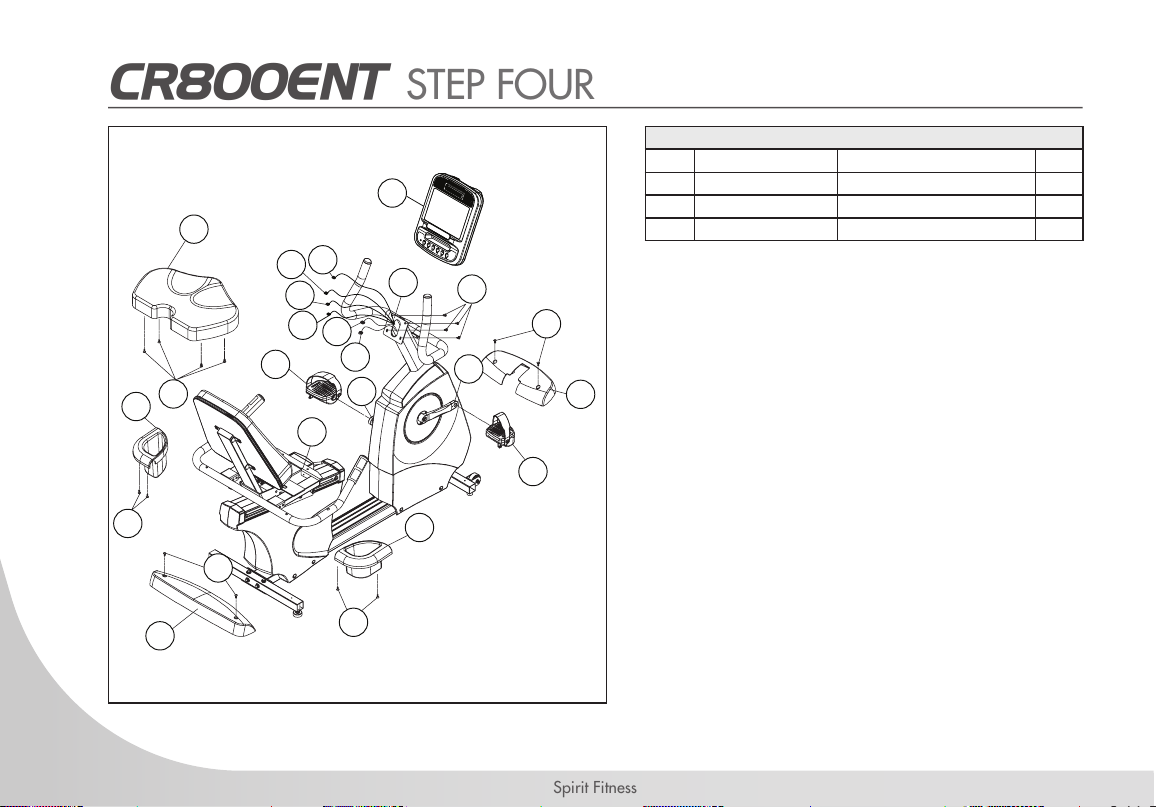

CR800ENT STEP FOUR
38
39
105
105
37
32
99
117
51R
51L
99
2
61
19
186
4
44
197
190
191
192
193
116
99
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
186 SCREW M6X18MM 4
99 SCREW M5X12MM 10
105 SCREW 4MMX16MM 4
1. Install the front and rear STABILIZER COVERS (32 &
37) and secure to the frame with 4 SCREWS (99).
2. Install the left and right CUP HOLDERS (39 &
38) to the rear handlebars with 4 SELF TAPPING
SCREWS (105).
3. Install the bottom SEAT CUSHION (61) to the SEAT
CARRIAGE (4) with 4 SCREWS (98).
4. Install the PEDALS (116 L, 117 R) into the CRANK
ARMS (51 L, 51 R). Remember that the left pedal
has a reverse thread and will be screwed in with
the opposite rotation. Make sure to tighten the
pedals as much as you possibly can.
5. Connect the 7 WIRE HARNESSES
(44,195,190,191,192,193, & 197) to the
corresponding connectors on the back of the
console. Install the CONSOLE onto the CONSOLE
MAST and secure with 4 SCREWS (99) being
careful to not pinch the wires.

11
www.spirittness.com
CR800ENT CONSOLE OPERATION

12
Spirit Fitness

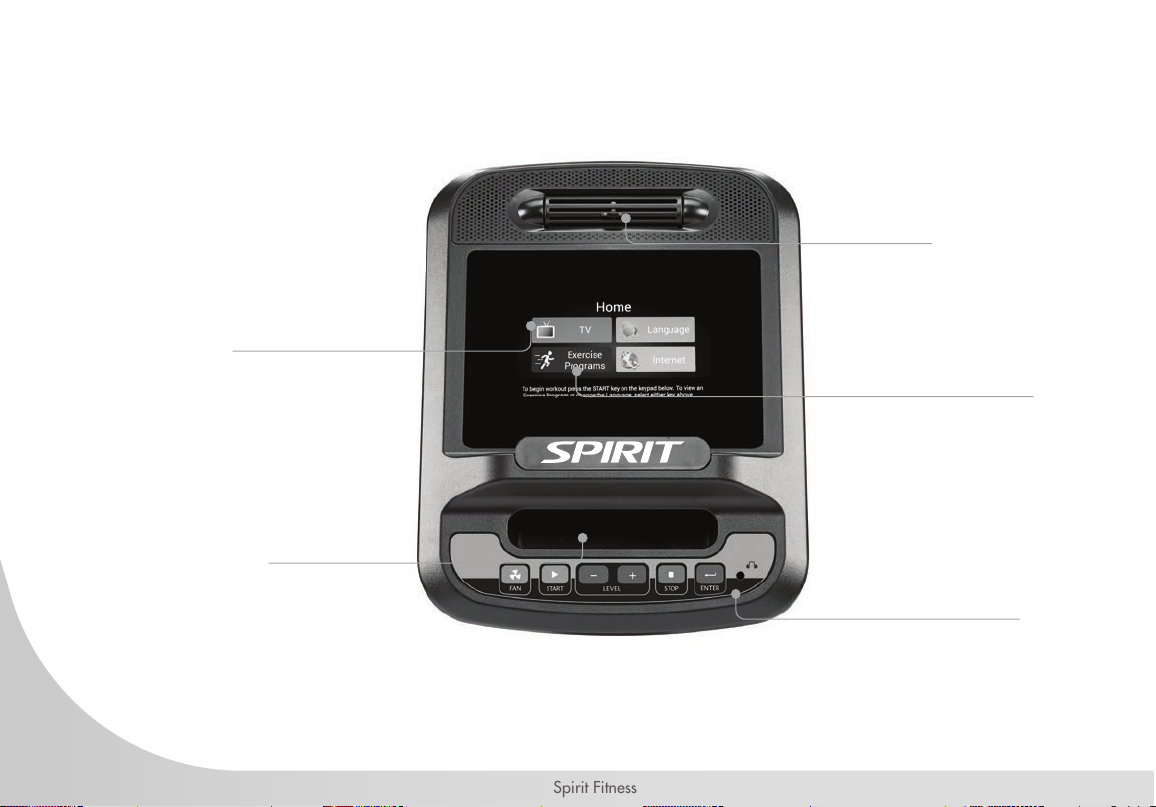

Large touchscreen LCD Ten innovative
programs offer a
variety of workouts
Fan to keep
you cool
Easy-touch
control buttons
Convenient cargo
compartment for
keys, phone, or
MP3 player

13
www.spirittness.com
STARTING OPERATION
Plug in the power cord located at the front base of the unit. When the power is turned on, the screen
will show the initial image and then enter the Home screen.
Home screen: Begin operation by touching the
buttons.
Quick operating buttons are convenient for basic
bike functions.

14
Spirit Fitness
SETTINGS
Press the “Home” button ten consecutive repetitions to enter the Maintenance suite.
The two most commonly used menus for setting up the exercise machine are described below; the TV
Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the
technical service manual or call Spirit service.

15
www.spirittness.com
TV SETUP
1. Begin by selecting either TV or HDMI as the tuner source.
2. Press OSD Menu. The rst highlighted item on the menu is
Air/Cable and then Cable or Air afterward. Press the
OSD Enter to change the selection between Cable and Air
Signal source (usually Cable).
3. After selecting Cable or Air use the arrows located below
the OSD Exit button to navigate down to Auto Scan
then press OSD Enter. The tuner will now scan for all
available channels. Press OSD Exit when done. You can
modify the channels by pressing the Update Channel List.
4. The OSD Command button is for engineering use only.

16
Spirit Fitness
MAINTENANCE MENU
•The Default language setup allows you to select the main
language that will be shown when the console is turned on.
You are able to select the language in the Home menu, but
once the user nishes using the machine the console will return
to this default language.
•Software Update Manager is used to install new versions of
the application software.
•Internet Manager allows you to modify the internet sites that are
shown in the Internet menu.
•Wi/Ethernet Setup is for selecting a Wi signal or
Ethernet addresses.
• Machine Setup allows you to select whether the Csafe port is
used for Csafe or CAB TV Tuner. This menu also allows you to
set the screen brightness.
•FTP Settings is the Spirit FTP site address where Error logs and
remote troubleshooting can be managed.

17
www.spirittness.com
INTERNET MANAGER
1. Remove a link by pressing the button of the site you want to
remove for two seconds. A pop-up window will ask you to
conrm the removal.
2. To add a website press the dotted outline box. A pop-up
window will ask you to enter the web address and upload a
picture for the nal button if you wish. You could also just use a
default-look button and type in the name of the site, which will
then be the button.

18
Spirit Fitness
WIFI/ETHERNET SETUP
Press the desired button for setting up Wi or Ethernet.
WIFI SETUP
Turn Wi on and press scan for available Wi connections. Press
desired connection and follow the on-screen directions.
ETHERNET SETUP
Select DHCP to search for connection
or Static IP to enter manually.
Press Ethernet Conguration to set
up a new connection.
