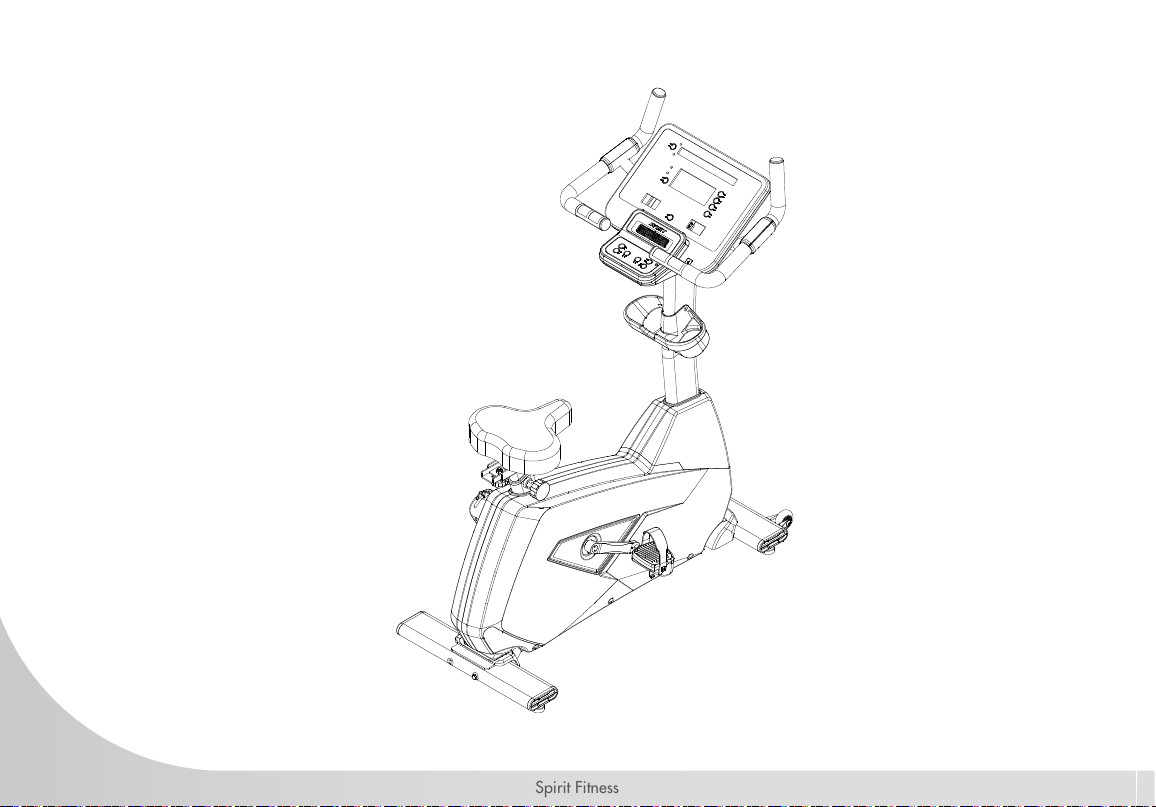

CU800 FITNESS BIKE
OWNER’S MANUAL

Spirit Fitness

3
www.spirittness.com

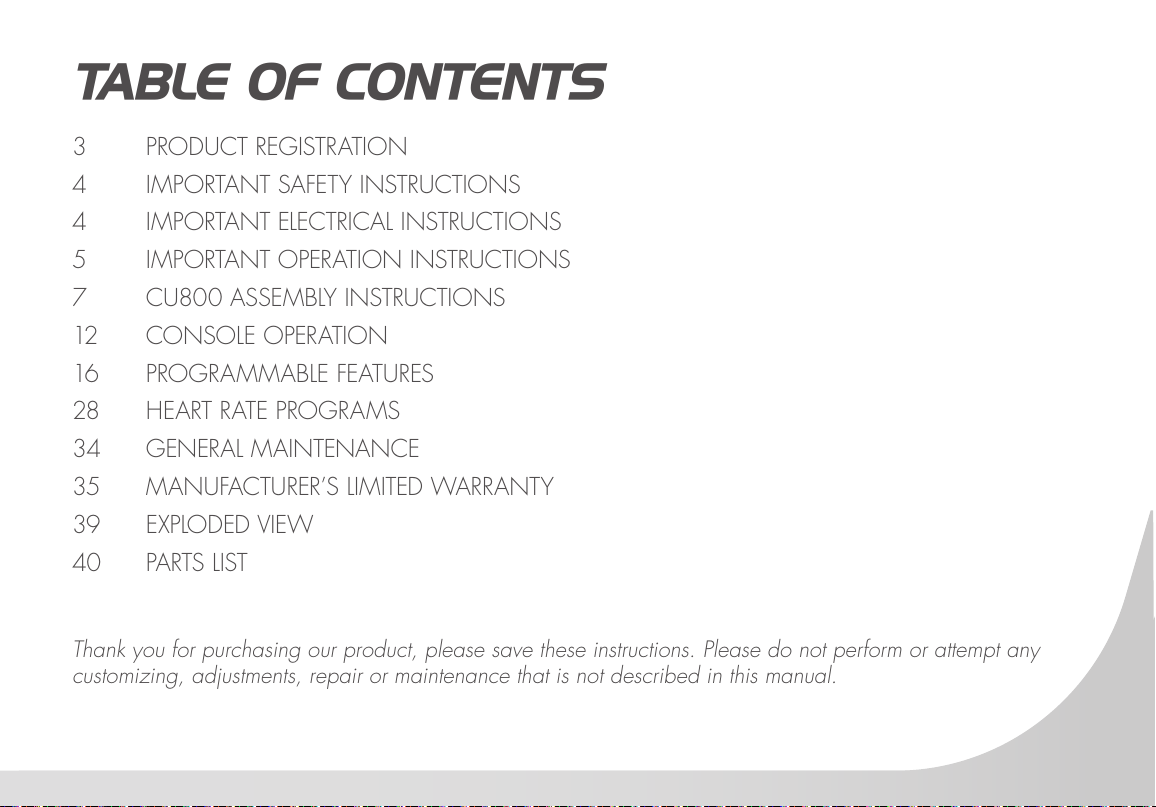

TABLE OF CONTENTS
3 PRODUCT REGISTRATION
4 IMPORTANT SAFETY INSTRUCTIONS
4 IMPORTANT ELECTRICAL INSTRUCTIONS
5 IMPORTANT OPERATION INSTRUCTIONS
7 CU800 ASSEMBLY INSTRUCTIONS
12 CONSOLE OPERATION
16 PROGRAMMABLE FEATURES
28 HEART RATE PROGRAMS
34 GENERAL MAINTENANCE
35 MANUFACTURER’S LIMITED WARRANTY
39 EXPLODED VIEW
40 PARTS LIST
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness

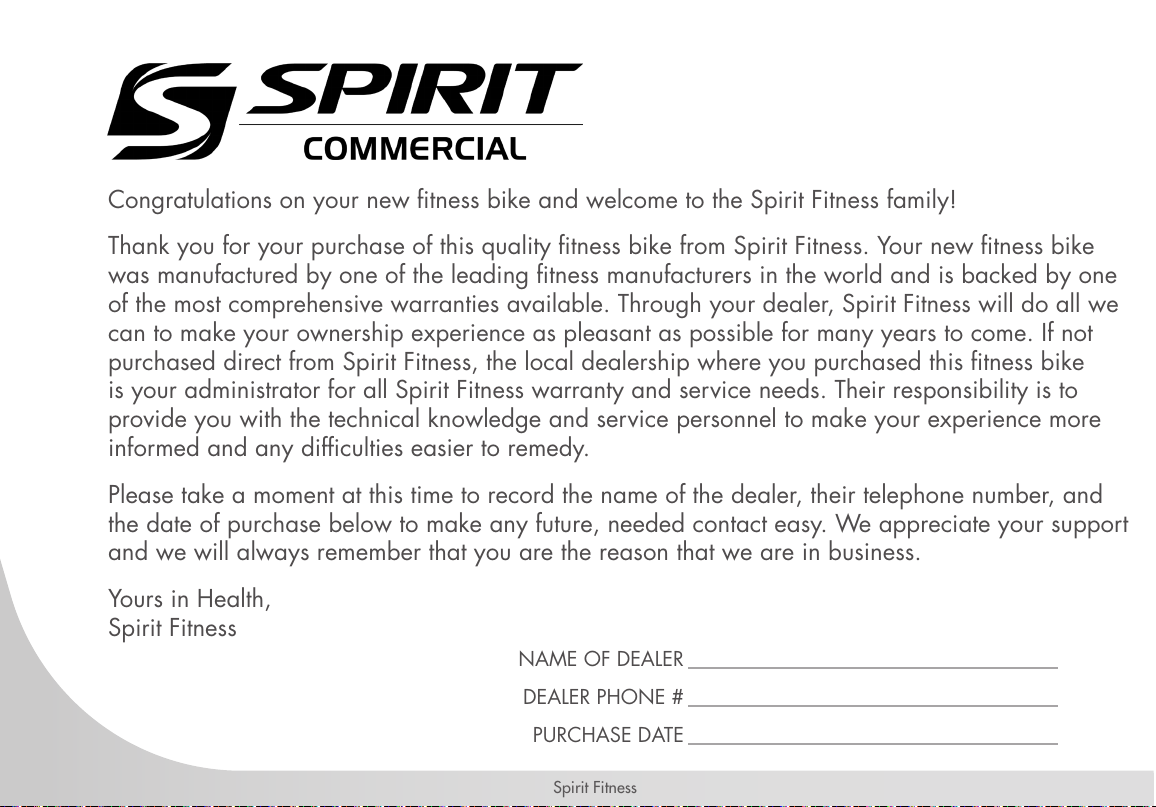

Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality tness bike from Spirit Fitness. Your new tness bike
was manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this tness bike
is your administrator for all Spirit Fitness warranty and service needs. Their responsibility is to
provide you with the technical knowledge and service personnel to make your experience more
informed and any difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and
the date of purchase below to make any future, needed contact easy. We appreciate your support
and we will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in the space
provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to Spirit Fitness. You
can also go to http://www.spirittness.com/commercialwarrantyregistration.html under the Support tab to
register online.

4
Spirit Fitness
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the tness bike. There are
obvious pinch points and other
caution areas that can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your tness bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes,
sandals or bare feet are not suitable for use on your
tness bike. Quality athletic shoes are recommended
to avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons
with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing A.C.
power while the tness bike is being used. Do
not service the tness bike while the generator is
spinning; serious electric shock could occur.
NEVER expose this tness bike to rain or
moisture. This product is NOT designed for use
outdoors, near a pool or spa, or in any other high
humidity environment. The operating temperature

5
www.spirittness.com
specication is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing (no water drops forming
on surfaces).
IMPORTANT OPERATION INSTRUCTIONS
• NEVER operate this tness bike without reading and completely understanding the results of any operational change
you request from the computer.
• Understand that changes in resistance do not occur immediately. Set your desired resistance level on the computer
console and release the adjustment button. The computer will obey the command gradually.
• Use caution while participating in other activities while pedaling on your tness bike; such as watching television,
reading, etc. These distractions may cause you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control buttons. They are precision set to function properly with little
nger pressure.
WARNING
This product can expose you to chemicals including Toluene and Acrylamide which are known to the State of California
to cause Cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

6
Spirit Fitness

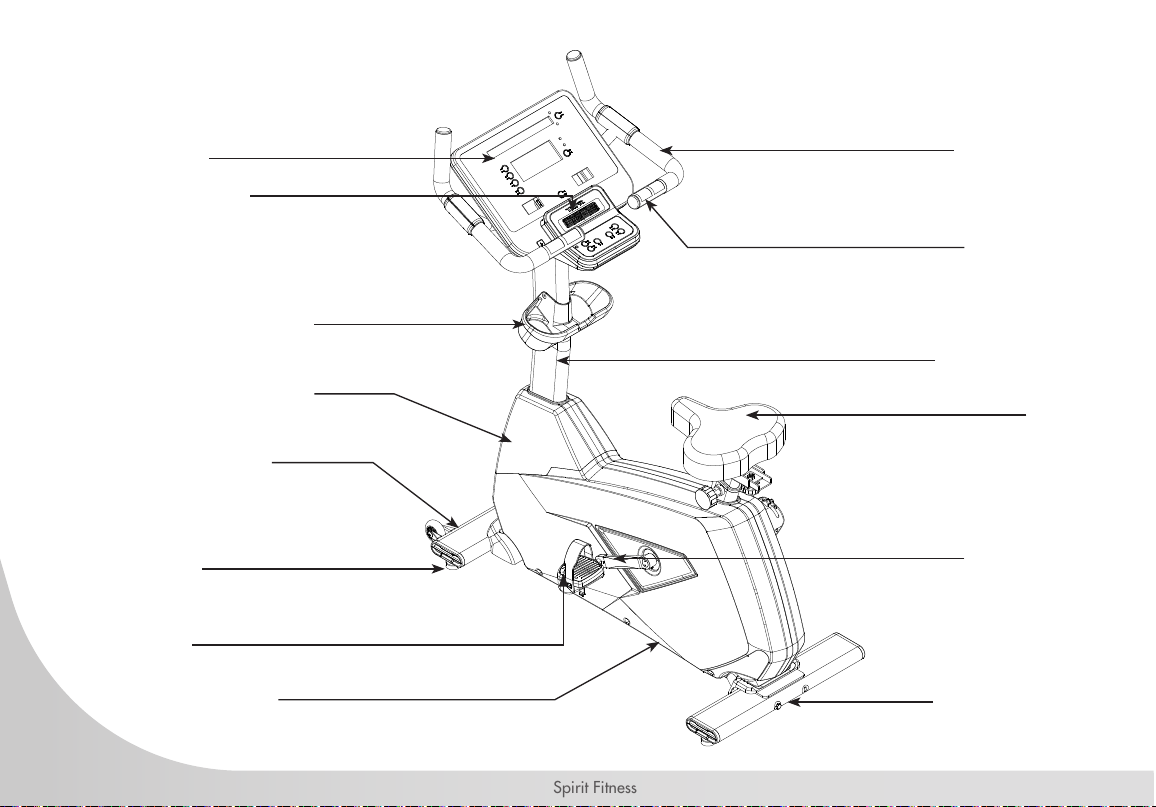

CONSOLE FAN
CONSOLE
DRINK BOTTLE HOLDER
LEVELERS
PEDALS
FRONT STABILIZER
CONSOLE MAST COVER
MAIN FRAME
CRANK ARM
REAR STABILIZER
CONSOLE MAST
SEAT
PULSE GRIPS
HANDLEBARS

7
www.spirittness.com
CU800 PRE-ASSEMBLY
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box;
lift the box over the unit and unpack.
2. Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are
in parenthesis (#) are the item number from the assembly drawing
for reference.
TOOLS INCLUDED:
13/15mm Wrench
12/14mm Wrench
Phillips Screwdriver
PARTS INCLUDED:
1 Main Frame
1 Rear Stabilizer
1 Console Mast
1 Handle Bar
1 Console Mast Cover
1 Front Stabilizer Cover
1 Rear Stabilizer Cover
1 Console
1 Drink Bottle Holder
2 Pedals
1 Hardware Kit

8
Spirit Fitness

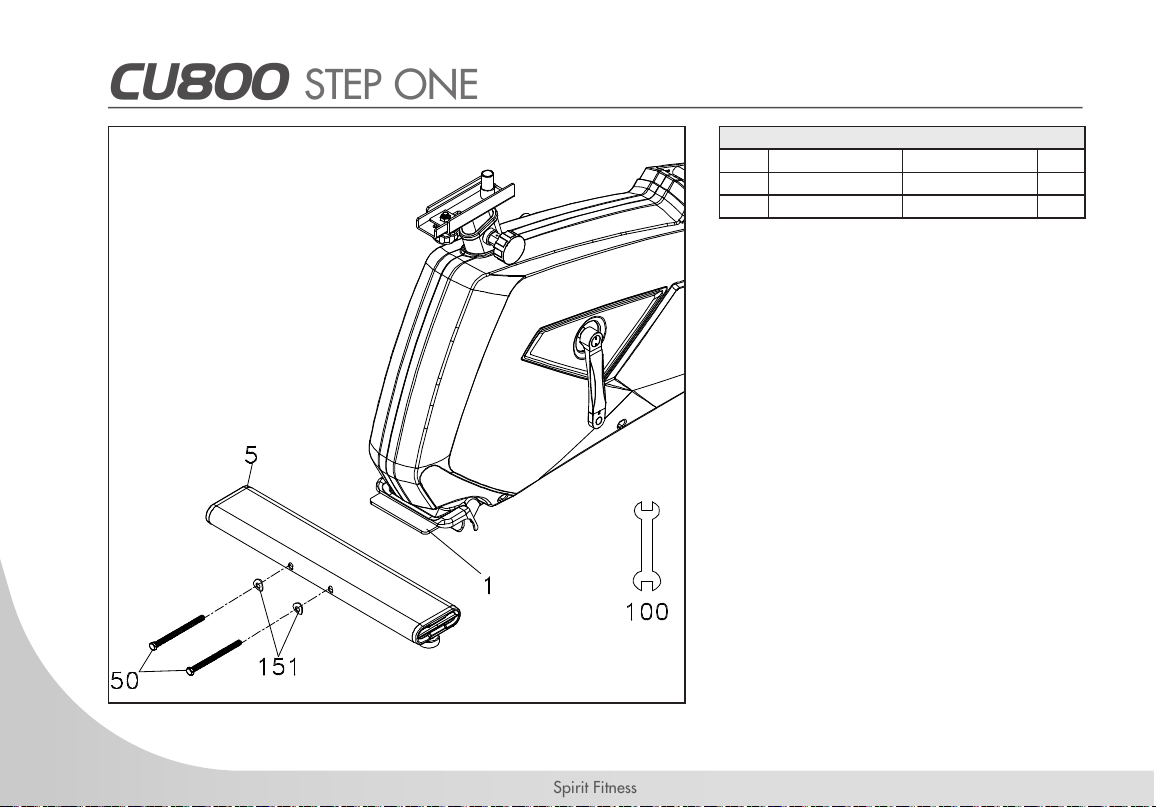

CU800 STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
50 BOLT 3/8” x 135mm 2
151 WASHER ø3/8” x 23 x 2.0T 2
1. Install the Rear Stabilizer (No.5) onto
the Main Frame (No.1) with the 2 Bolts
(No.50) and 2 Washers (No.151).

9
www.spirittness.com

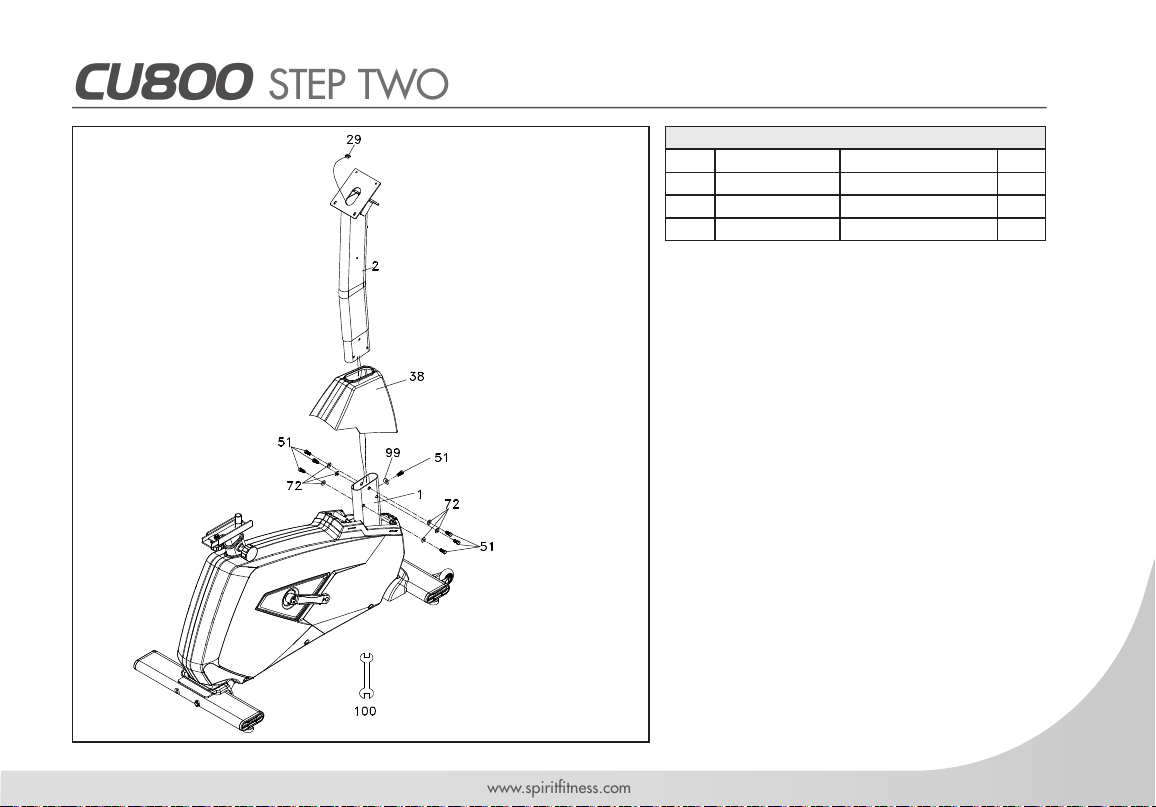

CU800 STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
51 BOLT 5/16”x UNC18 x 5/8” 7
72 FLAT WASHER ø8 x ø19 x 1.5T 6
99 CURVED WASHER ø5/16” x 19 x 1.5T 1
1. Unravel the Computer Cable (No.29) and
snake it through the Console Mast Cover
(No.38) and the Console Mast (No.2)
until the cable connector comes out the
top opening of the console mast. Slide the
Plastic Cover (No.38) onto the Console
Mast, ensuring the correct orientation of the
cover.
2. Install the Console Mast (No.2) onto the
Main Frame (No.1) with 7 Bolts (No.51),
6 Fast Washers (No.72) on the side
screws and 1 Curved Washer (No.99)
on the front screw using the Wrench
(No.100).

10
Spirit Fitness

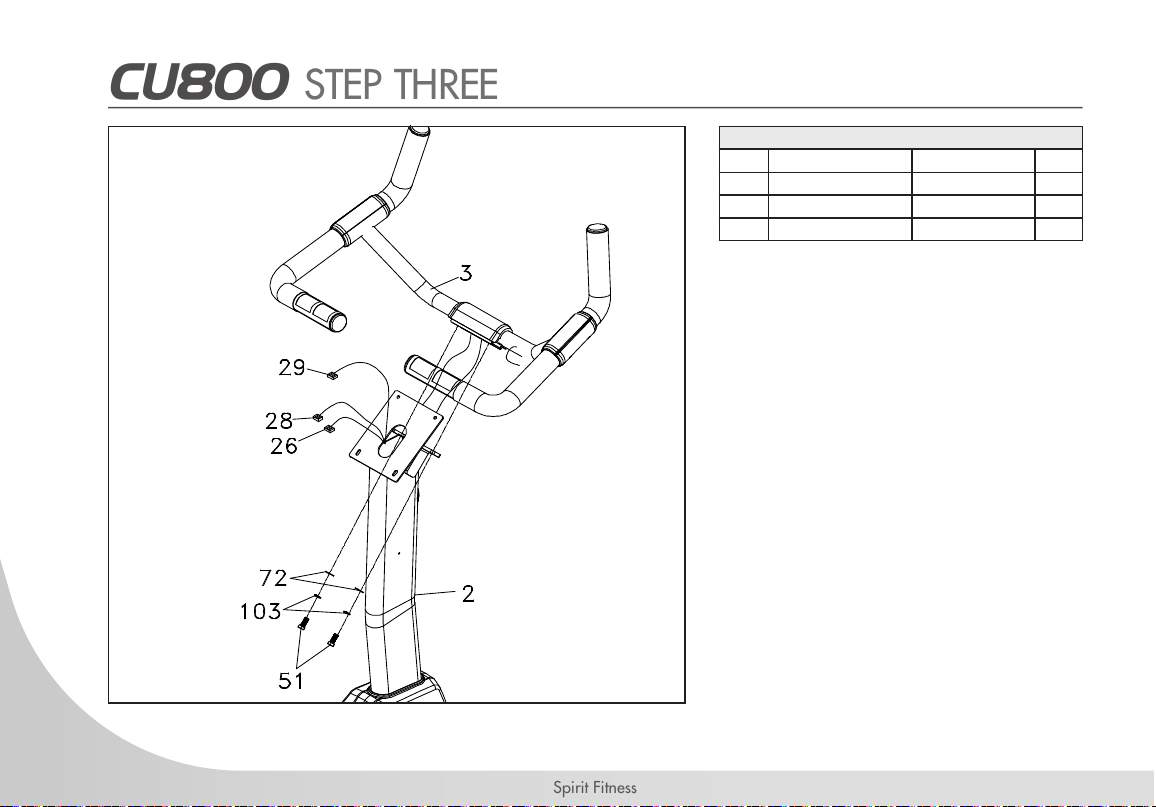

CU800 STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
51 BOLT 5/16”X5/8” 2
72 WASHER 5/16”X18” 2
103 SPLIT WASHER 5/16” 2
1. Run the 2 Hand Pulse Wires (No.26)
and the Computer Cable (No.29) into
the hole in the handle bar mounting
plate and out through the hole in the
console plate. Install the Handle Bar
(No.3) onto the Console Mast (No.2))
with 2 Bolts (No.51), 2 Washers
(No.72) and 2 Split Washers (No.103)
being careful not to pinch the hand
pulse wires. Snap the black plastic
handlebar cover over the joint.

11
www.spirittness.com

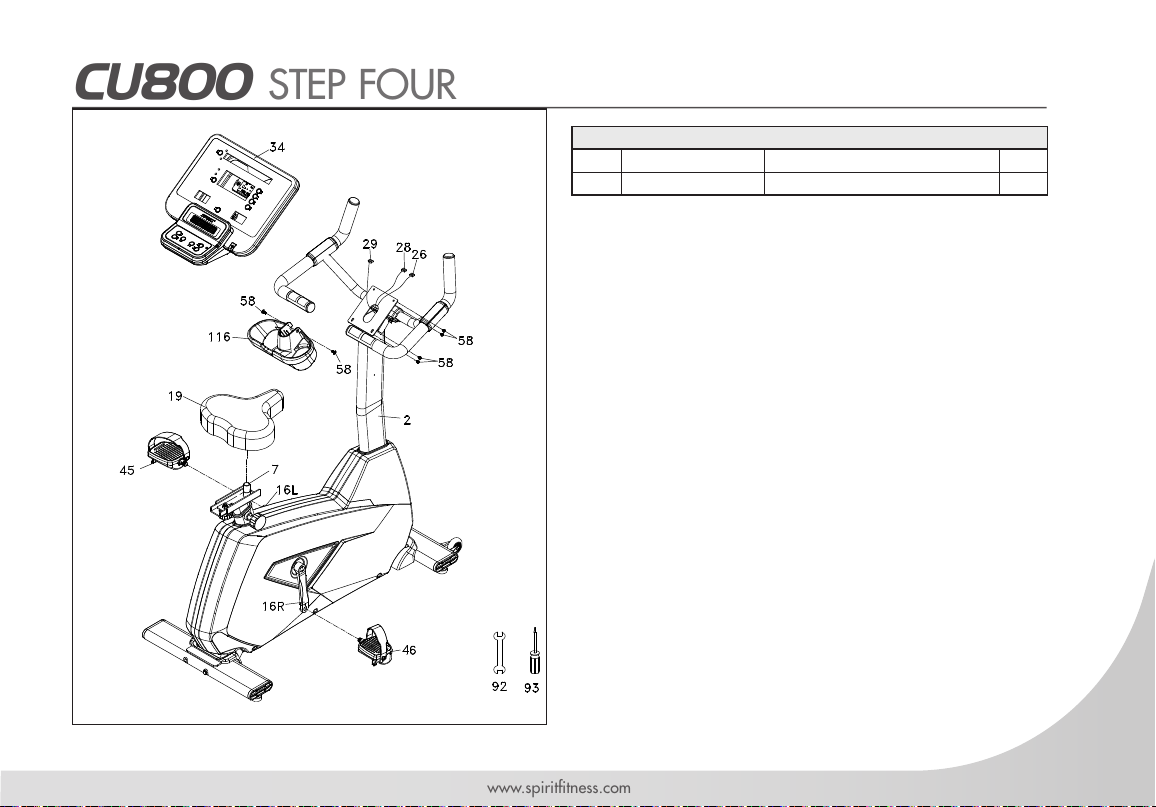

CU800 STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
58 SCREW M5 x 12mm 6
1. Insert the Computer Cable (No.29) and 2 Hand Pulse
Cables (No.26, 28) into the connectors in the back of
the Console (No.34). Install the Console (No.34) onto
the Console Mast (No.2). Secure with 4 bottom Screws
(No.58).
2. Install the Beverage Holder (No.116) onto the Console
Mast (No.2) with 2 Screws (No.58).
3. Install the Pedals (No.45 L, 46 R) onto the Crank Arms
(No.16 L, 16 R). The left pedal has a reverse thread
and will be screwed in with the opposite rotation.
Make sure to tighten the pedals as much as possible.
4. Install the Seat Mount Slide (No.7) onto the track on top
of the seat tube with the seat post facing forward. Install
the Seat (No.19) onto the seat post and fasten the nut
using the Wrench (No.100).

12
Spirit Fitness

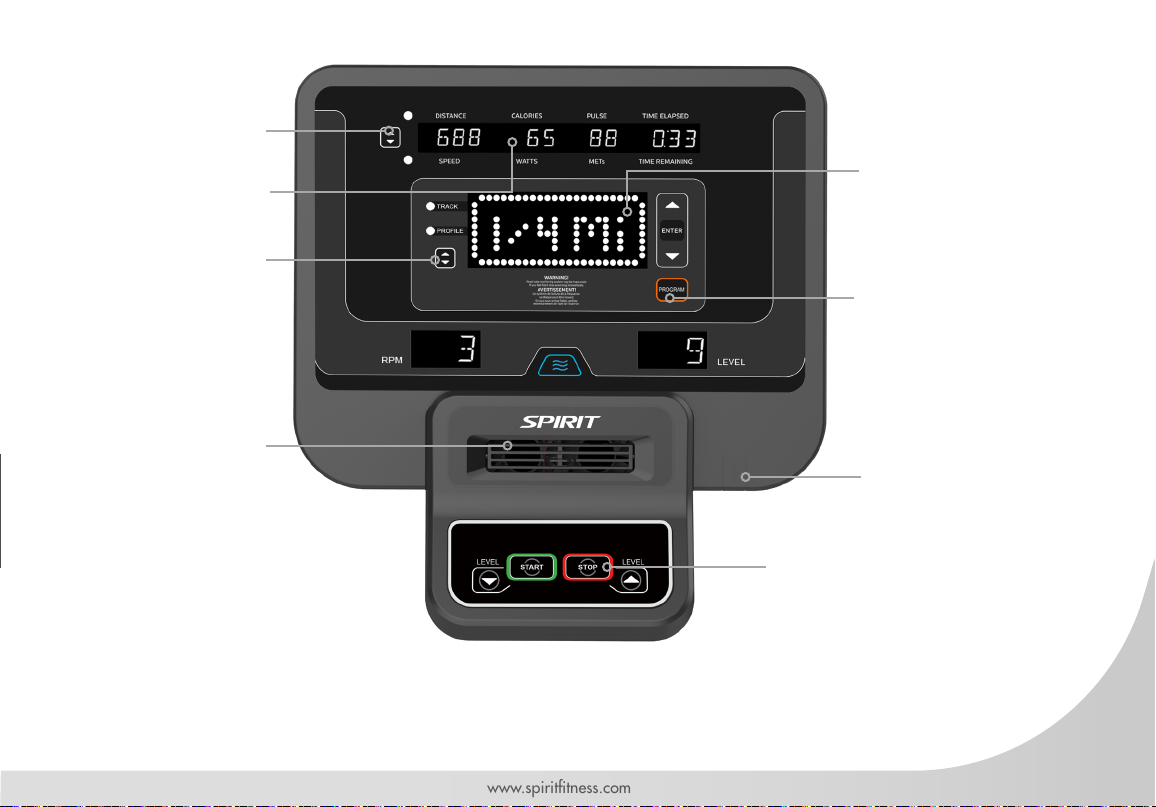

CU800 CONSOLE OPERATION

13
www.spirittness.com
Fan
Scan Button for
LED Windows
Scan Button for
Dot Matrix
Dot Matrix
Message Center
Start, Stop, Level
Controls
Up, Down,
Program Controls
USB
Charger
LED Data Display
Windows

14
Spirit Fitness
POWER
The bike has a built-in generator for power and
do not need to be plugged into an AC outlet.
To power up the bike simply start to pedal, the
console will turn on automatically.
When initially powered on, the console will
perform an internal self-test. During this time the
display may not light up for a few seconds.
Continue pedaling and the display will light up.
Once powered on, the Dot Matrix Message
Center will be scrolling the start-up message.
You may now begin your workout program.

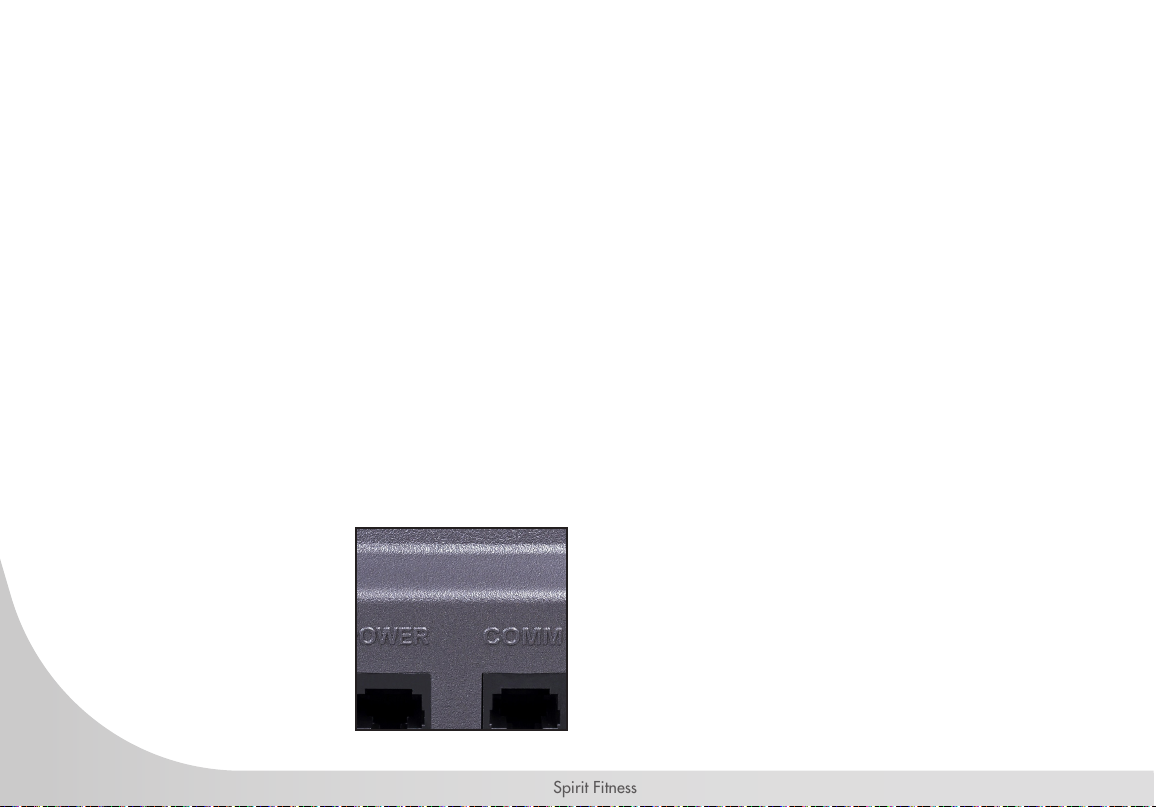

C-SAFE FEATURE
Your console is equipped with a C-SAFE fea-
ture. The Power (POW-
ER) port can be used
for powering a remote
controlled audio-visual
system by connecting a
cable from the remote
to the Power port at the
back of the console. The Communication port
(COMM) can be used to interact with tness
software applications.
QUICK START
This is the quickest way to start a workout. After
the console powers up you just press the Start
key to begin. This will initiate the Quick Start
mode. In Quick Start the Time will count up
from zero, all workout data will start to accrue
and the workload may be adjusted manually
by pressing the Level Up and Down buttons.
The Dot Matrix Message Center display will
show just the bottom row lit. As you increase
the workload more rows will light indicating
a harder workout. The bike will get harder to
pedal as the rows increase. The Dot Matrix
Message Center has 24 columns of lights and
each column represents 1 minute. At the end
of the 24th column (or 24 minutes of work) the
display will wrap around and start at the rst
column again.
There are 40 levels of resistance – displayed

15
www.spirittness.com
as 10 rows of lights – available for plenty of
variety. The rst 10 levels are very easy work-
loads, and the changes between levels are
set to a good progression for de-conditioned
users. Levels 10-20 are more challenging but
the increases from one level to the next remain
small. Levels 20-30 start getting tough as the
levels jump more dramatically. Levels 30-40 are
extremely hard and are good for short interval
peaks and elite athletic training.
1/4 MILE TRACK
The 1/4-mile track (0.4 km) will be displayed
around the dot matrix window. The ashing dot
indicates your progress. In the center of the track
there is a lap counter for reference.
HEART RATE WINDOW
The Pulse (Heart Rate) window will display your
current heart rate in beats per minute during the
workout. You must use both left and right stainless
steel sensors to pick up your pulse. Pulse values are
displayed anytime the computer is receiving a Grip
Pulse signal. You may use the Grip Pulse feature
while in Heart Rate Control. The CU800 will also
pick up wireless heart rate transmitters that are
Polar compatible, including coded transmissions.
TO TURN BIKE OFF
The display will automatically turn off (go to sleep)
after 30 minutes of inactivity. This function is called
sleep mode. In sleep mode, the bike will power
down most everything except for a minimum
of circuitry for detecting button presses and the
safety button so it will start up again if these are
activated. There is only a tiny amount of current
used in sleep mode (about the same as your TV
when it is turned off) and it is perfectly ne to
leave the main power switch on in sleep mode.
Of course you may also remove the safety button
or turn off the main power switch to power down
the bike.
BASIC INFORMATION
The Dot Matrix Message Center, or Prole
Window, will display the workout Prole. The
LED Data Display Window displays pertinent
exercise data. There is a RPM window for

16
Spirit Fitness
pedal speed and a Level window indicating
machine resistance.
The LED Data Display Windows will initially be
displaying Distance, Calories,Pulse and Time
Elapsed information. When the Up/Down Scan
key is pressed the next set of information will
appear: Speed, Watts, METs, Time Remaining.
Pressing the Up/Down Scan button, the Scan
mode is activated and the LED Data Display
Window will show each set of data for four
seconds then switch to the next set of data in a
continuous loop. Pressing the Up/Down Scan
button again will bring you back to the begin-
ning.
The Stop key button actually has several func-
tions. Pressing the Stop key once during a
program will pause the program for 5 minutes.
If you need to get a drink, answer the phone,
or any of the many things that could interrupt
your workout, this is a great feature. To resume
your workout during Pause just press the Start
key. If the Stop key is pressed twice during a
workout, the program will end and the console
will return to the start-up screen. If the Stop key
button is held down for 3 seconds, the console
will perform a complete Reset. During data
entry for a program the Stop key performs a
Previous Screen function. This allows you to go
back one step in the programming each time
you press the Stop key button.
The Program Key is used to preview each
program. When you rst turn the console on,
you may press Program key to preview what
the program prole looks like. If you decide that
you want to try a program, press the Enter key
to select the program and enter into the data
set-up mode.
PROGRAMMING THE CONSOLE
Each of the programs can be customized with
your personal information and changed to suit
your needs. Some of the information asked for
is necessary to ensure the readouts are correct.
You will be asked for your Age and Weight.

17
www.spirittness.com
Your Age is also necessary during the Heart Rate control program to ensure the correct settings
are in the program for your Age. Otherwise the work settings could be too high or low for you;
entering your Weight aides in calculating a more correct calorie reading. Although we cannot
provide an exact calorie count we do want to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym
or at home, are not accurate and tend to vary widely. They are meant only as a guide to monitor
your progress from workout to workout. The only way to measure your calorie burn accurately is
in a clinical setting connected to a host of machines. This is because every person is different and
burns calories at a different rate.
ENTERING & CHANGING SETTINGS
When you enter a program, you have the option of entering your own personal settings. If you
want to work out without entering new settings, then just press the Start key. This will bypass the
programming of data and take you directly to the start of your workout. If you want to change the
personal settings, then just follow the instructions in the Dot Matrix Message Center. If you start a
program without changing the settings, the default, or pre-saved settings will be used.

18
Spirit Fitness
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program follow the instructions below.
1. Using the Program button choose the Manual program then press the Enter button.
2. The Dot Matrix Message Center will ask you to enter your Age. You may enter your Age, using the Up
and Down buttons, then press the Enter button to accept the new number and proceed onto the next
screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down
buttons, then press enter to continue.
4. The next setting is Time. You may adjust the Time and press Enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start button. You
can alsogo back and modify your settings by pressing the Enter button.
NOTE: At any time during the editing of data you can press the Stop button to go back one level, or
screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay
at level one for a while to warm up. If you want to increase the work load at any time press the Level
Up button; the Level Down button will decrease the workload.
7. When the program ends you may press Start to begin the same program again or Stop to exit the
program.
