Spirit Commercial CU900ENT User manual

CU900ENT FITNESS BIKE
OWNER’S MANUAL

Spirit Fitness

www.spirittness.com

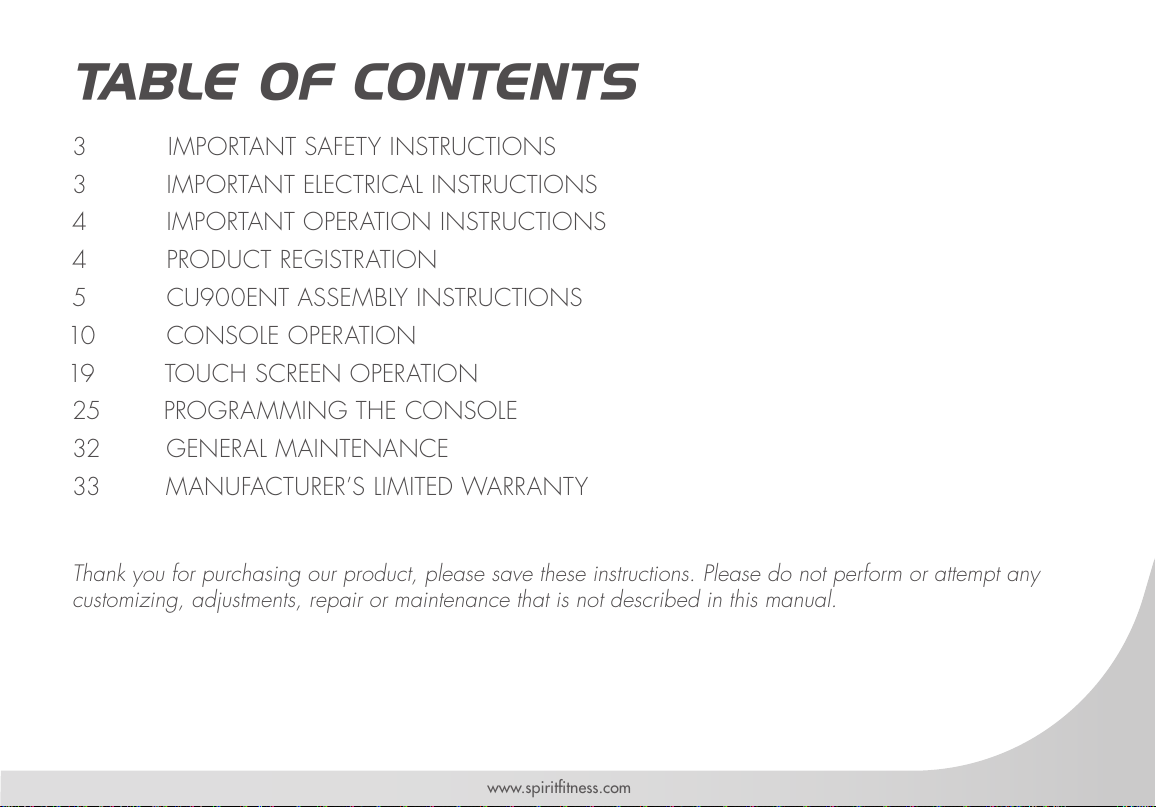

TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 IMPORTANT ELECTRICAL INSTRUCTIONS
4 IMPORTANT OPERATION INSTRUCTIONS
4 PRODUCT REGISTRATION
5 CU900ENT ASSEMBLY INSTRUCTIONS
10 CONSOLE OPERATION
19 TOUCH SCREEN OPERATION
25 PROGRAMMING THE CONSOLE
32 GENERAL MAINTENANCE
33 MANUFACTURER’S LIMITED WARRANTY
Thank you for purchasing our product, please save these instructions. Please do not perform or attempt any
customizing, adjustments, repair or maintenance that is not described in this manual.

2
Spirit Fitness
Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality tness bike from Spirit Fitness. Your new tness bike was
manufactured by one of the leading tness manufacturers in the world and is backed by one of the
most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we can to make
your ownership experience as pleasant as possible for many years to come. If not purchased direct
from Spirit Fitness, the local dealership where you purchased this tness bike is your administrator for
all Spirit Fitness warranty and service needs. Their responsibility is to provide you with the technical
knowledge and service personnel to make your experience more informed and any difculties easier to
remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the date
of purchase below to make any future, needed contact easy. We appreciate your support and we will
always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________

3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the tness bike. There are
obvious pinch points and other caution areas that can
cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your tness bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices
.Various factors, including the user’s movement,
may affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your tness
bike. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or metal capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
NEVER expose this tness bike to rain or moisture.
This product is NOT designed for use outdoors,
near a pool or spa, or in any other high humidity
environment. The operating temperature specication
is 40 to 120 degrees Fahrenheit, and humidity is 95%
non-condensing (no water drops forming on surfaces).

4
Spirit Fitness
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this tness bike without reading
and completely understanding the results of any
operational change you request from the computer
console.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment button.
The computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your tness bike; such as watching
television, reading, etc. These distractions may cause
you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control
buttons. They are precision set to function properly
with little nger pressure.
WARNING:
This product may contain a chemical known to the
state of California to cause cancer, birth defects, or
other reproductive harm.
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness product in
the space provided below. The serial number is located
at the front of the tness bike.
SERIAL NUMBER:
REGISTER YOUR PURCHASE
The self-addressed product registration card
must be completed in full and returned to Spirit
Fitness. You can also go towww.spirittness.com
commercialwarrantyregistration.html under the Support
tab to register online.

5
www.spirittness.com
CU900ENT PRE-ASSEMBLY
TOOLS INCLUDED:
13/15mm Wrench
Phillips Screwdriver
5mm Allen Wrench
6mm Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Rear Stabilizer
1 Seat
2 Seat Bracket Covers
1 Console
1 Console Mast
1 Front Handle Bar
1 Handle Bar Cover
2 Console Mast Covers
2 Pedals
1 Cup Holder
1 Hardware Kit
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.

6
Spirit Fitness
CU900ENT STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
52 BOLT M8XP1.25X20L 4
53 FLAT WASHER 8.5X18X1.5T 4
59 SCREW M5XP0.8X12L 4
60 FLAT WASHER 13X23X2.0T 3
61 BOLT M10X55L 3
1. Install REAR STABILIZER (4) to MAIN
FRAME (1) with 3 BOLTS (61) and 3
WASHERS (60).
2. Install SEAT (28) to SEAT POST (8) with
4 BOLTS (52) and 4 WASHERS (53).
3. Attach SEAT BRACKET COVERS (43
& 44) to SEAT POST (8) with 4 round
head SCREWS (59).

7
www.spirittness.com

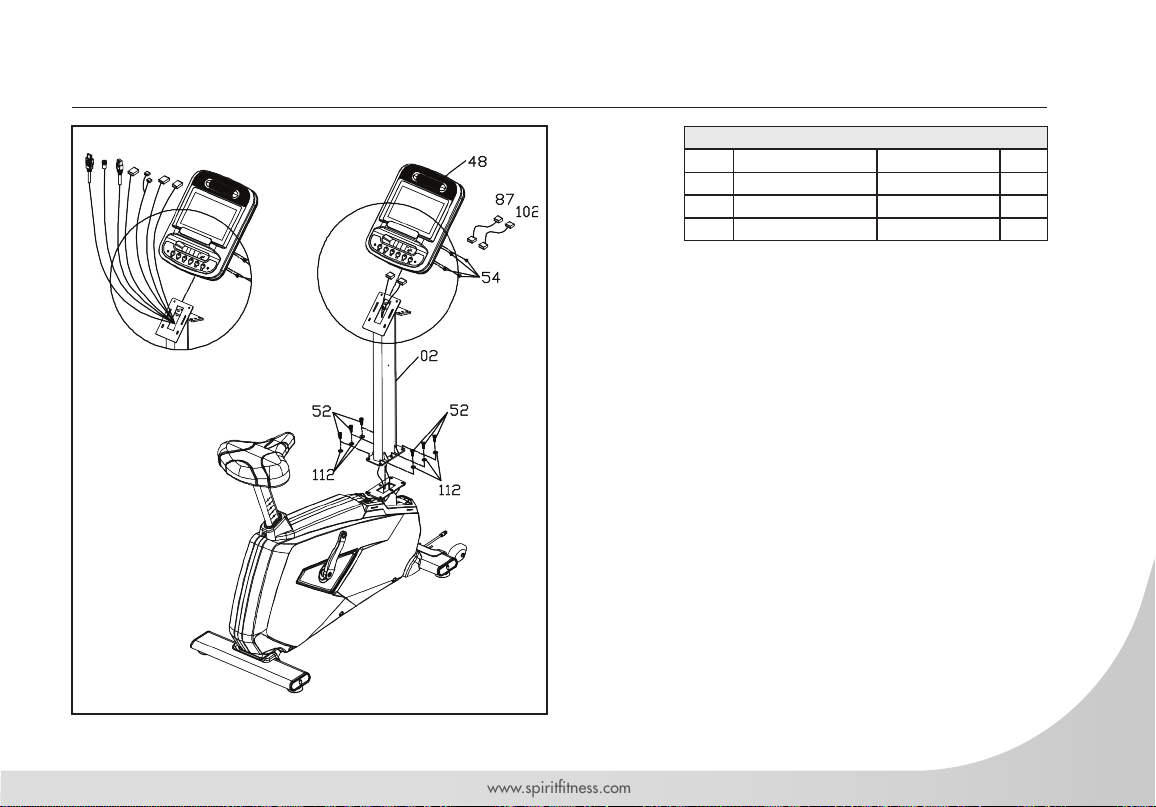

CU900ENT STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
52 BOLT M8XP1.25X20L 6
112 FLAT WASHER 8.5X18X1.5T 6
54 SCREW M5XP0.8X12L 4
1. Run the WIRING HARNESS through the
CONSOLE MAST (2) and out the top.
2. Install CONSOLE MAST (2) to MAIN
FRAME (1) with 6 BOLTS (52) and 6
WASHERS (112). Do not pinch any
wires.
3. Connect HGP CONNECTOR CABLES
(87 & 102) to CONSOLE (48). Run
cables through center of console bracket
and out the back.
4. Connect WIRING HARNESS to
CONSOLE (48).
5. Attach CONSOLE (48) to CONSOLE
MAST (2) using 4 SCREWS (54). Be
careful not to pinch any wires.

8
Spirit Fitness

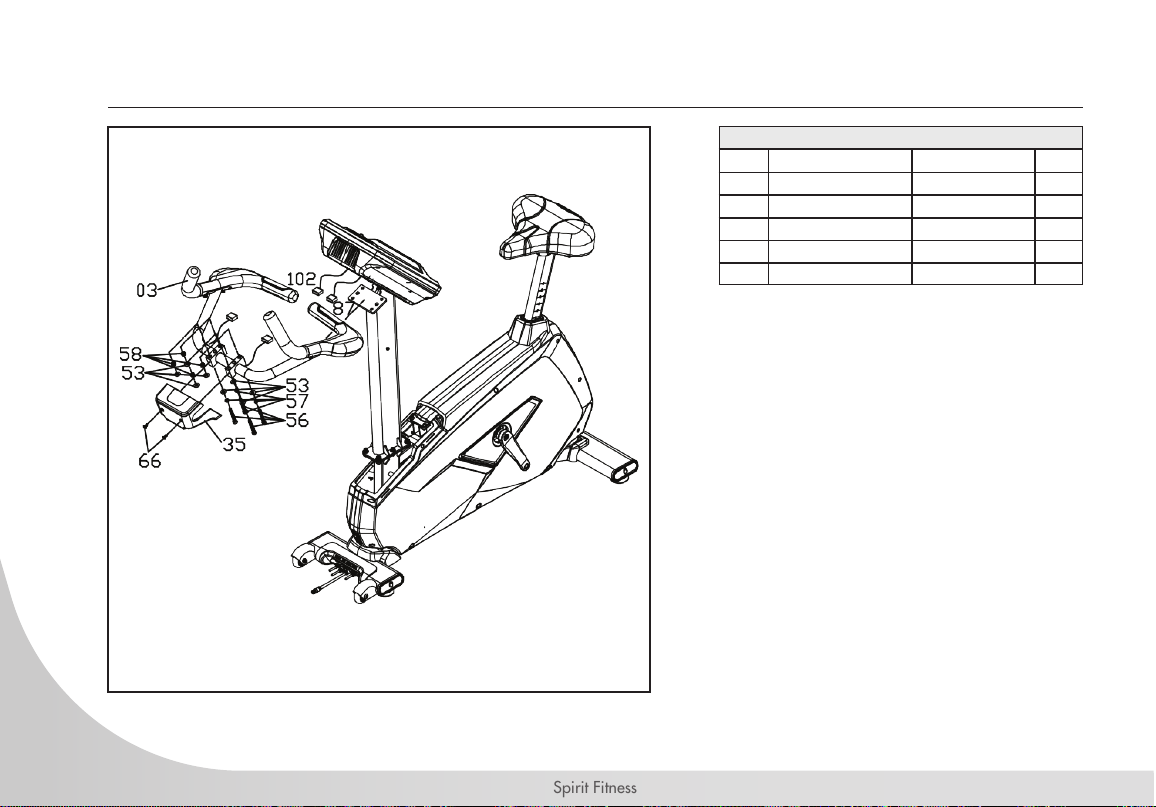

CU900ENT STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
53 FLAT WASHER 8.5x18x1.5T 8
56 BOLT M8xP1.25x65L 4
57 LOCK WASHER 8x1.5T 4
58 NYLOCK NUT M8xP1.25x7T 4
66 SCREW M5xP0.8x6L 2
1. Install HANDLEBARS (3) to CONSOLE
MAST (2) with 4 BOLTS (56), 4 LOCK
WASHERS (57), 8 WASHERS (53), and
4 NUTS (58).4WASHERS (53) should
be installed on each side of the
handlebars (3).
2. Connect HGP CONNECTOR CABLES
(87 & 102) to HGP cables coming out of
HANDLEBARS (3).
3. Attach CONSOLE BRACKET COVER (35)
to HANDLEBARS (3) using 2 SCREWS
(66).

9
www.spirittness.com

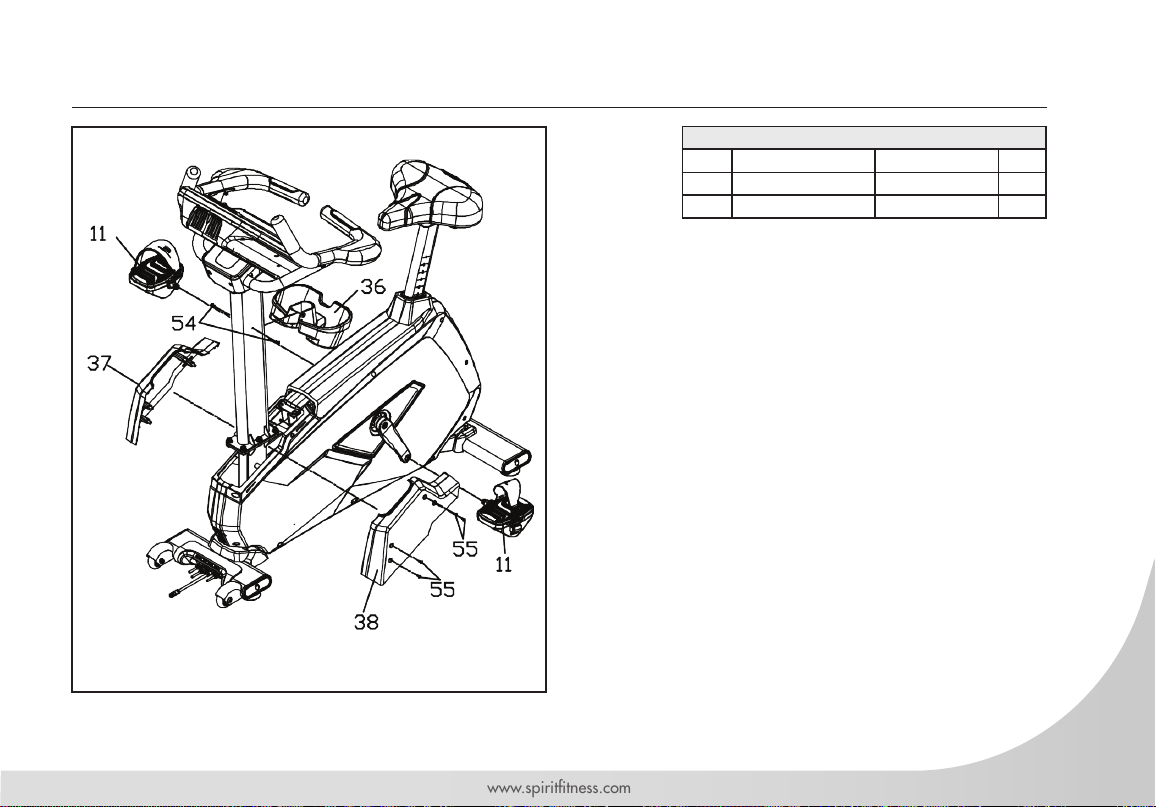

CU900ENT STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
54 SCREW M5xP0.8x12L 2
55 SELF-TAPPING SCREW 3.5x12L 4
1. Attach CUP HOLDER (36) to CONSOLE
MAST (2) using 2 SCREWS (54).
2. Attach CONSOLE MAST COVERS (37
& 38) over CONSOLE MAST (2) using
4 SELF-TAPPING SCREWS (55).
3. Install PEDALS (11) into CRANK
ARMS (9 & 10).The left pedal has a
reverse thread and will be screwed in
counterclockwise. Tighten to 300 in-lb
(34 Nm) of torque.

10
Spirit Fitness
CU900ENT CONSOLE OPERATION

11
www.spirittness.com

12
Spirit Fitness
STARTING OPERATION
Plug in the power cord located at the front base of the unit. When the power is turned on, the screen
will show the initial image and then enter the Home screen.
Home screen: Begin operation by touching the icons. Quick operating buttons are convenient for basic
bike functions.

13
www.spirittness.com
SETTINGS
Press the “Home” icon ten consecutive repetitions to enter the Maintenance suite.
The two most commonly used menus for setting up the exercise machine are described below; the TV
Setup and Maintenance menus. For information on other sections of the Maintenance suite refer to the
technical service manual or call Spirit service.

14
Spirit Fitness

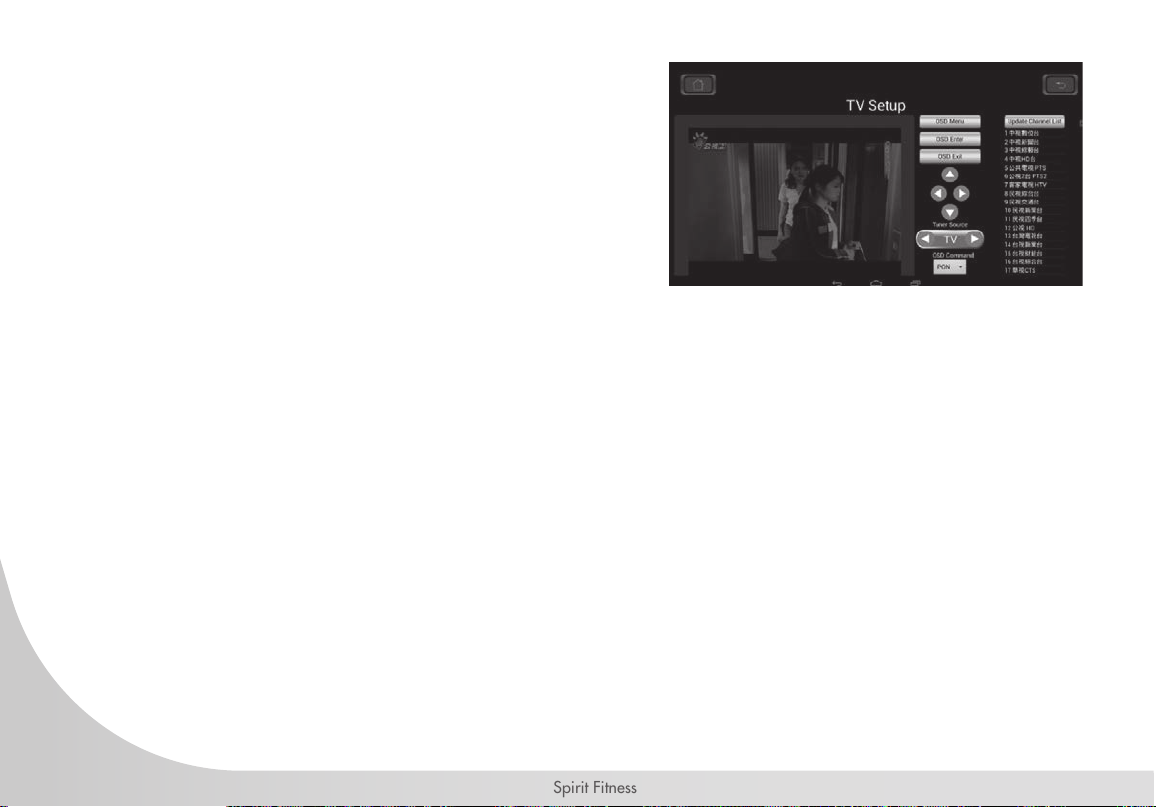

TV SETUP
1. Begin by selecting either TV or HDMI as the tuner source.
2. Press OSD Menu. The rst highlighted item on the menu is
Air/Cable and then Cable or Air afterward. Press the
OSD Enter to change the selection between Cable and Air
Signal source, usually Cable).
3. After selecting Cable or Air use the arrows located below
the OSD Exit button to navigate down to Auto Scan
then press OSD Enter. The tuner will now scan for all
available channels. Press OSD Exit when done. You can
modify the channels by pressing the Update Channel List.
4. The OSD Command button is for engineering use only.

15
www.spirittness.com

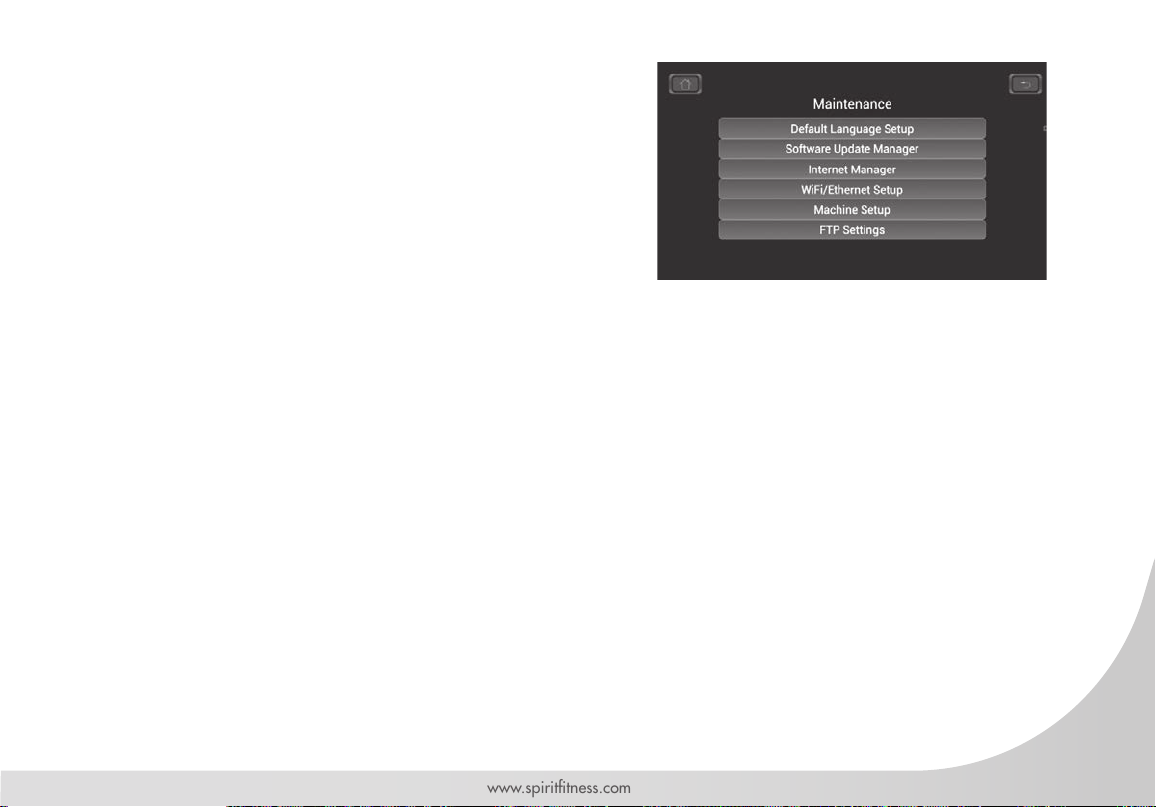

MAINTENANCE MENU
• The Default language setup allows you to select the main
language that will be shown when the console is turned on.
You are able to select the language in the Home menu, but
once the user nishes using the machine the console will return
to this default language.
• Software Update Manager is used to install new versions of
the application software.
• Internet Manager allows you to modify the internet sites that are
shown in the Internet menu.
• Wi/Ethernet Setup is for selecting a Wi signal or
Ethernet addresses.
• Machine Setup allows you to select whether the Csafe port is
used for Csafe or CAB TV Tuner. This menu also allows you to
set the screen brightness.
• FTP Settings is the Spirit FTP site address where Error logs and
remote troubleshooting can be managed.

16
Spirit Fitness

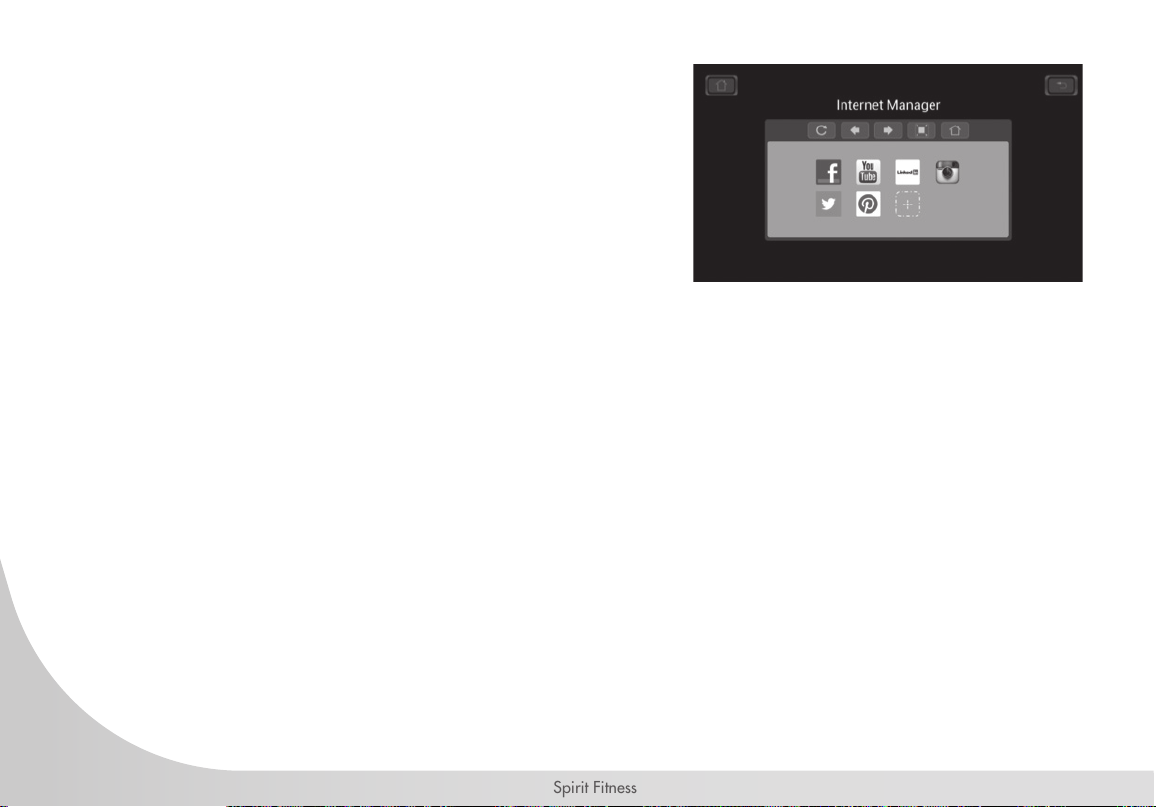

INTERNET MANAGER
1. Remove a link by pressing the icon of the site you want to
remove for two seconds. A pop-up window will ask you to
conrm the removal.
2. To add a website press the dotted outline box. A pop-up
window will ask you to enter the web address and upload a
picture for the nal button if you wish. You could also just use a
default-look button and type in the name of the site, which will
then be the button icon.

17
www.spirittness.com
WIFI/ETHERNET SETUP
Press the desired button for setting up Wi or Ethernet.
WIFI SETUP
Turn Wi on and press scan for available Wi connections. Press
desired connection and follow the on-screen directions.
ETHERNET SETUP
Select DHCP to search for connection
or Static IP to enter manually
Press Ethernet Conguration to set
up a new connection.

18
Spirit Fitness

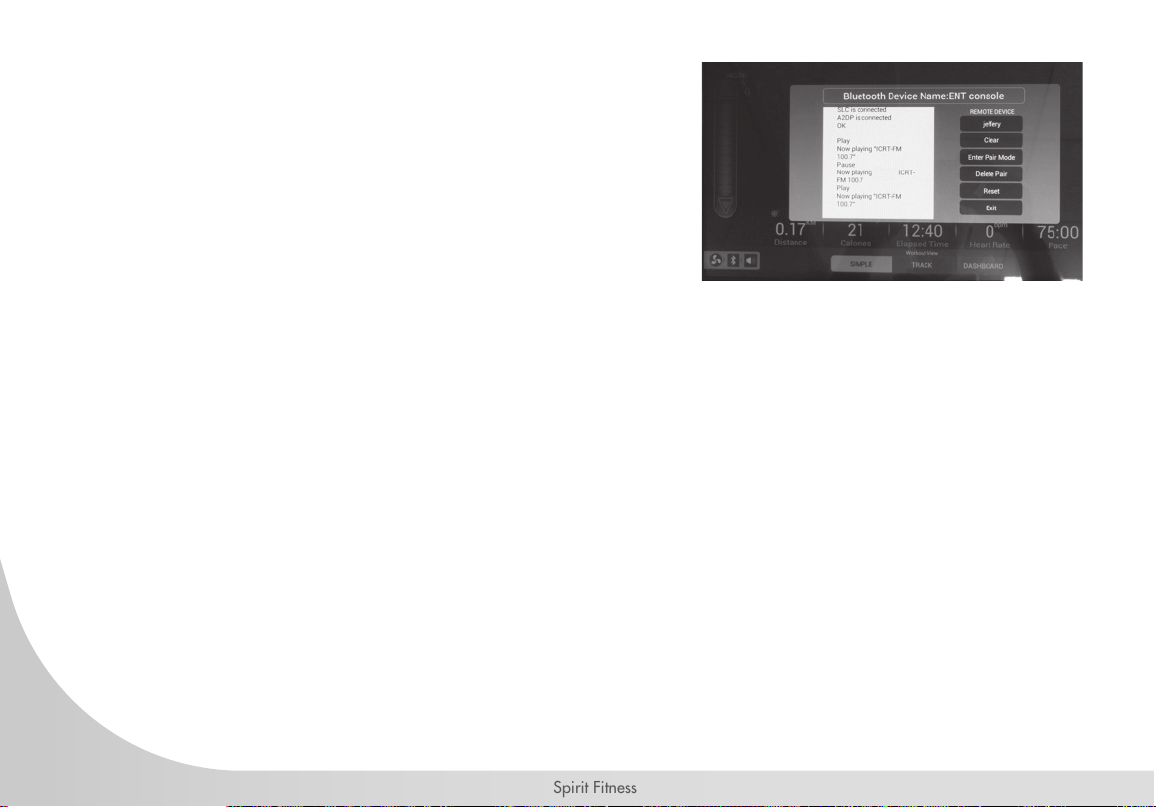

BLUETOOTH PAIRING PROCEDURE
1. Press the Blue Tooth (BT) icon on the bottom left of the screen.
2. The BT pop-up screen will appear. Turn on Phone/tablet BT and
then press Pair Mode on ENT Menu.
3. The menu with show Entering Pairing mode and the phone will
show A2DP as an available device.
4. The A2DP console and phone will ask you to conrm pairing,
press OK.
5. Pairing complete
6. Open audio APP on phone and the audio will be played
through the headphone port on the ENT console.
