INTRODUCTION 1
HOW TO USE THIS MANUAL 1
WARNINGS & CAUTIONS 2
CARE & MAINTENANCE 3
WATCH FUNCTIONS 4
KEYS AND THEIR FUNCTIONS 5-6
ACQUIRING HEART RATE 7
MEASURING STRIDE LENGTH 7
POWER DOWN/RESET 8
HEART RATE LOCK 8
MAIN OPERATING MODES 9-10
SETTING THE WATCH FUNCTIONS
SETTING TIME & DATE 11
SETTING DAILY ALARM 12
FINDING YOUR TARGET HEART RATE ZONE 13
SETTING HEART RATE ZONES AND USER PROFILE 13-14
SETTING THE PEDOMETER 15
TARGET HEART RATE ZONE ALERT 16
TABLE OF CONTENTS
SB6015IS01ROD.indd 2SB6015IS01ROD.indd 2 5/7/10 5:43 PM5/7/10 5:43 PM

S12 Anytouch Pedometer Heart Rate Watch
SETTING THE WATCH FUNCTIONS (cont.)
SETTING YOUR RESTING HEART RATE 17
SETTING THE COUNTDOWN TIMER 18
SETTING DUAL-TIME 19
OPERATING THE WATCH
PEDOMETER MODE 20
OPERATING THE CHRONOGRAPH 21
OPERATING THE COUNTDOWN TIMER 22
VIEWING THE EL BACKLIGHT SYSTEM 22
REPLACING THE WATCH BATTERY 23
BATTERY SAFETY INFORMATION 24
TROUBLE SHOOTING 25
RANGES & SPECIFICATIONS 26
WARRANTY 27
TABLE OF CONTENTS
SB6015IS01ROD.indd 3SB6015IS01ROD.indd 3 5/7/10 5:43 PM5/7/10 5:43 PM

1
INTRODUCTION
Congratulations on your purchase of a S12 Anytouch Pedometer Heart Rate Watch. Please keep in mind;
your watch is a sensitive technical instrument. With proper care and maintenance, it will last for many
years. However, improper care and handling can cause the various sensors to be damaged and to stop
functioning.
HOW TO USE THIS MANUAL
Sportline Personal Fitness Monitors have many unique features and functions. Please read all sections of
this manual carefully and become fully familiar with the operation of the watch before using it in the field.
Proper setup and operation will greatly enhance the watches usefulness and your enjoyment.
The manual is divided into sections outlining each of the major functions of the watch. A drawing of the
watch screen that represents the starting point or other important screens for each operational process are
shown adjacent to the instructions for the process; important keys are shown indicating PRESS & HOLD and
PRESS.
The steps for the programming or operation are adjacent to the screen illustration. Key points and important
information are shown in highlighted blocks.
ACTIVATING THE WATCH FROM POWER DOWN MODE
PLEASE NOTE: Your watch was originally shipped in Power Down Mode to conserve battery life.
To deactivate Power Down mode: PRESS & HOLD ANY KEY for 5 seconds.
SB6015IS01ROD.indd Sec1:1SB6015IS01ROD.indd Sec1:1 5/7/10 5:43 PM5/7/10 5:43 PM

2
S12 Anytouch Pedometer Heart Rate Watch
WARNINGS & CAUTIONS
WARNING: Before starting any exercise program or performing any vigorous physical activity, we strongly
suggest you visit your doctor for a complete physical and to discuss your plans.
CAUTION: Your watch is designed to be water resistant to a static pressure of 3 ATM and can be worn while
showering and light swimming. However, we recommend that extensive use of the unit in the water be
avoided whenever possible. Care should be taken not to press any keys while the unit is submerged as this
can force moisture past the key seals and damage the unit.
CAUTION: Avoid exposing your watch to extreme conditions for a prolonged period of time.
CAUTION: Avoid rough usage or severe impacts to your watch.
DO NOT use hand cream as it will insulate the signal between the skin and sensor contacts.
DO NOT use the fingertips where the skin is dry and thick. For those with extremely dry skin, moisten
fingers and wrist with tap water or a conductive gel.
CLEAN the Back Cover occasionally by using a damp cloth. Then wipe dry to remove any residual grease.
CLEAN your skin and fingers with soap and water for a better signal transmission.
AVOID doing awkward motions during measurement. It may create inaccurate heart rate readings.
SB6015IS01ROD.indd Sec1:2SB6015IS01ROD.indd Sec1:2 5/7/10 5:43 PM5/7/10 5:43 PM

3
• NEVER attempt to disassemble or service your unit.
• DO NOT expose the unit to extreme heat, shocks, magnetic fields, electrical noise, strong vibration or
long-term exposure to direct sunlight.
• DO NOT drop or step on the watch.
• TO CLEAN THE UNIT: wipe with a lightly moistened cloth. Apply mild soap to the area if there are
stubborn stains or marks. Do not expose the unit to strong chemicals such as gasoline, cleaning solvents,
acetone, alcohol or insect repellents as they may damage the unit’s seal, case and/or finish.
• STORE the unit in a dry place when you are not using it.
CUSTOMER SUPPORT
If you have questions, comments or need assistance with your Sportline S12 Anytouch Pedometer Heart
Rate Watch, you may contact Customer Support by calling 1-866-694-4575.
CARE & MAINTENANCE
SB6015IS01ROD.indd Sec1:3SB6015IS01ROD.indd Sec1:3 5/7/10 5:43 PM5/7/10 5:43 PM

4
S12 Anytouch Pedometer Heart Rate Watch
TIME
•Time/Day/Date/Month
•12- or 24-hour format
•Dual Time
•Daily Alarm
HEART RATE
•Finger-Touch
•Single user-selected HR Zone
•HR Zone Alert
•Average Heart Rate
PEDOMETER
•Steps
•Steps Goal
•Exercise Time
•Distance
•Calories
•3 Sensitivity Levels
•Calorie Consumption
CHRONOGRAPH
•1/100 second resolution
•99 hours, 59 minutes, 59.99 seconds
TIMER
•1-second resolution
•Range: 99 hours, 59 minutes, 59.99 seconds
OTHER
•EL Backlight System
WATCH FUNCTIONS
SB6015IS01ROD.indd Sec1:4SB6015IS01ROD.indd Sec1:4 5/7/10 5:43 PM5/7/10 5:43 PM

5

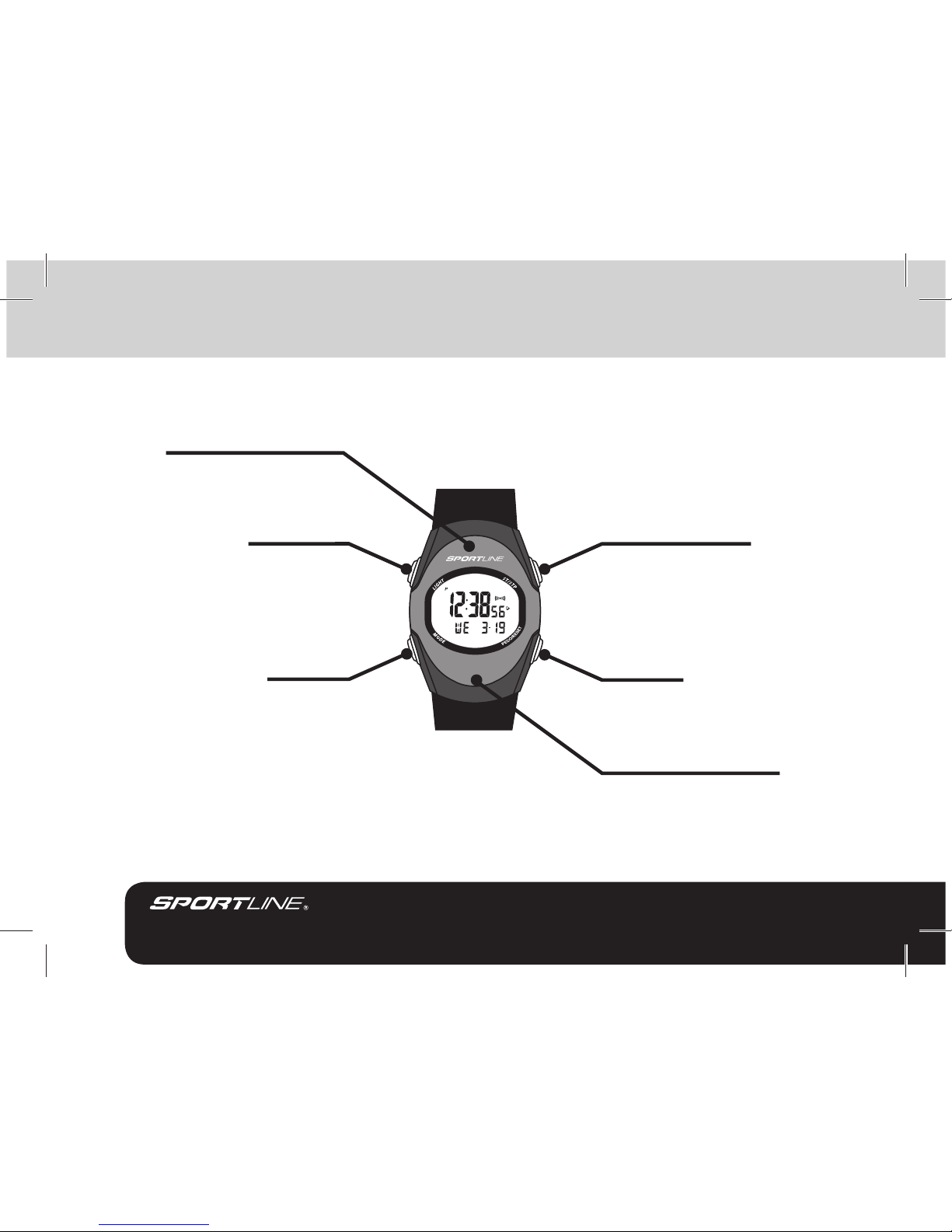

KEYS AND THEIR FUNCTIONS
MODE KEY
HEART RATE SENSOR
HEART RATE SENSOR
EL LIGHT KEY START/STOP KEY
(S/S)
RESET KEY
(R)
SB6015IS01ROD.indd Sec1:5SB6015IS01ROD.indd Sec1:5 5/7/10 5:43 PM5/7/10 5:43 PM

6
S12 Anytouch Pedometer Heart Rate Watch
MODE KEY
•Scroll through operating modes
•
PRESS & HOLD: Enter/Exit the programming
sequence
•Set values being adjusted in programming
sequence
START/STOP KEY (S/S)
•Access Alarm in Time mode
•Turn Alarm ON or OFF in Alarm mode
•Start/Stop Countdown Timer
•Start/Stop Chronograph
•Increase setting values being adjusted in
programming sequence
RESET KEY (R)
•
PRESS & HOLD: Reset Chronograph or
Countdown Timer
•Decrease setting values being adjusted in
programming sequence
LIGHT KEY
•Activates (EL) backlight system
HEART RATE SENSOR
•Acquires Finger Touch Heart Rate
KEYS AND THEIR FUNCTIONS
SB6015IS01ROD.indd Sec1:6SB6015IS01ROD.indd Sec1:6 5/7/10 5:43 PM5/7/10 5:43 PM

7
ACQUIRING HEART RATE / MEASURING STRIDE LENGTH
ACQUIRING HEART RATE: FINGER TOUCH
Heart rate may be acquired from any operating mode (not in any Setting Sequence).
1. With the watch on your wrist, TOUCH & HOLD the HEART RATE SENSOR
(anywhere on the metal top plate of the watch) with your index finger.
NOTE: If Heart Rate Sensors are accidentally touched, the watch will automatically attempt to acquire heart rate. If no
heart rate is detected, watch will resume operating mode in approximately 10 seconds. This will not interfere with any
timing functions in progress.
NOTE: You may exit Heart Rate mode at any time by Pressing the Mode, Start/Stop or Reset key.
2. Continue TOUCHING & HOLDING until heart rate displays.
3. Once Heart Rate is acquired, RELEASE THE SENSOR. Heart Rate will continue to display for a period of
approximately 10 seconds.
HOW TO MEASURE YOUR STRIDE LENGTH
1. Your stride is the distance between your back foot’s toe and your front foot’s toe (fig. 1). To find out what
your stride is, walk or run 10 steps and then measure the distance with a tape measure from the first
step’s toe to the 10th step’s toe (fig. 2). Divide your total distance by 10 to get your average stride length.
2. For a quick estimate, walk 3 steps, measure the distance, and divide by 3. The more steps you take, the
more accurate and realistic your stride will be. An average walking stride for a female is 2 feet (24in), a
male is 2.5 feet (30in).
START WALKING/RUNNINGFIGURE 2FIGURE 1 STRIDE DIVIDE TOTAL
DISTANCE BY 10
13579
246810
SB6015IS01ROD.indd Sec1:7SB6015IS01ROD.indd Sec1:7 5/7/10 5:43 PM5/7/10 5:43 PM

8
S12 Anytouch Pedometer Heart Rate Watch
POWER DOWN/RESET
Power Down/Reset mode allows you to conserve battery life by deactivating the unit when the monitor is
not being used for long periods of time. To activate Power Down mode:
1. In Time mode, PRESS & HOLD the MODE, START/STOP & RESET keys for 5 seconds.
NOTE: Time/Date, User Profiles and Memory files will be reset to factory defaults.
2. To deactivate Power Save mode and resume normal operation, PRESS ANY KEY for 3 seconds.
HEART RATE LOCK
To deactivate finger Touch Heart Rate (when you don’t want to accidentally acquire heart rate):
1. In Time mode, PRESS & HOLD the START/STOP key. The lock icon ( ) will appear in the upper left of the
display.
2. To unlock, PRESS & HOLD the START/STOP key for 2 seconds in Time mode. The lock icon will disappear.
POWER DOWN/RESET
SB6015IS01ROD.indd Sec1:8SB6015IS01ROD.indd Sec1:8 5/7/10 5:43 PM5/7/10 5:43 PM

9
MAIN OPERATING MODES

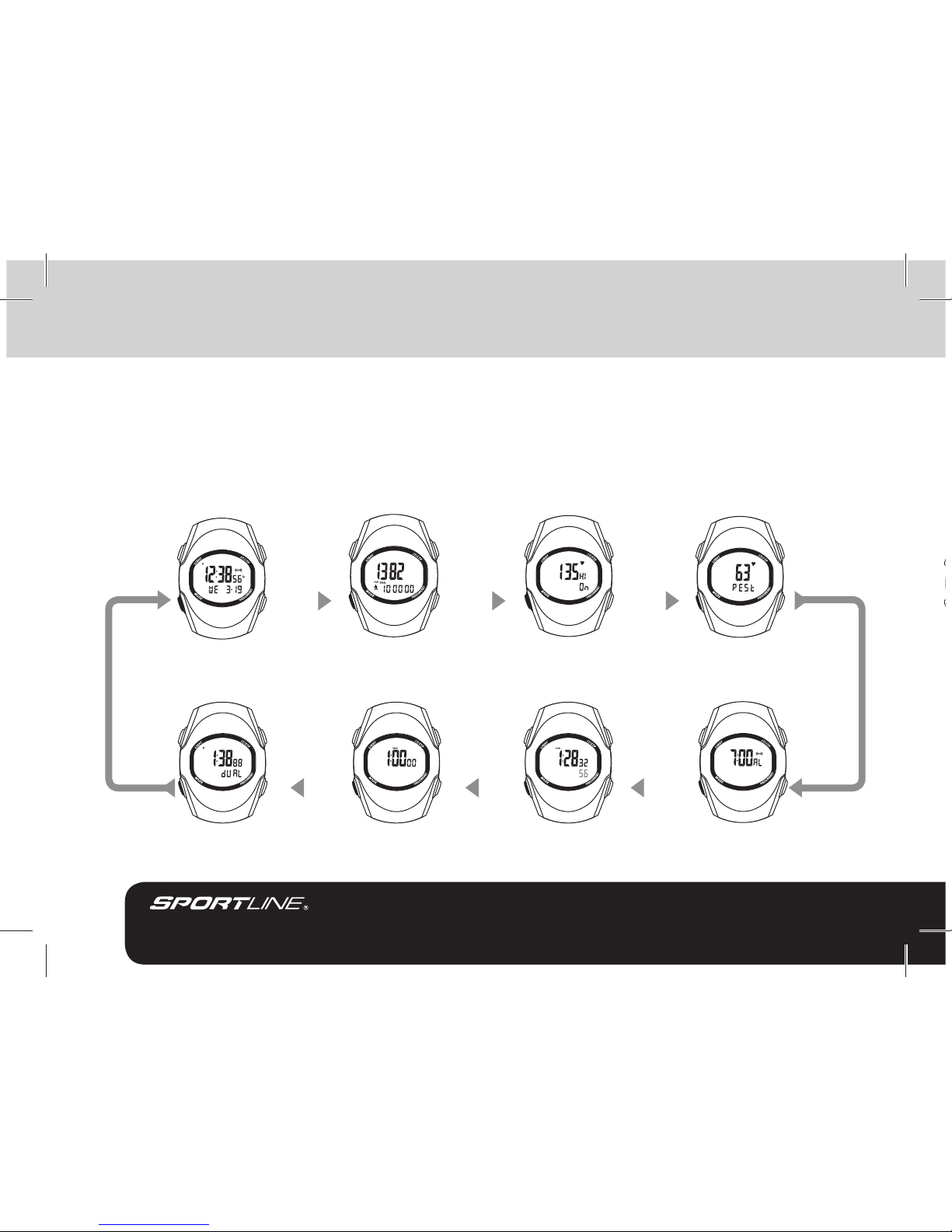

The Sportline S12 Anytouch Pedometer Heart Rate Watch has 8 main operating modes: Time/Date,
Pedometer, Heart Rate Zone, Resting Heart Rate, Alarm/Chime, Chronograph, Countdown Timer and Dual
Time. Scroll through modes by PRESSING the MODE key. The watch also has 4 Pedometer sub modes
(see following page). You may acquire Heart Rate by TOUCHING & HOLDING the Heart Rate Sensor in any
operating mode.
TIME/DATE PEDOMETER HEART RATE ZONE RESTING HEART RATE
ALARM/CHIME
PRESS
MODE
PRESS
MODE
PRESS
MODE
DUAL TIME COUNTDOWN TIMER CHRONOGRAPH
PRESS
MODE
PRESS
MODE
PRESS
MODE
SB6015IS01ROD.indd Sec1:9SB6015IS01ROD.indd Sec1:9 5/7/10 5:43 PM5/7/10 5:43 PM

10
S12 Anytouch Pedometer Heart Rate Watch
The Sportline S12 Anytouch Pedometer Heart Rate Watch has 5 Pedometer sub modes. Scroll through
Pedometer sub modes by PRESSING the RESET key in Pedometer mode. You may acquire Heart Rate by
TOUCHING & HOLDING the Heart Rate Sensor in any operating mode.
MAIN OPERATING MODES
TIME/DATE
PRESS
RESET
PRESS
MODE
PRESS
RESET
PRESS
RESET
EXERCISE TIME/
CALORIES BURNED
DISTANCE
SPEEDAVERAGE
HEART RATE
STEPS/GOAL
SB6015IS01ROD.indd Sec1:10SB6015IS01ROD.indd Sec1:10 5/7/10 5:43 PM5/7/10 5:43 PM

11
ADJUST: S/S or R
SET: MODE
SETTING TIME AND DATE
1. In Time mode, PRESS & HOLD the MODE key to enter the programming sequence.
The variable being adjusted will flash on and off.
2. Reset Seconds to zero (00) by PRESSING the START/STOP (S/S) or RESET (R) key.
Advance to Set Minutes by PRESSING the MODE key.
3. Adjust Minutes by PRESSING START/STOP (to increase) or RESET (to decrease). Set
Minutes and advance to Set Hour by PRESSING the MODE key.
4. Adjust Hour by PRESSING S/S or R. Set Hour and advance to Set Year by PRESSING
the MODE key.
5. Adjust Year by PRESSING S/S or R. Set by PRESSING the MODE key.
6. Adjust Month by PRESSING S/S or R. Set by PRESSING the MODE key.
7. Adjust Day by PRESSING S/S or R. Set by PRESSING the MODE key.
8. Adjust Month/Date display format by PRESSING S/S or R. Set Format by PRESSING
the MODE key.
9. Adjust 12/24-hour format by PRESSING S/S or R. Set Format by PRESSING
the MODE key.
10. Turn Key Beep ON or OFF by PRESSING S/S or R. Set by PRESSING the MODE key.
11. PRESS & HOLD the MODE key to exit the Programming Sequence.
SETTING THE WATCH FUNCTIONS
SB6015IS01ROD.indd Sec1:11SB6015IS01ROD.indd Sec1:11 5/7/10 5:43 PM5/7/10 5:43 PM

12
S12 Anytouch Pedometer Heart Rate Watch
ADJUST: S/S or R
SET: MODE
SETTING DAILY ALARM
The Sportline S12 Anytouch Pedometer Heart Rate Watch is equipped with a Daily
Alarm. To Set Alarm:
1. In Alarm Mode, PRESS & HOLD the MODE key to enter the Programming Sequence.
2. Adjust Hour by PRESSING the S/S or Rkey. Set by PRESSING the MODE key.
3. Adjust Minutes by PRESSING the S/S or Rkey. Set by PRESSING the MODE key.
4. PRESS & HOLD the MODE key to exit the Programming Sequence and return to
Operating mode.
5. Turn Alarm ON or OFF by PRESSING the START/STOP (S/S) or key. Alarm icon ( )
will display in far right of screen when activated.
6. Turn Hourly Chime ON or OFF by PRESSING the RESET (R) key. Hourly Chime icon
( ) will display in far right of screen when Chime is activated.
SETTING THE WATCH FUNCTIONS
SB6015IS01ROD.indd Sec1:12SB6015IS01ROD.indd Sec1:12 5/7/10 5:43 PM5/7/10 5:43 PM

13
SETTING THE WATCH FUNCTIONS
FINDING YOUR TARGET HEART RATE ZONE
Losing weight and managing to keep it off is a lot easier when you exercise in your target heart rate zone.
To get the most out of any exercise program, you should target 55% to 85% of your maximum heart rate
depending on your fitness level and objectives.
Fat Burning Zone: 55% - 65% of maximum heart rate.
This zone is ideal for fitness beginners on a low to moderate intensity program. Exercising in this zone
reduces blood pressure and cholesterol and nearly all the calories burned are fats.
Cardio Zone: 65% - 75% of maximum heart rate.
Reaching this zone requires more intense aerobic activity and is perfect for fitness enthusiasts working to
burn maximum calories from fat and carbohydrates.
Endurance Zone: 75% - 85% of maximum heart rate.
Exercising in the Endurance Zone is generally recommended for athletes in training. Cardiovascular
strengthening, increased metabolism and elevated caloric burn are the primary benefits.
SETTING HEART RATE TARGET ZONE AND USER PROFILE
The Sportline S12 Anytouch Pedometer Heart Rate Watch allows you to set a Target Heart Rate Zone for
targeted exercise. The watch automatically calculates your Maximum Heart Rate from your User Profile.
1. In Heart Rate Zone mode, PRESS & HOLD the MODE key to enter the Programming Sequence.
2. Adjust Upper Zone Limit (Hi in display) by PRESSING the START/STOP (S/S) or RESET (R) key. Set by
PRESSING the MODE key.
SB6015IS01ROD.indd Sec1:13SB6015IS01ROD.indd Sec1:13 5/7/10 5:43 PM5/7/10 5:43 PM

14
S12 Anytouch Pedometer Heart Rate Watch
ADJUST: S/S or R
SET: MODE
SETTING HEART RATE TARGET ZONE AND USER PROFILE (cont.)
3. Adjust Lower Zone Limit (Lo in display) by PRESSING the START/STOP (S/S) or RESET
(R) key. Set Target Zone by PRESSING the MODE key.
4. Adjust Birth Year by PRESSING S/S or Rkey. Set by PRESSING the MODE key.
5. Adjust Birth Month by PRESSING S/S or Rkey. Set by PRESSING the MODE key.
6. Adjust Birth Day by PRESSING S/S or Rkey. Set by PRESSING the MODE key.
7. Adjust Gender (M=Male, F=Female) by PRESSING S/S or Rkey. Set by PRESSING the
MODE key.
8. Select Units (Imperial or Metric) by PRESSING S/S or Rkey. Set by PRESSING the
MODE key.
NOTE: This setting will effect Distance and Speed displays in Pedometer mode.
9. Adjust Weight by PRESSING S/S or Rkey. Set by PRESSING the MODE key.
10.Adjust Height by PRESSING S/S or Rkey. Set by PRESSING the MODE key.
11.Adjust Stride Length (see “Measuring Stride Length” page 7) by PRESSING S/S or R
key. Set by PRESSING the MODE key.
12. PRESS & HOLD the MODE key to exit the Programming Sequence and return to Heart
Rate Zone mode.
SETTING THE WATCH FUNCTIONS
SB6015IS01ROD.indd Sec1:14SB6015IS01ROD.indd Sec1:14 5/7/10 5:43 PM5/7/10 5:43 PM

15
SETTING THE WATCH FUNCTIONS
ADJUST: S/S or R
SET: MODE
SETTING THE PEDOMETER
The Sportline S12 Anytouch Pedometer Heart Rate Watch allows you to set a walking
goal and adjust sensitivity to maximize your workout. By activating the Goal setting, the
watch displays an indicator bar to show the progress you have made on your desired
step goal. To test sensitivity setting, while wearing the watch and walking, watch as the
steps are recorded. If it seems that steps are being missed or over counted, adjust the
sensitivity 1 (lowest) - 3 (highest). 2 is the default setting.
1. In Pedometer Mode, PRESS & HOLD the MODE key to enter the Programming
Sequence.
2. Turn the Goal indicator ON/OFF by PRESSING the S/S key. Set by PRESSING the
MODE key.
3. Adjust the number of steps for your goal by PRESSING the S/S or Rkey. Advance to
adjust the next digit by PRESSING the MODE key. Continue through all digits. Set by
PRESSING the MODE key.
4. Turn Average Heart Rate Beep ON/Off by PRESSING S/S. Set by PRESSING the MODE
key.
5. Adjust your sensitivity (1-3) by PRESSING the S/S or Rkey. Set by PRESSING the
MODE key.
6. PRESS & HOLD the MODE key to exit the Programming Sequence.
SB6015IS01ROD.indd Sec1:15SB6015IS01ROD.indd Sec1:15 5/7/10 5:43 PM5/7/10 5:43 PM

16
S12 Anytouch Pedometer Heart Rate Watch
SETTING THE WATCH FUNCTIONS
TURN ON/OFF: S/S
HEART RATE TARGET ZONE ALERT
The Sportline S12 Anytouch Pedometer Heart Rate Watch has an audible signal that
alerts you when you are above or below your Target Heart Rate Zone. This feature can
be turned ON or OFF from Heart Rate mode by PRESSING the START/STOP (S/S) key.
SB6015IS01ROD.indd Sec1:16SB6015IS01ROD.indd Sec1:16 5/7/10 5:43 PM5/7/10 5:43 PM

17
SETTING THE WATCH FUNCTIONS
PRESS HR SENSOR
RESTING HR SET
SETTING YOUR RESTING HEART RATE
Your Resting Heart Rate is a useful reference for tracking your fitness progress. As you
gain fitness, your Resting Heart Rate will lower.
NOTE: it is recommended to check your Resting Heart Rate just after waking in the morning. For best results, check your Resting
Heart Rate under consistent conditions.
1. In Resting Heart Rate mode, PRESS & HOLD the HEART RATE SENSORS until heart
rate is acquired.
2. An audible beep will sound. Your Resting Heart Rate will be displayed and recorded.
SB6015IS01ROD.indd Sec1:17SB6015IS01ROD.indd Sec1:17 5/7/10 5:43 PM5/7/10 5:43 PM
