SPYKER S30 Series User manual

1008146 Rev. A©2010 Spyker Spreaders/A Brinly-Hardy Co.
Model P30/S30 Series
Spyker Spreaders
Contact Us at 800.972.6130
This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
IMPORTANT
Operator's Manual

1008146 Rev. A 2
20
7
1
1
21
1
10
8
13
14
11
9
12
39
18
11
15
4
19
53
17
16
5
54
6
2
7
2
50
2
55
55
52
22
55
2
7
44
60
55
17
1
2
1
1
7
7
56
47
57
59 57
59
43
43
3
2
48
7
49
58
7
256
46
45
39
51
55
55
55
55
Rate Gate Explosion
Hopper Explosion
Frame Explosion

1008146 Rev. A3
36
34
38
29
26
24
23
25
40
24
42
32
27
31
28
30
27
28
33
37
35
Spinner/Axle Explosion

1008146 Rev. A 4
No. Part Number Qty Description
1 05-94-0064 6 Nylon Washer
2 SS-91-0004 13 1/4-20 Nylon Locknut,
SS
3 1007745-01 1 Towtube, Polished
1007744-10 1 Towtube, Painted
4 1007746-01 1 Control Handle, Polished
1007740-10 1 Control Handle, Painted
5 1007828 2 Handle Knob
6 1008023-01 1 Frame, Polished
1008026-10 1 Frame, Painted
7 05-90-0080 11 1/4-20 x 1-3/4" Hex
Bolt SS
8 SS-94-0007 1 Hopper Bottom Bearing
9 05-44-2210 1 Accuway Screw Assembly
10 05-71-2205 1 Hopper Bottom Plate
11 05-94-0042 2 Rate Gate/Accuway
Guide
12 05-94-0043 1 Accuway Diffuser
13 99-10-0205 5 1/4-20 x 1/2" Bolt, SS
14 05-94-0068 1 Rate Gate
15 05-94-0069 1 Dial Mount
16 SS-94-0006 1 Plastic Dial
17 05-94-0078 1 Pine Tree Clip
18 05-24-1102 1 Rate Gate Link, Polished
19 1008128 1 Hopper, 12520 Series
1008132 1 Hopper, 17520 Series
20 05-93-0075 1 Spyker Accuway Label
21 1008067 1 Spyker Decal
22 1008165 1 Flow Control Decal
23 SS-90-0002 1 Roll Pin 1/8 x 7/8"
24 SS-92-0002 2 Felt Washer
25 05-125-0070 1 Spinner Shaft
26 SS-90-0001 1 Roll Pin 1/8 x 3/4"
27 05-90-0093 2 5/8" Gearbox Bushing
28 05-90-0094 2 3/8" Spinner Shaft
Bushing
29 05-90-0096 1 3/16 x 1" Dowel Pin, SS
30 05-94-0033 1 Bevel Gear
31 05-94-0034 1 Pinion Gear
No. Part Number Qty Description
32 05-288-1027 1 Nylon Pin Retainer
33 05-90-0097 8 #10-24 x 5/8" Flange
Head Bolt, SS
34 05-91-0008 8 #10-24 Nylon Locknut,
SS
35 05-94-0037 1 Gear Box Cover Front
36 05-94-0038 1 Gear Box Cover Rear
37 05-98-0111 1 Grease Zerk
38 1008125 1 Axle
39 05-95-0016-JD 2 Wheel
40 SS-94-0012-1 1 Spinner
41 1008104 1 Screen
42 SS-96-0003 1 Agitator Wire
43 05-179-0040 2 Tow Bar Brace, SS
1000566-10 2 Tow Bar Brace, Painted
44 05-90-0038 1 1/4-20 x 2" Hex Bolt, SS
45 05-90-0065 1 3/16 x 1-3/4" Clevis Pin
46 05-90-0089 1 Hairpin Cotter, Large
47 05-92-0004 1 Wheel Washer, SS
48 1001693-01 2 Hitch Plate, Polished
1001147-10 2 Hitch Plate, Painted
49 SS-90-0006 1 Clevis Pin
50 05-92-0014 1 Nylon Spacer
51 05-90-0040 1 Rue Ring Locking Pin
52 1007739-01 1 Control Bracket, Polished
1007709-10 1 Control Bracket, Painted
53 1007742 1 Control Link
54 SS-90-0011 1 1/4-20 x 1-1/4" Hex
Bolt, SS
55 45M0909SS 10 Washer, SS
56 45M2121P 4 5/8" Flat Washer
57 B-6978-01 2 Spacer
58 D-146P 1 Hairpin Cotter, Small
59 F-283 2 Axle Bearing
60 F-575 1 Special Thick Washer
61 1008146 1 Operation Manual

1008146 Rev. A5
1. Install spinner to spinner shaft. Press down on
spinner until it snaps into place on the roll pin,
Figure 1.
2. Install axle/transmission assembly into frame
as shown, Figure 1. IMPORTANT! Note the
orientation of the axle/transmission assembly is
critical. See the hole locations in Figure 1. One
side has hole near the end of the axle, the other
next to the frame.
3. Slide the axle bearings over the axle and
into place in the frame, Figure 1.
4. Install a 5/8" metal washer, axle spacer, and a
second 5/8" metal washer onto axle, Figure 2.
Slide wheel onto axle. Repeat on other side.
5. On the drive side of the axle, insert the small clevis
pin through the holes in the wheel and axle, Figure
3. Install Small Cotter Pin.
Hole
Hole
Figure 1
Figure 2
Figure 3
Axle Bearing

1008146 Rev. A 6
6. On the other side of the axle install a wheel washer
and rue ring locking pin, Figure 4.
7. Place hopper onto frame. IMPORTANT! Note
orientation of rate dial. Be sure to slide spinner
shaft into hopper, Figure 5.
8. Insert 1/4" Nylon Washer onto 1/4-20 x 1-3/4"
Bolt. Insert through hopper and frame. Attach
finger tight only with 1/4" Nylon Insert Locknut,
Figure 5. Repeat for remaining 3 bolts, washers,
and nuts. Tighten fully.
9. Slide felt washer over spinner shaft, Figure 6.
Insert Agitator wire by sliding through the hole in
the spinner shaft as shown. IMPORTANT: Note
orientation of agitator wire when installing.
Figure 4
Figure 5
Figure 6

1008146 Rev. A7
10. Install Hitch Tow Bar onto frame, Figure 7. Attach
with 1/4-20 x 1-3/4" Bolt and 1/4" Nylon Insert
Locknut.
11. Install Hitch Plates to end of Tow Bar using 1/4-20
x 1-3/4" Bolts and 1/4" Nylon Insert Locknuts,
Figure 8. Install Hitch Pin and Large Cotter Pin,
Figure 8.
12. Slide Control Lever into U shaped bracket as
shown, Figure 9. The label on the U shaped
bracket faces the hopper.
13. Install Control Linkage into Control Lever. NOTE
orientation of on-off label on U shaped bracket.
The shorter section of linkage should face upward
and away from lever as shown, Figure 9.
Longer Section
of Linkage
Shorter Section
of Linkage
Label
14. Install 1/4-20 x 1-1/4" Bolt and 1/4" Washer
through the U shaped bracket, Figure 10.
15. From inside the bracket install Nylon Spacer, Thick
Nylon Washer then through Control Lever. Install
second 1/4" Washer and 1/4" Nylon Insert
Locknut. Tighten. Spacer
Thick Nylon Washer
1/4” Washer
1/4” Nylon
Insert Locknut
1/4-20 x
1-1/4” Bolt
1/4” Washer
Figure 7
Figure 8
Figure 9
Figure 10

1008146 Rev. A 8
16. Turn Control Bracket assembly sideways as shown,
Figure 11. Install end of linkage into rate gate
bracket.
17. Install front of control lever assembly onto Tow Bar
with 1/4-20 x 1-3/4" Bolt, 1/4" Washer (one
on each side of tow bar) and 1/4" Nylon Insert
Locknut, Figure 12. Do not fully tighten at this
point.
Figure 11
Figure 12

1008146 Rev. A9
18. Install Frame Braces to Frame using 1/4-20 x
1-3/4" Bolt, 1/4" Washer (one on each side) and
1/4" Nylon Insert Locknut, Figure 13.
19. Attach Frame Braces to Tow Tube/Control Lever
Assembly using 1/4-20 x 2" Bolt, 1/4" Washers
(one on each side), and 1/4" Nylon Insert Locknut.
20. With rate gate dial set to 0, move control lever
back and forth and ensure rate gate opens and
closes fully, Figure 14. If necessary adjust Control
Lever Bracket assembly forward or necessary. Fully
tighten hardware from steps 17 and 19 that hold
Control Lever Bracket in place.
21. Install Screen into Spreader.
Figure 13
Rate Gate
Figure 14

1008146 Rev. A 10
READ BEFORE USING
OPERATE SAFELY
Keep bystanders away when you operate this machine.
Use this machine for intended purpose only.
Do not let children or an untrained person operate
machine.
Keep all parts in good condition and properly installed.
Fix damaged parts immediately. Replace worn or broken
parts.
Do not modify the machine or safety devices.
Unauthorized modifications to the machine may impair
its function and safety, and void the warranty.
Do not let anyone sit or ride on equipment during
operation. Keep riders off attachment.
Wear substantial footwear and long trousers. Do not
operate the equipment when barefoot or wearing open
sandals.
Do not wear loose fitting clothing that can get caught in
moving parts.
Always wear eye protection when operating the
equipment.
Stay alert for holes in the terrain and other hidden
hazards.
Watch out for traffic when crossing or near roadways.
Before you operate any feature of this machine, observe
your surroundings and look for bystanders.
Always wash hands after contact with fertilizers and
pesticides.
Keep all nuts, bolts and screws tight to be sure the
equipment is in safe working condition.

1008146 Rev. A11
READ BEFORE USING
Become Familiar With The Operation Of The Spreader Before
You Put Material In The Hopper
• Practice walking with the spreader, opening and
closing the rate gate at the appropriate times.
• Travel at a constant speed and operate the spreader
lever position. Remember: Open the rate gate after
the spreader is in motion at operating speed (about
3 mph, or at a brisk walking pace).
• Close the rate gate while spreader is still at
operational speed.
Dial Setting Information
The RATE DIAL has 9 numbers with 10 stops between
each number. This allows for accurate control of the
spreading rate. The dial is set with only a turn, it will
automatically lock into the set position. LINE UP THE
DIAL NUMBER WITH THE DIAL INDICATOR.
Rate Dial
• The spread width ranges from 4 - 12 ft. wide
depending on the volume/density, particle size of the
material, and rate of travel.
• The spread thins or feathers at the outer edges,
eliminating sharp, "Edge Of Spread" lines which
cause stripes and streaks. Extra coverage can be
given under trees and other heavy feeding areas
without showing "Edge Of Spread" lines.
• Gaps and double overlaps are less likely. Small
errors in travel are forgiven and do not show.
WARNING: When spreading products containing
herbicides, exercise extreme caution with respect to
careless spreading and to wind-drift.
Contact Of Some Products On
Some Plants Can Be Fatal

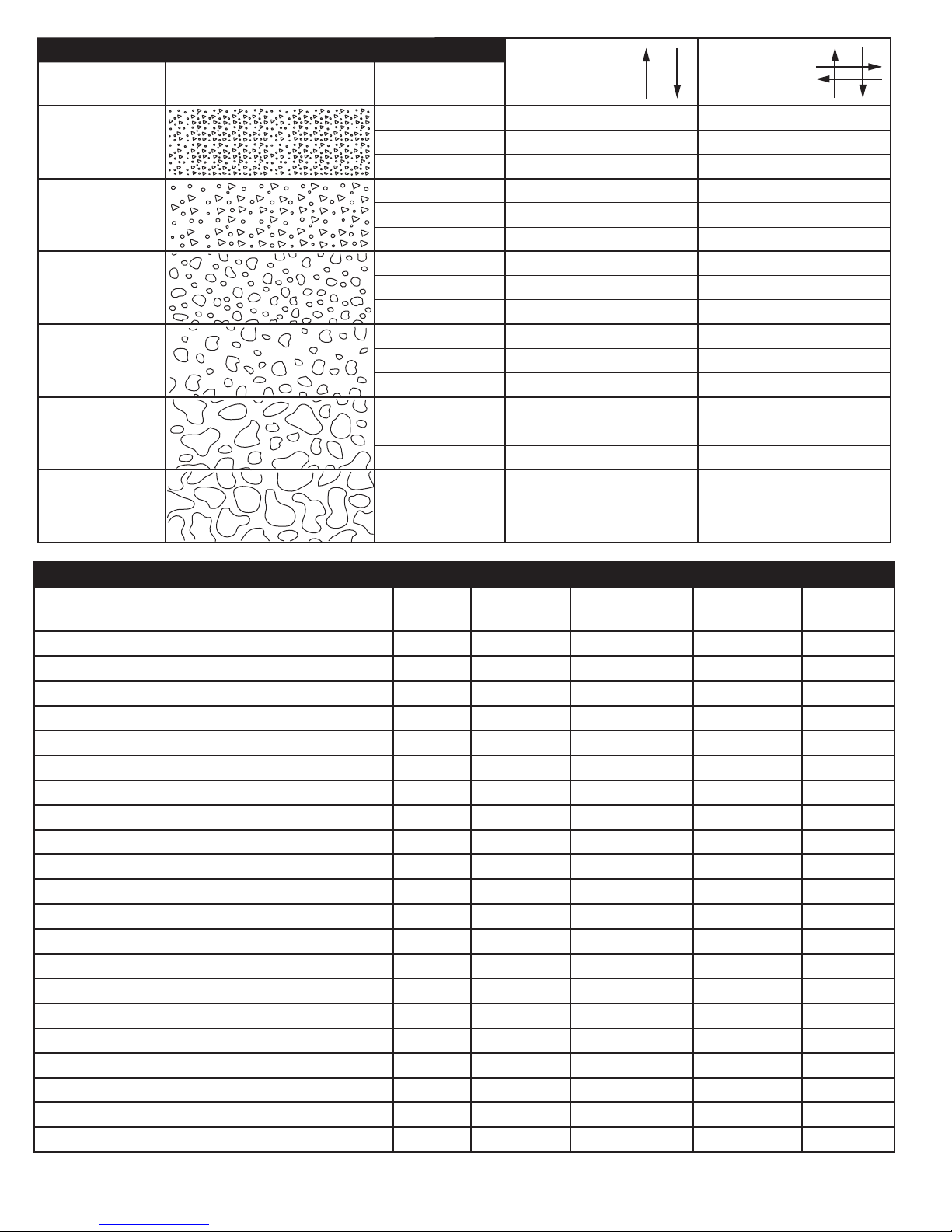

If a dial setting is not found, use the size and weight
comparison table found in this manual. Determine a
dial setting on the low side. If the setting proves to
be too low, cover the area more than one time. A
higher setting can be used when a proven dial setting is
established.
Remember: Published dial settings are
approximate only. The operation of the spreader, the
condition of the material (damp or dry or over-pulverized)
and weather conditions, are all contributing factors.
For these reasons, it is often a good idea to spread the
area 2 times - or one-half rate - in cross directions (SEE
INFORMATION ON ONE-HALF RATE DIAL SETTINGS).
One-half rate dial settings are highly recommended under
damp and humid conditions.
Rotary Agitator
Use the rotary agitator only if needed. Free-flowing,
lump-free materials will not require the agitator. The
rotary agitator is easily installed or removed. Note the
clockwise rotation and sweep. Place felt washer around
spinner shaft before inserting agitator.
Now You Are Ready To Put
Material In The Hopper
WARNING: Avoid Injury! Chemicals can be
dangerous. Avoid injury to operators or bystanders.
• Make sure the rate gate is in the closed position.
• Read chemical container label for handling
instructions. A Material Safety Data Sheet (MSDS)
should be supplied by the chemical dealer and
provides proper safety information.

1008146 Rev. A 12
READ BEFORE USING
• Wear proper clothing and safety equipment while
handling or applying chemicals.
• Prohibit all smoking, drinking, and eating around
chemicals.
• When spreading products containing herbicides,
exercise extreme caution with respect to careless
spreading and to wind-drift. Contact Of Some
Products On Some Plants Can Be Fatal.
• Fill the spreader on a flat, level surface only. Fill on
sidewalk, driveway, cardboard, etc. to avoid material
loss.
• When filling hopper with material, always use screen
to help break up clumps.
Now You Are Ready To Spread
• Keep spinner blade clean. Excess material build-up
can cause an uneven spread pattern.
• Keep the impeller level when spreading.
• DO NOT overload. Maximum capacity of 12520
Series is 125 lbs. Maximum capacity of 17520
Series is 175 lbs.
• DO NOT use on windy days.
• Spread header strips at the ends of the area
OPPOSITE of the direction of spreading. This will
provide a "turn-around" area, an area to re-align the
spreader for the return spread.
• Example shown is for 6 ft. wide spread. Make the
first spread pass at one-half the spread width from
the edge of the spreading area or in this case,
approximately 3 feet (or one big step).
• Additional spreading passes will be at the full spread
width or approximately 6 ft. apart.
• TAKE A SIGHTING AT THE FAR END. Keep your eye
on the sighting as you spread. You will not need
to wonder where you are or where you have been.
Continue until spreading is completed.
• Left over fertilizer can be spread under trees and
other high feeding areas without showing "edge of
spread" lines.
Header
6’ 6’3’
Header
Cleaning The Spreader Is Part
Of The Spreading Job
Clean and oil spreader immediately after each use.
Method #1 - Wipe spreader thoroughly with an oily cloth.
Oil all bearings and bearing areas.
Method #2 - Wash, rinse, and dry the spreader. Note:
Drying takes time. Moisture trapped in bearing areas is
slow to go. Immediately after drying - oil all bearings and
moving parts. Make certain all operations are thorough.
NOTE: Good "Dry Cleaning" is preferable to poor "Wet
Cleaning".
• It is virtually impossible to have rust and corrosion on
a clean, dry, oiled surface.
• Again - just before using - oil all bearings and moving
parts.
• In storage, ideally the spreader should be hung by
the handle. In any case, do not pile weight on the
spreader, as excess weight over a period of time can
distort the tires.
Oil Bearings And All Moving
Parts
Make sure the spreader is running freely!

1008146 Rev. A13
ACCUWAY - What It Does
The Accuway Spread Pattern Equalizer Balances the
spread pattern - Bulls Eye - Dead to the Center of the
Spreader.
All products. All spreading conditions.
Skewing is eliminated. Does not change the spread
width.
ACCUWAY - How It Works
Accuway shifts the material placement on the spreader
spinner fan. This in turn, balances the pattern heavier to
the right or heavier to the left.
Spread pattern can be affected by many variables such
as humidity, temperature, wind, spreader condition,
speed of travel, material size and weight. Because of
these variables, the diffuser must be adjusted for each
type of application. Proper adjustment will minimize
skewing and uneven coverage.
Adjustment is very sensitive. Turning the Accuway
Diffuser Knob just a little will result in a drastic change to
the spread pattern.
The Accuway Diffuser Plate has a front and a rear ramp.
Never adjust so that the diffuser plate splits the material
flow to both the front and rear ramp at the same time.
If the spreader is spreading to the left of center, turn
the diffuser knob counterclockwise fully. Then adjust
clockwise until the edge of the diffuser plate centers the
spread.
If the spreader is spreading to the right of center, turn
the diffuser knob clockwise fully. Adjust counterclockwise
until the edge of the diffuse plate centers the spread.
NEVER USE ACCUWAY FRONT AND REAR RAMPS TO
SPLIT THE PRODUCT FLOW. Use only the front side or
the back side. With proper adjustment you should be
able to achieve a balanced spread pattern.

1008146 Rev. A 14
Particle Size
NOTE: Dial Settings Are Approximate Only !
Lbs. per
1000 sq. ft.
Product
Fine Pellets
1
2
3
2
4
6
2
4
6
1
2
3
2
4
6
2
4
6
Dial Settings
Full Rate
Once Over
3.6
4.0
4.2
3.7
4.7
5.2
3
4.2
4.5
3.5
4.2
4.7
3.5
4.2
5.2
3.8
4.9
5.9
Dial Settings
Half Rate
Twice Over
3.1
3.5
3.7
3.2
4.1
4.5
2.2
3.7
4
3
3.7
4
3
3.8
4.5
3.3
4.1
4.9
Mixed Fine
Pellets
Small Pellets
Nitrogen Pellets
Medium Size
Medium Pellets
And Granuals
Large Heavy
Pellets
GRASS SEED SPREADING CHART
Product Bag
Weight
Sq. Ft.
Coverage
Dial Setting
Full Rate
Dial Setting
Half Rate
Spread
Width
Blue Grass or Red Top .5 lbs. 1,000 1.25 4
1 lbs. 1,000 2.0 4
2 lbs. 1,000 2.5 4
Park, Merion, Delta, or Kentucky Bluegrass .5 lbs. 1,000 2.5 4
1 lbs. 1,000 3.0 4
2 lbs. 1,000 3.5 4
Hulled Bermuda 2 lbs. 1,000 2.75 2.25 6
3 lbs. 1,000 3.0 2.5 6
4 lbs. 1,000 3.25 2.75 6
Mixtures Including Coarse Seeds 2 lbs. 1,000 6.0 6
4 lbs. 1,000 7.0 6
6 lbs. 1,000 7.0 6
Rye Grasses or Tall Fescue 2 lbs. 1,000 6.0 6
4 lbs. 1,000 7.0 6
6 lbs. 1,000 7.75 6
Dichondra 4 oz. 1,000 1.9 8
8 oz. 1,000 2.1 8
12 oz. 1,000 2.5 8
Pensacola Bahia 4 lbs. 1,000 4.5 3.75 7
5 lbs. 1,000 4.75 4.0 7
6 lbs. 1,000 5.0 4.25 7

1008146 Rev. A15
Spreader does not sit flat The "feet" or the flattened
portion of the spreader hopper
support tubes are not bent
equally.
Using a hammer or pliers,
bend the feet to be equal with
each other.
Deflector shut off is binding
and will not open/close
properly
Shut off plate is jammed with
debris.
Thoroughly wash out hopper
and shut off plates with water.
Ensure debris is not stuck
between shut off plate and
rate gate plate.
TROUBLESHOOTING

1008146 Rev. A
1 YEAR LIMITED WARRANTY
This is warranted to the original purchaser only. Spyker will replace parts
with defects in materials and workmanship, for a period of one year from the
date of purchase.
For Spyker Spreaders–a Brinly-Hardy Company, products employing metal
gear systems, pinion and bevel, these metal gears, only, not inclusive of any
other parts or materials, are warranted for the life of the spreader, not to
be used for replacement or repair past original purchase.
Spyker Spreaders will not be liable for any loss, damage or expense including,
but not limited to, consequential or incidental damages, arising from the
operation, condition or use of the item. The sole and exclusive remedy
against Spyker Spreaders being the replacement of the defective parts. This
warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
This express warranty, which is applicable only to the original
purchase, is in lieu of and excludes all other warranties, whether
expressed or implied by operation of law or otherwise, including any
warranty of merchantability or fitness for particular purpose.
SPYKER SPREADERS
Jeffersonville, IN 47130 USA
Phone: [phone]
