Srne ASF4880U180-H User manual

V2.3
USER MANUAL
ASF4880U180-H
ASF48100U200-H
All-in-one solar charge inverter

Table of Contents
1. Safety
1.1 How to use this manual ...................................................................................................................
1.2 Symbols in this manual ..................................................................................................................
1.3 Safety Instruction ...........................................................................................................................
2. Production Instructions
2.1 Instructions ..................................................................................................................................
2.2 Features ......................................................................................................................................
2.3 System connection diagram ..........................................................................................................
2.4 Production Overview …………………………………………………………………………………………….......
3. Installation
3.1 Select the mount location ……………………………………………………………………………………………
3.2 Mount the inverter ………………………………………………………………………………………………........
3.3 Remove the terminal cover ………………………………………………………………………………………….
4. Connection
4.1 Connection overview …………………………………………………………………………………………….......
4.2 Cable & circuit breaker requirement……………………………………………………………………………….
4.3 AC input&output connection…………………………………………………………………………………………
4.4 Battery connection ………………………………………………………………………………………………........
4.5 PV connection ………………………………………………………………………………………………………....
4.6 Dry contact connection ………………………………………………………………………………………………
4.7 Grounding connection ………………………………………………………………………………………………
4.8 Final assembly…………………………………………………………………………………………………………
4.9 Start up the inverter ………………………………………………………………………………………………......
5. Operation
5.1 Operation and display panel …………………………………………………………………………………………
5.2 Setting …………………………………………………………………………………………………………………..
5.3 AC output mode ………………………………………………………………………………………………………
5.4 Battery charging mode ………………………………………………………………………………………………
5.5 Time-slot charging/discharging function …………………………………………………………………………
5.6 Battery parameter …………………………………………………………………………………………………….
4
4
4
4
5
6
7
8
9
9
10
12
15
15
16
17
17
17
17
18
22
27
28
29
30
2

Table of Contents
6.Communication
6.1 Overview ………………………………………………………………………………………………………………..
6.2 USB-B port …………………………………………………………………………………………………………….
6.3 RS485-1 port ……………………………………………………………………………………………………….....
6.4 CAN/RS485-2 port ………………………………………………………………………………………………......
6.5 Dry contact ………………………………………………………………………………………………………........
7. Fault and Remedy
7.1 Fault code ………………………………………………………………………………………………………………
7.2 Troubleshooting………………………………………………………………………………………………………..
8. Protection and Maintenance
8.1 Protection features ……………………………………………………………………………………………………
8.2 Maintenance ……………………………………………………………………………………………………………
9. Datasheet
3
32
32
33
33
34
35
36
38
39

1. Safety
1.1 How to use this manual
• This manual contains important information、guidelines、operation and maintenance for the following
products：ASF series 4880U180-H，48100U200-H
• The manual must be followed during installation and maintenance.
1.2 Symbols in this manual
1.3 Safety instructions
• This chapter contains important safety instructions. Read and keep this manual for future reference.
• Be sure to comply the local requirements and regulation to install this inverter.
• Beware of high voltage. Please turn o the switch of each power sources before and during the
installation to avoid electric shock.
• For optimum operation of this inverter, please follow required specication to select appropriate cable
size and necessary protective device.
• Do not connect or disconnect any connections when the inverter is working.
• Do not open the terminal cover when the inverter working.
• Make sure the inverter is well grounding.
• Never cause AC output and DC input short circuited.
• Do not disassembly this unit, for all repair and maintenance, please take it to the professional service
center.
• Never charge a frozen battery.
• Please keep children away from touching or mishandling the inverter.
• Please make sure that this inverter is the only input power source for the load, do not use it in parallel
with other input AC power sources to avoid damage.
Symbol Description
DANGER indicates a hazardous situations which if not avoided will result in death
or serious injury.
WARING indicates a hazardous situations which if not avoided could result in death
or serious injury.
CAUTION indicates a hazardous situations which if not avoided could result in
minor or moderate injury.
NOTICE provide some tips on operation of products.
DANGER
WARNING
CAUTION
NOTICE
DANGER
4

5
2. Production Instructions
2.1 Instructions
ASF series is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility
charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed,
reliability, and industrial standard through an advanced control algorithm.
2.2 Features
• Supports lead acid battery and li-ion battery connections.
• With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply
access can trigger the activation of the li-ion battery.
• Support split-phase and single-phase pure sine wave output.
• Supports four dierent voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
• Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity
functions.
• Dual MPPT with 99.9% eciency and maximum 22A current in a single circuit, perfectly adapted to high power
modules.
• 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
• With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of
mains charging and switch the time period between battery discharging and mains bypass power supply mode.
• Energy saving mode function to reduce no-load energy losses.
• With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
• LCD large screen dynamic ow diagram design, easy to understand the system data and operation status.
• 360° protection with complete short circuit protection, over current protection, over under voltage protection,
overload protection, backll protection, etc.
• Support CAN, USB, and RS485 communication.
Solar generation
Battery charging
Battery discharging
Utility charging
Energy consumption
Self consumption solar power
time

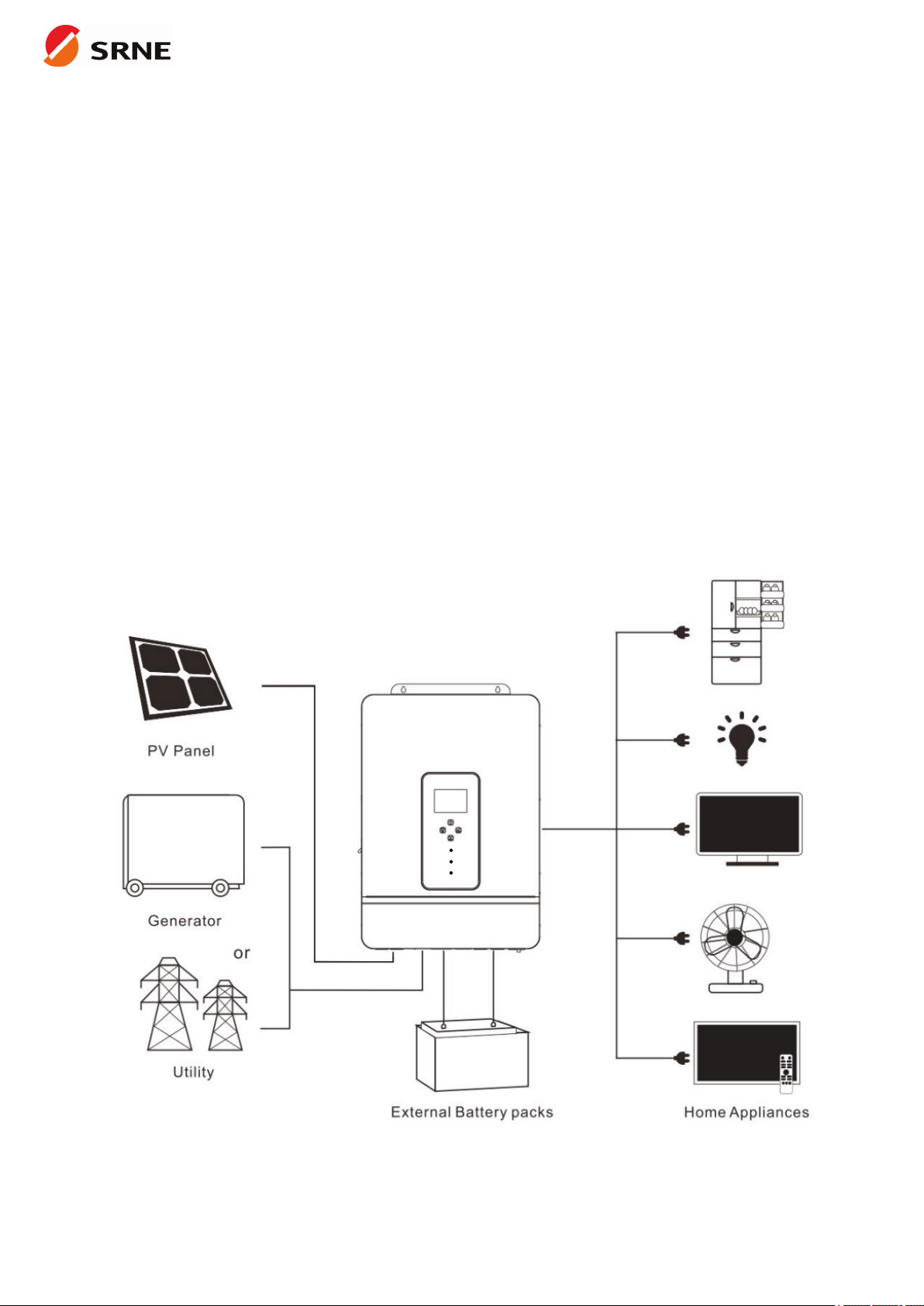

2.3 System connection diagram
The diagram below shows the system application scenario of this product. A complete system consists of the
following components:
1. PV modules: converts light energy into DC energy, which can be used to charge the battery via an inverter or
directly inverted into AC power to supply the load.
2. Utility grid or generator: connected to the AC input, it can supply the load and charge the battery at the same
time. The system can also operate generally without the mains or generator when the battery and the PV
module power the load.
3. Battery: The role of the battery is to ensure the regular power supply of the system load when the solar energy
is insucient and there is no mains power.
4. Home load: Various household and oce loads can be connected, including refrigerators, lamps, televisions,
fans, air conditioners, and other AC loads.
5. Inverter: The energy conversion device of the whole system.
The actual application scenario determines the specic system wiring method.
6
AC/INV
CHARGE
FAULT

1
2
3
15
4
5
6
7
8
10
12
911
13
14

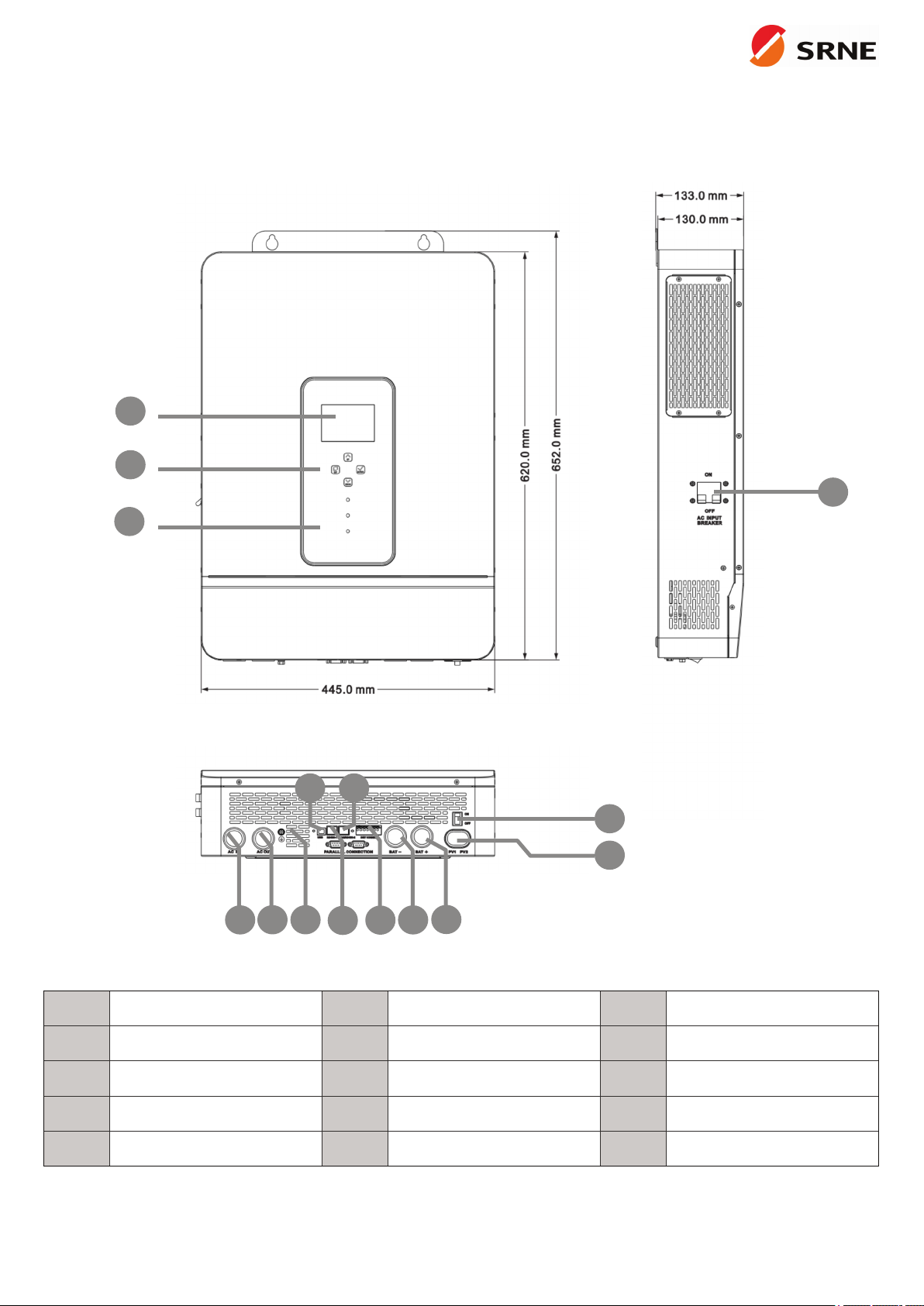

2.4 Production Overview
7
1LCD screen 2Touchable key 3LED Indicators
4ON/OFF Rocker Switch 5PV INPUT (1/1) 6BAT INPUT (+)
7BAT INPUT (-) 8Dry contact 9CAN/RS485-2 port
10 RS485-1 port 11 USB-B port 12 Grounding Screw
13 AC OUT (L+L+N) 14 AC IN (L+L+N) 15 AC INPUT breaker

3. Installation
3.1 Select the mount location
ASF series are designed for INDOOR USE ONLY (IP20) . Please consider the followings before selecting the
location.
• Choose the solid wall to install the inverter.
• Mount the inverter at eye level.
• Adequate heat dissipation space must be provided for the inverter.
• The ambient temperature should be between -10~55℃ (14~131℉) to ensure optimal operation.
• Do not install the inverter where highly ammable materials are near by.
• Do not install the inverter in potential explosive areas.
• Do not install the inverter with lead-acid batteries in a conned space.
• Do not install the inverter in direct sunlight.
• Do not install or use the inverter in a humid environment.
CAUTION
DANGER
8
AC/INV
CHARGE
FAULT

Terminal cover
9

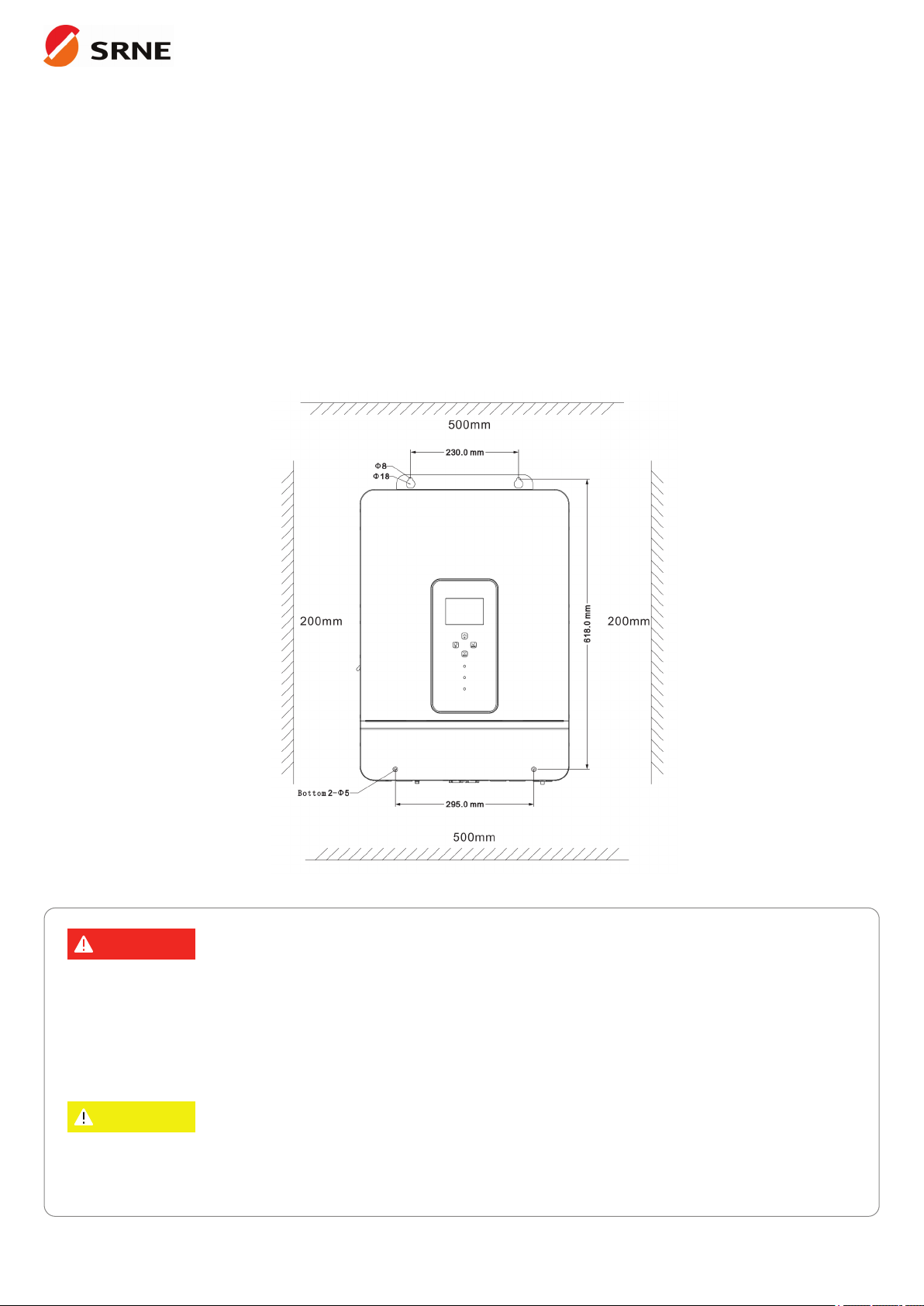

3.2 Mount the inverter
Make 4 mounting holes in the wall with a drill according to the specied dimensions, insert two expansion screws
above and two M5 size screws below for xing the inverter.
3.3 Remove the terminal cover
Using a screwdriver, remove the terminal protection cover.
• When using the device in areas with poor air quality, the dust screen is easily blocked by airborne particles.
Please dismantle and clean the dust screen regularly to avoid aecting the internal air ow rate of the
inverter, which may trigger an over-temperature protection fault (19/20 fault) aecting the use of the
power supply and the service life of the inverter.
NOTICE

4. Connection
4.1 Connection Overview
• Split-phase mode（default）
• Single-phase mode
120V
120V
240V
L1
L2
N
V+
V-
0 T
L1 L2
Items Description
Applicable Model ASF series U model
Output Voltage Range (L-N) 100～120Vac, 120Vac default
Output Voltage Range (L-L) 200～240Vac，240Vac default
AC Output
0V
120V
L1&L2 in parallel connection
120V
L1
N
L2
V+
V-
0 T
L1，L2
Items Description
Applicable Model ASF series U model
Output Voltage Range (L-N) 100～120Vac, 120Vac default
AC Output
• Users can change the output phase mode and output voltage by setup menu. Please read the chapter 5.2
Setting.
• Output phase mode corresponds parameter 68 , when option is 180 indicates split-phase, when option is 0
indicates single-phase.
• Output voltage corresponds parameter 38 , the output voltage can be set from 100V to 120V.
10
NOTICE

11
Socket
AC Load
Split-Phase：L1+L2+N+PE
Split-Phase：L1+L2+N+PE
Surge Protection Device
Surge Protection Device
BATTERY 48V BATTERY 48V
Moulded Case Circuit Breaker
utility grid
Circuit BreakerCircuit Breaker Circuit Breaker Circuit Breaker

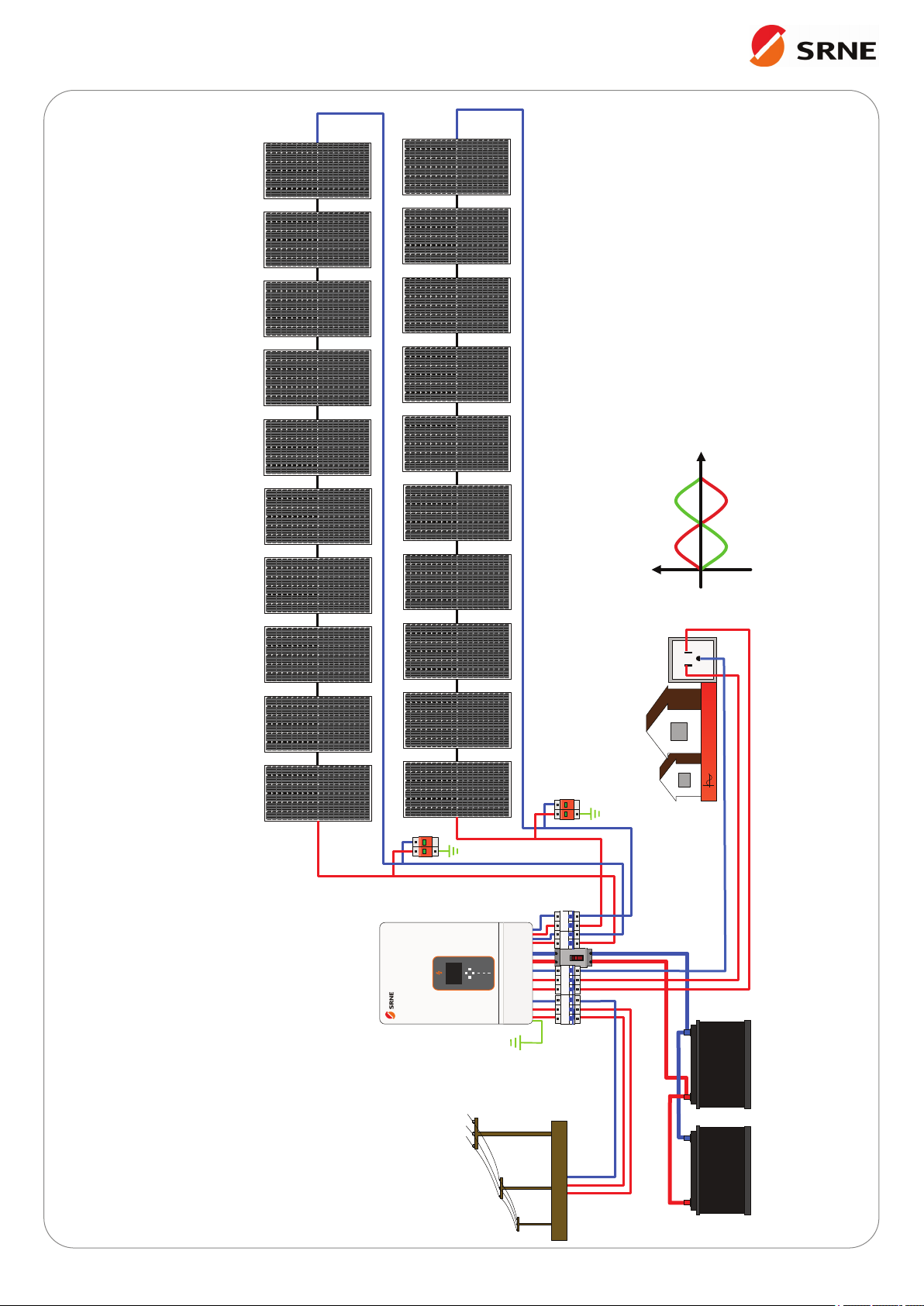

Split-phase Mode
V+
V-
0 T
L1 L2
Notice： The open circuit voltage of PV panel in series connection must below 500V , Over-voltage will cause damage to the inverter. Damage caused by improper conguration is not covered by warranty.

AC Load
Single-Phase：L1+N+PE
Single-Phase：L1+N+PE
Socket
Surge Protection Device
Surge Protection Device
BATTERY 48V BATTERY 48V
Moulded Case Circuit Breaker
utility grid
Circuit Breaker
Circuit BreakerCircuit Breaker Circuit Breaker
Single-phase Mode
V+
V-
0 T
L1，L2
Notice： The open circuit voltage of PV panel in series connection must below 500V , Over-voltage will cause damage to the inverter. Damage caused by improper conguration is not covered by warranty.
12

13
4.2 Cable & circuit breaker requirement
• PV INPUT
• AC INPUT
Model Cable Diameter Max.PV Input Current Circuit Breaker Spec
ASF4880U180-H 5mm²/ 10 AWG 22A 2P-25A
ASF48100U200-H 5mm²/ 10 AWG 22A 2P-25A
Model Output Mode Diagram Max.Input Current Cable diameter Circuit Breaker
Spec
ASF4880U180
-H
Split-phase 63A(L1/L2/N) 13mm²/6AWG
(L1\L2\N) 3P-63A
Single-phase
63A(L1/L2)
126A(N)
13mm²/6AWG(L1/L2)
26mm²/3AWG(N)
2P-125A
ASF48100U20
0-H
Split-phase 63A(L1/L2/N) 13mm²/6AWG
(L1\L2\N) 3P-63A
Single-phase
63A(L1/L2)
126A(N)
13mm²/6AWG(L1/L2)
26mm²/3AWG(N)
2P-125A
L1 L2 N
L1 L2
LN
L1 L2
LN
L1 L2 N
L1 and L2 in same phase
L1 and L2 in same phase
• BATTERY
Model Cable Diameter Max.Battery Current Circuit Breaker Spec
ASF4880U180-H 34mm²/ 2 AWG 180A 2P-200A
ASF48100U200-H 42mm²/ 1 AWG 220A 2P-250A

• PV INPUT、AC INPUT、AC OUTPUT
1. Use a stripper to remove the 6~8mm insulation of the cable.
2. Fixing a ferrule at the end of the cable. (ferrule needs to be
prepared by the user)
• BATTERY
1. Use a stripper to remove the 6~8mm insulation of the cable
2. Fixing cable lugs that supply with the box at the end of the
cable.
6-8mm
Cable
Ferrule Cable
6-8mm
Cable
Cable
Cable lugs
• AC OUTPUT
Model Output Mode Diagram Max.Output Current Cable diameter Circuit Breaker
Spec
ASF4880U180
-H
Split-phase 42A (L1/L2/N) 13mm²/6AWG
(L1\L2\N) 3P-63A
Single-phase 42A (L1/L2)
84A(N)
13mm²/6AWG (L1\L2)
26mm²/3AWG(N) 2P-125A
ASF48100U20
0-H
Split-phase 63A (L1/L2/N) 13mm²/6AWG
(L1\L2\N) 3P-63A
Single-phase 63A (L1/L2)
126A(N)
13mm²/6AWG (L1\L2)
26mm²/3AWG(N)
2P-125A
L1 L2 N
L1 L2
LN
L1 L2
LN
L1 L2 N
L1 and L2 in same phase
L1 and L2 in same phase
The wire diameter is for reference only. If the distance between the PV array and the inverter or between the
inverter and the battery is long, using a thicker wire will reduce the voltage drop and improve the
performance of the system.
NOTICE
14

15
4.3 AC input & output connection
Connect the live,neutral and ground wires according to the cables’ position and order shown in the diagram below.
4.4 Battery Connection
Connect the positive and negative cable of the battery according to the diagram below.
• Before connecting AC inputs and outputs, the circuit breaker must be opened to avoid the risk of electric
shock and must not be operated with electricity.
• Please check that the cable used is sucient for the requirements, too thin, poor quality cables are a
serious safety hazard.
DANGER

4.5 PV connection
Connect the positive and negative wires of the two strings of PV according to the diagram below.
• Before connecting battery, the circuit breaker must be opened to avoid the risk of electric shock and
must not be operated with electricity.
• Make sure that the positive and negative terminals of the battery are connected correctly and not
reversed, otherwise the inverter may be damaged.
• Please check that the cable used is sucient for the requirements, too thin, poor quality cables are a
serious safety hazard.
DANGER
• Before connecting PV, the circuit breaker must be opened to avoid the risk of electric shock and must not
be operated with electricity.
• Please make sure that the open circuit voltage of the PV modules in series does not exceed the Max.
Open Circuit Voltage of the inverter (In the ASF series, this value is 500V), otherwise the inverter may be
damaged.
DANGER
16

17
4.7 Grounding connection
Please make sure the grounding terminal connect to the Grounding Bar.
• The grounding cable should have a diameter of not less than 4 mm² and be as close as possible to the
grounding point.
NOTICE
4.8 Final assembly
After ensuring that the wiring is reliable and the wire sequence is correct, install the terminal protection cover in
place.
4.9 Start up the inverter
• Step 1 : Close the circuit breaker of the battery.
• Step 2：Press the rocker switch on the bottom of inverter, the screen and indicators light up to indicate that
the inverter has been activated.
• Step 3：Sequential close of the circuit breakers for PV, AC input and AC output.
• Step 4：Start the loads one by one in order of power from small to large.
4.6 Dry contact connection
Use a small screwdriver to push back the direction indicated by the arrow, then insert the communication cable
into the dry junction port. (Communication cable diameter 0.2~1.5mm²)
DRY CONTACT
DRY CONTACT

5. Operation

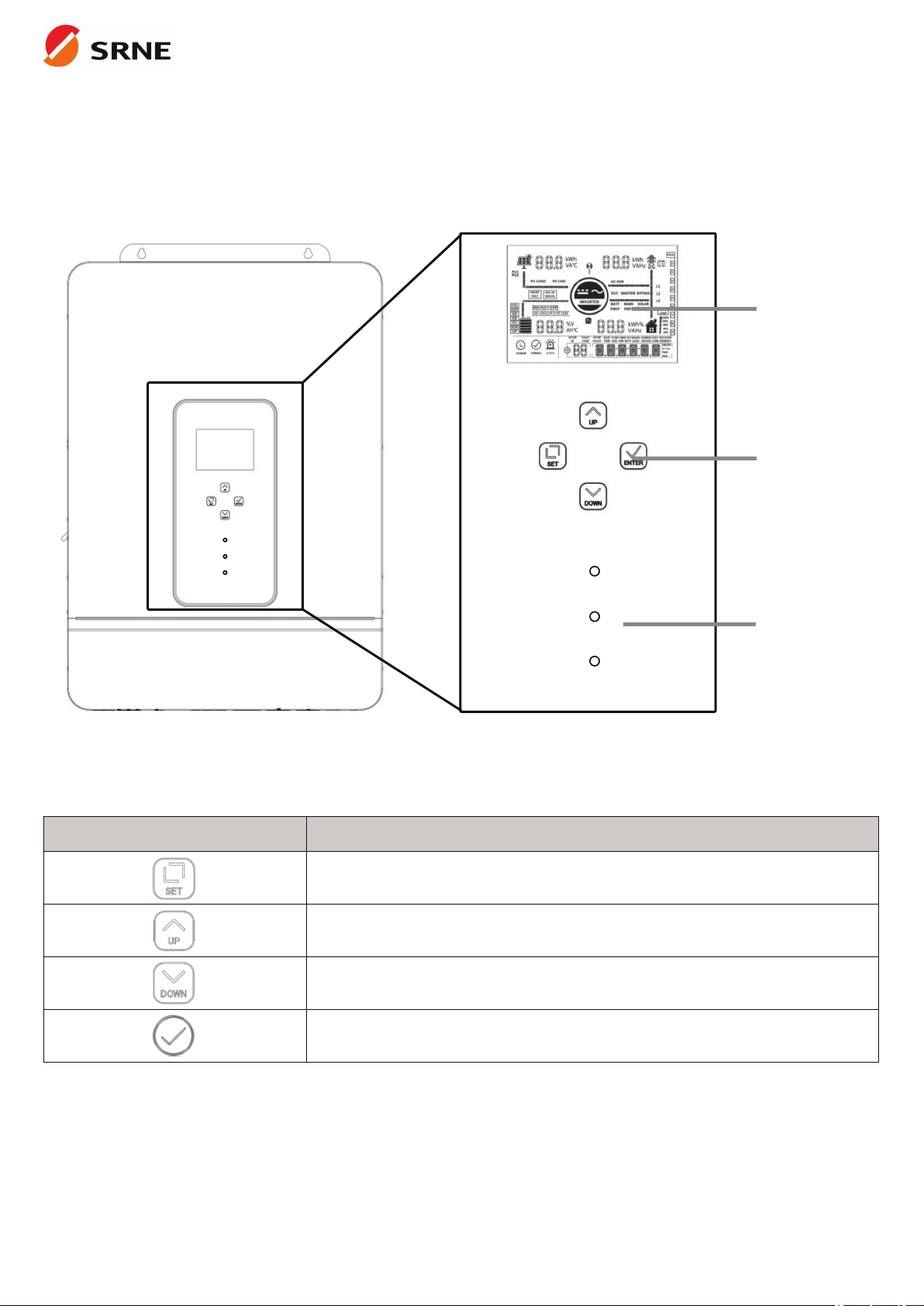

5.1 Operation and display panel
The operation and display panel below includes 1 LCD screen, 3 indicators, 4 touchable keys.
• Touchable Keys
Touchable Keys Description
To enter/exit the setting menu
To next selection
To last selection
To conrm/enter the selection in setting menu
LCD
screen
Touchable
Keys
LED
indicators
18
AC/INV
CHARGE
FAULT
AC/INV
CHARGE
FAULT

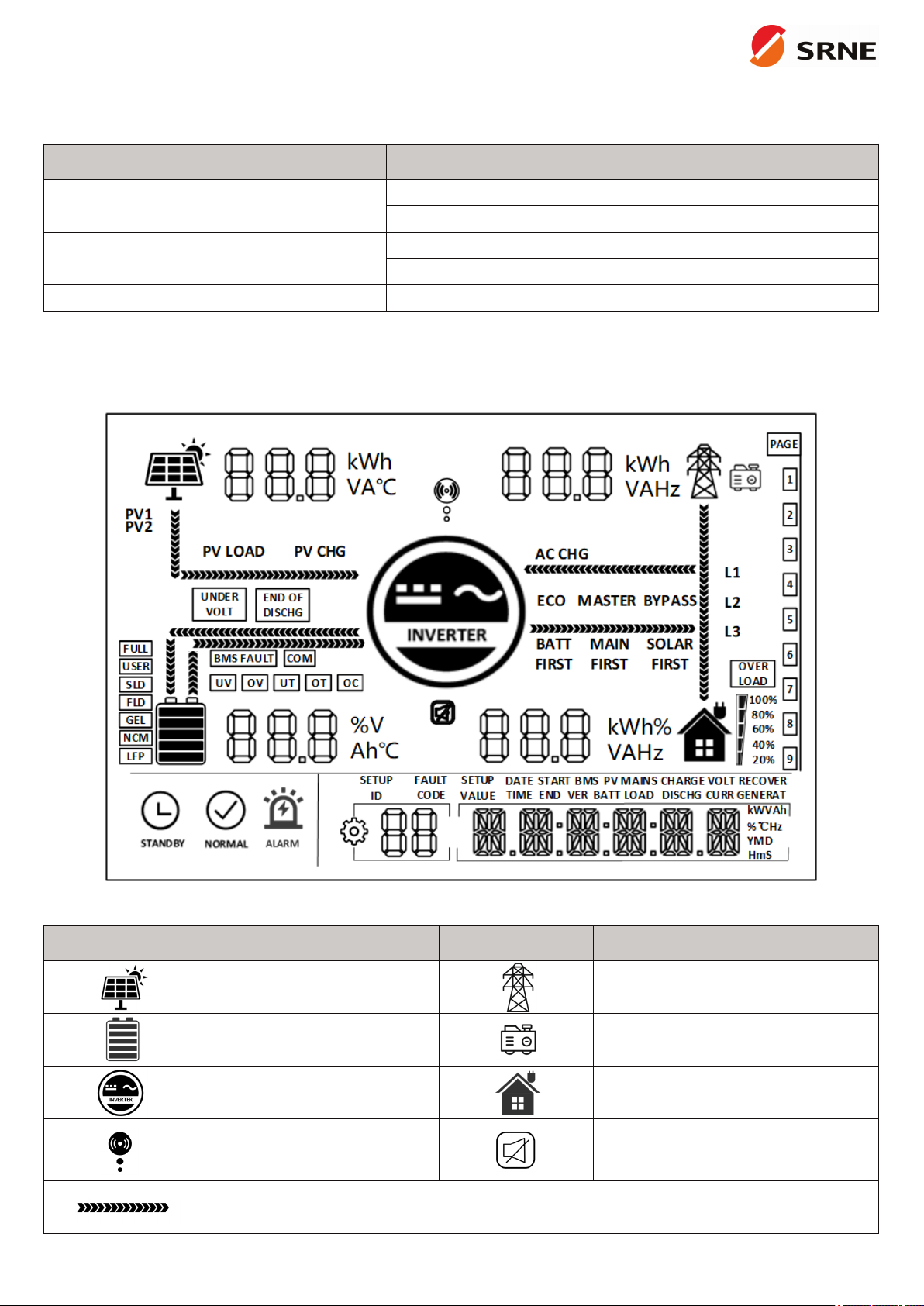

• Display panel
19
• LED Indicators
Indicators Color Description
AC/INV Green Continued: utility grid by-pass output
Flash: inverter output
CHARGE Yellow Continued: charging complete
Flash: charging
FAULT Red Flash: error occur
Icon Description Icon Description
Indicates the PV panel Indicates the utility grid
Indicates the battery Indicates the generator
Indicates the inverter is
working Indicates the home load
Indicates the inverter is
communicating with data
collector Indicates the buzzer muted
Indicates the direction of energy ow

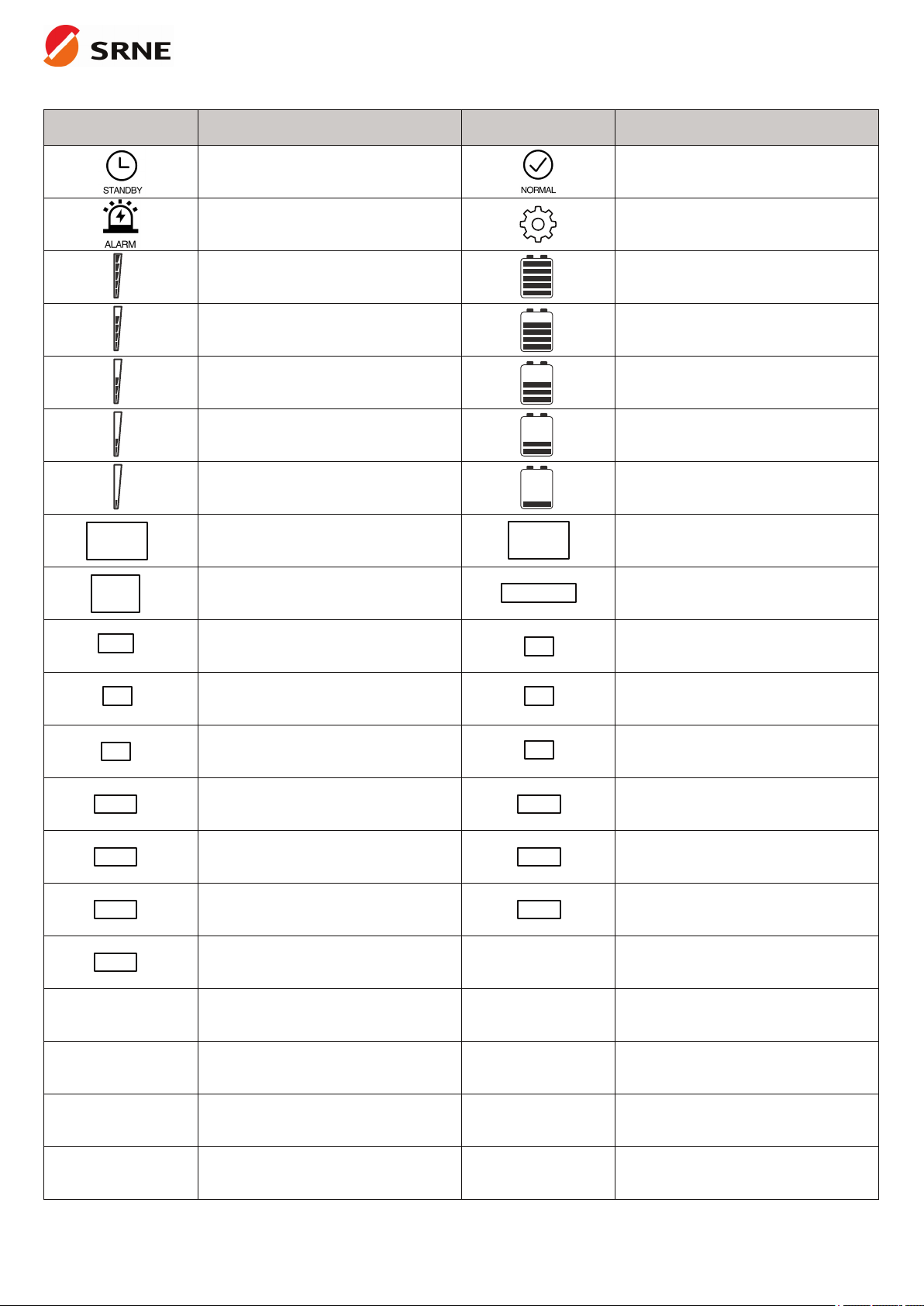

Icon Description Icon Description
Indicates the inverter is standby Indicates the inverter is working
normally
Indicates error occur Indicates setting
Indicates load power 80%~100% Indicates battery SOC 80%~100%
Indicates load power 60%~79% Indicates battery SOC 60%~79%
Indicates load power 40%~59% Indicates battery SOC 40%~59%
Indicates load power 20%~39% Indicates battery SOC 20%~39%
Indicates load power 5%~19% Indicates battery SOC 5%~19%
Indicates battery under-voltage Indicates battery discharge
Indicates over-load Indicates BMS fault
Indicates system communication
error Indicates system under-voltage
Indicates system over-voltage Indicates system under-
temperature
Indicates system over-
temperature Indicates system over-current
Indicates battery is full Indicates user dened battery
Indicates sealed lead-acid
battery Indicates ooded lead-acid battery
Indicates gel lead-acid battery Indicates ternary li-ion battery
Indicates LFP li-ion battery Indicates energy-saving mode
Indicates PV energy is carrying
the load Indicates PV energy is charging the battery
Indicates AC IN energy is
charging the battery Indicates the inverter output mode is mains power rst
Indicates the inverter output
mode is bypass Indicates the inverter output mode is solar rst
Indicates the inverter output
mode is battery rst
UT
OC
BMS FAULT
OVER
LOAD
END OF
DISCHG
UNDER
VOLT
OV
COM UV
OT
FULL
USER
SLD FLD
GEL NCM
LFP
BATT
FIRST
BYPASS
AC CHG
PV CHG
PV LOAD
ECO
SOLAR
FIRST
MAIN
FIRST
20
