ST VL53L4CX User manual

Introduction
The VL53L4CX is a Time-of-Flight (ToF) sensor, specifically designed for long range, multitarget detection, providing very
accurate distance measurement up to 6 m with excellent results over short distances.
The purpose of this user manual is to describe the integration model and the set of functions to call to get ranging data using the
VL53L4CX bare driver.
A guide to using the VL53L4CX Time-of-Flight sensor with extended distance
measurement
UM2923
User manual
UM2923 - Rev 2 - June 2022
For further information contact your local STMicroelectronics sales office.
www.st.com

1VL53L4CX system overview
The VL53L4CX system is composed of the VL53L4CX module and a driver running on the host.
This document describes the driver functions accessible to the host, to control the device and get the ranging data
for integration with non-Linux hosts.

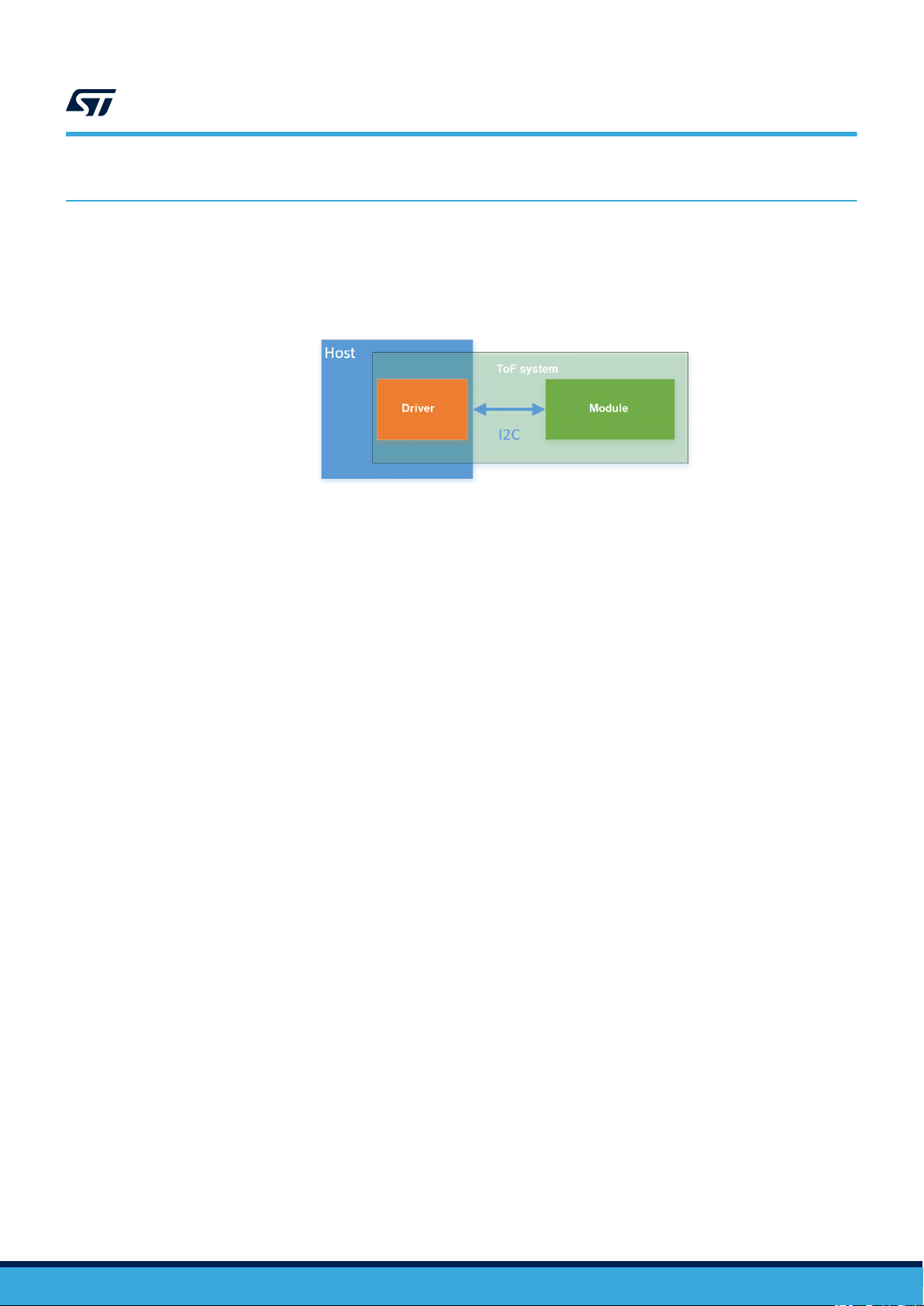

Figure 1. VL53L4CX system
Note: The present document describes the implemented and validated functions. Any other function available in the
drivers should not be used if not described in this document.
The bare driver is an implementation of a set of functions required to use the VL53L4CX device. It makes minimal
assumptions on the OS integration and services. As such, sequencing of actions, execution/threading model,
platform adaptation, and device structures allocation are not part of the bare driver implementation but left open to
the integrator.
The sequencing of bare driver calls must follow a set of rules, defined in this document.
UM2923
VL53L4CX system overview
UM2923 - Rev 2 page 2/25

2Ranging functional description
This section briefly describes the functional capabilities of VL53L4CX ranging device.
2.1 Ranging sequence
The device is running with a handshake mechanism, based on a standard interrupt management scheme.
After each ranging, the host acquires the ranging data and enables the next ranging by clearing the interrupt. An
interrupt is raised when a valid range is available. This process is referred to as the handshake mechanism.
Next ranging is then triggered when the current one is finished, and the host has cleared the previous pending
interrupt.
The interrupt mechanism allows faster data transfer, without losing any ranging value due to communication or
asynchronism issues. During the handshake phase, the host performs some data processing.
The ranging sequence is functionally described in the figure below.
UM2923
Ranging functional description
UM2923 - Rev 2 page 3/25

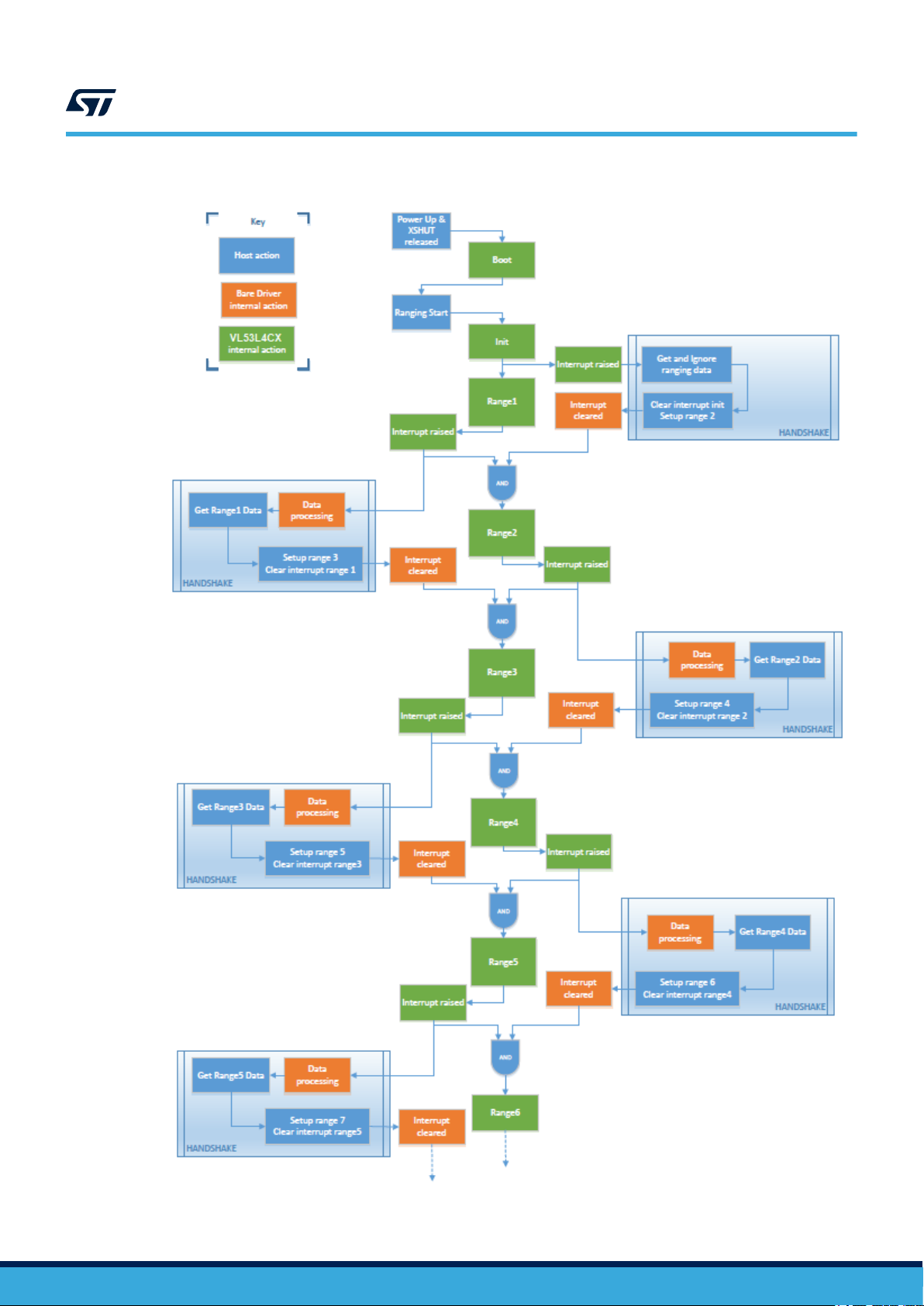

Figure 2. VL53L4CX ranging sequence overview
UM2923
Ranging sequence
UM2923 - Rev 2 page 4/25

Handshake sequence allows the computation of internal parameters and apply them for next range.
The handshake must be performed by the user of the bare driver. Minimizing the delay in enabling a new ranging
after a new measurement has been received is key to maximizing the system measurement rate
2.2 Timing considerations
Timings are presented in Figure 3. Ranging sequence and timing targets.
The host can get the latest available ranging during the duration (ranging timing budget) of the current range.
If a delay to clear the interrupt is introduced by the host, the next ranging will be stalled until the pending interrupt
is cleared.
Note: Timings indicated in Figure 3. Ranging sequence and timing targets are typical timings.
The host can change the default timing budget by using a dedicated driver function described in
Section 5.1 Timing budget. The host can change the timing budget either to synchronize on the application,
or to increase ranging accuracy.
In the following figure, the “Boot”, “SW standby” and “Init” lasts 85 ms. This time is needed to initialize the device,
and is independent for the platform or the ranging timing budget. The first range, “Range1”, is the wrap-around
check, and is not valid. This means that the first valid ranging value is “Range2”, available after 85 ms plus twice
the timing budget duration.
Figure 3. Ranging sequence and timing targets
UM2923
Timing considerations
UM2923 - Rev 2 page 5/25

3Bare driver basic functions description
This section describes the driver function calls flow that should be followed to perform a ranging measurement
using the VL53L4CX.
The VL53L4CX driver is used in two classes of applications:
• Factory applications used for device calibration, typically at the end of product manufacturing test (factory
flow)
• Field applications, which include all end-user applications using the VL53L4CX device (ranging flow)
3.1 Bare driver
Bare driver factory flow is illustrated in the following figure.
Figure 4. VL53L4CX API ranging flow (factory)
Host calls driver
function
DataInit ()
PerformRefSpadManagement()
PerformOffsetCalibration()
WaitDeviceBooted()
PerformXtalkCalibration()
Key
Host calls Optional
driver function
GetCalibrationData()
Save part calibration data
Note: The calibration flow changes the distance mode. It is mandatory to call the SetDistanceMode() function if you
want to use the sensor just after a calibration.
Bare driver ranging flow is illustrated in the following figure.
UM2923
Bare driver basic functions description
UM2923 - Rev 2 page 6/25

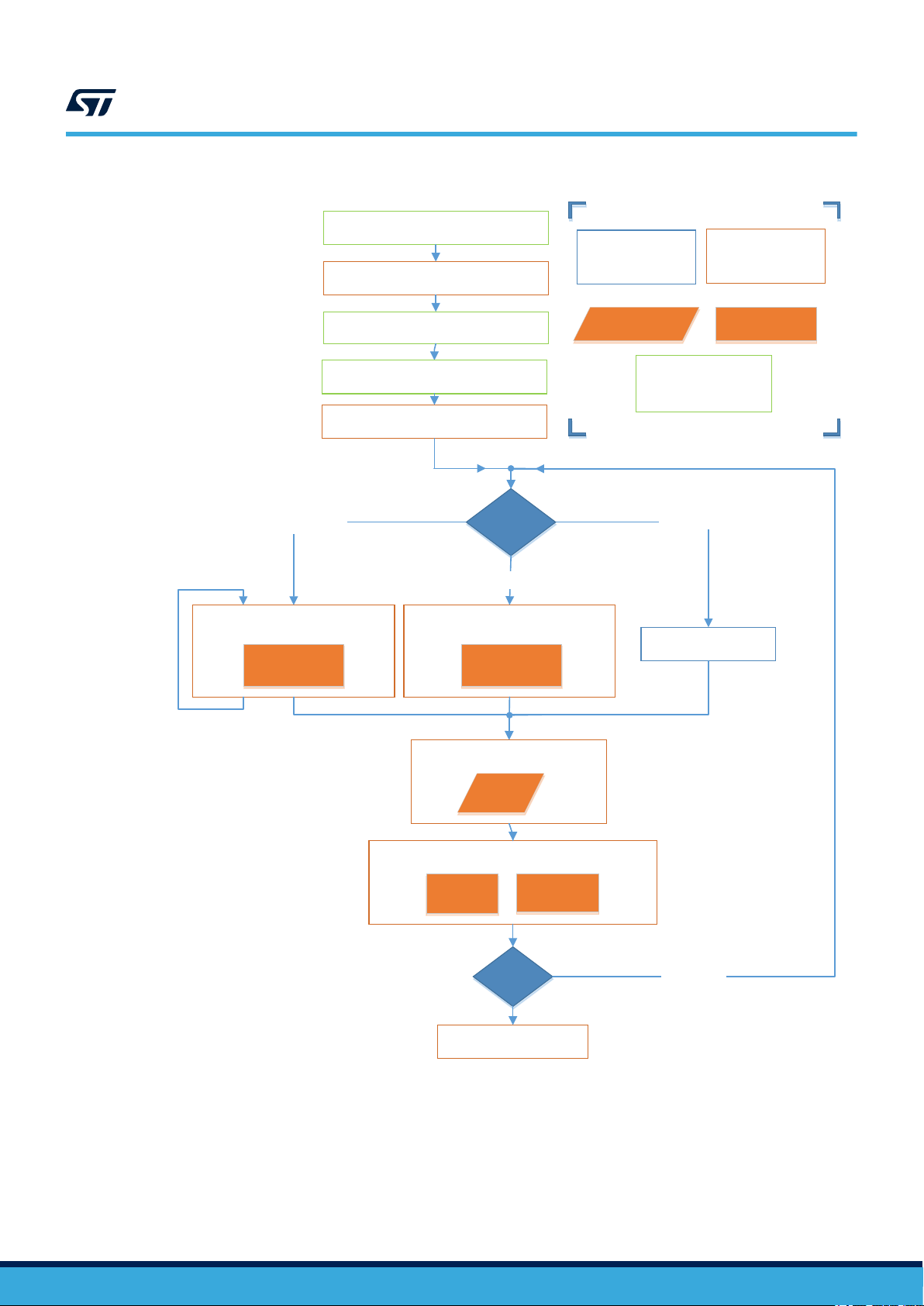

Figure 5. VL53L4CX API ranging flow (field)
WaitMeasurementDataReady()
Interrupt received
StopMeasurement()
Host calls driver
function
Host action
GetMeasurementDataReady()
DataInit ()
StartMeasurement()
SetCalibrationData()
Interrupt mode
Host polling mode
Polling/
interrupt
Continue
?CONTINUE
Data result Driver internal
action
Checks
interrupt status
ClearInterruptAndStartMeasurement()
Clears
interrupt
Enables next
ranging
GetMultiRangingData()
Data
Polls on
interrupt status
Driver polling mode
WaitDeviceBooted()
SetDistanceMode()
Key
Host calls Optional
driver function
UM2923
Bare driver
UM2923 - Rev 2 page 7/25

3.2 System initialization
The following section shows the API functions calls required to perform the system initialization, before starting a
measurement.
3.2.1 Wait for boot
VL53LX_WaitDeviceBooted() function ensures that the device is booted and ready.
It is not mandatory to call this function.
Note: This function blocks the host execution. This function should not block for more than 4 ms, assuming:
• 400 kHz I2C frequency
• 2 ms latency per transaction
3.2.2 Data init
The VL53LX_DataInit() function must be called each time the device exits from the “initial boot” state. It performs
device initialization. After calling the VL53LX_DataInit() function the calibration data have to be loaded using the
function VL53LX_SetCalibrationData().
UM2923
System initialization
UM2923 - Rev 2 page 8/25

4Ranging with VL53L4CX
On non-Linux hosts, the user of the bare driver sequences calls to the driver in a way that is appropriate to the
application needs, the platform capabilities and the bare driver call sequence rules.
4.1 Start a measurement
VL53LX_StartMeasurement() function must be called to start a measurement.
4.2 Wait for a result: polling or interrupt
There are 3 ways to know that a measurement is available. The host can:
1. call a polling function
2. poll on a driver function
3. wait for a physical interrupt
4.2.1 Driver polling to get the result status
The function VL53LX_WaitMeasurementDataReady() is polls the internal status until a measurement is ready.
Note: This function is blocking, as internal polling is performed.
4.2.2 Host polling to get the result status
Host can poll using the function VL53LX_GetMeasurementDataReady(), to know when a new measurement is
ready.
This function is not blocking.
4.2.3 Using physical interrupt
An alternative and preferred way to get the ranging status is to use the physical interrupt output. By default,
GPIO1 goes low when a new measurement is ready.
This pin is an output pin only, there is no input interrupt pin on this device.
Interrupt must be cleared by calling driver function VL53LX_ClearInterruptAndStartMeasurement().
4.3 Get measurement
Multiple objects can be detected per ranging, and measurement data is reported per object
VL53LX_GetMultiRangingData() can be used to get ranging data when multiple objects are in the field of view.
When calling this function to get the device multiple ranging results, a structure called
VL53LX_MultiRangingData_t is returned.
4.4 Stop a measurement
The host can stop the measurement by calling VL53LX_StopMeasurement() function.
If the stop request occurs during a range measurement, then the measurement is aborted immediately.
UM2923
Ranging with VL53L4CX
UM2923 - Rev 2 page 9/25

4.5 Ranging data structures
The structure named VL53LX_MultiRangingData_t contains the following data applicable to all targets detected:
• TimeStamp: not implemented.
• StreamCount: this 8-bit integer gives a counter incremented at each range. This 8-bit integer gives a counter
incremented at each range. The value starts at 0, incrementing 1 by 1 up to 255. When it reaches 255, it
starts again from 128 to 255.
• NumberOfObjectsFound: 8-bit integer value that gives the number of objects found.
• RangeData[VL53LX_MAX_RANGE_RESULTS]: a table of structure of type VL53LX_TargetRangeData_t.
The maximum number of targets is given by VL53LX_MAX_RANGE_RESULTS, and is by default equal to 4.
• HasXtalkValueChanged: 8-bit integer value that indicates if the crosstalk value has been changed.
• EffectiveSpadRtnCount: 16-bit integer that returns the effective single photon avalanche diode (SPAD) count
for the current ranging. To obtain real value it should be divided by 256.
One structure per target detected (up to 4 by default) called VL53LX_TargetRangeData_t which contains the
following specific results for each target detected.
• RangeMaxMilliMeter: is a 16-bit integer, indicating the larger detected distance.
• RangeMinMilliMeter: is a 16-bit integer, indicating the smaller detected distance.
• SignalRateRtnMegaCps: this value is the return signal rate in MegaCountPer Second (MCPS), this is a
16.16 fix point value. To obtain the real value it should be divided by 65536.
• AmbientRateRtnMegaCps: this value is the return ambient rate (in MCPS), this is a 16.16 fix point value,
which is effectively a measure of the amount of light hitting the SPAD matrix. To obtain the real value it
should be divided by 65536.
• SigmaMilliMeter: this 16.16 fix point value is an estimation of the standard deviation of the current ranging,
expressed in millimeter. To obtain the real value it should be divided by 65536.
• RangeMilliMeter: is a 16-bit integer indicating the range distance in millimeter.
• RangeStatus: this is a 8-bit integer indicating the range status for the current measurement. Value = 0
means ranging is valid. See Table 1. Range Status.
• ExtendedRange: this is a 8-bit integer indicating if the range has been unwrapped (only for long distances)
If the target is not detected, and the measurement is valid, the following values are reported in the
VL53LX_TargetRangeData_t structure:
• RangeMaxMilliMeter: forced to 8191.
• RangeMinMilliMeter: forced to 8191.
• SignalRateRtnMegaCps: forced to 0.
• AmbientRateRtnMegaCps: the ambient rate value is normally computed.
• SigmaMilliMeter: forced to 0.
• RangeMilliMeter: forced to 8191.
• RangeStatus: forced to 255.
• RangeStatus: forced to 0.
UM2923
Ranging data structures
UM2923 - Rev 2 page 10/25

Table 1. Range Status
Value RangeStatus String Comment
0 VL53LX_RANGESTATUS_RANGE_VALID Ranging measurement is valid
1 VL53LX_RANGESTATUS_SIGMA_FAIL
Raised if sigma estimator check is above the
internal defined threshold. Sigma estimator gives a
qualitative information about the signal.
2 VL53LX_RANGESTATUS_SIGNAL_FAIL Raised when signal is too low to detect a target.
4 VL53LX_RANGESTATUS_OUTOFBOUNDS_FAIL Raised when range result is out of bounds
5 VL53LX_RANGESTATUS_HARDWARE_FAIL Raised in case of HW or VCSEL failure
6VL53LX_RANGESTATUS_RANGE_VALID_NO_WR
AP_CHECK_FAIL
No wraparound check has been done (this is the
very first range)
7 VL53LX_RANGESTATUS_WRAP_TARGET_FAIL Wraparound occurred
8 VL53LX_RANGESTATUS_PROCESSING_FAIL Internal processing error
10 VL53LX_RANGESTATUS_SYNCRONISATION_INT Raised one time after init, ranging value has to be
ignored
11 VL53LX_RANGESTATUS_RANGE_VALID_MERGE
D_PULSE
Ranging is OK, but distance reported is the result of
multiple targets merged together.
12 VL53LX_RANGESTATUS_TARGET_PRESENT_LA
CK_OF_SIGNAL
Indicate that there is a target, but signal is too low to
report ranging
14 VL53LX_RANGESTATUS_RANGE_INVALID Ranging data is negative and has to be ignored
255 VL53LX_RANGESTATUS_NONE Target not detected, without no warning or errors
raised
Note: The very first measurement does not include a wraparound check. This ranging measurement can be discarded.
Note: Range status 1 is often caused by noisy measurements. Sigma estimator is strongly impacted by the SNR of the
treated signals.
Note: Range status 4 is raised when some error on the measurement reference occurs. This can cause outliers as
negative measurements or extremely high ranging values.
UM2923
Ranging data structures
UM2923 - Rev 2 page 11/25

5Additional driver functions description
5.1 Timing budget
Timing budget is the time allocated by the user to perform one range measurement.
VL53LX_SetMeasurementTimingBudgetMicroSeconds() is the function to be used to set the timing budget.
The default timing budget value is 33 ms. Minimum is 8 ms, maximum is 200 ms.
For example, to set the timing budget to 66 ms:
status = VL53LX_SetMeasurementTimingBudgetMicroSeconds(&VL53L4CXDev, 66000 );
The function VL53LX_GetMeasurementTimingBudgetMicroSeconds() returns the programmed timing budget.
5.2 Distance mode
A function has been added to optimize the internal settings depending on the ranging distance requested by user.
The benefit of changing the distance mode is detailed in the following table.
Table 2. Distance modes
Ranging mode Benefit / comments
Medium (Default) Maximum distance
Long Lower power consumption
The function to use is called VL53LX_SetDistanceMode().
The driver can help the host to select the optimum distance mode. A specific value is returned at each ranging to
indicate the best choice, depending on the ambient conditions.
Possible values are:
• VL53LX_DISTANCE_MEDIUM
• VL53LX_DISTANCE_LONG
5.3 Tuning parameters
Tuning parameters allow to find the best fit between the sensor and the host use case. For each use case, a set
of tuning parameters can be defined and loaded in the driver.
Most of the tuning parameters are tunable thresholds, used in the signal treatment algorithm. Modifying these
parameters allows the algorithm to make technical trade offs to the specific customer use case.
5.3.1 Set a tuning parameter
An extra function exists to load tuning parameters. For specific use cases, ST can recommend some specific
parameters composed of a key and a value.
The list of tuning parameters and their default values is given in the vl53lx_tuning_parm_defaults.h file. Either
change a tuning parameter value in this file and recompile the code, or use the VL53LX_SetTuningParameter()
function to load this tuning parameter.
Changing a tuning parameter can modify the device performance. ST recommends using the default values for
optimal results.
UM2923
Additional driver functions description
UM2923 - Rev 2 page 12/25

5.3.2 Improve accuracy
In order to improve the device accuracy, use the tuning parameter called
VL53LX_TUNINGPARM_PHASECAL_PATCH_POWER. By default this tuning parameter is not applied (value
is set to 0).
ST recommends to set the values of calibration and ranging flows to 2 after static_init.
In this case, the time to perform the reference signal measurement is increased and offers better accuracy.
Setting this parameter to 2 increases the delay to get the first measurement by 240 ms.
5.3.3 Improve latency and max ranging distance
When the target is moving, the VL53L4CX may need several ranges to react, depending on the scene.
A way to improve the latency is to tune the VL53LX_TUNINGPARM_RESET_MERGE_THRESHOLD parameter.
Default value is 15000. It can be lowered to improve latency, but maximum ranging distance will be impacted.
If the user increases the value, the maximum ranging distance can be improved, but latency is impacted.
5.4 Coverglass smudge detection
The crosstalk can be affected by smudge on the coverglass. VL53L4CX embeds a function able to detect smudge
on the fly and apply a new crosstalk correction value.
The user can enable/disable this function by calling VL53LX_SmudgeCorrectionEnable().
The following three options can be set with this function:
• VL53LX_SMUDGE_CORRECTION_NONE to disable the correction
• VL53LX_SMUDGE_CORRECTION_CONTINUOUS to enable a continuous correction
• VL53LX_SMUDGE_CORRECTION_SINGLE to enable a single correction after a start command is
received.
Smudge detection runs at each ranging. If some conditions are met (no object closer than 80 cm, ambient light
level below a threshold, and crosstalk value above 1kcps), a new crosstalk value is computed.
If the smudge correction is set, the crosstalk value is corrected and the flag HasXtalkValueChanged is set. This
flag is automatically cleared at next range.
Note: The smudge correction is limited to:
• 1.7 m using medium distance mode
• 3.8 m using long distance mode.
5.5 I2C address
The default I2C address of the VL53L4CX is 0x52.
Some applications need to set a different I2C device address. This is the case, for example, when several
VL53L4CX parts share the same I2C bus.
The customer should apply the following procedure:
• The board mounting the VL53L4CX have to be designed carefully. The Xshut and the GPIO1 (interrupt) pins
have to be controlled individually for each VL53L4CX
• The host has to put in HW Standby, setting the Xshut pin low, all the VL53L4CX.
• The host raises the Xshut pin of 1 of the VL53L4CX
• The host calls the function VL53LX_SetDeviceAddress()
• The host repeats the latter three points since all the VL53L4CX addresses are correctly set.
For example, by calling the function: status = VL53LX_SetDeviceAddress(&VL53L4CXDev, WantedAddress)
the value of WantedAddress is set as the new I2C address.
UM2923
Coverglass smudge detection
UM2923 - Rev 2 page 13/25

6Customer factory calibration functions
In order to benefit of full performance of the device, VL53L4CX driver includes calibration functions to be run once
on the customer production line.
Calibration procedures have to be run to compensate part to part parameters that may affect the device
performances.
Calibration data stored in the host have to be loaded in VL53L4CX at each startup using a dedicated driver
function.
Three calibrations are needed: refSPAD, crosstalk and offset.
The calibration functions are called in the following order:
1. refSPAD
2. crosstalk
3. offset
The three calibration functions can be done consecutively or individually. When run individually, the previous
calibration function has to be loaded before running calibration.
6.1 RefSPAD calibration
The number of single photon avalanche diode (SPAD) is calibrated during final module test (FMT) at ST. This part
to part value is stored into the device's NVM and automatically loaded in the device during boot.
This calibration allows the number of SPADs used by the device to be optimized.
However, adding a cover glass on top of the module may affect this calibration. ST recommends that the
customer performs this calibration in the final product application.
The same algorithm running at FMT is applied when this function is called. The algorithm searches three
locations:
• 1 (1 x attenuated SPADs)
• 2 (5 x attenuated SPADs)
• 3 (10 x attenuated SPADs).
The number of SPADs choosen is done to avoid signal saturation.
6.1.1 RefSPAD calibration function
The following function is available for SPAD calibration: VL53LX_PerformRefSpadManagement(VL53LX_DEV
Dev)
Note: This function must be called first in the calibration procedure.
The function can output the following three warning messages :
• VL53LX_WARNING_REF_SPAD_CHAR_NOT_ENOUGH_SPADS
Fewer than five good SPADs available, output not valid
• VL53LX_WARNING_REF_SPAD_CHAR_RATE_TOO_HIGH
At end of search reference rate > 40.0 Mcps Offset stability may be degraded.
• VL53LX_WARNING_REF_SPAD_CHAR_RATE_TOO_LOW
At end of search reference rate < 10.0 Mcps. Offset stability may be degraded.
6.1.2 RefSPAD calibration procedure
No particular conditions have to be followed for this calibration, except that no target should be placed on top of
the device.
Time to perform this calibration is only few milliseconds.
This function has to be called after VL53LX_DataInit() function is called.
UM2923
Customer factory calibration functions
UM2923 - Rev 2 page 14/25

6.1.3 Getting refSPAD calibration results
The function VL53LX_GetCalibrationData() returns all calibration data. The returned structure
VL53LX_CalibrationData_t contains another structure called VL53LX_customer_nvm_managed_t which contains
the 8 refSPAD calibration parameters:
• ref_spad_man__num_requested_ref_spads: this value is between 5 and 44. It gives the number of SPADs
selected
• ref_spad_man__ref_location: this value can be 1, 2 or 3. It gives the location of the SPADs in the reference
area.
• 6 additional parameters gives the good spad maps for the location selected:
– global_config__spad_enables_ref_0
– global_config__spad_enables_ref_1
– global_config__spad_enables_ref_2
– global_config__spad_enables_ref_3
– global_config__spad_enables_ref_4
– global_config__spad_enables_ref_5
6.1.4 Setting refSPAD calibration data
At each startup, after an initial boot, customer field application can load the refSPAD calibration data after
VL53LX_DataInit() function is called, by using VL53LX_SetCalibrationData().
It is better to get the entire calibration structure by calling VL53LX_GetCalibrationData(), modify the 8 parameters
described in previous section and call VL53LX_SetCalibrationData().
6.2 Crosstalk calibration
Crosstalk (XTalk) is defined as the amount of signal received on the return array which is due to VCSEL light
reflection inside the protective window (coverglass) added on top of the module for aesthetic reasons.
Depending on the coverglass quality, this parasitic signal can affect the device performances. VL53L4CX has a
built-in correction that allows to compensate this problem.
Crosstalk calibration is used to estimate the amount of correction needed to compensate the effect of a cover
glass added on top of the module.
The output of the crosstalk calibration contains many parameters that define the crosstalk model, as described in
Section 6.2.3 Getting crosstalk calibration results.
6.2.1 Crosstalk calibration function
The following dedicated function is available for crosstalk calibration:
VL53LX_PerformXTalkCalibration(&VL53L4CXDev);
Note: This function must be called in second position in the calibration procedure, after refSPAD calibration is done,
and before offset calibration.
6.2.2 Crosstalk calibration procedure
To perform the crosstalk calibration, a target has to be placed at a distance of 600mm from the device.
Crosstalk calibration should be conducted in a dark environment with no IR contribution.
After VL53LX_DataInit() and VL53LX_PerformRefSpadManagement() functions are called, the dedicated
calibration function has to be called, using: VL53LX_PerformXTalkCalibration(&VL53L4CXDev).
When these functions are called, crosstalk calibration is performed and the crosstalk correction is applied by
default.
UM2923
Crosstalk calibration
UM2923 - Rev 2 page 15/25

6.2.3 Getting crosstalk calibration results
Calibration results consist, among others, of an histogram and a parameter called “plane offset”. The plane offset
represents the amount of correction applied, and the histogram is the repartition of the correction on each bin.
The function VL53LX_GetCalibrationData() returns all the calibration data. The returned
structure VL53LX_CalibrationData_t contains other structures. The plane offset is contained in
VL53LX_customer_nvm_managed_t:
algo_crosstalk_compensation_plane_offset_kcps is a fixed point 7.9 coded value. It has to be divided by 512 to
get the actual number.
The other relevant structure returned is VL53LX_xtalk_histogram_data_t.
6.2.4 Setting crosstalk calibration data
Once the VL53LX_DataInit() function is called, the customer can load the crosstalk calibration data using:
VL53LX_SetCalibrationData()
It is better to call VL53LX_GetCalibrationData(), modify the parameters described in previous section,
xtalk_histogram structure included, and call VL53LX_SetCalibrationData()
6.2.5 Enable/disable crosstalk compensation
The function VL53LX_SetXTalkCompensationEnable() enables or disables the crosstalk compensation
Note: Crosstalk compensation is disabled by default.
To enable the crosstalk compensation call V53LX_SetXTalkCompensationEnable&VL53L4CXDev, 1);
To disable the crosstalk compensation call VL53LX_SetXTalkCompensationEnable&VL53L4CXDev, 0);
Note: This function does not perform any calibration or crosstalk data loading, it only enables the compensation.
Note: Calibration or loading of calibration data functions have to be called separately from this enable/disable function
(see sections above).
6.3 Offset calibration
Soldering the device on the customer board or adding a coverglass can introduce an offset in the ranging
distance. This part to part offset has to be measured during the offset calibration.
Offset calibration also allows to calibrate the dmax value, using the same calibration conditions than the offset
calibration.
6.3.1 Offset calibration functions
The following two functions are available for the offset calibration:
• VL53LX_PerformOffsetSimpleCalibration(Dev, CalDistanceMilliMeter)
• VL53LX_PerformOffsetPerVCSELCalibration(Dev, CalDistanceMilliMeter)
The argument of the functions is the target distance in millimeters. Offset calibration has to be performed after
crosstalk correction.
VL53LX_PerformOffsetPerVCSELCalibration is the most accurate function, but it takes longer to perform the
calibration (time multiplied by 2)
UM2923
Offset calibration
UM2923 - Rev 2 page 16/25

6.3.2 Offset calibration procedure
Customers can select any chart reflectance placed at any distance (using the same setup as the crosstalk
calibration). The only point to check is to ensure the signal rate is measured between 2 and 80MCps with the
chosen setup.
Table 3. Offset calibration setup
Chart Distance Ambient conditions Signal Rate
Any Any Dark (no IR contribution) 2MCps < Signal Rate <80Mcps
Two warning messages are returned by these functions:
• VL53LX_WARNING_OFFSET_CAL_INSUFFICIENT_MM1_SPADS
The signal is too low, Accuracy of offset calibration may be degraded.
• VL53LX_WARNING_OFFSET_CAL_PRE_RANGE_RATE_TOO_HIGH
Signal is too high. Accuracy of offset calibration may be degraded.
6.3.3 Getting offset calibration results
The function VL53LX_GetCalibrationData() returns all calibration data. The returned structure
VL53LX_CalibrationData_t contains another structure called VL53LX_customer_nvm_managed_t which contains
the three offset calibration results:
• algo__part_to_part_range_offset_mm
• mm_config__inner_offset_mm
• mm_config__outer_offset_mm
The overall offset applied to the device is the average of the two last values
If a perVCSELCalibration is selected, the output of the function is includes the following data:
• short_a_offset_mm
• short_b_offset_mm
• medium_a_offset_mm
• medium_b_offset_mm
• long_a_offset_mm
• long_bb_offset_mm
Depending of the distance mode (VCSEL period) chosen, one of these offset will be applied automatically.
6.3.4 Selecting the offset correction mode
The offset correction mode can be set with two options, using the VL53LX_SetOffsetCorrectionMode function.
Note: VL53LX_OFFSETCORRECTIONMODE_PERVCSEL should be used by default. It allows to increase the offset
accuracy per VCSEL period.
Table 4. Offset correction options
Offset Calibration function called Correction mode option to be used
PerformSimpleOffsetCalibration VL53LX_OFFSETCORRECTIONMODE_STANDARD
PerfromPerVCSELOffsetCalibration VL53LX_OFFSETCORRECTIONMODE_PERVCSEL
Note: If only one offset calibration type results are available, it is mandatory to set the offset correction mode to the
corresponding option. This is not done automatically.
UM2923
Offset calibration
UM2923 - Rev 2 page 17/25

6.3.5 Setting offset calibration data
The customer can load the offset calibration data after VL53LX_DataInit() function is called, by using
VL53LX_SetCalibrationData().
It is better to call VL53LX_GetCalibrationData(), modify the parameters described in previous sections and call
VL53LX_SetCalibrationData()
UM2923
Offset calibration
UM2923 - Rev 2 page 18/25

7Customer repair shop calibrations
In case the calibration values are lost, due to component change in a repair shop, customer can apply a
dedicated procedure, where no specific setup (targets) are needed.
The calibration is composed of three steps:
1. RefSpad
2. Crosstalk
3. Offset calibrations
RefSpad and Xtalk are the same as described in Section 6.1 RefSPAD calibration and Section 6.2 Crosstalk
calibration.
A dedicated function is available to perform offset calibration: VL53LX_PerformOffsetZeroDistanceCalibration.
A target has to be set in front of the device, touching the cover glass. The target can be a simple sheet of paper
(with no particular need for the paper reflectance).
The above function has to be called and the results can be retrieved similarly to the process described in the
previous sections.
UM2923
Customer repair shop calibrations
UM2923 - Rev 2 page 19/25

8Bare driver errors and warnings
Driver error is reported when any driver function is called. Possible values for driver errors are described in the
following table.
Warning are there to inform user that some parameters are not optimized.
The warnings are not blocking for the host.
Table 5. Bare driver errors and warnings description
Error value API error string Occurrence
0 VL53LX_ERROR_NONE No error
-1 VL53LX_ERROR_CALIBRATION_WARNING Invalid calibration data
-4 VL53LX_ERROR_INVALID_PARAMS Invalid parameter is set in a function
-5 VL53LX_ERROR_NOT_SUPPORTED Requested parameter is not supported in the
programmed configuration
-6 VL53LX_ERROR_RANGE_ERROR Interrupt status is incorrect
-7 VL53LX_ERROR_TIME_OUT Ranging is aborted due to timeout
-8 VL53LX_ERROR_MODE_NOT_SUPPORTED Requested mode is not supported
-10 VL53LX_ERROR_COMMS_BUFFER_TOO_SMALL Supplied buffer is larger than I2C supports
-13 VL53LX_ERROR_CONTROL_INTERFACE Error reported from IO function
-14 VL53LX_ERROR_INVALID_COMMAND Command is invalid
-16 VL53LX_ERROR_REF_SPAD_INIT An error occurred during Reference SPAD
calibration
-17 VL53LX_ERROR_GPH_SYNC_CHECK_FAIL
Driver out of sync with device. A stop/start or a
reboot may be needed
-18 VL53LX_ERROR_STREAM_COUNT_CHECK_FAIL
-19 VL53LX_ERROR_GPH_ID_CHECK_FAIL
-20 VL53LX_ERROR_ZONE_STREAM_COUNT_CHEC
K_FAIL
-21 VL53LX_ERROR_ZONE_GPH_ID_CHECK_FAIL
-22 VL53LX_ERROR_XTALK_EXTRACTION_FAIL
No successful samples when using the full array
to sample the crosstalk. In this case there is not
enough information to generate new crosstalk value.
The function will exit and leave the current crosstalk
parameters unaltered
-23 VL53LX_ERROR_XTALK_EXTRACTION_SIGMA_L
IMIT_FAIL
The avg sigma estimate of the crosstalk sample
is > than the maximal limit allowed. In this case
the crosstalk sample is too noisy for measurement.
The function will exit and leave the current crosstalk
parameters unaltered
-24 VL53LX_ERROR_OFFSET_CAL_NO_SAMPLE_FA
IL An error occurred during offset calibration. Check
setup is in line with ST recommendations.
-25 VL53LX_ERROR_OFFSET_CAL_NO_SPADS_ENA
BLED_FAIL
-28 VL53LX_WARNING_REF_SPAD_CHAR_NOT_EN
OUGH_SPADS
Warning: number of spads found is too low to get
accurate refSpadManagement calibration. Ensure
setup is in line with ST recommendations.
-29 VL53LX_WARNING_REF_SPAD_CHAR_RATE_TO
O_HIGH
Warning: signal rate found too low to get accurate
refSpadManagement calibration. Ensure setup is in
line with ST recommendations.
UM2923
Bare driver errors and warnings
UM2923 - Rev 2 page 20/25
