Stageline TWIST-75LED User manual

1
TWIST-75LED Product Guide
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Description of the device.................................................................................................................................................6
Overview ........................................................................................................................................................................6
Backside .........................................................................................................................................................................7
Installation...........................................................................................................................................................................7
Set Up and Operation .......................................................................................................................................................7
Control Modes...............................................................................................................................................................8
One TWIST-75LED (Built-in Programs).....................................................................................................................8
One TWIST-75LED (Sound-control).........................................................................................................................8
Multiple TWIST-75LEDs (Master/Slave control) .....................................................................................................8
Multiple TWIST-75LEDs (DMX Control)................................................................................................................... 9
Fixture Linking ...............................................................................................................................................................10

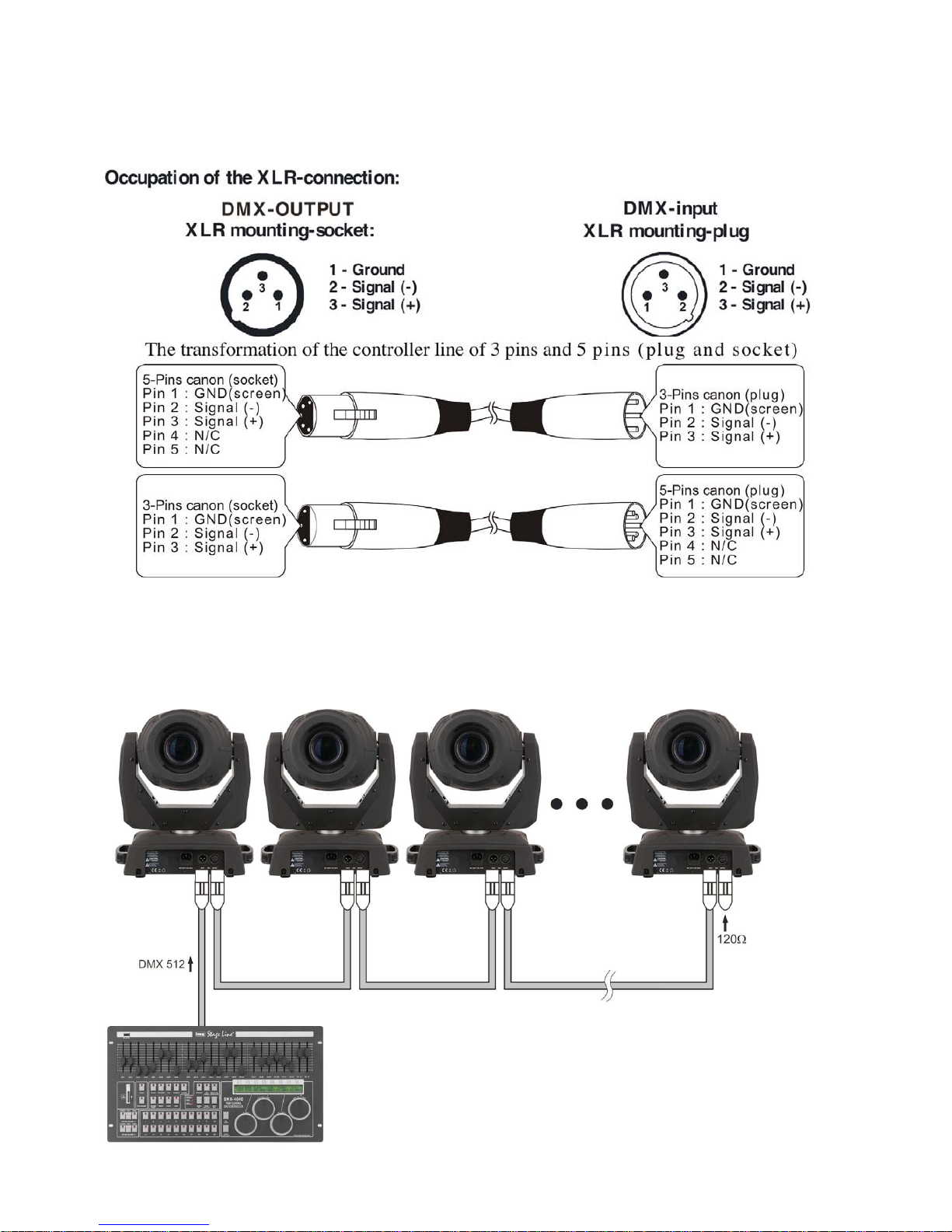

Data Cabling...............................................................................................................................................................10

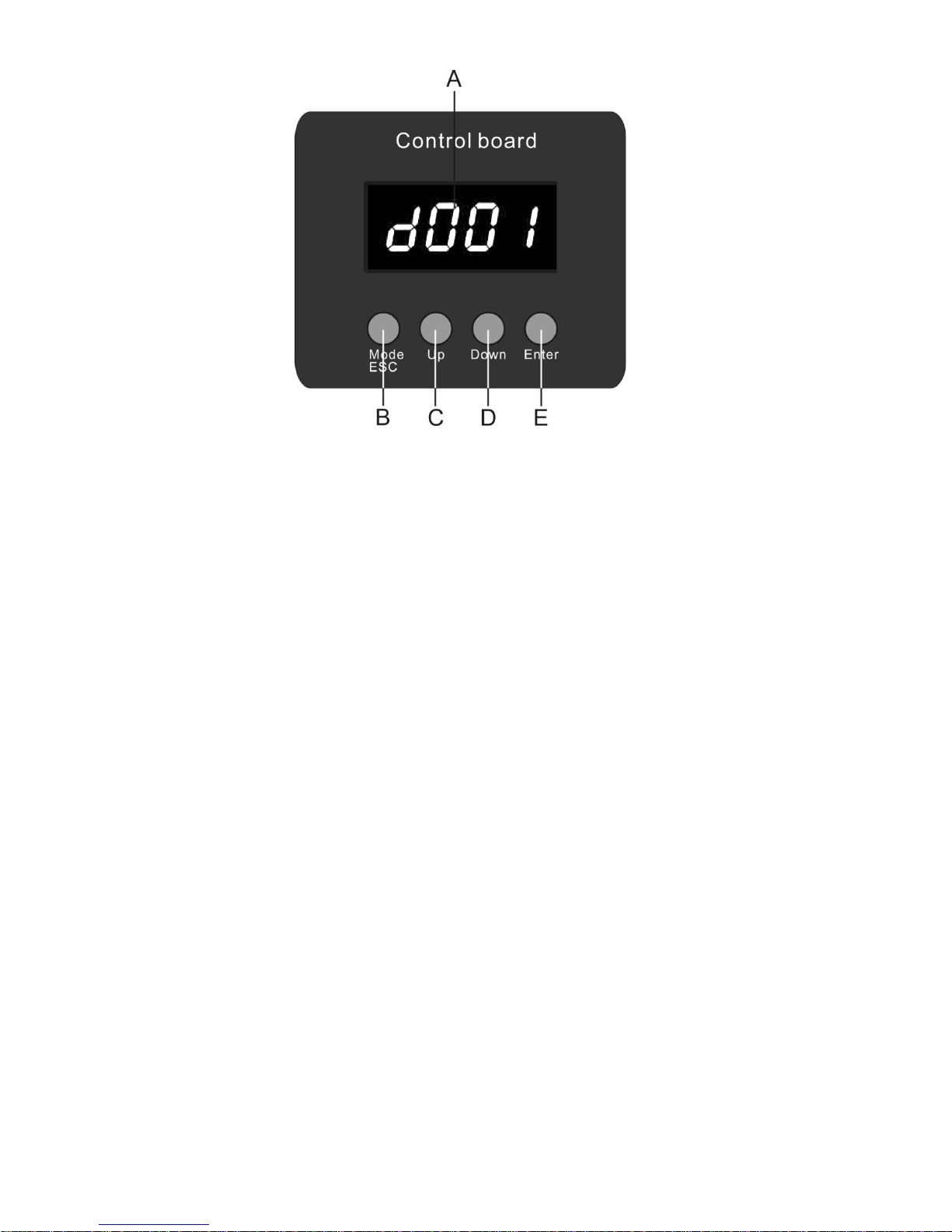

Control Panel ...............................................................................................................................................................11
Control Mode ..............................................................................................................................................................11
DMX Addressing ..........................................................................................................................................................11

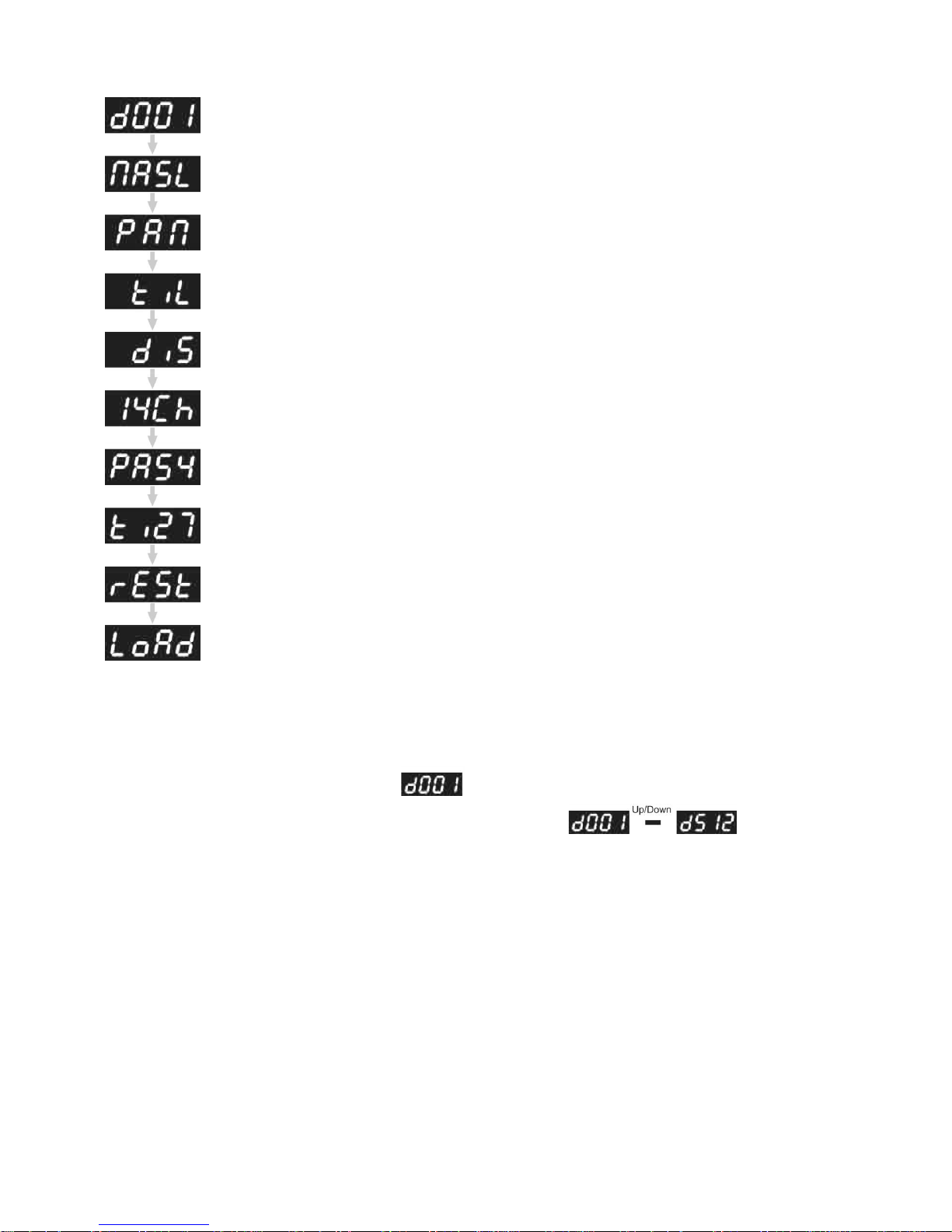

Menu Overview...........................................................................................................................................................12
Main Menu Options ...............................................................................................................................................13
DMX Addressing .....................................................................................................................................................13
Built-in Programs Mode .........................................................................................................................................14
Pan movement Mode...........................................................................................................................................14
Tilt movement Mode..............................................................................................................................................14
Display Mode ..........................................................................................................................................................14
Advanced/Basic Mode ........................................................................................................................................14
Pan Mode ................................................................................................................................................................14
Tilt Mode...................................................................................................................................................................15
Reset .........................................................................................................................................................................15
Default Settings.......................................................................................................................................................15
Password Change..................................................................................................................................................15

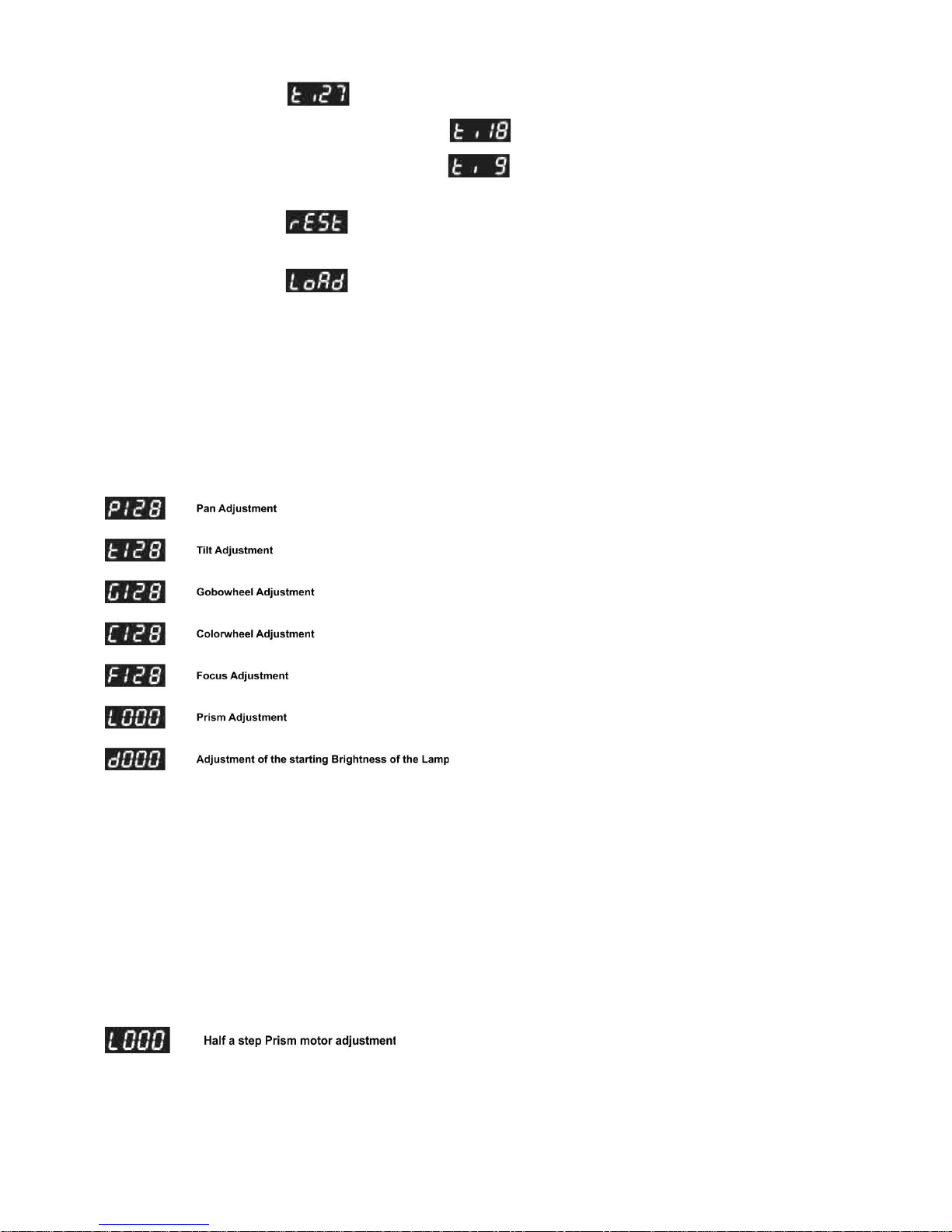

Service Functions....................................................................................................................................................15
DMX Channels.............................................................................................................................................................16
14 Channels.............................................................................................................................................................16
8 Channels...............................................................................................................................................................18
Channel settings .........................................................................................................................................................19
Maintenance....................................................................................................................................................................20
Replacing a Fuse ........................................................................................................................................................20
Replacing a Gobo from the rotating Gobowheel...............................................................................................20
Rotating Gobo-wheel, Colorwheel.........................................................................................................................22
Troubleshooting ...............................................................................................................................................................22
No Light .........................................................................................................................................................................22
No Response to DMX..................................................................................................................................................22
Product Specification .....................................................................................................................................................24

2
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.

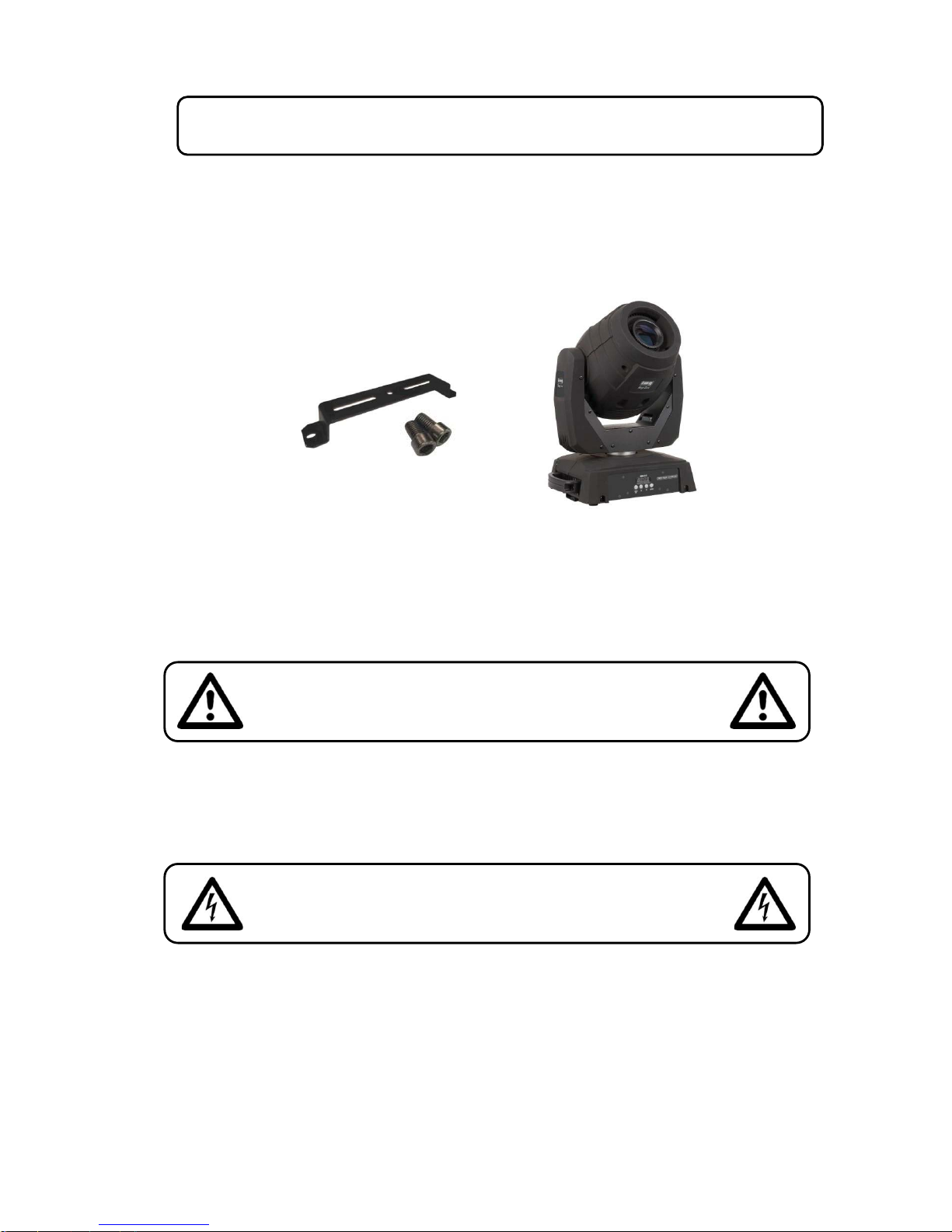

Your shipment includes:
• IMG Stage Line TWIST-75 LED Spot with IEC powercable 0,9m
• 1 bracket for truss mounting
• Safety eye
• User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved
under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place
care in providing for lower operational temperatures. This may include climatic-environmental and the
reduction of overall projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!

3
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non
observance of this manual or any unauthorized modification to the device.
xNever let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
xNever remove warning or informative labels from the unit.
xNever use anything to cover the ground contact.
xNever lift the fixture by holding it at the projector-head, as the mechanics may be damaged.
Always hold the fixture at the transport handles.
xNever place any material over the lens.
xNever look directly into the light source.
xNever leave any cables lying around.
xNever unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
xDo not insert objects into air vents.
xDo not connect this device to a dimmerpack.
xDo not switch the device on and off in short intervals, as this would reduce the device’s life.
xDo not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
xDo not shake the device. Avoid brute force when installing or operating the device.
xOnly use device indoor, avoid contact with water or other liquids.
xOnly operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
xOnly operate the device after having familiarized with its functions.
xAvoid flames and do not put close to flammable liquids or gases.
xAlways keep case closed while operating.
xAlways allow free air space of at least 50 cm around the unit for ventilation.
xAlways disconnect power from the mains, when device is not used or before cleaning! Only
handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
xMake sure that the device is not exposed to extreme heat, moisture or dust.
xMake sure that the available voltage is not higher than stated on the rear panel.
xMake sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
xIf the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due
to cracks or deep scratches.
xIf device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
xIf the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
xIf your IMG Stage Line device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your IMG Stage Line dealer for service.
xFor adult use only. Movinghead must be installed out of the reach of children. Never leave the
unit running unattended.
xNever attempt to bypass the thermostatic switch or fuses.
xFor replacement use fuses of same type and rating only.
xThe user is responsible for correct positioning and operating of the TWIST-75LED. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
xThis device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
xDuring the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
xRepairs, servicing and electric connection must be carried out by a qualified technician.
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !

4
Operating Determinations
•This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
•The minimum distance between light-output and the illuminated surface must be more than 1 meter.
•The maximum ambient temperature ta= 45°C must never be exceeded.
•The relative humidity must not exceed 50 % with an ambient temperature of 45° C.
•If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
xIf the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
xUse a clamp to mount the projector, with the mounting-bracket, to the trussing system.
xThe projector must never be fixed swinging freely in the room.
xThe installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
xWhen rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The TWIST-75LED can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

5

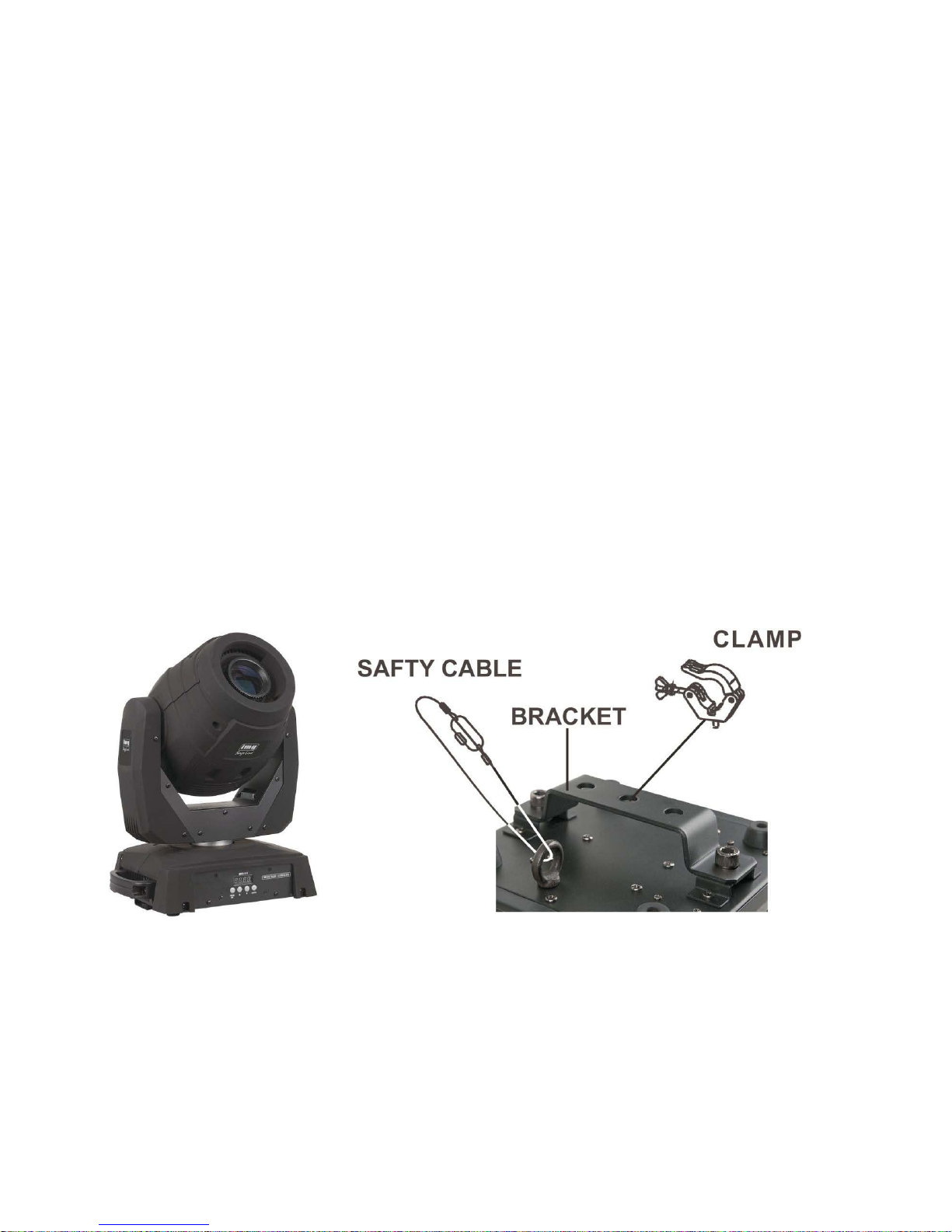

Mounting a clamp to the underside of the TWIST-75LED moving head
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!

6

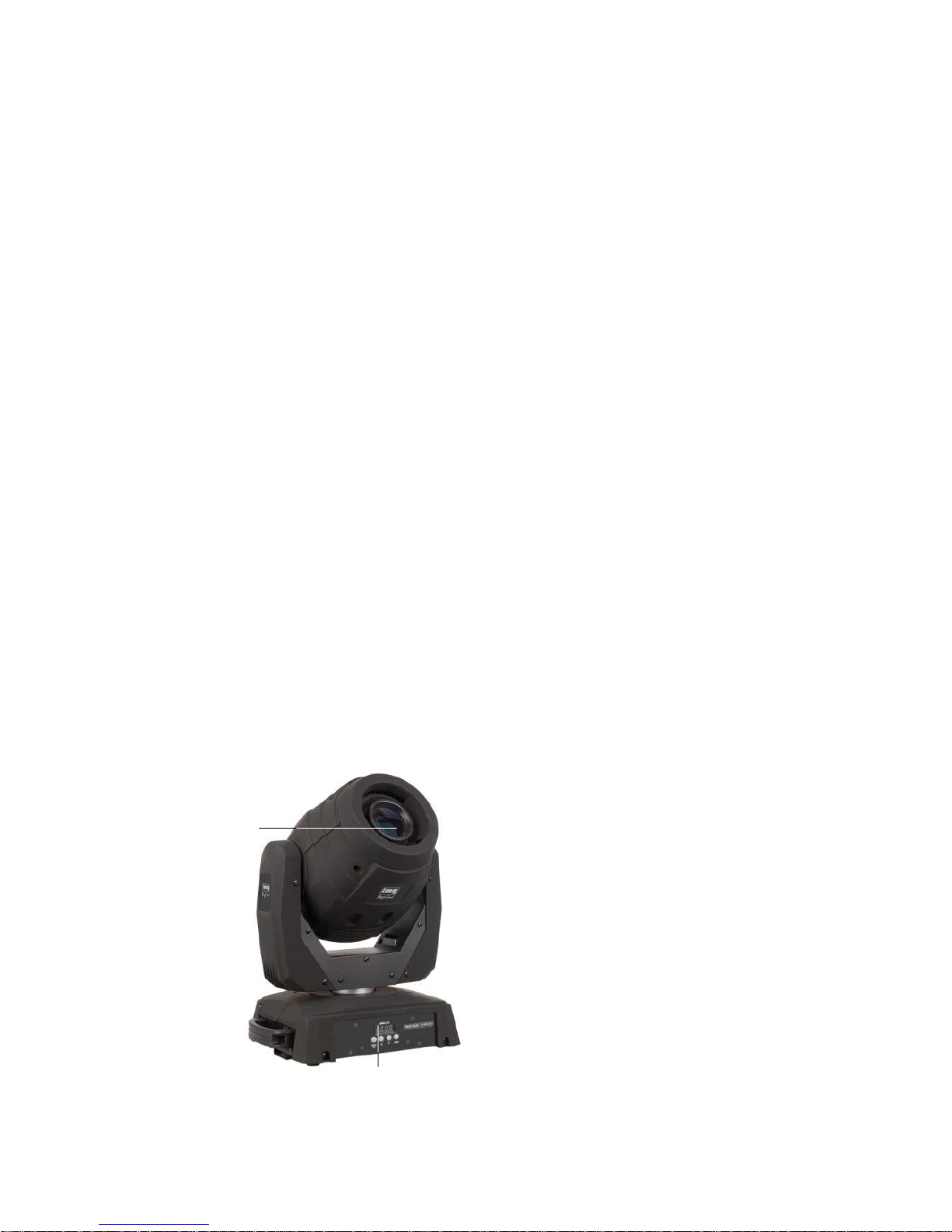

Description of the device
Features
The IMG Stage Line TWIST-75LED Spot is a moving-head with high output and great effects.
•LED source the shutter is electronic not mechanical.
•Focus is motorized and the TWIST-75LED has a manual zoom.
•Gobo inner diameter: 20mm, Gobo outer diameter: 24mm
•DMX-control via standard DMX-controller
•
Built-in Automatic Programs + Built-in Sound activated programs
•User-selectable Pan & Tilt ranges, 540° / 360° / 180°
•Reverse Pan / Tilt movement
•Special: Pan / Tilt movement blackout
•
Pan 0º -- 540º, Tilt 0º -- 270º
•Pan/Tilt resolution: 16 bit
•
Control: DMX-512, Master/Slave, Sound-controlled
•16 Built in programs selectable by DMX
•Light Source: 1 x 75W White LED
•
Colourwheel with 8 dichroic-colours plus white
•Color functions: Split colors, Rainbow-flow effect
•
Rotating Gobowheel with 2 glass gobos, 5 metal gobos and open with Gobo Shake Function, changeable
•
Rotation: Bi-directional
•
Prism: 3-facet prism
•Gobo functions: Gobo-flow effect, Gobo shake
•8 automatic and 8 sound-to-light programs
•Single clamp bracket, which makes it easy to handle and position in truss systems.
•Output: 26.600 Lux @ 1m. (at 15°)
•Beam Angle: 15° - 20° Manual
•Input Voltage: 110-240 VAC
•LED Drive Current: 16.5A
•Continuous Power 180 VA
•Dimmer: 0-100%
•Strobe: 0-20Hz
•Focus: Motorized focus via DMX
•Housing: Black Metal & Flame-retardant plastic
•Fixture Connection: XLR Data in/out (XLR 3-pin), IEC Power in
•
Fuse F3A / 250V
•Dimensions (WxDxH): 338 x 247x 390 mm
•Weight: 11 kg
•
User selectable Basic (8CH) or Advanced (14CH) operating modes
Overview
1
Fig. 1
2
1) Lens
2) Menu Buttons + LCD Display

7
Backside
Fig. 2
3 4 5
3) IEC power connector + Fuse F3A 250V
4) DMX signal connector (IN) 3-pin
5) DMX signal connector (OUT) 3-pin
Installation
Remove all packing materials from the TWIST-75LED Spot. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be music-controlled by its built-in
microphone.

8
Control Modes
There are 4 modes: • Stand-alone (built-in programs)
• Sound-controlled
• Master/Slave
• DMX512 (14 Channels ADVANCED or 8 channel BASIC)
One TWIST-75LED (Built-in Programs)
1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable.
3. Plug the end of the electric mains power cord into a proper electric power supply socket.
4. When the TWIST-75LED is not connected by a DMX-cable, it functions as a stand-alone device.
Please see page 15 for more information about the built-in programs.
One TWIST-75LED (Sound-control)
1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable.
3. Plug the end of the electric mains power cord into a proper electric power supply socket.
4. Turn on the music. If the device is set to sound-control, then the TWIST-75LED will react to the beat of the
music. Please see page 15 for more information about the sound-control options.
Multiple TWIST-75LEDs (Master/Slave control)
1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable.
3. Plug the end of the electric mains power cord into a proper electric power supply socket.
4. Use a 3-p XLR cable to connect the TWIST-75LED.
The pins: 1. Earth
2. Signal -
3. Signal +
5. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 15 (Built-in Programs or Music
control)). This means on the master device you can set your desired operation Mode and all slave
devices will react the same as the master device.
Multiple TWIST-75LEDs (Master/Slave control)
Fig. 3

9
Multiple TWIST-75LEDs (DMX Control)
1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Always use a safety cable.
3. Plug the end of the electric mains power cord into a proper electric power supply socket.
4. Use a 3-p XLR cable to connect the TWIST-75LEDs and other devices.
5. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket
to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
6. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple TWIST-75LEDs DMX Set Up
Note : Link all cables before connecting electric power
Fig. 4

10
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of TWIST-75LEDs on a DMX data link: 30 fixtures
The TWIST-75LED Spot can be operated with a controller in control mode or without the controller in
stand-alone mode.

11
Control Panel
Fig. 5
A. LCD Display D. Down Button
B. MODE/ESC button E. ENTER Button
C. Up Button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the TWIST-75LED will respond to the controller.
Please note when you use the controller, the unit has 14 channels.
When using multiple TWIST-75LEDs, make sure you set the DMX addresses right.
Therefore, the DMX address of the first TWIST-75LED should be 1(001); the DMX address of the second
TWIST-75LED should be 1+14=15 (015); the DMX address of the third TWIST-75LED should be 15+14=29 (029), etc.
Please, be sure that you don’t have any overlapping channels in order to control each TWIST-75LED
correctly.
If two or more TWIST-75LEDs are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing’.
Controlling:
After having addressed all TWIST-75LED fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the TWIST-75LED will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
The problem may be:
•The XLR cable from the controller is not connected with the input of the TWIST-75LED.
•The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

12
Menu Overview

13
Main Menu Options
DMX address
Built-in Programs Slow/Fast/Sound-control/Slave
Pan/Reverse Pan
Tilt/Reverse Tilt
Display/Reverse Display
Advanced 14 channels/ Basic 8 channels
Pan 540º, 360º, 180º
Tilt 270º, 180º, 90º
Reset
Load factory default settings
DMX Addressing
With this menu you can set the DMX address.
1. Press Mode/Esc, until the display shows .
2. Press Enter to confirm. You can choose 512 different DMX addresses.
Use the Up / Down buttons to select the required address from .
3. Once you have set the desired DMX address, press the enter button to store your DMX address.

14
Built-in Programs Mode
You can select 4 different Programs when using the TWIST-75LED.
Press MODE until the display shows ,then press the UP / DOWN buttons to select all 4 programs.
Built-in Program Slow
When the display shows : ,then press ENTER. The display will show .
The device is now in a slow built-in program mode.
Built-in Program Fast
When the display shows : ,then press ENTER. The display will show .
The device is now in a fast built-in program mode.
Sound-controlled Mode
When the display shows : ,then press ENTER. The display will show .
The device is now sound-controlled and will react to the music.
Slave Mode
When the display shows : , then press ENTER. The display will show .
The device is now a slave device. It will now react the same as its master.
Pan movement Mode
When the display shows : , the device is in normal Pan Mode.
When you press Up/Down. The display will show . The Pan function is reversed.
Tilt movement Mode
When the display shows : , the device is in normal Tilt Mode.
When you press Up/Down. The display will show . The Tilt function is reversed.
Display Mode
When the display shows : , the device is in normal Display Mode.
When you press Up/Down. The display will show . The Display function is reversed.
Advanced/Basic Mode
When the display shows : , the device has 14 Channels.
When you press Up/Down. The display will show . The device now has 8 channels.
Pan Mode
When the display shows : , the Pan is 540º.
When you press Up/Down and the display shows , the Pan is 360º.
When you press Up/Down and the display shows , the Pan is 180º.

15
Tilt Mode
When the display shows : , the Tilt is 270º.
When you press Up/Down and the display shows , the Pan is 180º.
When you press Up/Down and the display shows , the Pan is 90º.
Reset
When the display shows : and you press ENTER the device will reset.
Default Settings
When the display shows : and you press ENTER the device will return to the factory default
settings.
Password Change
This is a Service Function.
Press and hold MODE/ESC for 10 seconds.
The display will show 0000.
Press the Up button to change the value. Press the Down button to go to the next digit.
Enter password: 2323.
A new menu will open, you can scroll through the menu with the MODE/ESC button.
Use the Up/Down buttons to change a certain value.
Press the ENTER button to store your setting. This option will auto-exit after 10 seconds.
Service Functions
This is a Service Function.
Press and hold MODE/ESC for 10 seconds.
The display will show 0000.
Press the Up button to change the value. Press the Down button to go to the next digit.
Enter password: 2322.
Use the Up/Down buttons to change a certain value.
Press the ENTER button to store your setting. This option will auto-exit after 10 seconds.

16
DMX Channels
14 Channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 –Pan fine 16 bit
Channel 4 –Tilt fine 16 bit
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Colourwheel
Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates
continuously the so-called “Rainbow” effect.
0-6
Open / White
7-13
Yellow
14-20
Pink
21-27
Green
28-34
Red
35-41
Light Blue
42-48
Light Green
49-55
Orange
56-63
Dark Blue
64-70
Split Color White / Yellow
71-77
Split Color Yellow / Pink
78-84
Split Color Pink / Green
85-91
Split Color Green / Red
92-98
Split Color Red / Light Blue
99-105
Split Color Light Blue / Light Green
106-112
Split Color Light Green / Orange
113-119
Split Color Orange / Dark Blue
120-127
Split Color Dark Blue / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 7 – Shutter / Strobe (Dimmer must be open )
0-3
Close
4-7
Shutter open
8-76
Strobe effect, from slow to fast (0-10 flashes/sec.)
77-145
Pulse Strobe effect
146-215
Random Shutter
216-255
Shutter open
Channel 8 – Dimmer intensity (Shutter must be open )
0-255
From black to brightest

17
Channel 9 – Rotating Gobo-wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Glass)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 10 – Gobo rotation
0-63
Gobo-indexing
64-147
Clockwise rotation (CW) from slow to fast
148-231
Counter-clockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing
Channel 11 – Channel Functions
0-7
No Function
8-15
Blackout during Pan/Tilt movement
16-23
Blackout during Colorwheel movement
24-31
Blackout during Gobowheel movement
32-39
Blackout during Pan/Tilt/Colorwheel movement
40-47
Blackout during Pan/Tilt/Gobowheel movement
48-55
Blackout during Pan/Tilt/Gobowheel /Colorwheel movement
56-87
No Function
88-95
No Function
96-103
Reset Pan after 3 seconds
104-111
Reset Tilt after 3 seconds
112-119
Reset Colorwheel after 3 seconds
120-127
Reset Gobowheel after 3 seconds
128-135
Reset Gobo rotation after 3 seconds
136-143
Reset Prism after 3 seconds (Tip: nice fade out prism effect)
144-151
Reset Focus after 3 seconds
152-159
Reset All channels after 3 seconds
160-255
No Function
Channel 12 – Built-in Programs + Sound-controlled Programs
0-7
No Function
8-23
Built-in Program 1
24-39
Built-in Program 2
40-55
Built-in Program 3
56-71
Built-in Program 4
72-87
Built-in Program 5
88-103
Built-in Program 6
104-119
Built-in Program 7
120-135
Built-in Program 8
136-151
Sound-controlled Program 1
152-167
Sound-controlled Program 2
168-183
Sound-controlled Program 3
184-199
Sound-controlled Program 4
200-215
Sound-controlled Program 5
216-231
Sound-controlled Program 6
232-247
Sound-controlled Program 7
248-255
Sound-controlled Program 8

18
Channel 13 – Prism
0-7
Open
8-12
3-facet Prism Effect
13-130
Clockwise rotation (CW) prism effect from slow to fast
131-247
Counter-clockwise rotation (CCW) prism effect from slow to fast
248-255
3-facet Prism Effect
Channel 14 – Focus
0-255
0-255 Continuous adjustment from far to near
8 Channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Colourwheel
Linear color change following the movement of the slider. Between 128 - 255, the color-wheel rotates
continuously the so-called “Rainbow” effect.
0-6
Open / White
7-13
Yellow
14-20
Pink
21-27
Green
28-34
Red
35-41
Light Blue
42-48
Light Green
49-55
Orange
56-63
Dark Blue
64-70
Split Color White / Yellow
71-77
Split Color Yellow / Pink
78-84
Split Color Pink / Green
85-91
Split Color Green / Red
92-98
Split Color Red / Light Blue
99-105
Split Color Light Blue / Light Green
106-112
Split Color Light Green / Orange
113-119
Split Color Orange / Dark Blue
120-127
Split Color Dark Blue / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 4 – Shutter / Strobe (Dimmer must be open )
0-3
Close
4-7
Shutter open
8-76
Strobe effect, from slow to fast (0-10 flashes/sec.)
77-145
Pulse Strobe effect
146-215
Random Shutter
216-255
Shutter open
Channel 8– Focus
0-255
Near – Far

19
Channel 5– Rotating Gobo-wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Glass)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 6– Gobo rotation
0-63
Gobo-indexing
64-147
Clockwise rotation (CW) from slow to fast
148-231
Counter-clockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing
Channel 7– Prism
0-7
Open
8-12
3-facet Prism Effect
13-130
Clockwise rotation (CW) prism effect from slow to fast
131-247
Counter-clockwise rotation (CCW) prism effect from slow to fast
248-255
3-facet Prism Effect
Channel settings for 14 Channel
Fig. 6
