Star Micronics NP-345 Installation instructions

No. D-F0332
Product
Specifications
for
NP-345
Revision 0.90 2002.01.24 1st edition
Revision 1.00 2002.04.10 2nd edition
Revision 1.10 2002.08.07 3rd edition
Revision 1.20 2002.09.27 4th edition
* Specifications stated here are subject to change without notice.
* Trade mark, sales mark, logos are properties of each company.

Record of revision
Description
Rev. Date No.
Page Item Change Approval PIC
0.90 Jan. 24,
2002 1
New release
Jan. 24,
2002
Abe
1.00 Apr. 10,
2002
2 NP-245 Delete Apr. 10,
2002
Abe
3 Print mode Change to page and
line mode
4 Print area and
blackmark
position
Modify
5 Page mode Modify
5 Safety
regulation and
EMI
Delete
5 EMC Add
11 Dip switch Divide into serial and
USB
25 Barcode print Add digit number
34〜Command Add page mode
1.10 Aug 7,
2002
3 1 Overview Add option kit and
adaptor kit
Aug 9,
2002
Kobayashi
Aug 7,
2002
Abe
1 Features 8)
Windows 2000
Delete schedule for
May
1 Features Add notes
2 Packing status Add appended good
(paper) and option
(adaptor kit)
3 Basic
specifications
Add near-end sensor
Change weight to
1950g
4 Print area and
blackmark
Add blackmark
position
Divided chart by paper
width
5 Safety
regulation,
EMC
Add
6 Dimensional
drawing
Change
8 Serial interface Deleted transmission
speed 4800 and 9600
Delete 7 bit in data bit
Change parity bit to
none
10 Serial
connector
Change signal name
10 ALM signal Add enclosure open
12 Error
description
Add enclosure open
14 Printer driver Add Windows 2000
15 Horizontal tab Delete NP-245
23 Printer status
transmission
Delete bit 4 and 5
Add bit 7
27 Macro
definition
Add note

31 NV bit image
registration
Delete NP-245
Add note
32 Back feed Delete note
32 Soft reset Delete note
32 Print density
set
Add note
33 Page mode
select
Add note
34 Page mode
command table
Add ESC b, ESC v, GS
d
Change line mode to
page mode
39 Print density
setting
Add note
40 Width/height
enlargement
settings
Change width
enlargement to
width/height
enlargement
40 Double width
enlarge print
setting with
auto reset
Quadruple
print setting
with auto reset
Change note
43 NV bit image
registration
Change note
44 Blackmark
position margin
setting
Add
44 Send printer
status
Add
44 Firmware
download
Add
45 Line mode
selection
Add note
46 Overseas code
table
Change 80h
1.20 Sep 27,
2002
4 11 Dip switch
(USB)
Change print density
from S-8 to S-1
Sep 30,
2002
Kobayashi
Sep 27,
2002
Abe
19 Bit image
mode
Add note
41 Bit image
mode
Add note

Read carefully Before Using NP-345
Wrong handling of the printer may cause its performance declined and the product damaged.
Please read the notes below before handling.
1. Static discharge prevention must be made for installation and removal of the printer to
protect IC and other electrical parts. Connect it to the earth ground. It is also requested to
remove the static from body of the person before handling, especially, the input terminal.
The main unit should be grounded for the measure against ESD etc.
2. Avoid excessive force to the input terminal for handling.
3. When any type of paper, other than specified in this manual, is used, it may cause
deterioration of the print quality and thermal head life.
【Examples of troubles】
1) Print quality deterioration by using low sensitivity paper.
2) Thermal head wears due to roughness of paper surface.
3) Sticking between heat receipt layer and thermal head, and vibration noise during printing.
4) Print ink disappears on low print durability paper.
5) Electrolytic corrosion on thermal head due to low quality of heat receipt layer.
4. Avoid printing with no paper loaded. It damages platen and thermal head.
5. Do not scrabble thermal head with sharp edge or something hard, or give impact. The heat
element may be damaged.
6. Set the power of printer off before connecting or removing connecters.
7. When printing in high speed under low temperature and high humidity environment, the
paper may be stained by moisture that appears from paper, or the printer may have
condensation. Avoid dew from dropping down to the thermal head that may cause electrolyte
corrosion. Turn the power off until any dew is removed.
8. The printer is not protected from water or dew formed. Do not water the printer or handle it
with a wet hand, which may cause damage to the printer due to short circuit, or heat or fire.
9. The printer is not protected from dust or dirt. If it is used at dusty place, the thermal head
may be damaged or paper feed is not operated properly. Please take appropriate
countermeasure when printer used at dusty place.
10. When cooling the printer with a fan, please set air flow to avoid the printer’s paper exit from
being inhalation –of- air mouth.
11. Reflection type of infrared ray sensors are used at some locations in the printer. Direct sun
light may cause mal-function of printer. Avoid from such a location for installation.
12. This printer does not support any operations caused by the commands or control commands
not specified in this manual.
13. This printer does not support any operations caused by the commands or control commands
not specified in this manual.

Table of Contents
1. Overview
1.1 Overview 1
1.2 Features 1
1.3 Packing status 2
2. Specifications
2.1 Basic specifications 3
2.2 Print area and black mark position 4
2.3 Page mode 5
2.4 Power supply specifications 5
2.5 Reliability 5
2.6 Dimension drawing 6
3. Interfaces
3.1 Parallel interface (Centronics) 7
3.2 Serial interface (RS-232C) 8
3.3 USB interface (V1.1) 8
3.4 Connector connections 9
3.5 Connector signals table 9
4. Functions
4.1 Function setting 11
4.2 Errors 12
4.3 Buffer full print 12
4.4 Partition drive 13
5. Control commands
5.1 Printer driver 14
5.2 Line mode command table 14
5.3 Line mode command details 15
5.4 Page mode command table 34
5.5 Page mode command details 35
6. Character code table
6.1 Overseas code table 46
6.2 International character code table 47

1
1. Overview
1.1 Overview
The printer model name is explained as:
N P – 345 - * * *
(1) (2) (3) (4)
(1) Model
(2) Interface P: Parallel (if requested)
R:Serial
U:USB
(3) Option Kit 0:Non packaged
1:trayguid345
(4) Power Supply Set 0: Non packaged
1:PS3-U(USAversion)
2:PS3-E (Europe version)
3:PS3-J(Japaneseversion)
+ Only model name and type of the interface are shown on the name plate.
+ Last 2 digits are not shown without the option kit and power supply.
1.2 Features
NP-345 gaming printer is designed in compact with high reliability, accumulated by the long
experience as a printer assembly manufacturer, of components used for printer mechanism
such as control board and other major items. It is a ticket printer in fast speed print, high print
quality and reliable performance.
1) The mechanical sections such as paper inlet and paper guide in need of special know-how
are designed by the long experience and technology of auto-paper supply function and
auto-sense paper length.
2) Compact, light weighted and can be mounted in various types of system
3) Fast speed print & high print quality
4) Interface selectable among parallel, serial and USB
5) Applicable to the first dimensional barcode for UPC-A, UPC-E, JAN-13, JAN-8, CODE39, ITF,
CODABAR, CODE128
6) Applicable to the second dimensional barcode for QR code
7) Supports variety types of applications
8) Supports Windows 95/98/2000/NT4.0
9) Easy to rewrite firmware with flash memory used and three patterns of NV bit images can be
stored.
10) Supply firmware by e-mail
11) Standard paper tray will hold 250 sheets of tickets and options tray supports 1000 sheets.
(Possible to produce 400 /600 sheet holder.)

2
NOTES
1. More than 152.4mm blank of the top of paper is necessary while printing.
2. The thickness of paper stock is MAX. 30mm (approximately 250 sheets)
3. Attention of mounting
(1) For 4.5mm screw hole: flat lock washers, spring lock washers can be used.
(2) For M4 tap screw hole: The screw within 3.0mm inside can be used.
4.NP-345 has Serial, USB, Parallel interface versions.
1.3 Packing status
The printer is packed as:
Item & Model Name Quantity Remarks
NP-345-P Centronics, if requested
NP-345-R RS232C
Printer
NP-345-U
1
USB
Accompanying paper
Item & Model Name Quantity Remarks
Paper FAN Fold Paper 10 sheets 65 x 152.4
Optional
Item & Model Name Quantity Remarks
GS345A-400 400 sheets, if requested
GS345A-600 600 sheets, if requested
Paper guide
holder GS345A-1000
1
1000 sheets
PS3-U For USA
PS3-E For Europe
Power Supply
PS3-J
1
For Japan

3
2. Specifications
2.1 Basic specifications
No Items NP-345
1
2
3
4
5
6
Print
Character
Print mode
Barcode
Interface
Paper
1. Print method
2. Total dots/line
3. Dot density
4. Print width
5. Print speed (MAX.)*
Conditions:
6. Print digits
Font A (12 x 24)
Font B (9 x 17)
7. Paper feed pitch
1. Character size
Font A (12 x 24)
Font B ( 9 x 17)
2. Character kinds
ASCII
Block graphics
International
3. Character type
4. Line pitch (Default)
First dimensional
Second dimensional
1. Parallel (if requested)
2. Serial
3. USB
1. Paper width (W x L)
2. Maximum sheets
3. Recommended
Thermal line dot
576 dots (max.)
8 dots/mm
72mm (max.)
70mm/sec
ASCII full digits print.
48 digits (max)
64 digits (max)
0.125mm
1.50 x 3.00mm
1.13 x 2.13mm
224
80 x 2
32
Double width
Vertically double
Quadruple
Bold
Double strike
Inverted
90oclockwise rotation
Underline
4.25mm (1/6 inch)
Page mode
Line mode
UPC-A
UPC-E
JAN-13 (EAN-13)
JAN-8 (EAN-8)
CODE39
ITF
CODABAR
CODE128
QR code
Centronics
RS232C
USB V1.1
W 60.0mm
65.0mm
80.0mm
L 101.6mm
127.0mm
152.4mm
Approx. 250 (1000 for option)
TC98KS-T1 t=0.105mm
0.114mm, 4.5mil

4
7
8
9
Receive buffer
Operation SW input
Weight
4. paper near-end sensor
Weight excluding paper
Approx. 30 ± 10 sheets
Approx. 10K bytes
ALM LED out
Paper feed SW input
Approx. 1950g
2.2 Print area and black mark position
A
2.2mm Cut position
Print area start
9.1+-0.5mm
22.0±0.2mm (min)
5.3+-0.2mm(min) .
F10.3±0.2mm(min)
E
E
D 148mm 1dot 2dot Edot
(MAX)
0.125mm
BC D
Print area end
2.2*mm *This changes depending on papers Cut position
Black mark will be printed on the non-printing (rear) side in black.
Avoid dark (thick ink) printing on the area in the paper feeding direction.
Paper Width
W=60 W=65 W=80
A 60mm 65mm 80mm
B 4mm 4mm 4mm
C 56mm 61mm 72mm
D 0mm 0mm 4mm
E 448 488 576

5
2.3 Page mode
Printing in the page mode starts only when receiving the print command (FF). For the detail
of the commands, please refer to the section 5.5.
2.4 Power supply specifications
1) Voltage: DC24V +/-5%
2) Consumption current
NP-345
Standby Approx. 0.1A
At printing ASCII (About 16% print ratio) Approx. 1.7A
At printing bit image (Max.100%) Approx. 7.8A
Notes:
1. Thermal printer runs a large excessive current for printing. Please use a power supply
with good response for print quality and capable of running high peak current.
2. When the power supply cable is excessively long and its diameter is small, voltage drop
may occur and cause error. For this reason, a short cable with large diameter is
recommended (above AWG#18). If such a cable is not available, connect a cable near
the printer and locate a low ESR electrolyte condenser in 2200 - 6800μbetween the
power supply and ground. The voltage
2.5 Reliability
1) Head life: Average resistance change ratio; less than 15% excluding dust and foreign
objects.
Pulse : More than 100 million pulses (for recommended paper)
Wear distance: More than 50Km (for recommended paper)
2) Operation environment: Temperature, 0 - 45°C,
* Print guaranteed: 5 - 40°, Should not be condensed
3) Storing environment : Temperature - 20 ~ 60°C
* For a long storage, place paper between head & platen
4) Safety regulation : CE mark
UL 60950
5) EMC
EMI : EN55022
VCCI :ClassA
FCC :ClassA
EMS : EN55024
Note 4: Thermal printer runs high transient current for printing. For this reason, it is
recommended to use such a power supply that has high response performance to
guarantee print quality, in addition, that support high peak current to run.
Note 5: When power supply cable is excessively long and small in diameter, the voltage drops
to cause error by wrong voltage sensing. To avoid this type of error, make sure to use
proper size of cable. The size recommended is less than AWG#18. If such a cable is
not available, connect the cable near the printer and place low ESR condenser
between 2200micro~6800 micro, capable of 35V voltage loading.

6
2.6 Dimensional drawing of NP-345
NOTE:
1. Note when mounting the printer
a) 4.5 diameter hole: Available to use machine screw, flat clip plate, spring clip plate
b) M4 tap hole: screw inner length less than 3.0 mm
ＵＳＢ
ＰＡＲＡＬＬＥＬ
87
113
520.25
用紙排出口
67.5 281
(93.8)
(187)
引出し量
88.9 114.3
31.75 200.03
48.4
51.4
4‑φ4.5
4‑M4タップ

7
3. Interfaces
3.1 Parallel interface (Centronics) (if requested)
1) Data input method: 8 bit parallel method (Data0 ~ data7)
2) Control signal: /ACK, BUSY, -STB, -ERROR, PE, SLCT, /INIT
3) Input signal to printer
Data 0 ~ data 7: 8 bit parallel signal (positive theory: PT)
/STB: Signal to read 8 bit data (negative theory: NT)
/INIT: Signal to reset whole printer (NT)
4) Printer output signal
/ACK: Last output pulse signal of busy signal at 8 bit data request signal (NT)
BUSY: Signal to indicate printer busy status and it inputs new data at “LOW” (PT)
/ERROR: Signal to become “LOW” at printer’s alarm status. All control circuit stops (NT)
PE: Output signal at no paper status (PT)
SLCT: Signal to indicate on-line status (PT)
5) Input/output signal conditions
Abbr. Min. Typ. Max. Unit
Input LOW level voltage V IL 0 - 0.18Vcc V
Input HIGH level voltage V IH 0.7Vcc - Vcc V
Output LOW level voltage V OL - - 0.7 V
Output HIGH level voltage V OH 0.7Vcc - - V

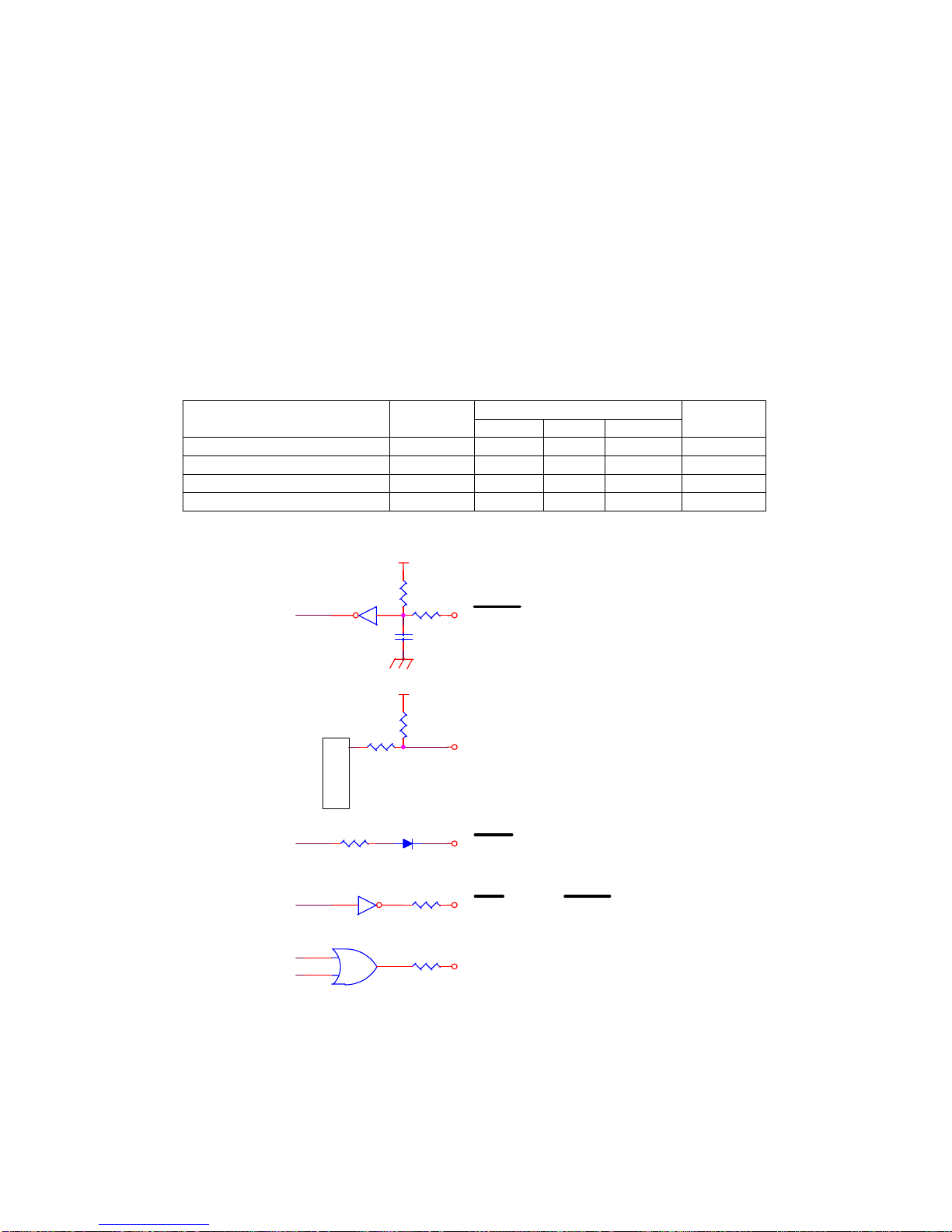

6) Input/output circuit
VCC
VCC
74LV574
STROB
PD0~PD7
ACK, P E, SLCT, ERRO
R
BUSY
INIT IN
OUT PUT
OUT PUT
IN PUT
IN PUT
IN PUT
3.3K
100
470p
3.3k
3.3K
74LV14
74LV14
47
74LV32
47
1SS319
510

8
7) Timing chart
POWER
T2 T3
DATA
STB
BUSY
T1 T4 T5 T6
ACK
T1=3500msec(MAX) T2,T3=500nsec(MIN) T4=500nsec(MAX) T5,T6=4microsec(TYP)
8) Reception control
Data from host can be receivable at BUSY signal LOW. Not available at HIGH.
3.2 Serial interface(RS232C)
1) Synchronization : Not synchronized
2) Transfer speed : 19200, 38400bps (user optional)
3) 1 word consists of :
Start bit : 1 bit fixed
Data bit : 8 bits (user optional)
Parity bit : no parity (user optional)
Stop bit : More than 1 bit
4) Signal
RS-232C
Mark : Theory “1” (-3V~-12V)
Space : Theory “0” (+3V~+12V)
5) Reception data (RD signal)
Mark :1
Space :0
6) Reception control (DTR signal)
RS-232C
Mark : Data transmission not available
Space : Data transmission available
7) Transmission data (TD signal)
<<DC1>> [11] h code, XON: Data transmission available
<<DC3>> [13] h code, XOFF: Data transmission not available
3.3 USB interface
1) Version: USB1.1
2) Port: Up stream port (B-jack)
3) Power supply: Self-power

9
3.4 Connector connections
1) J1: Connected to power supply connector
2) CN2: Connected to printer mechanism (head)
3) CN3: Connected to printer mechanism (motor)
4) CN4: Connected to printer mechanism (sensor)
5) CN5: Connected to data signal input connector
6) CN6: No connection
7) CN7: Connected to near end sensor
8) CN8: Connected to operation panel (not visible)
9) CN9: Connected to paper output sensor and drawer sensor
3.5 Connector signal table
1) Power input connector
Printer side: TCS7960-532010 (Hoshiden)
Power side: TCP8927-53-1100, TCP8927-63-1110, TCP8935-53-1100 equivalent
Pin No. Signal name Input/output Function
1 VH Input Power DC+24
2 GND - Power GND
3 N.C. -
Shell FG - FG
* Thermal printer runs high transient current for printing. For this reason, it is recommended to
use such a power supply that has high response performance to guarantee print quality, in
addition, that support high peak current to run.
* When power supply cable is excessively long and small in diameter, the voltage drops to
cause error by wrong voltage sensing. To avoid this type of error, make sure to use proper size
of cable. The size recommended is less than AWG#18. If such a cable is not available, connect
the cable near the printer and place low ESR condenser between 2200~6800micro.
2) Data signal input connector (parallel if requested)
Printer side connector: 57-40360 (DDK) equivalent
Host side connector: 57-40360-20N (DDK) equivalent
Pin No. Signal Input/output Function Remarks
1 /STB Input Parallel read signal
2 PDO Input Parallel print data 0
3 PD1 Input Parallel print data 1
4 PD2 Input Parallel print data 2
5 PD3 Input Parallel print data 3
6 PD4 Input Parallel print data 4
7 PD5 Input Parallel print data 5
8 PD6 Input Parallel print data 6
9 PD7 Input Parallel print data 7
10 /ACK Output Data treat end signal
11 BUSY Output Data receive no permit signal
12 PE Output No paper signal
13 SLECT Output Connection select signal
14 AUX1 IN - No connection For extension
19 GND - Ground for signals
31 /INIT Input Initialize signal input
32 /ERROR Output Control stop signal
36 AUX2 IN - No connection For extension
15-18
20-30
33-35 N.C -
1
2
3

10
3) Data signal input connector (Serial)
Printer side connector: JEC-25P (JST) equivalent
Host side connector: JEC-25S (JST) equivalent
Pin No. Signal Input/output Function Remarks
1 GND - Ground for signals
2 TXD Output Serial transmit data
3 RXD Input Serial receive data
4 RTS Output Transmit demand signal Connects to #20
5 CTS Input Transmit permit signal
6 DSR Input Data transmit demand signal
7 GND - Ground for signals
20 DTR Output Data transmit permit signal Connects to #4
8-19
21-25 N.C -
4) Data signal input connector (USB)
Printer side connector: B-jack
Host side connector: B-plug
Pin No. Signal Input/output Function Remarks
1 VBUS Input Power-line Non-twisted
power cable
2 D- In & output Data-line Twisted pair
signal cable
3 D+ In & output Data-line Twisted pair
signal cable
4 GND - Power-line Non-twisted
power cable
Shell SHIELD -
* Use shield wire for USB cable.
zALM signal (for operation panel) informs us of the printer status as stated below.
Pattern of display Printer status Recovering
１
０
Normal status
Print (reception) is possible
Out of paper Paper replacement
１
０Head up status Head down
１ 0.2secc
０ 0.2sec F/W write mode Set power on again
Head temp. high (over 80°C) Recovers w/head temp 60°C
１2.2sec
０2.2sec Head connection Connect properly
1
0
Enclosure open Close (Return the printer
slide)

11
4. Functions
4.1 Function setting
DIP SW for Serial
Function On Off Factory setting
S-1 Baud rate 38400 19200 Off
S-2 Character setting Non-Japan Japan Off
S-3 Emulation select Windows ESC/POS Off
S-4 Japanese character code Shift JIS JIS Off
S-5 Fixed partition select 2 partitions 1 partition Off
S-6 Flash ROM rewrite Rewrite No Off
S-7 Near end Enable Disable On
S-8 Print density High Standard Off
S-9 Serial control (DTR) XON/XOFF DTR/DSR Off
S-10 Off
* No parity check (fixed)
* Data bit: 8 bits (fixed)
DIP SW for USB
Function On Off Factory setting
S-1 Off
S-2 Character setting Non-Japan Japan Off
S-3 Emulation select Windows ESC/POS Off
S-4 Japanese character code Shift JIS JIS Off
S-5 Fixed partition select 2 partitions 1 partition Off
S-6 Flash ROM rewrite Rewrite No Off
S-7 Near end Enable Disable On
S-8 Print density High Standard Off
S-9 Off
S-10 Off
1. Rewrite the Flash ROM as
1) Set the DIP SW below
2) Change CN8 #1 pin LF to L, or set PWR on, holding Feed SW on operation panel. Set
PWR off to end.
2. For rewriting the flash ROM boot program; set both S-6 and S-2 on.
3. For rewriting flash ROM firmware; set S-6 on and S-2 off.
Important: Set S-6 off except for rewriting. If set it on, the program may be damaged.
4.1.3 Self-print
1) Confirmation by self print function
a. function of control circuitry
b. function of printer mechanism
c. print quality
d. version of control firmware
e. DIP switch setting status
f. operation of no paper sensor
g. check of head width and head rank (auto sensor)
2) Start and end of self print
Set the power switch on while FEED SW is being pressed, or release FEED button after
input of Reset signal to start self-print. It automatically stops with set patterns printed. While
self-print is under operation, printer status is in OFF LINE.

12
4.1.4 Paper sensor
The printer has a paper sensor located at each paper passing through section on the printer
mechanism to monitor no paper status. Once no paper status is monitored, it sends PE
signal to stop printing. Load paper once no paper status is found.
4.2 Errors
1) Error description
Name Status BUSY PE /ERROR 232C
status
PL ON
status Removal
Communication
error
Paper near end
Head up
Paper end
Head temp high
Enclosure open
232C Comm. error
Parity
Overrun
Flaming
Data “?” print
Paper remain sense
CN7 sensor
Head up
No paper
Over 80C
Open the print slide
-
L
L
L
L
L
-
H
L
H
L
L
-
H
L
L
L
L
-
Obit 1
1bit 1
2bit 1
3bit 1
7bit 1
-
-
On
On
Flash
On
Align comm.
condition
Load paper
Head up lever
down
Load paper
Return normal
at 60°C
close (Return
the printer slide)
If any error stated above is detected, except communication error and paper near-end,
all operations stop and printer outputs /ERROR signal.
For parallel, /ERROR signal is changed to “L”.
For serial, /ERROR signal is changed to “L”.
Error bit of status information is set ON.
2) Return to normal status from error status
Remove causes of error status and turn the power on again or input the INIT signal
to return to normal. When this process is activated, at the time of power switch
turned off, the printer will be initialized, so that settings are required again.
If data remains in the buffer, it will be cleared. Attention should be paid.
4.3 Buffer full print
If there remains data in the buffer after one line of data is received, printer automatically
prints preceding data. The volume of buffer full data varies depending on ASCII characters or
bit images.

13
4.4 Partition drive
The fixed drive (1 or 2 partition drives) or “automatic partition drive” can be selected by the
DIP switch and commands. It should be selected according to the power supply and print
duty.
1) Fixed partition
Function ON OFF
S-5 Fixed partition select 2 partitions 1 partition
z2 fixed partition select may decrease print speed.
z2 fixed partition select may decrease print quality.
2) Automatic partition drive
Switch between 1 partition and 2 partitions according to the total dots/line printed.
1 partition 2 partitions
NP-345 Less than 287 dots Higher than 288 dots
zAutomatic partition drive select will automatically change the print speed
according to print ratio. Print noise may appear.
zThe default value selected by commands will be the fixed partition selected by
The DIP switch. Refer to the section 5.3.
zAutomatic partition select may decrease print quality.

14
5. Control commands
5.1 Printer driver
The following drivers, supplied by Nippon Primex Inc., are recommended when NP-345 is used
with the Windows driver. Please refer to the driver manual for details.
1. Windows 95/98:NII printer driver Windows 95/98, V1.00
2. Windows NT4.0: NII printer driver Windows NT4.0, V1.00
3. Windows 2000: NII printer driver Windows 2000, V1.01
5.2 Line mode command table
Control codes Functions Pages
1 HT Horizontal tab 15
2 CR Carriage return 15
3 LF Print and line feed 15
4 FF Page feed 15
5 ESC C n Page length set for n lines 15
6 ESC SP n Character right space set 15
7 ESC ! n Print mode overall set 16
8 ESC % n Down load character set/reset 16
9 ESC & s n m a Dn Down load character definition 16
*10 ESC * m n1 n2 Dn Bit image mode set 19
11 ESC – n Underline set/rest 21
12 ESC 2 1/6 inches line feed set 21
13 ESC 3 n Smallest line feed pitch set 21
14 ESC @ Initialize printer 21
15 ESC D n1 n2 --- NUL Set horizontal tab position 21
16 ESC E n Bold print set/reset 22
17 ESC G n Double strike print set/reset 22
18 ESC J n Print and smallest pitch line feed 22
19 ESC R n Select international character 22
20 ESC c 5 n Feed switch enable/disable 23
21 ESC d n Print and n line feed 23
22 ESC t n Select character code table 23
23 ESC v Send printer status 23
24 ESC { n Inverted character set/reset 24
25 ESC V n Character 90°clockwise rotation set/reset 24
*26 ESC $ n1 n2 Absolute position set 24
27 ESC ¥ n1 n2 Relative position set 24
28 GS k n Dn NUL Barcode print 25
29 GS w n Barcode width select 25
30 GS h n Barcode height select 25
31 GS H n HRI character print position select 25
32 GS f n HRI character style select 26
33 GS * n1 n2 Dn Download bit image define 26
34 GS / m Download bit image print 27
35 GS : Macro definition start/end 27
36 GS ^ n1 n2 n3 Macro define 27
37 ESC = n Data input control 28
38 ESC a n Position align 28
39 ESC c 3 n1 n2 No paper signal sensor select 28
40 ESC q S E M QR code print 29
41 GS T n Register NV bit image 31
42 GS P n Print NV bit image 31
43 GS d Dn Download firmware 32

15
44 GS B n Black/white reverse print set/reset 32
45 ESC B n Back feed 32
46 DC1 Reset software 32
47 GS % n Partition drive select 33
48 GS ￣n Print density set 33
49 ESC L Page mode selection 33
* Functions differently between printer with standard type driver and Windows type.
5.3 Line mode command details
1) Horizontal tab : <<HT>>
Code : [09] h
Shift the print position to the next horizontal tab position
* Horizontal tab position is set by [horizontal tab set] command.
* The default of horizontal tab position is every 8th character (9th digit,
17th digit, 25th digit and 33rd digit) in font A.
* If the next tab position is not set, this command is ignored.
2) Carriage return: <<CR>>
Code : [0D] h
This command is ignored.
3) Line feed : <<LF>>
Code : [0A] h
Prints data stored in the input buffer and executes line feed according to data
of feed pitch.
4) Page feed : <<FF>>
This command is effective only in Windows mode.
Code : [OC] h
* Prints data in the print line buffer and executes page feed to the head of next page
according to the page length in the setting.
* Default setting for the page length is 66 lines.
5) “n” line page length setting: <<ESC C n>>
Code : [1B] h + [43] h +n * [01≤n≤FF] h
Sets a page length for “n” lines with current line feed pitch.
* Position is set to the head of page
* Line pitch change after setting will not change page length.
* Default value for “n” is [42] h for 66 lines.
* If printer is initialized, the head of page is also initialized.
6) Setting right space of a character: <<ESC SP n>>
Code : [1B] h + [21] h + n * [00≤n≤20] h
Sets the right space of a character by unit of dot (1/203 of an inch). In the case of
double width mode, the space will be doubled. The default value of “n” is [00] h.
