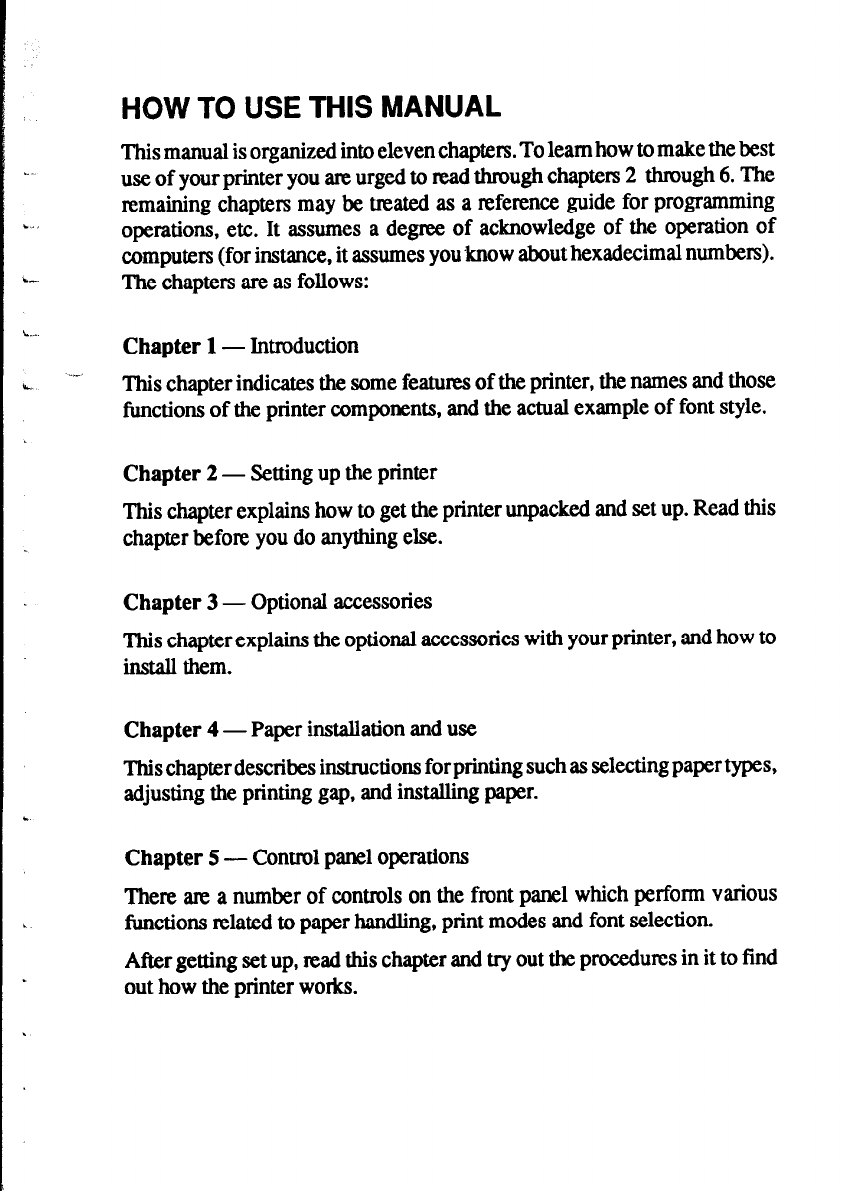

HQW TO USE THIS MANUAL
This manual isorganized into eleven chapters. To learn how to make the best
use of your printer you am urged to mad through chapters 2 through 6. The
remaining chapters may be treated as a reference guide for programming
operations, etc. It assumes a degree of acknowledge of the operation of
computers (for instance, it assumes you.know about hexadecimal numbers).
The chapters are as follows:
c.. Chapter 1- Introduction
..-
c This chapter indicates the some features of the printer, the names and those
functions of the printer components, and the actual example of font style.
Chapter 2 - Setting up the printer
This chapter explains how to get the printer unpacked and set up. Read this
chapter before you do anything else.
Chapter 3 - Optional accessories
This chapter explains the optional accessories with your printer, and how to
install them.
Chapter 4 - Paper installation and use
This chapter describes instructions for printing such asselecting paper types,
adjusting the printing gap, and installing paper.
Chapter 5 - Control panel operations
There am a number of contmls on the front panel which perform various
functions related to paper handling, print modes and font selection.
Aftergetting set up, read this chapter and try out the procedures in it to find
out how the printer works.

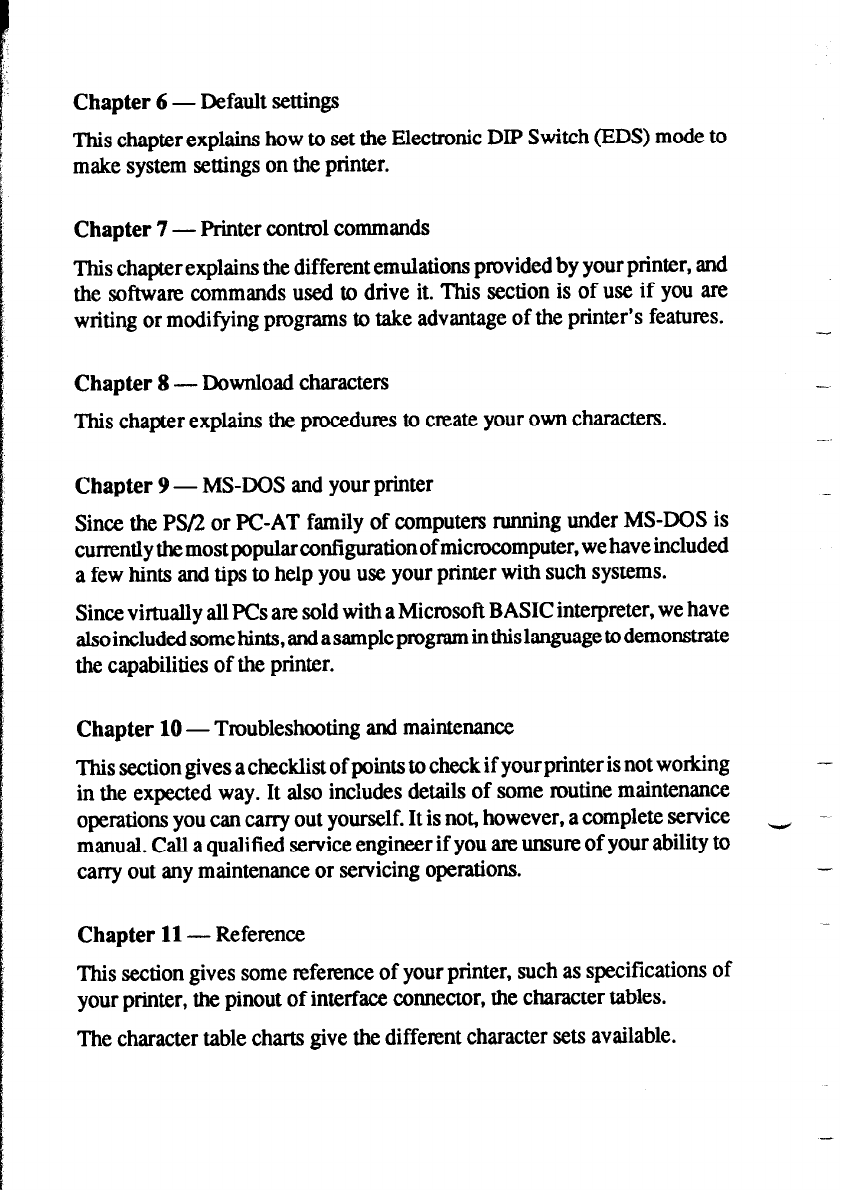

Chapter 6 - Default settings
This chapter explains how to set the Electronic DIP Switch (EDS) mode to
make system settings on the printer.
Chapter 7 - Printer control commands
This chapter explains the different emulations provided by your printer, and
the software commands used to drive it. This section is of use if you are
writing or modifying programs to take advantage of the printer’s features.
Chapter 8 - Download characters
This chapter explains the procedures to create your own characters.
Chapter 9 - MS-DOS and your printer
Since the PSL?or PC-AT family of computers running under MS-DOS is
currently the most popular configuration ofmicrocomputer, wehave included
a few hints and tips to help you use your printer with such systems.
Since virtually allPCsare sold with aMicrosoft BASICinterpreter, we have
alsoincludedsomehints,andasampleprogmminthislanguagetodemonstrate
the capabilities of the printer.
Chapter 10 - Troubleshooting and maintenance
This section gives achecklist of points to check if your printer isnot working -
in the expected way. It also includes details of some routine maintenance
operations you can carry out yourself. It is not, however, acomplete service --
manual. Call aqualified service engineer if you am unsure of your ability to
carry out any maintenance or servicing operations. -
Chapter 11- Reference
This section gives some reference of your printer, such as specifications of
your primer, the pinout of interface connector, the character tables.
The character table charts give the different character sets available.

TABLE OF CONTENTS
Chapter 1 INTRODUCTION
Features of the printer
Font style example
Printer components
Chapter 2 SETTING UP THE PRINTER
Locating the printer
Unpacking and inspection
Setting up
Mounting the platen knob
Install the ribbon cartridge
Connecting the interface cable
Chapter 3 OPTIONAL ACCESSORIES
Automatic Sheet Feeder
Single-bin Automatic Sheet Feeder
Dual-bin Automatic Sheet Feeder
Pull Tractor Unit
Font Cartridges and RAM Cartridges
Interface Cartridges
Chapter 4 PAPER INSTALLATION AND USE
Selection of paper
Adjusting the printing gap
Loading fanfold forms
Loading the paper from the rear of the printer
Loading the paper from the bottom of the printer
Loading the paper with Push/Pull feed
Paper parking
Paper unparking
Loading single sheets
Loading the paper without optional accessories
Loading the paper with optional Automatic Sheet Feeder
7
7
8
10
10
11
12
15
15
15
20
22
23
25
27
27
28
29
30
32
33
36
37
38
38
40

Chapter 5 CONTROL PANEL OPERATIONS
Bottoms and indicators
ON LINE button
PAPERFEED button
SET/EJECT/PARK button
PITCH button
FONT button
Power-up functions
Short test mode
Long test mode
Print area test mode
Pitch lock mode
Font lock mode
Font and Pitch lock mode
Hexadecimal dump
Switch combination functions
Form feed
Top of form
Forward micro-feed
Reverse micro-feed
Changing the auto loading value
Clearing the buffer/All reset
Selecting the print color
Selecting the ASF bin number
Store macro definition
Chapter 6 DEFAULT SETTINGS
How to set the EDS mode
Functions of the EDS settings
Command parameters
Font parameters
Character parameters
Style parameters
Layout parameters
Forms parameters
Other parameters
Dot Adjustment mode
43
43
44
44
45
45
46 -
47
47
48
49
49 _-
49
49
50
52
52
52
53
53
53
54
54
55
56 -
57
57 v
58
60
61
63
65
66
68
70
71

Chapter 7 PRINTER CONTROL COMMANDS
Font control commands
Character set commands
Character size and pitch commands
Vertical position commands
Horizontal position commands
Graphics commands
Download character commands
Color selection commands
Other printer commands
Chapter 8 DOWNLOAD CHARACTERS
Defining your own characters with Standard mode
Assigning the character data
Assigning a value of character space
Sample program
Defining your own characters with IBM mode
Assigning the download character set
Assigning the character dot pattern
Assigning the Index Table data
Sample program
Chapter 9 MS-DOS AND YOUR PRINTER
!nstalling application software with your printer
Embedding printer commands
Programming the printer with DOS commands
Programming with BASIC
Chapter lOTROUBLESHOOTING AND MAINTENANCE
Troubleshooting
Power supply
Printing
Paper feeding
Maintenance
Replacing the print head
73
74
81
84
90
97
103
107
112
113
117
117
118
119
120
122
122
123
125
126
129
129
130
132
135
143
143
144
144
146
149
149

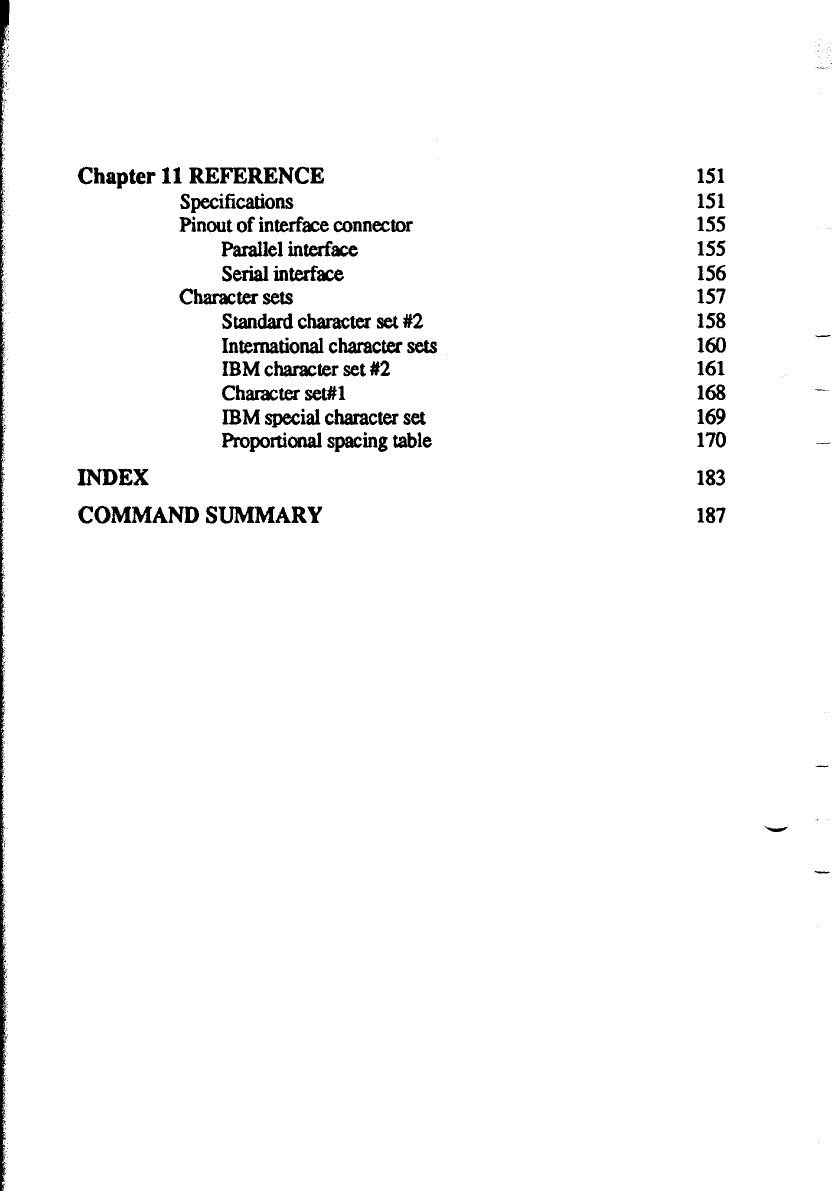

Chapter 11 REFERENCE
Specifications
Pinout of interface connector
Parallel interface
Serial interface
charactersets
!3tandardcbaracterset#2
International charactex sets
IBM character set #2
Character set#l
IBM special character set
Proportional spacing table
INDEX
COMMAND SUMMARY
151
151
155
155
156
157
158
160 -
161
168 -
169
170 -
183
187
