Star Trac Spinner NXT Black Belt Manual

Assembly & Setup
Star Trac Spinner©NXT Black Belt Installation
Assembly & Setup
Use the following procedures to unpack and assemble your Star Trac SPINNER® NXT Black Belt™.
UNPACKING AND PARTS LIST
Position the shipping carton so the “Heavy End” logo is located at the bottom. Open the top of the carton and fold back all four flaps.
Carefully tilt the box forward so that the box may be lifted to expose the bike. Remove all parts from the shipping carton and foam
inserts, and verify that the following parts are included in your shipment:
NOTE: All tools required to assemble the bike are included within the packaging, except for a Rubber Mallet, which is recommended
when assembling the pedals onto the bike.
NXT Black Belt Parts List
Description Qty. Description Qty.
Main Frame Assembly 1 M8x1.25x14 Specialty Hex Bolt 2
Handlebar Post 1 M8x1.25, 30mm Hex Head Bolt 4
Handlebar w/ Grip & Water Bottle Holders 1 8mm Split Lock Washer 4
Seat Post 1 8mm Plain Washer 4
Seat Slider Assembly w/ Saddle 1 Wrench Hex, 4mm 1
Front Leg Assembly w/ Transport Wheels 1 Wrench Hex, 8mm 1
Rear Leg Assembly 1 Multi-Wrench 1
Pedals (set of two) 1 Spare Parts Kit (includes brake pad and pedal 1
straps)
Spare Parts Kit - Save the box of spare parts in a safe place so you have service parts when needed in the future.
Take time now to enter your SpinnerNXT Black Belt serial number in the space below (serial number is located on underside the
bottom rear cross member).
If parts are missing, or if you have any operational questions, please call Star Trac’s Service department at [phone].
Have your serial number ready.
Serial No.
NOTE: If you are missing any of the parts listed above, inspect the packing material and the box for items that may have been
overlooked.
If parts are missing, or if you have any product questions, please call Star Trac’s Service Department at [phone], please have
your bike’s serial number ready.

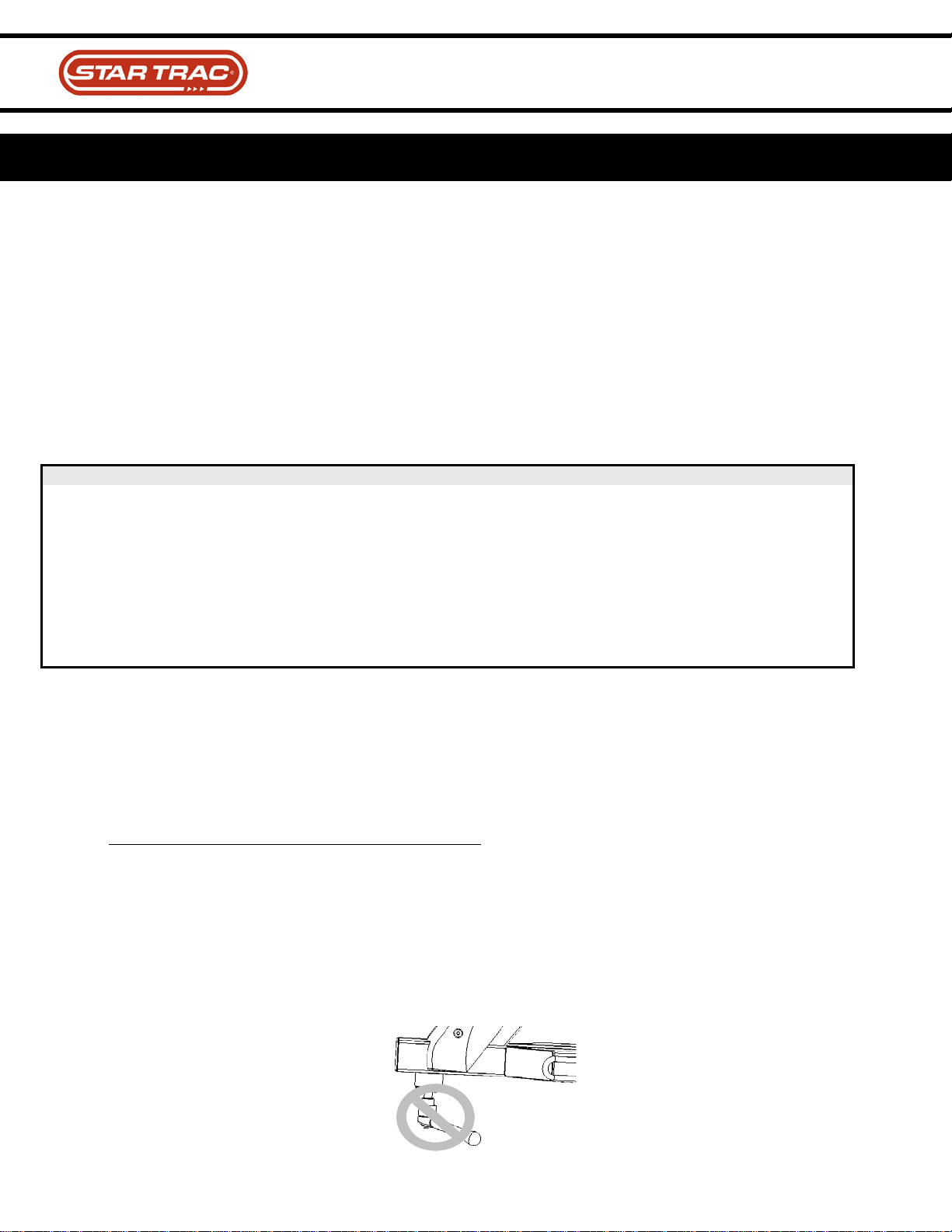

CAUTION: Damage to the bike during assembly is not covered as part of the limited Star Trac warranty. Take care not to drop or lean
the bike on the handle bar pop-pin. Carefully stand the bike up in the normal upright position on a stable surface so it will not tip over
during assembly.

Assembly & Setup
ASSEMBLY INSTRUCTIONS
1. Unboxing the unit requires turning the sealed box upside
down to open the bottom flaps (Fig. 1).
2. Return the opened box back to the upright position (Fig. 2).
3. Expose the packaged bike by pulling the box up (Fig.3).
Fig. 1
Fig. 2
Fig. 3

Assembly & Setup
4. Remove the following: handle bar & its packaging (Fig. 4)
from the center packed location.
Fig 4
5. Remove the: hardware pack, seat, handle bar post, and seat
post from the foam covering the front section of the Spinner
frame (Fig. 5).
Note: Do not remove any tape holding the two front foam
packing half’s until step 11.
Fig. 5
6. Tilt the packaged Spinner frame towards the heavy flywheel
end (Fig. 6) and remove the following: front foot assembly,
pedal set, & the rear foot assembly from their packaged
location.
Fig 6

Assembly & Setup
7. Remove the foam packaging from the rear section of the
Spinner frame (Fig. 7).
Fig. 7
8. Locate the rear foot assembly along with the corresponding
hardware that secures it to the Spinner frame (Fig. 8).
Hardware:
M8x1.25x30mm Hex Head Bolt 8mm
Split Lock Washer
8mm Plain Washer
Qty:
2
2
2
Fig. 8
9. Install the rear foot assembly (Fig. 9) and tighten hardware
using the supplied multi sized open wrench.
Note: These bolts must be torqued between 35-40 Lb-Ft (47-
54 Nm).
Fig. 9

Assembly & Setup
10. Stand the Spinner frame on the opposite end and place a
piece of foam or rag under the seat post frame section
(Fig. 10).
Fig. 10
11. Split and remove (Fig. 11) the foam covering the front of the
Spinner frame.
Fig. 11
12. Locate the front foot assembly along with the corresponding
hardware that secures it to the Spinnerframe (Fig. 12).
Hardware:
M8x1.25x30mm Hex Head Bolt 8mm Split
Lock Washer
8mm Plain Washer
Qty: 2
2
2
Fig. 12
17

Assembly & Setup
13. Install the front foot assembly (Fig. 13) and tighten the
hardware using the supplied multi sized open wrench.
Note: These bolts must be torque between 35-40 Lb-Ft (47-54 Nm).
Fig. 13
14. Return the bike to the upright position (Fig.14).
Fig. 14
15. Locate the seat post and insert it into the appropriate location
on the Spinner frame (Fig. 15).
Fig. 15
18

Assembly & Setup
16. Locate and install the seat height adjustment pop pin onto the
Spinner frame (Fig. 16) using the supplied multi size open
wrench.
Fig. 16
17. Locate and mount the seat slider assembly onto the seat post
by relieving spring tension on the large knob and pulling the
small thumb pin located on the underside of the seat post
slider (Fig. 17).
Fig. 17
18. Locate and insert the handle bar post into the corresponding
location on the Spinner frame (Fig. 18) by pulling on the “T”
style pull pin located above the front SPIN® badge.
Fig. 18
19

Assembly & Setup
19. Locate the handle bar assembly and remove the button head
stop bolt that is pre-inserted into the slider section (Fig. 19).
Fig. 19
20. Mount the handle bar to the front height adjustment post
(Fig. 20) by reliving spring tension on the large knob and
sliding the handle bar into place.
Fig. 20
21. Reinstall the stop bolt onto the handle bar slider
(Fig. 21) using a 4mm hex key.
Fig. 21
20

Assembly & Setup
22. Locate the set of pedals along with the corresponding
hardware (Fig. 22).
Hardware: M8x1.25x14mm Specialty Hex Bolt
Fig. 22
23. Insert each pedal into its corresponding crank arm (Fig. 23).
Note: For correct orientation, verify the foot cage is facing upwards on
each pedal when inserting into the crank arm.
Fig. 23
24. Using a rubber mallet (Fig. 24); tap the center of each pedal
with medium force to lock the pedals in place.
Fig. 24
21

Assembly & Setup
25. Install the pedal securing bolts (Fig. 25) into each pedal thru
the back of each crank arm using an 8mm hex key.
Note: These bolts must be torqued between 33-37 Lb-Ft (45-50 Nm).
Fig. 25
22

Assembly & Setup
Testing Bike
Use this checklist to perform the bike test procedure.
Recheck all the bolts and make sure they are all tightened to the proper torque specification (when indicated) and no parts
are missing.
Test the handlebar and seat post to make sure they move freely and you are able to lock in at different
positions.
Check the seat to make sure it is level and tight and does not rotate around or tilt. Tighten and adjust as
needed.
Test the seat slide for movement front to rear and check it by settings it at different settings.
CAUTION: The flywheel will continue to spin after you pedal and the crank arms and pedals will rotate with the flywheel.
Brake tension is adjustable using the red resistance knob in the front of the bike. Pressing down on the knob will apply the brake if
you need to stop quickly.
Adjust seat post and handlebar post to your needs (Refer to page 18-19). Ride / test the bike for proper operation
according to this owner's manual.
Pedal the bike at a moderate pace and test for proper and smooth resistance changes while varying the amount of
turns on the resistance knob.
When the testing is complete tip the bike forward using the handlebar and roll it on a smooth surface to the final location
and adjust the leveling feet so the bike is stable.
