Orbit OEB3001 User manual

01 Assembly
Your bike will require a small amount of assembly.
You will find everything you need included in the box.
02 Get to know your bike
Take time to get to know your new bike – it will help you
03 Replacement parts
Thank you for purchasing our product. Although we go to great to ensure the quality of our products.
Occasionally errors or missions occur. Should you find either a defective or missing part in this product. Please
contact us . Please provide the Model Number and the Part Number when requesting parts. Thank you.
Telephone no.: 08-94444055
E-mail: [e-mail]

01 Assembly
PRECAUTIONS
WARNING: This bicycle has been designed and constructed to provide maximum safety. Nevertheless, certain
precautions should be taken when using exercise equipment. Read the whole manual before assembling and using
the bicycle. The following safety precautions should also be observed:
1. Before using the exercise bike, please read all instructions in this manual.
2. It is the responsibility of the owner to ensure that all users of the bike are adequately informed
of all precautions. Use the exercise bike only as described in this manual.
3. Use the bike indoors on a level surface and keep it away from moisture and dust. Place a mat
under the stabilizers to protect the carpet or floor.
4. Inspect and tighten all parts regularly. Replace any worm parts immediately
5. Keep children away from this equipment at all times. DO NOT leave them unsupervised in the room where this
bicycle is kept.
6. Wear appropriate exercise clothing when using the bike. Do not wear loose clothing that could
become caught in the bike.
7. If you feel pain or dizziness while exercising, stop immediately and cool down.
8. The pulse sensor is not a medical device. Various factors including the user’s movement, may
affect the accuracy of the heart rate readings. The Pulse sensor is intended only as an exercise
aid in determining heart rate rends in general.
9. The bike is intended for commercial use.
Pre-assembly notes
OPEN THE BOXES
Make sure all parts on the manual are included in the carton. Check The Hardware Chart
for a full count of the number of parts included for proper assembly.
GATHER YOUR TOOLS
Before starting the assembly of your unit, gather the necessary tools. Having all of the equipment at hand
will save time and make the assembly quick and hassle-free.
CLEAR YOUR WORK AREA
Make sure that you have cleared away a large enough space to properly
assemble the unit. Make sure the space is free from anything that may cause
injury during assembly. After the unit is fully assembled, make sure there is a
comfortable amount of free area around the unit for unobstructed operation.

Hardware chart
W re n c h -1 3 /1 5 m m ( 1)
A lle n K e y - 6 m m (1 )
S c re w d ri ve r ( 1)
A l le n B o lt M 8 x P 1 .2 5 x1 6 L (4 )
S c re w M 3 * 3 0 L (3 )
S p ri ng W a sh er
Φ7 * 2T ( 2 )
F la t W a s h e r ? 8* ? 1 9 *2 T (4 )
A lle n B o lt M 7 * P 1 .0 * 3 0 L (2 )
S C R E W S M 5 *P 0 . 8 *1 0 L (1 1 )
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Wrenc h-13 /15 mm(1)
Allen Ke y -6m m (1 )
Scre wdri v e r (1)
All en Bolt M8 xP 1.25x1 6 L (4)
S c re w M 3* 30L ( 3 )
Spring Wa s her
Φ7 *2T(2)
Flat Wash e r ф 8* ф 19*2T ( 4 )
A ll e n Bolt M7 * P 1 .0* 30L ( 2)
S C RE W S M5 * P0 . 8 * 1 0 L (11 )

01 Assembly
Part list
NO DESCRIPTION QTY BOM NUMBRE
A COMPUTER 1 PCS PE-SG76810027102
A-1 ADJUSTABLE COMPUTER BRACKET 1 PCS PH-T-PB-326-1000
A-2 SCREW M5x10L 12 PCS PD-SWM60510-1042
B H SHAPE HANDLEBAR 1 PCS PH-T-PB-425-1000
B-1 HAND PULSE WIRE WITH BODY FAT 2 PCS PE-B23-0750-1002
B-2 HAND PULSE SENSOR FOR BODY FAT(UPPER) 2 PCS PL-T-PB-445-1080
B-3 HAND PULSE SENSOR (LOWER) 2 PCS PL-T-PB-447-1080
B-4 HAND PULSE HOLDER 4 PCS PH-T-PB-242C1000
B-5 SCREW M3xP0.5x12L 4 PCS PD-SGM20312-1041
C HANDLEBAR POST 1 PCS MTEB3000FW027005
C-1 LEFT PROTECT COVER 1 PCS PLEB1000-10-1080
C-2 RIGHT PROTECT COVER 1 PCS PLEB1000-11-1080
C-3 UPPER PROTECT COVER 1 PCS PLEB1000-12-1080
C-4 SEMI CIRCLE WASHER φ8xφ19x2t 2 PCS PD-WA220819-1082
C-5 FLAT WASHER φ8xφ19x2t 4 PCS PD-WN230819-1082
C-6 HEXANGULAR SCREW M8*P1.25*16L 6 PCS PD-SRM30816-1182
C-7 HAND PULSE WIRE (UPPER) 1 PCS PE-C31-0600-1000
C-8 UPPER COMPUTER CABLE 1 PCS PE-C27-0550-1000
D FRAME 1 PCS MTEB3000FW117005
D-1 BEARING 2 PCS PH-BA2-6004-1005
D-2 END CAP FOR STABILIZER 4 PCS PLEB1000-04-1080
D-3 HEXANGULAR NUT M16*P1.5 4 PCS PD-NHI61600-1042
D-4 ADJUSTOR FOR STABILIZER 4 PCS PLEB1000-08-1002
D-5 CONTROL BOARD 1 PCS 1PB-LGPS-7.1V-A01
D-6 HEXANGULAR SCREW M8xP1.25x25L 8 PCS PD-SRM30820-1182
D-7L FRONT COVER LEFT 1 PCS PLEB3000-01-10D0
D-7R FRONT COVER RIGHT 1 PCS PLEB3000-02-10D0
D-8 COVER FOR CRANK 2 PCS PLEB1000-07-1185
D-9L LEFT CRANK ARM WITH COVER 1 PCS PH-T-PB-279-1000
D-9R RIGHT CRANK ARM WITH COVER 1 PCS PH-T-PB-280-1000
D-10 PEDAL(L/R) 1 SET PS-T-PB-433-1080
D-11L REAR COVER LEFT 1 PCS PLEB3000-04-10D0
D-11R REAR COVER RIGHT 1 PCS PLEB3000-03-10D0
D-12 DECORTION COVER FOR MAINHOUSING 2 PCS PLEB2000-03-1080
D-13 COVER FOR BASE TUBE 1 PCS PLEB3000-09-1080
D-14 CROSS SCREW M4x50L 11 PCS PD-SBM20450-1041
D-15 CONE CROSS SCREW M5xP0.8x14L 15 PCS PD-SWM20514-1141
D-16 SLIDER POST FOR SADDLE 1 PCS MH-T-PB-253-2000
D-17 COMPUTER CABLE LOWER 1 PCS PE-C26-0950-1000
D-18 HAND PULSE WIRE LOWER 1 PCS PE-C31-2900-1000
D-19 SEMI CIRCLE WASHER φ8xφ19x2t 8 PCS PD-WA220819-1082
D-20 NYLON NUT M8*8t 8 PCS PD-NNM60801-1042
D-21 NYLON SCREW M8xP1.0x20L 2 PCS PD-SEM10820-7601

Part list
NO DESCRIPTION QTY BOM NUMBRE
D-22 SENSOR BOX 1 PCS PE-P-PB3715-1000
D-23 SENSOR HOLDER 1 PCS PE-P-PB4310-1000
D-24 SCREW 3 PCS PD-SDM20410-1041
D-25 CLAMP 1 PCS PH-T-PB-274C1000
D-26 UPPER COVER FOR BATTERY 1 PCS PL-P-PB4201-10R1
D-27 BATTERY 1 PCS PE-T-PB-453C1000
D-28 LOWER COVER FOR BATTERY 1 PCS PL-P-PB4200-10R1
E HOLDER FOR SLIDER POST 1 PCS PH-T-PB-243-1000
E-1 BACK REST 1 PCS PS-T-PB-272-1002
E-2 SEAT 1 PCS PS-T-PB-416-1002
E-3 SEAT SUPPORT FRAME 1 PCS MTEB3000FW057005
E-4 MAGAZINE RACK 1 PCS PL-SUF755R251102
E-5 SEAT HANDLEBAR 1 PCS MTEB3000FW067005
E-6 FORM GRIP 2 PCS PL-T-PB-358-1002
E-7 COVER FOR SEAT HANDLBAR 1 PCS PLEB3000-20-1080
E-8 HAND PULSE HOLDER 4 PCS PE-P-PB3428-1000
E-9 CONNECTION BOARD 1 PCS PE-T-PB-338-1000
E-10 RIGHT COVER FOR SLIDER POST 1 PCS PLEB3000-05-1080
E-11 SPRING SOCKET FOR ADJUSTMENT 1 PCS PH-T-PB-246-1000
E-12 TENSION CABLE 1 PCS PH-T-PB-264-1000
E-13 FLAT WASHER φ6xφ13x1t 1 PCS PD-WN120613-1041
E-14 CLAMP 1 PCS PH-T-PB-247-1000
E-15 ROUND HEXANGULAR SCREW M6*55L 1 PCS PD-SOM30655-1082
E-16 KNOB FOR SEAT ADJUSTMENT 1 PCS PLEB3000-14-1000
E-17 TURNER 1 PCS PLEB3000-16-1000
E-18 NYLON NUT M8*8t 1 PCS PD-NNM20801-1041
E-19 PULLING POLE 1 PCS PH-T-PB-285-1000
E-20 FIXING DECK 1 PCS PLEB3000-15-1080
E-21 HANDLE FOR SLIDER 1 PCS PLEB3000-11-1000
E-22 BUSHING ф6*10L 2 PCS PH-T-PB-327-1000
E-23 HEXANGULAR SCREW M6*P1.0x55L 1 PCS PD-SPM20655-1041
E-24 HANDLE DECK FOR SLIDER 1 PCS PLEB3000-10-1080
E-25 FIXING CHIP FOR HANDLE 1 PCS PLEB3000-13-1080
E-26 SCREW M8*P1.25*16L 14 PCS PD-SRM30816-1182
E-27 SCREW M10x20L 2 PCS PH-P-PB1913-1082
E-28 FLAT WASHER φ8xφ19x2t 14 PCS PD-WN230819-1082
E-29 IDLER WHEEL FOR SLIDER 4 PCS PL-T-PB-278-1000
E-30 HEXANGULAR SCREW 4 PCS PD-SHI31235-1082
E-31 BUSHING 4 PCS PH-P-PA-009-1000
E-32 FLAT WAHSERφ10.5xφ17x2t 8 PCS PD-WN211017-1041
E-33 NYLON NUT 4 PCS PD-NNI21200-1041
E-34 LEFT COVER FOR SLIDER 1 PCS PLEB3000-06-1080

Part list
NO DESCRIPTION QTY BOM NUMBRE
E-35 SEAT HAND PULSE WIRE WITHOUT BODY FAT 2 PCS PE-B11-0750-1002
E-36 SEAT COVER LEFT 1 PCS PLEB3000-18-1080
E-37 SEAT COVER RIGHT 1 PCS PLEB3000-19-1080
E-38 HAND PULSE SENSOR (UPPER) 2 PCS PL-T-PB-446-1080
E-39 HAND PULSE SENSOR (BELLOW) 2 PCS PL-T-PB-447-1080
E-40 SCREW M3xP0.5x12L 4 PCS PD-SGM20312-1041
E-41 CAP 2 PCS PL-P-PB1711-1002
E-42 CARRIER 1 PCS PLEB3000-17-1080
E-43 CROSS SCREW M5xP0.8x14L 6 PCS PD-SWM30514-1082
E-44 SEAT IDLER WHEEL 4 PCS PL-P-PB2547-1000
E-45 HEXANGULAR SCREW 4 PCS PD-SHI61235-1042
E-46 BUSHING 4 PCS PH-P-PA-009-1000
E-47 FLAT WASHER φ10.5xφ17x2t 8 PCS PD-WN261017-1042
E-48 NYLON NUT 6 PCS PD-NNI61200-1042
E-49 ROUND HEXANGULAR SCREW M8*P1.25*18L 1 PCS PD-SOM60818-1042
F PULLEY 1 PCS PH-PJ6A2601-1100
F-1 BELT 1 PCS PH-LJ6M1054C1000
F-2 AXLE SET 1 PCS PR-P-PW4758C1000
F-3 HEXANGULAR SCREW M8xP1.25x12L 3 PCS PD-SHM20812-1102
G SHAFT FOR IDLER WHEEL 1 PCS MTEB3110FW037300
G-1 NUT 1 PCS PD-SHM20612-1041
G-2 IDLER WHEEL 1 PCS PH-P-PB5044-1000
G-3 FLAT WASHER φ8.5xφ25x2t 1 PCS PD-WN210825-1141
G-4 NUT 1 PCS PD-SHM10820-1241
G-5 FLAT WASHER φ6xφ13x1t 1 PCS PD-WN110613-1041
G-6 NUT 1 PCS PD-NNM20800-1041
H MAGNETIC SET 1 PCS AA-A-PA2801-9114
I LGPS FLYWHEEL 1 PCS PH-FAX[phone]
I-1 NUT 3 PCS PD-NNI21224-1041
I-2 COIL FOR GENERATOR 1 PCS PH-P-PB5127-1000
I-3 AXLE 1 PCS PH-P-PB4968-1000
I-4 BEARING 6000RS 1 PCS PH-BA2-6000-1000
I-5 ONE WAY BEARING 1 PCS PH-P-PB3485-1000
I-6 BEARING 6003RS 1 PCS PH-BA2-6003-1000
I-7 BEARING 6203RS 1 PCS PH-BA2-6203-1100
I-8 BEARING 6202RS 1 PCS PH-BA2-6202-1000
I-9 PULLEY 1 PCS PH-P-PB3764-1000
I-10 FLAT WASHER φ30xφ34x1t 1 PCS PD-WN113034-1002
I-11 STAR WASHER 2 PCS PD-WO121017-1041
I-12 FLAT WASHER φ10xφ14x1t 1 PCS PD-WN121014-1041
I-13 FLAT WASHER φ10xφ14x0.5t 1 PCS PD-WN121014-1141
K ROUND HEXANGULAR SCREW M7xP1.0x30L 2 PCS PD-SOM40730C1002

Part list
NO DESCRIPTION QTY BOM NUMBRE
K-1 SPRING WASHER Φ7X2t 2 PCS PD-WS410700C1002
K-2 CROSS SCREW M3x30L 3 PCS PD-SGM40330C1002
K-3 CONE CROSS SCREW M5x10L 11 PCS PD-SWM40510C1002
K-4 HEXANGULAR CONE CROSS SCREW M8*P1.25*16L 4 PCS PD-SRM60816C1042
K-5 FLAT WASHER φ8xφ19x2t 4 PCS PD-WN260819C1042
drawing for assembly

Exploration drawing
I
H

STEP 1
STEP 1 STEP 1
STEP 1 –
––
– Install Pedals
Insert the Right Pedal (D-10R) into the right arm of the Crank
assembly and finger tighten in a clockwise direction until the
thread is fully inserted in the crank.
Repeat for the Left Pedal (D-10L) and finger tighten in an
anticlockwise direction. Tighten both with the wrench.
STEP 2
STEP 2 STEP 2
STEP 2 –
––
– Install Handlebar Post
Take off screws and washers(C-4/C-5/C-6) from handlebar post.
Connect upper hand pulse wire (C-7) with lower hand pulse wire
(D-18), upper computer cable (C-8) with lower computer cable (D-17).
Then attach handlebar post (C) with main frame by screws,
flat washers and wave washers .
STEP 3
STEP 3 STEP 3
STEP 3 –
––
– Install Handlebar
Insert two hand pulse wire with body fat (B-1) into handlebar post hole(L&R), then pull them out from handlebar post.
Fixing handlebar (B) onto handlebar post by screws (K) and spring washers (K-1).
2*
STEP 1
R
L

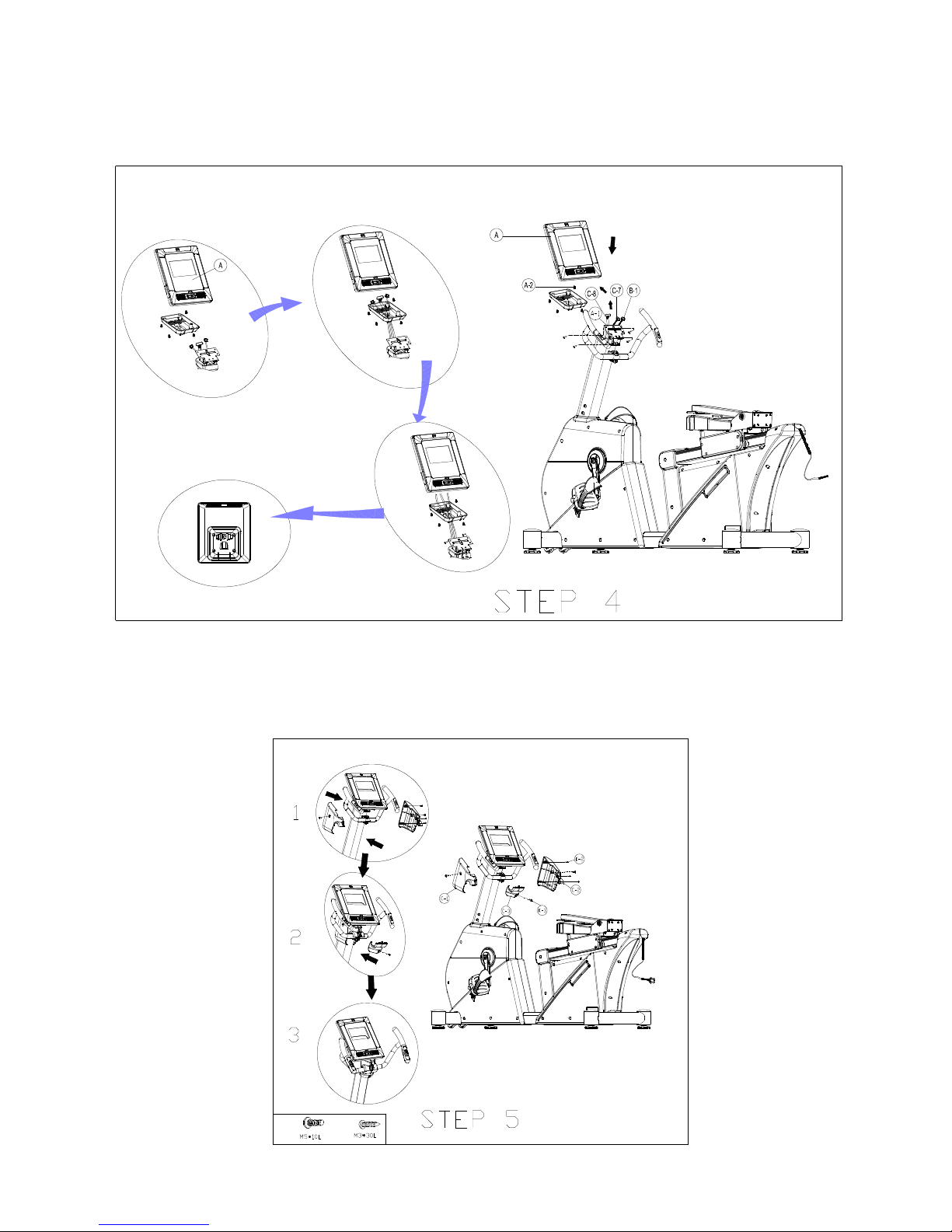

STEP 4 - Insert Computer
Take off computer back cover and four screws (A-2) from adjustable computer bracket (A-1). Then fix the computer plate( A-1) by screw.
Through four computer cables out of computer back cover. Connect four cables with computer, and then secure computer back cover
with screw ( A-2). Please see the detailed assembly as below :
12
3
4
Step 5 – Install Protect Cover
Attach left and right protect cover (C-1/C-2) to handlebar post by three screws (K-2) and two screws (K-3). Assemly upper protect cover
(C-3) to handlebar post by cross screw (K-3)
3* 3*

Step 6 – Install Seat and Carrier
Take off hexangular screw (E-49) from holder for slider post (E). Keep seat support frame (E-3) erect and secure it with screw(E-49).
Apart screw (E-43) from handlebar (E-5) . Fixing carrier (E-42) on the handlebar with screw (E-43). Take off four hexangular screws (E-26)
and four cross screws (E-43) from back rest. Secure back rest with four hexangular screws (E-26) , then attach magazine rack( E-4) to
back rest with four cross screws (E-43).
4*

Step 7 – Install Seat Cover
Through two cables (E-35) out of handlebar cover (E-7). Secure handlebar cover onto handlebar with screws (K-3). Attach left and right
seat cover (E-36/E-37) to handlebar.
8*
Step 8 – Insert Cables
Insert the cable in the back of seat.

Step 9 – Seat Adjustment
You can move seat(E-2) forward and backward by handle for slider(E-21). Also, you can adjust the angle of back rest (E-1) by knob (E-16).
Well done !
Your bike is now ready for use. Please go to the computer operation section in this manual for
instructions on how to operate your console.

INSTRUCTION MANUAL OF SG7681-71
【
【【
【 BUTTON FUNCTIONS 】
】】
】
UP To make upward adjustment to each function data or increase training
resistance.
DOWN To make downward adjustment to each function data or decrease training
resistance.
MODE To confirm all setting.
TART/ TOP To start or stop workout.
RE ET To reset current setting and have the monitor switch to initial training mode
for selection.
RECOVERY To test heart rate recovery status.
BODY FAT To test body fat %
Press the BODY FAT button in standby mode and modify user data.

【
【【

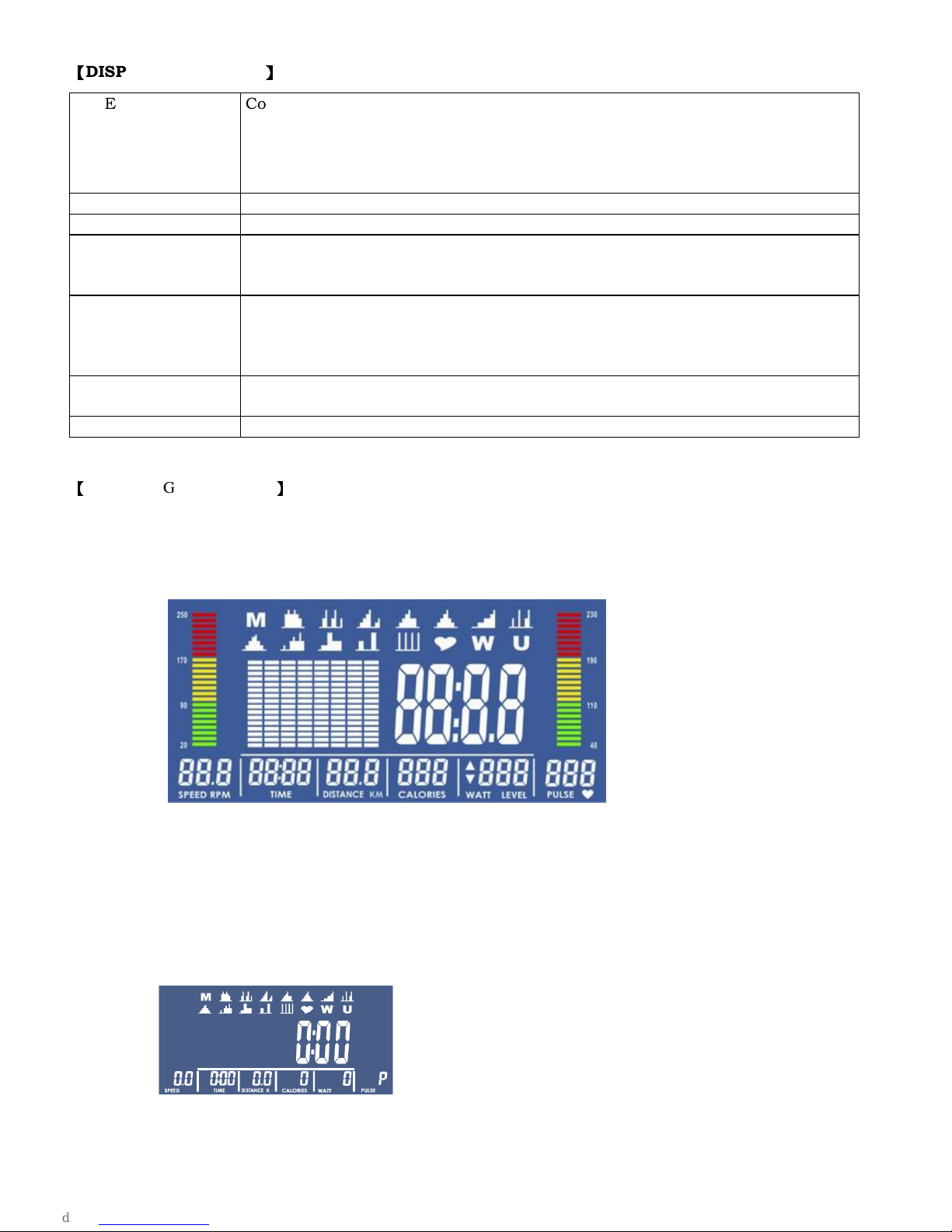

【 DISPLAY FUNCTIONS 】
】】
】
TIME Count up -
No preset target, Time will count up from 00:00 to maximum 99:59
with each increment is 1 minute.
Count down -
If training with preset Time, Time will count down from preset to
00:00. Each preset increment or decrement is 1 minute between 01:00 to
99:00.
PEED Displays current training speed. Maximum speed is 99.9 KM/H or ML/H.
RPM Displays the Rotation Per Minute. Display range 0~15~999
DI TANCE
Accumulates total distance from 00:00 up to 99.99 KM or ML. The user may
preset target distance data by pressing UP/DOWN button. Each
incensement is 0.1KM or ML.
CALORIE Accumulates calories consumption during training from 0 to maximum 9999
calories.
(This data is a rough guide for comparison of different exercise sessions which
can not be used in medical treatment.)
PUL E User may set up target pulse from 0 -
30 to 230 and computer buzzer will beep
when actual heart rate is over the target value during workout.
WATT Display current workout watts. Display range 0~999.
【 OPERATING PROCEDURE 】
(1) When power’s on, LCD will have 2 seconds of all segments displaying on screen with a beep Follow by the
wheel diameter, body fat spec and UNIT displaying on LCD for 1 second, system will then enter into the
setting mode
(2) Users may use ▲ or ▼ key to select one user profile from U1~U4 SEX, AGE, HEIGHT and WEIGHT are
requried to be set System will enter into the standby mode when all values are done setting
(3) Use ▲ or ▼key to select MANUAL→ PROGRAM→H R C →WATT→USER PROGRAM→MANUAL in
circulation order Press the MODE key when selection is determined

(4) MANUAL –
4-1 Use ▲ or ▼ key to adjust the LEVEL; press the MODE key for confirmation Manual value also can be
adjusted under the START mode; LEVEL text and number will be displaying on LCD LCD will switch to
display the WATT value if no adjustment is accrued after 3 seconds
4-2 Use ▲ or ▼ key to preset values for TIME, DISTANCE, CALORIES and PULSE Press the MODE key for
confirmation
4-3 Press the START key to start exercising RPM BAR and PULSE BAR will change values accordingly Press
the STOP key to pause exercise (with all values remaining on screen) Press the PRSET key to return to
PROGRAM SELECT
(5) PROGRAM –
5-1 Use ▲ or ▼ key to select P1~P12 LCD will display corresponding flashing garphic to the program user
selects
5-2 When PROGRAM is selected, use ▲ or ▼ key to preset LEVEL Press the MODE key after value’s
determined Follow use ▲ or ▼ key to preset TIME; press the START key to start workout
5-3 LEVEL can be adjusted during exercise LEVEL text and number will be displaying on LCD LCD will
switch to display the WATT value if no adjustment is accrued after 3 seconds
(6) H.R.C. –
Use ▲ or ▼ key to select 55%, 75%, 90% or TARGET The heart rate value will be calculated according to the
AGE user inputs and will be shown in the alphanumeric column in flashing text Use ▲ or ▼ key to preset
TARGET value (30~230) Press the MODE key for confirmation Use ▲ or ▼ key to preset TIME; press the
START key to start exercise

(7) USER PROGRAM –
Users can use ▲ or ▼ key to set PROGRAM graphic Press the MODE key for confirmation Press the MODE
key for 2 seconds to stop setting Use ▲ or ▼ key to set TIME; press the START key to start exercise
(8) WATT –
WATT default value 120 will be displayed in the alphanumeric column in flashing text waiting for setting
Users can use ▲ or ▼ key to adjust WATT value; press the MODE key for confirmation User ▲ or ▼ key to
set TIME; press the START key to start exercise WATT LEVEL will be adjusted automatically according to
user’s RPM input value It can also be adjusted by using ▲ or ▼ during exercise
(9) BODY FAT –
When it’s under the STOP mode; press the BODY FAT key to start body fat measurement There’ll be a UX
displaying on LCD for 2 seconds; system will then enter into the measurement processing and start executing
when there’s a heart rate value detected FAT%, BMI and a result symbol will show on LCD after 8 seconds
Press the BODY FAT key for 2 seconds (under the STOP mode) to enter into personal profile setting (AGE,
HEIGHT, WEIGHT); press the MODE key to confirm and start the measurement Alphanumeric column will
display E-1 if there’s no heart rate input detected during testing An E-4 will be shown in the alphanumeric
column if the test result is exceeded in FAT ％ 5~50 and BMI 5~50
(10) RECO ERY –
When there’s a heart rate input (under both START and STOP mode); press the RECOVERY key to execute
this function TIME “0:60” will start to count down and the alphanumeric column will display "FX"(X=1~6)
when TIME reaches zero Press the RECOVERY key to return to the pervious awaiting mode The actual heart
rate value will be shown on LCD continually after the test is finished

【
【【
【 NOTE 】
】】
】
1 Stop pedaling for 90 seconds, computer will turn off
2 Start pedaling and input 15RPM or above, computer will wake up
3 Within 90 seconds, user may press RECOVERY button to test hear rate recover status
4 This model has a USB port as a charger
