Star Trac Inspiration Strength IP-S1313 User manual

SEATED LEG PRESS
IP-S1313
INSTALLATION INSTRUCTIONS

Page 2
Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or
parts thereof in any form without first obtaining written permission from Star Trac.
Every effort has been made to keep this information current; however, periodically, changes are made to
the information herein, and these changes will be incorporated into new editions of this publication. All
product names and logos are trademarks of their respective owners. Printed in the USA.

Page 3
INSTALLATION INSTRUCTIONS
1• TORQUE WRENCH
••••••••••••••••••••••••••••••••••••••••
1• 8MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••••
• #2 CROSS-HEAD (PHILLIPS) SCREWDRIVER
•••••••••
11• 6MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••••
1• 13MM SOCKET
•••••••••••••••••••••••••••••••••••••••••••••
1• 5MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••••
1• 19MM OPEN-END WRENCH
•••••••••••••••••••••••••••••
1• 4MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••••
1• 17MM OPEN-END WRENCH
•••••••••••••••••••••••••••••
1• 3MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••••
2• 13MM OPEN-END WRENCH
••••••••••••••••••••••••••••
1• 2.5MM HEX KEY SOCKET
•••••••••••••••••••••••••••••••
REQUIRED TOOLS:
GENERAL NOTES:
• Unless otherwise noted Loctite 242/243 or equivalent thread locker must be used on all threaded fasteners. (Do not
use thread locker when a Nyloc nut is used.)
• All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts.
To accommodate this there are four mounting points inside the weight stack and one in either of the small feet.
• This Installation Instructions Manual must be used in conjunction with the equipment’s Owner’s Manual. The Owner’s
manual describes equipment setup and instructs members on how to use it correctly and safely.
• The Seated Leg Press Machine weighs approximately 480 Kg (1058 lbs) when fully assembled and occupies an area
136 cm wide by 170 cm deep. Star Trac recommends the addition of 1-2 people during assembly, and when moving
the equipment to its designated point of use.
Should any component not be present or if you have any operational questions, please refer to your owner’s manual or on
the web @ www.startrac.com . Specifically refer to your Inspiration serial number and model number labeled on your
equipment.

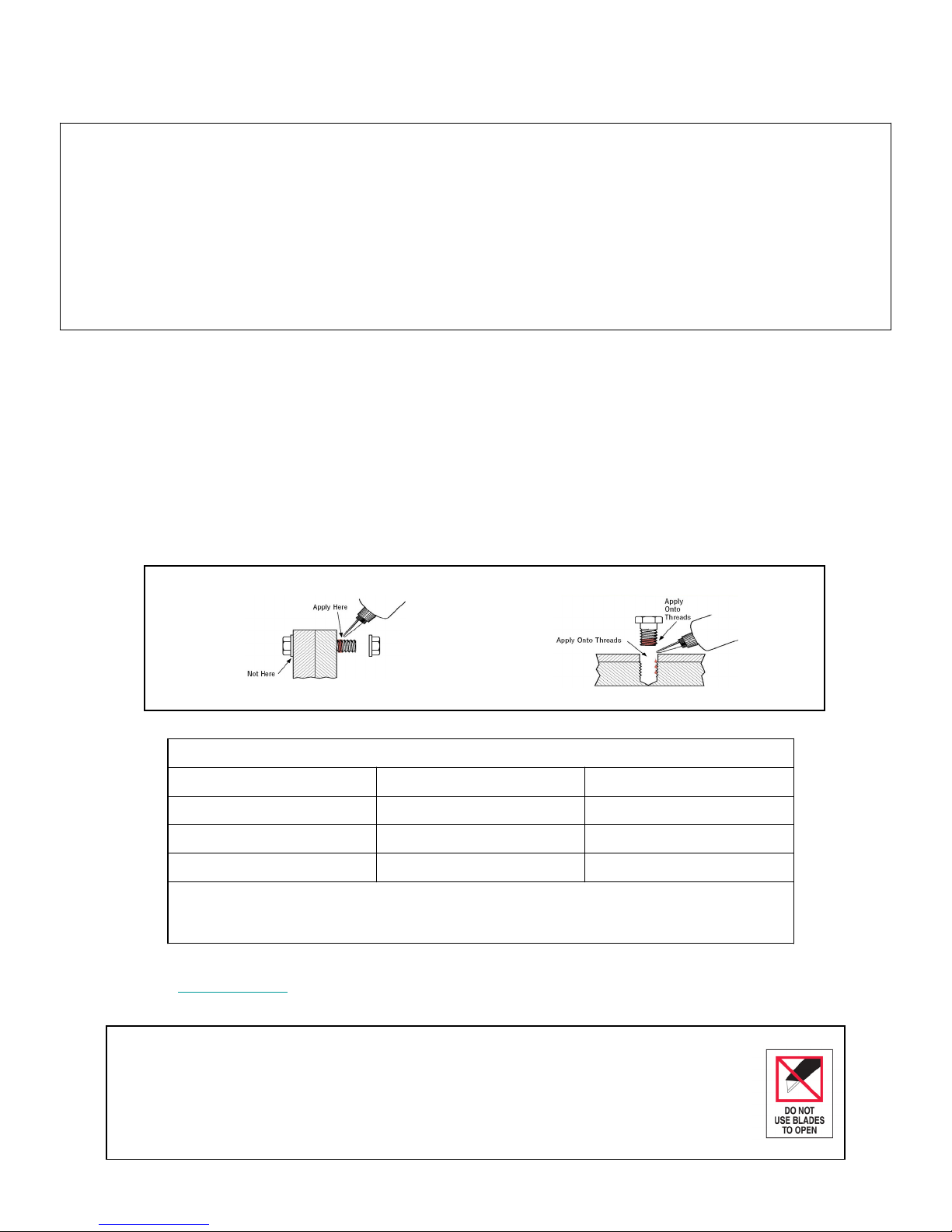

THREAD LOCKER APPLICATION: Clean all threads and holes, apply no more than 3-4 drops per bolt.
Thru Holes Blind Holes
PACKAGING REMOVAL:
Carefully remove all packaging materials that wrap the equipment. DO NOT USE A KNIFE OR BOX
CUTTER AS YOU MAY DAMAGE THE EQUIPMENT. At this time remove any sub-components
from the pallet and set aside for later assembly.
• Torque all hardware to values as specified above, unless noted otherwise.
• See Page 11 of this manual for fastener sizing information; for reference only.
• Note: All torque values are in N-m unless otherwise stated.
26 to 30 (35 to 40)1.75
10mm
9.5 to 12 (13 to 16)1.258mm
4.5 to 6 (6 to 8)1.25
6mm
Torque, N-m (lbs-ft)Thread PitchBolt Size
Metric Steel Bolts Torque Specifications

Page 4
REMOVE SEAT FRAME FROM PALLET:
1. Slide the SEAT FRAME forward at least
250mm (10 inches).
2. Carefully rotate the SEAT FRAME down
and off the pallet. CAUTION: SEAT
FRAME weighs 100Kg (220 lbs)
1
1
2
REMOVE THE SHROUDS:
1. Using a 4MM hex key remove the
(M6,30MM,Button Head Bolt) from the
rear of the weight stack. Save this bolt
as you will need it to re-install later. After
the bolt has been removed rotate the
black TOP BUMPER towards the front of
the weight stack then lift it off and set
aside.
2. Grip the top of the outside SHROUD and lift
to remove it from the weight stack.
Carefully store the SHROUD for later use.
Now repeat with the inside SHROUD.

Page 5
REMOVE FROM PALLET:
1. With the shrouds removed, locate and
remove the two bolts that secure the
equipment to the pallet. There will also be
a bolt through each of the equipment’s
feet.
2. Once all bolts fastening the equipment to
the pallet have been removed, carefully
remove equipment off of the pallet and
place in desired location.
REMOVE MAIN FOOT PAD SUPPORT:
1. Remove two (M8, 25MM, Socket Head
Screws) recessed in the back panel
using a 6MM hex key.
2. Remove two (M8, 40MM, Flat Head
Socket Screws) located down at the
bottom of the FOOT PAD using a 5MM
hex key.
3. Remove the MAIN FOOT PAD and set
aside along with the screws and Nyloc
nuts.
INSTALL GRAB HANDLE:
1. Install BASE END CAP into the
RECEIVER TUBING and secure using
four (M6, 10MM, Button Head Screws)
with a 4MM hex key.
2. Install the rubber covered GRAB
HANDLE and secure using two (M8,
25MM, Socket Head Screws) with a
6MM hex key.
Base End
Cap
