Star HFD-2-P User manual

1
StarStar
StarStar
Star
ManufacturingManufacturing
ManufacturingManufacturing
Manufacturing
International Inc.International Inc.
International Inc.International Inc.
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: [phone]
FAX: [phone]
Installation
and
Operating
Instructions
2M-Y9758 Rev. E 2/12/97
HOT FOODHOT FOOD
HOT FOODHOT FOOD
HOT FOOD
HUMIDITY CABINETHUMIDITY CABINET
HUMIDITY CABINETHUMIDITY CABINET
HUMIDITY CABINET
MODEL HFD-2MODEL HFD-2
MODEL HFD-2MODEL HFD-2
MODEL HFD-2
Model HFD-2-P
Model HFD-2-CR

2

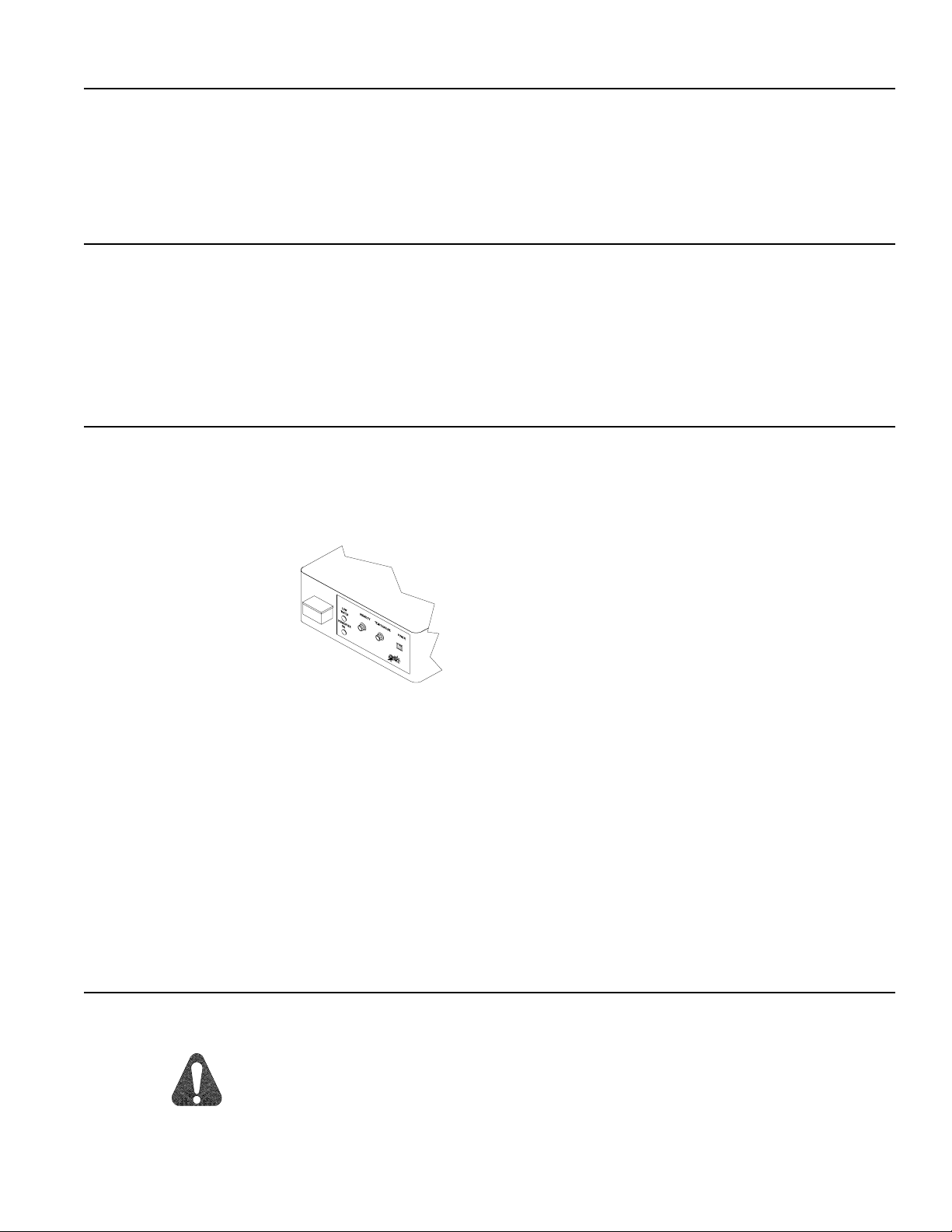

PRODUCT IDENTIFICATION
Star Manufacturing International, Inc. Humidified Cabinet
Models: HFD-2-P 120V, HFD-2PTP 120V, HFD-2-CR 120V, HFD-2PTCR 120V, HFD-2,-2PT 120V
Note: PT denotes pass through models, - denotes non-pass through models, P denotes Pretzel Rack,
CR denotes Circular Pizza rack, No suffix denotes Multipurpose Shelving
SPECIFICATIONS:
Capacity: 72 large pretzels/bagels (P models), 3 16" pizzas (CR models)
3 Multipurpose Shelves
Electrical: 120 volt, 60 hertz, single phase, 1550 watts, 12.9 amps
Dimensions: 21-1/8"W x 21-1/8"D x 34 - 1/2"H
(55.37 cm W x 55.37 cm D x 87.63 cm H)
OPERATING CONTROLS
The operating controls are located above the door on the side of the unit housing the digital
thermometer (see figure 1).
Figure 1
ON/OFF Switch - Activates lights, digital thermometer and air circulation system.
Temperature Dial - Adjusts cabinet temperature.
Humidity Dial - Adjusts cabinet humidity.
Humidifier On Indicator - Illuminates when humidity system is in operation.
Low Water Indicator - Illuminates when water needs to be added.
Water Reservoir - Water filling location.
This symbol is intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
SAFETY SYMBOL

3
CAUTION:
This equipment is designed and sold for
commercial use only by personnel trained and
experienced in its operation and is not sold for
consumer use in and around the home nor for
use directly by the general public in food service
locations. For equipment to be used by the
general public, please contact the factory.
INSTALLATION:
Each machine has been properly wired and
inspected at the factory for operation on the
voltage and type of current specified on the
nameplate. Machines with a nameplate stamped
120V, are equipped for operation on 120 volt 60
hertz AC single phase service and must be
connected to a separate 15 amp circuit with a 3
wire grounded, polarized receptacle.
CAUTION:
DO NOT CONNECT TO ANY OTHER
TYPE OF CURRENT OR THE MACHINE
WILL BE SERIOUSLY DAMAGED.
The guarantee of this machine as covered by the
warranty card does not apply if an improper
installation has been made.

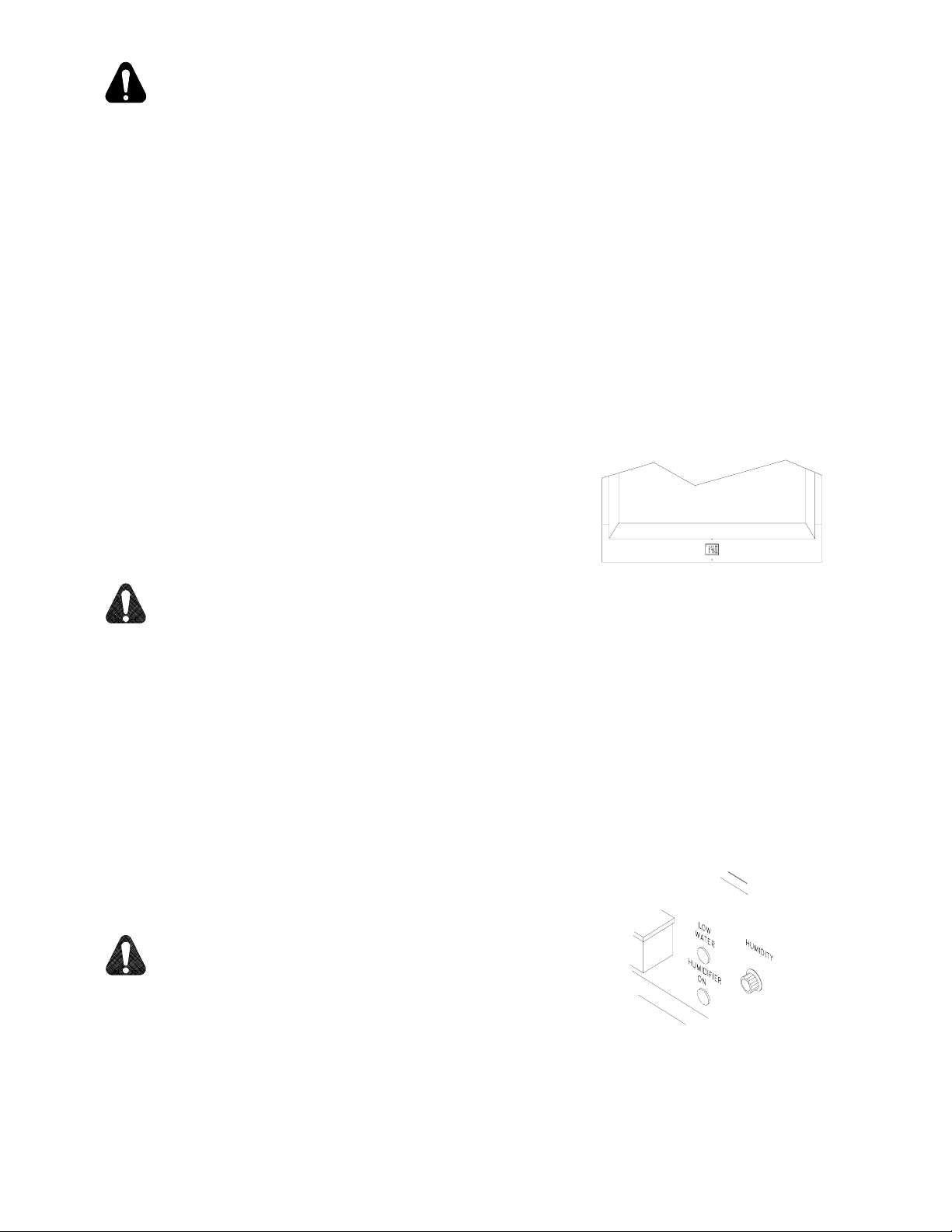

GENERAL OPERATING
INSTRUCTIONS
CAUTION:
DO NOT BLOCK VENT HOLES ON TOP
OF THE CABINET
1. Ensure cabinet is plugged into the proper
voltage receptacle prior to turning on.
2. Fill reservoir with water (distilled preferred)
such that the water is approximately level with
line on water fill decal (low water indicator
should extinguish). Capacity is 1/2 Gallon.
CAUTION: DO NOT OVERFILL !
3. Follow preheat instructions on the following
page. Allow approximately 25 minutes for
machine to reach proper temperature.
4. Monitor product temperature via the
digital thermometer (see figure 2).
Figure 2
5. Load product into racking system.
For maximum product freshness, adjust
settings as specified. Pizza and pretzel racks
are adjustable for different applications using
the screws provided.
6. Periodically monitor water level by indicator
on operator panel (see figure 3).
Figure 3

4
GENERAL OPERATING
INSTRUCTIONS (Cont'd)
7. Door handles and mounting screws are
provided in envelope enclosed. Attach handle
to right side of door using screws provided.

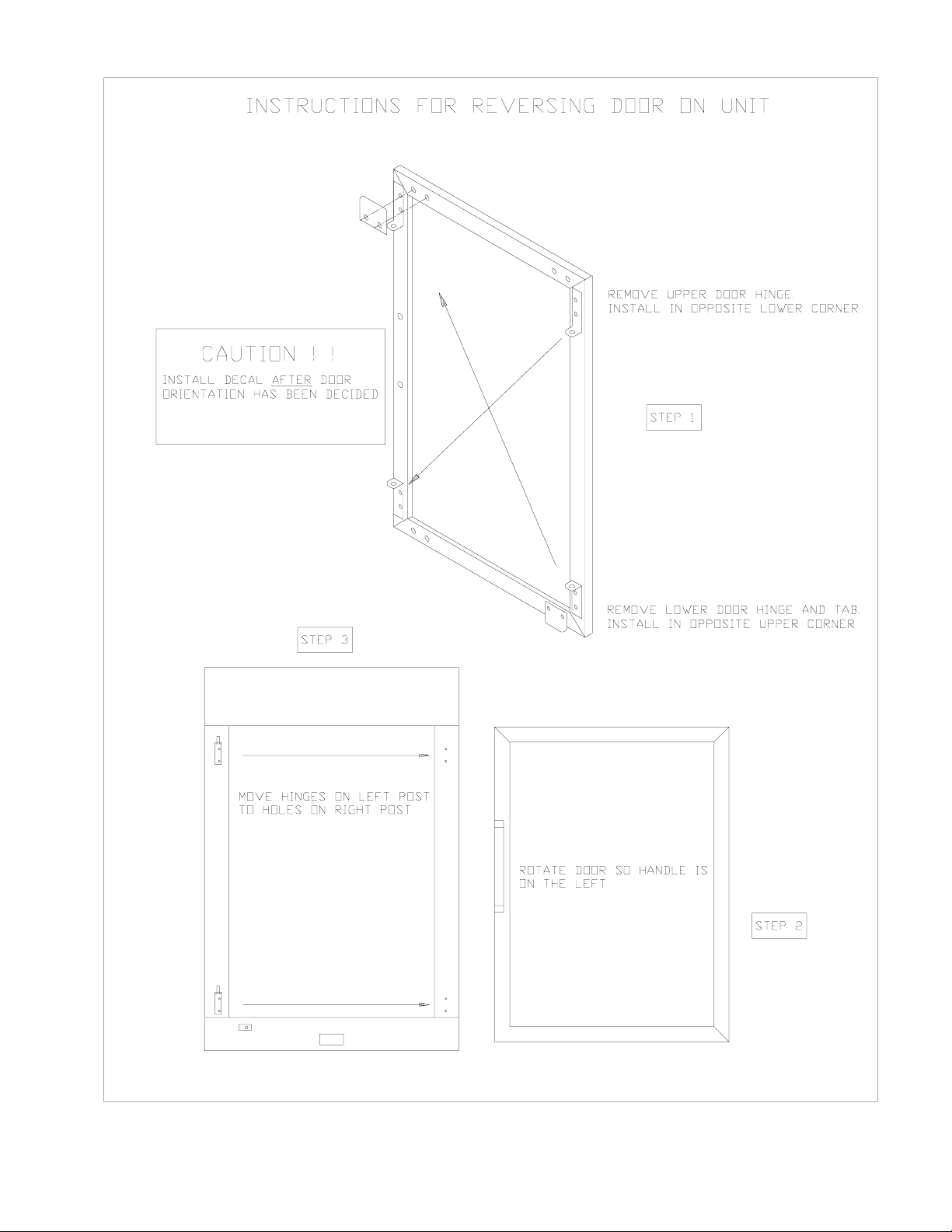

8. See attached sketch for instructions on
reversing the doors.
CLEANING INSTRUCTIONS
1. Disconnect electrical cord before cleaning the
cabinet.
2. To maintain finish and shine of unit, wipe daily
with a damp cloth and mild soap. Do not use
harsh detergents or scouring pads.
3. Daily cleaning of inside glass, bottom pan and
racking system with a damp cloth is
recommended.
RECOMMENDEDDIALSETTINGS
Preheat: Temp = 6
Humidity = 2
Pizza: Temp = High
Humidity = 4
Pretzels/Bagels: Temp = 4
Humidity = 5
DIAL SETTING FOR DESIRED
TEMPERATURE
Low - 2 100°F
3 110°F
4 130°F
5 150°F
6 165°F
High 175°F
MAINTENANCE AND REPAIRS
Contact the factory, a service representative or a
local service company for service or required
maintenance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PART NO. 2M-Y9758 REV. E 2-12-97

5

12

STAR MANUFACTURING INTERNATIONAL, INC.
4
6
5
1
3
2
7
HUMIDITY
HUMIDIFIER
POWER
TEMPERATURE
LOW
WATER
17
16
15
18
19
12
11
10
9
56
55
57
60
24
23
25
20a
21
14
22
26
27
28 4
6
13
20
CAUTION: HOT RACK . DO NOT ROTATERACK MANUALLY
45
8
8

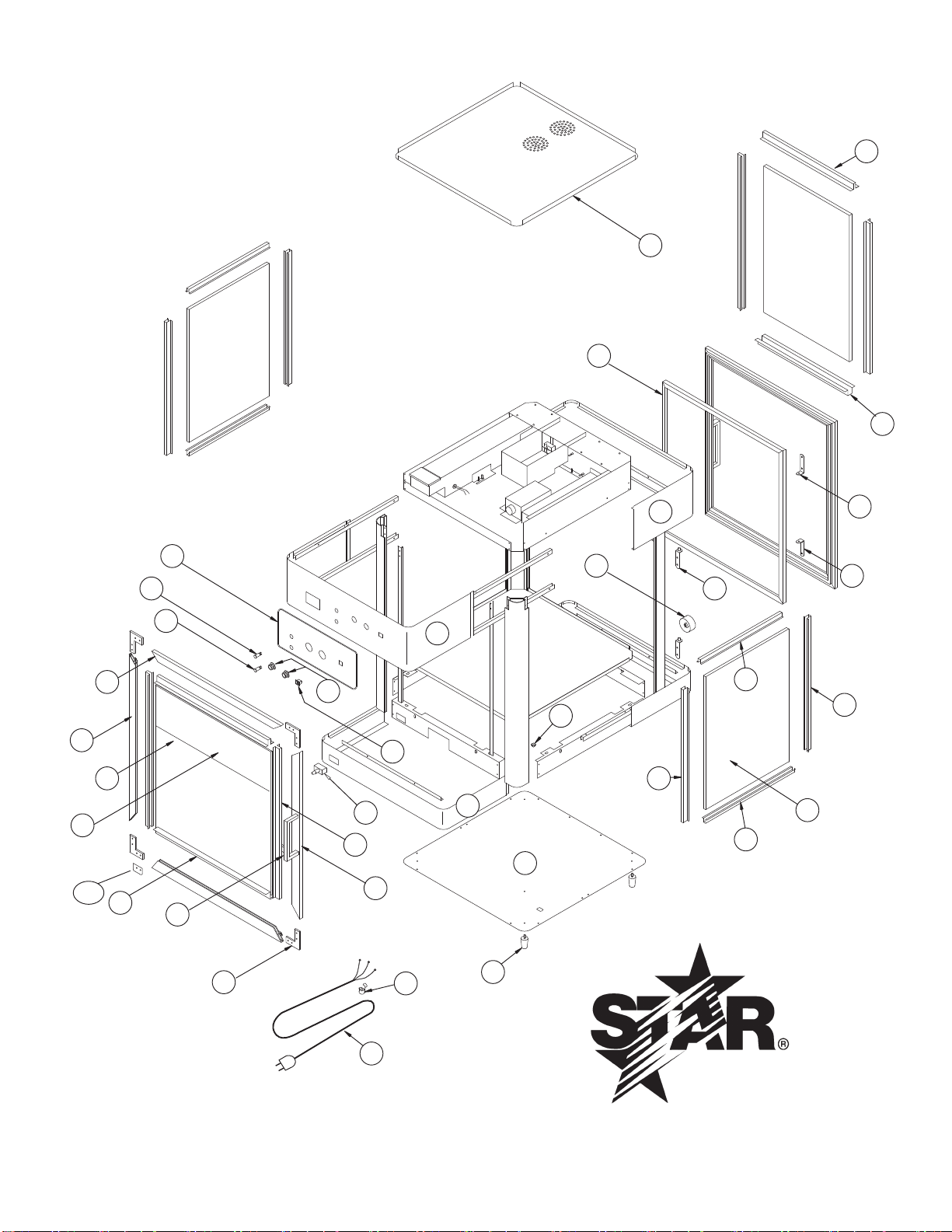

MODEL HFD-2,-3 120V
SK1374 REV. A 1/14/97

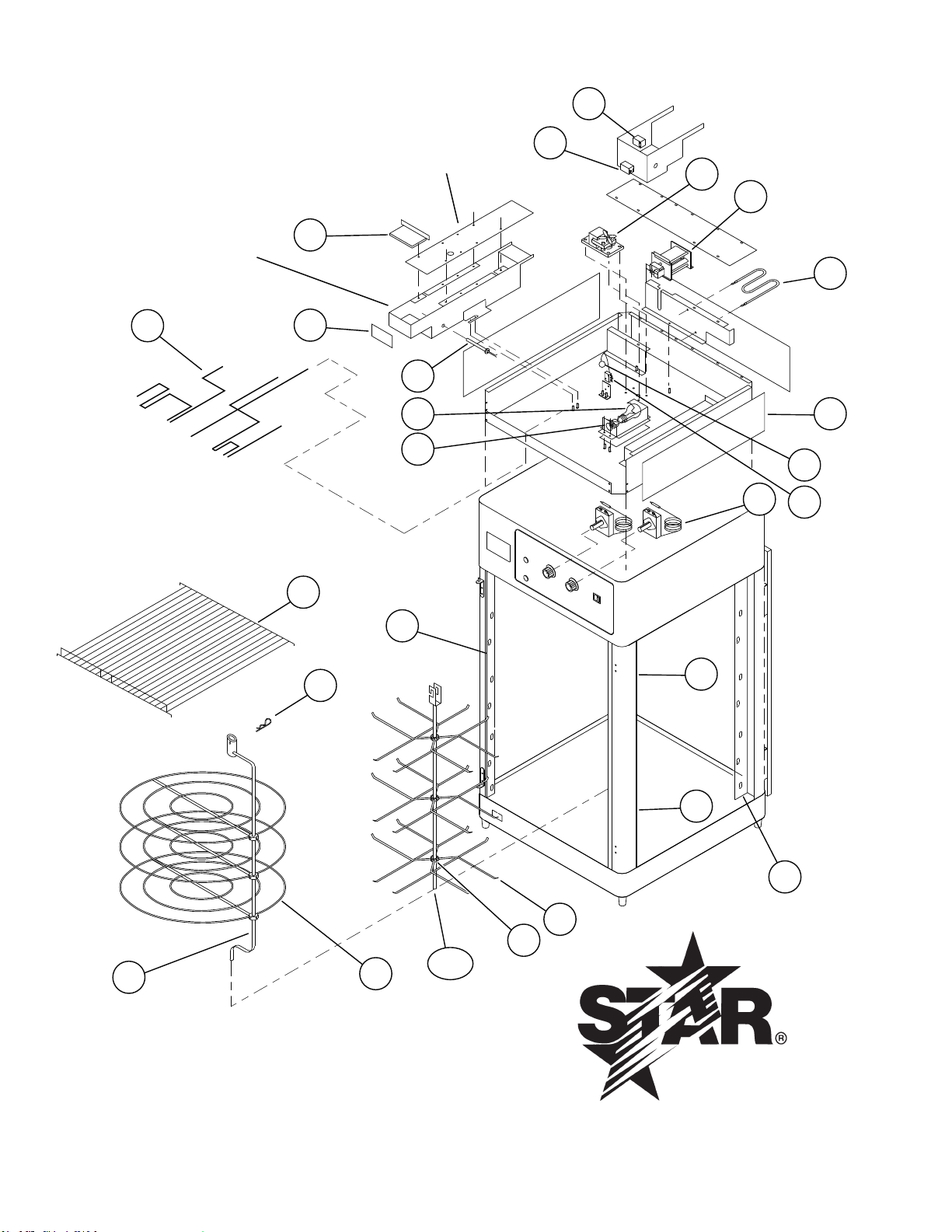

2M-Y9758, Humidied Cabinet HFD2, HFD3
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL HFD-2,-3 120V REV. A
SK1375 12-9-96
HUMIDITY
HUMIDIFIER
LOW
WATER
TEMPERATURE
POWER
38
37
36
35
34
52
51
50
49
46
54
43
42
41
47
40
D5-Y9577
HFD-2
D5-220036
HFD-2
44
48 29
30
30a
53
31
32
33
39

2M-Y9758, Humidied Cabinet HFD2, HFD3
PARTS LIST EFFECTIVE 09/09/13
Star Manufacturing International, Inc.
Model: HFD-2 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
1C3-G8021 1CORD ASSEMBLY (120V)
C3-39221 CORD ASSEMBLY (240V)
2 2K-Y2968 1 BUSHING - STRAIN RELIEF
3
2A-6904
4
FOOT
2P-Y3404 PLUG-FOOT (not shown)
2C-1557 SCREW-FOOT (not shown)
4 D5-Y9623 6/4 GLASS CHANNEL (16-7/8”) HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
5 2Q-Y9567 2/3 GLASS - SIDE HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
6 D5-Y9624 6/4 GLASS CHANNEL (23-3/8”) HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
7 2K-Y1139 1 BUSHING
9 1 PROBE - THERMOMETER/TRANSFORMER (see KEY # 38)
10 D5-220084 2/4 DOOR HINGE ASSY HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
2C-1654 4/8 SCREW-DOOR HINGE (not shown) HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
11 D5-Z0499 1/2 BRACKET - DOOR HINGE HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
12 D5-Z0500 1/2 BRACKET - DOOR HINGE HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
13 2M-Y9568 1/2 MAGNETIC GASKET HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
14 D5-Y9590 1 TOP COVER
15 2M-Z0273 1 LABEL-OPERATOR PANEL
16 2S-Y9114 1 INDICATOR - GREEN (120V)
2S-Z0626 1 (240V)
17 2J-Y6689 1 INDICATOR - RED (120V)
2J-Y6690 1 (240V)
18 2R-Y9116 2 KNOB - CONTROL
19 PS-PD2046 1 SWITCH
20 2E-Y9700 1/2 SWITCH - DOOR INTERRUPT (120/240V) HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
20a D5-Z0295 1/2 DOOR TAB HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
21-28 D5-220035 1/2 DOOR ASSEMBLY HFD-2-P HFD-2-CR/HFD-2PTP HFD-2PTCR
21 D5-Y9624 2 (PER DOOR) GLASS CHANNEL
22 2I-Y9573 1 (PER DOOR) DOOR LEG RIGHT VERTICAL
23 2I-Y9125 4 (PER DOOR) DOOR INSERT
24 2R-Y9124 1 (PER DOOR) HANDLE
2C-Y9221 2 (PER DOOR) SCREW-HANDLE (not shown)
25 D5-Y9623 2 (PER DOOR) GLASS CHANNEL
26 2Q-Y9569 1 (PER DOOR) DOOR GLASS
27 2I-Y9572 1 (PER DOOR) DOOR LEG LEFT VERTICAL
28 2I-Y9574 2 (PER DOOR) DOOR LEG HORIZONTAL
29
2B-Z4280 3 PIZZA SHELF HFD-2-CR HFD-2PTCR
2C-Z0546 6 SCREW-PIZZA SHELF (not shown)
2C-Z4175 1 ALLEN WRENCH (9/64) (not shown)
30 D5-220042 1 PRETZEL RACK ASSEMBLY w/HOLDERS HFD-2-P HFD-2PTP
30a D5-220055 1 SHAFT-PRETZEL RACK (21-27/32”)
31 2T-Y9113 2 THERMOSTAT (120/240V)

2M-Y9758, Humidied Cabinet HFD2, HFD3
PARTS LIST EFFECTIVE 09/09/13
Model: HFD-2 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
32
D5-Y9866 1 FLOAT
2I-Y9130 2 GROMMET/BUSHING-FLOAT (not shown)
D5-Y9579 1 FLOAT WIRE (not shown)
33 2E-Y9151 1 MICROSWITCH (120/240V)
34 D5-Y9595 3 INSULATION
35 2N-Y9145 1 AIR HEATER (120V)
2N-Z0628 (240V)
36 2U-Y9144 1 FAN - BLOWER (120V)
2U-Z0627 (240V)
37 2U-Y6953 1 MOTOR - ROTISSERIE (120V)
2U-Y6954 (240V)
38 2J-Y9112 1THERMOMETER/PROBE/TRANSFORMER (120V) (Degrees in Farenheit)
2J-Z0631 THERMOMETER/PROBE/TRANSFORMER (240V) (Degrees in Celcius)
39 2E-Y9148 1 RELAY 120V
2E-Z0625 240V
40
D5-Y9578 1 LID RESERVOIR
D5-220036 1 RESERVOIR ASSEMBLY COMPLETE
D5-220037 1 RESERVOIR ONLY (tank)
41 2N-Y9181 1 WATER HEATER (120V)
2N-Z0629 1 WATER HEATER (240V)
42 2S-Y9118 1 BULB - 100W (120V)
2S-Z0630 1 BULB - 100W (240V)
43 2E-Y9184 1 SOCKET
44 2E-Y9629 1 WIRE HARNESS
45 2M-Z0051 1 DOOR DECAL
46 2B-Z0289 3 SHELF HFD-2 HFD-2PT
47 2M-Z0291 1 LABEL WATER FILL
48 2B-220090 1 PIZZA SHAFT
49 2C-Z0812 1 HAIRPIN
50
2B-Z7205 3 PRETZEL HOLDER ASSEMBLY HFD-2-P HFD-2PTP
2C-Z0546 6 SCREW-PRETZEL HOLDER (not shown)
2C-Z4175 1 ALLEN WRENCH (9/64) (not shown)
51 D5-Z0284 1/2 RACK ANGLE RIGHT HFD-2 HFD-2PT
52 D5-Z0307 1 RACK ANGLE LEFT HFD-2
53 D5-Z0308 1 RACK ANGLE RIGHT HFD-2
54 D5-Z0283 1/2 RACK ANGLE LEFT HFD-2 HFD-2PT
55 D5-Y9596 1 TOP WRAP - OPERATOR
56 D5-Y9591 1 TOP WRAP - CUSTOMER
57 D5-Y9584 1 BOTTOM WRAP - OPERATOR
58 C3-Y7955 1 BOTTOM WRAP - CUSTOMER
59 D5-220051 1 BOTTOM INNER PAN
60 D5-220038 1 BOTTOM PANEL
NI 2M-Y9859 1 TOP STRIPE (not shown)
NI 2M-Y9860 1 BOTTOM STRIPE (not shown)
