Star HFD-3 User manual

1
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: [phone]
FAX: [phone]
Installation
and
Operating
Instructions
2M-Y9774 Rev. E 2/12/97
HOT FOOD
HUMIDITY CABINET
MODEL HFD-3
Model HFD-3-P
Model HFD-3-CR

2
PRODUCT IDENTIFICATION
Star Manufacturing International, Inc. Humidified Cabinet
Models:
HFD-3-P 120V, HFD-3PTP 120V, HFD-3-CR 120V, HFD-3PTCR 120V, HFD-3PT 120V
Note: PT denotes pass through models, - denotes non-pass through models, P denotes
Pretzel Rack, CR denotes Circular Pizza rack, No suffix denotes Multipurpose
Shelving
SPECIFICATIONS:
Capacity: 112 large pretzels/bagels (P models), 4 16" pizzas (CR models)
4 Multipurpose Shelves (models without suffix)
Electrical: 120 volt, 60 hertz, single phase, 1700 watts, 14.1 amps
Dimensions: 24-1/8"W x 28-1/8"D x 36"H
(61.28 cm W x 71.44 cm D x 91.44 cm H)

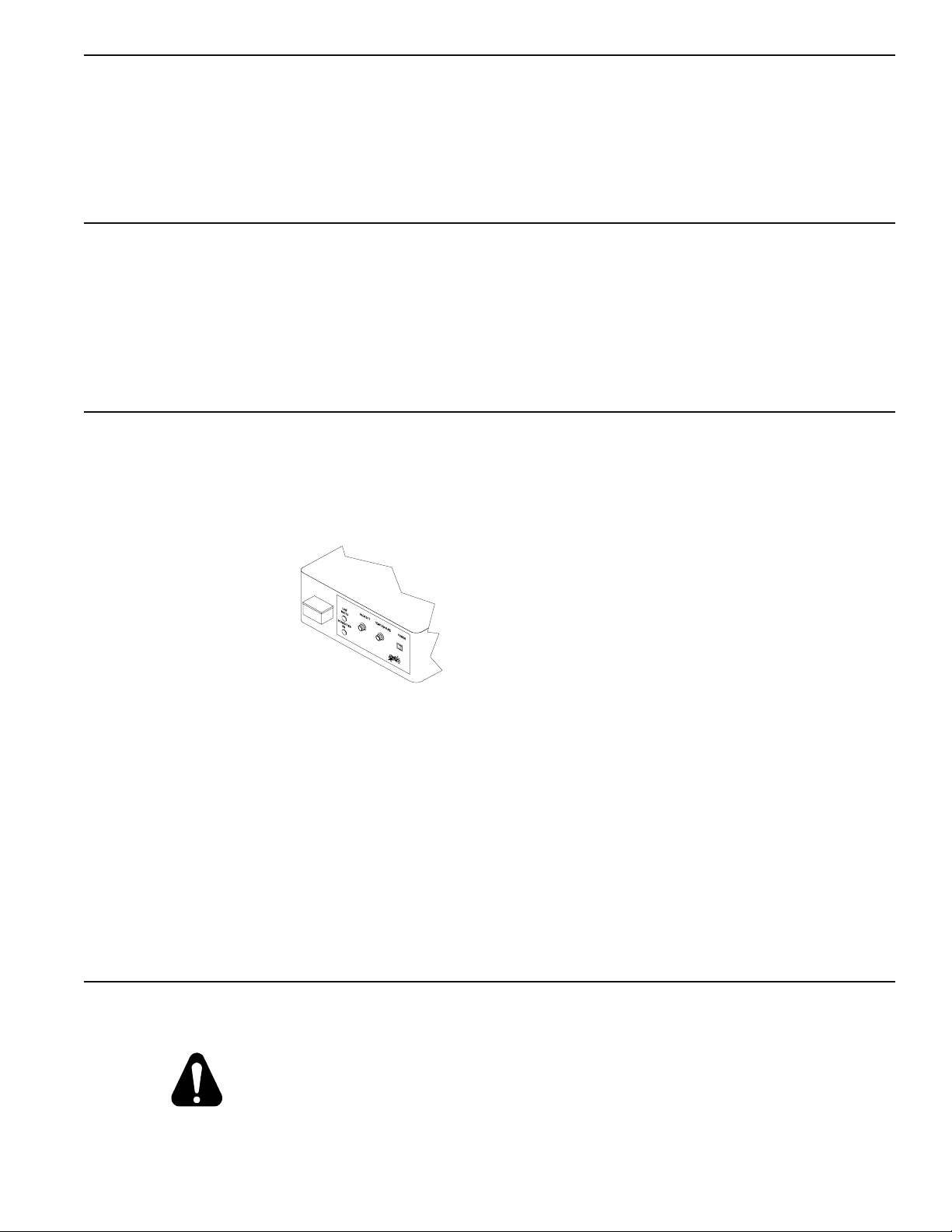

OPERATING CONTROLS
The operating controls are located above the door on the side of the unit
housing the digital thermometer (see figure 1).
Figure 1
ON/OFF Switch - Activates lights, digital thermometer and air circulation system.
Temperature Dial - Adjusts cabinet temperature.
Humidity Dial - Adjusts cabinet humidity.
Humidifier On Indicator - Illuminates when humidity system is in operation.
Low Water Indicator - Illuminates when water needs to be added.
Water Reservoir - Water filling location.
This symbol is intended to alert the user to the presence
of important operating and maintenance
instructions in the manual accompanying the appliance.
SAFETY SYMBOL

3
CAUTION:
This equipment is designed and sold
for commercial use only by personnel
trained and experienced in its
operation and is not sold for
consumer use in and around the home
nor for use directly by the general
public in food service locations.
For equipment to be used by the
general public, please contact the
factory.
INSTALLATION:
Each machine has been properly wired
and inspected at the factory for
operation on the voltage and type of
current specified on the nameplate.
Machines with a nameplate stamped
120V, are equipped for operation on
120 volt 60 hertz AC single phase
service and must be connected to a
separate 15 amp circuit with a 3
wire grounded, polarized receptacle.
CAUTION:
DO NOT CONNECT TO ANY OTHER TYPE
OF CURRENT OR THE MACHINE WILL
BE SERIOUSLY DAMAGED.
The guarantee of this machine as
covered by the warranty card does
not apply if an improper
installation has been made.
GENERAL OPERATING INSTRUCTIONS
CAUTION:
DO NOT BLOCK VENT HOLES ON TOP
OF THE CABINET
1. Ensure cabinet is plugged into the
proper voltage receptacle prior to
turning on.
2. Fill reservoir with water (distilled
preferred) such that the water is
approximately level with line on water
fill decal (low water indicator
should extinguish). Capacity is 1
Gallon.
CAUTION: DO NOT OVERFILL !
3. Follow preheat instructions on the
following page. Allow approximately 25
minutes for machine to reach proper
temperature.

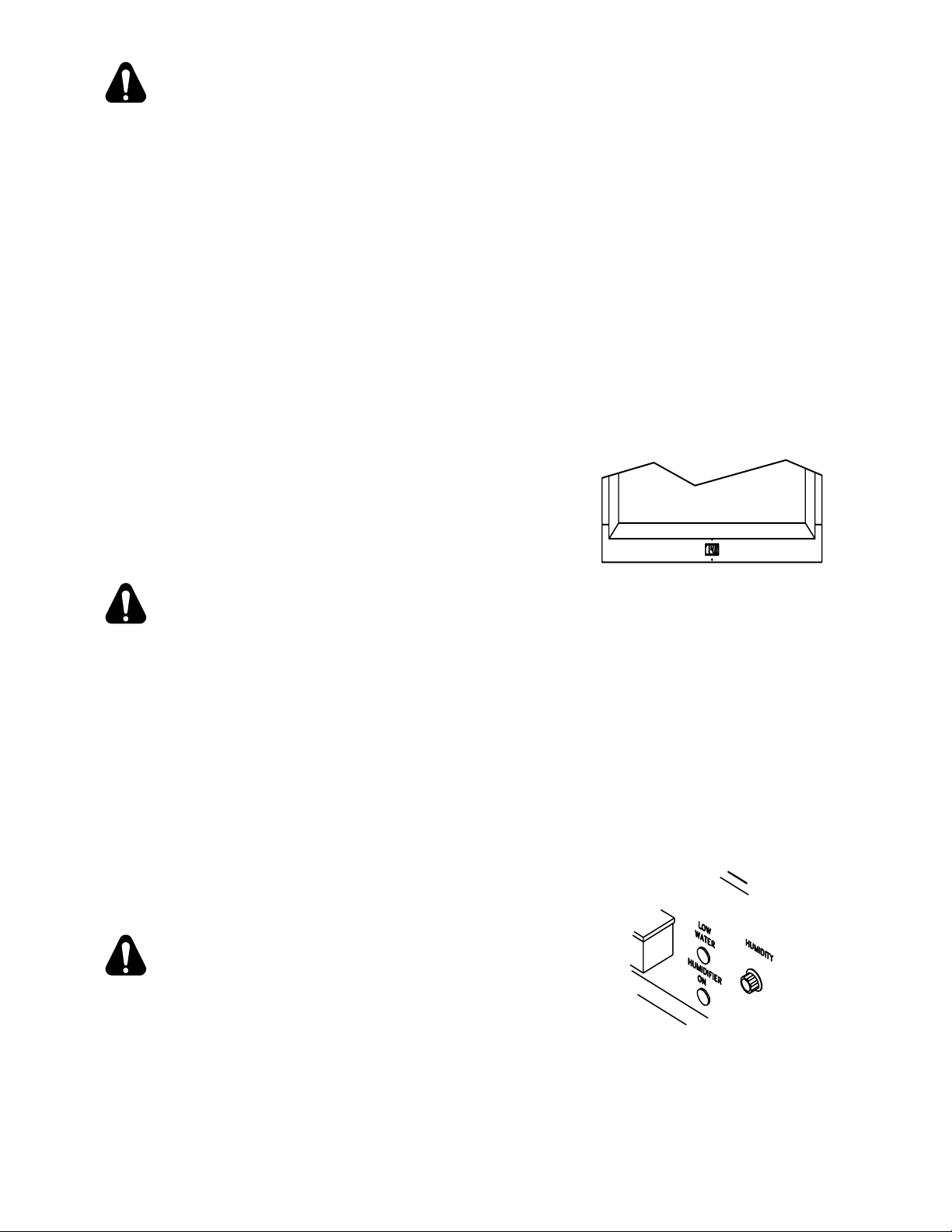

4. Monitor product temperature via the
digital thermometer (see figure 2).
Figure 2
5. Load product into racking system. For
maximum product freshness, adjust
settings as specified. Pizza and
pretzel racks are adjustable for
different applications using the
screws provided.
6. Periodically monitor water level by
indicator on operator panel (see
figure 3).
Figure 3

4
GENERAL OPERATING INSTRUCTIONS
(Cont'd)
7.Door handles and mounting screws
are provided in envelope enclosed.
Attach handle to right side of
door using screws provided.

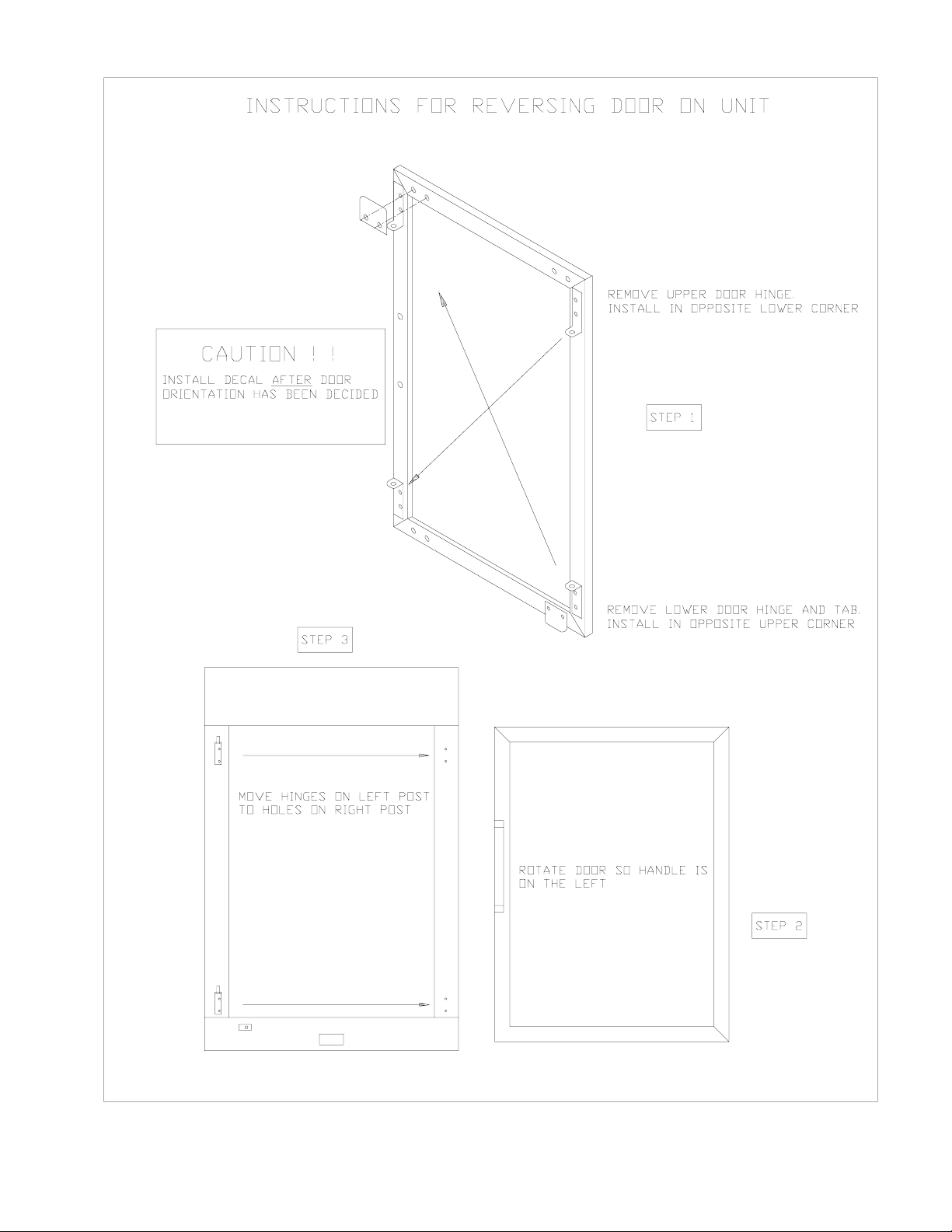

8.See attached sketch for
instructions on reversing the
doors.
CLEANING INSTRUCTIONS
1.Disconnect electrical cord before
cleaning the cabinet.
2.To maintain finish and shine of
unit, wipe daily with a damp
cloth and mild soap. Do not use
harsh detergents or scouring
pads.
3.Daily cleaning of inside glass,
bottom pan and racking system with
a damp cloth is recommended.
RECOMMENDED DIAL SETTINGS
Preheat: Temp = 6
Humidity = 2
Pizza: Temp = High
Humidity = 4
Pretzels/Bagels: Temp = 4
Humidity = 5
All settings are recommendations
only and could vary depending on
product preparation, cooking time,
and internal food temperature.
DIAL SETTING FOR DESIRED
TEMPERATURE
Low - 2 100°F
3 110°F
4 130°F
5 150°F
6 165°F
High 175°F
DIAL SETTING FOR DESIRED
HUMIDITY
Low, 1, & 2 Low Humidity
3 & 4 Medium Humidity
5, 6, & High High Humidity
MAINTENANCE AND REPAIRS
Contact the factory, a service
representative or a local service
company for service or required
maintenance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PART NO. 2M-Y9774 REV. E 2-12-97

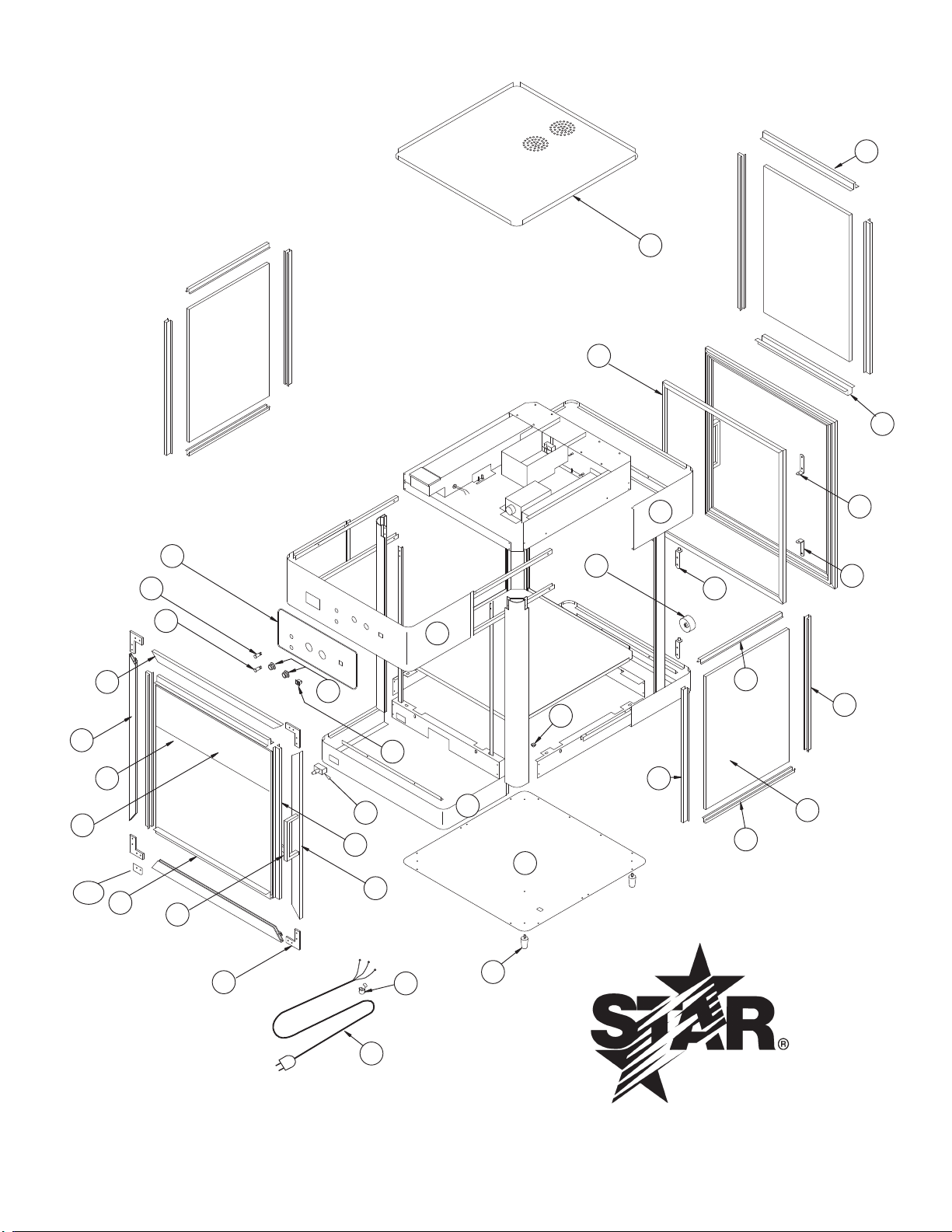

5

3
3

STAR MANUFACTURING INTERNATIONAL, INC.
4
6
5
1
3
2
7
HUMIDITY
HUMIDIFIER
POWER
TEMPERATURE
LOW
WATER
17
16
15
18
19
12
11
10
9
56
55
57
60
24
23
25
20a
21
14
22
26
27
28 4
6
13
20
CAUTION: HOT RACK . DO NOT ROTATERACK MANUALLY
45
8
8

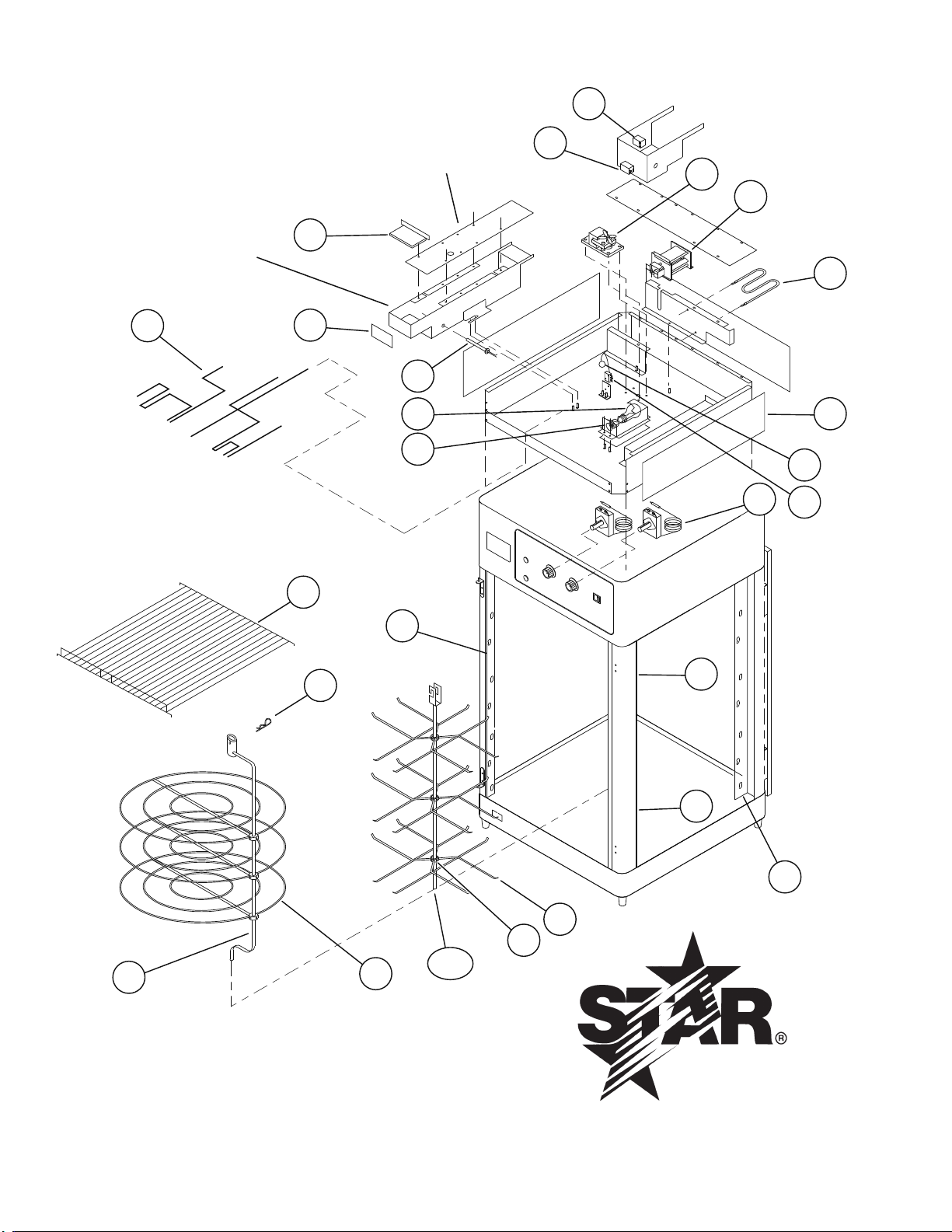

MODEL HFD-2,-3 120V
SK1374 REV. A 1/14/97

2M-Y9758, Humidied Cabinet HFD2, HFD3
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL HFD-2,-3 120V REV. A
SK1375 12-9-96
HUMIDITY
HUMIDIFIER
LOW
WATER
TEMPERATURE
POWER
38
37
36
35
34
52
51
50
49
46
54
43
42
41
47
40
D5-Y9577
HFD-2
D5-220036
HFD-2
44
48 29
30
30a
53
31
32
33
39

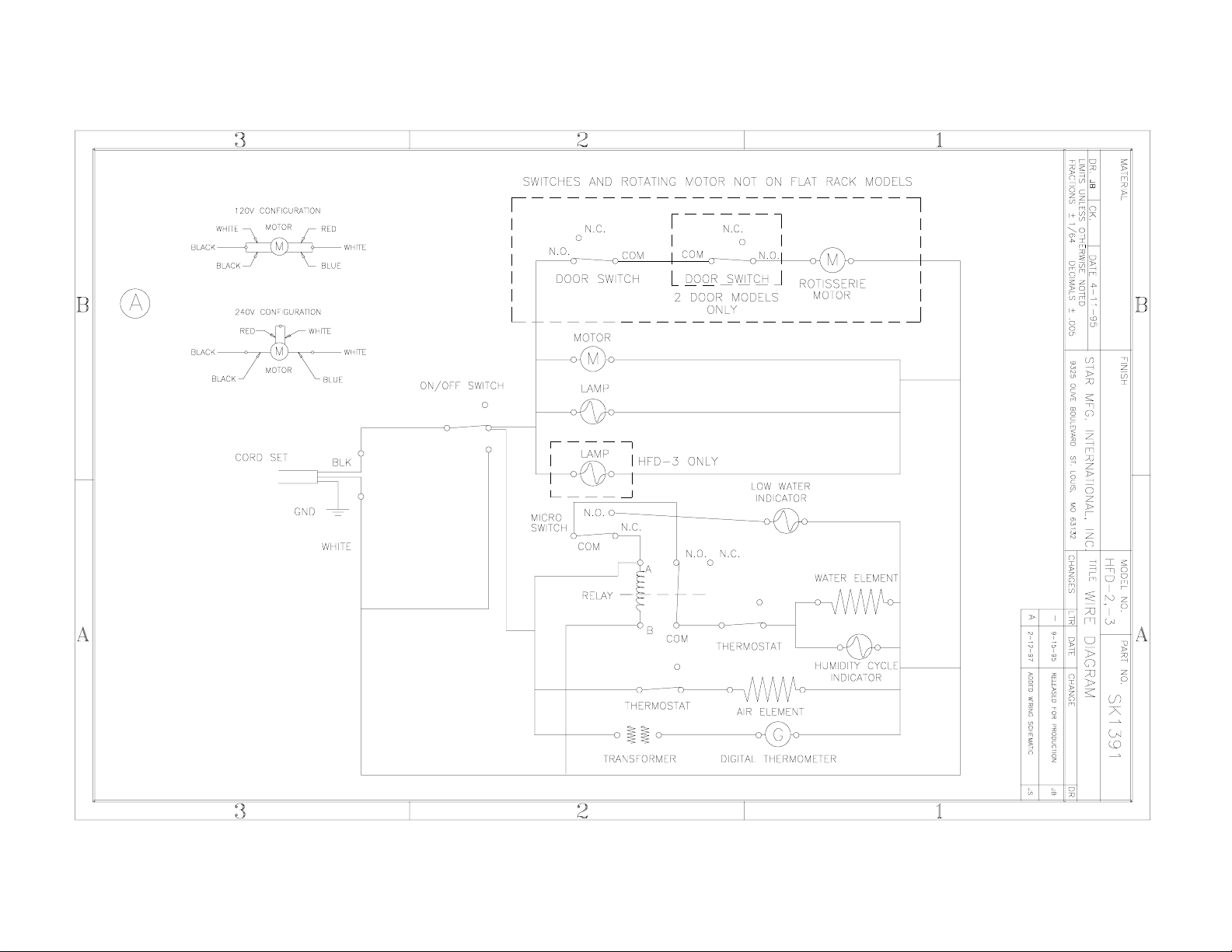

Model: HFD-3 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
1 C3-G8021 1 CORD ASSEMBLY
2 2K-Y2968 1 BUSHING - STRAIN RELIEF
3 2A-6904 4 FOOT
4 2I-Y7838 6,4 GLASS CHANNEL HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
5 2Q-Y9110 2,3 GLASS - SIDE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
6 2I-Y7840 6,4 GLASS CHANNEL HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
7 2K-Y1139 1 BUSHING - HEYCO
8 2I-Y7839 2 GLASS CHANNEL-TOP & BOTTOM HFD-3-P, HFD-3-CR
9 2J-Y9112 1 THERMOMETER/PROBE/TRANSFORMER
10 D5-220084 2/4 DOOR HINGE ASSY. HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
11 D5-Z0449 1,2 BRACKET - DOOR HINGE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
12 D5-Z0500 1,2 BRACKET - DOOR HINGE HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
13 2M-Y9122 1,2 MAGNETIC GASKET HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
14 D5-Y9152 1 TOP COVER
15 2M-Z0274 1 DECAL - OPERATOR
16 2S-Y9114 1 INDICATOR - GREEN
17 2J-Y6689 1 INDICATOR - RED
18 2R-Y9116 2 KNOB - CONTROL
19 PS-PD2046 1 SWITCH
20 2E-Y9700 1,2 SWITCH - DOOR INTERRUPT HFD-3-P, HFD-3-CR/HFD-3PTP, HFD-3PTCR
20a D5-Z2095 1 DOOR TAB
21 D5-Y9621 2 (PER DOOR) GLASS CHANNEL
22 2I-Y9119 1 (PER DOOR) DOOR LEG RIGHT VERTICAL
23 2I-Y9125 4 (PER DOOR) DOOR INSERT
24 2R-Y9124 1 (PER DOOR) HANDLE
25 D5-Y9622 2 (PER DOOR) GLASS CHANNEL
26 2Q-Y9121 1 (PER DOOR) DOOR GLASS
27 2I-Y9199 1 (PER DOOR) DOOR LEG LEFT VERTICAL
28 2I-Y9120 2 (PER DOOR) DOOR LEG HORIZONTAL
29 2B-Z4280 4 PIZZA SHELF HFD-3-CR, HFD-3PTCR
30 D5-220056 1 PRETZEL RACK ASSEMBLY HFD-3-P, HFD-3PTP
31 2T-Y9113 2 THERMOSTAT
32 D5-Y9866 1 FLOAT
33 2E-Y9151 1 MICROSWITCH
34 D5-Y9861 3 INSULATION
35 2N-Y9145 1 AIR HEATER
36 2U-Y9144 1 FAN
37 2U-Y6953 1 MOTOR - ROTISSERIE
38 2J-Y9112 1 THERMOMETER/PROBE/TRANSFORMER
39 2E-Y9148 1 RELAY
40 D5-Y9132 1 LID RESERVOIR
PARTS LIST EFFECTIVE 09/09/13
Star Manufacturing International, Inc.

Model: HFD-3 HUMIDIFIED CABINET
Fig No Part No Qty Description Application
41 2N-Y9181 1 WATER HEATER
42 2S-Y9118 1 BULB - 100W
43 2E-Y9184 1 SOCKET
44 2E-Y9502 1 WIRE HARNESS
45 2M-Y9858 1 DECAL-GLASS
46 2B-Z0290 4 SHELF (HFD-3,-3PT)
47 2M-Z0291 1 LABEL WATER FILL
48 D5-220091 1 PIZZA SHAFT
49 2C-Z0812 1 HAIRPIN
50 2B-Z7206 4 HOLDER ASSEMBLY
51 D5-Z0286 1,2 RACK ANGLE RIGHT HFD-3, HFD-3PT
52 D5-Z0309 1 RACK ANGLE LEFT HFD-3
53 D5-Z0310 1 RACK ANGLE RIGHT HFD-3
54 D5-Z0285 1,2 RACK ANGLE LEFT HFD3, HFD-3PT
PARTS LIST EFFECTIVE 09/09/13
