Star SWCB User manual

1
WAFFLE
BAKERS
NON-ELECTRONIC MODELS
SWCB, SWB7R1
SWB7R2, SWB7RB
SWB7RBS, SWB8SQ
SWB8RBD, SWB8RBL
Installation and
Operation
Instructions
2M-Z1736 Rev. K 6/11/08
SWB7R2

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to
ensure faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone] Local [phone]
Fax: [phone] Local [phone]
E-mail [email protected]
[email protected]
[email protected]
Website: www.star-mfg.com
The Star Service Help Desk
Authorized Service Agent
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Telephone: [phone] Local [phone]
Mailing Address: Star Manufacturing International Inc.
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
GENERAL INFORMATION
CAUTION
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels associated with
the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed. This
unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made with
the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a
request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make
an inspection and will supply necessary claim forms.
GENERAL INSTALLATION DATA
For your protection, we recommend that a qualied electrician install this appliance. The electrician
should be familiar with electrical installations and your local electrical requirements. Proper
connections and power supply are essential for efcient performance. The supply circuit should be
properly fused as required by electrical code. Plug the unit into a proper A.C. voltage wall outlet only.
A three-prong plug is provided with the unit. If an adapter is used be sure a good ground is provided.
LOAD
The rated load is on the nameplate. The line in the wall outlet must be heavy enough to carry this load,
or the wafe baker will be slow in performance.
WARNING
DO NOT CONNECT TO DIRECT CURRENT (DC).
TEFLON®COATED WAFFLE BAKERS
CAUTION
DO NOT USE METAL UTENSILS TO REMOVE WAFFLE FROM THE TEFLON®
COATED WAFFLE BAKER. THIS WILL VOID THE WARRANTY.
CAUTION
DO NOT CLEAN TEFLON®GRIDS WITH ABRASIVES. THIS WILL VOID THE
WARRANTY.
CORD, PLUG AND GROUND INSTRUCTIONS
For your protection, this appliance is equipped with a 3-conductor load cord, having a
grounding type plug. It should only be used with a properly grounded 3-prong receptacle. Do
not modify. If you use an adapter be sure your system is grounded. Connect the green wire
to a mounting screw of the receptacle. For ungrounded electrical systems, connect the green
wire of the adapter to a known permanent ground.

4
RELEASE AGENT CAUTION
If you nd it necessary to use a release agent to keep wafes from sticking, you should brush
it on. Spraying may oversaturate the grids and the excess has the possibility of building
up inside the baker and causing damage. If you only have a spray type release agent, try
spraying it into a container and using the contents with a pastry brush.
SEASONING WAFFLE GRIDS
(Not applicable to Teon ®coated grids)
With a pastry brush, apply vegetable oil, butter, or grid release agent on both grids. Turn
power on and allow to preheat for twenty minutes. Lift the lid and re-apply vegetable oil,
butter, or grid release agent. Allow the unit to heat for ve more minutes. The baker is now
ready for use.
CAUTION
GRIDSANDCUPSHAVEVERYHIGHTEMPERATURES. DONOTCOMEINDIRECT
CONTACT WITH THESE PARTS WHEN THE WAFFLE BAKER IS IN OPERATION.
DO NOT ALLOW CORD TO COME INTO CONTACT WITH HOT GRIDS.
GENERAL OPERATING INSTRUCTIONS
WAFFLES
Turn the unit on and allow to pre-heat for 15 minutes with the grids closed.
Once the baker has reached proper temperature you can proceed as follows:
1. Lift the lid, pour in mix and close.
2. Rotate grids 180o. (Belgian units only)
3. Start timer by pressing the start/stop pad.
4. When timer beeps, depress the start/ stop pad.
5. Rotate grids 180o (Belgian units only)
6. Remove wafe. (Do not use metal utensils on teon coated wafe bakers.)
7. For next wafe repeat steps 1 through 6.
Setting the Time:
If necessary, the factory pre-set timer can be adjusted to satisfy individual preferences.
To increase time, depress and hold the "up" button.
The start/ stop button can now be used to increase baking time.
To decrease time, depress and hold the “down” button.
The “start/stop” button can now be used to decrease baking time.
Setting the temperature for models equipped with time and
temperature controllers only -
If necessary, the factory pre-set temperature can be changed: To view the temperature, depress and
hold “TEMP” button and press “START/STOP” button. Pre-set temperature will be displayed.
To increase the temperature press “+” button; to decrease press “-“ button. To lock the temperature
press the “START/STOP” button.
Changing from F to C: (“F” (Fahrenheit) to “C” (Celsius))
Hold “TEMP” button and turn “OFF” and then “ON” the lighted switch on the front panel. To change
back from “C” to “F”, repeat the same procedure. Setting the temperature is available in both modes
“F” and “C”.

5
HELPFUL HINTS
1. During long slack periods of the day, turn off the baker. During short slack periods, leave
unit on with the grids closed. This will help minimize carbon buildup.
2. Do not store batter in the refrigerator and expect the same speed in baking. Cold batter will
take longer to bake.
3. For proper release of wafes it is important that the batter contain the proper amount of
shortening.
CLEANING
For non-coated grids: Clean outside of baker every day that it is in use. Clean grids with hot
water and mild detergent and a nylon brush to prevent a buildup of carbon from forming. In
order to remove carbon from grids, unplug the unit, place ammonia soaked cloth over bottom
grid, close and leave overnight. A nylon brush may then be used to remove the carbon
buildup. If you use a commercial carbon remover, make sure that it is safe for aluminum.
CAUTION
DO NOT CLEAN USING A WATER JET OR SIMILAR DEVICE FOR CLEANING.
DO NOT IMMERSE IN WATER AT ANY TIME.
CAUTION
DO NOT CLEAN TEFLON®GRIDS WITH ABRASIVES. THIS WILL VOID THE
WARRANTY.
For cleaning the baker outside use only a soft cloth and mild soap to keep the exterior surfaces bright
and shining. Do not use detergents, strong abrasives or metal scouring pads on the exterior surfaces
of the wafe baker.

6
Part# 2M-4497-2 12/06 RMS
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-AOnly)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
*The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
*The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a StarAuthorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a FactoryAuthorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer. SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the ServiceAgency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
*The Model 510FD Fryer.
*The Model 526TOAToaster Oven.
*The Model J4R, 4 oz. Popcorn Machine.
*The Model 518CMA& 526CMACheese Melter.
*The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
*The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
*All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
*All Nacho Cheese Warmers except Model 11WLASeries Nacho Cheese Warmer.
*All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
*All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSASeries.
*All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.

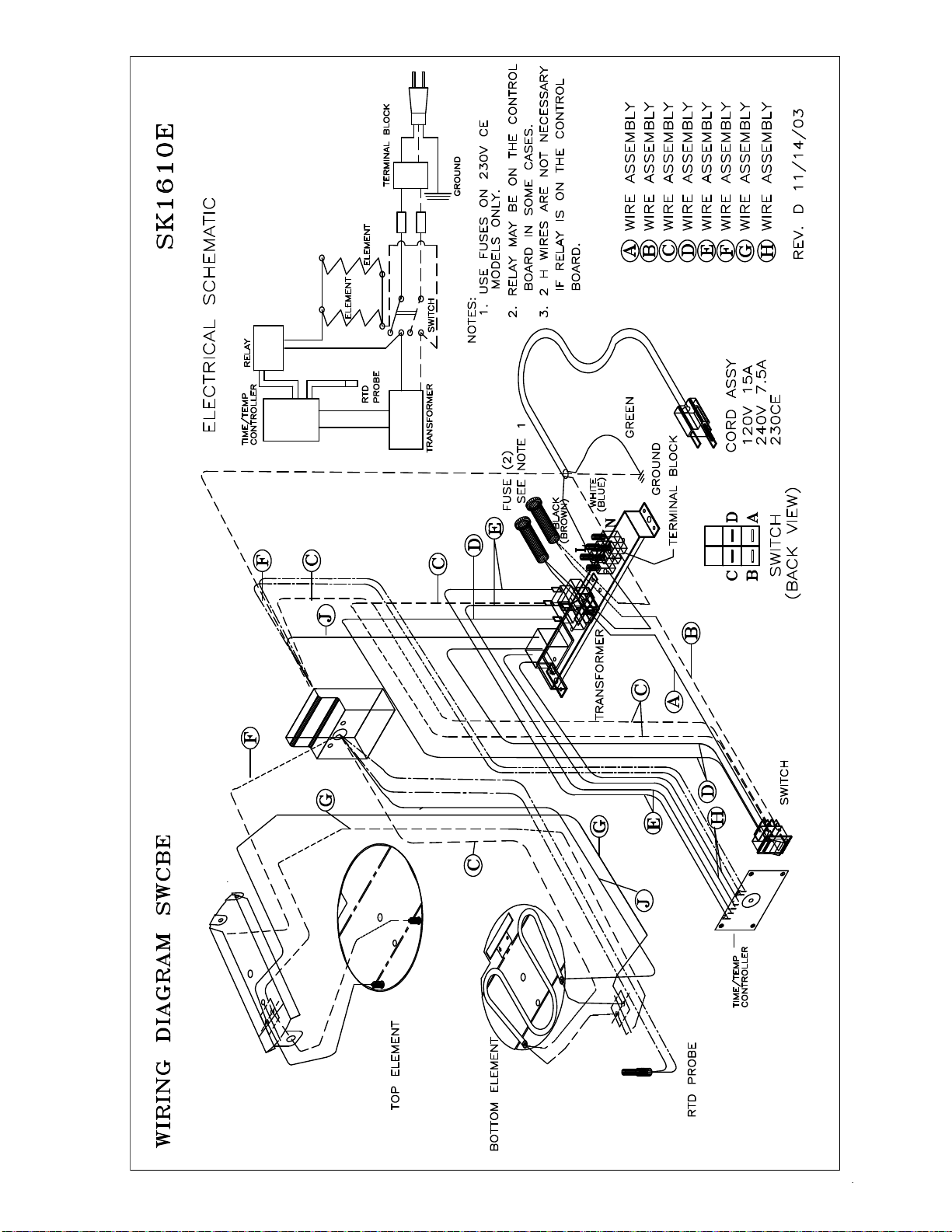

7

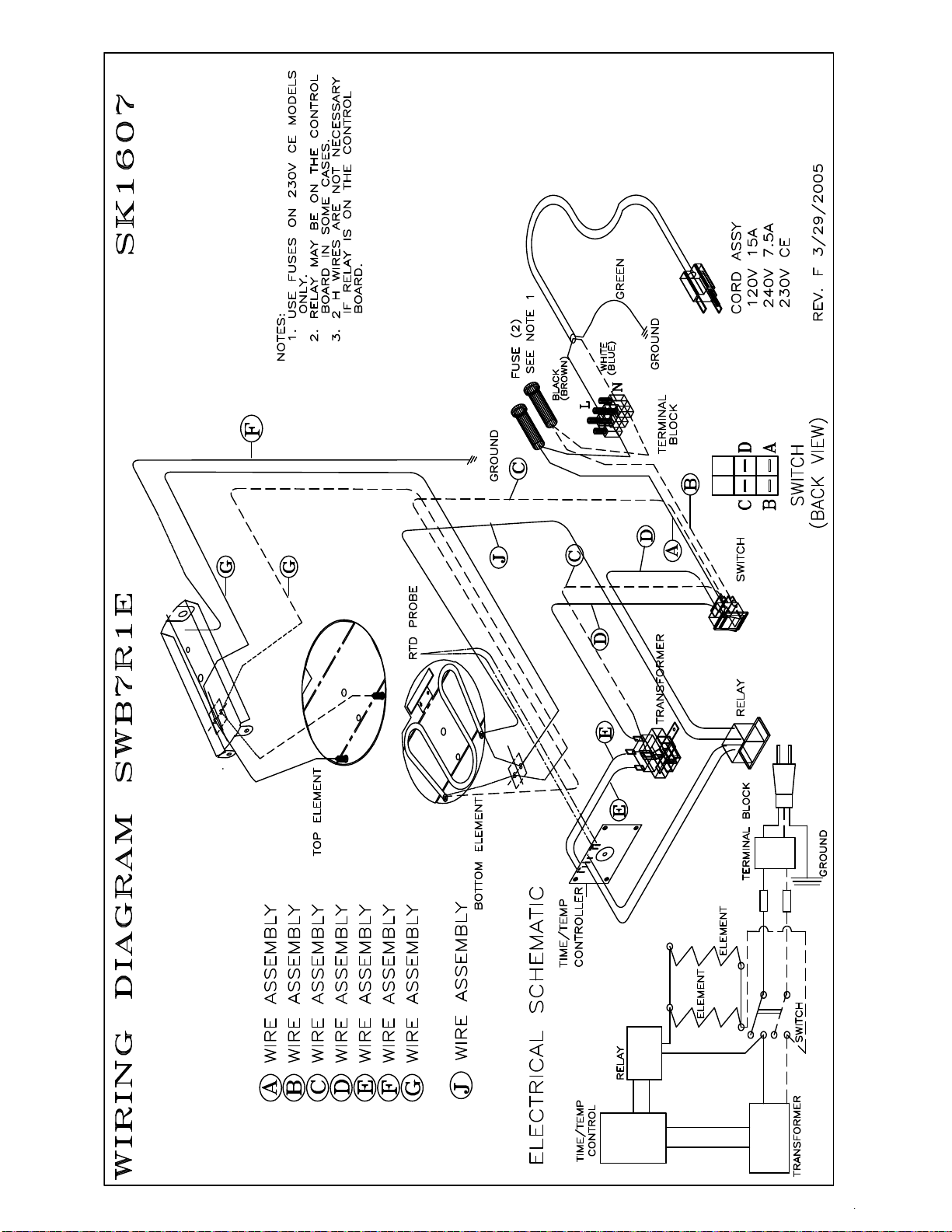

8

9

10

11

12

13

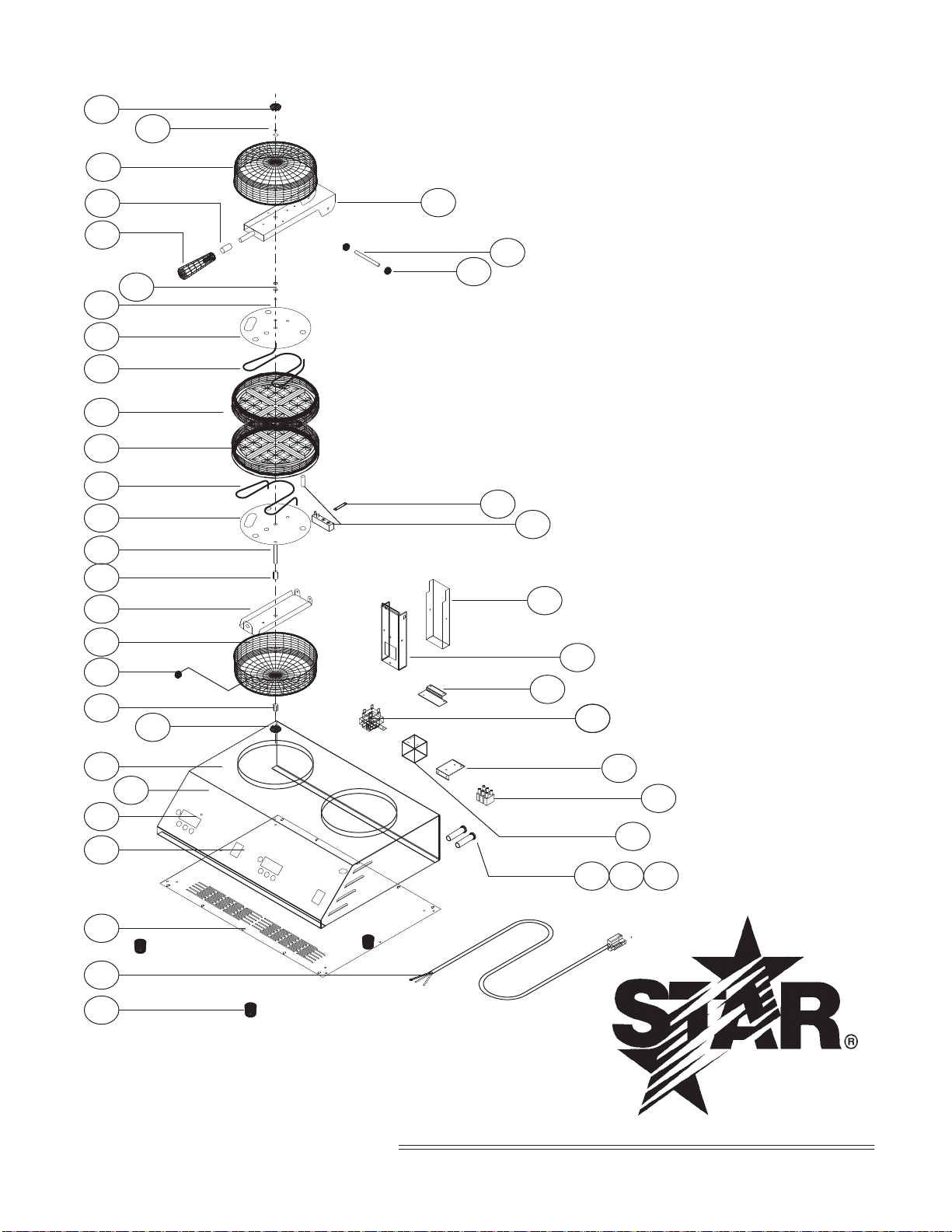

STAR MANUFACTURING INTERNATIONAL, INC.
MODEL: SWB7RB, SWB7RBS, SWB8RBL,
SWB7RBE, SWB8RBLE SK1595 08/14/01REV. C
33
3
8
6
41
7
10
31
30
29
28
17
17
21
18
16
26
24
13
15
11
925
4
5
1
2
12
13
15
16
20
11 34
35
19
9
10
12
22
32
23
14
14
27
37
38 39 40

14
SWB7RB, SWB7RBS, SWB8RBL Wafe Bakers
PARTS LIST June 11, 2008, Rev K
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description and Model Designation
Star Manufacturing International, Inc.
MODEL
Part
Number
Key
Number
1 2I-Z0057 4 FOOT RUBBER
2 B9-73006 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z1836 1 TIMER
6 B9-73004 1 BODYASSEMBLY
7 B9-73003 1 YOKE ASSEMBLY
8 B9-73002 1 HINGE TUBE ASSEMBLY
9 2P-Z1735 2 PLUG CAP 3/4
10 2C-Z1734 2 COUPLING 1/4-20
11 2C-08-07-0064 2 ACORN NUT
12 B9-Z1733 2 CUP 7" SWB7RB
B9-Z1790 2 CUP 8" SWB8RBL
13 B9-Z1799 2 7" CUP SUPPORT SWB7RB
B9-Z1800 2 8" CUP SUPPORT SWB8RBL
14 2A-Z2644 2 SPACER 3/8X0.035
15 B9-Z1834 2 PLATE SWB7RB
B9-Z2013 2 PLATE SWB8RBL
16 2N-Z1457 2 ELEMENT 500W 120V SWB7RB
2N-Z2720 2 ELEMENT 500W 240V SWB7RB
2N-Z2010 2 ELEMENT 660W 120V SWB8RBL
2N-Z2011 2 ELEMENT 660W 240V SWB8RBL
17 2C-Z1674 2 STUD 1/4-20 X 2 1/4
18 2F-Z1666 1 GRID 7" BELGIAN BOTTOM SWB7RB
2F-Z1768 1 GRID BOTTOM 8" BELGIANLITE SWB8RBL
2F-Z4846 1 GRID 7" BELGIAN COATED SWB7RBS
19 2A-Z6635 1 SHORT HANDLE ROD PLATED
20 2R-09-WB-0027 1 HANDLE BLACK 3/8-16
21 2F-Z1746 1 GRID 7" BELGIAN, TOP SWB7RB
2F-Z1767 1 GRID 8" BELGIANLITE, TOP SWB8RBL
2F-Z4847 1 TOP GRID 7" BELGIAN COATED, TOP SWB7RBS
22 2T-Z2043 1 THERMOSTAT
23 B9-Z1998 1 HOLDER-THERMOSTAT
24 B9-Z1805 1 BRACKET STOPPER
25 B9-73010 1 TOP HINGEASSEMBLY
B9-Z2664 1 PIN HINGE
26 B9-Z1765 1 LOWER HINGE MACHINED
27 2A-Z2643 2 SPACER 1/4X0.028
28 B9-73011 1 BRACKET REAR ASSEMBLY
29 B9-Z1772 2 TENSION SPRING
30 B9-Z1776 1 PLATE CLAMP
31 B9-73033 1 COLLAR ASSEMBLY
32 2C-Z2613 1 SET-SCREW 10-32X3/8
33 B9-Z1724 1 COVER-BACK
34 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V CE 230V CE
1
2

15
PARTS LIST June 11, 2008, Rev K
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description and Model Designation
Star Manufacturing International, Inc.
MODEL
Part
Number
Key
Number
SWB7RB, SWB7RBS, SWB8RBL Wafe Bakers
36 B9-Z1760 1 DRIP TRAY (not shown)
37 2E-Z2890 1 RELAY 25A 230V CE
2E-05-07-0352 1 RELAY 30A
38 2E-Z2145 2 FUSEHOLDER 230V CE
39 2E-Z2146 2 FUSE CARRIER 230V CE
41 2M-Z2108 1 SIGN SWB7RB, SWB8RBL
NI B9-40-WB-0046 AR KIT: ARM TERMINAL ASSEMBLY
NI 2K-Y1139 1 HINGE TUBE BUSHING
NI IO-E1500 AR SLEEVING #4 .208ID GLASS
NI B9-Z2645 2.25 FT SLEEVING FOR TOP WIRES
2
2

16
3
6
8
17
21
19
4
5
1
2
11
13
15
16
9
39
26
30
32
18
7
STAR MANUFACTURING INTERNATIONAL, INC.
MODEL:
SWB7R, SWB7R1, SWB7R1E, SWB7R2E
SK1605 08/28/98
28
27
23
22
24
14
10
For Illustrative purposes, only one grid assembly is shown.
8
7
13
14
25
31
29
20
12
12
35
36 37 38
REV. A

17
PARTS LIST June 11, 2008, Rev K
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description and Model Designation
Star Manufacturing International, Inc.
MODEL
Part
Number
Key
Number
SWB7R1, SWB7R2 Wafe Bakers
1 2I-Z0057 4 FOOT RUBBER
2 B9-73006 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1926 1 COVER-BOTTOM SINGLE SWB7R1
B9-Z1927 1 COVER-BOTTOM DOUBLE SWB7R2
4 2E-Z1858 1/2 SWITCH 20A/120V MOLVENO / 240V SWB7R1/SWB7R2
5 2J-Z1836 1/2 TIMER / 240V SWB7R1/SWB7R2
6 B9-73074 1 BODYASSEMBLY SINGLE SWB7R1
B9-73073 1 BODY ASSEMBLY DOUBLE SWB7R2
7 2P-Z1735 2/4 PLUG CAP 3/4 SWB7R1/SWB7R2
8 2C-Z1734 2/4 COUPLING 1/4-20 SWB7R1/SWB7R2
9 2C-08-07-0041 1/2 ACORN NUT SWB7R1/SWB7R2
10 2D-Z7611 1/2 CUP 7" SWB7R1/SWB7R2
11 B9-Z1799 1/2 7" CUP SUPPORT SWB7R1/SWB7R2
12 2A-Z2644 2/4 SPACER 3/8X0.035 SWB7R1/SWB7R2
13 2C-Z1674 2/4 STUD 1/4-20 X 2 1/4 SWB7R1/SWB7R2
14 B9-Z1834 2/4 PLATE SWB7R1/SWB7R2
15 2N-Z2843 1/2 ELEMENT ROD 475W 120V SWB7R1/SWB7R2
2N-Z2264 1/2 ELEMENT ROD 475W 240V SWB7R1/SWB7R2
16 2F-Z1770 1/2 GRID 7" STANDARD BOTTOM SWB7R1/SWB7R2
17 2F-Z1769 1/2 GRID 7" STANDARD SWB7R1/SWB7R2
18 2N-Z2040 1/2 ELEMENT ROD 425W 120V SWB7R1/SWB7R2
2N-Z2135 1/2 ELEMENT ROD 425W 240V SWB7R1/SWB7R2
19 2R-09-WB-0027 1/2 HANDLE BLACK 3/8-16 SWB7R1/SWB7R2
20 2A-Z2606 1/2 SPACER SWB7R1/SWB7R2
21 B9-Z2016 1/2 CUP 7" SWB7R1/SWB7R2
22 B9-73044 1/2 CUP SUPPORT HINGE ASSEMBLY SWB7R1/SWB7R2
23 B9-04-WB-0198 1/2 PIN HINGE SWB7R1/SWB7R2
24 2C-08-07-0040 2/4 ACORN NUT SWB7R1/SWB7R2
25 B9-Z1998 1/2 HOLDER THERMOSTAT SWB7R1/SWB7R2
26 2T-Z2043 1/2 THERMOSTAT SWB7R1/SWB7R2
27 B9-04-WB-0231 1/2 WIRE CHANNEL COVER SWB7R1/SWB7R2
28 B9-Z2008 1/2 WIRE CHANNEL SWB7R1/SWB7R2
29 B9-Z2612 1/2 BRACKET-TRANSFORMER SWB7R1/SWB7R2
30 2E-05-07-0351 1/2 TRANSFORMER 115/10V 6VA 120V SWB7R1/SWB7R2
2E-05-07-0350 1/2 TRANSFORMER 230V/10V 6VA 240V SWB7R1/SWB7R2
2E-Z2974 1/2 TRANSFORMER 230V/10V 230V CE SWB7R1/SWB7R2
31 B9-Z1925 1 BRACKET-TERMINAL
32 2E-Y9050 1 TERMINAL BLOCK
33 B9-Z1853 1 DRIP TRAY, SINGLE (not shown) SWB7R1
34 B9-Z1751 1 DRIP TRAY, DOUBLE (not shown) SWB7R2
35 2E-Z2890 1/2 RELAY 25AMP 230V CE SWB7R1/SWB7R2
2E-05-07-0352 1/2 RELAY 30AMP SWB7R1/SWB7R2
36 2E-Z2145 2 FUSEHOLDER 230V CE
37 2E-Z2146 2 FUSEHOLDER 230V CE
38 2E-Z2147 2 FUSE 8A 250V 230V CE
39 2M-Z2111 1 SIGN SWV7R1
2M-Z2112 1 SIGN SWB7R2
1
1

18
STAR MANUFACTURING INTERNATIONAL, INC.
SK1606 5/21/1999REV. A
28
3
6
7
9
16
16
20
17
24
14
22
21
11
8
23
4
5
1
2
11
12
14
15
18
10
38
27
29
30
32
8
9
26
31
25
13
13
19
35 36 37
34
MODEL SWB8SQ, SWB8SQE

19
PARTS LIST June 11, 2008, Rev K
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description
Star Manufacturing International, Inc.
MODEL
Part
Number
Key
Number
SWB8SQ Wafe Bakers
1 2I-Z0057 4 FOOT RUBBER
2 B9-73006 1 LEAD IN CORD 120V 15A
B9-73028 1 LEAD IN CORD 240V
B9-73029 1 LEAD IN CORD 230V CE
3 B9-Z1723 1 COVER-BOTTOM
4 2E-Z1858 1 SWITCH 20A/120V MOLVENO
5 2J-Z1836 1 TIMER
6 B9-73004 1 BODYASSEMBLY
7 B9-Z1845 1 FRONT SUPPORT
8 2P-Z1735 2 PLUG CAP 3/4
9 2C-Z1734 2 COUPLING 1/4-20
10 2C-08-07-0064 1 ACORN NUT
11 B9-Z1830 2 CUP
12 B9-Z1831 2 CUP SUPPORT
13 2A-Z2644 2 SPACER 3/8X0.035
14 B9-Z1832 2 PLATE
15 2N-Z2841 1 ELEMENT 855W 120V
2N-Z2249 1 ELEMENT 855W 240V
16 2C-Z1674 2 STUD 1/4-20 X 2 1/4
17 B9-Z1780 1 GRID 8" SQUARE BOTTOM
18 2R-09-WB-0027 1 HANDLE BLACK 3/8-16
19 2A-Z2607 1 SPACER
20 B9-Z1779 1 GRID 8" SQUARE
21 2N-Z2842 1 ELEMENT 790W 120V
2N-Z2248 1 ELEMENT 790W 240V
22 B9-85016 1 CUP SUPPORT SQUAREASSEMBLY
23 B9-85015 1 TOP HINGE ASSEMBLY
24 B9-Z1764 1 LOWER HINGE MACHINED
25 2A-Z2643 2 SPACER 1/4X0.028
26 B9-Z1998 2 HOLDER THERMOSTAT
27 2T-Z2043 2 THERMOSTAT
28 B9-Z1724 1 COVER-BACK
29 2E-05-07-0351 1 TRANSFORMER 115/10V 6VA 120V
2E-05-07-0350 1 TRANSFORMER 230V/10V 6VA 240V
2E-Z2974 1 TRANSFORMER 230V/10V 230V CE
30 2E-Y9050 1 TERMINAL BLOCK
31 B9-Z1859 1 PLATE-COVER-HINGE
32 B9-Z1835 1 SPACER
33 B9-Z1760 1 DRIP TRAY (not shown)
34 2E-05-07-0352 1 RELAY 30 AMP
2E-Z2890 1 RELAY 25AMP 230V CE
35 2E-Z2145 2 FUSEHOLDER 230V CE
36 2E-Z2146 2 FUSE CARRIER 230V CE
37 2E-Z2147 2 FUSE 8A 250V 230V CE
38 2M-Z2108 1 SIGN SWB8SQ
NI B9-40-WB-0046 AR KIT;ARM TERMINALASSEMBL
1
1

20
MODEL: SWCB
STAR MANUFACTURING INTERNATIONAL, INC.
SK1604 5-20-99REV. A
31
3
6
7
9
16
16
18
17
15
29
25
14
8
28
4
5
1
2
11
12
14
15
20 21
19
22
10
32
33
8
9
11
26
34
23
27
35
13
13
30
24
37
38 39 40
LOCKING MECHANISM
41
