StarTech.com InfoSafe SAT3510U2B User manual

SATA Hard Drive Enclosure
SAT3510U2B Instruction Manual
Actual product may vary from photo
3.5" USB 2.0 SATA HDD Enclosure with One Button Backup

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aannddootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss
This manual may make reference to trademarks, registered trademarks, and other protected names
and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur
these references are for illustrative purposes only and do not represent an endorsement of a
product or service by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct acknowledgement
elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,
registered trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Hard Drive Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Software Utility Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Connecting SAT3510U2B to the host computer . . . . . . . . . . . . . . . . .7
Using the Backup4all software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Disconnecting SAT3510U2B from the host computer . . . . . . . . . . . . . . . . . .8
Instruction Manual
i
TTaabblleeooffCCoonntteennttss

Instruction Manual
1
Thank you for purchasing a StarTech.com 3.5" USB 2.0 SATA HDD Enclosure with One
Button Backup. The perfect solution for high-speed data backups, SAT3510U2B supports
high capacity hard drives to maximize storage capability, while housing the drive in a
lighweight enclosure, and features a built-in cooling fan to keep the drive running at
optimal temperatures.
IInnttrroodduuccttiioonn
•Supports almost any Universal fitting for 3.5" SATA I/II hard drives
Features
BBeeffoorreeyyoouubbeeggiinn
System requirements:
•3.5” SATA hard drive
Package contents:
•1 x Enclosure
This package should contain:
•Lightweight, durable aluminum finish with built-in cooling fan
•Power and data transfer LEDs offer simple monitoring of drive activity
•Works with High Capacity HDD’s - Supports 750 GB’s
•Host computer with an available USB port. Operating system requirement: Windows
98SE/ME/2000/XP/VISTA/Mac OS 9x and up
•1 x Power Adapter
•1 x Driver / Software utility CD
•1 x Instruction Manual
•1 x Stand
•1 x Screw kit
•1 x USB Cable
•1 x Backup4all User Guide

Instruction Manual
2
IInnssttaallllaattiioonn
WARNING: Hard drives require careful handling, especially when being
transported. If you are not careful with your hard disk, lost data may result.
Always handle your hard drive and storage device with caution.
WARNING: Do not disconnect any cables or power sources while the hard drive
is active. This can result in data loss and possible damage to the hard drive.
WARNING: Hard drives, like all computer equipment can also be severely
damaged by static electricity. Be sure that you are properly grounded before
opening your computer case or touching any components. StarTech.com
recommends that you wear an anti-static strap when installing any computer
equipment. If an antistatic strap is unavailable, discharge yourself of any static
electricity build-up by touching a large grounded metal surface (such as the
computer case) for several seconds.
1. Unscrew the enclosure and remove
the rear panel cover. Pull the tray
out of the enclosure:
2. Place the 3.5” SATA drive in the tray,
with the hard drive SATA connector
facing the SATA connections
provided by the drive tray:
Hard Drive Installation
Rear Panel Cover

Instruction Manual
3
3. With the hard drive connected to the
tray (using the SATA connection),
turn the tray over and place it on a
flat, stable surface, exposing the
base of the tray. Attach the drive to
the enclosure tray, using the screw
kit provided:
4. Once the drive has been secured to
the drive tray, insert the tray (with
drive) into the enclosure:
5. Secure the tray in the enclosure using the
screws removed in step #1.
The hard drive has now been installed in the enclosure. Please proceed to software
installation, as detailed in the following section.

Instruction Manual
4
Software Utility Installation
1. Insert the Backup4All CD into the CD/DVD-ROM drive. Locate and double-click on
the file titled Autorun.exe. (d:\Autorun.exe, where d:\ is the CD/DVD-ROM drive letter
designation).
To use the One Button Backup feature, the accompanying Backup4all software must be
installed on the host computer:
2. When the Software Installer window
appears, click on Install:
3. Select OTB Software:
4. Select the preferred language for installation
and click OK.
5. When the Welcome to Backup4all setup
Wizard screen appears, please click Next.

Instruction Manual
5

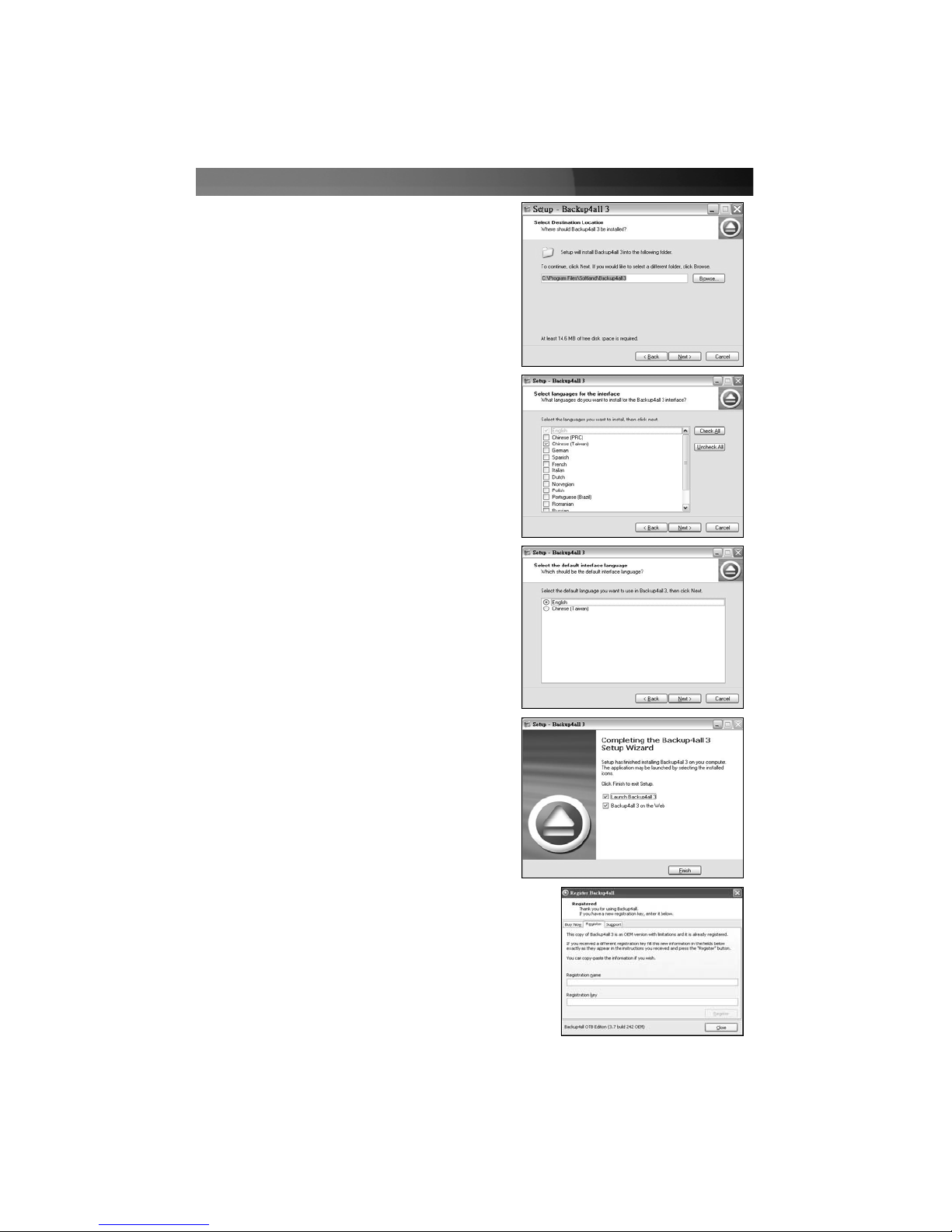

6. Click on Next if you wish to install the
software in the default directory. If you wish
to specify a destination other than the default
location for the software, please click on
browse, and specify an alternate installation
path.
7. Select the languages you wish to use with
the Backup4all interface and click Next.
8. Select the default language that will be used
with the Backup4all interface, and click Next.
9. When you receive a message indicating that
the Backup4all Setup Wizard has finished
installation, select Launch Backup4all3 and
click on Finish.
10. When the Backup4all utility is first launched, you
will be asked to register the software. Enter the
registration key in the text box provided, then click
Close to conclude the software installation. The key
can be found on the CD sleeve containing the
Backup4all software (24 character alphanumeric
code)

Instruction Manual
6
11. To access the Backup4all utility, click on the
Backup4all icon, located on the desktop. In
the window that appears, click on Tools, then
Options. Select One Touch Backup in the left
pane, and ensure that there is a checkmark
next to Enable “One Touch Backup” support.
This feature is now enabled.
Driver Installation
Please note that if you are using Windows 98/98SE, you are required to install the
necessary drivers, prior to usage. If you are using Windows ME, 2000, XP or higher, no
driver installation is required, as the operating system will automatically install the
necessary files. As such, if you are using Windows ME or above, please advance to
Connecting SAT3510U2B to the host computer.
Windows 98/98SE users:
1. Ensure the Backup4All CD is present in the CD/DVD-ROM drive. Locate and double-
click on the file titled Autorun.exe (d:\Autorun.exe, where d:\ is the CD/DVD-
ROM drive letter designation).
2. When the Software Installer window
appears, click on Install:
3. Select 98/ME Driver for SATA:

Instruction Manual
7

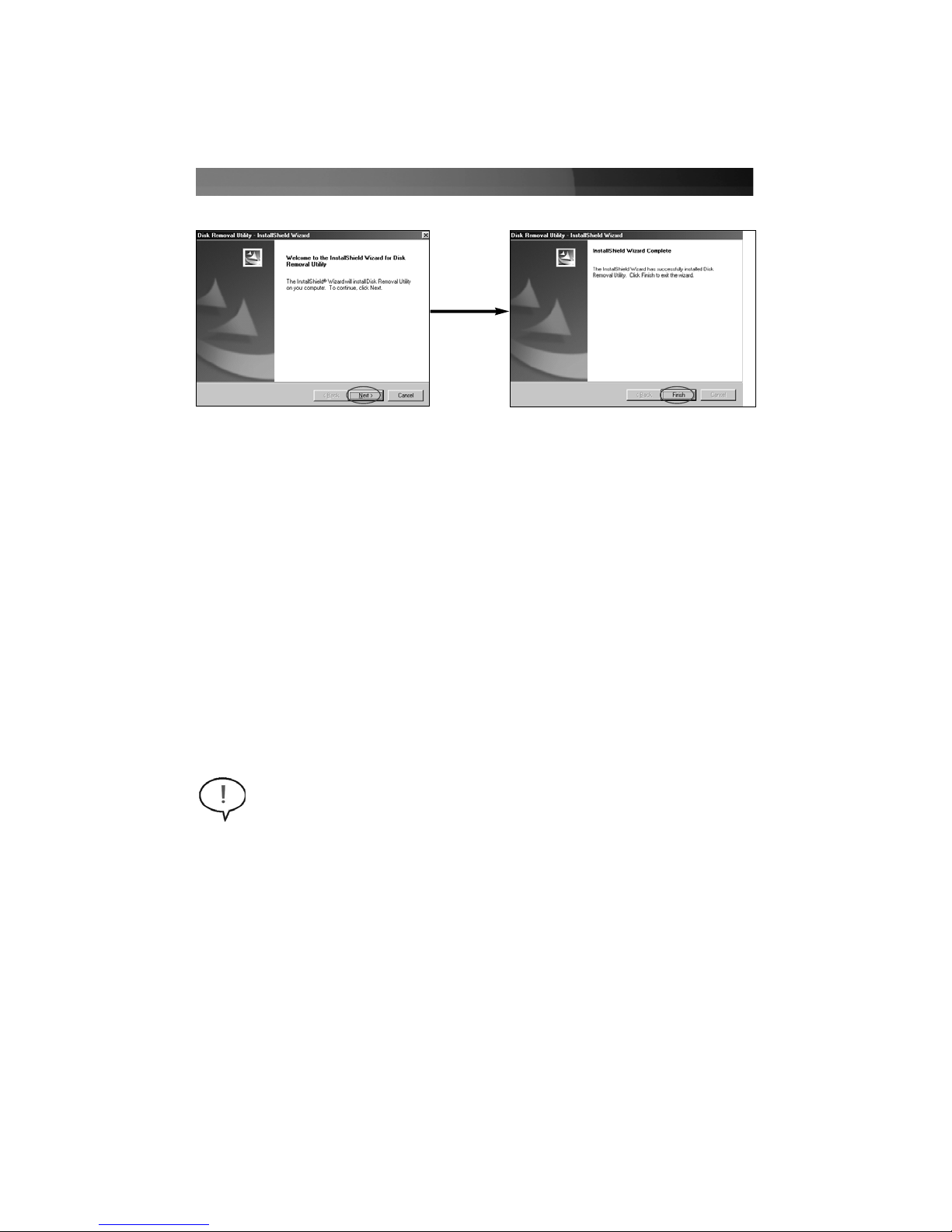

4. Click Next, then Finish to complete driver installation.
Once the drivers have been installed, the host computer is ready to use SAT3510U2B.
Connecting SAT3510U2B to the host computer
1. Connect the power adapter (included) to the drive enclosure, using the power port on
the rear panel of the enclosure (marked DC12V). Connect the remaining end of the
power adapter to an available power outlet.
2. Insert the type ‘b’ connector provided by the USB cable (included) into the port
marked USB 2.0 on the rear panel of the drive enclosure. Insert the remaining (type
‘a’) connector into an available USB port on the host computer.
3. One the rear panel of the enclosure, move the Fan Switch to the ON position.
4. Power the drive enclosure by pressing the side of the remaining switch marked with a
dot.
Please note: SAT3510U2B features an ON/OFF switch that controls the
internal cooling fan. Please note that to ensure the best possible operating
environment for the installed hard drive and reduce the risk of damage to the
drive, the fan should be left in the ON position. This feature is intended for
temporary use only, as necessary to quiet environments.
Using the Backup4all software
For explicit instructions on how to use the Backup4all software that was packaged with
SAT3510U2B, please see the Backup4all User Guide.

Instruction Manual
8
DDiissccoonnnneeccttiinnggSSAATT33551100UU22BBffrroommtthheehhoossttccoommppuutteerr
WARNING: Do not disconnect any cables or power sources while the hard drive
is active. This can result in data loss and possible damage to the hard drive.
1. In Windows, click on the Safe Remove icon located in the taskbar, and select the
connected enclosure from the menu provided, then click Stop. From the menu that
appears next (pictured below), select the device to disconnect, and click OK.
*Safe Remove
2. Once the connected hard drive activity has terminated, it is safe to power down and
remove the enclosure from the host computer, by disconnecting the USB cable from
the host computer.

Instruction Manual
9
TTeecchhnniiccaallSSuuppppoorrtt
StarTech.com’s lifetime technical support is an integral part of our commitment to provide
industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
WWaarrrraannttyyIInnffoorrmmaattiioonn
This product is backed by a one-year warranty. In addition, StarTech.com warrants its
products against defects in materials and workmanship for the periods noted, following
the initial date of purchase. During this period, the products may be returned for repair, or
replacement with equivalent products at our discretion. The warranty covers parts and
labor costs only. StarTech.com does not warrant its products from defects or damages
arising from misuse, abuse, alteration, or normal wear and tear.
LLiimmiittaattiioonnooffLLiiaabbiilliittyy
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
officers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
SSppeecciiffiiccaattiioonnss
Certifications ROHS, FCC, CE, UL
Bus Type USB2.0
Connectors
External:
1 x USB B Female Connector
Internal:
1 x SATA data
1 x SATA power
Power Adapter 12V 2A Power adaptor
Maximum Data Transfer Rate USB2.0 at 480Mbps max (using USB 2.0 connection to host)
Chipset Sunplus 215
OS Support Windows 98SE/ME/2000/XP/VISTA/Mac OS 9x and up

26 June 2007 (Rev. A)
AAbboouuttSSttaarrTTeecchh..ccoomm
StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”.
Since 1985, we have been providing IT professionals with the quality products
they need to complete their solutions. We offer an unmatched selection of
computer parts, cables, server management solutions and A/V products and
serve a worldwide market through our locations in the United States, Canada, the
United Kingdom and Taiwan.
Visit www.startech.com for complete information about all our products and to
access exclusive interactive tools such as the Parts Finder and the KVM
Reference Guide. StarTech.com makes it easy to complete almost any IT
solution. Find out for yourself why our products lead the industry in performance,
support, and value.
