Introduction
Thank you for purchasing a StarTech.com VS420RDVIA DVI Video and
Audio Matrix Splitter/Switcher - 2 in x 4 out. With the Converge A/V DVI
Matrix splitter/switcher, you can select between two DVI-I sources on
multiple monitors (up to four). With the push of a button, the VS420RDVIA
lets you select what input you’d like on each display. Plus, the option to
independently toggle video and audio on/off for each display is also avail-
able.
This matrix splitter/switcher inludes IR control and an additional IR cable
sensor if you would like to hide the unit. The VS420RDVIA also includes
ear-mounts for 19” rack-mount use.
Please note: VS420RDVIA will not convert video signals. For example,
inputting a DVI-A signal to a DVI-D display will not work. Input signal must
be the same as output.
Features
Allows two DVI computers to provide video input to display on four dif-•
ferent monitors with audio
Allows you to switch video input signals or toggle video and audio on/•
off on all four displays
Cascadable and units allow use of one remote control (remote control•
included)
Equipped with easy to use front panel selection buttons•
Rack-mountable allows for use with a standard 19” rack•
Supports video resolutions up to 1600x1200•

Instruction Manual
2
Package Contents
1 X DVI Video and Audio Matrix Switcher•
1 X Instruction Manual•
1 X IR External Sensor•
1 X Power Adapter•
1 X Remote Control•
1 X Set of Ear-Mounts for Rack Mounting•
Installation
Input Connection

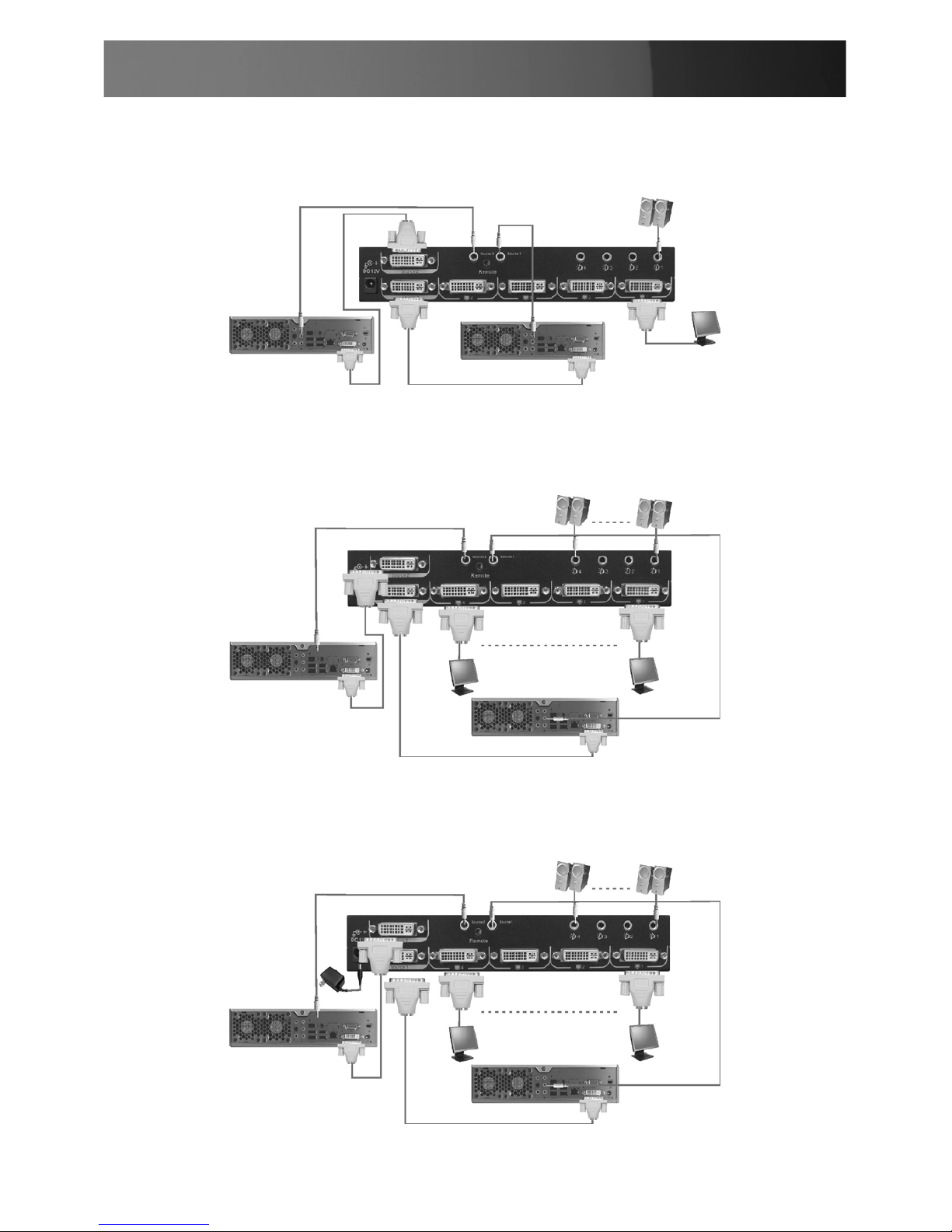

Step 1
Connect the DVI video port of the computer to the Source 1 port of the
Video Matrix as shown.

Instruction Manual
3
Step 2
Connect the speaker port of the computer to the Audio port of Source 1
as shown.
Step 3
Repeat Step 1 and 2 on Source 2, as shown.
Output Connection
Step 1
Connect your monitor to port 1 of the Video Matrix Switch, as shown

Instruction Manual
4
Step 2
Connect a pair of speakers to port 1 of the Video Matrix Switch, as
shown.
Step 3
Repeat Step 1 and 2 on the audio and video output channels for port 2, if
necessary.
Step 4
Apply power to the Video Matrix Switch as shown.

Instruction Manual
5
Basic Operations
Front Panel Operation
Once the unit has been powered on, all 4 red LEDs should be illuminated.
Due to the factory default settings, if all 4 red LEDs are blinking, source
1 is empty. When all 4 LEDs are always ON then a video signal has been
detected at source 1.
Setting Monitor Routes
Route Source 1 or 2 to Monitors 1 through 4 Respectively
Step 1
Press the desired port, for example “4.”
Step 2
LEDs 1 and 2 should now be blinking.
1 represents Source 1.•
2 represents Source 2.•
Green means the video signal has been detected.•
Red means no video signal has been detected.•

Instruction Manual
6
Step 3
Press 1 or 2 within 3 seconds to select Source 1 or Source 2. After select-
ing, LED 4 will become either red or orange.
Red means Source 1 is selected.•
Orange means Source 2 is selected.•
Step 4
Repeat Step 1 through 3 to route other ports.
Remote Control Operation
Using the included external sensor, the user has two methods of achiev-
ing remote control of the unit within a range of 5 meters. Without the
external sensor connected to the unit, the remote control communicates
with the internal sensor. Conversely, when the external sensor is con-
nected to the unit, the internal sensor is disabled. Remote controlling is
achieved through communication between the remote and the external
sensor.

Instruction Manual
7
Setting Monitor Routes
Route Source 1 or 2 to Monitors 1 through 4 respectively
Step 1
Press the desired port (ie. 4).
Step 2
Press S1 or S2 to route Source 1 or Source 2 to Monitor 4.
Step 3
Repeat Step 1 and 2 to route other ports.
Optional: If you would like to turn the video or audio ports ON or OFF,
you may do so by pressing the video and audio buttons.

Instruction Manual
8
Advanced Operations
Front Panel Operation
Turn the Video ON/OFF
Step 1
Press the desired port (ie. 2).
Step 2
Press and hold “Option” and the LED light 1 will light up. If the LED light is
green it means the video output device is powered on. If it is red, then the
monitor is powerd off.
Step 3
Press 1 to turn off Monitor 2.
Step 4
If necessary, repeat these steps to turn on Monitor 2.

Instruction Manual
9
Turn the Audio ON/OFF
Step 1
Press the desired port (ie. 1).
Step 2
Press and hold “Option” and the LED light 2 will light up. If the LED light is
green, it means the audio output is powered on. If it is red, then the audio
output is powered off.
Step 3
Press 2 to turn off the audio of Monitor 1.
Step 4
If necessary repeat Step 1 through Step 3 to turn on the audio of Monitor
1.

Instruction Manual
10
Turn ON/OFF the Auto Scan
In the auto scan mode, the Video Matrix Switch automatically swithces
between Source 1 and Source 2 sequentially for a particular monitor.
Step 1
Press the desired port (ie. 4).
Step 2
Press and hold Option.
Step 3
Press 3 to turn on the auto scan mode for Monitor 4.
Step 4
If necessary, repeat Step 1 through Step 3 to turn off the auto scan mode
for Monitor 4.

Instruction Manual
11
Set the Auto Scan Time Interval
Step 1
Press 3 and 4 at the same time.
Step 2
All four LEDs should be blinking. Press one to set the auto scan time
interval.
1 represents 8 seconds•
2 represents 15 seconds•
3 represents 30 seconds•
4 represents 45 seconds•
Reset the Unit to its Default Settings
Power off the Video Matrix Switch.1.
Press and hold Option.2.
Power on the Video Matrix Switch.3.
Press 1 to reset everything back to the default settings.4.

Instruction Manual
12
Unit Stack
This function allows the user to use one single remote control to com-
mand up to 16 Video Matrix Switch units.
Setting the Remote Controlling ID on the system
Power off the Video Matrix Switch1.
Press and hold 1 and 2 at the same time.2.
Power on the Video Matrix Switch.3.
Release 1 and 2.4.
Select any one of the 1 through 8 remote control buttons, 4 for exam5.
ple. This sets the current Video Matrix Switch remote controlling ID to
4.
To control the Video Matrix Switch, press Shift + 4 on the remote6.
control. The unit with the remote controlling ID of 4 will beep twice, and
its LED will blink continuously.
Repeat Steps 1 through 5 if there is more than one Video Matrix Switch7.
unit being cascaded. Note that each unit must be assigned a different
remote controlling ID, otherwise each will receive remote control com
mands simultaneously.

Instruction Manual
13
Optimize the Video Signal Strength
The optimal video signal strength can be adjusted to correspond to the
length and quality of the DVI cables being used. Each monitor has two
different video strength settings.
For example, were the user to change the video strength setting of
Source 2 for Monitor 3, the necessary steps would be:
Switch Monitor 3 to Source 2 (Refer to Basic Operations for details).1.
Press the desired port (ie. 3).2.
Press and hold Option.3.
Press 4 to turn on the video signal strength setting mode for Monitor 3.4.
Press 1 once or twice to adjust the input video strength of the selected5.
port. The colour of the LED will indicate the strength of the video signal.
If it is green, the normal strenght is in use. Red indicates the use of the
enhanced strength feature.
OR
Press 3 once or twoce to adjust the output current of the selected
port. The colour of the LED will indicate the output current. If it
is green, the normal current is in use, while red indicates the use of the
enhanced current.
OR
Press 4 one, two, three, or four times to adjust the output emphasis of
the selected port. The colour of the LED will indicate the output em-
phasis. If it is green, there is no pre-emphasis, yellow, low pre-empha-
sis, orange, medium pre-emphasis, or red for high pre-emphasis.
Once the setting is finished, press Option to exit the settings mode.6.

Instruction Manual
14
Rackmount Kit (Optional)
The following figure shows how to properly attach the optional mounting
brackets to the Video Matrix Switch unit, for use with an industrial stan-
dard, 19-inch rack cabinet.

Instruction Manual
15
Specications
Specifications VS420RDVIA
Number of Video Source Ports 2
Number of Monitor Ports 4
Video Type DVI
Remote Control Yes
Remote Control Extender Jack Yes
Push-Button Control 5
LEDs 5
Hot-Plug & Play Yes
Rack-Mounted 19” industry standard
Automatic Scan interval 8, 15, 30, 45 seconds
DVI Cable Length (Max) 5m
Video Resolution (Max) 1600 x 1200
Monitor Connector DVI female x 4
H x W x D (mm)
(Inches)
41 x 220 x 97
1.6 x 8.66 x 3.8
Weight (g) 744
Operating Temperature 5~40 degrees C
Storage Temperature -20~60 degrees C
Humidity 0~80%RH
Rear-Mount Brackets 1U height, included
Size 1U
Power Supply (min) External Power Adapter, 12V DC,
1.5A

Instruction Manual
16
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commit-
ment to provide industry-leading solutions. If you ever need help with your
product, visit www.startech.com/support and access our comprehensive
selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty. In addition, StarTech.
com warrants its products against defects in materials and workman-
ship for the periods noted, following the initial date of purchase. During
this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor
costs only. StarTech.com does not warrant its products from defects or
damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or
exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-find easy” since 1985,
providing high quality solutions to a diverse IT and A/V customer
base that spans many channels, including government, education
and industrial facilities to name just a few. We offer an unmatched
selection of computer parts, cables, A/V products, KVM and Serv-
er Management solutions, serving a worldwide market through our
locations in the United States, Canada, the United Kingdom and
Taiwan.
Visit www.startech.com today for complete information about all
our products and to access exclusive interactive tools such as the
Cable Finder, Parts Finder and the KVM Reference Guide.
